Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock

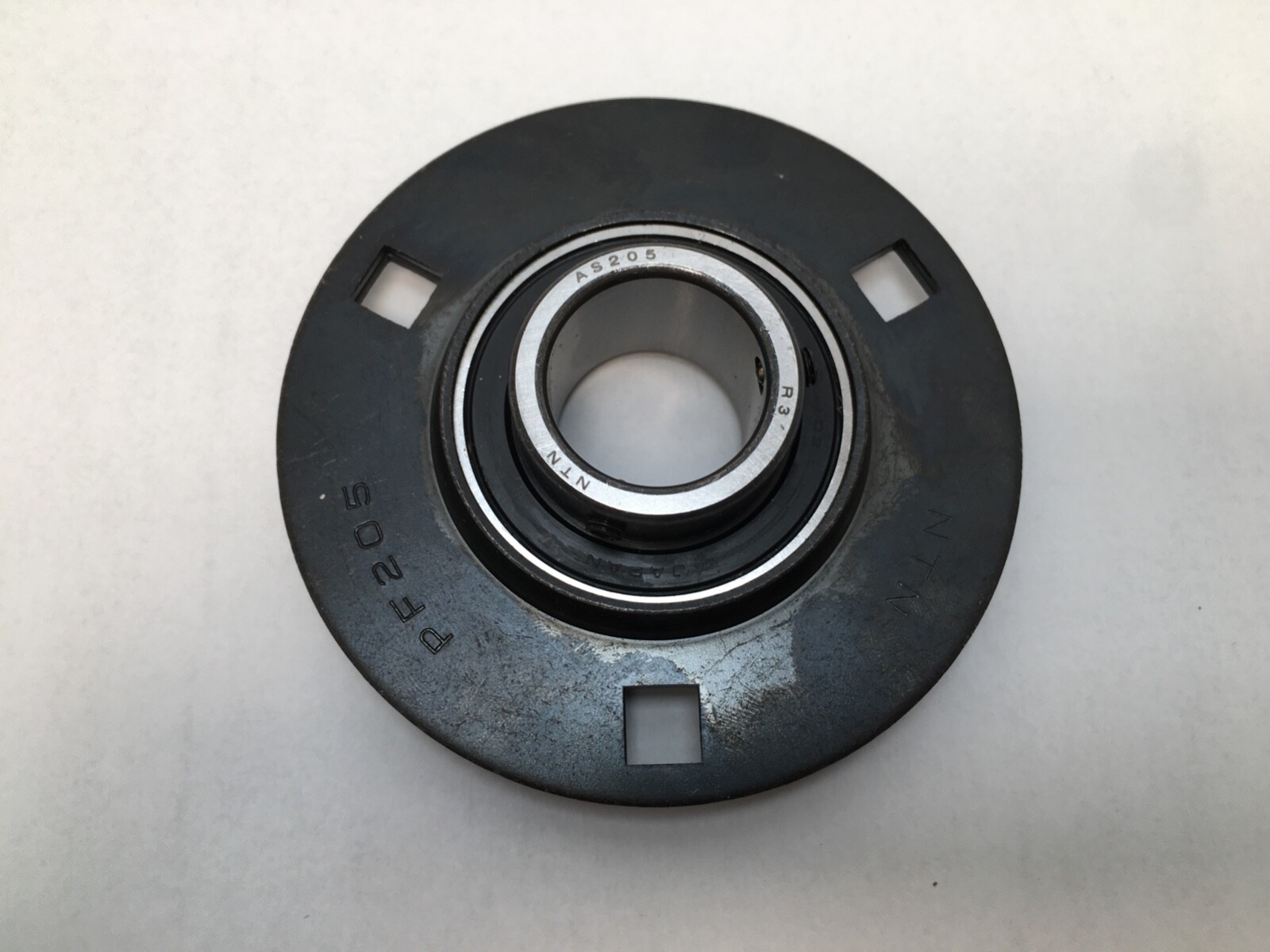

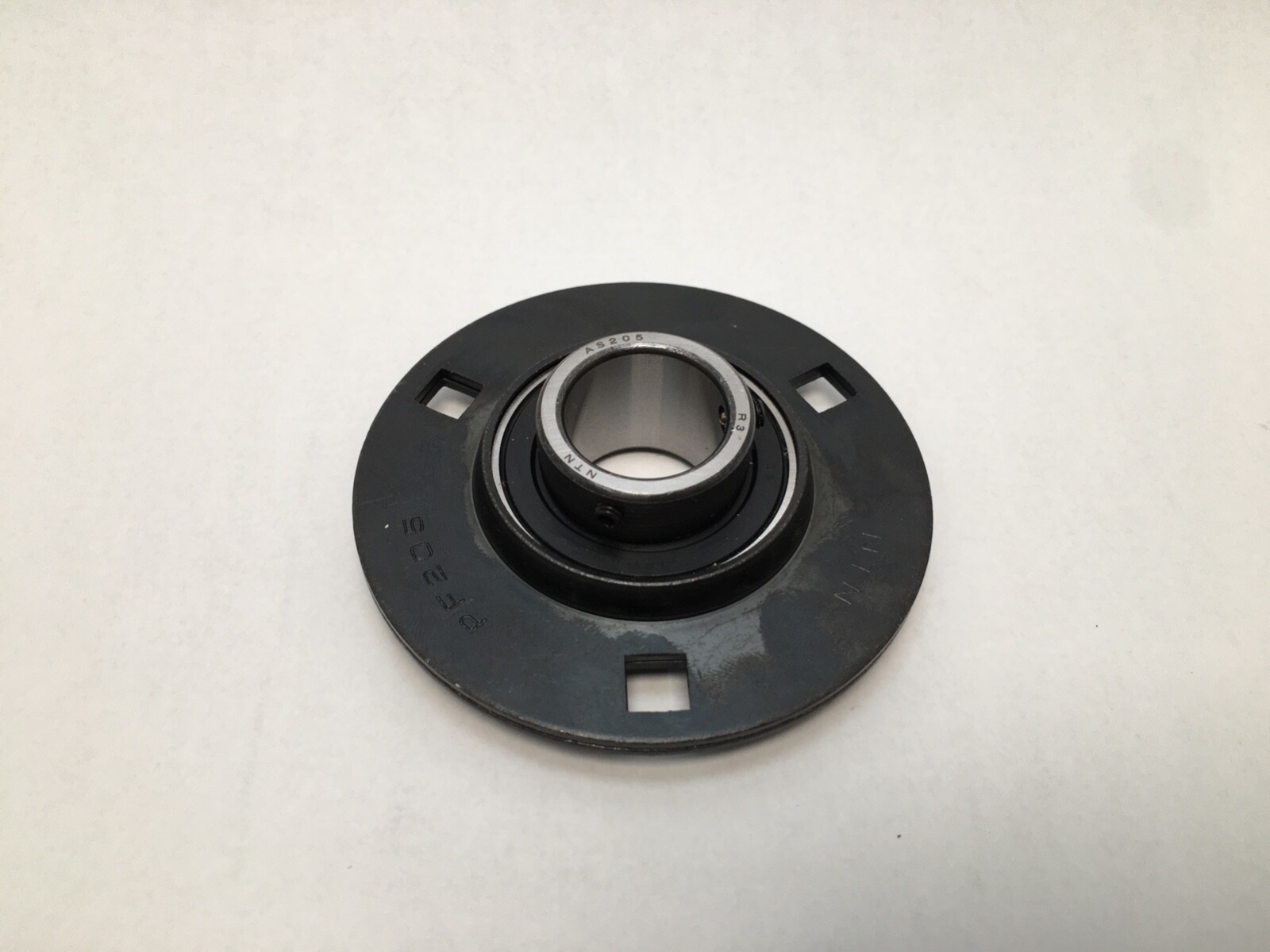

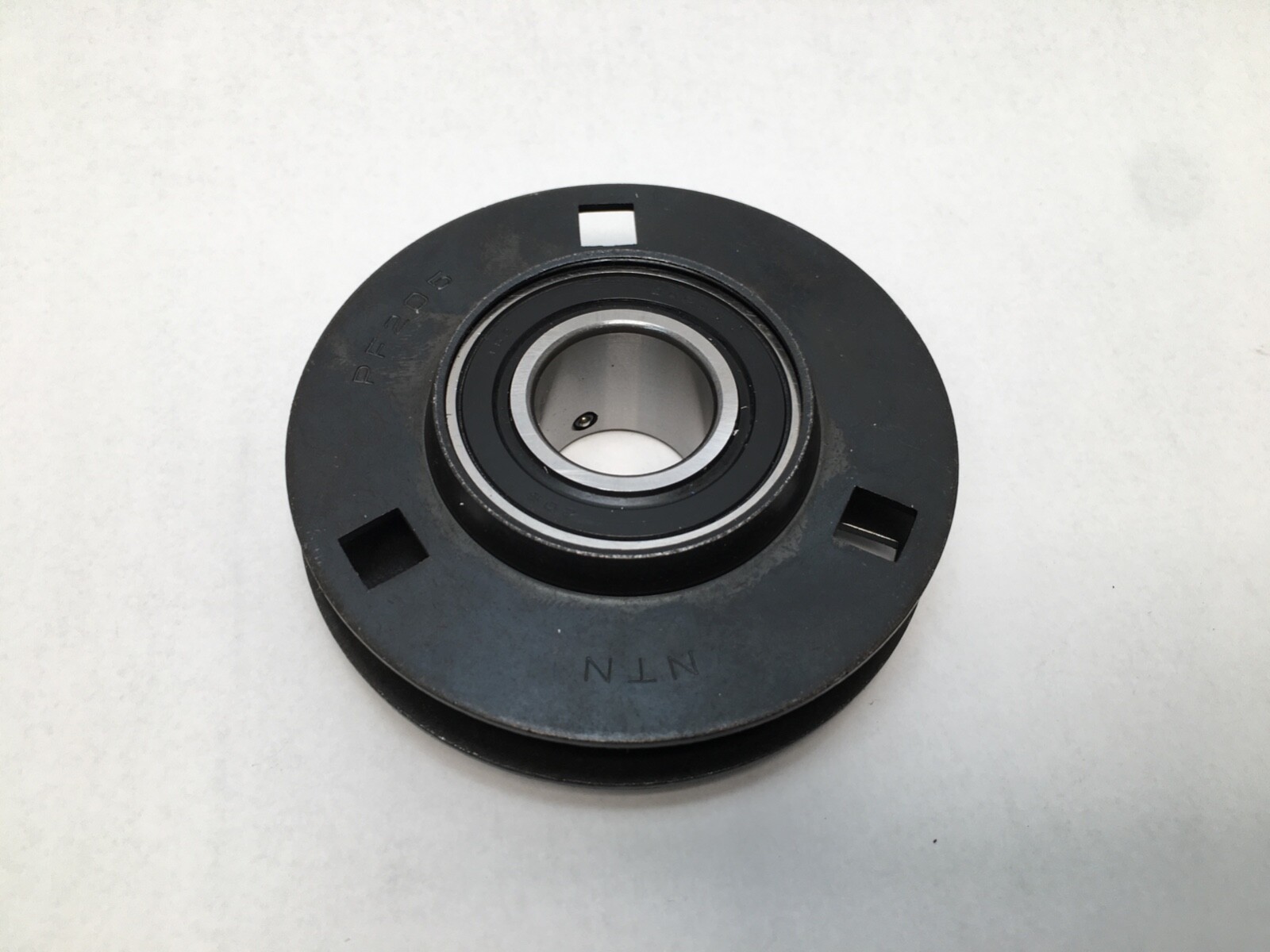

Three-bolt pressed steel flange unit, 25 mm bore, set screw locking. AS205 insert in PF205 round housing, contact seals, 14,000 N dynamic rating.
List Price
$29.56
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| MPN | ASPF205 |
| Model | AS PF205 AS205 |
| ID | 25 mm |
| Series | ASPF |
|---|---|
| Type | Flanged Mount Bearing |
| Lubricant | Grease |
| Material | Pressed Steel |
| Number Of Bolt Holes | 3 |
| Number Of Bolt Holes For Fasteners | 3 |
| Mpn Variants | ASPF205, AS PF205, AS205 PF205, ASPF 205 |
| Precision Class | ABEC 1 / P0 |
| Additional Attributes | Insert AS205; Housing PF205; H 52.0 mm; J 76.0 mm; A 18.0 mm; A1 4.0 mm; N 9.0 mm; B 27.0 mm; S 7.5 mm; H1 60.0 mm |
| Dynamic Load Rating | 14,000 N |
| Static Load Rating | 7,850 N |
| Rolling Elements | Ball |
| Bearing Type | 3-Bolt Flange Unit |
| Cage Material | Pressed steel |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 5,900 rpm grease |
| Internal Clearance | CN |
| Duty Type | Light Duty |
| Locking Device | Set Screw |
| Relubrication Feature | No |
| Harmonization Code | 8482.1 |
| Housing Material | Pressed Steel |
| Expansion Type | Non-Expansion |
NTN ASPF205 three-bolt round flange bearing unit with a pressed steel housing. Bore Diameter: 25 mm. Bearing Insert: AS205. Housing: PF205. Housing Material: Pressed steel. Number Of Bolt Holes: 3. Locking Device: Set Screw. Seal Type: Contact seals both sides. Rolling Elements: Ball. Duty Type: Light Duty.
AS — narrow inner ring insert, set screw locking.
PF — flanged unit, pressed steel, three-bolt round housing.
2 — light series.
05 — 25 mm bore.

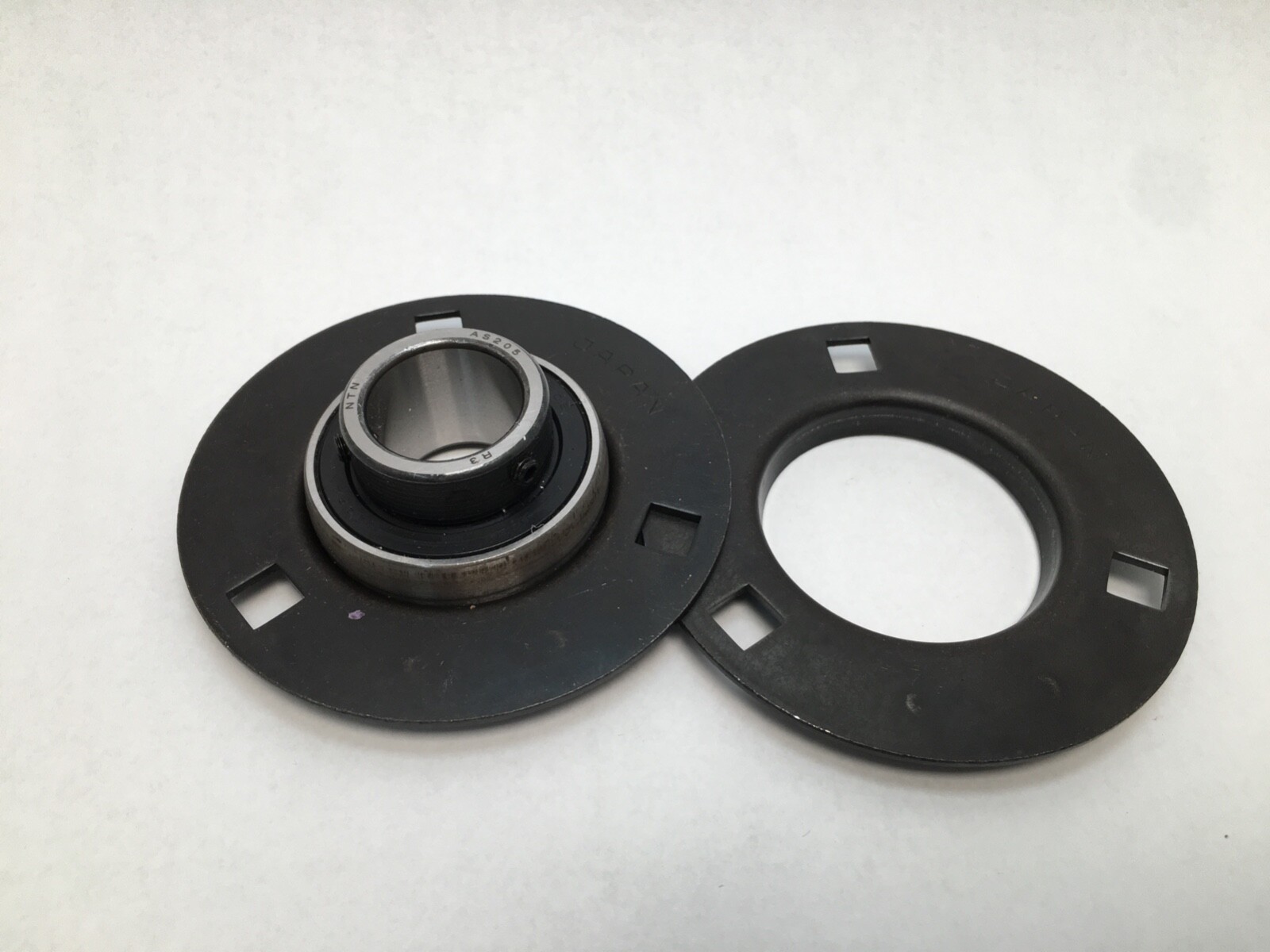

Dynamic Load Rating: 14,000 N. Static Load Rating: 7,850 N. Limiting Speed: 5,900 rpm grease. Internal Clearance: CN. Precision Class: ABEC 1 / P0. Cage Material: Pressed steel. Relubrication Feature: No. The two-piece pressed steel housing is light and compact for conveyors, fans and light machinery. The insert is greased and sealed for life.
H: 52.0 mm. J: 76.0 mm. A: 18.0 mm. A1: 4.0 mm. N (bolt hole): 9.0 mm. B: 27.0 mm. S: 7.5 mm. H1: 60.0 mm. Outer Ring Width: 20.0 mm. Inner Ring Width: 29.0 mm.
Unit Quantity: 1 Pc. Complete unit: AS205 insert fitted in a PF205 housing.
