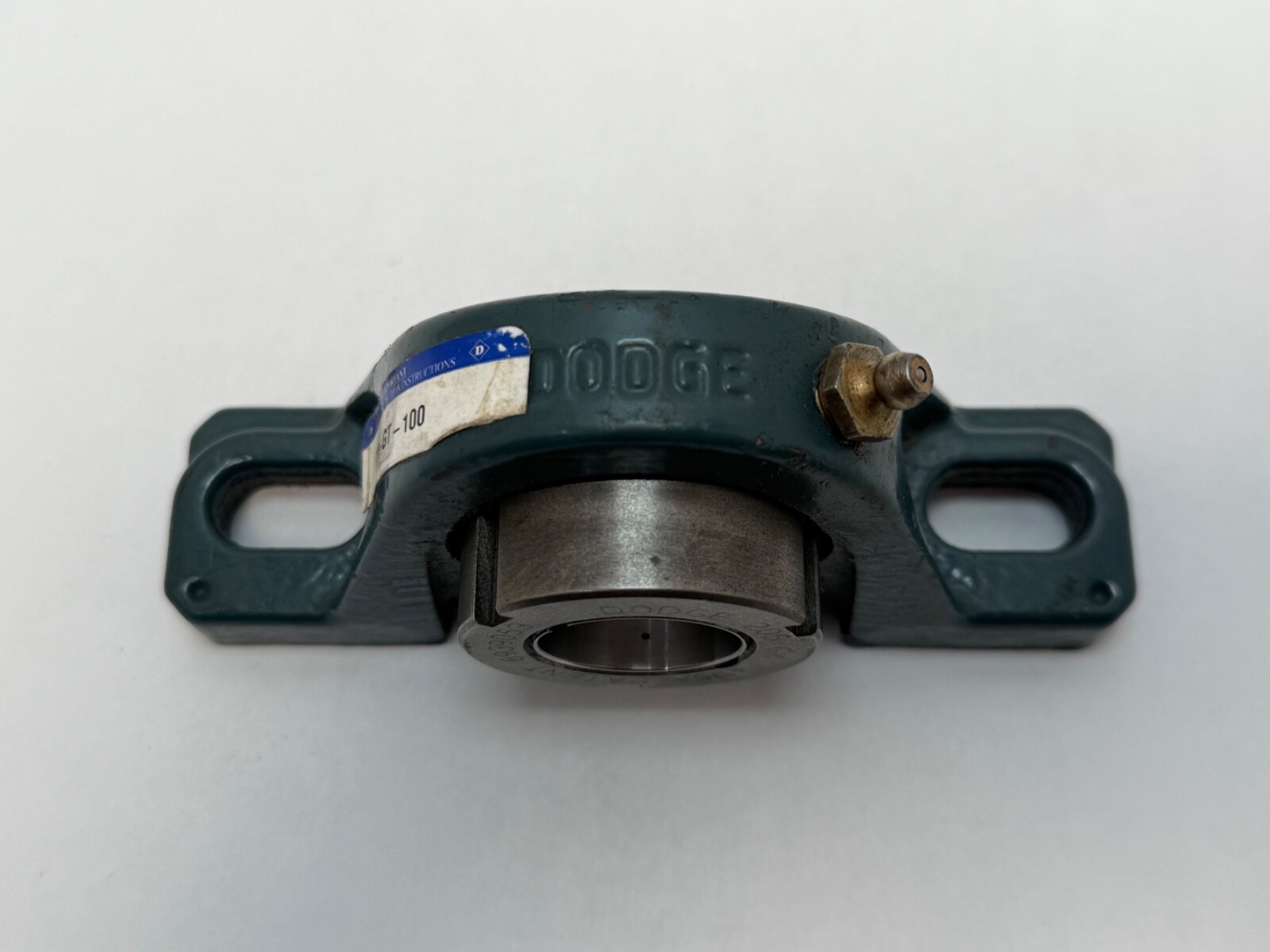

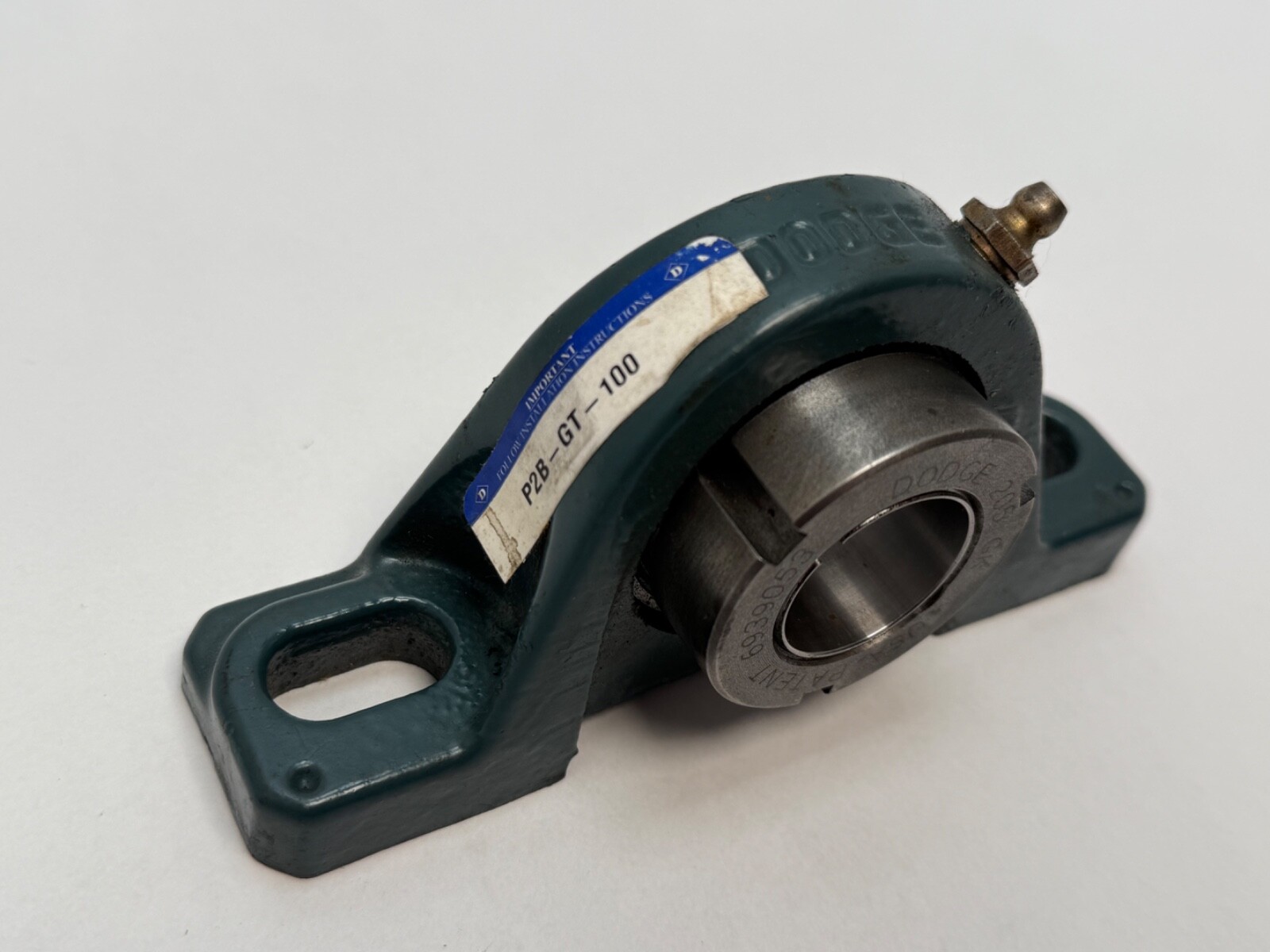

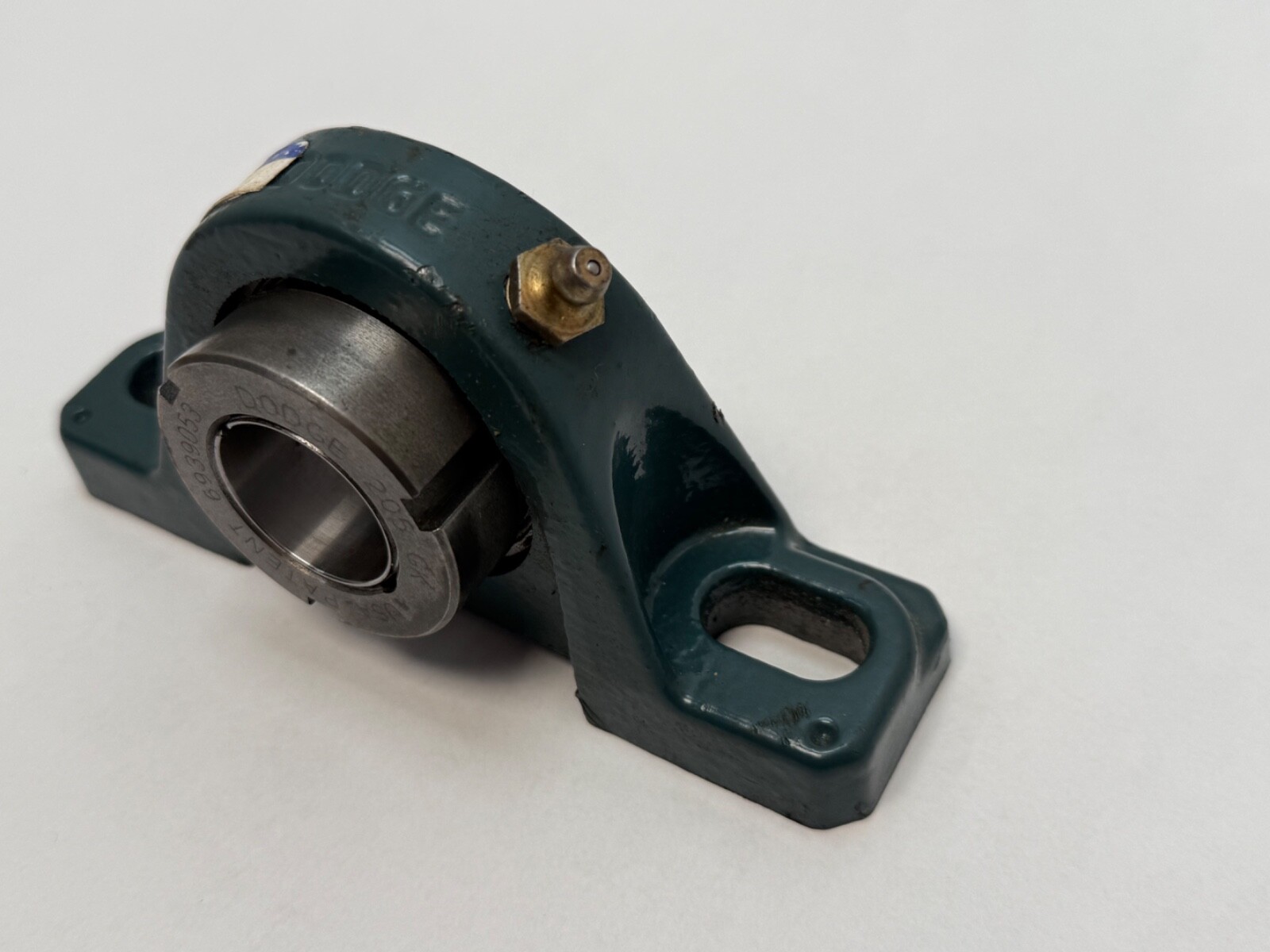

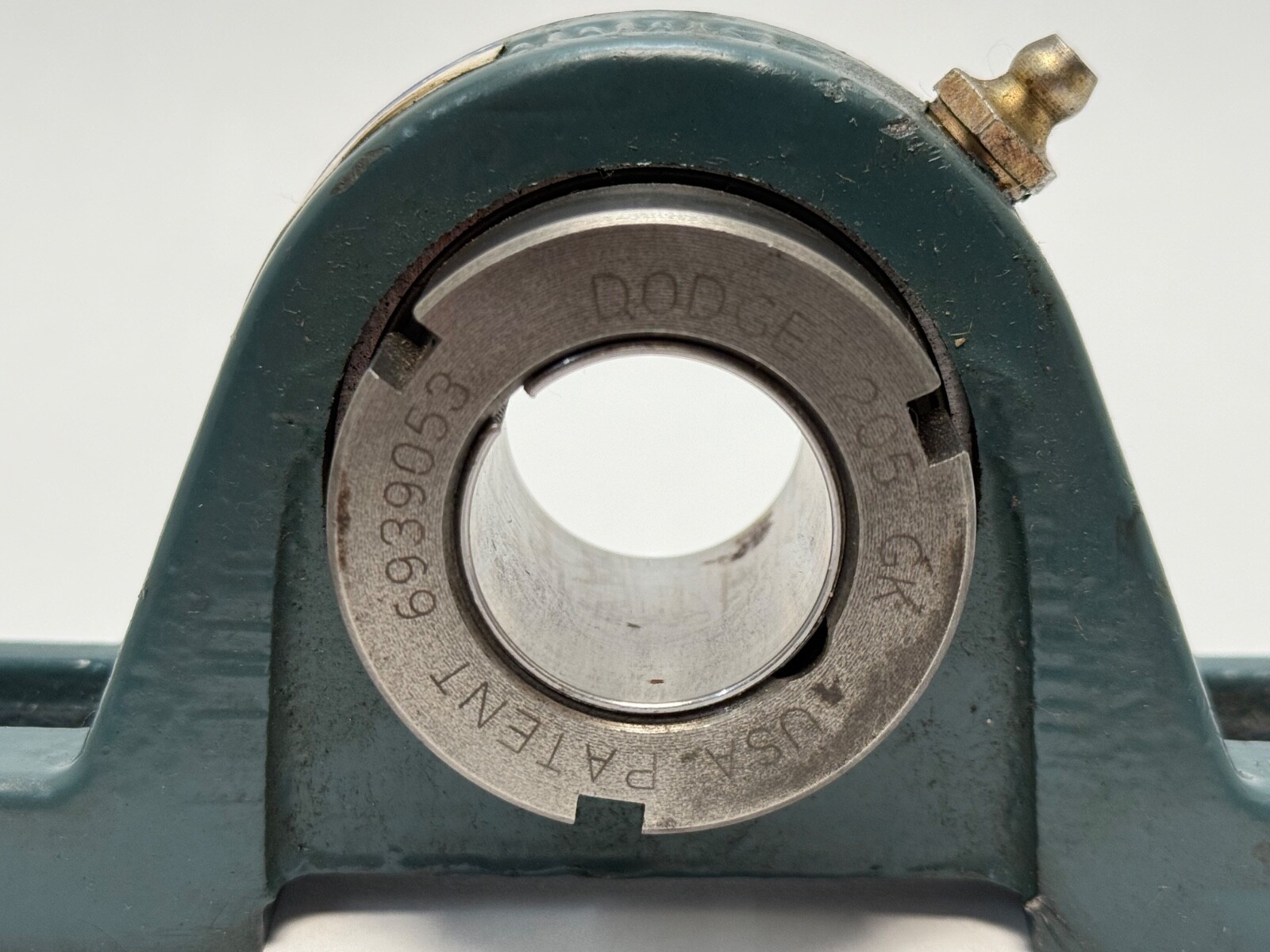

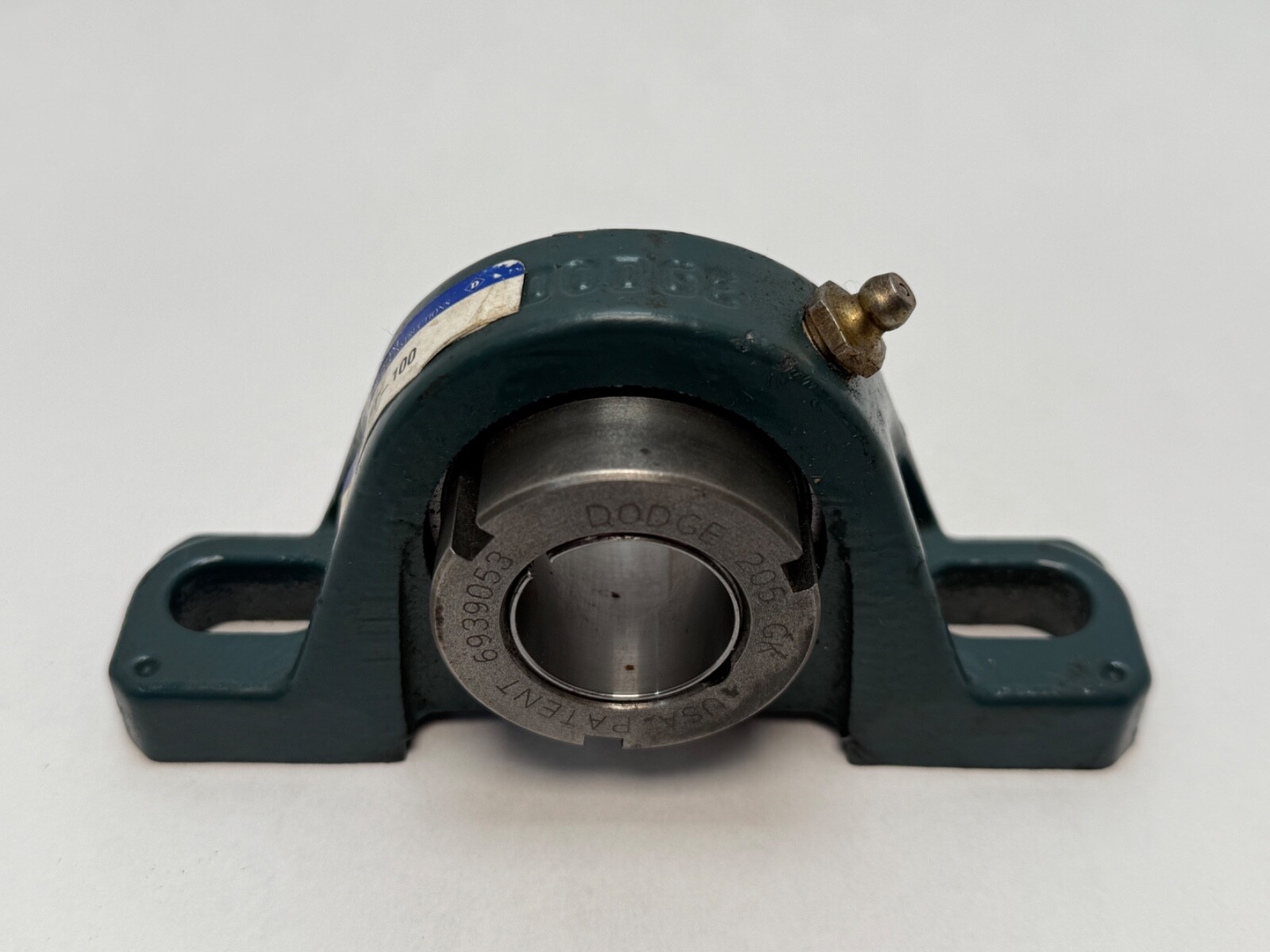

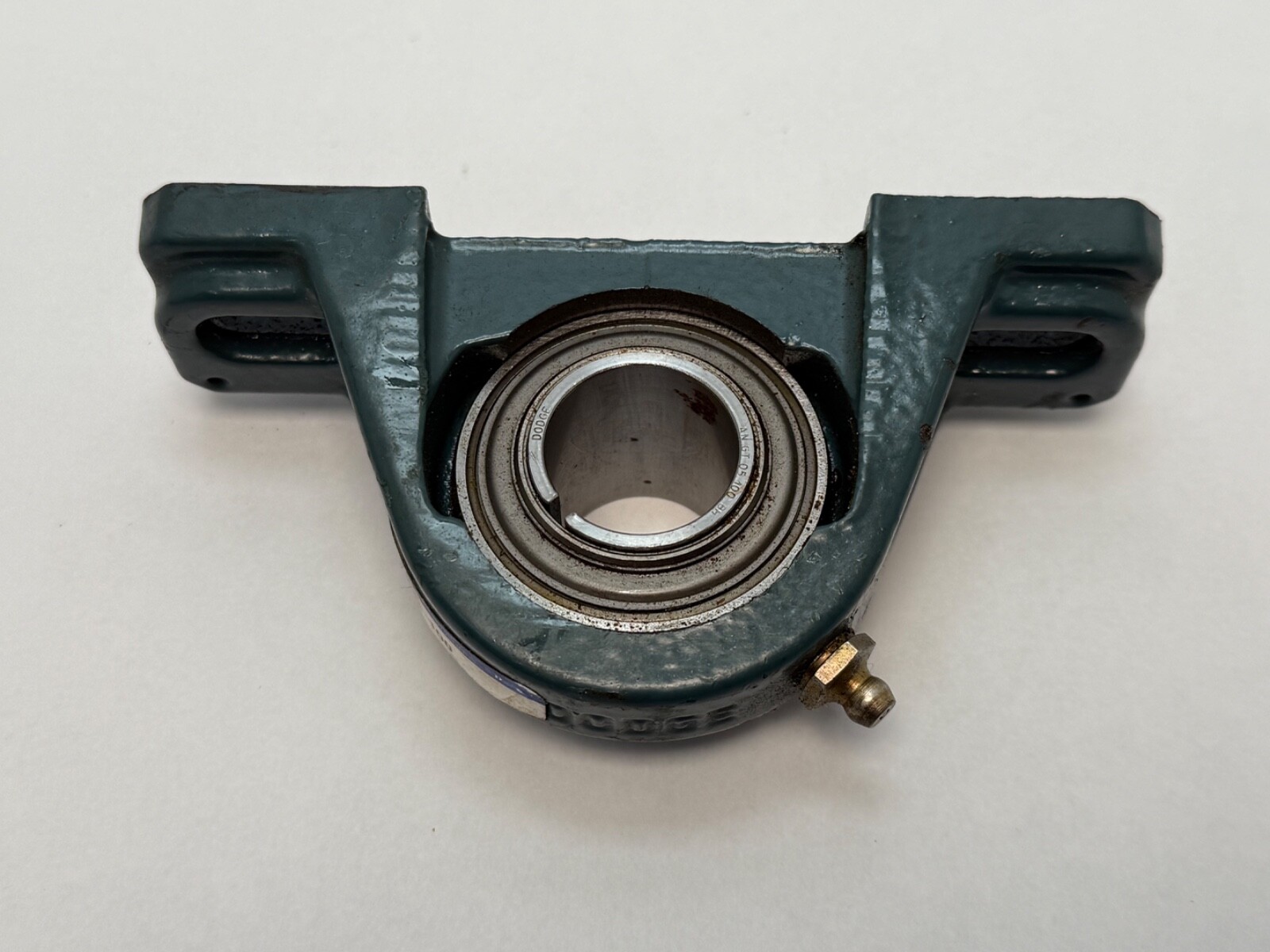

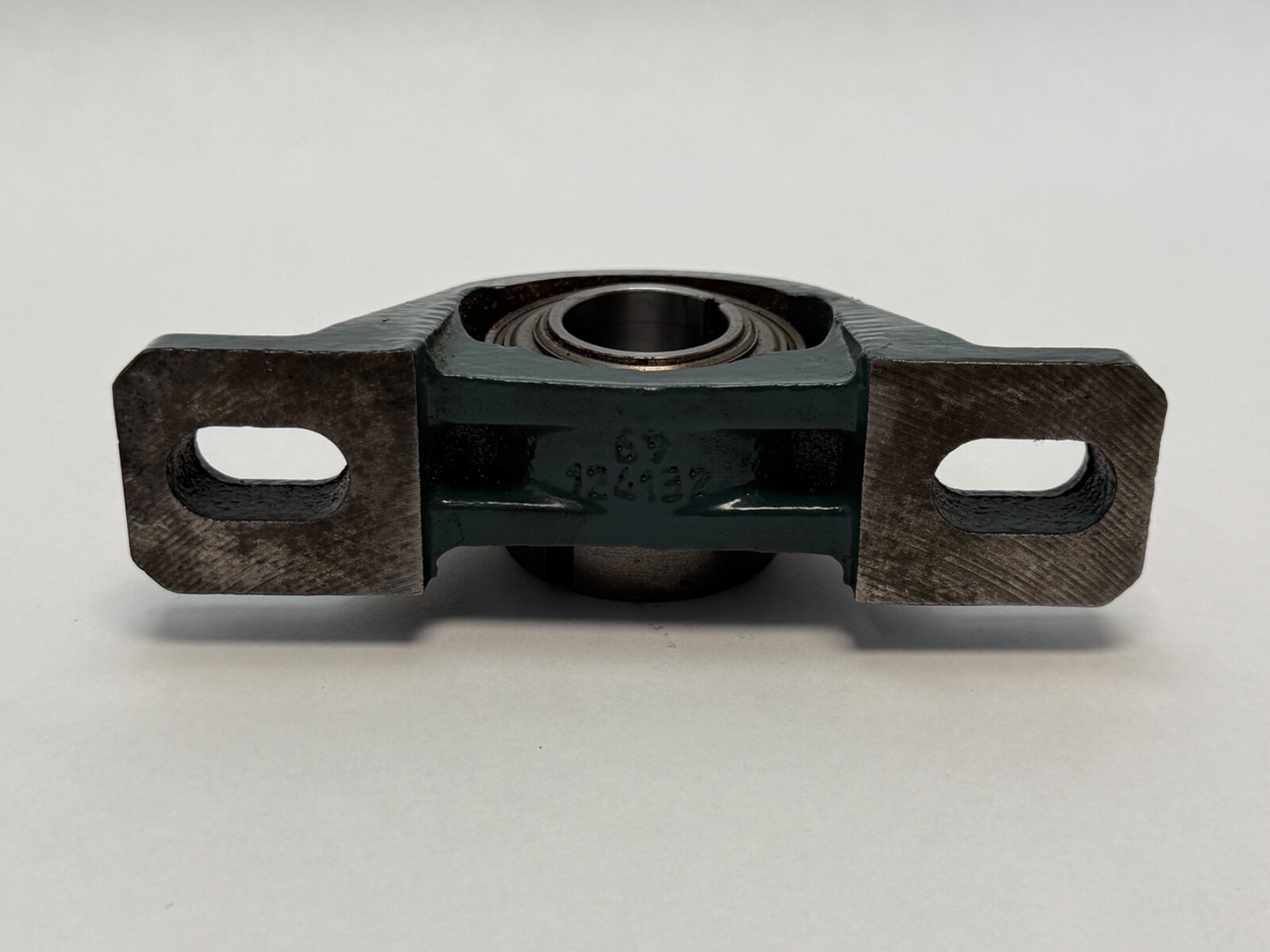

DODGEP2B-GT-100Pillow Block Bearing – 1.0 Bore, 2 bolt, Cast Iron housing, Standard Duty, Non-Expanding.

Product Description

Experience the reliability and precision of Dodge with the P2B-GT-100 Flange Mount Bearing, boasting a 1-inch bore diameter. Designed for durability, this bearing features a robust cast iron construction and a ball insert type that ensures smooth operation. The model 129157 is engineered to offer you a stable and secure mounting solution for various industrial applications. Proudly manufactured in the United States, this Dodge bearing, under the MPN P2B GT 100, is a testament to quality and performance. Its robust design is ideal for equipment requiring consistent functionality and longevity. Trust in the Dodge brand to provide you with a bearing that is both versatile and reliable for your mechanical needs.Key Features:Type: Pillow Block Ball Bearing UnitMounting: 2-Bolt BaseBore Diameter: 1 inch (25.4 mm)Locking Device: Grip-Tight® adapter mounted locking system, providing a concentric 360-degree grip on the shaft.Bearing Type: Ball BearingExpansion Type: Non-Expansion (Fixed)Seal Type: Single Lip Contact Seal (some sources mention DualGuard seals with flingers)Relubricatable: YesHousing Material: Cast IronInsert Material: SteelDuty: Normal DutySuitable for: General purpose applications.Specifications:Bore Shape: RoundBore Length: 1.453 inches (36.9 mm) to 1.46 inches (37.1 mm)Base to Bore Centerline: 1.438 inches (36.5 mm) to 1.44 inches (36.6 mm)Bolt Center-to-Center Length: 3.688 inches (93.7 mm) (minimum) to 4.5 inches (114.3 mm) (maximum), with a nominal of 4.1 inches (104.1 mm)Overall Length: 5-1/2 inches (139.7 mm)Overall Height: 2.77 inches (70.4 mm)Overall Width: 1.46 inches (37.1 mm)Base Width: 1-13/32 inches (35.7 mm) to 1.4 inches (35.6 mm)Mounting Bolts: 3/8 inchDynamic Load Capacity: 3146 lbf (14000 N approx.)Static Load Capacity: 1769 lbf (7870 N approx.)Maximum Speed: 9000 rpm to 12000 rpm (check specific product details)Weight: Approximately 1.9 lbs (0.86 kg) to 2.3 lbs (1.04 kg)Sensor Ready: Adapter RequiredCan’t Find Your Part? Click HERE to contact us! We can source any part, quickly. Choose your shipping speed; next-day and expedited options are available at checkout. International shipping available on all orders. Collect shipping accepted (UPS, FedEx, DHL, Freight). Competitive prices are guaranteed.
