Availability:
1 in stock

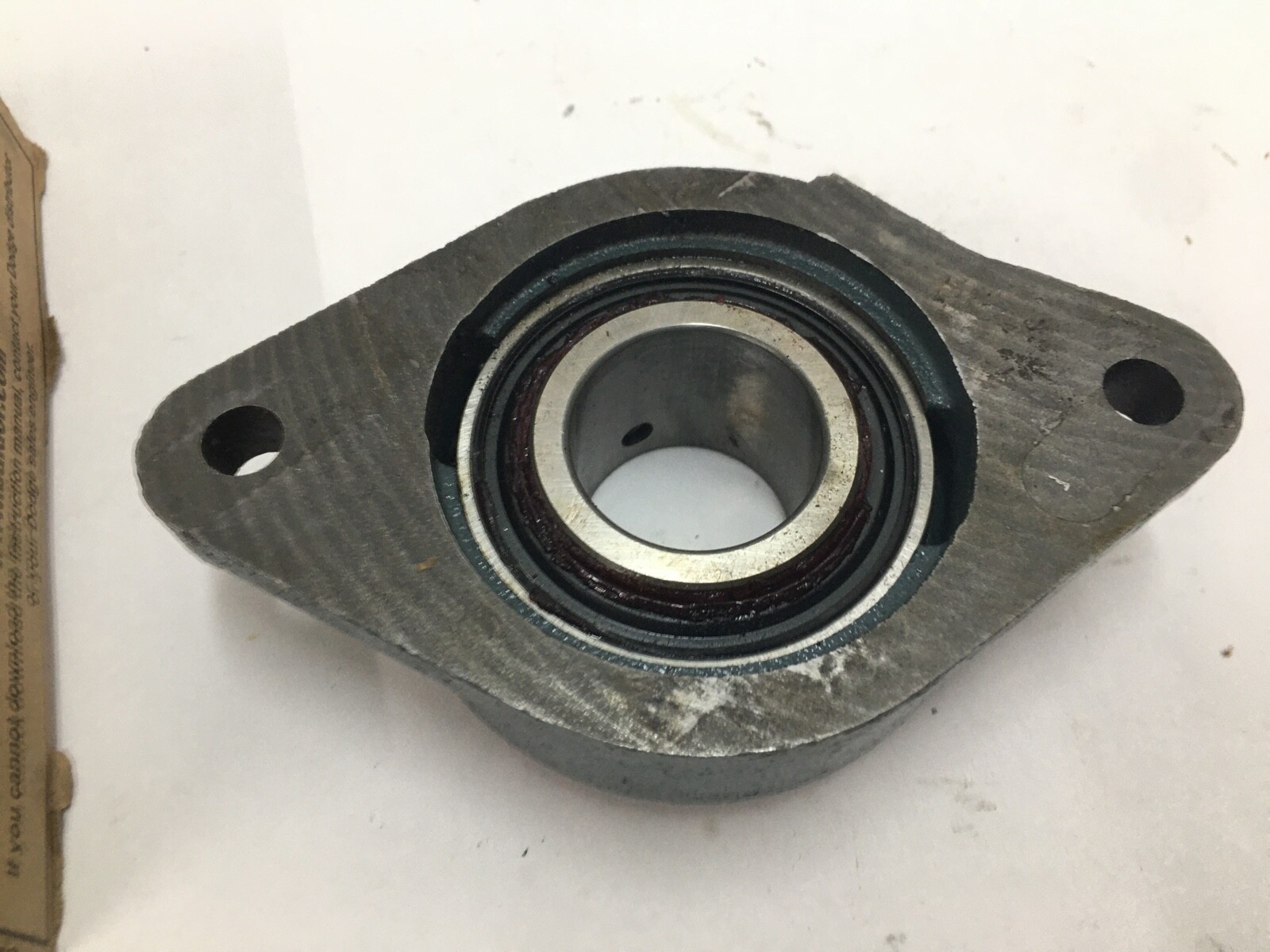

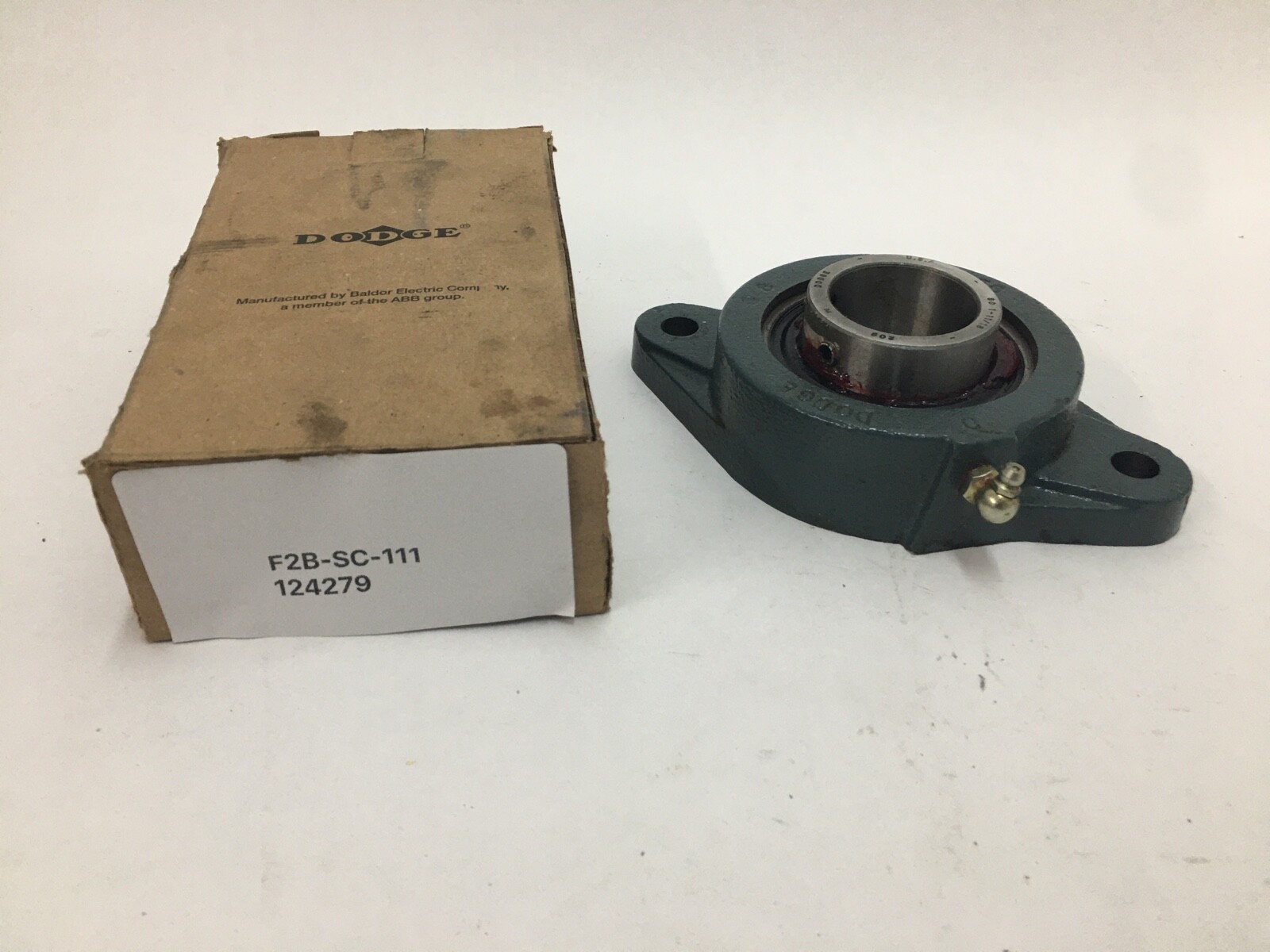

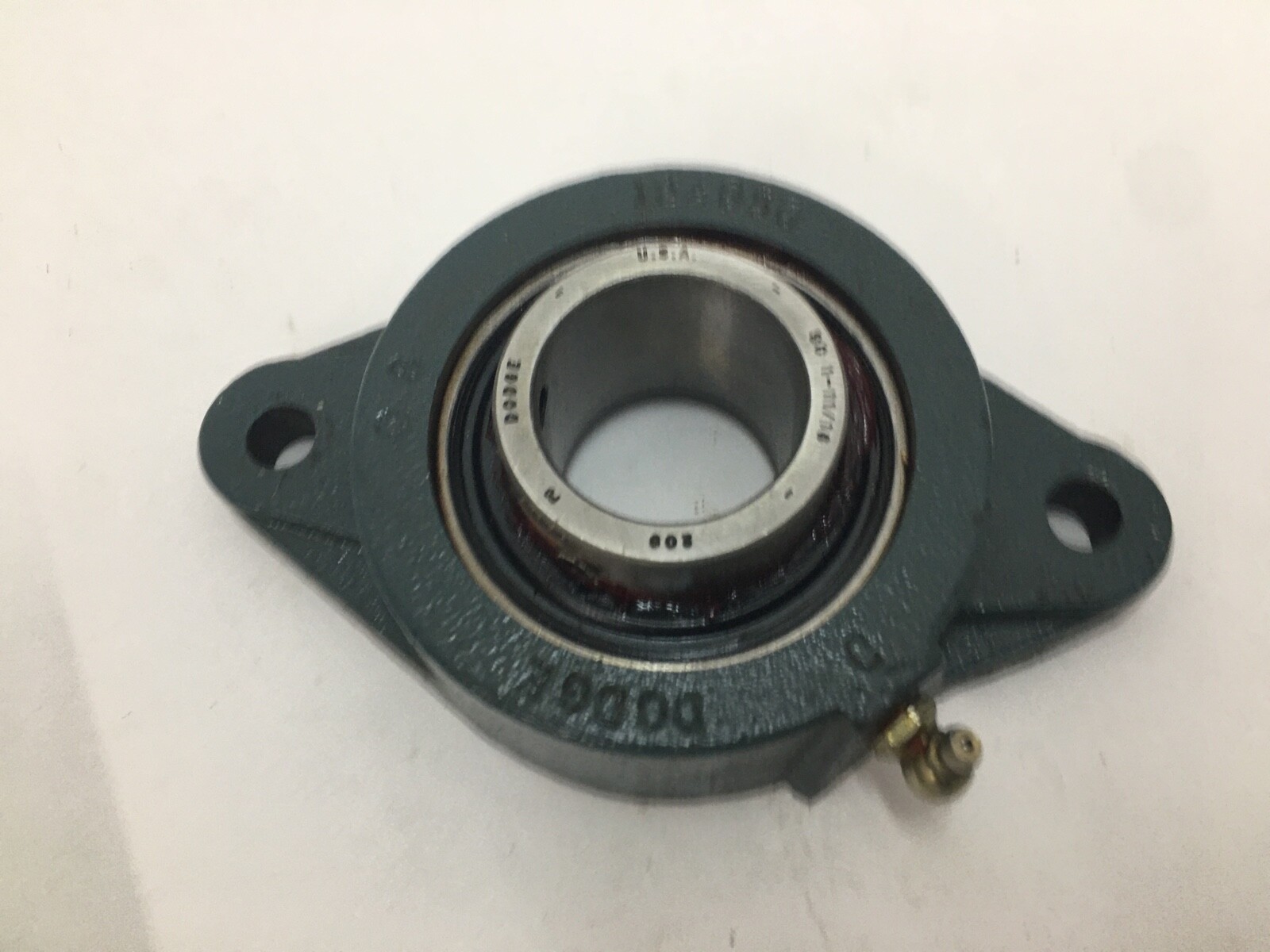

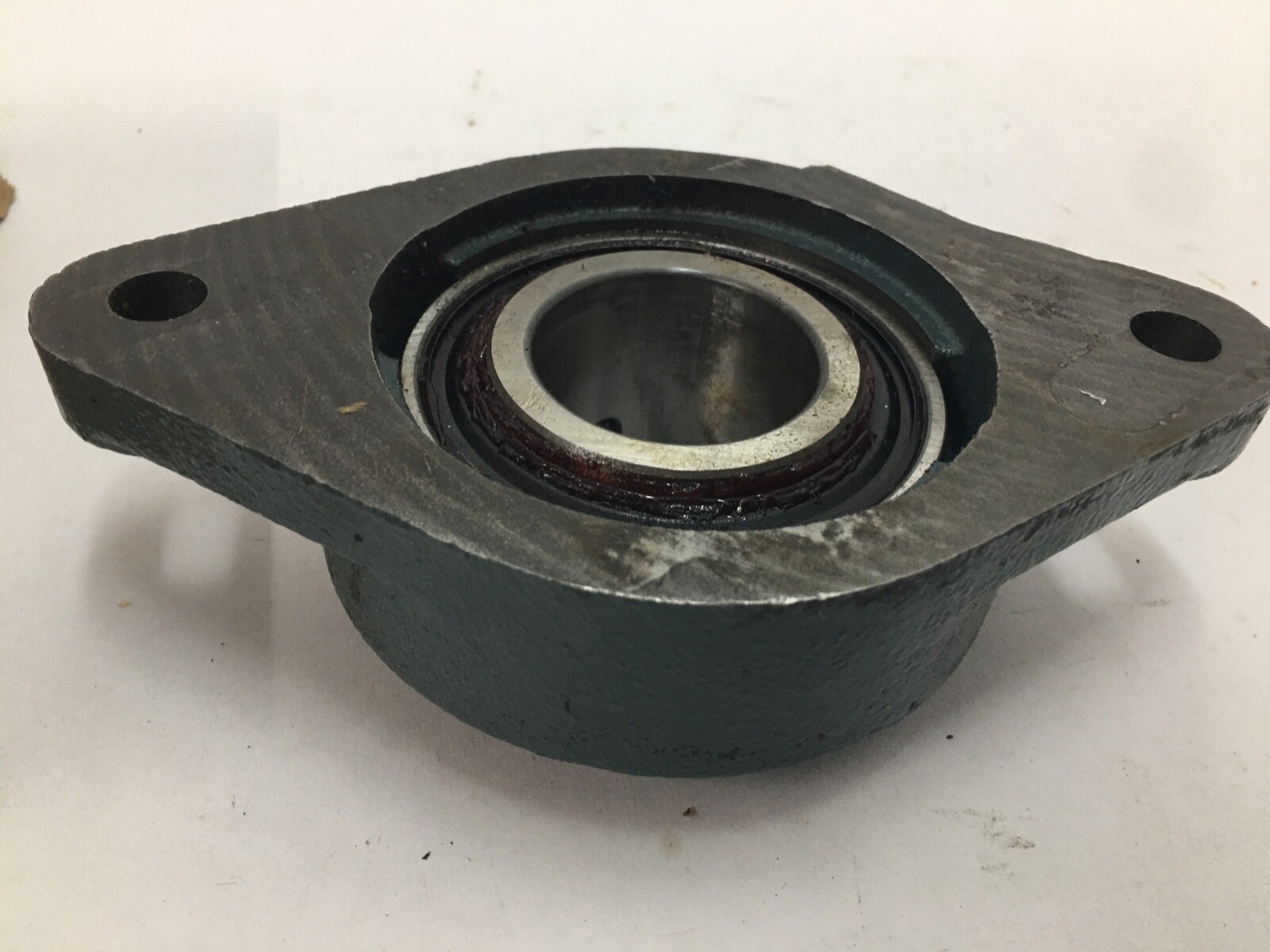

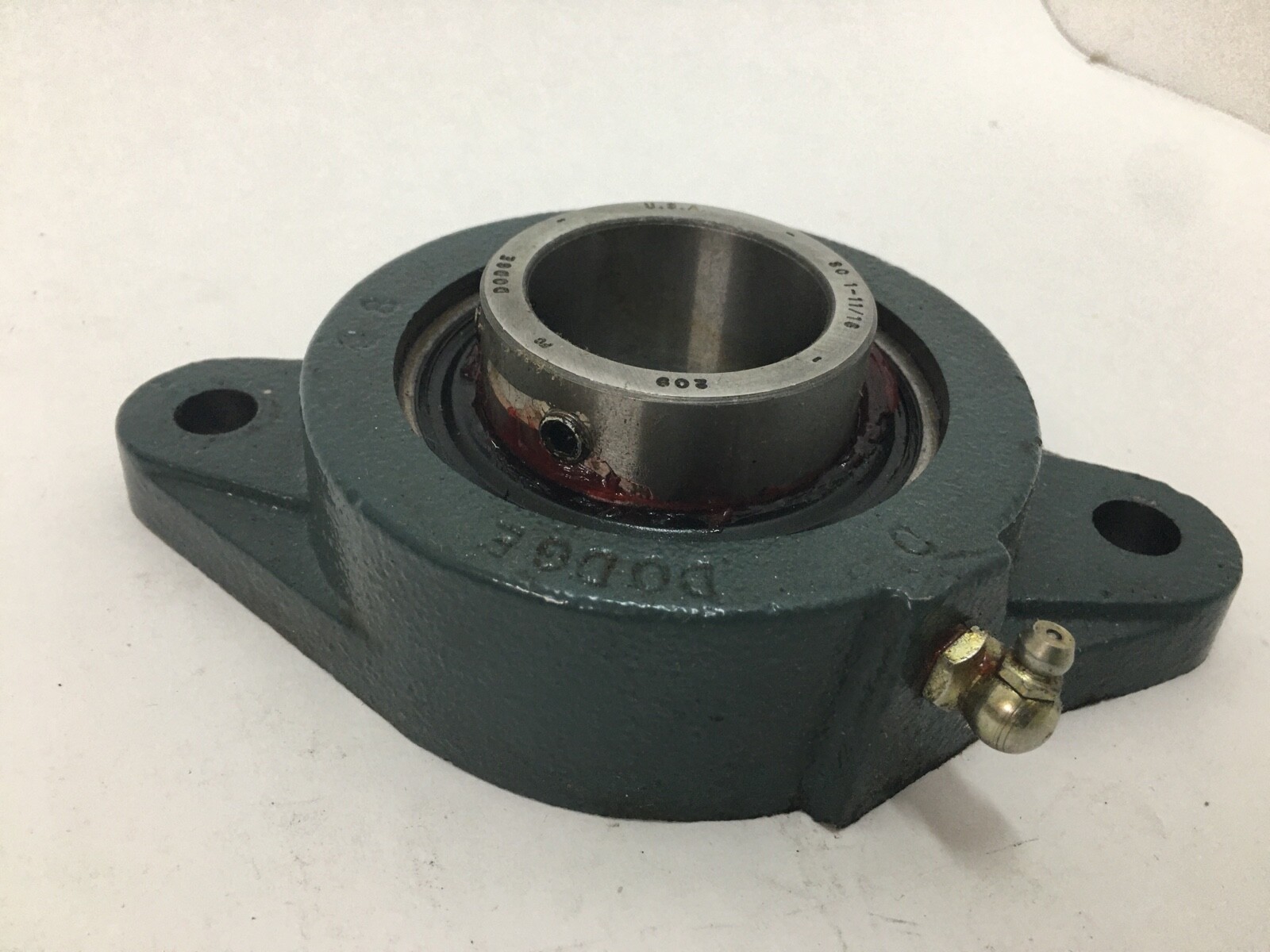

Dodge F2B-SC-111 two-bolt flange ball bearing unit, 1-11/16 in bore, 209 series insert, setscrew locking, 5.84 in bolt centres. Dodge catalogue number 124279.
List Price
$60.63
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Dodge |
|---|---|
| MPN | F2B-SC-111 |
| Model | F2B-SC-111 |
| ID | 1.6875 in |
| Series | 209 |
|---|---|
| Type | Flanged Mount Bearing |
| Material | Cast Iron |
| Number Of Flanges | 2 |
| Bolt Center To Center | 5.84 in |
| Number Of Bolt Holes | 2 |
| Bolt Center To Center Length | 5.84 in |
| Number Of Bolt Holes For Fasteners | 2 |
| Rolling Elements | Balls |
| Bearing Type | Two-bolt flange ball bearing unit |
| Item Weight | 1.99 kg (4.38 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Duty Type | Standard Duty |
| Locking Device | Setscrew, two setscrews at 65° |
| Insert Outer Ring | Spherical |
| Harmonization Code | 8483.20.40 |
| Housing Material | Cast iron |
| Expansion Type | Non-expansion (fixed) |
| Base Number | 209 |
| Industry Terms | flange bearing, 2-bolt flange unit, mounted ball bearing, setscrew bearing |
| Bore Shaft Size | 1-11/16 in (42.86 mm) |
| Housing Style | Two-bolt flange |
| Locking Method | Setscrew, two setscrews at 65° |
| Relubrication | Yes |
| Mpn Variants | 124279, F2BSC111, F2B SC 111, F2B-SC-111 |
| Dynamic Load Rating | 35,100 N (7,891 lbf) |
| Limiting Speed | 5,000 rpm |
The Dodge F2B-SC-111, catalogue number 124279, is a two-bolt flange mounted ball bearing unit from the Dodge SC setscrew line. Housing Style: Two-bolt flange. Bore / Shaft Size: 1-11/16 in (42.86 mm). Housing Material: Cast iron, powder coated.
F2B — two-bolt flange housing.
SC — Dodge setscrew-locked normal duty ball bearing insert.
111 — 1-11/16 in shaft size, carried on a 209 series insert.
Bearing Type: Normal duty ball bearing, 209 series. Locking Method: Two setscrews set 65° apart. Expansion Type: Non-expansion (fixed). Seal Type: DualGuard single lip seal, nitrile rubber, with flinger. Relubrication: Yes. Insert Outer Ring: Spherical. Dynamic Load Rating: 35,100 N (7,891 lbf). Limiting Speed: 5,000 rpm.
Bolt Center To Center Length: 5.84 in. Number Of Bolt Holes For Fasteners: 2. Overall Length: 7.06 in. Overall Height: 4.38 in. Overall Depth: 1.99 in. Item Weight: 1.99 kg (4.38 lb).
One complete flange unit: housing with factory-fitted insert.
Base Number: 209. Direct replacement for Dodge F2B-SC-111 / 124279.
