BrowningVF2S110Two-Bolt Flange Mount Bearing Unit – 5/8 in Bore, Cast Iron, Setscrew Lock, Intermediate Duty, 4 Pcs

Product Description

What this part is

Browning VF2S-110, an intermediate-duty two-bolt cast iron flange mount ball bearing unit. Housing Style: Two-bolt flange unit. Housing Material: Cast iron. Bore / Shaft Size: 5/8 in (0.625 in). Bore Type: Straight. Locking Method: Setscrew. Bolt Center To Center Length: 3.00 in. Number Of Bolt Holes For Fasteners: 2. Rolling Elements: Balls. Number Of Rows: 1. Insert Outer Ring: Cylindrical. Duty Type: Intermediate duty. Expansion Type: Non-expanding. Country of Origin: Mexico. GTIN: 662289521098.

Housing style and bolt pattern

Number Of Bolt Holes For Fasteners: 2. Bolt Center To Center Length: 3.00 in. Overall Height: 3-7/8 in. Overall Length: 2-1/8 in. Overall Depth: 1-5/64 in. The two mounting holes sit on a single 3 in centre line either side of the shaft, so the unit bolts to a vertical face or a machine end plate and carries the shaft perpendicular to that face.

Insert, seals and lubrication

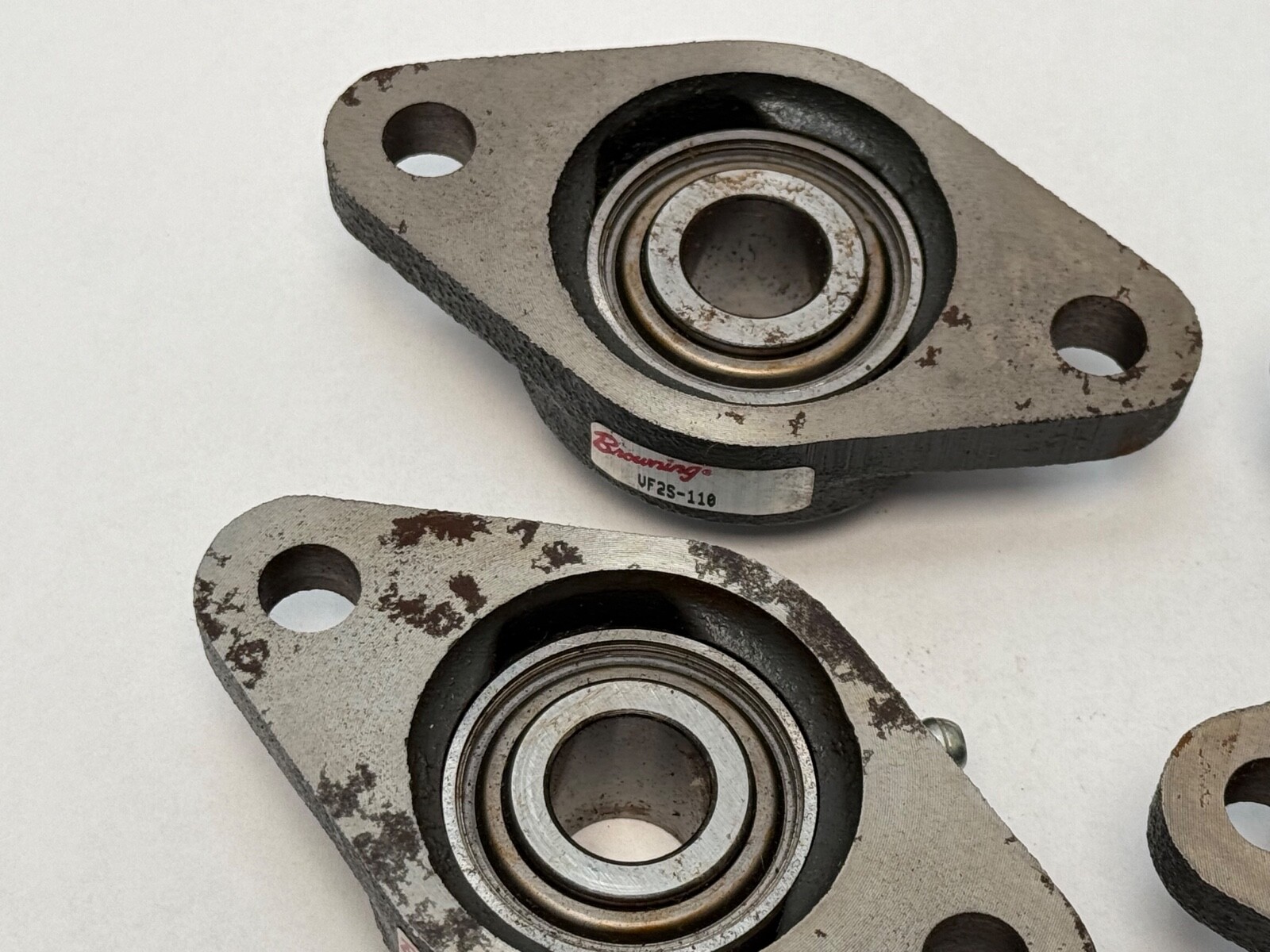

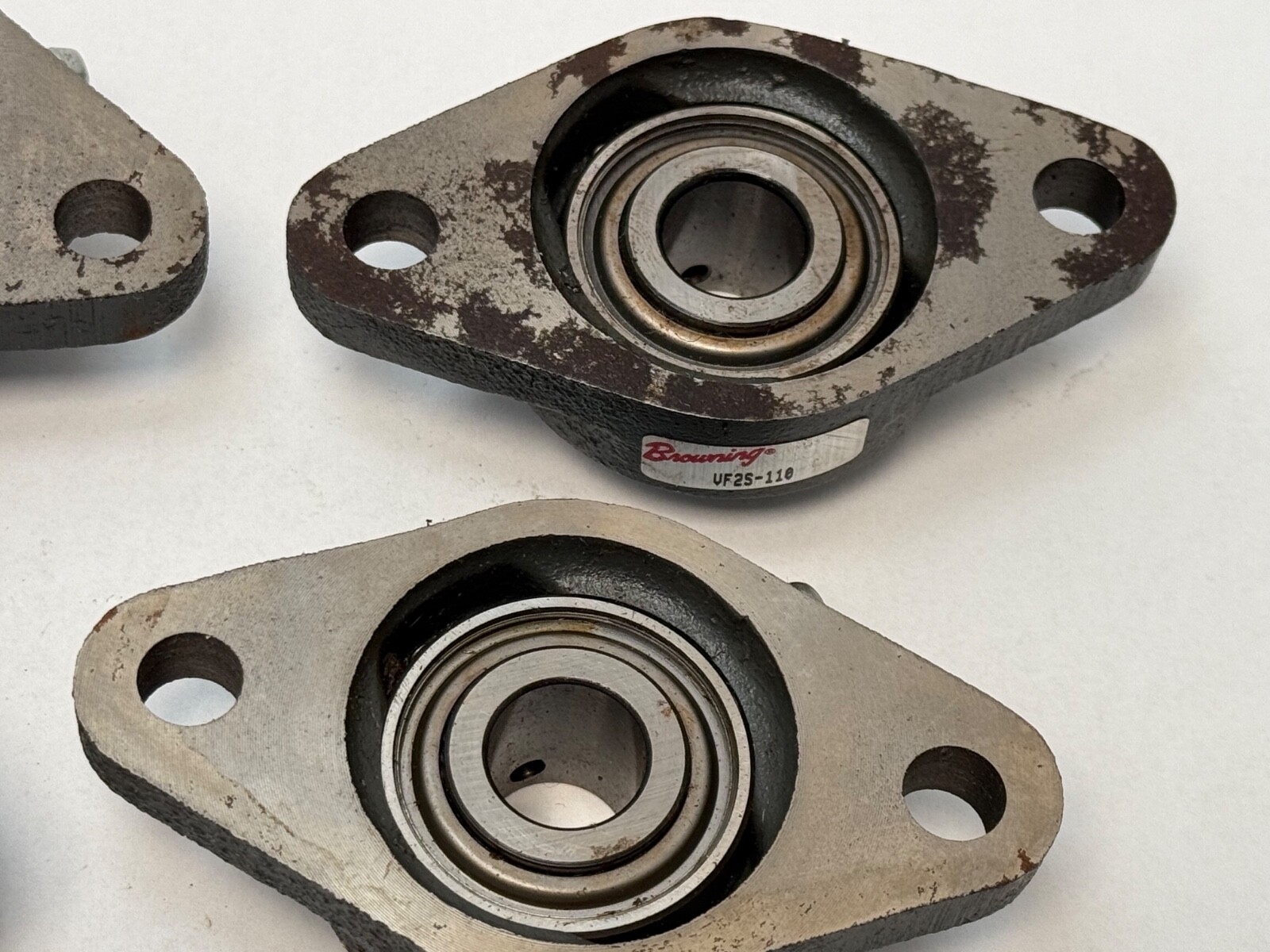

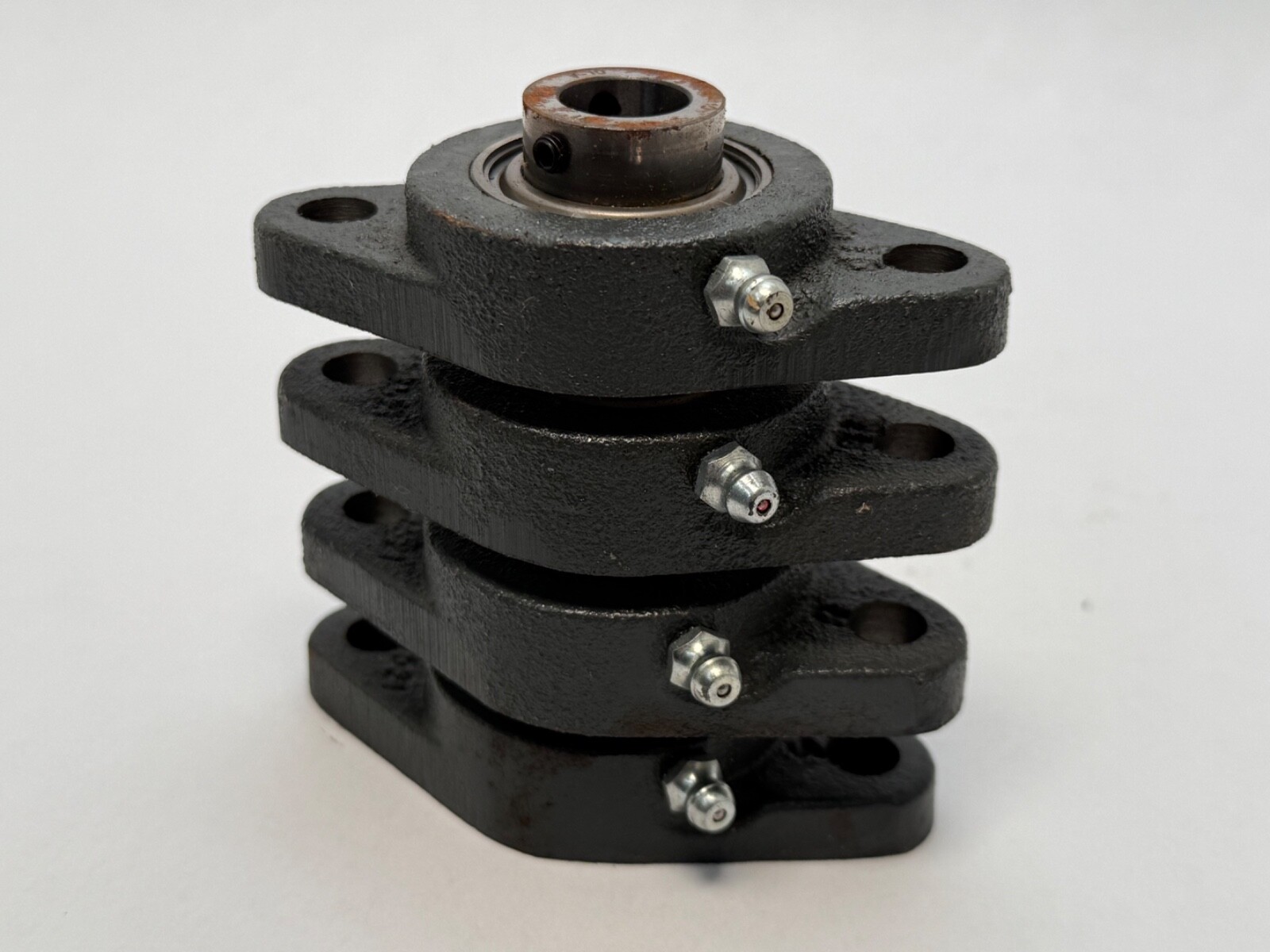

Bearing Material: 52100 chrome bearing steel insert. Closure Type: Contact seal with black-oxide flinger, both sides. Lubricant: Lithium complex NLGI 2 grease. Relubrication: Regreasable. Cage Type: Nylon. The contact seal plus flinger combination sits between an open unit and a fully labyrinth-sealed one: the flinger throws liquid and dust clear of the seal lip before it reaches the raceway, and the lip itself keeps grease in the insert. Regreasing extends service life on dusty or wet duty without disturbing the housing.

Load ratings and speed

Dynamic Load Rating: 9.55 kN (2,147 lbf). Static Load Rating: 4.9 kN (1,102 lbf). Limiting Speed: 5,000 rpm. Minimum Temperature: -20 °F (-29 °C). Maximum Temperature: 200 °F (93 °C). Item Weight: 1.50 lbs. Intermediate duty places this unit above a light pressed-steel flange and below a cast-iron heavy-duty series at the same bore, which is the usual choice for conveyor idlers, fan and blower shafts, and general shaft support at moderate speed.

Setscrew locking

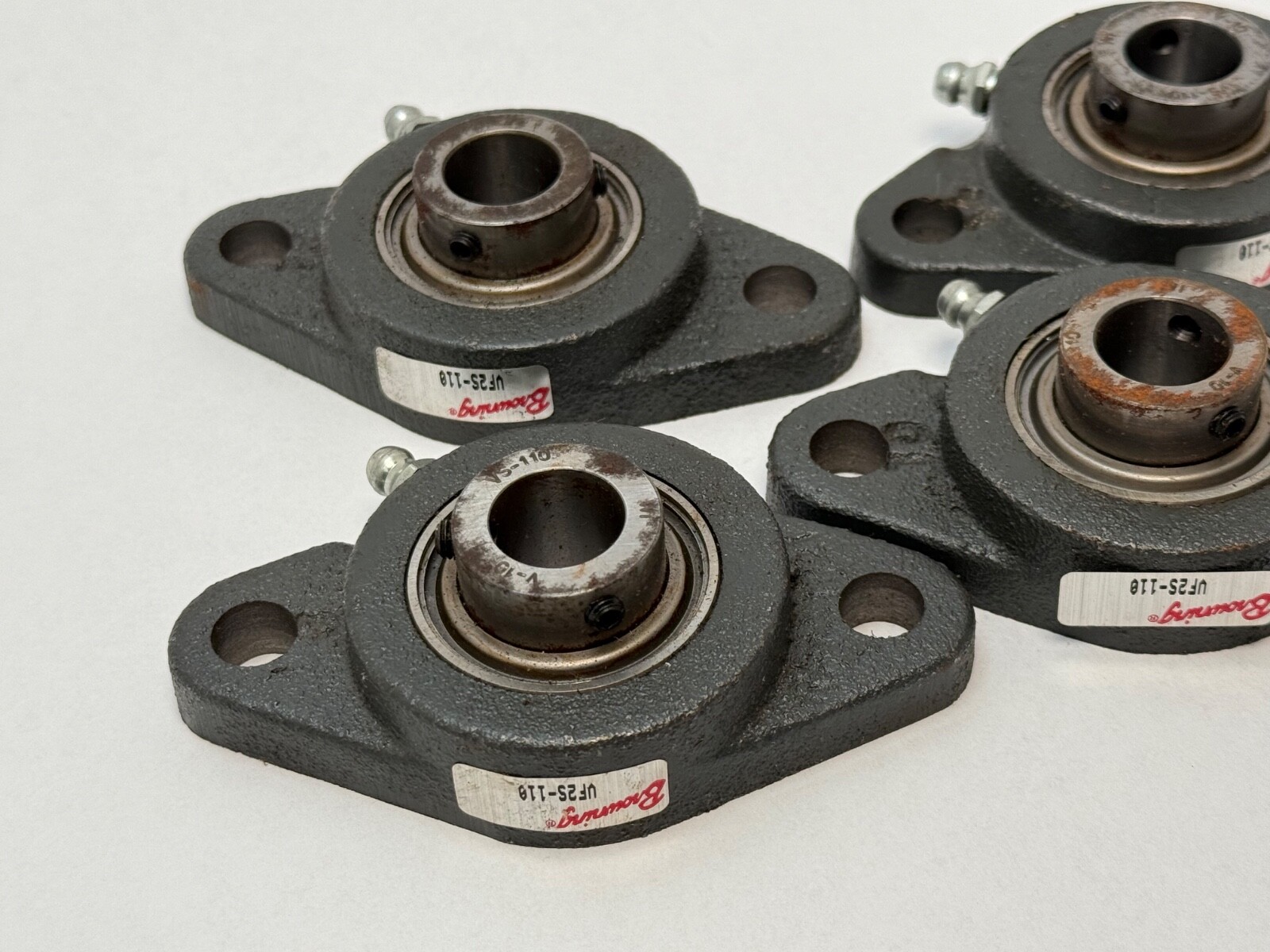

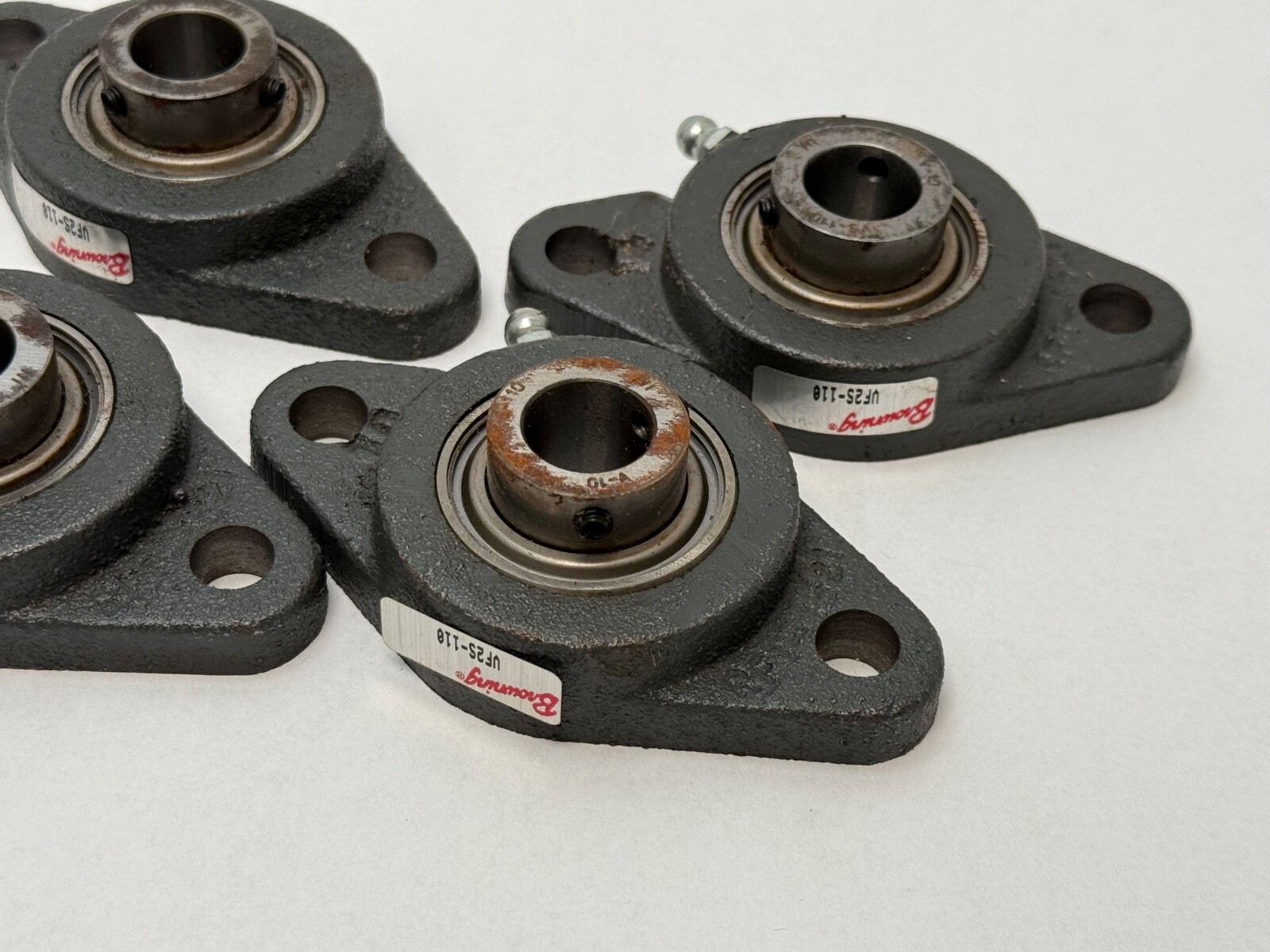

Locking Method: Setscrew. Bore Type: Straight. Expansion Type: Non-expanding. Setscrew locking clamps the insert inner ring directly onto a plain commercial shaft, so the shaft needs no shoulder, thread, taper or keyway. Non-expanding means the insert holds axial position in the housing, so this unit fixes the shaft against thrust and end float.

Quantity and configuration

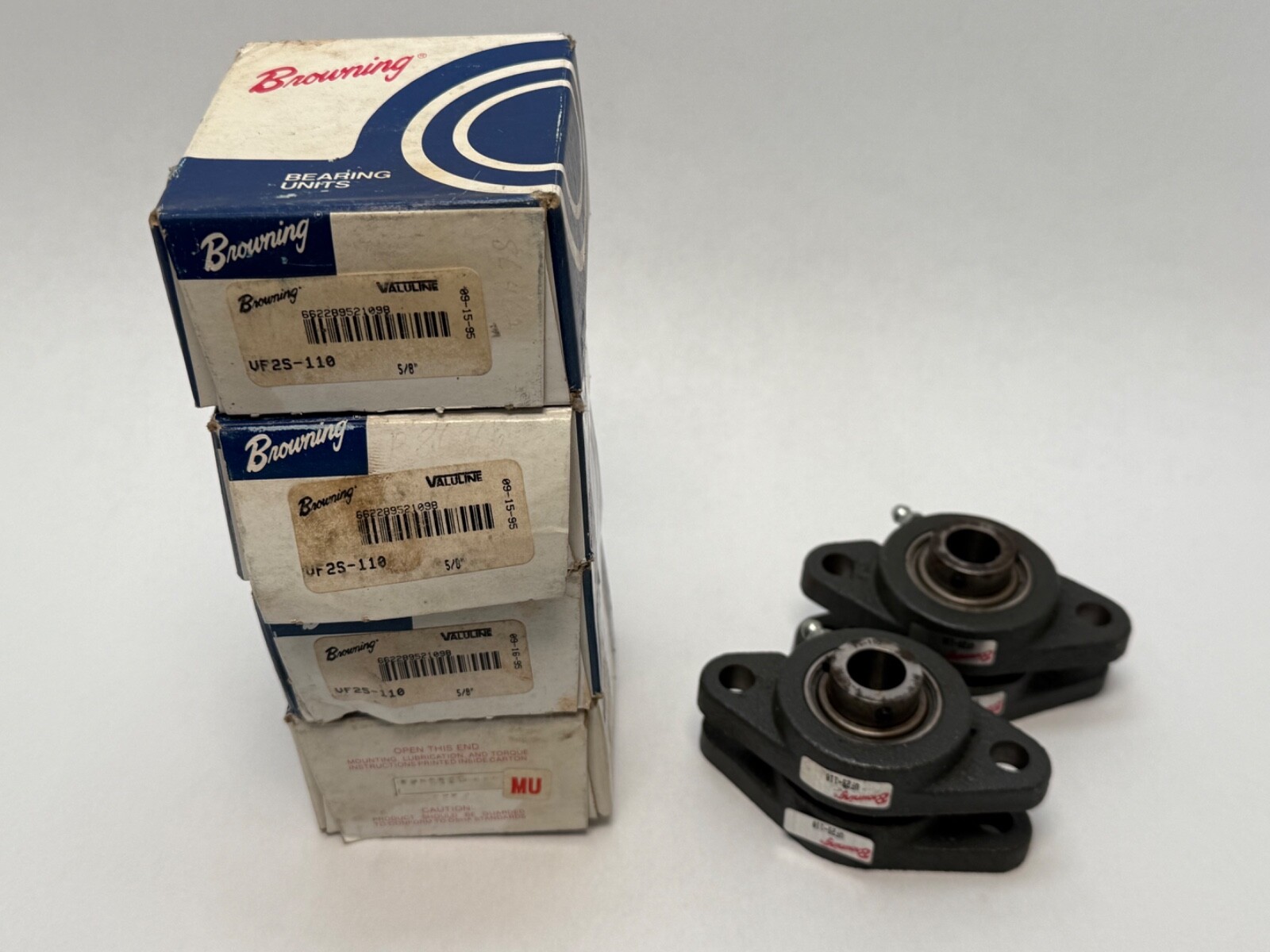

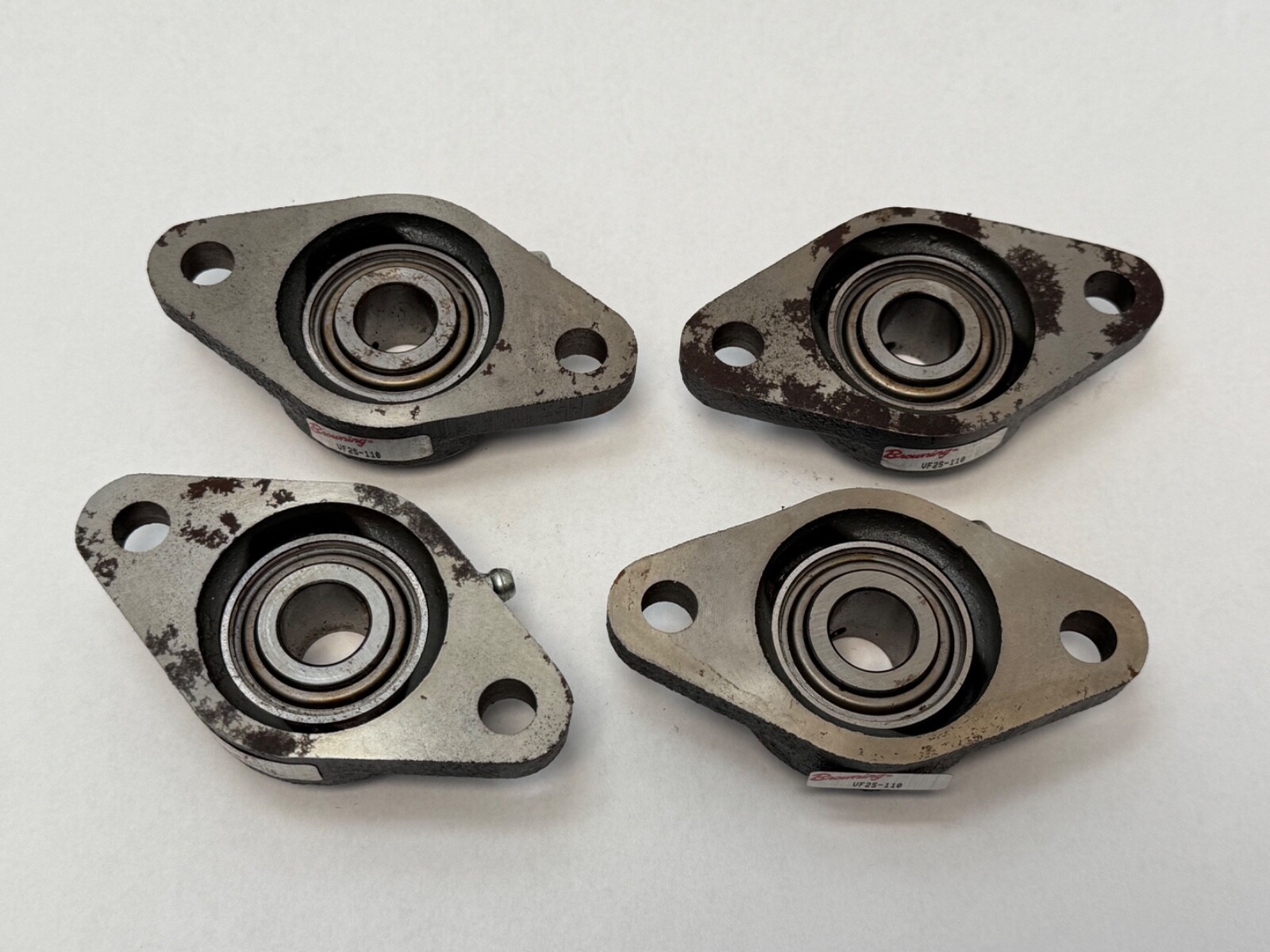

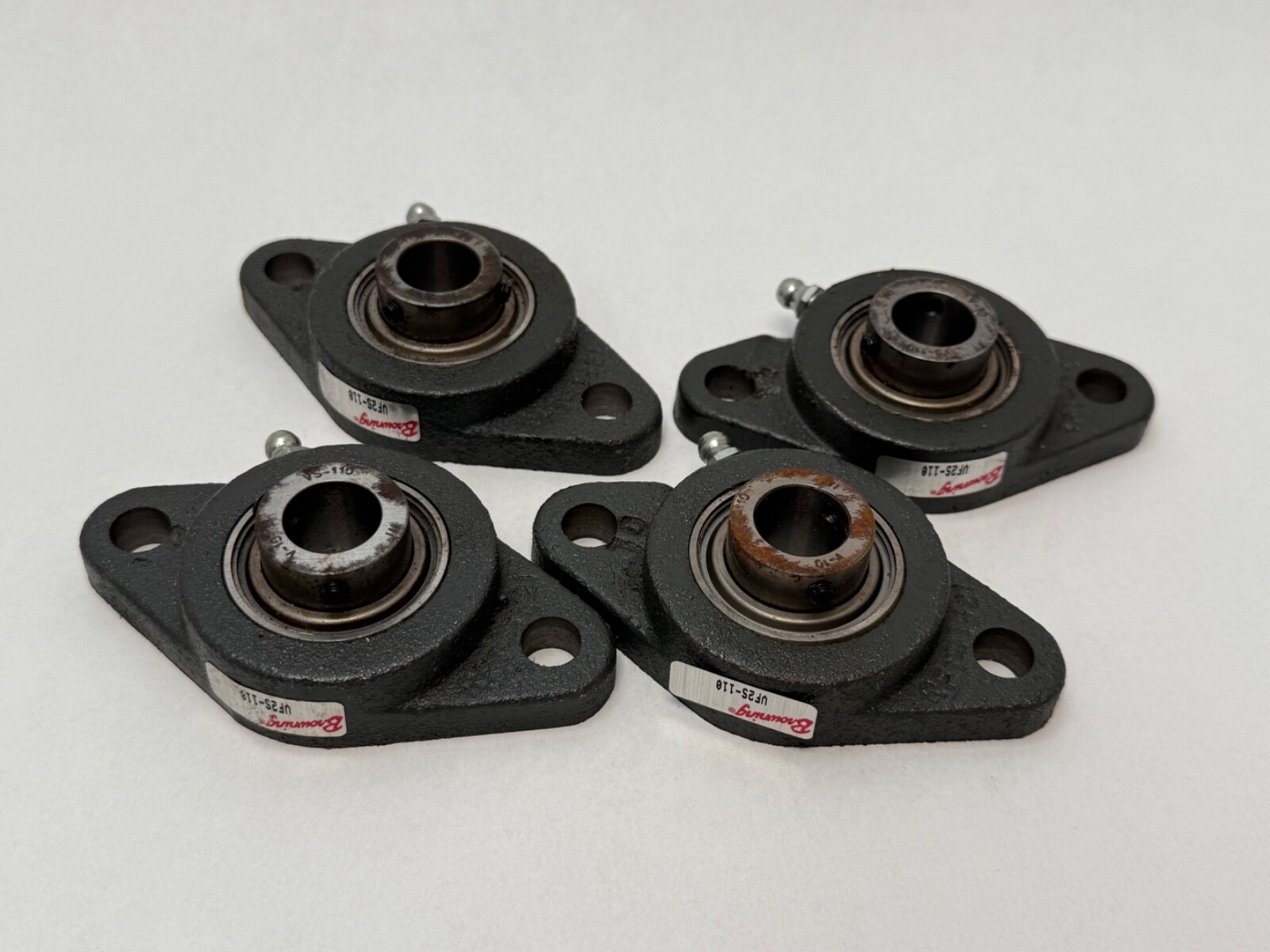

Unit Quantity: 4 Pcs. Four complete flange units, each comprising the cast iron two-bolt housing, the sealed insert and its setscrews.

Interchange guidance

Cross-Reference 1: Dodge F2B-SC-010. Cross-Reference 2: SKF FY 5/8 TF. Both are two-bolt flange units at the same 5/8 in bore with setscrew locking. Searchable forms of the designation: VF2S110, VF2S-110, VF2S 110.
