Deep groove ball bearing, 90 x 125 x 18 mm, open, 36,500 N dynamic rating. NTN 6918 (ISO 61918), dimension series 19, pressed steel cage, CN clearance.
List Price
$45.30
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| MPN | 6918 |
| Model | 61918 |
| Bearing Type | Deep Groove Ball Bearing, Open |
| ID | 90 mm |
| OD | 125 mm |
| Width | 18 mm |
| Material | Steel |
|---|---|
| Mpn Variants | 6918, 61918 |
| Min Temp | -40 °C |
| Dynamic Load Rating | 36,500 N |
| Static Load Rating | 31,500 N |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 0.570 kg (1.25 lb) |
| Cage Material | Pressed steel |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Limiting Speed | 5,100 rpm grease; 6,000 rpm oil |
| Internal Clearance | CN |
| Industry Terms | deep groove ball bearing; 61918 bearing; 90x125x18 ball bearing; extra light series ball bearing; single row radial ball bearing |
| Common Misspellings | NTN 6198; NTN 69 18; NTN 6918Z; NTN 6918 open bearing; NTM 6918 |
| Application Types | Electric motors; gearboxes; general industrial machinery |
| Closure Type | Open |
| Cross Reference 1 | SKF 61918 |
|---|---|
| Cross Reference 2 | FAG 61918 |
| Cross Reference 3 | NSK 6918 |
| Cross Reference 4 | Koyo 6918 |
| Cross Reference 5 | Nachi 6918 |

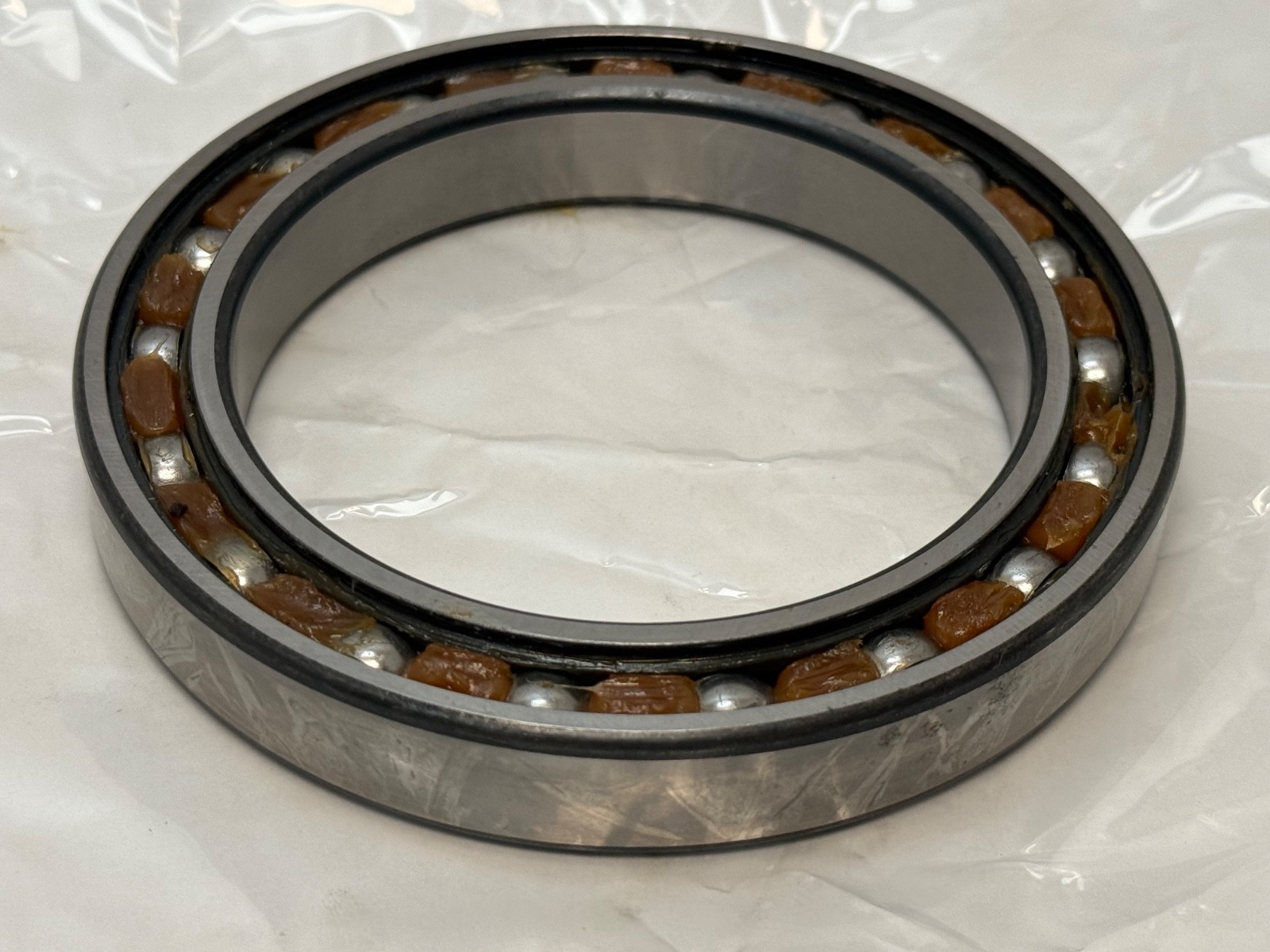

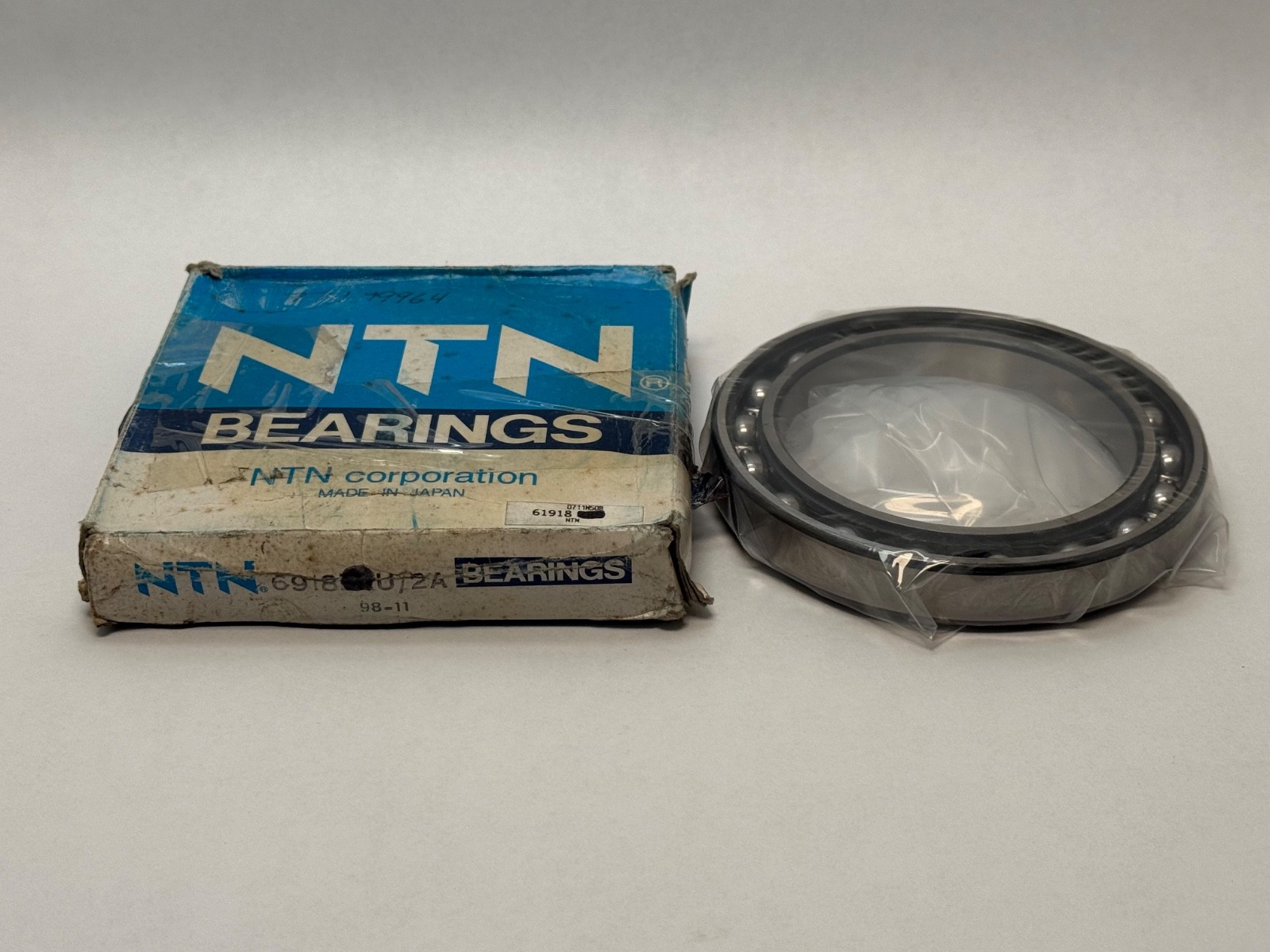

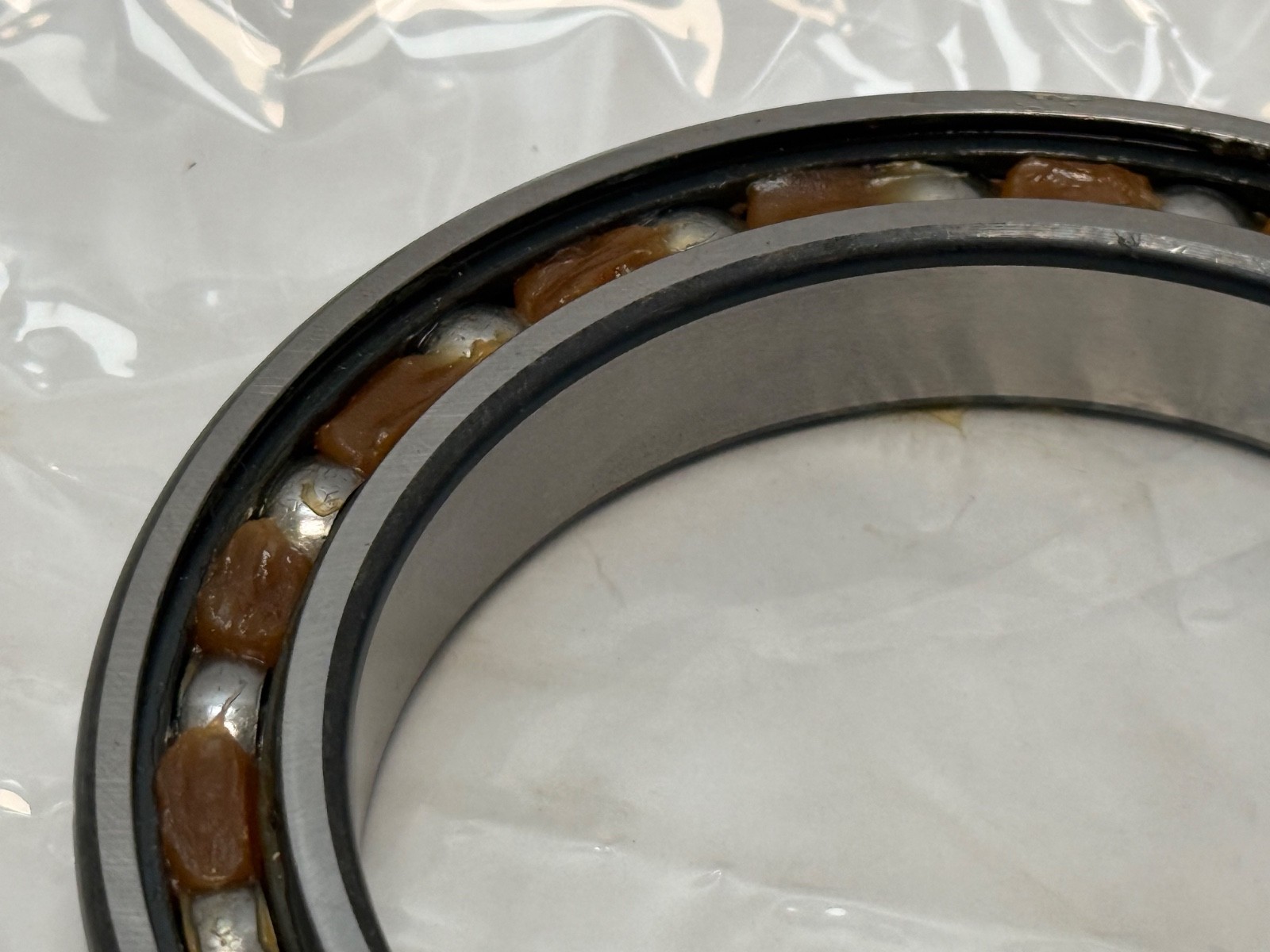

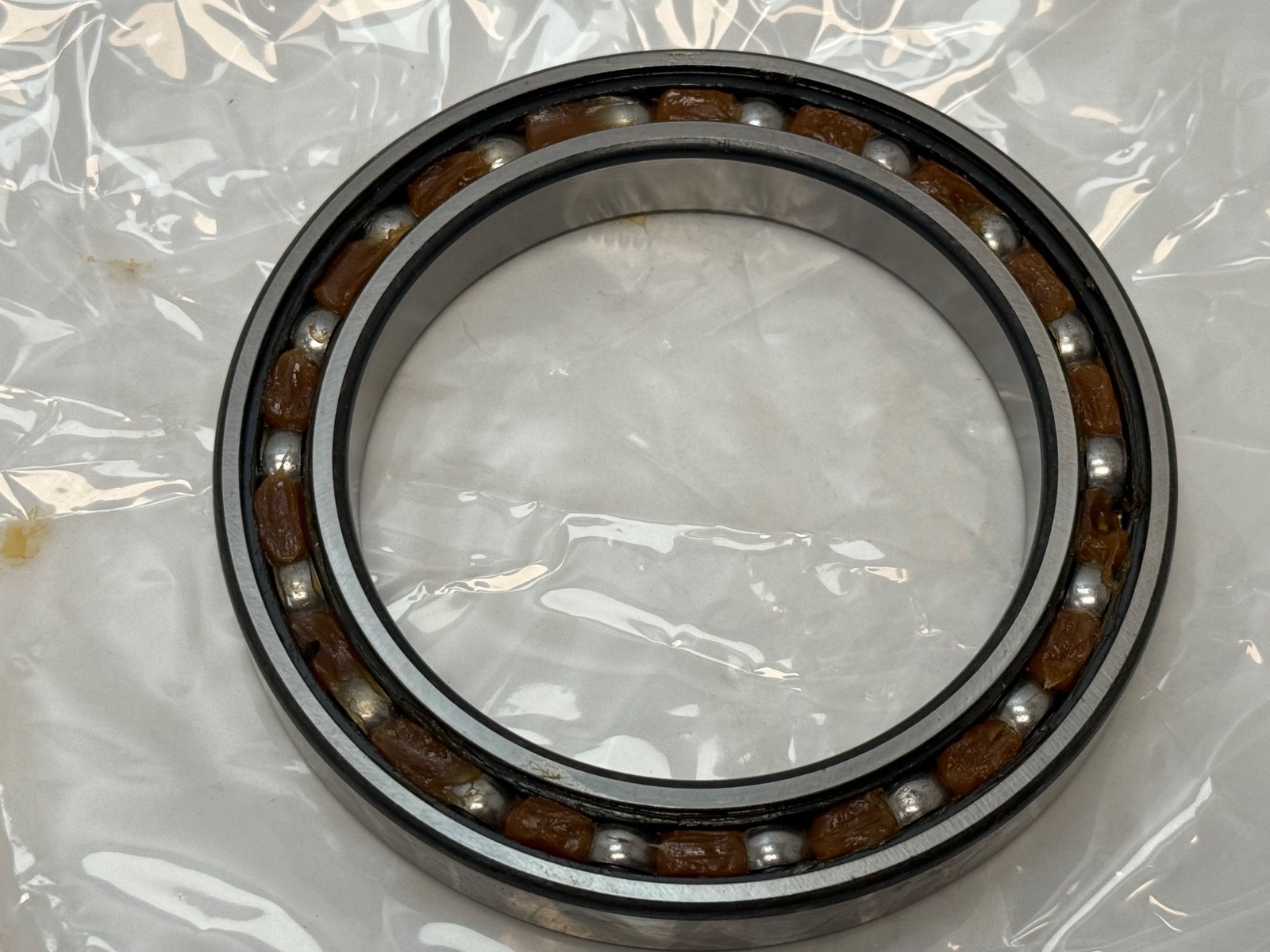

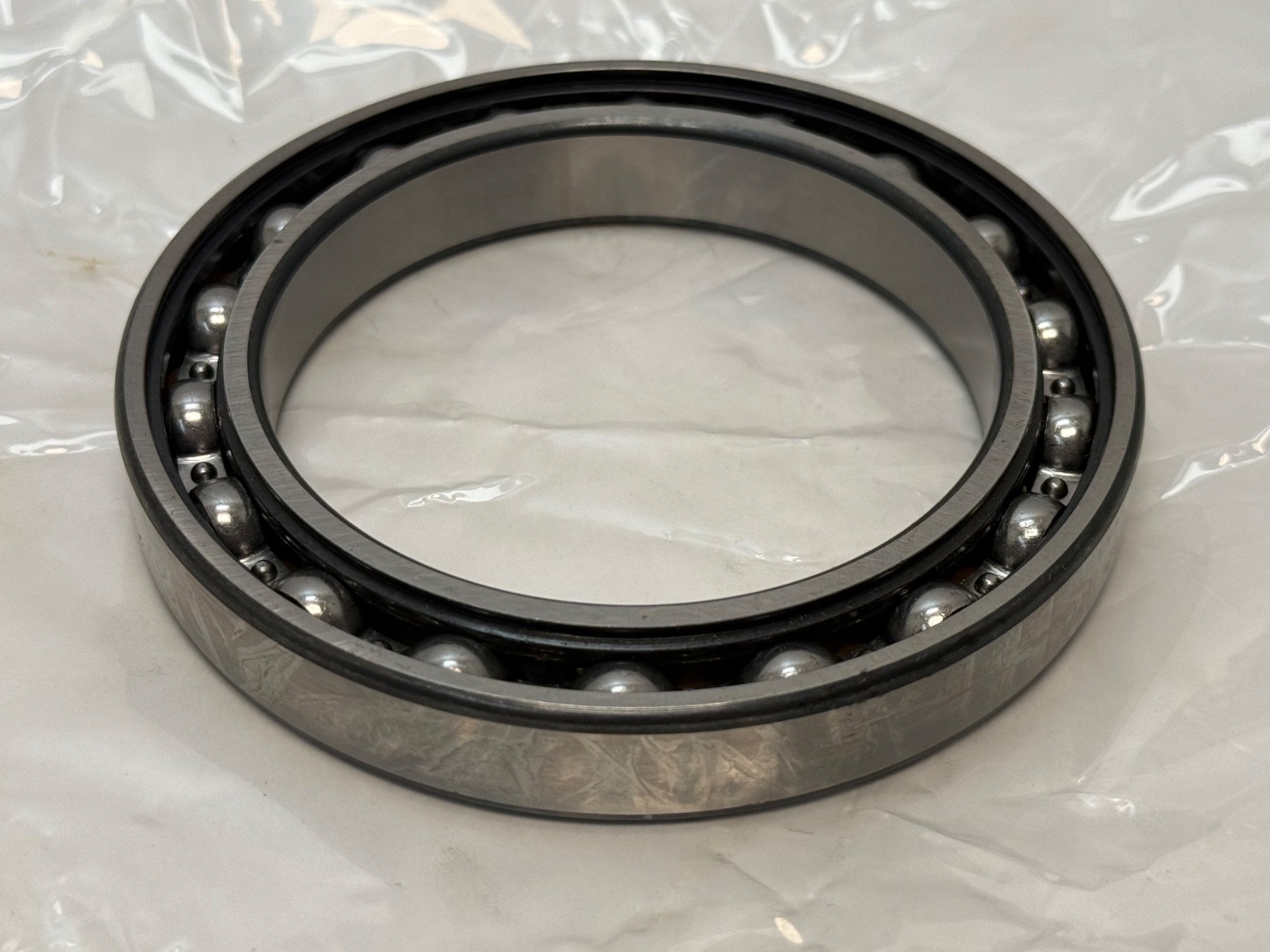

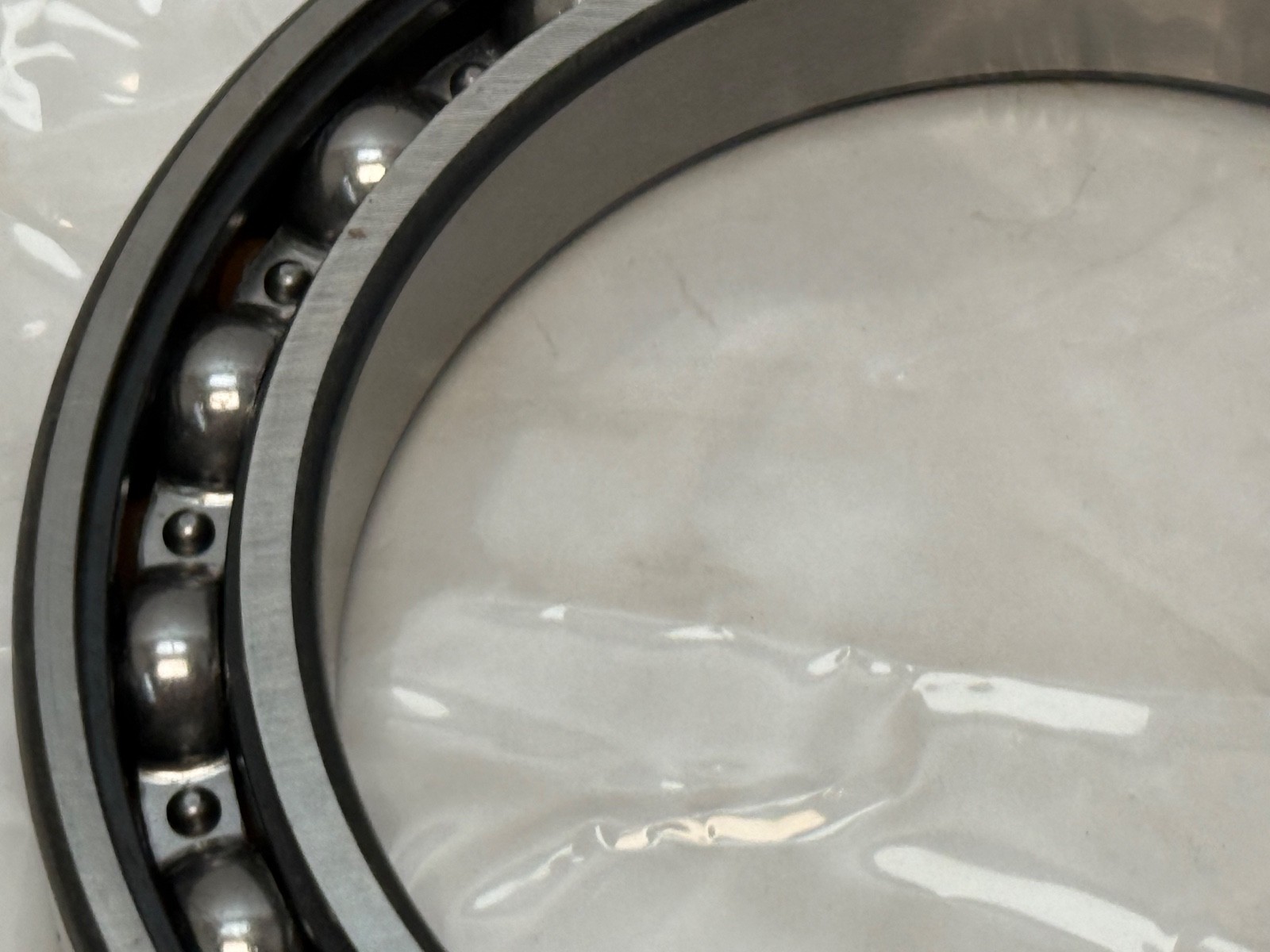

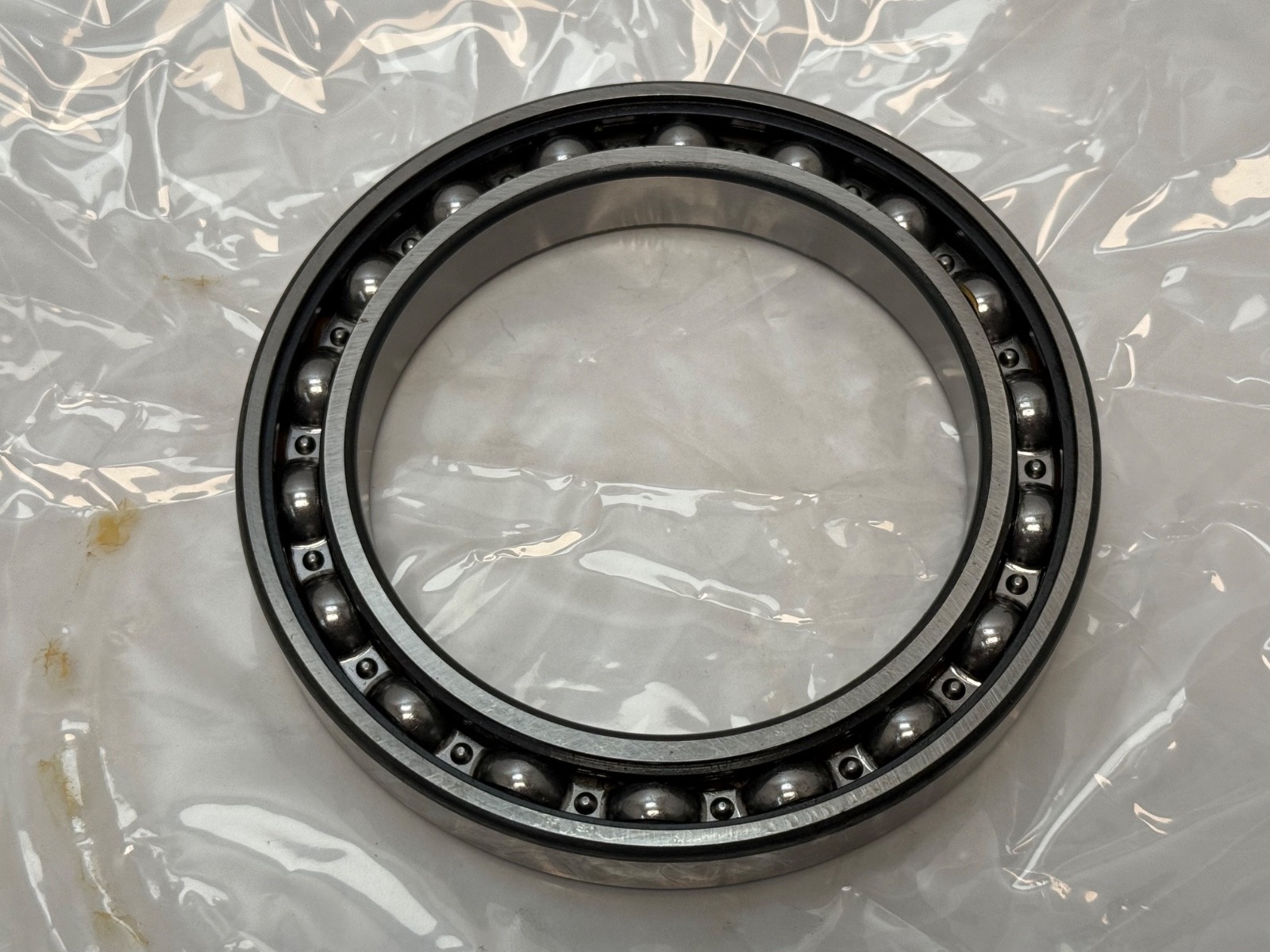

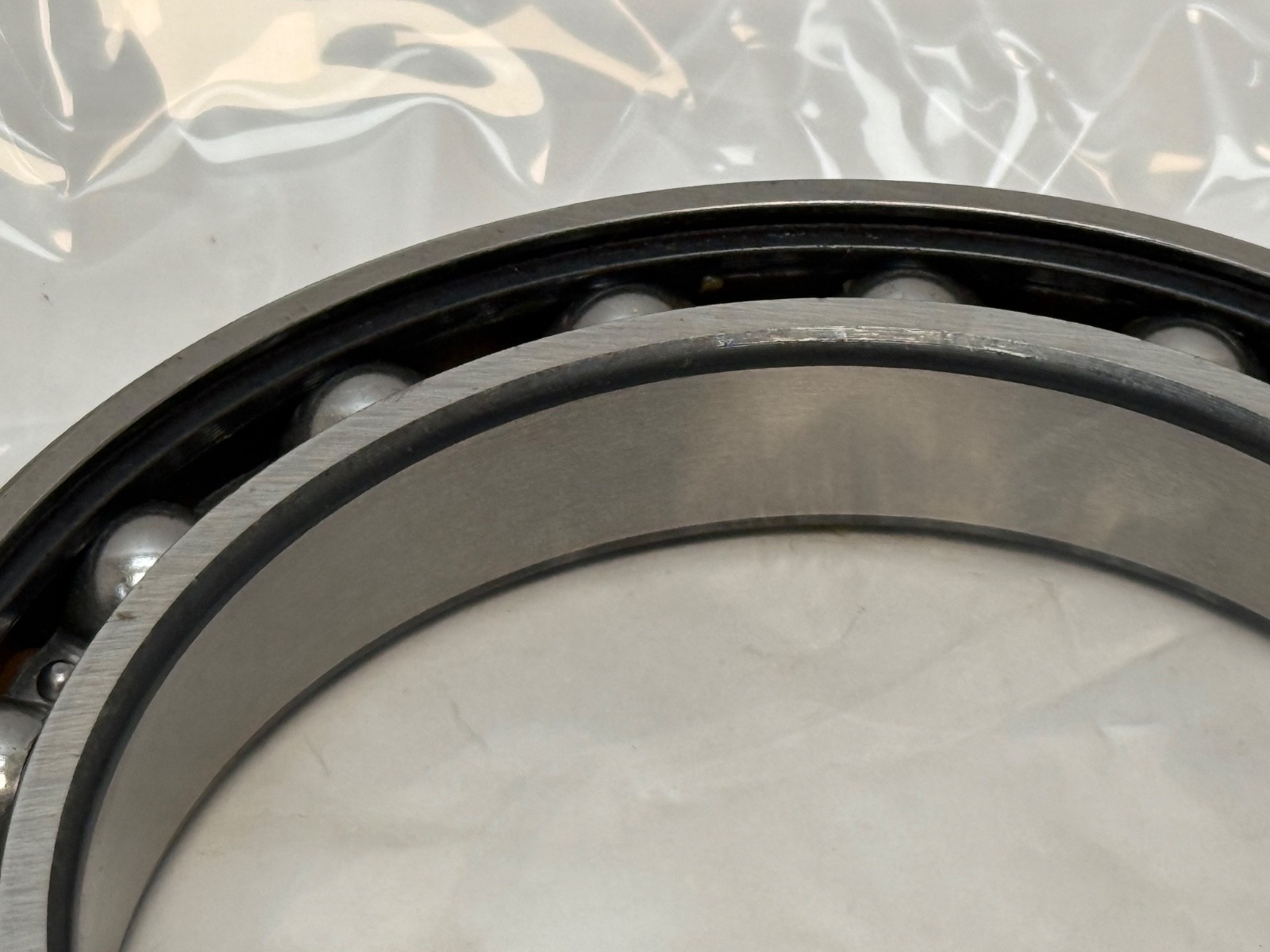

NTN 6918 single-row deep groove ball bearing, open type, 90 x 125 x 18 mm. The ISO designation for this size is 61918. Unit Quantity: 1 Pc.
69 — single-row deep groove ball bearing, ISO dimension series 19 (extra-light section).
18 — bore code, 18 x 5 = 90 mm bore.
Bore Diameter: 90 mm. Outside Diameter: 125 mm. Width: 18 mm. Dynamic Load Rating: 36,500 N. Static Load Rating: 31,500 N. Limiting Speed: 5,100 rpm grease; 6,000 rpm oil. Cage Material: Pressed steel. Internal Clearance: CN. Closure Type: Open. Number Of Rows: 1. Item Weight: 0.570 kg (1.25 lb). Min Temp: -40 °C. Max Temp: 120 °C.
Chamfer r (min): 1.1 mm. Shaft abutment da min: 96.5 mm. Housing abutment Da max: 118.5 mm. Fillet ras max: 1.0 mm.
Cross-Reference 1: SKF 61918. Cross-Reference 2: FAG 61918. Cross-Reference 3: NSK 6918. Cross-Reference 4: Koyo 6918. Cross-Reference 5: Nachi 6918. MPN Variants: 6918, 61918.
90 mm bore, 125 mm outside diameter and 18 mm width.
Dynamic Load Rating: 36,500 N. Static Load Rating: 31,500 N.
5,100 rpm with grease and 6,000 rpm with oil.
