Availability:
2 in stock

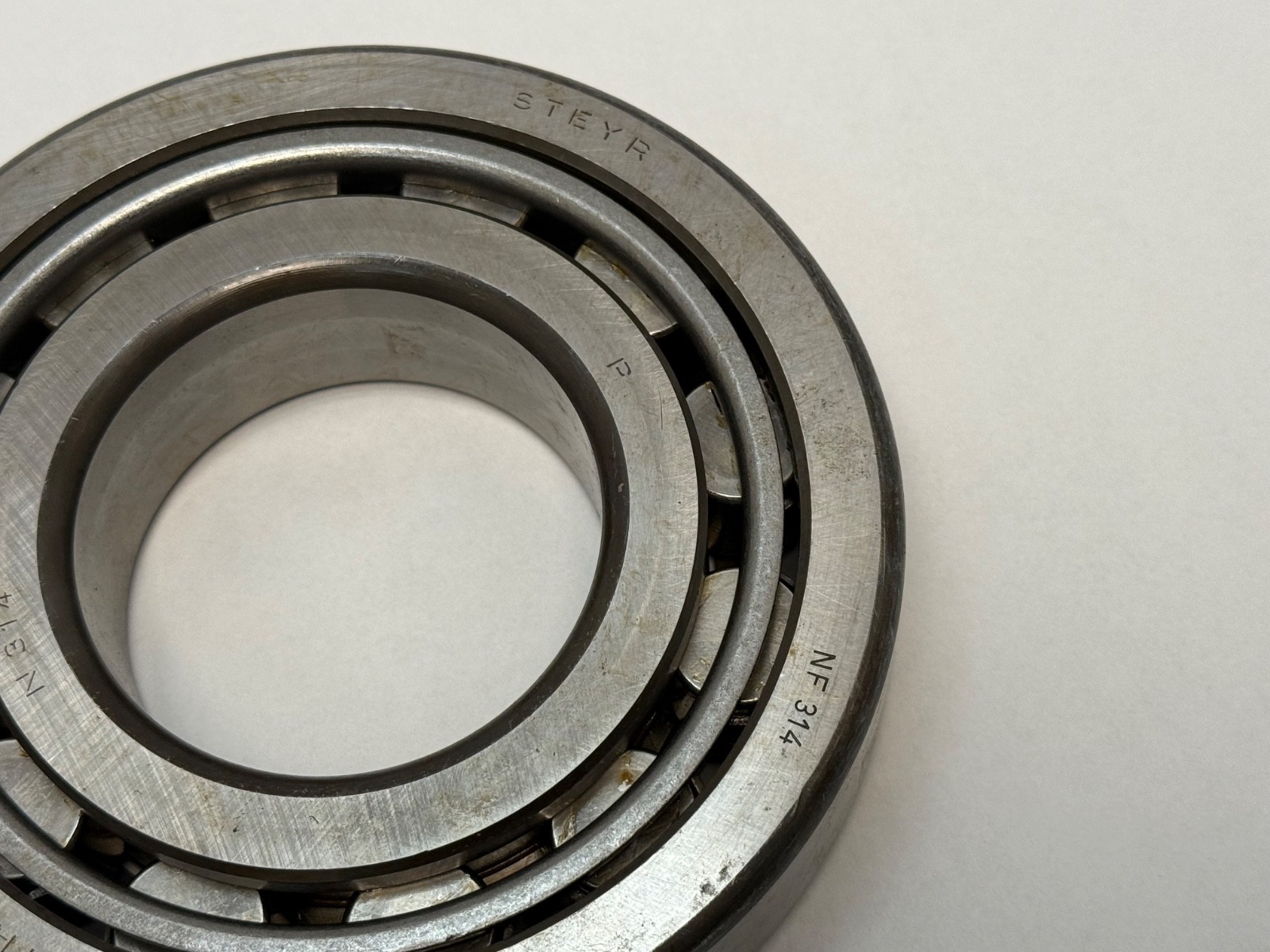

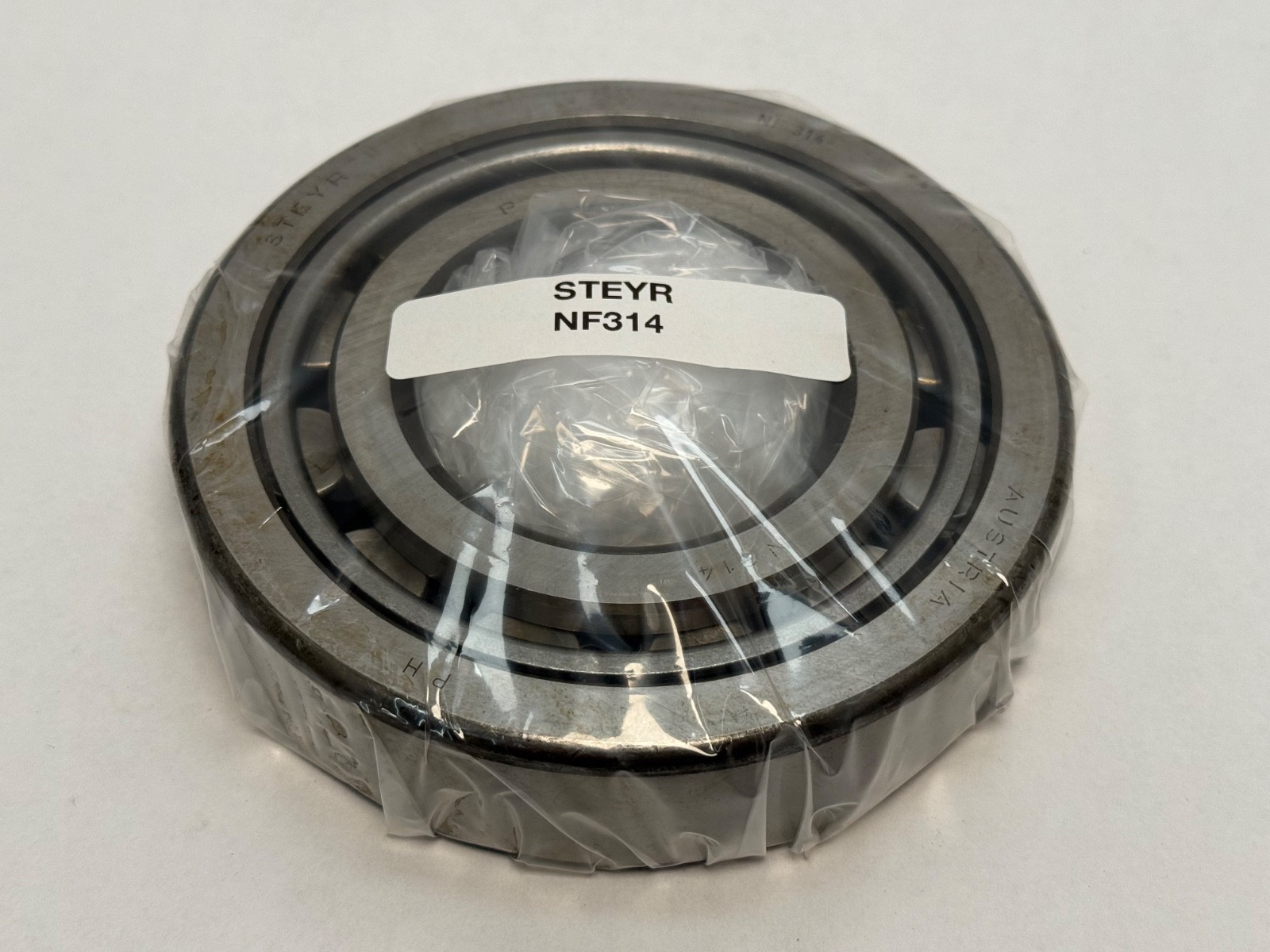

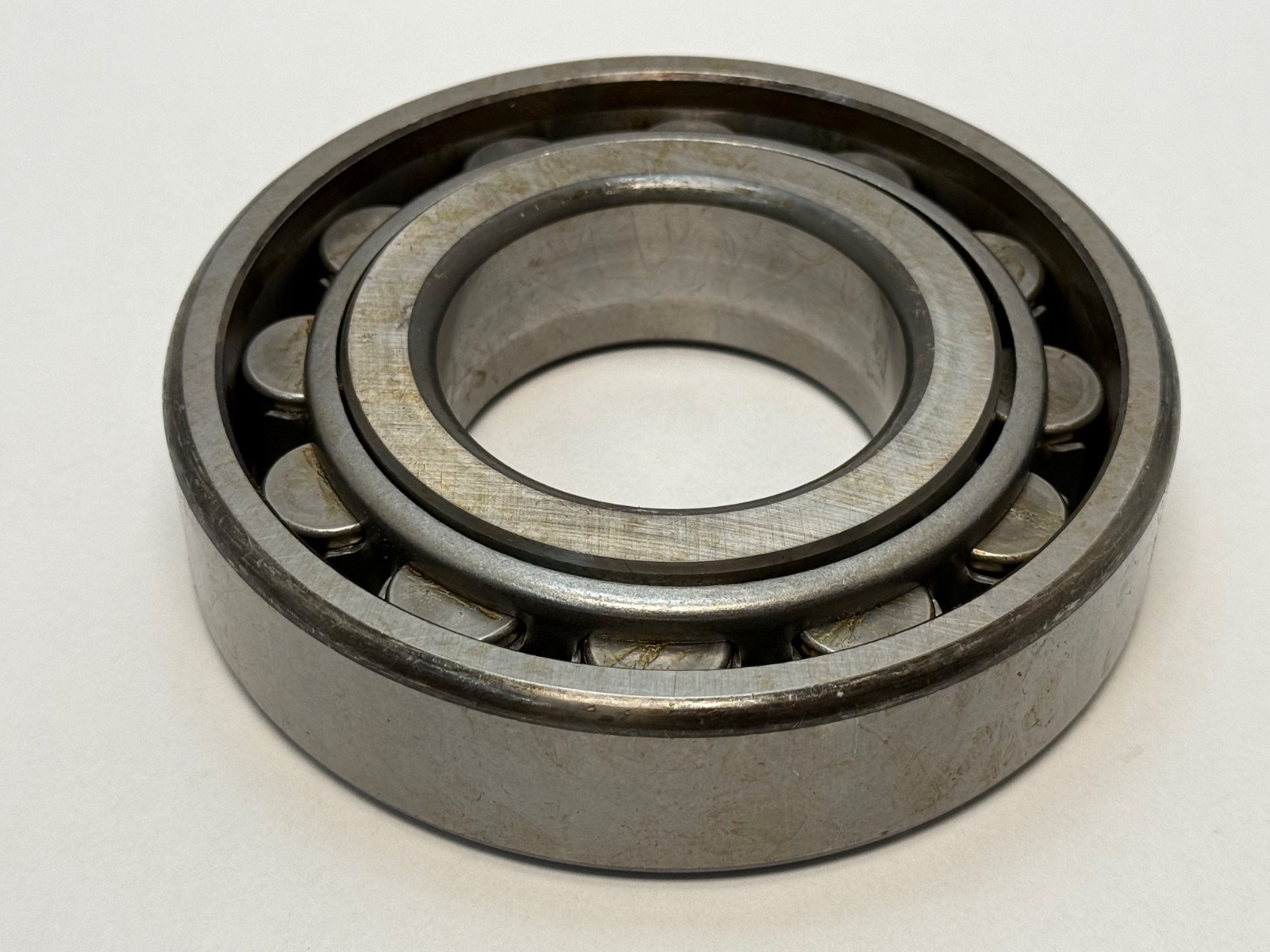

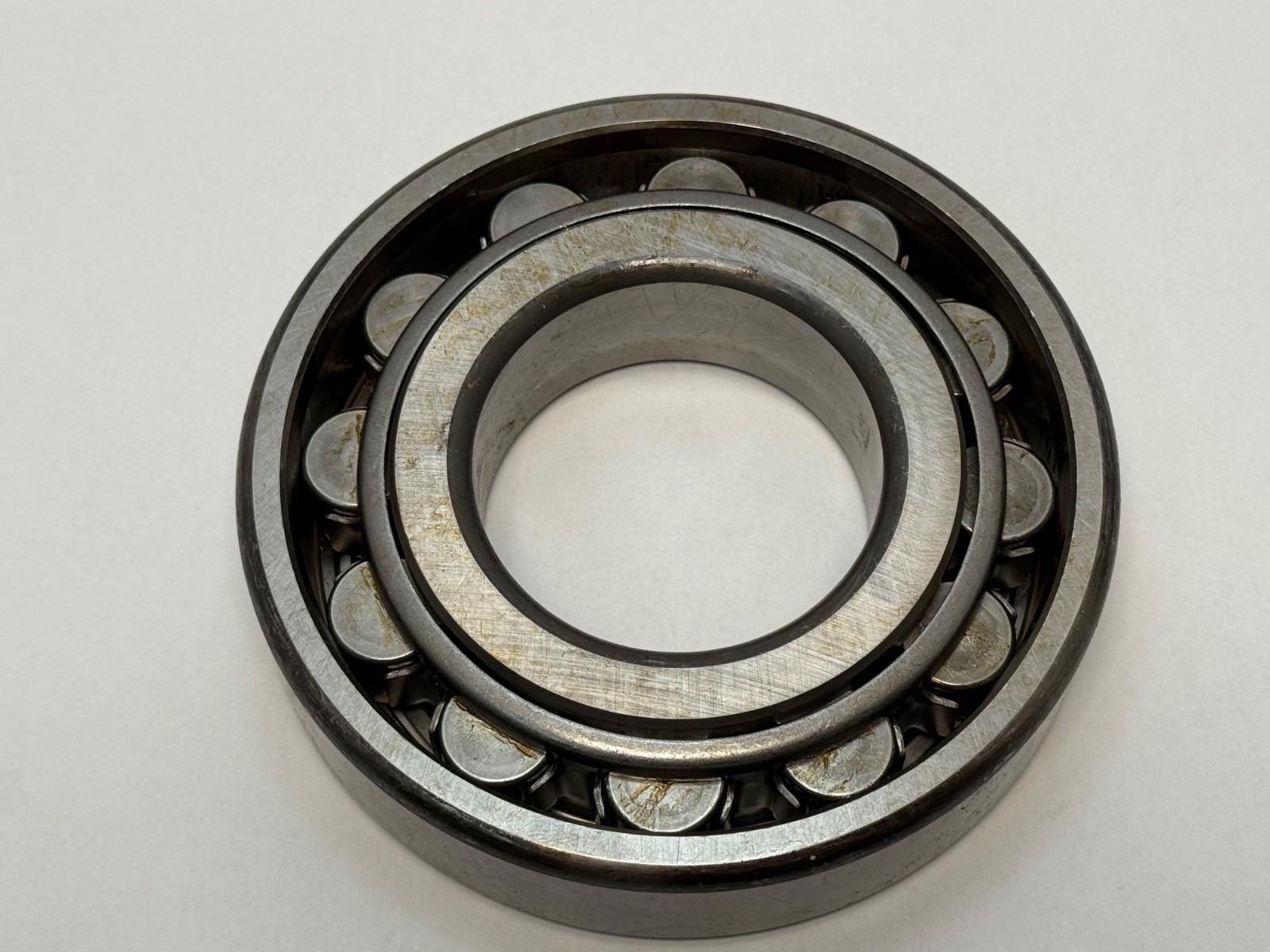

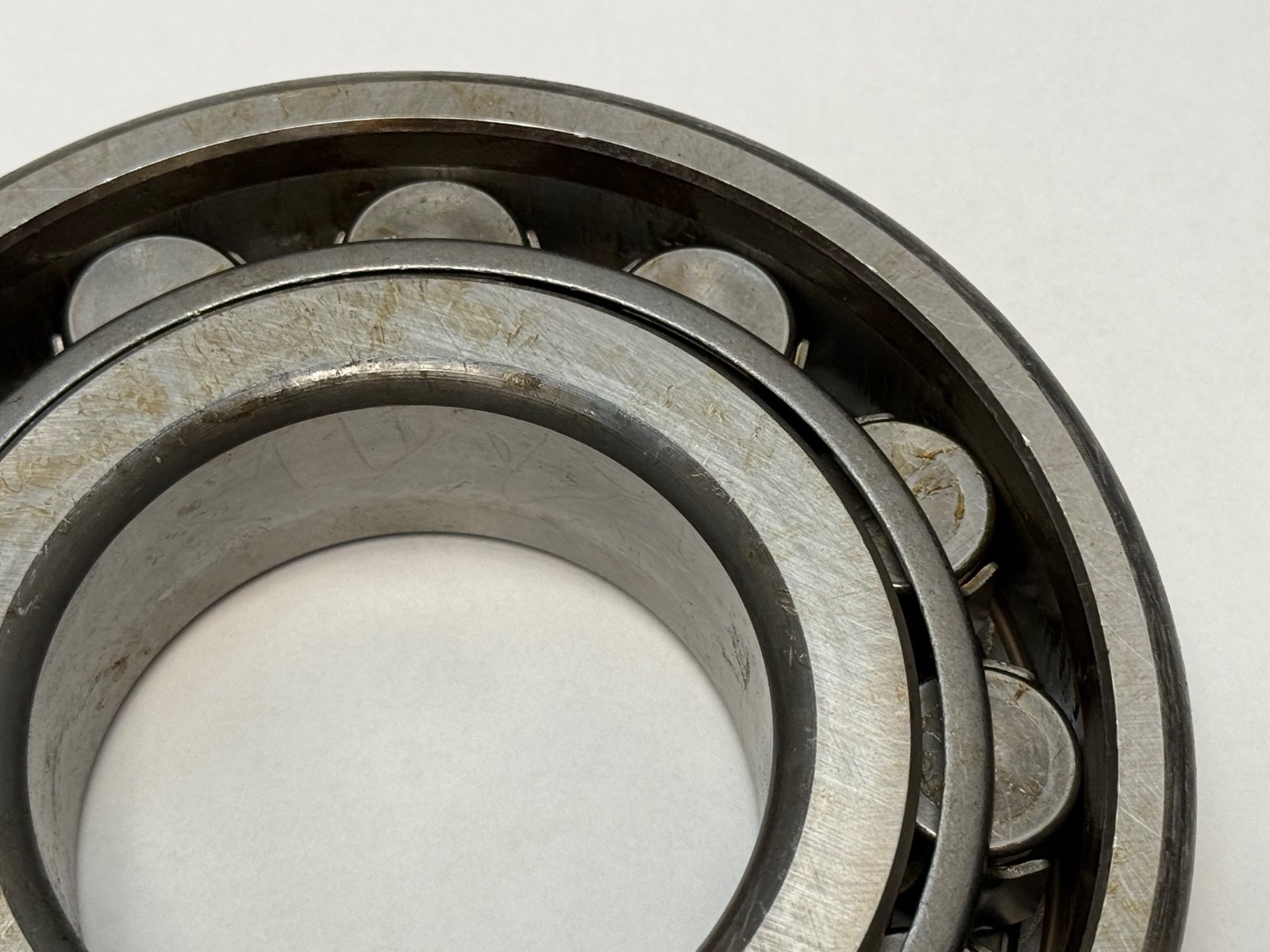

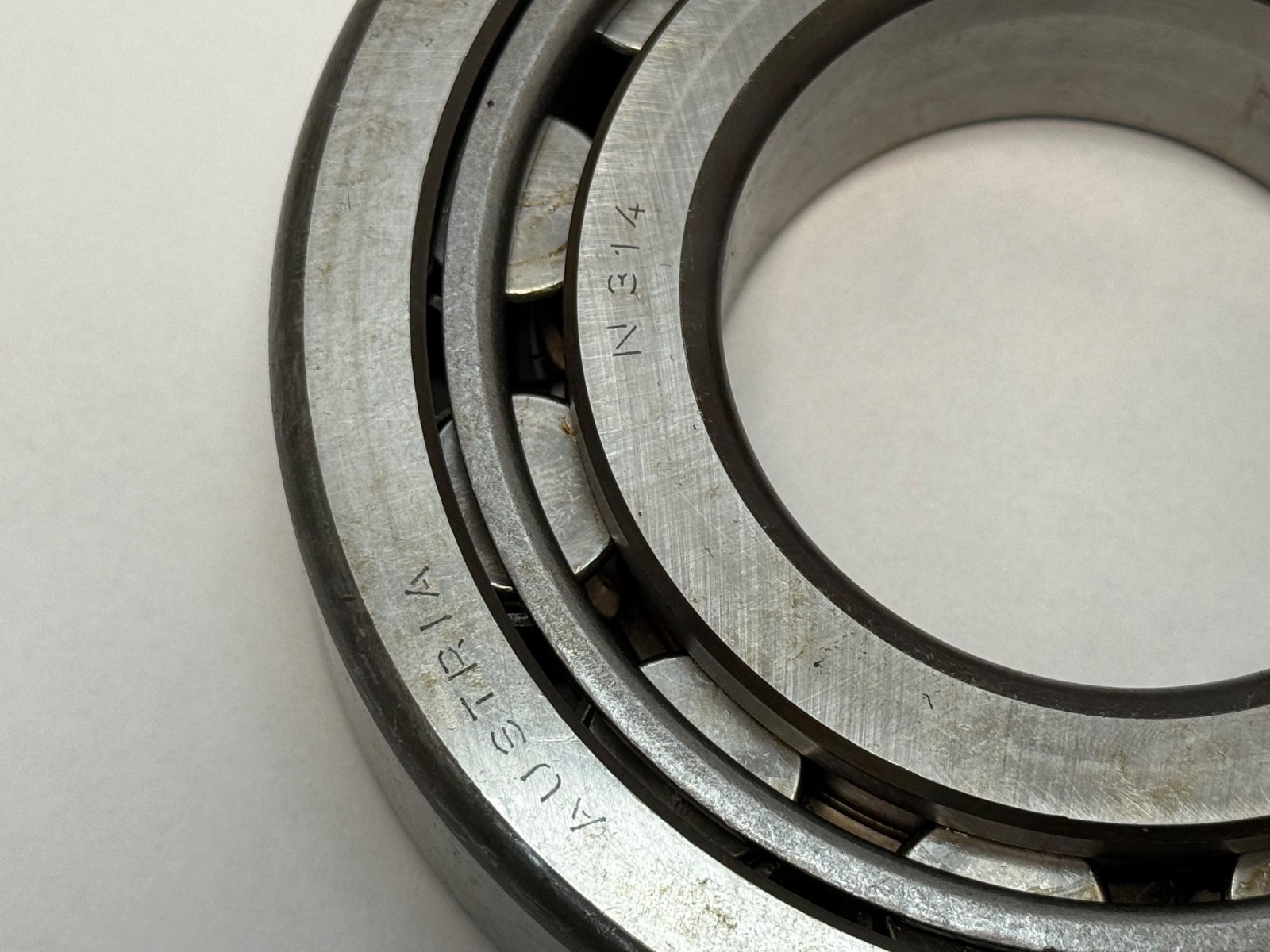

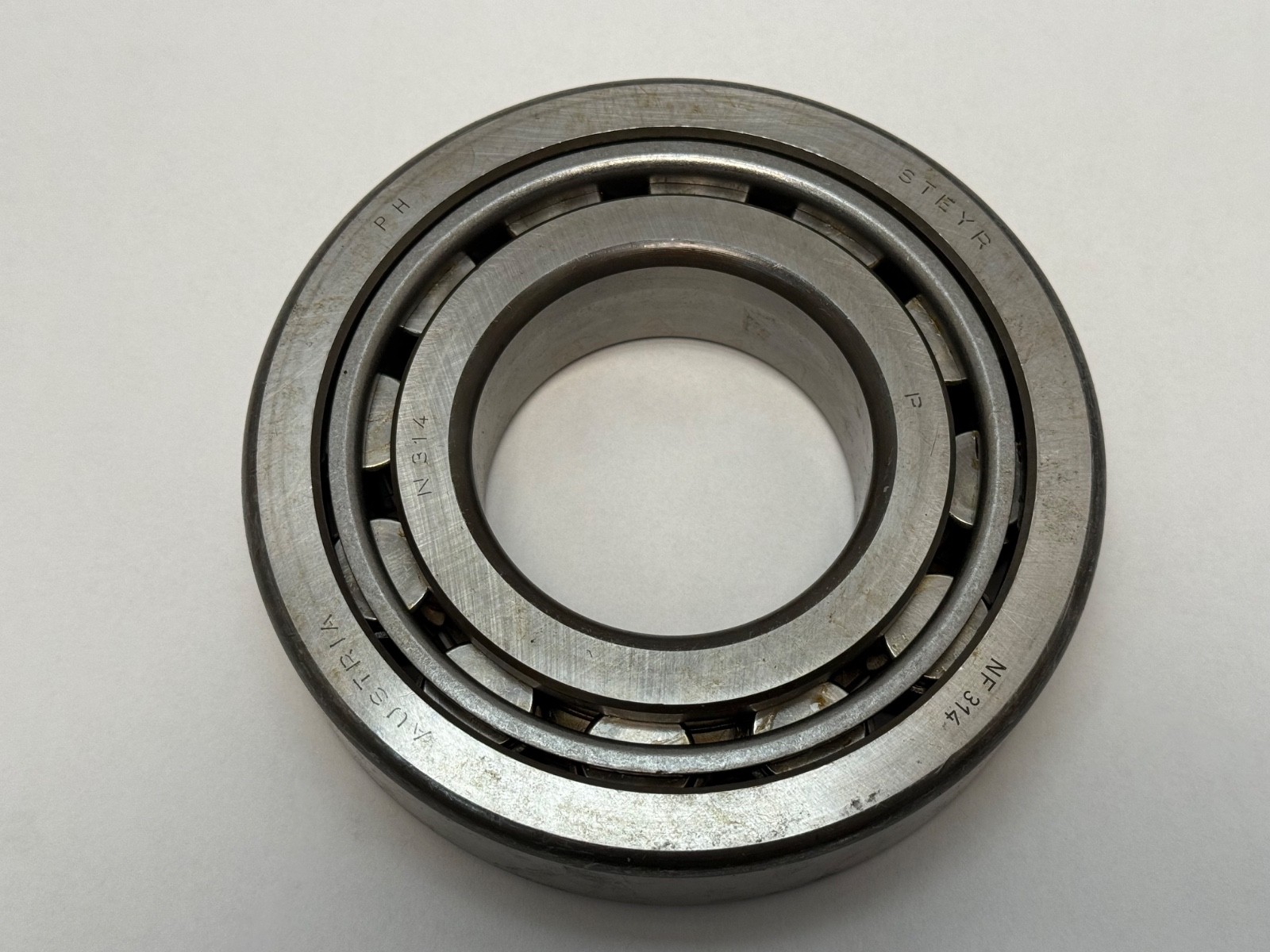

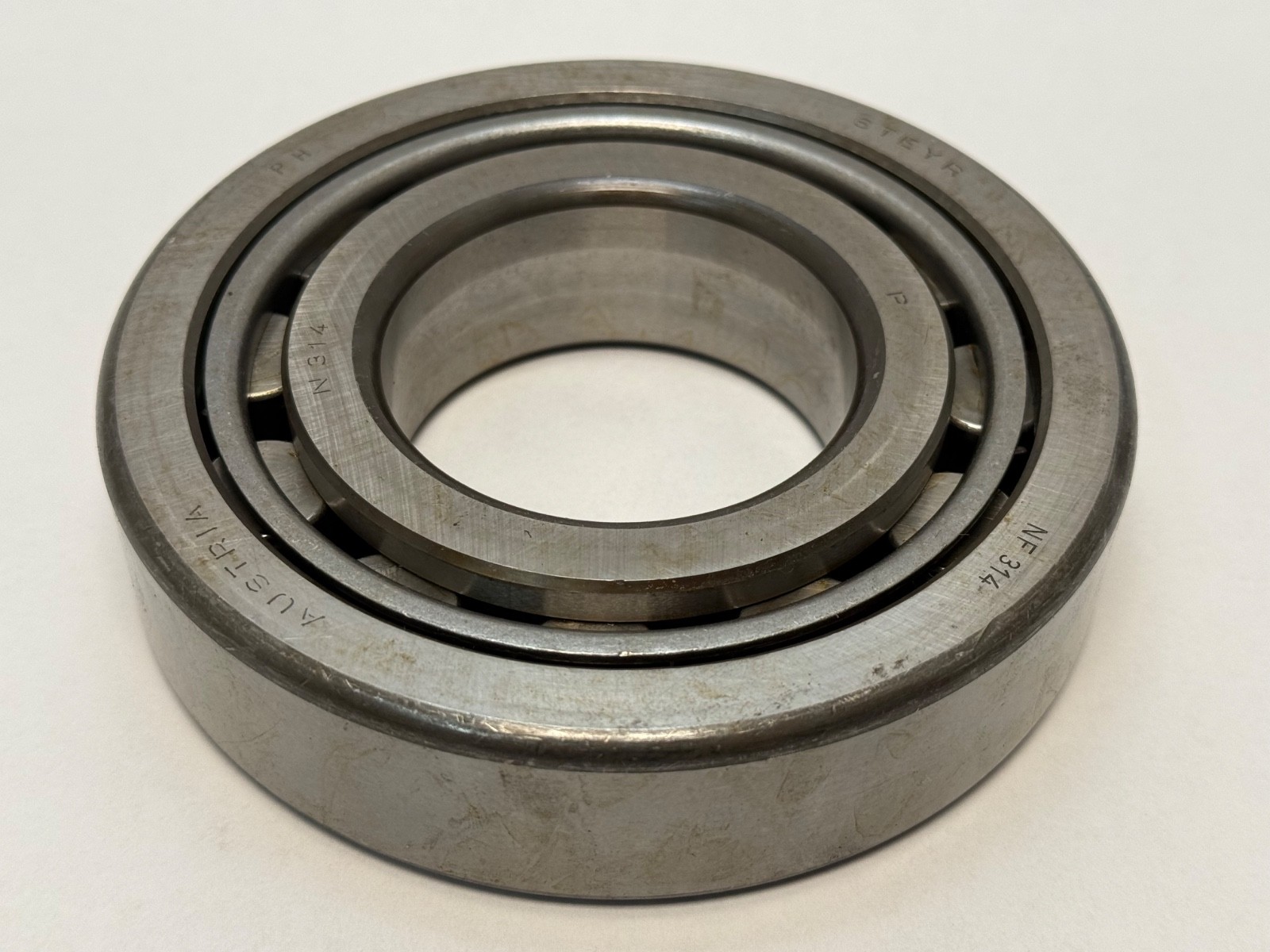

Steyr NF314 cylindrical roller bearing, 70 mm bore, 150 mm OD, 35 mm wide, NF design locating the shaft in one direction. ISO NF314 size, single row.
List Price
$67.98
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Steyr |
|---|---|
| MPN | NF314 |
| Model | NF314 |
| Bearing Type | Cylindrical Roller Bearing |
| ID | 70 mm |
| OD | 150 mm |
| Width | 35 mm |
| Base Number | 314 |
|---|---|
| Industry Terms | cylindrical roller bearing; roller bearing; NF type bearing; locating bearing; radial roller bearing |
| Common Misspellings | NF-314; NF 314; Stayr NF314; Styer NF314; NF314E |
| Application Types | Gearboxes; electric motors; pumps; compressors; rolling mill and heavy radial load shafts |
| Overall Width | 35 mm |
| Mpn Variants | NF314; NF-314; NF 314 |
| Additional Attributes | Design: NF (outer ring one rib, inner ring two ribs); Axial location: one direction; Dimension series: 03 |
| Series | NF3 |
| Rolling Elements | Cylindrical Roller |
| Number Of Rows | 1 |
| Bore Type | Cylindrical |
| Internal Clearance | CN |
| Cross Reference 1 | SKF NF 314 |
|---|---|
| Cross Reference 2 | FAG NF314 |
| Cross Reference 3 | NSK NF314 |
| Cross Reference 4 | NTN NF314 |
The Steyr NF314 is a single-row cylindrical roller bearing in the ISO NF design, 70 mm bore, 150 mm outside diameter, 35 mm width. Sold as 1 piece.

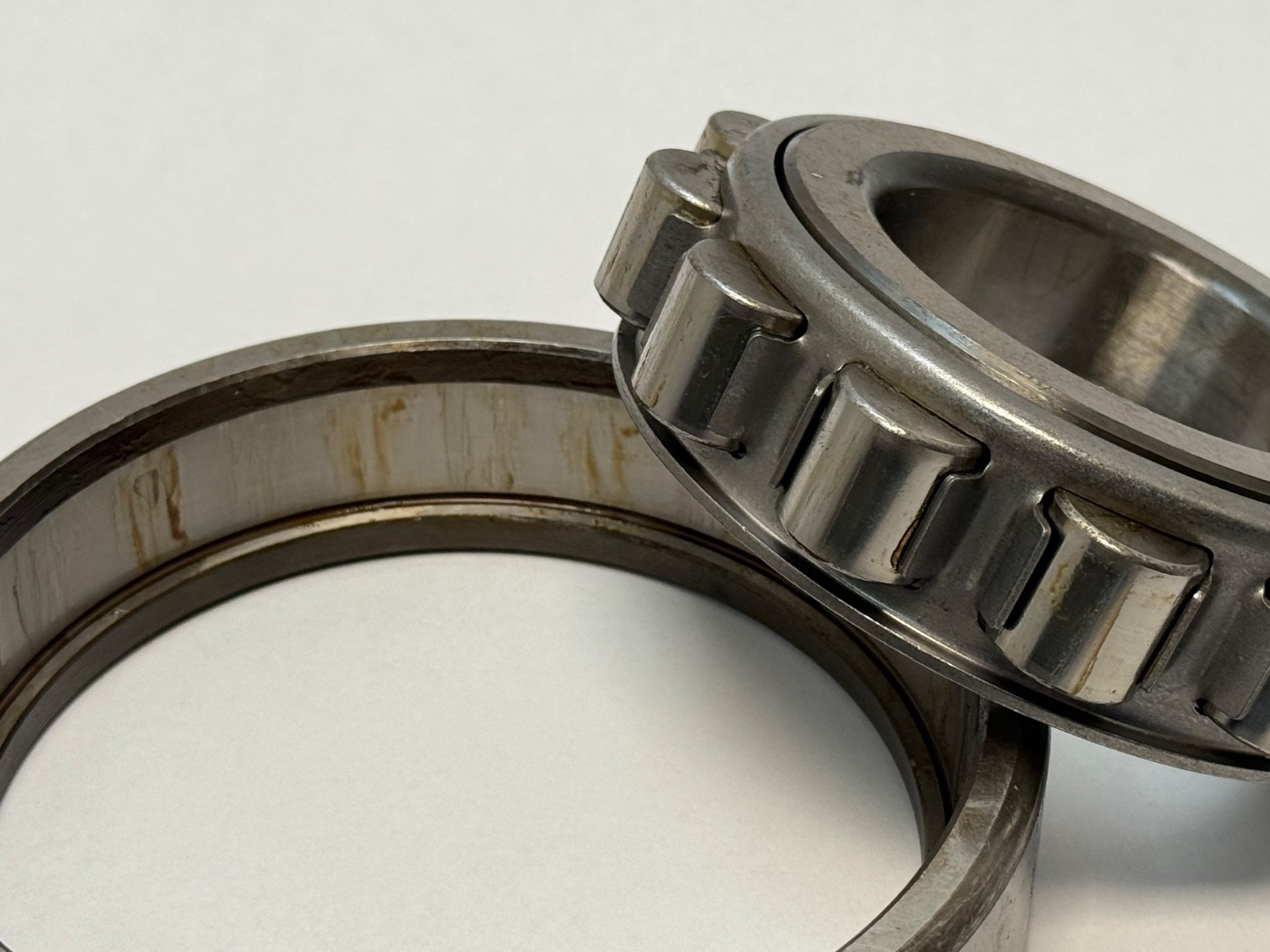

NF — outer ring with one rib, inner ring with two ribs. The bearing locates the shaft axially in one direction.
3 — ISO dimension series 03, the medium section.
14 — bore code, 14 × 5 = 70 mm bore.
Bore Diameter: 70 mm. Outside Diameter: 150 mm. Overall Width: 35 mm. Rolling Elements: Cylindrical Roller. Number Of Rows: 1. Bore Type: Cylindrical. Internal Clearance: CN. Series: NF3. Dimension series: 03. Unit Quantity: 1 Pc. Cylindrical rollers carry heavy radial load with line contact. The single outer rib takes light axial load in one direction, so the NF314 serves as a one-direction locating bearing.
Envelope: 70 mm bore, 150 mm outside diameter, 35 mm width. Axial location: one direction.
NF314 is an ISO designation at the 70 x 150 x 35 mm envelope: SKF NF 314, FAG NF314, NSK NF314, NTN NF314, Koyo NF314. NJ314 and NU314 share the envelope with different rib arrangements. Searchable forms: NF314, NF-314, NF 314.
What are the dimensions of the Steyr NF314?70 mm bore, 150 mm outside diameter, 35 mm width.
What does NF mean?Outer ring with one rib and inner ring with two ribs; the bearing locates the shaft axially in one direction.
What is the internal clearance?CN, normal.
