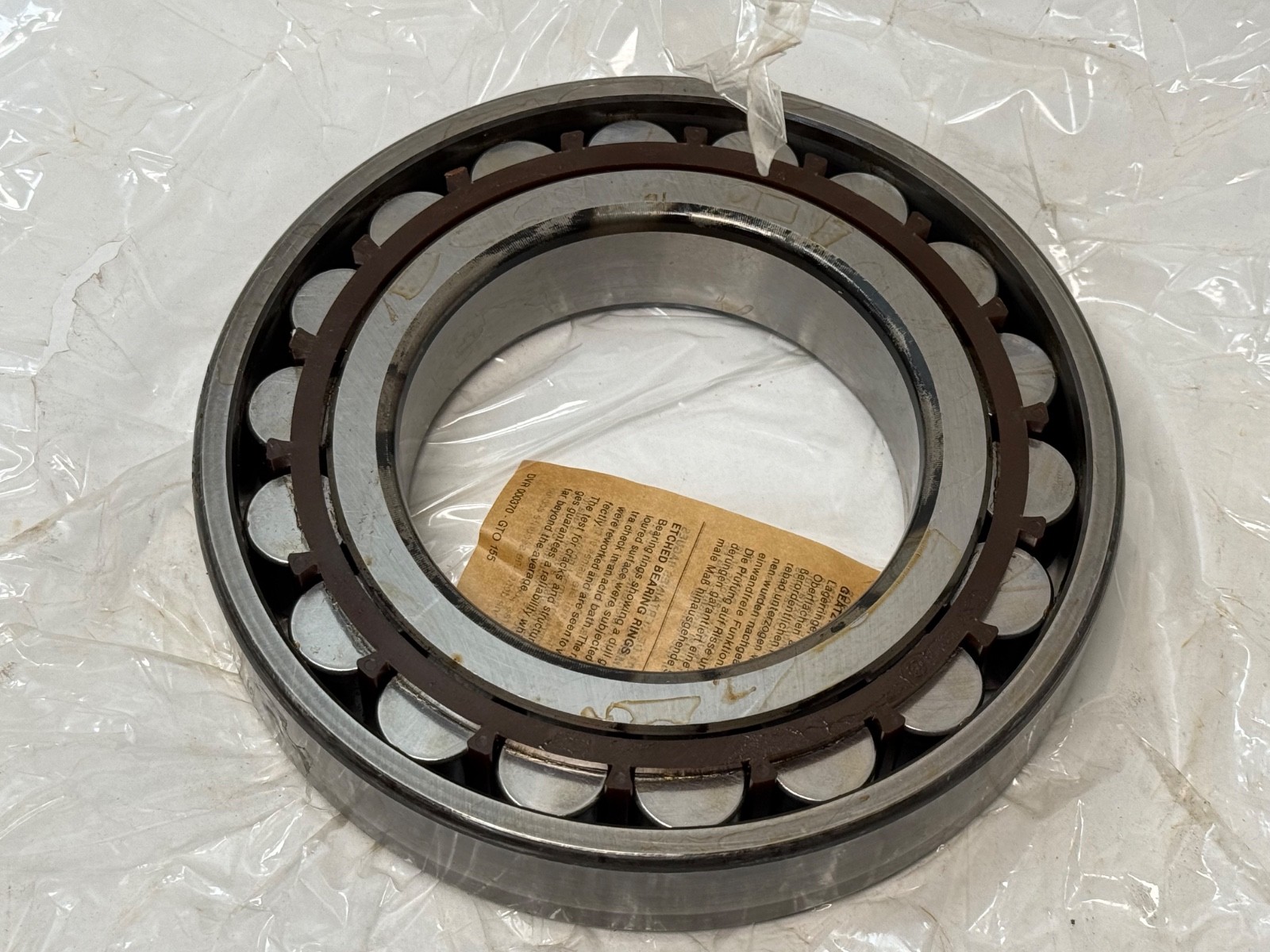

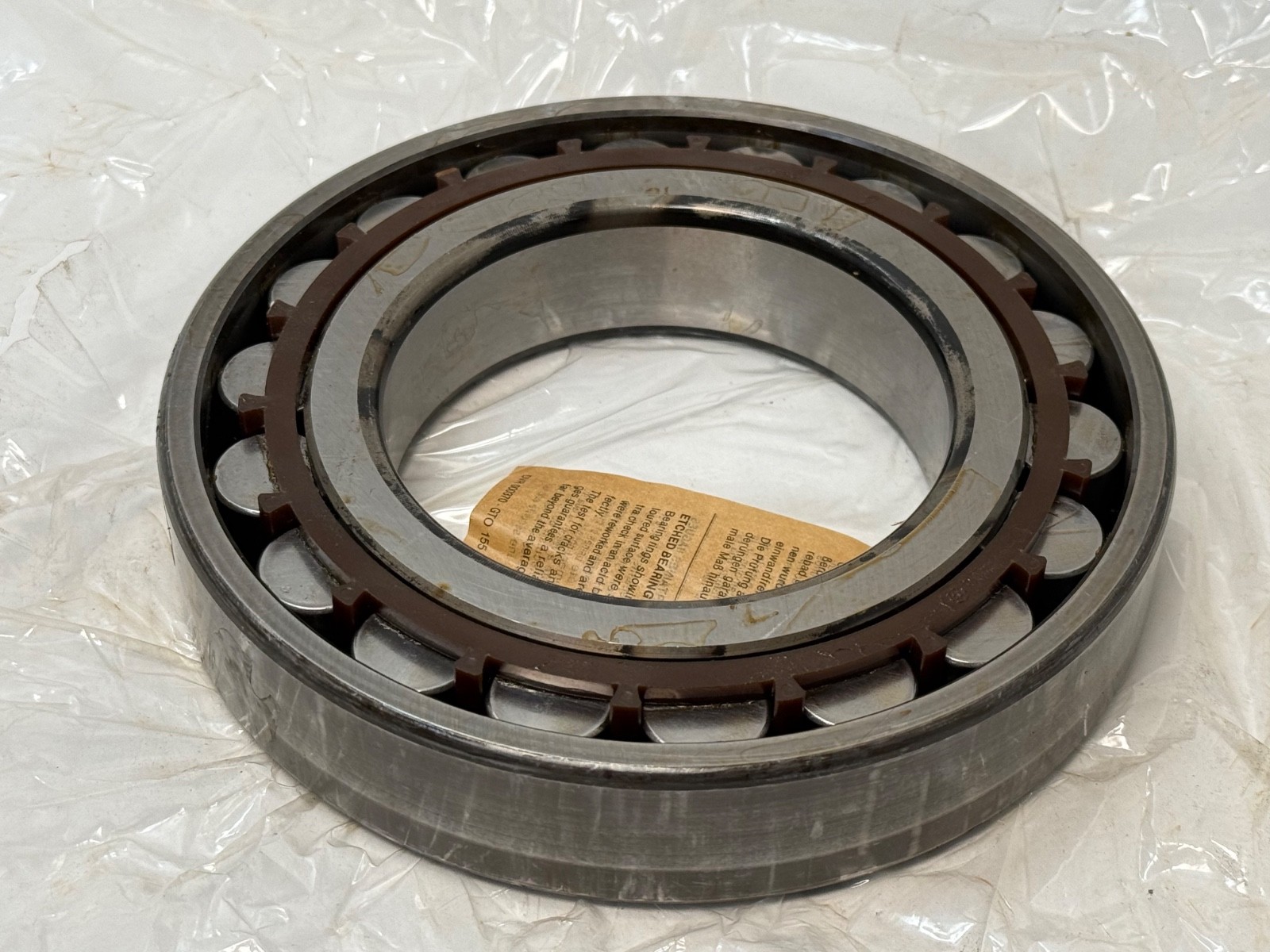

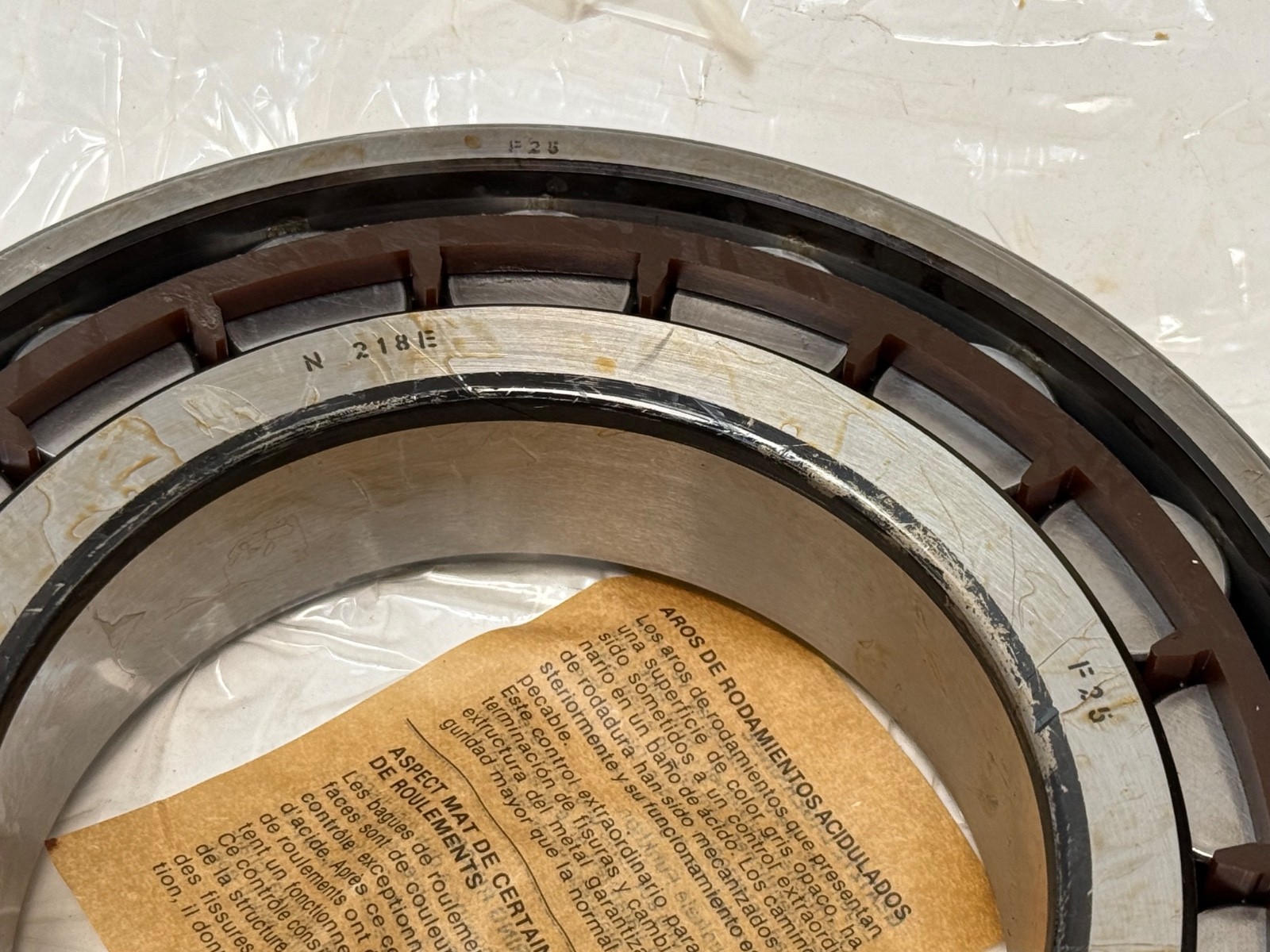

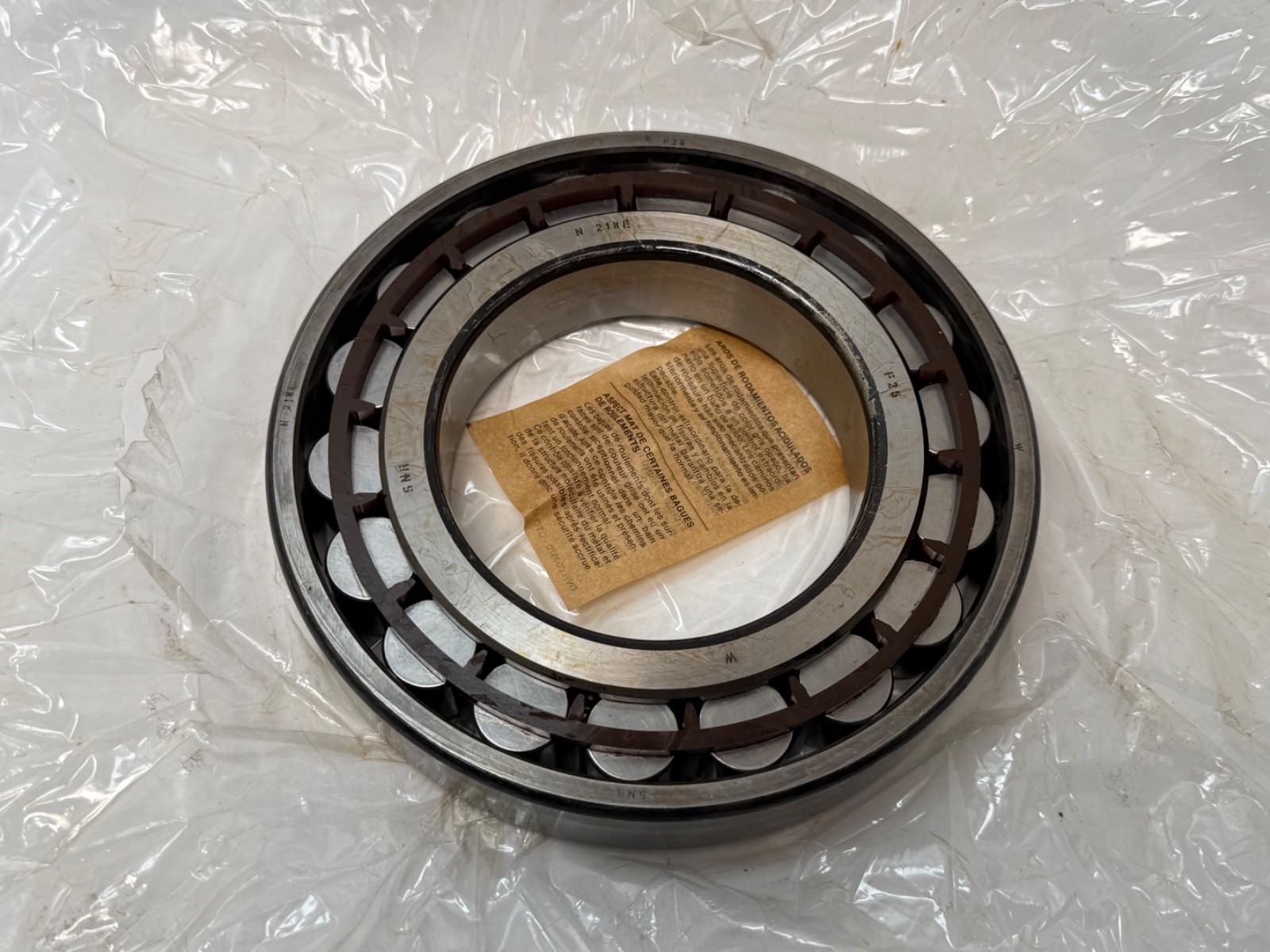

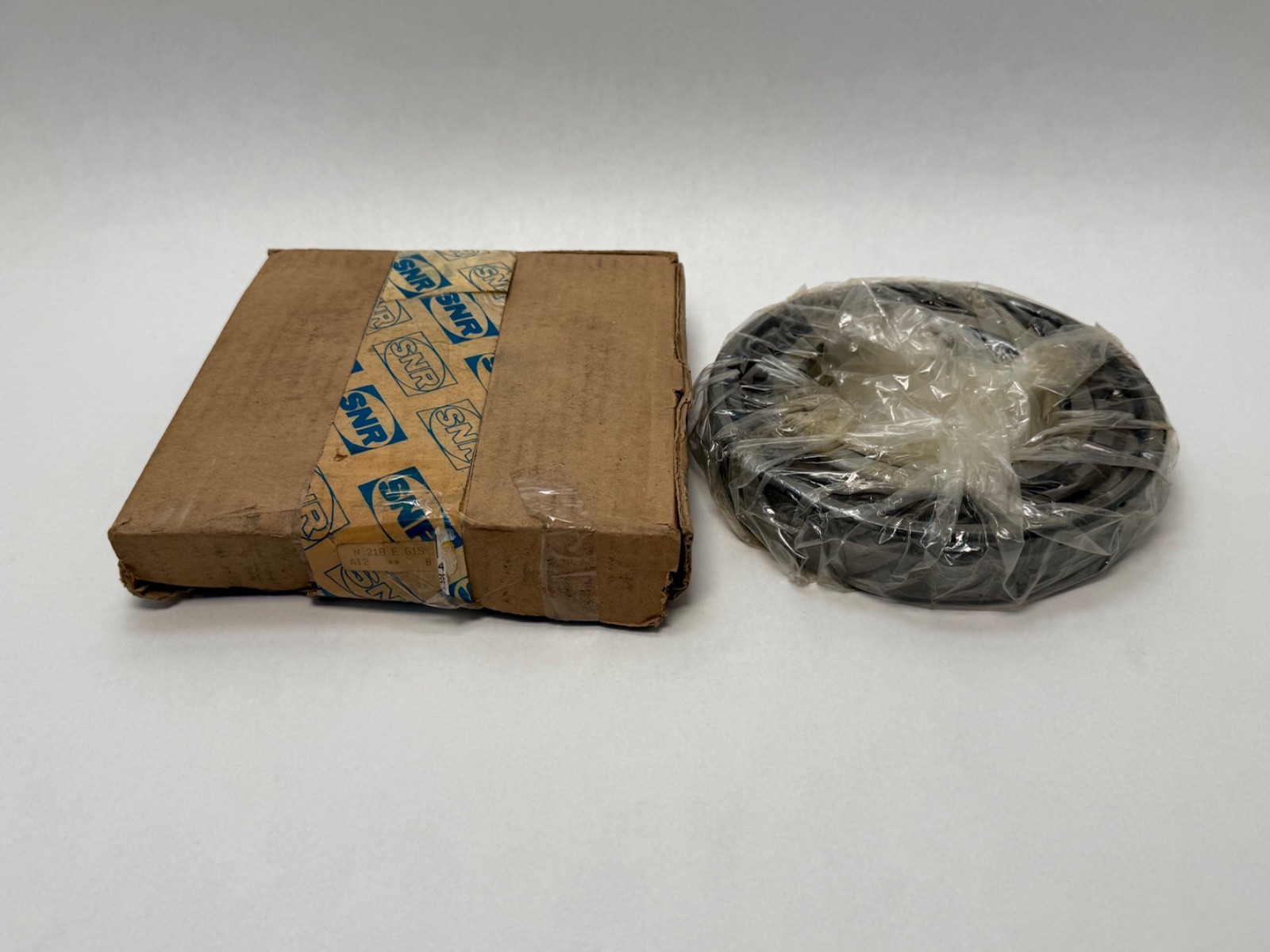

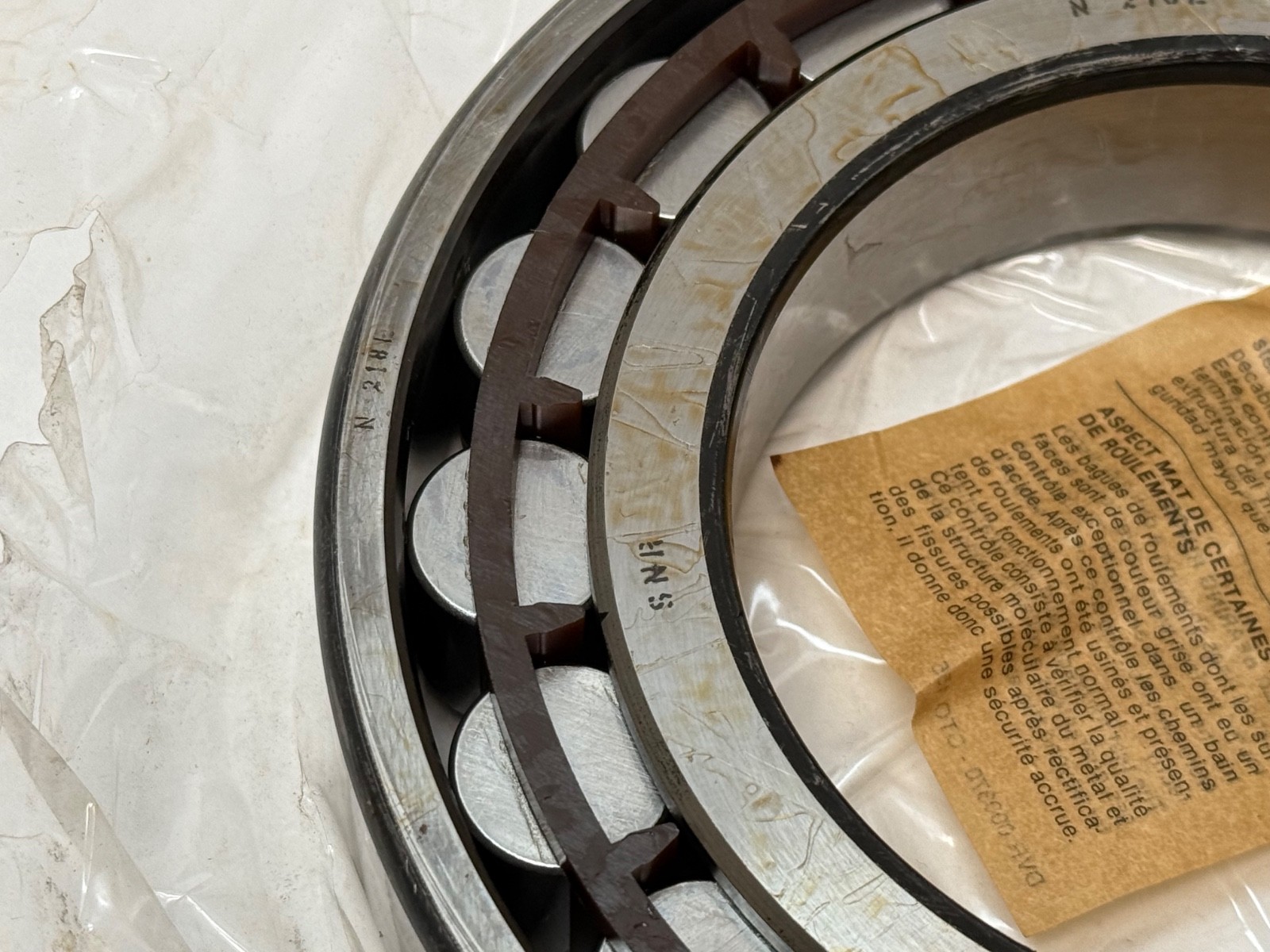

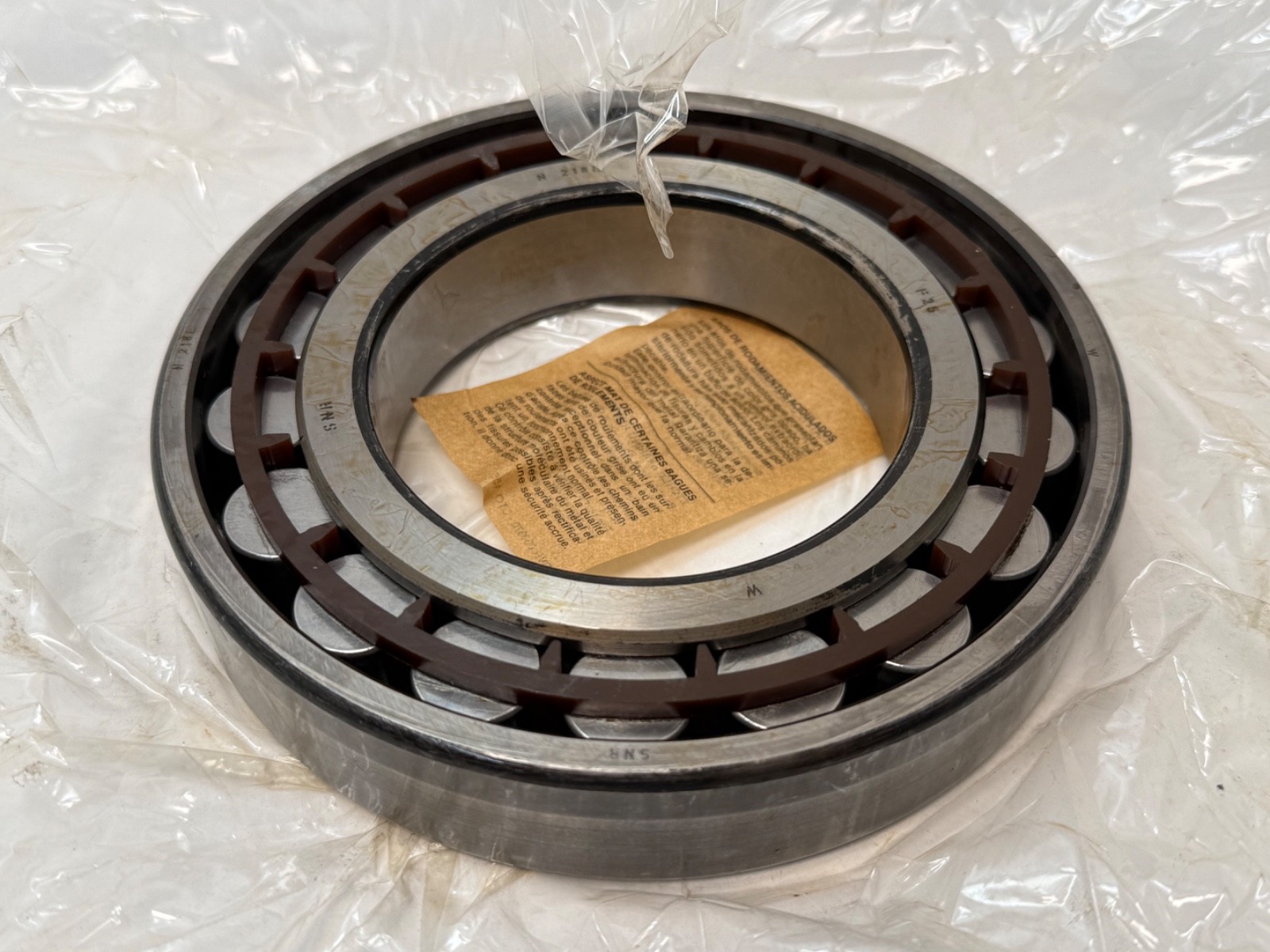

SNR N218E single-row cylindrical roller bearing, 90 x 160 x 30 mm, N design with separable rings, high-capacity E execution, CN radial clearance, open.
List Price
$114.56
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SNR |
|---|---|
| MPN | N218E |
| Model | 218E |
| Bearing Type | Cylindrical Roller Bearing, Open |
| ID | 90 mm |
| OD | 160 mm |
| Width | 30 mm |
| Material | Bearing Steel |
|---|---|
| Series | N 2 |
| Base Number | N218 |
| Industry Terms | Cylindrical roller bearing; N design roller bearing; separable roller bearing; floating bearing position |
| Common Misspellings | N-218E; N218 E; SNR N 218E; N218EG-15 |
| Total Width | 30 mm |
| Bore Shaft Size | 90 mm |
| Mpn Variants | N218E; N 218 E; N-218-E; N218EG15; N 218 E G15; N218; 218E |
| Arrangement Configuration | Separable rings — inner ring with roller and cage assembly, plus plain outer ring |
| Precision Class | Normal (ISO P0) |
| Additional Attributes | N design: two integral guide ribs on the inner ring, plain ribless outer ring; separable; radial load only, no axial capacity; bore form straight |
| Precision Rating | ABEC 1 / ISO Normal |
| Rolling Elements | Cylindrical Roller |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | CN |
| Harmonization Code | 8482.50.00.00 |
| Design Units | Metric |
| Bearing Material | Chrome steel |
| Part Number | N218E |
| Closure Type | Open |
| Cross Reference 1 | SKF N 218 ECP - E design |
|---|---|
| Cross Reference 2 | FAG N218-E-M1 - E design, brass cage |
| Cross Reference 3 | SKF N 218 - standard capacity, not E design |
SNR N218E is a single-row cylindrical roller bearing, ISO N218 size, N design with separable rings, high-capacity E execution, open, with CN radial internal clearance. Bore Diameter: 90 mm. Outside Diameter: 160 mm. Overall Width: 30 mm. Number Of Rows: 1. Rolling Elements: Cylindrical Roller. Unit Quantity: 1 Pc, one complete bearing with inner ring, roller and cage assembly and outer ring.
N — two integral guide ribs on the inner ring and a plain, ribless outer ring. The outer ring lifts away from the roller-and-cage assembly, and the bearing carries radial load only.
2 — ISO dimension series 02, the medium section.
18 — bore code 18, giving a 90 mm bore.
E — SNR high-capacity reinforced execution, with a larger roller complement than the plain N218.
Bearing Type: Single-Row Cylindrical Roller Bearing. Bore Diameter: 90 mm. Outside Diameter: 160 mm. Overall Width: 30 mm. Number Of Rows: 1. Rolling Elements: Cylindrical Roller. Bore Type: Straight. Closure Type: Open. Internal Clearance: CN. Precision Class: Normal (ISO P0). Expansion Type: Non-locating (floating). Material: Chrome steel. Series: 02 (ISO medium). Base Number: N218. Snap Ring Included: No. Harmonization Code: 8482.50.00.00. Unit Quantity: 1 Pc.
Separable rings: inner ring with roller and cage assembly, plus plain outer ring. Arrangement: N design, non-locating, radial load only. Bore Type: Straight.
Related cylindrical roller bearings on the 90 x 160 x 30 mm size: SKF N 218 ECP and FAG N218-E-M1 in E design, SKF N 218 in standard capacity. Designation variants: N218E, N 218 E, N-218-E, N218EG15, N 218 E G15, N218, 218E.
Bore Diameter: 90 mm. Outside Diameter: 160 mm. Overall Width: 30 mm.
N design: two integral guide ribs on the inner ring and a plain, ribless outer ring. Expansion Type: Non-locating (floating).
Internal Clearance: CN, normal radial internal clearance.
