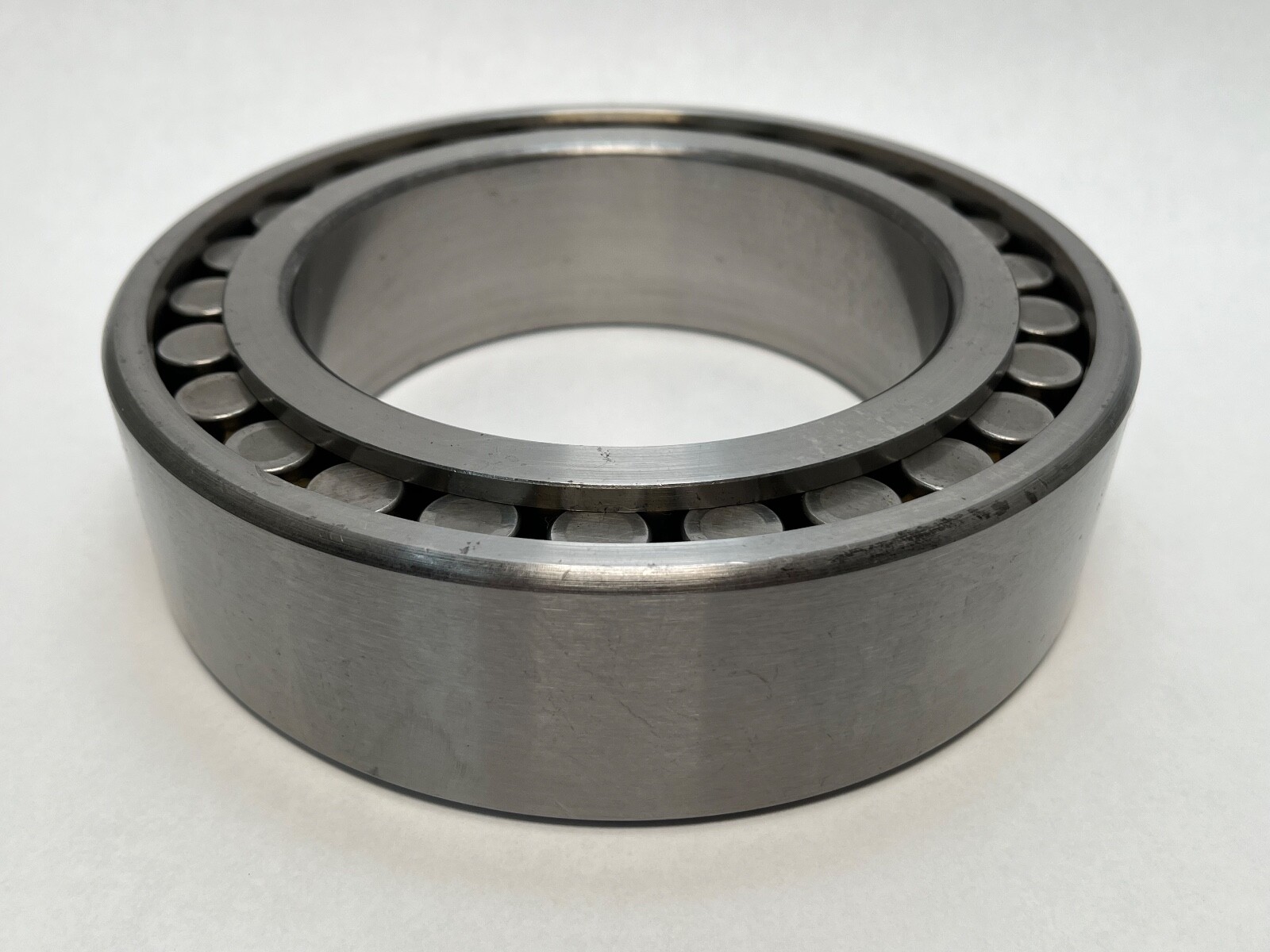

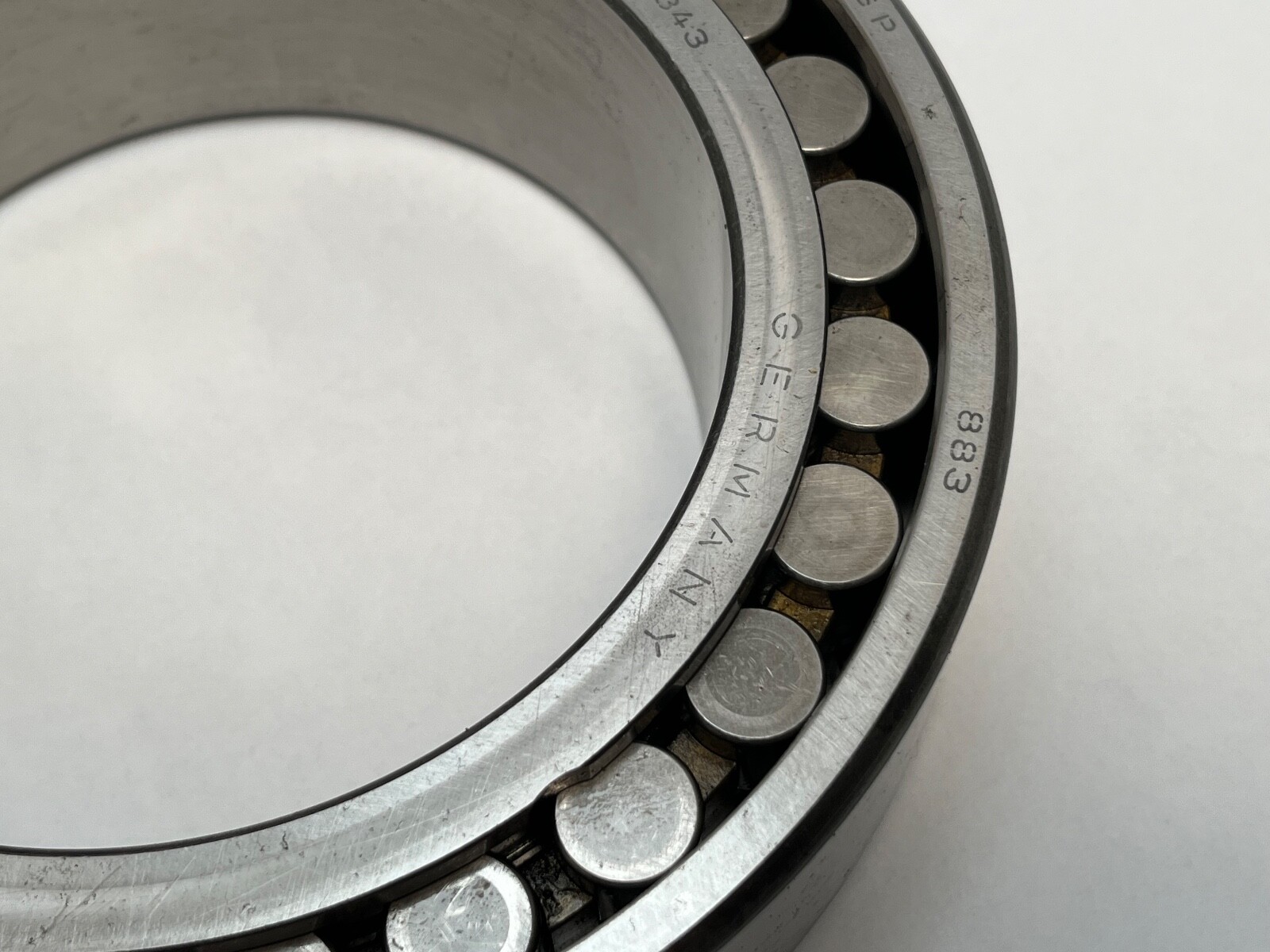

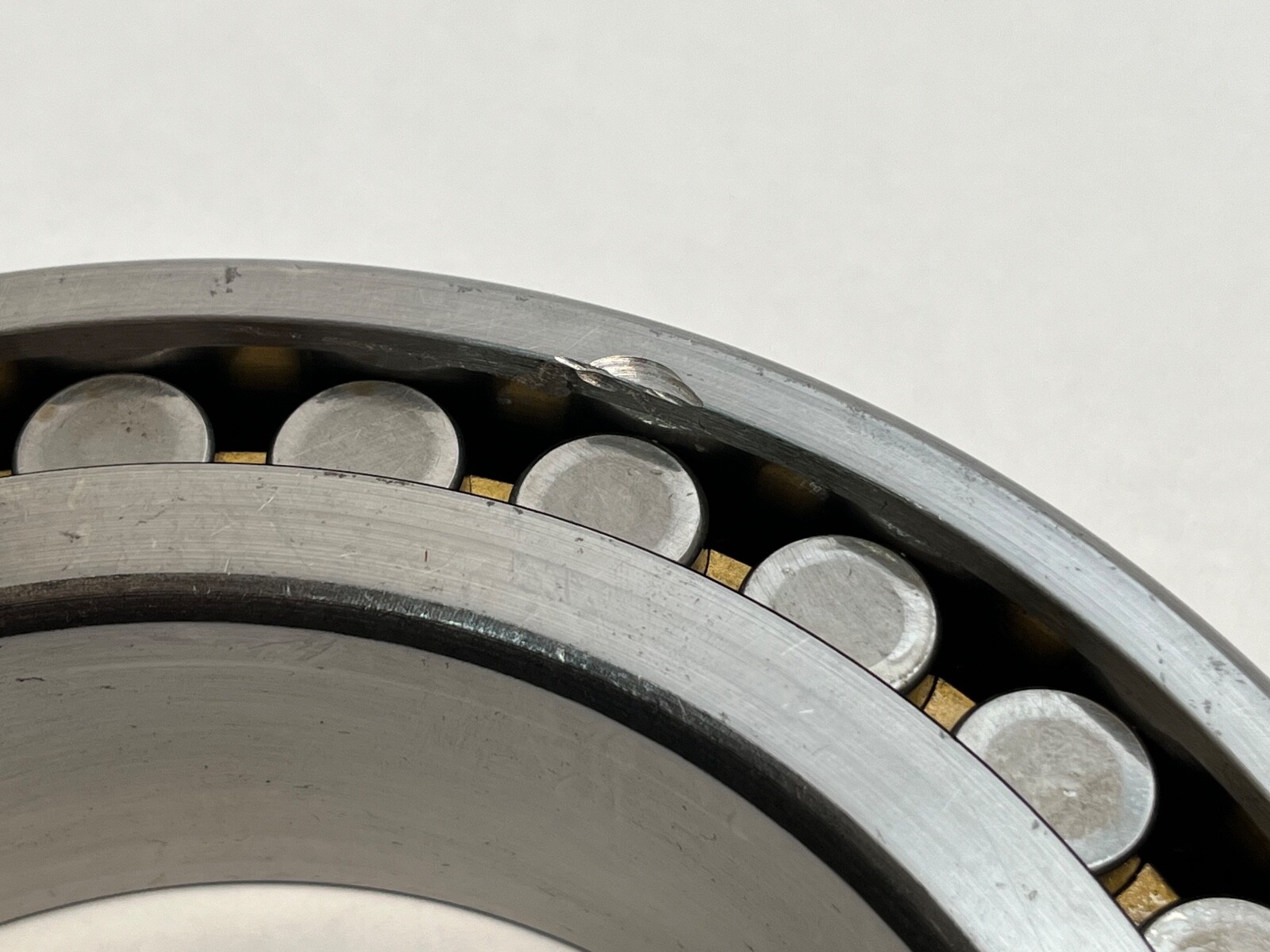

SKF NN 3026 KM/SP super-precision double row cylindrical roller bearing, 130 x 200 x 52 mm, 1:12 tapered bore, machined brass cage, SP class, for spindles.
List Price
$527.82
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | NN 3026 KM/SP |
| Model | NN 3026 K M SP |
| Bearing Type | Cylindrical Roller Bearing, Open |
| ID | 130 mm |
| OD | 200 mm |
| Width | 52 mm |
| Material | Bearing Steel |
|---|---|
| Series | NN 3000 |
| Lubricant | Oil Preservative |
| Mpn Variants | NN 3026 KM/SP, NN-3026-KM/SP, NN-3026-K-M-SP, NN3026KMSP, NN3026 |
| Precision Class | SP |
| Cage Type | Machined |
| Precision Rating | SP |
| Rolling Elements | Cylindrical Roller |
| Cage Material | Machined brass |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Harmonization Code | 8482.50.00.00 |
| Closure Type | Open |
| Cross Reference 1 | FAG NN3026-AS-K-M-SP |
|---|---|
| Cross Reference 2 | NSK NN3026MBKRCC1P4 |
| Cross Reference 3 | NTN NN3026KC1NAP4 |

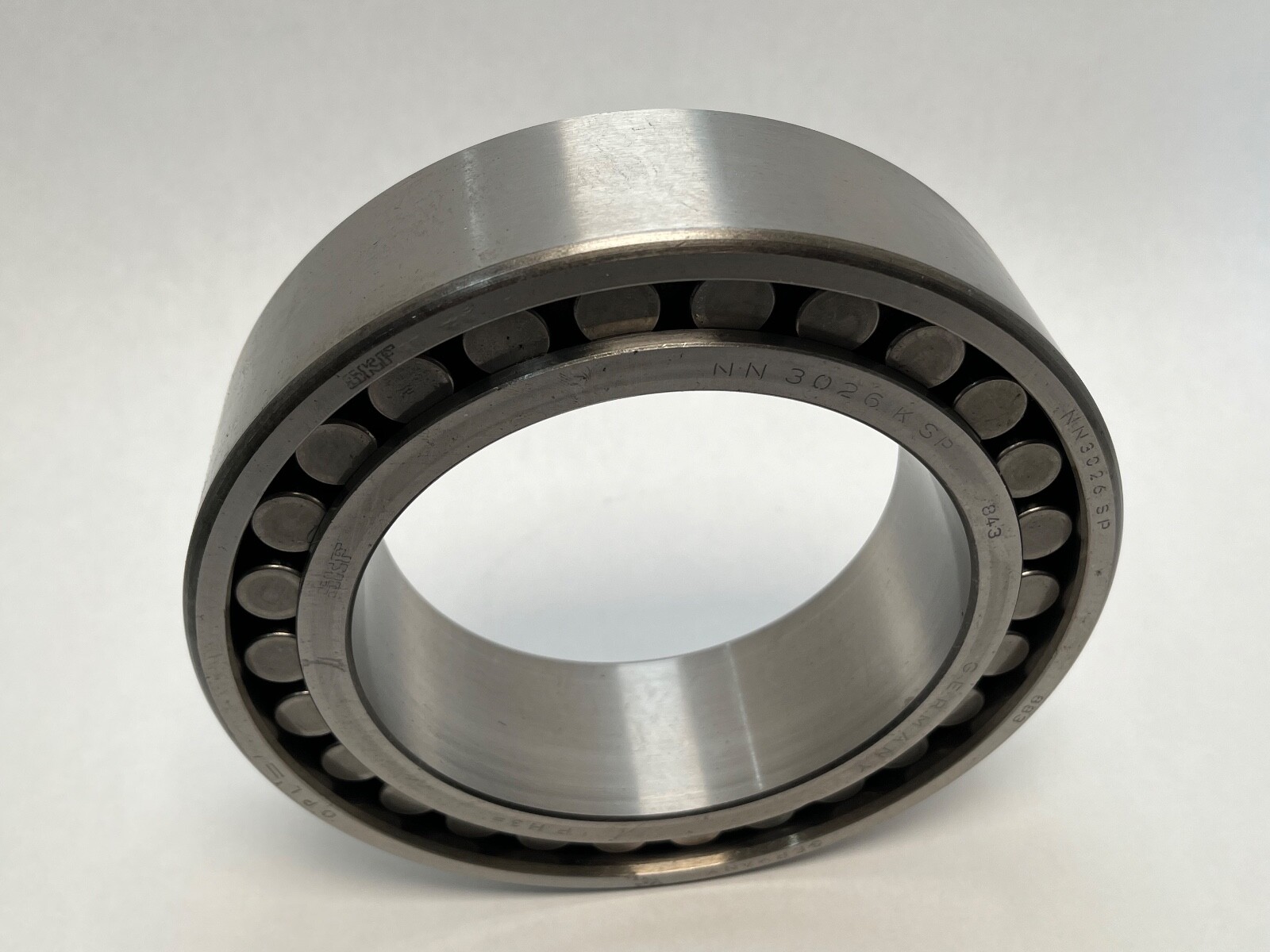

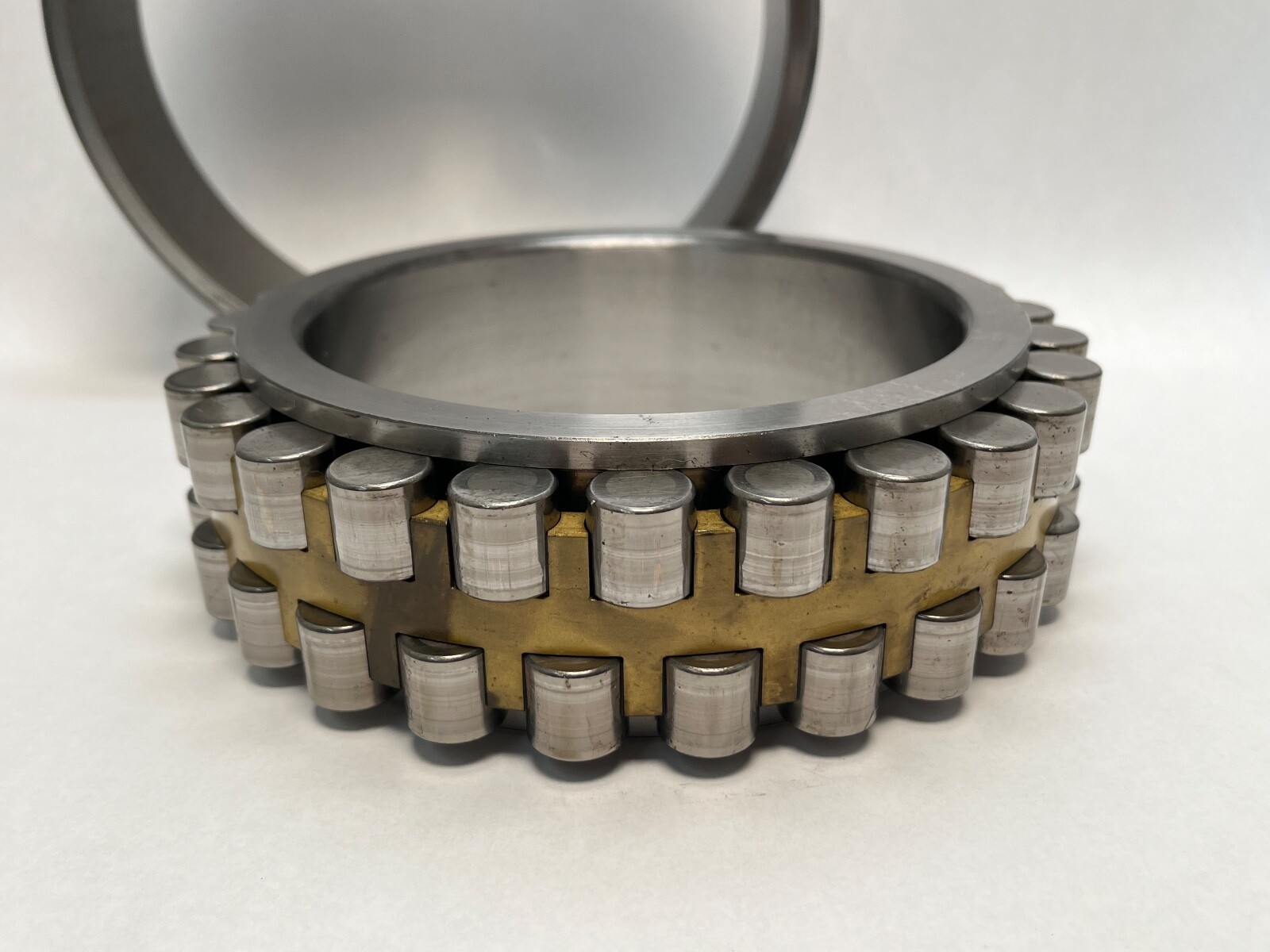

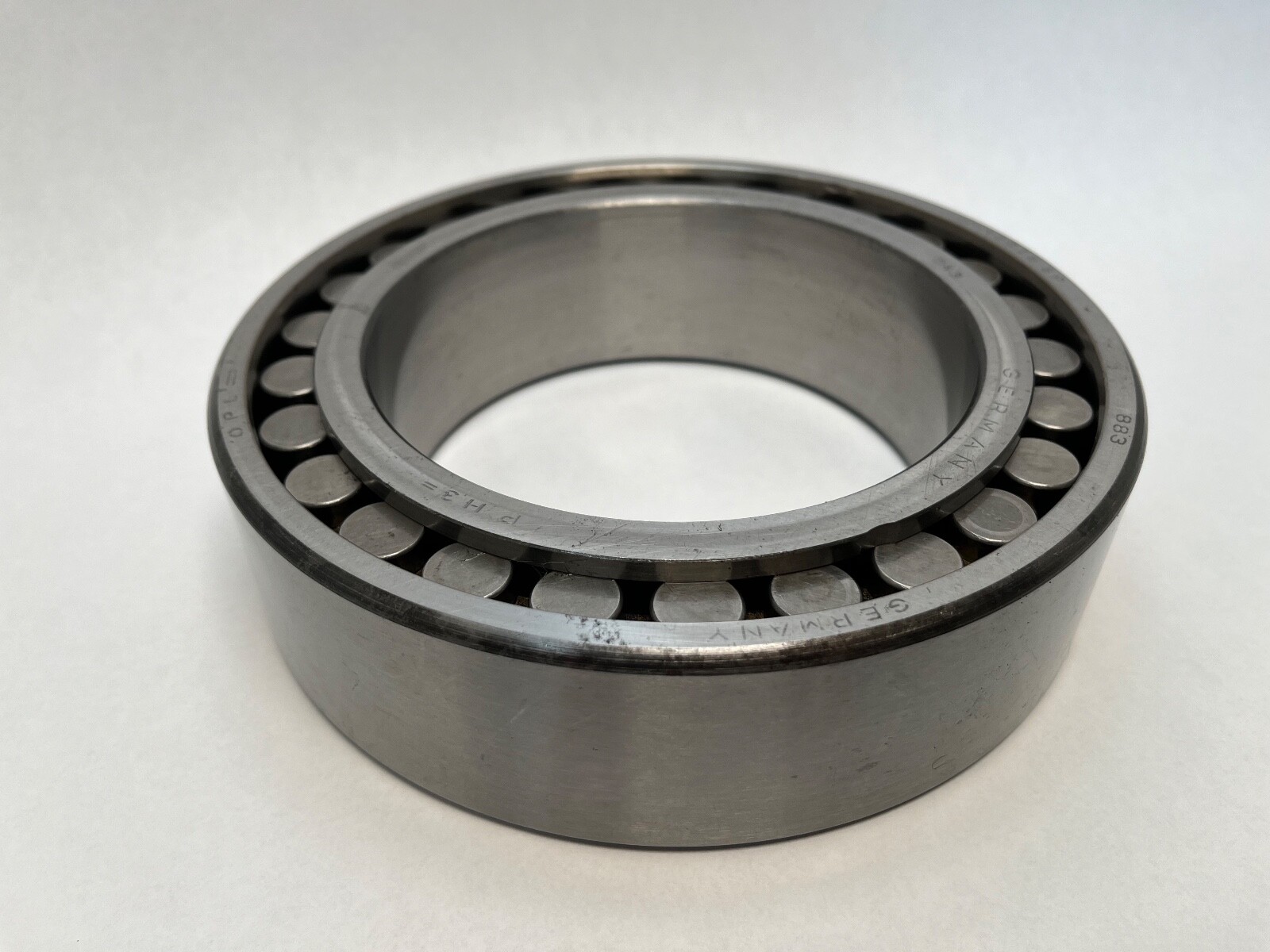

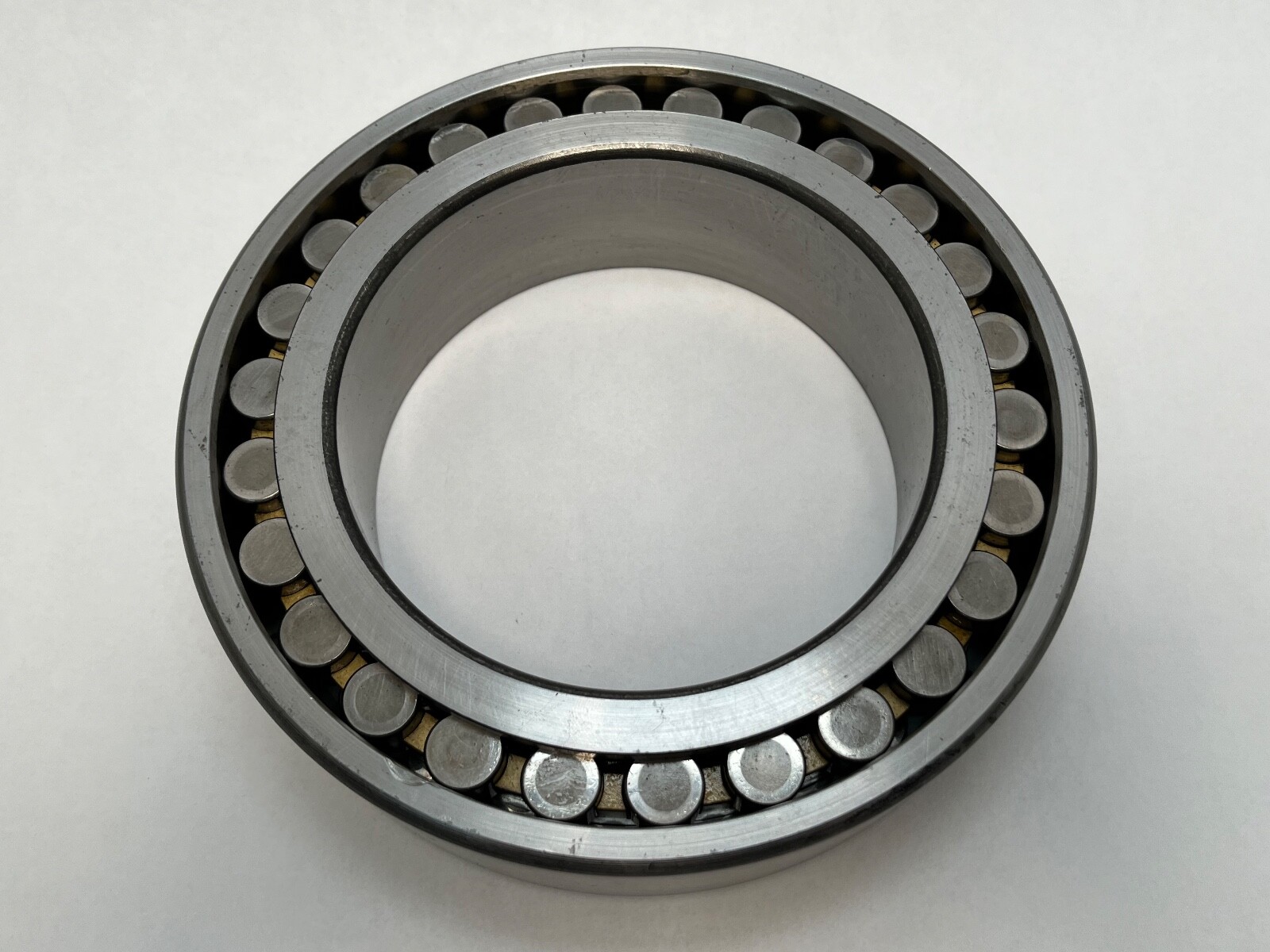

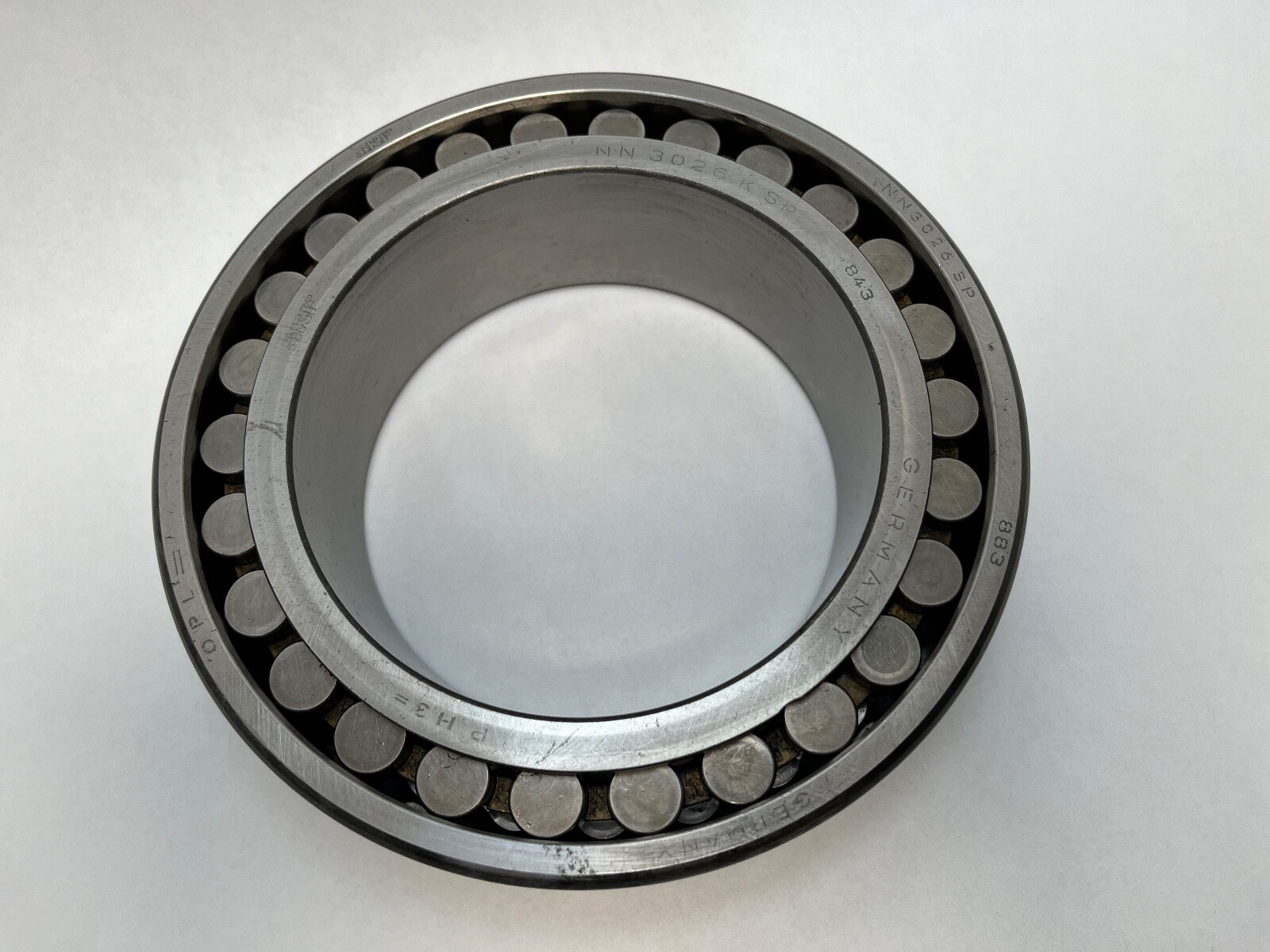

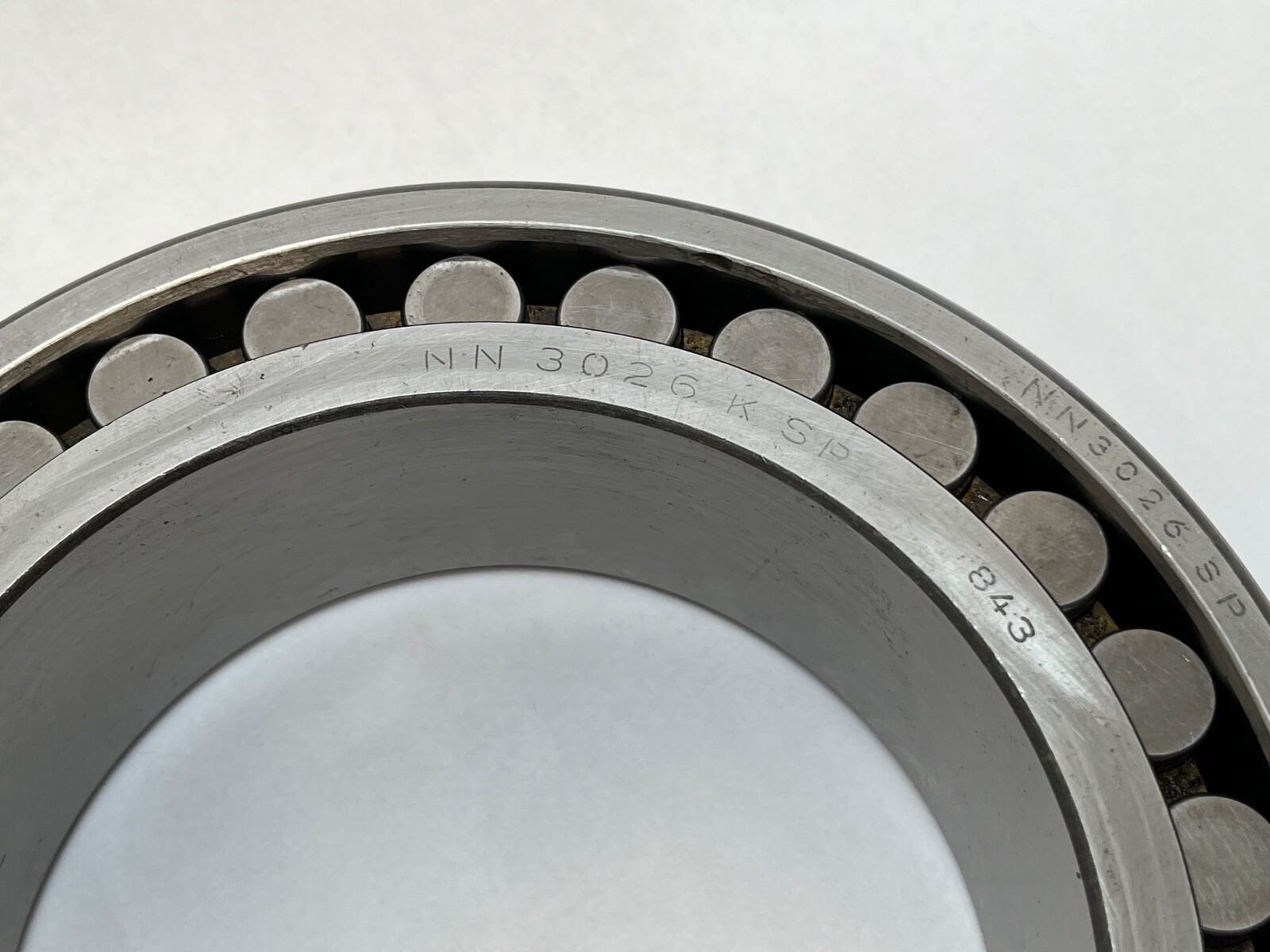

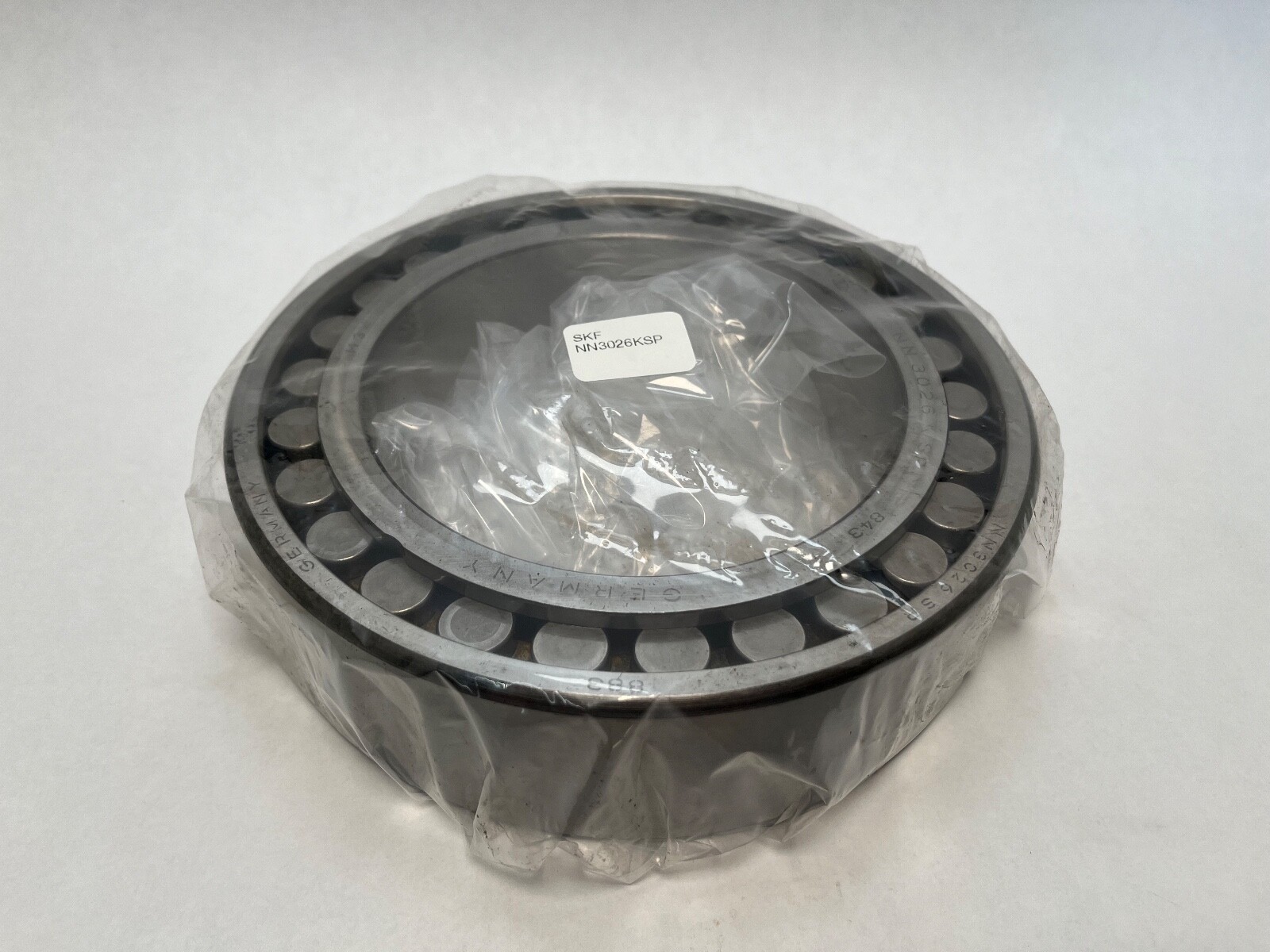

SKF NN 3026 KM/SP is a super-precision double row cylindrical roller bearing in the NN 30 series with a 1:12 tapered bore and a machined brass cage. Three flanges on the inner ring, none on the outer ring; the outer ring is separable. Complete bearing: inner ring with both roller rows and cage, and outer ring. Unit Quantity: 1 Pc.
NN — double row cylindrical roller bearing, flanges on the inner ring, plain outer ring.
30 — dimension series 30.
26 — bore code, 26 x 5 = 130 mm bore.
K — tapered bore, taper 1:12.
M — machined brass cage.
SP — SKF special precision tolerance class for super-precision cylindrical roller bearings.
Bearing Type: Cylindrical Roller Bearing. Number Of Rows: 2. Rolling Elements: Cylindrical Roller. Cage Material: Machined brass. Cage Type: Machined. Precision Class: SP. Closure Type: Open. Series: NN 3000. Snap ring included: No. Harmonization Code: 8482.50.00.00.
Bore Diameter: 130 mm. Outside Diameter: 200 mm. Width: 52 mm. Bore Type: Tapered 1:12.
Cross-references: FAG NN3026-AS-K-M-SP; NSK NN3026MBKRCC1P4; NTN NN3026KC1NAP4. Companion thrust bearings: SKF 234426 series double direction thrust bearings. MPN variants: NN 3026 KM/SP, NN-3026-KM/SP, NN-3026-K-M-SP, NN3026KMSP, NN3026.
130 mm bore, 200 mm outside diameter and 52 mm width, with a 1:12 tapered bore.
K is a 1:12 tapered bore, M is a machined brass cage and SP is SKF’s special precision tolerance class for super-precision cylindrical roller bearings.

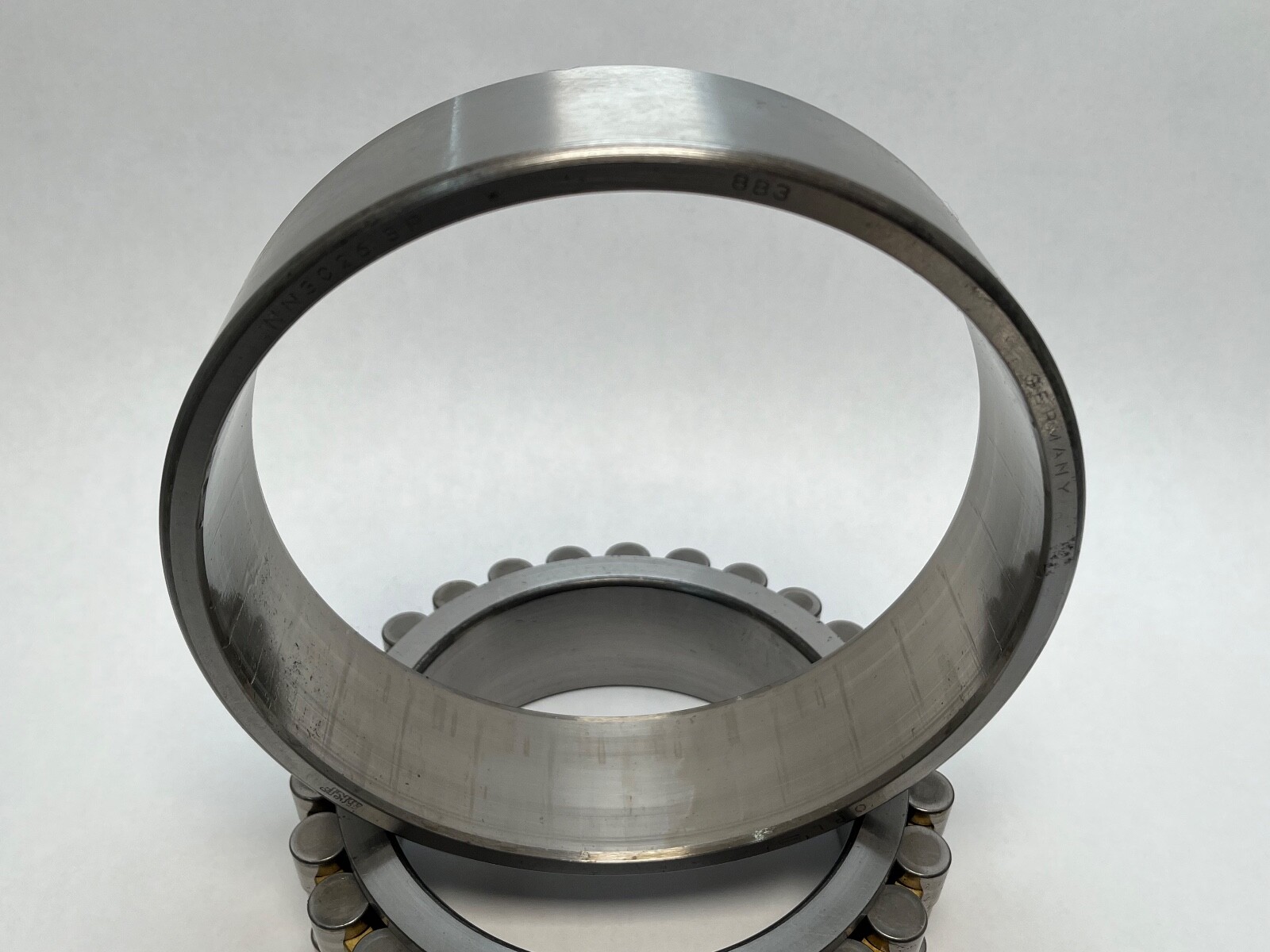

A complete bearing: inner ring with both roller rows and cage, plus the separable outer ring. The count is 1 Pc.
