SKFN 216 M P5Cylindrical Roller Bearing — 80 mm ID, 140 mm OD, 26 mm Width, P5 Precision, Machined Brass Cage

Product Description

What this part is:

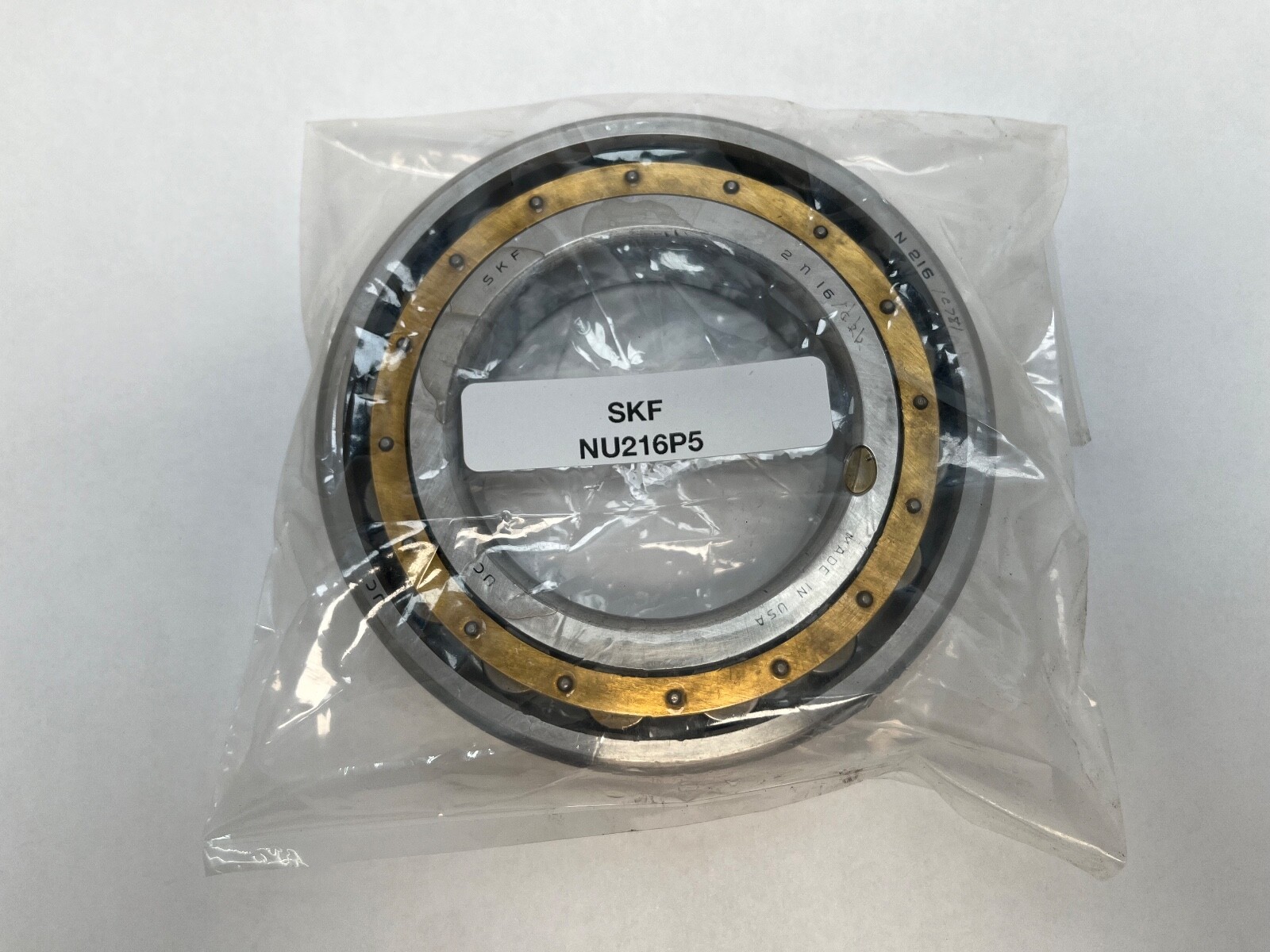

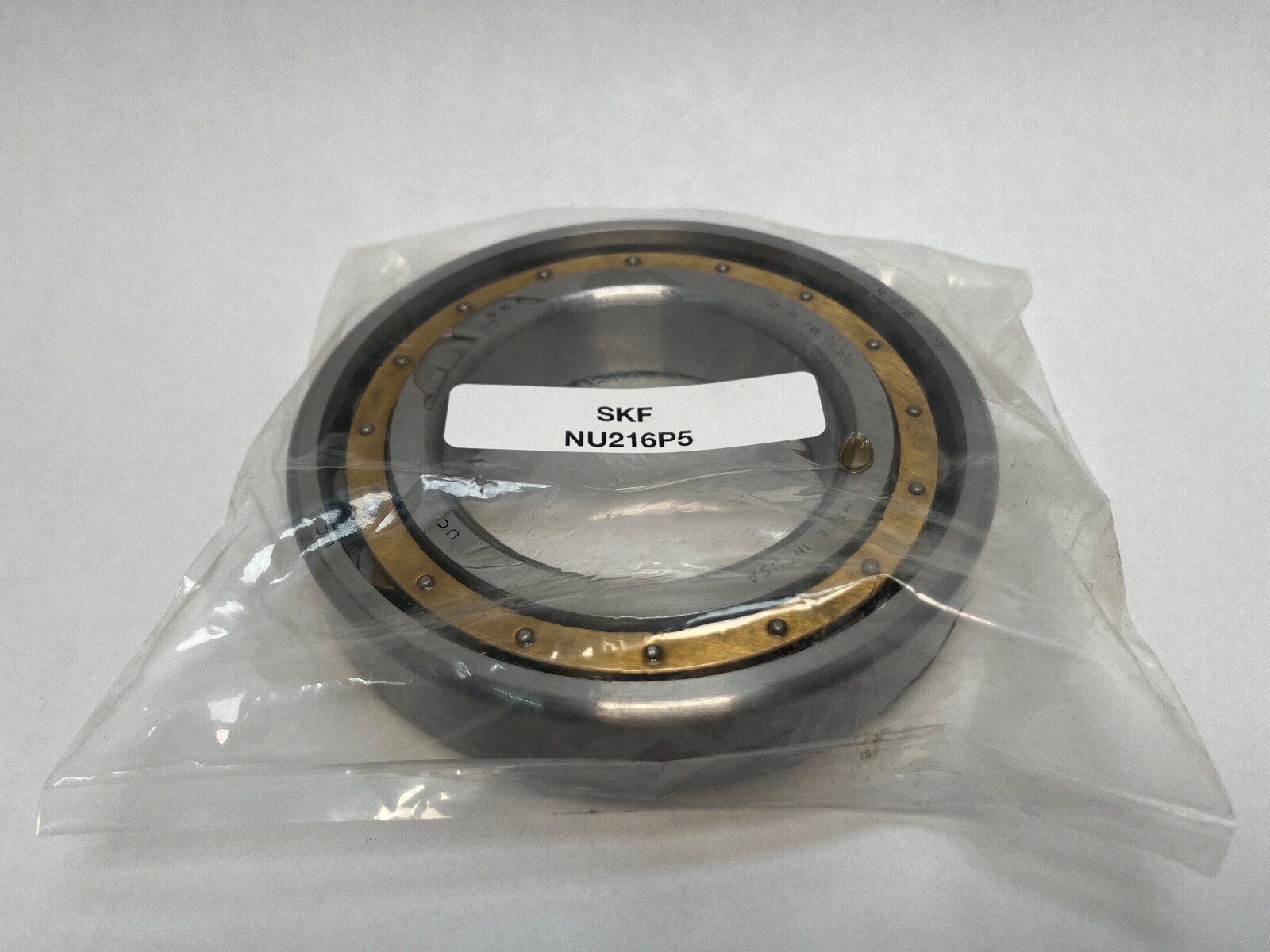

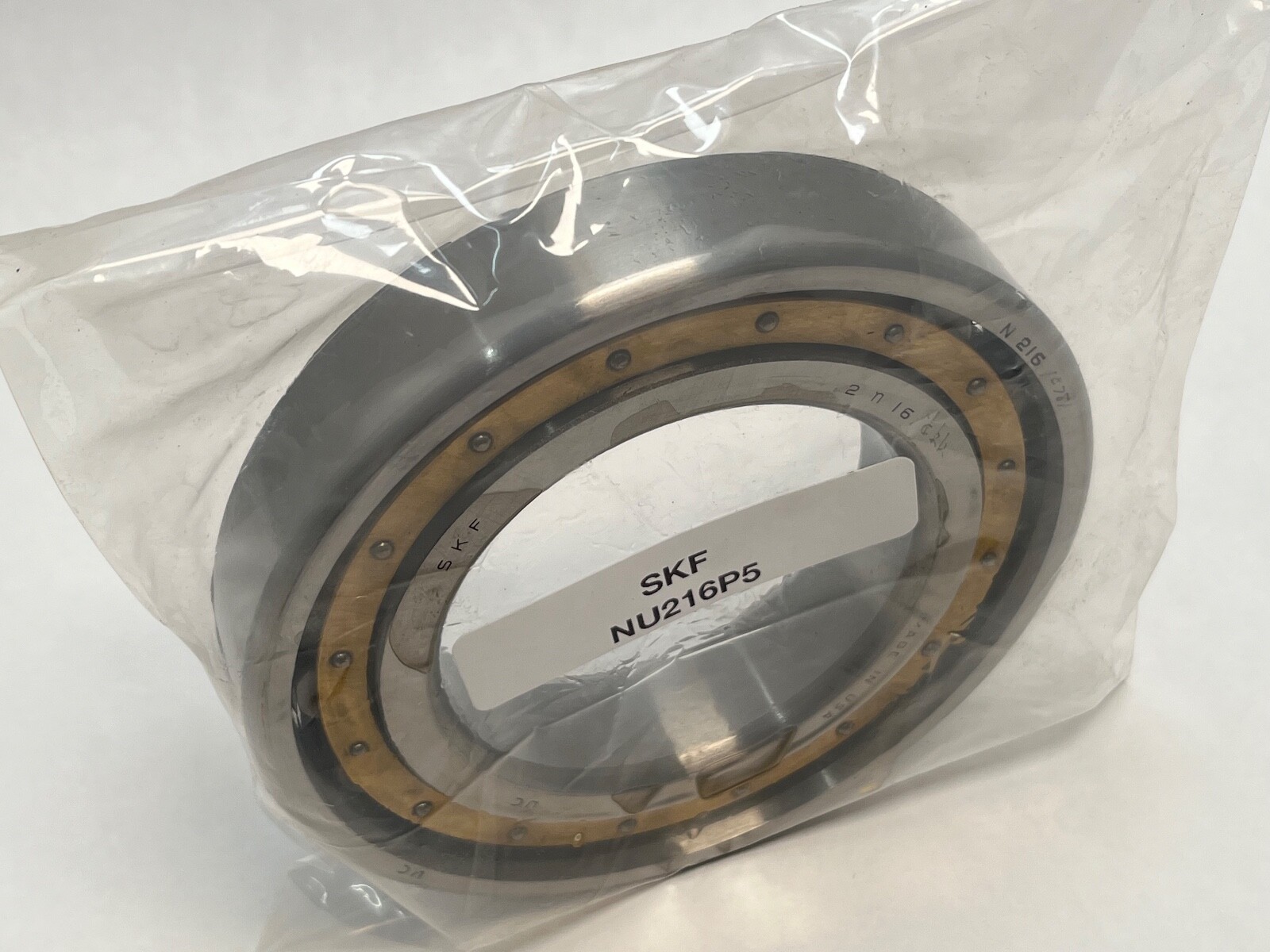

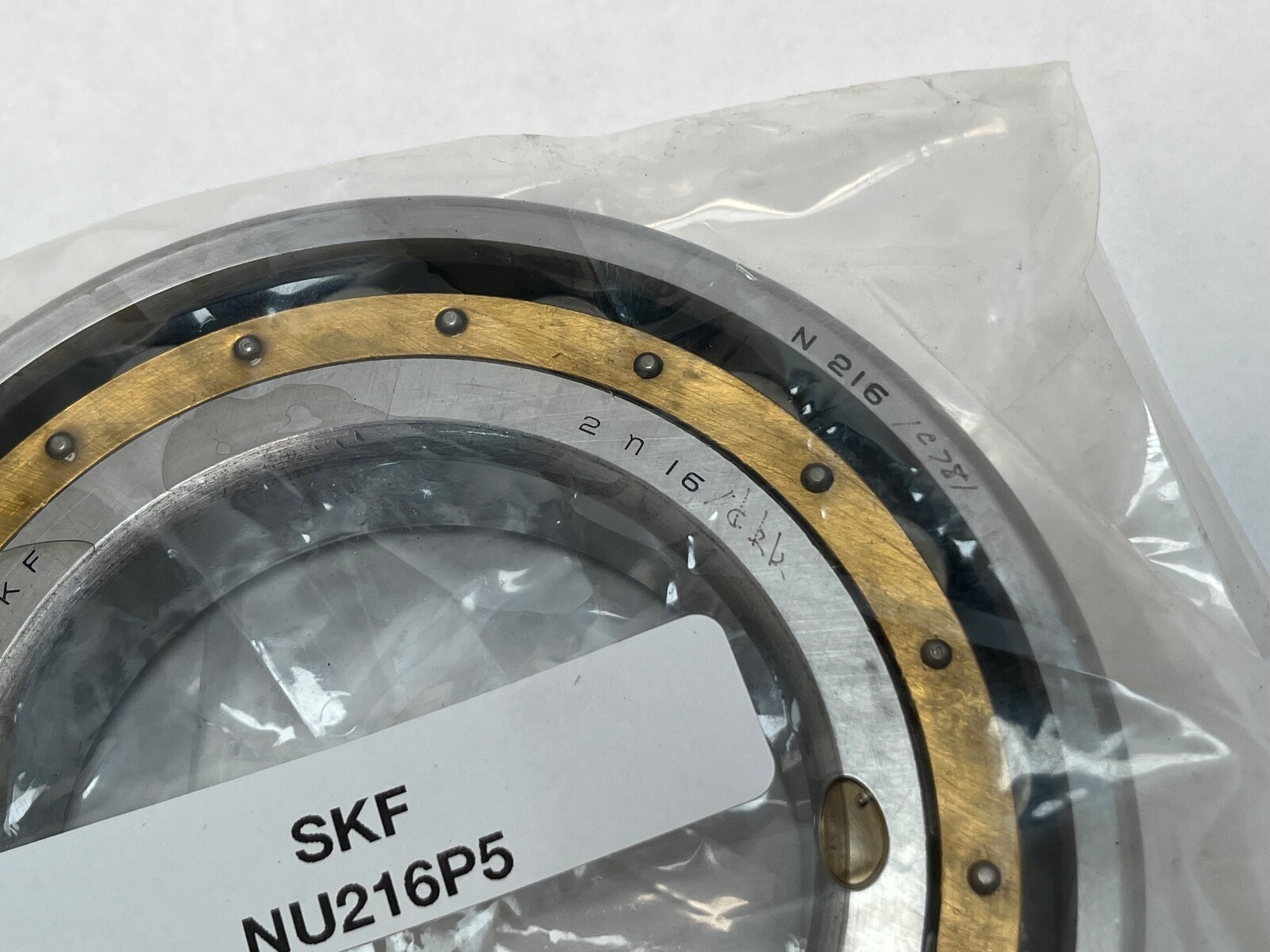

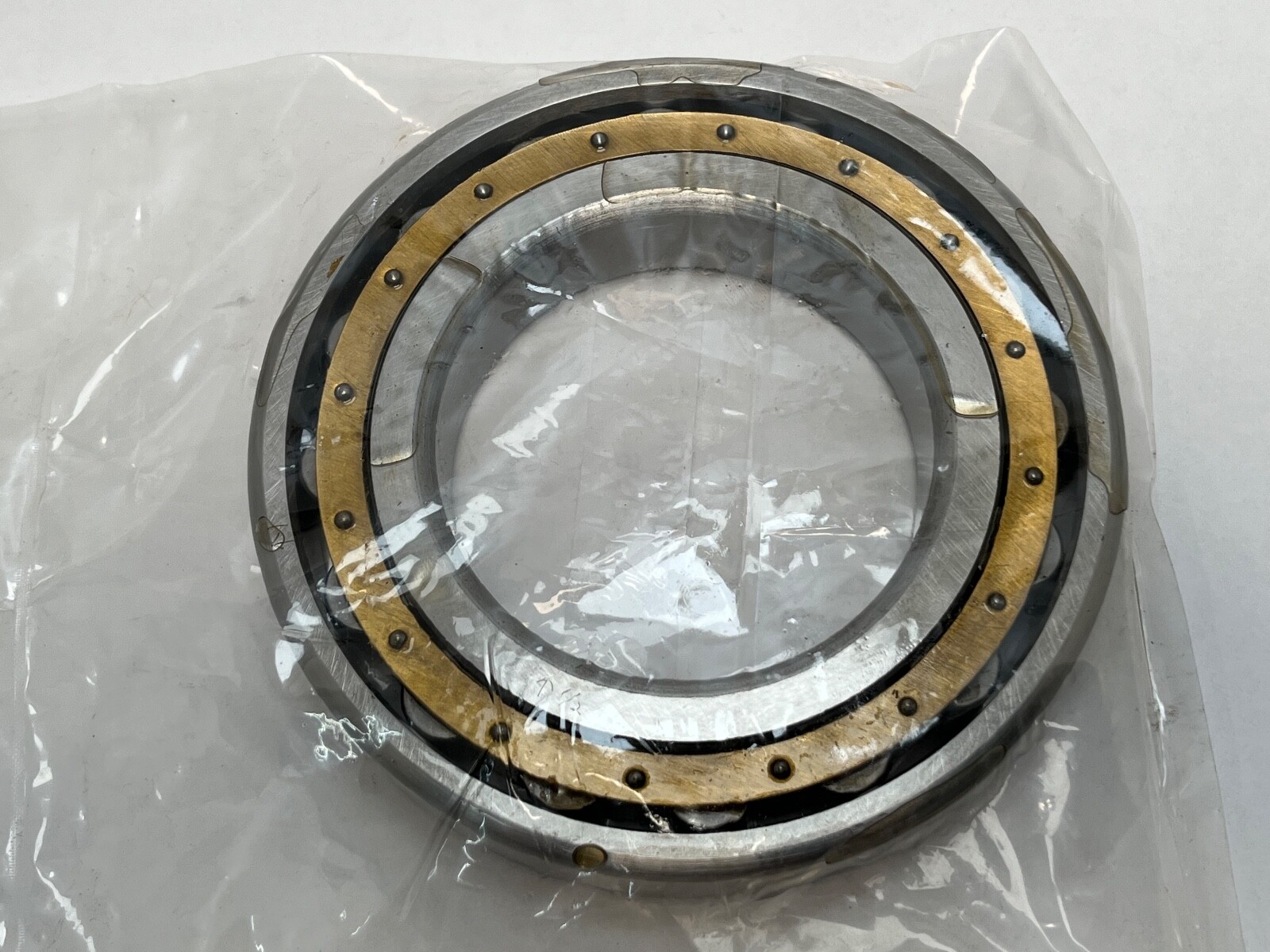

SKF N 216 M P5 single row cylindrical roller bearing, 80 mm bore, 140 mm outside diameter, 26 mm wide. Complete bearing: inner ring with roller and cage assembly, plus outer ring. 1 Pc. The outer ring has no flanges, so the bearing carries high radial load and allows axial shaft displacement in both directions as a non-locating bearing. Machined brass cage, P5 precision class.

Decoding the designation:

N — cylindrical roller bearing with two integral flanges on the inner ring and a ribless outer ring.

2 — ISO dimension series 02.

16 — bore code, 80 mm bore.

M — machined brass cage, roller-guided.

P5 — ISO tolerance class 5 dimensional and running accuracy.

Specifications:

Bore Diameter: 80 mm. Outside Diameter: 140 mm. Overall Width: 26 mm. Number Of Rows: 1. Rolling Elements: Cylindrical Roller. Bore Type: Straight. Closure Type: Open. Cage Material: Machined brass. Cage Type: Machined, roller-guided. Precision Class: RBEC 5 / P5. Internal Clearance: CN. Series: N200. Base Number: N216. Harmonization Code: 8482.50.00.00. Unit Quantity: 1 Pc.

Dimensions and mounting:

Envelope: 80 x 140 x 26 mm. Design: N, ribless outer ring and two-flanged inner ring. Axial displacement: both directions, non-locating.

Compatibility and replacement:

FAG N216, NSK N216, NTN N216 and Koyo N216 share the 80 x 140 x 26 mm N-type envelope; these are standard-tolerance numbers, not P5. Other forms of the number: N216MP5, N-216-M-P5, N216M, N 216 M P5 2N16C781.

Frequently asked questions:

What are the dimensions of the SKF N 216 M P5?

80 mm bore, 140 mm outside diameter and 26 mm width.

What does the M in N 216 M P5 mean?

M is the SKF code for a machined brass cage, roller-guided.

What precision class is the SKF N 216 M P5?

P5, ISO tolerance class 5 dimensional and running accuracy, rated RBEC 5.
