Single-row cylindrical roller bearing, 70 x 125 x 24 mm, N design for free axial displacement. Machined brass cage, P5 precision, straight bore.
List Price
$68.79
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | N214MP5 |
| Model | N214MEP5 |
| Bearing Type | Cylindrical Roller Bearing, Open |
| ID | 70 mm |
| OD | 125 mm |
| Width | 24 mm |
| Series | N200 |
|---|---|
| Material | Bearing Steel |
| Base Number | N214 |
| Mpn Variants | N214 M P5 / N 214 M P5 / N214MEP5 / N214EP5 / N214 |
| Precision Class | ABEC 5 / P5 |
| Dynamic Load Rating | 103,000 N |
| Static Load Rating | 95,000 N |
| Rolling Elements | Cylindrical Rollers |
| Item Weight | 1.27 kg (2.80 lb) |
| Cage Material | Brass, machined |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Limiting Speed | 5,000 rpm grease; 6,300 rpm oil-bath |
| Internal Clearance | CN |
| Harmonization Code | 8482.50.00 |
| Expansion Type | Non-locating, free axial displacement |
| Part Number | N214MP5 |
| Cross Reference 1 | FAG N214-E-M1-P5 - E design, higher ratings |
|---|---|
| Cross Reference 2 | SKF N 214 ECP/P5 - E design, polyamide cage |

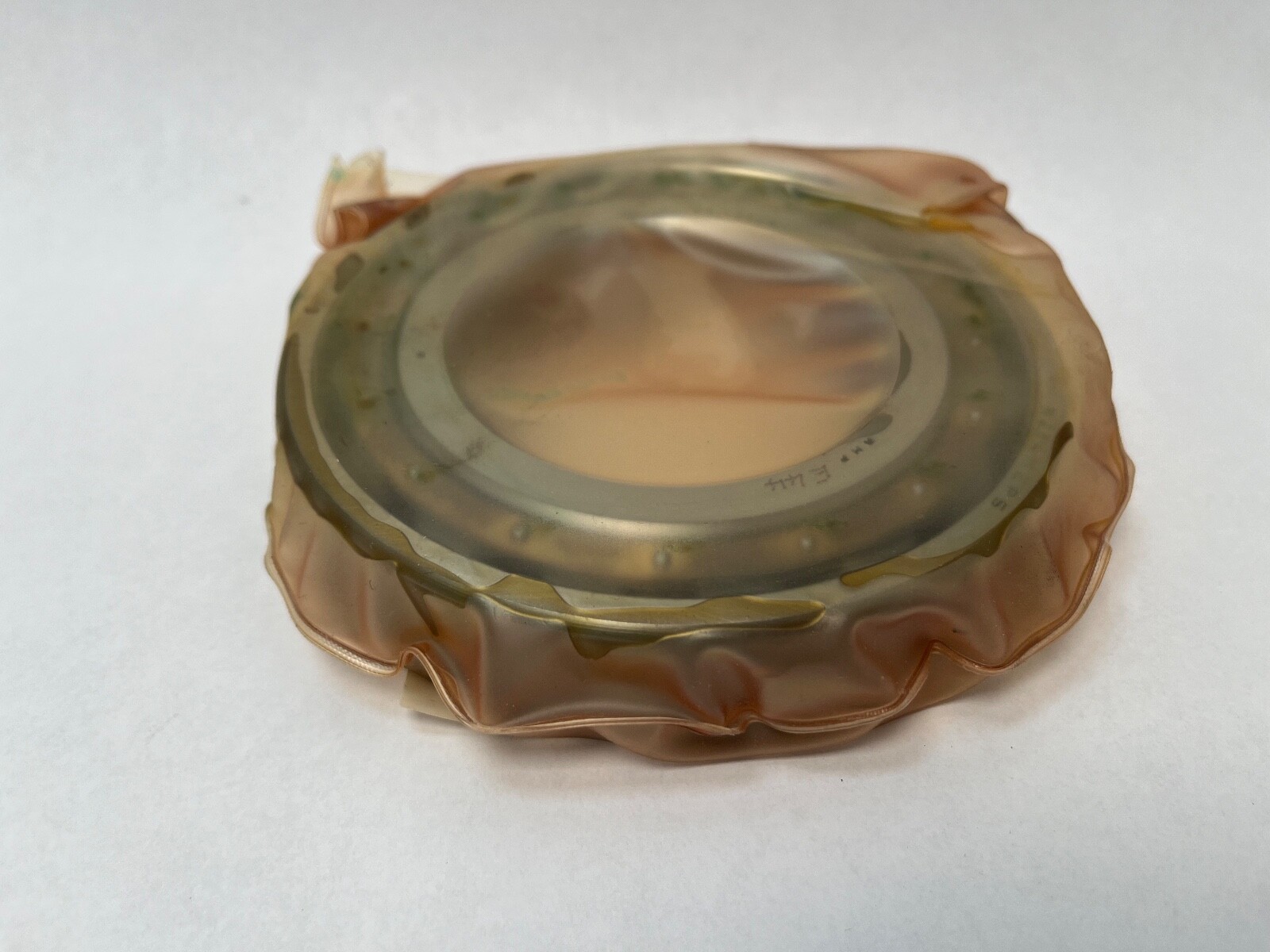

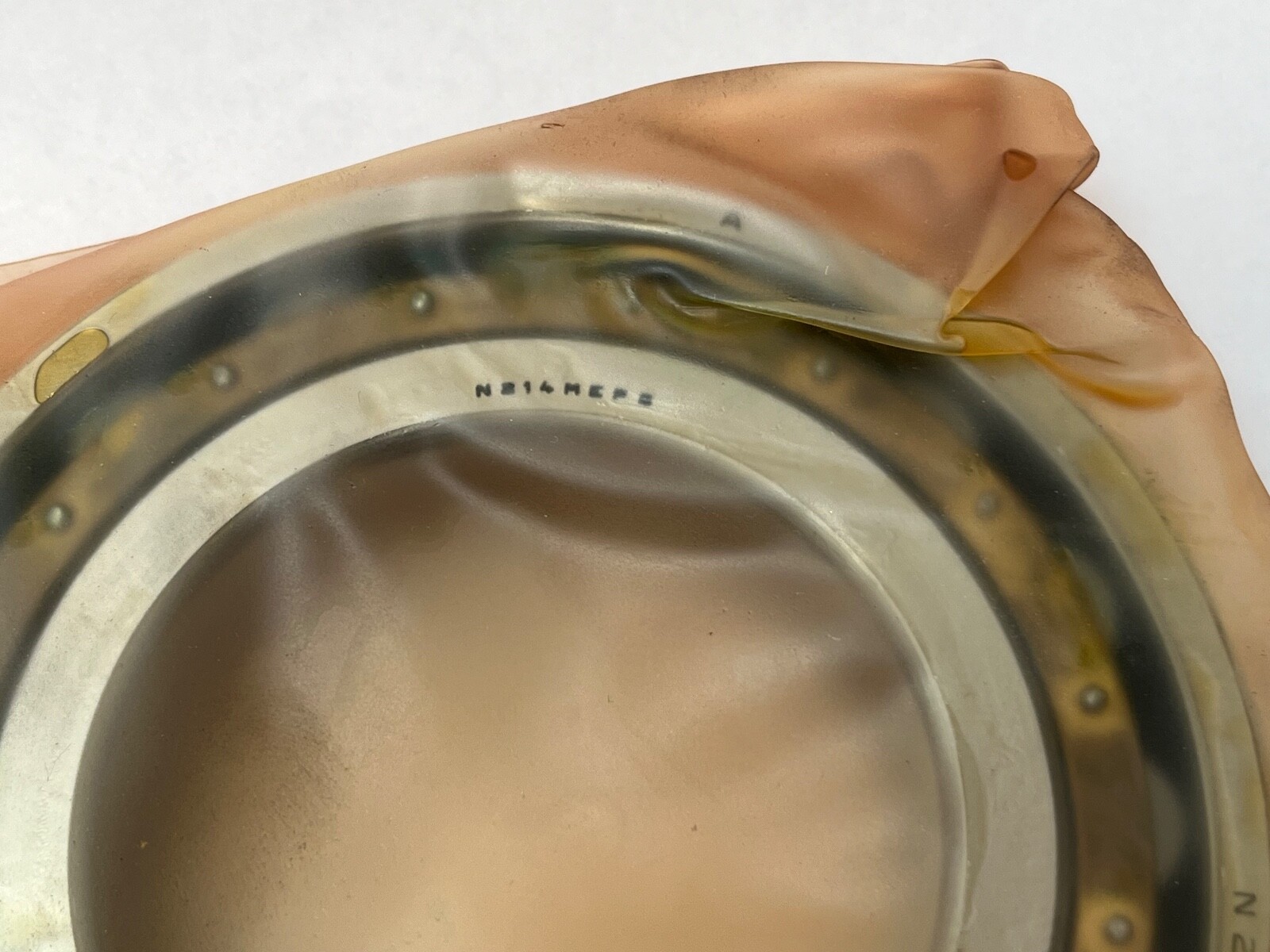

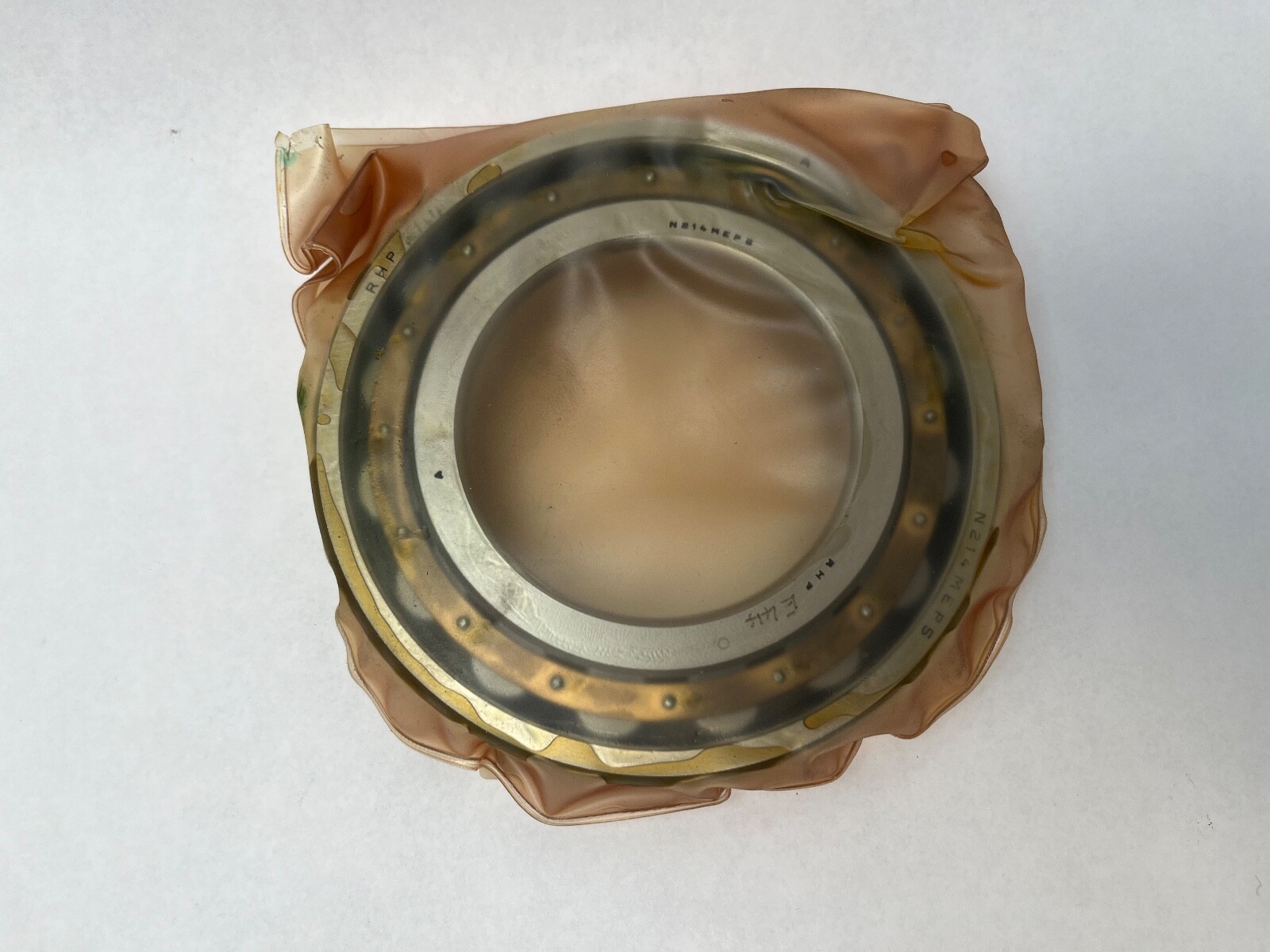

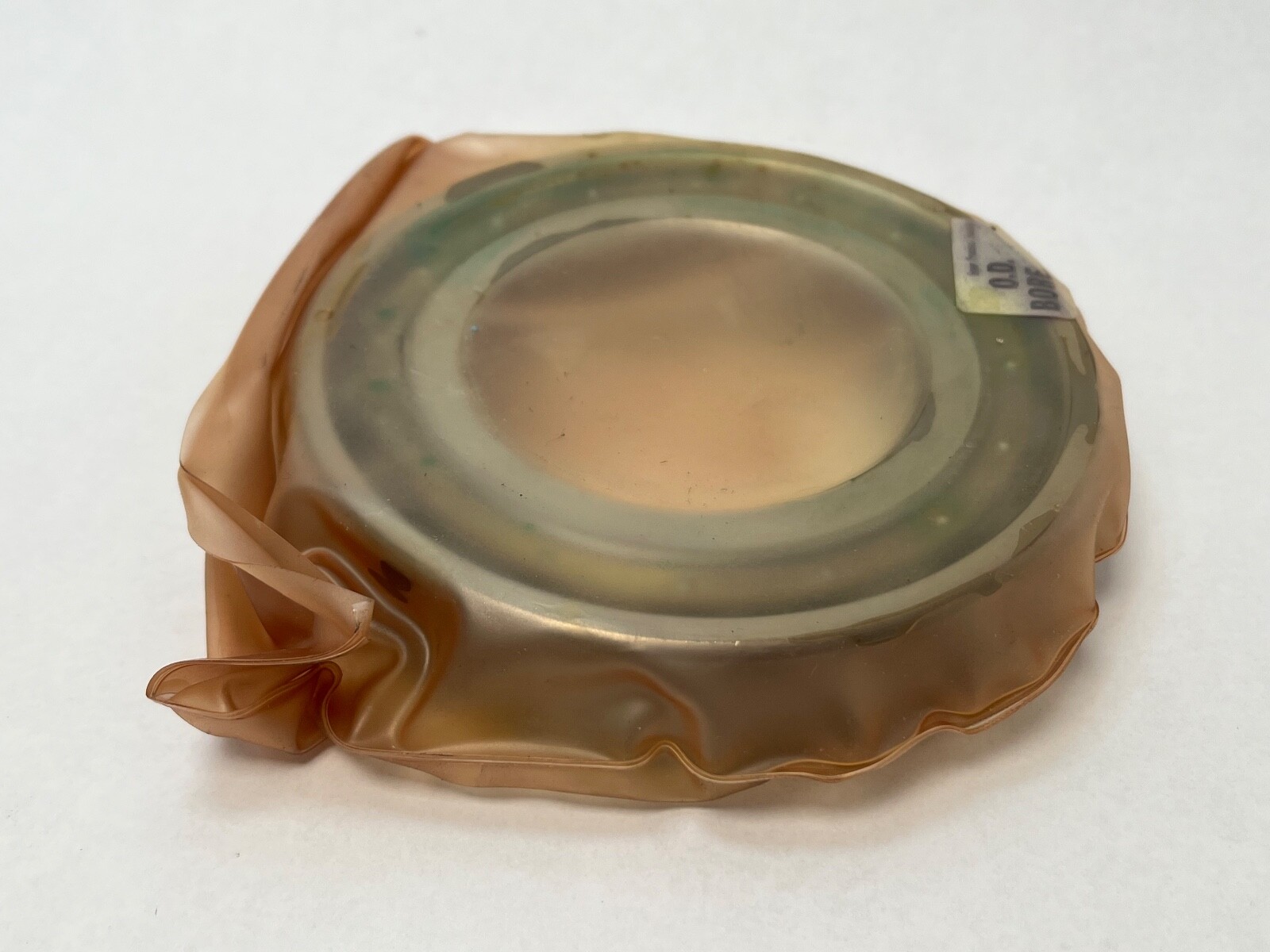

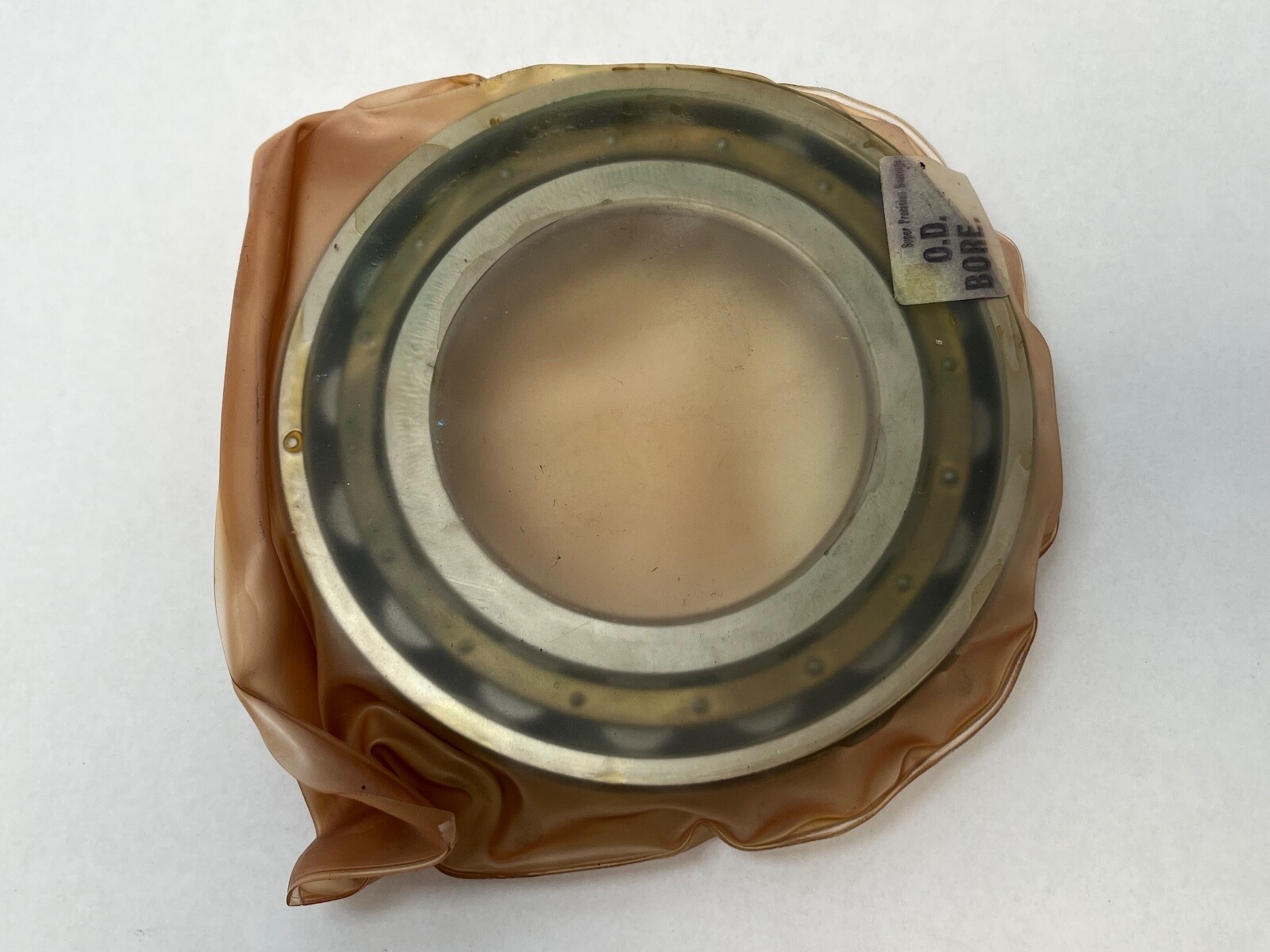

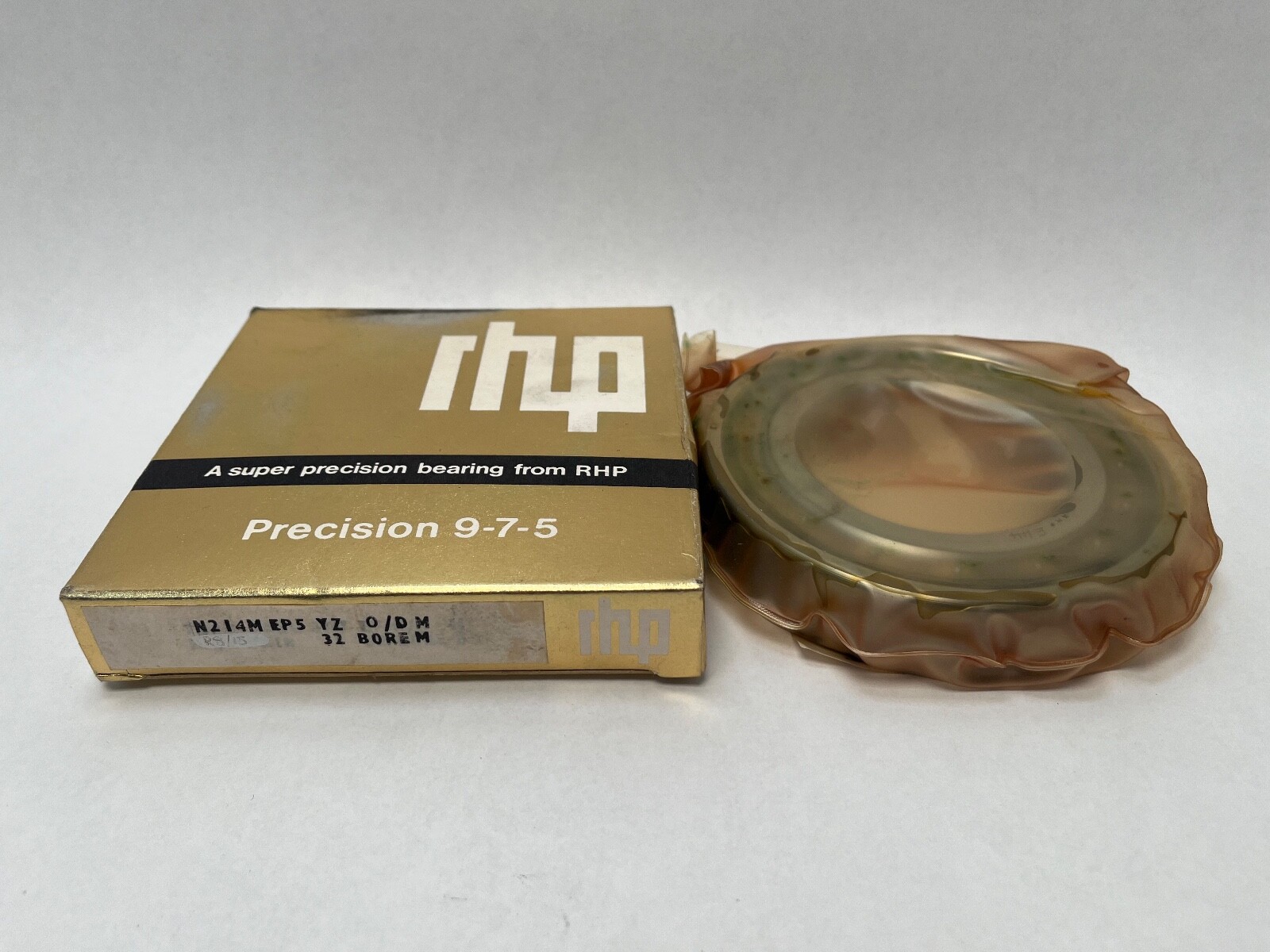

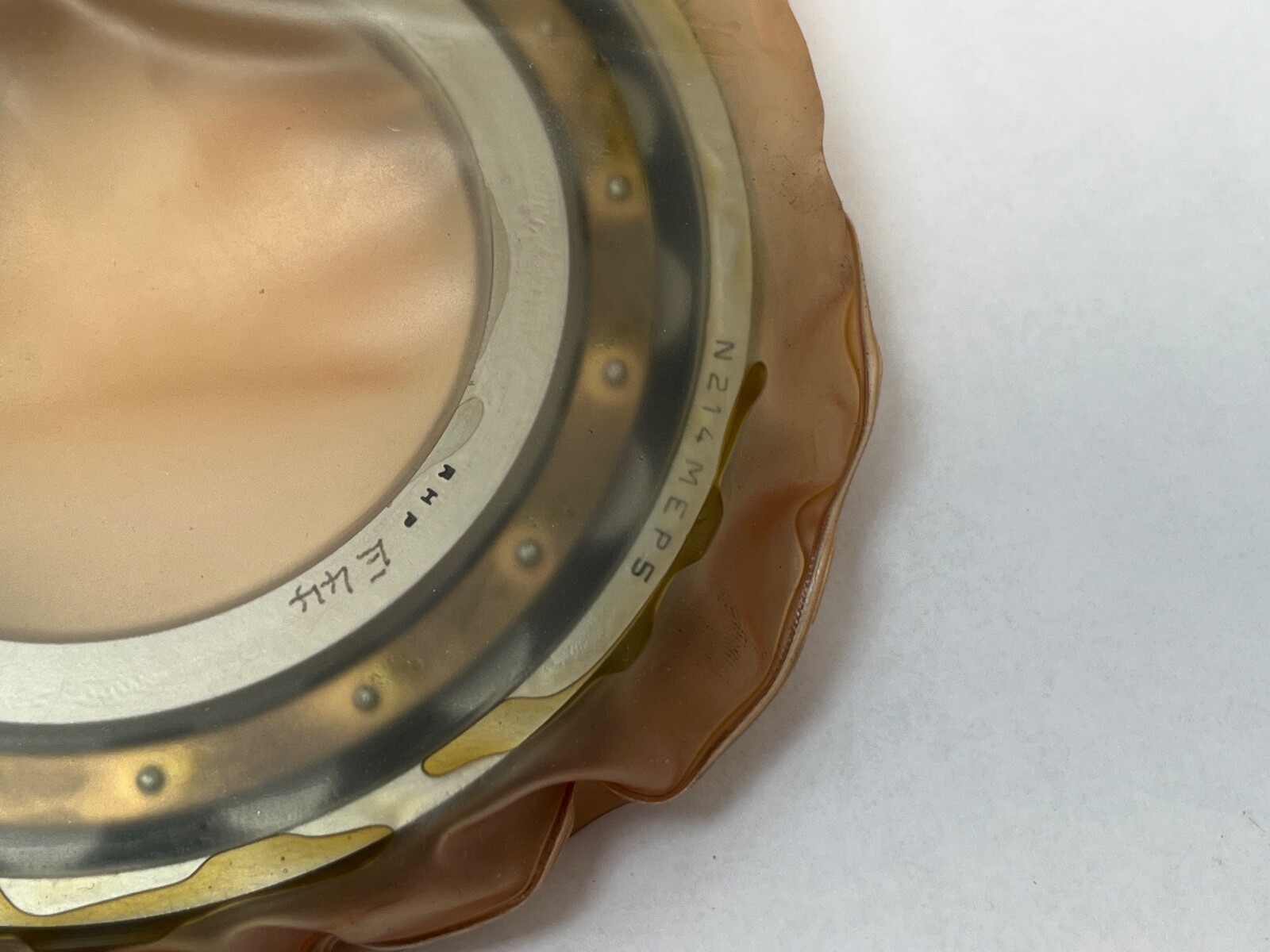

RHP N214MP5 single-row cylindrical roller bearing, N design, 70 mm bore, 125 mm outside diameter, 24 mm wide, machined brass cage, P5 precision, straight bore, open, with a separable outer ring. Unit Quantity: 1 Pc.
N214 — N design cylindrical roller bearing, ISO 02 series, 70 mm bore, with ribs on the outer ring only.
M — machined brass cage.
P5 — ISO tolerance class 5, equivalent to ABEC 5.
Bore Diameter: 70 mm. Outside Diameter: 125 mm. Overall Width: 24 mm. Series: N200. Number Of Rows: 1. Rolling Elements: Cylindrical rollers. Bore Type: Straight. Closure Type: Open. Cage Material: Brass, machined. Precision Class: ABEC 5 / P5. Internal Clearance: CN. Dynamic Load Rating: 103 kN (23,200 lbf). Static Load Rating: 95 kN (21,400 lbf). Limiting Speed: 5,000 rpm grease; 6,300 rpm oil-bath. Item Weight: 1.27 kg (2.80 lb). Bearing Material: Bearing steel. Country of Origin: United Kingdom. Unit Quantity: 1 Pc.
Raceway Diameter Of Outer Ring: 110.5 mm. Chamfer Dimension: 1.5 mm minimum. Diameter Of Shaft Abutment: 78 mm minimum. Diameter Of Housing Abutment: 113 mm minimum to 117 mm maximum. Radius Of Shaft Or Housing Fillet: 1.5 mm maximum. The N design carries radial load and allows free axial displacement of the shaft relative to the housing.
FAG N214-E-M1-P5 is the E design with higher ratings. SKF N 214 ECP/P5 is the E design with a polyamide cage. Also listed as N214 M P5, N 214 M P5, N214MEP5, N214EP5 and N214. An NU, NJ or NUP design on the same envelope locates the shaft axially.
70 mm bore, 125 mm outside diameter, 24 mm width.
Dynamic Load Rating: 103 kN. Static Load Rating: 95 kN.
Machined brass cage, ABEC 5 / P5 precision, CN internal clearance.
