Availability:
1 in stock

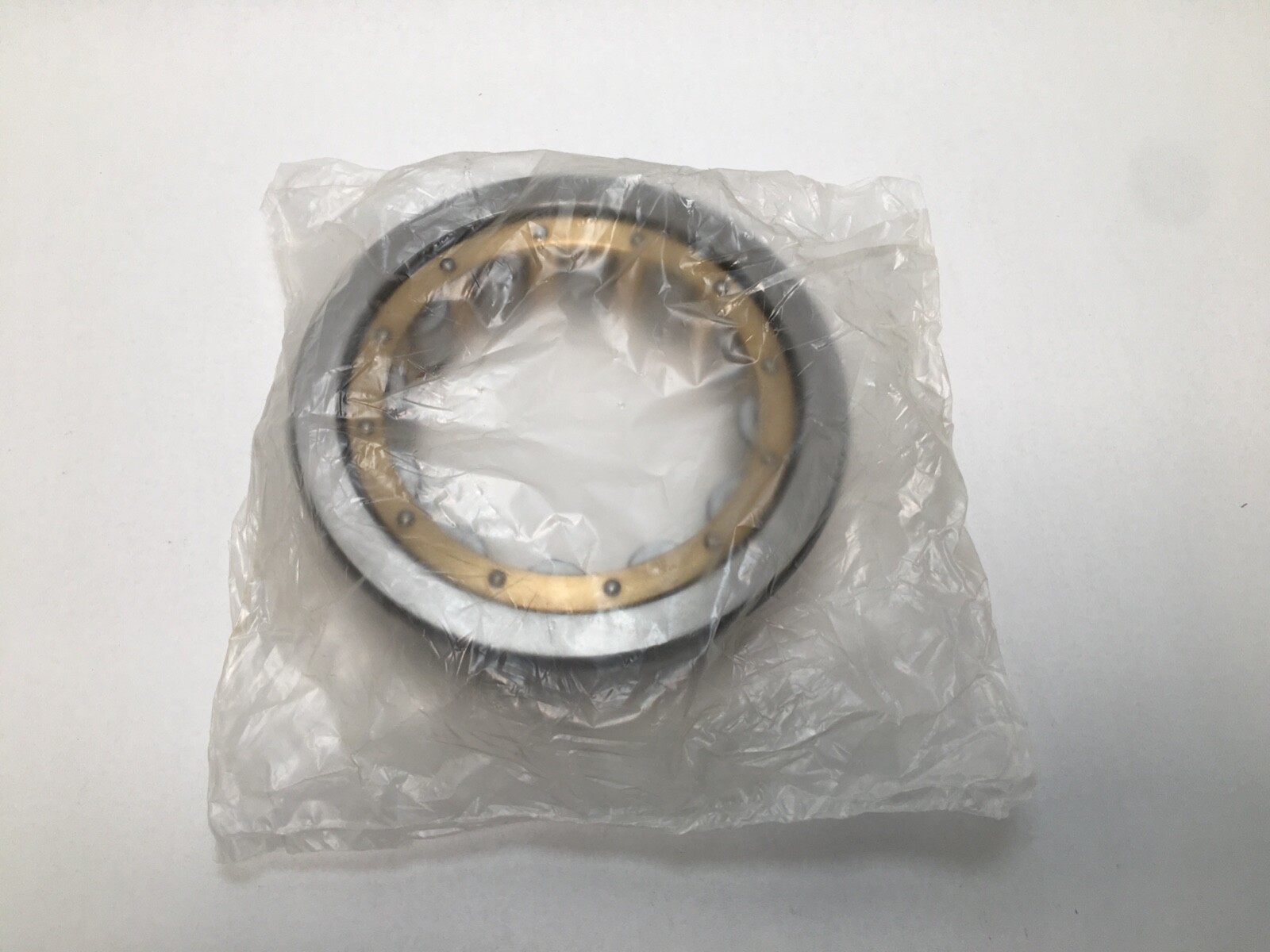

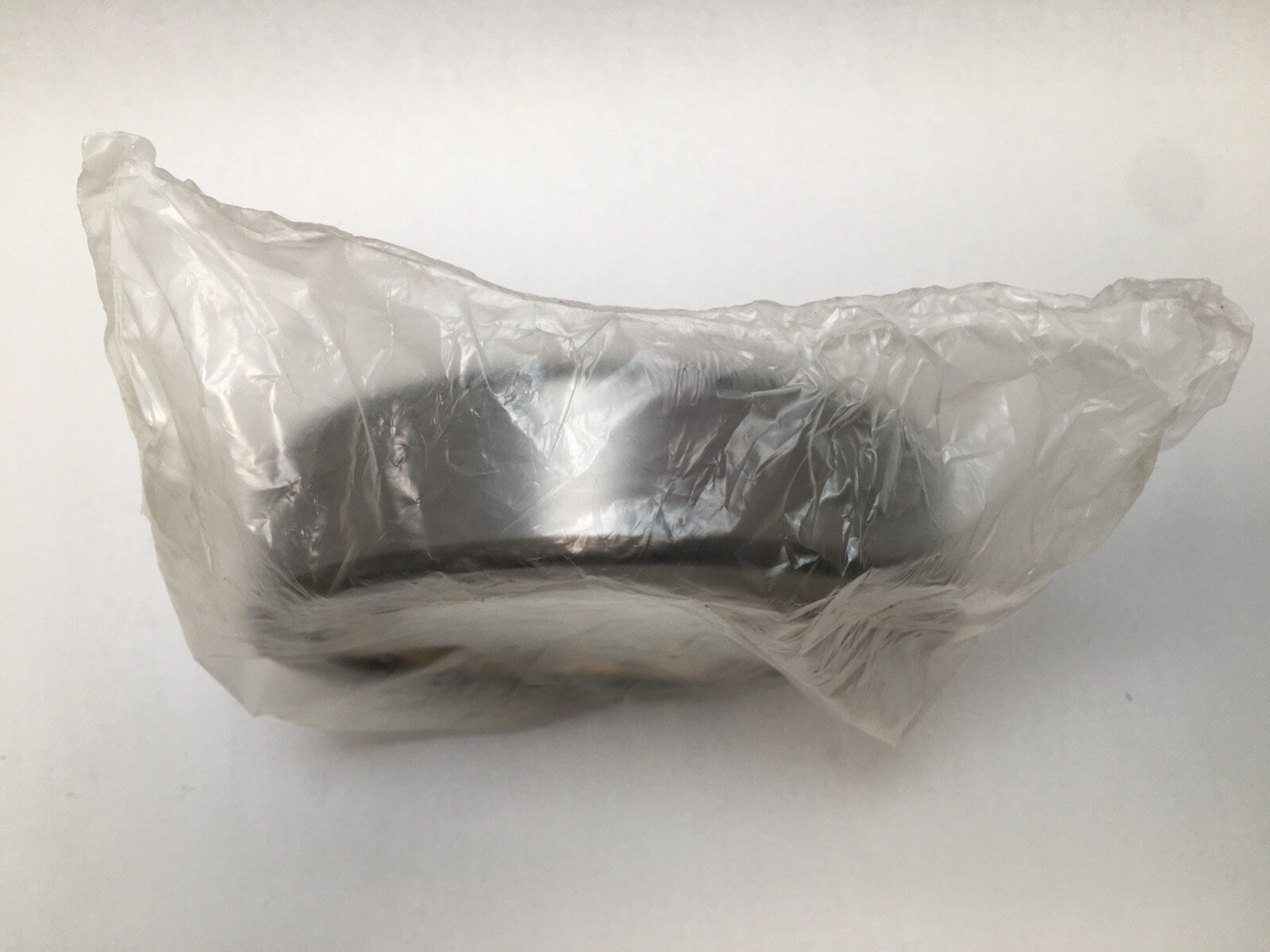

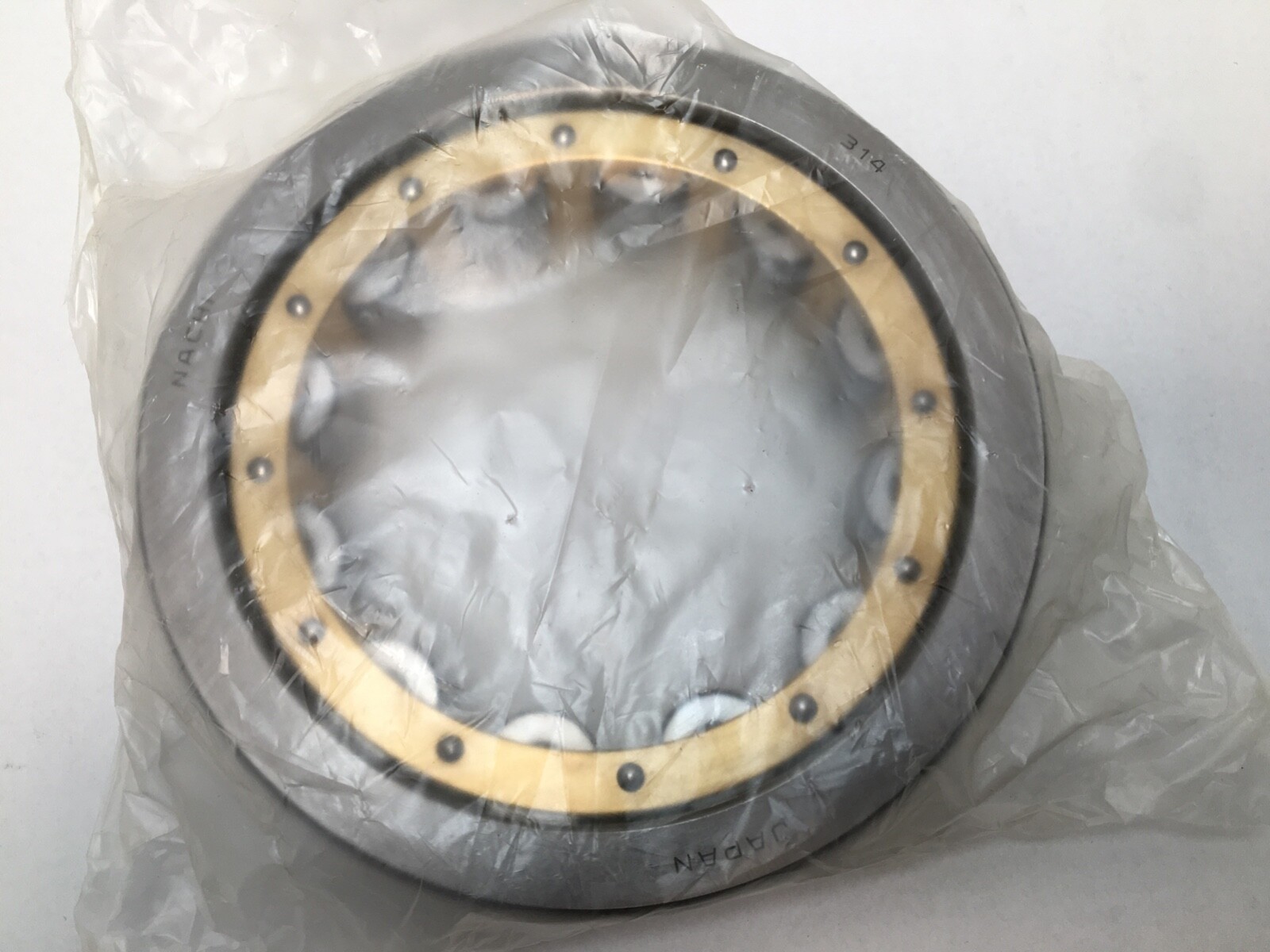

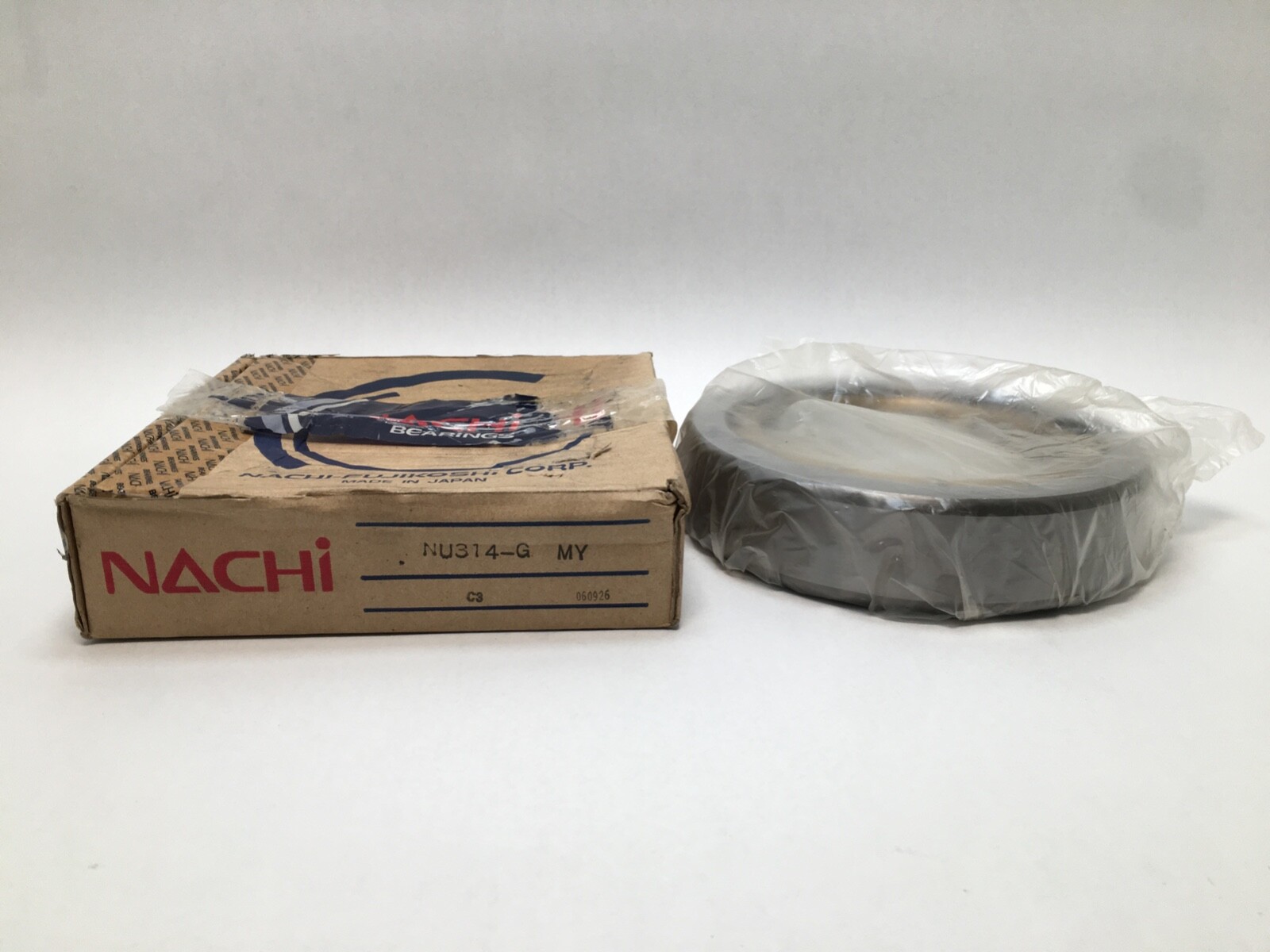

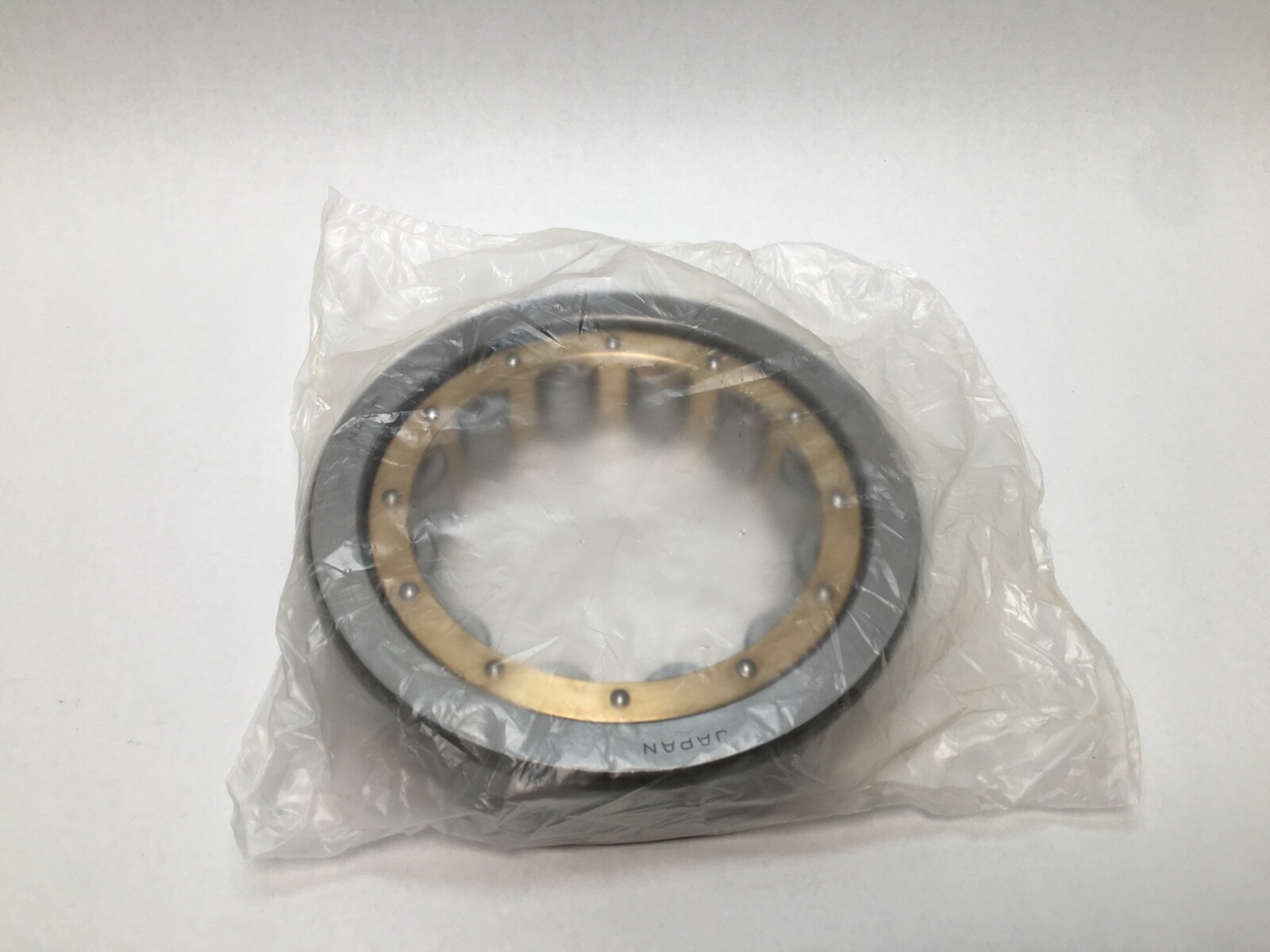

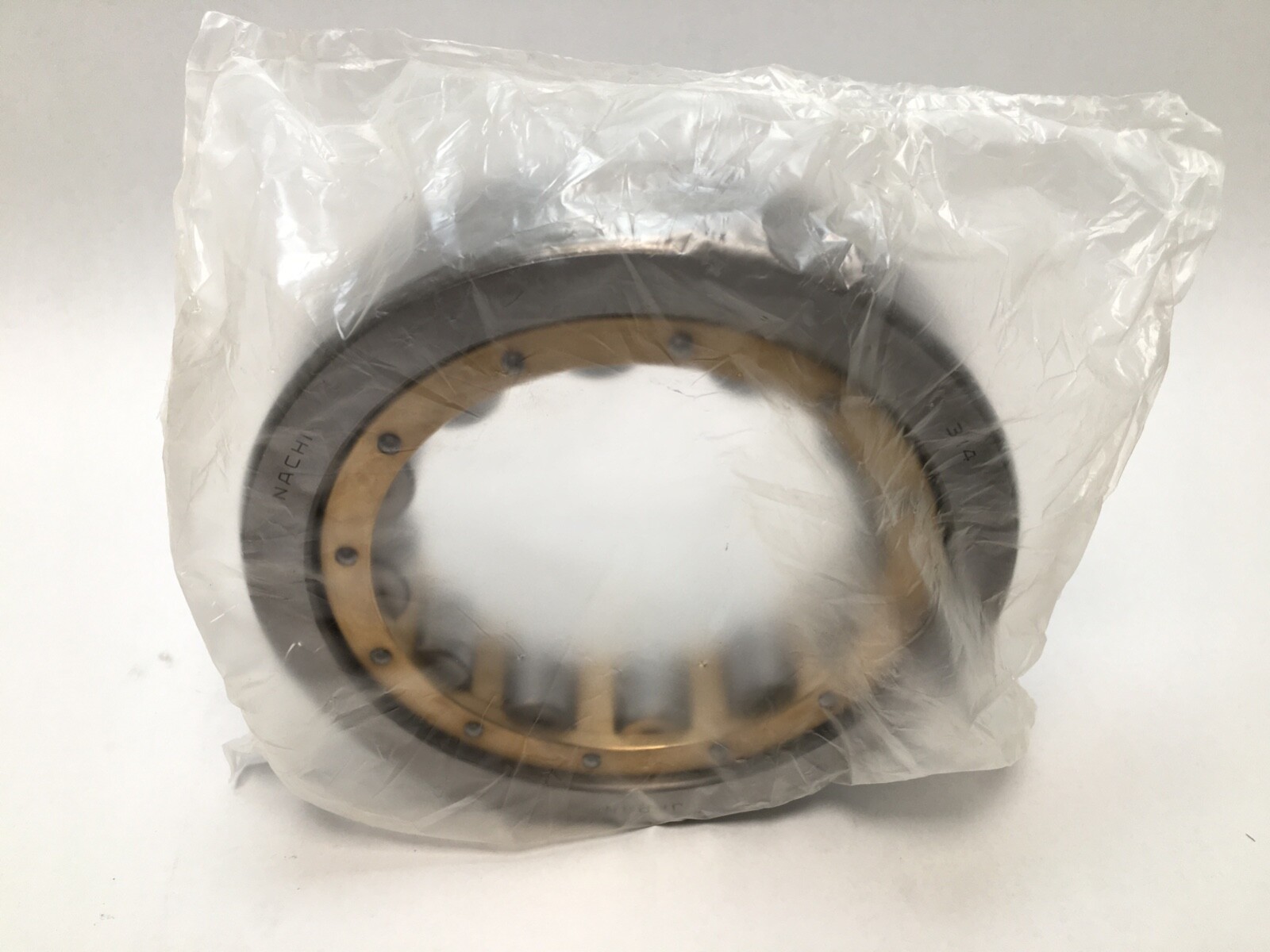

Nachi NU314 cylindrical roller bearing, 70 x 150 x 35 mm, NU design with ribs on the outer ring, C3 clearance. Supplied as outer ring and roller set.
List Price
$89.93
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Nachi |
|---|---|
| MPN | NU314GMY |
| Model | NU-314-MY |
| Bearing Type | Cylindrical Roller Bearing |
| ID | 70 mm |
| OD | 150 mm |
| Overall Width | 35 mm |
|---|---|
| Mpn Variants | NU314GMY, NU314 G MY C3, NU-314-MY, NU314, NU-314, RNU314 |
| Series | NU3 |
| Rolling Elements | Cylindrical Roller |
| Number Of Rows | 1 |
| Internal Clearance | C3 |
| Cross Reference 1 | NTN NU314 |
|---|---|
| Cross Reference 2 | NSK NU314 |
| Cross Reference 3 | FAG NU314 |
| Cross Reference 4 | SKF NU 314 |
Nachi NU314GMY single row cylindrical roller bearing, NU design. Bore Diameter: 70 mm. Outside Diameter: 150 mm. Width: 35 mm. Supplied as the outer ring with roller and cage assembly, without the inner ring.
NU — two integral ribs on the outer ring, no ribs on the inner ring. Non-locating: allows axial shaft movement in both directions.
314 — ISO 03 dimension series, 70 mm bore size.
C3 — radial internal clearance greater than normal.
Rolling Elements: Cylindrical Roller. Number Of Rows: 1. Internal Clearance: C3. Bore Type: Cylindrical.
Bore Diameter: 70 mm. Outside Diameter: 150 mm. Width: 35 mm. The NU outer ring and roller assembly is separable and runs on a matching NU314 inner ring or directly on a hardened and ground shaft raceway.
Same envelope and design: NTN NU314, NSK NU314, FAG NU314, SKF NU 314. Inner-ring-less designation form: RNU314.
What size is the Nachi NU314?
70 mm bore, 150 mm outside diameter, 35 mm width.
Is the inner ring included?
No. This listing is the outer ring with the roller and cage assembly.
Does an NU bearing take axial load?
No. The NU design is non-locating and carries radial load only.
