Availability:
1 in stock

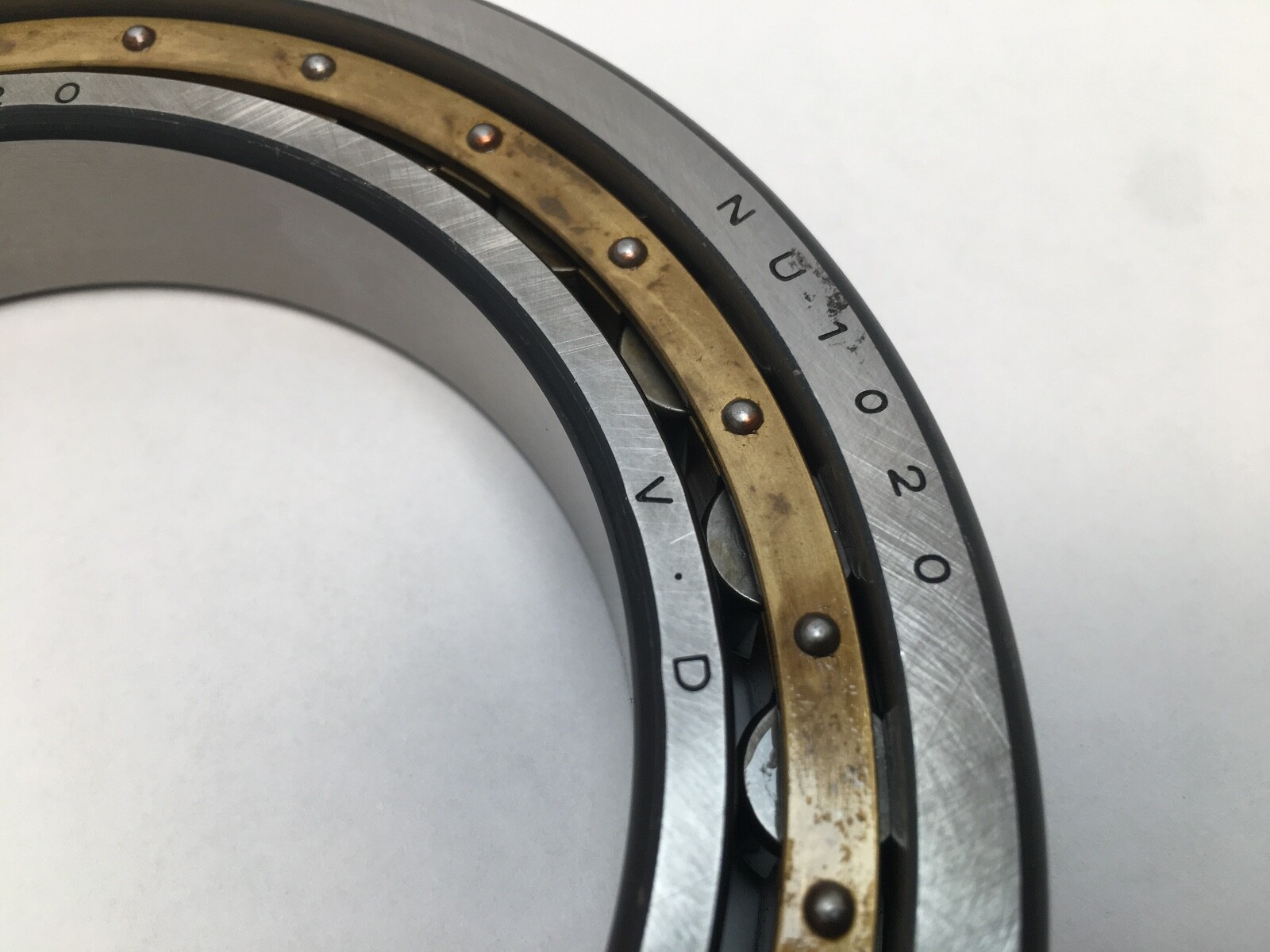

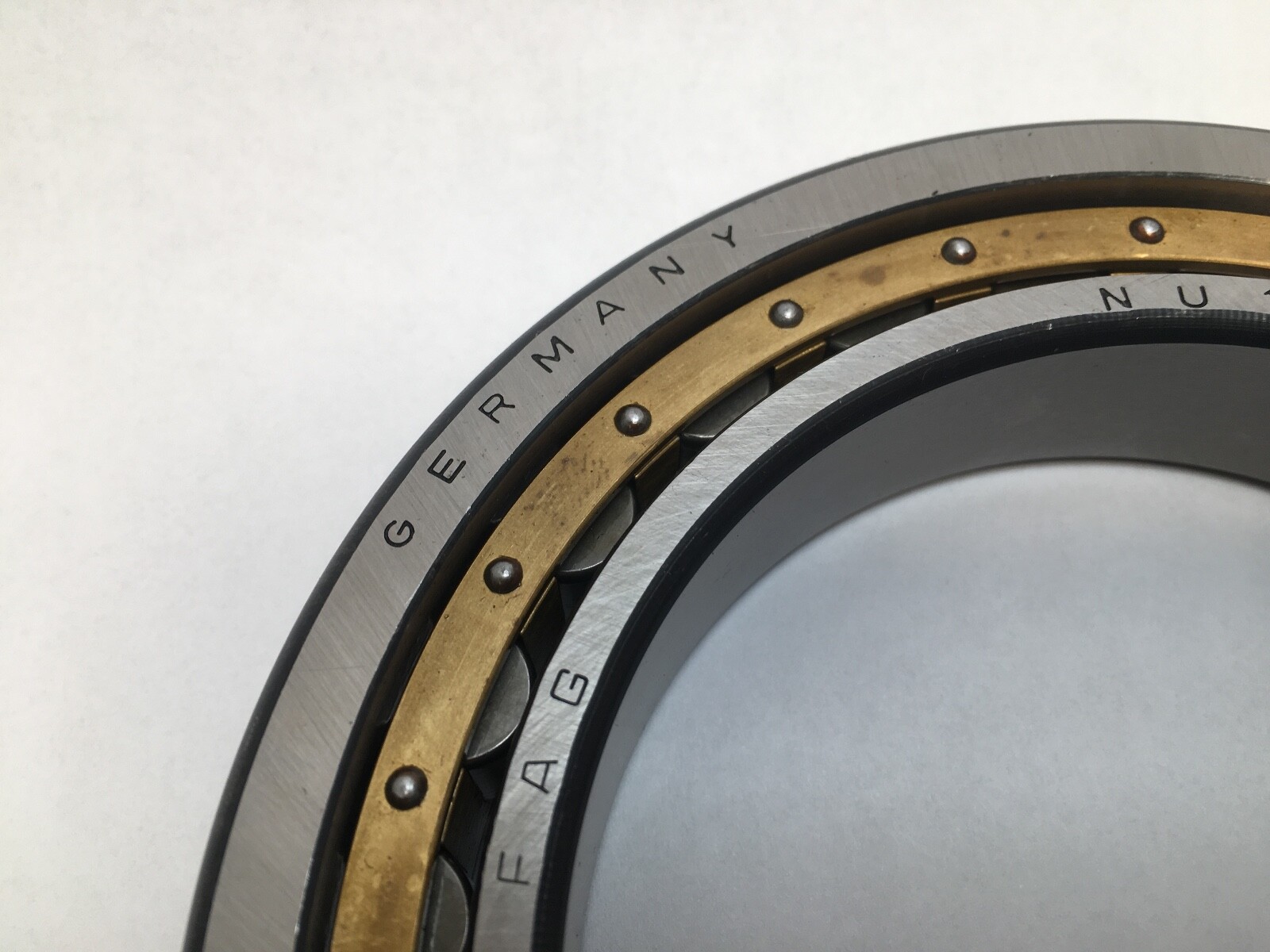

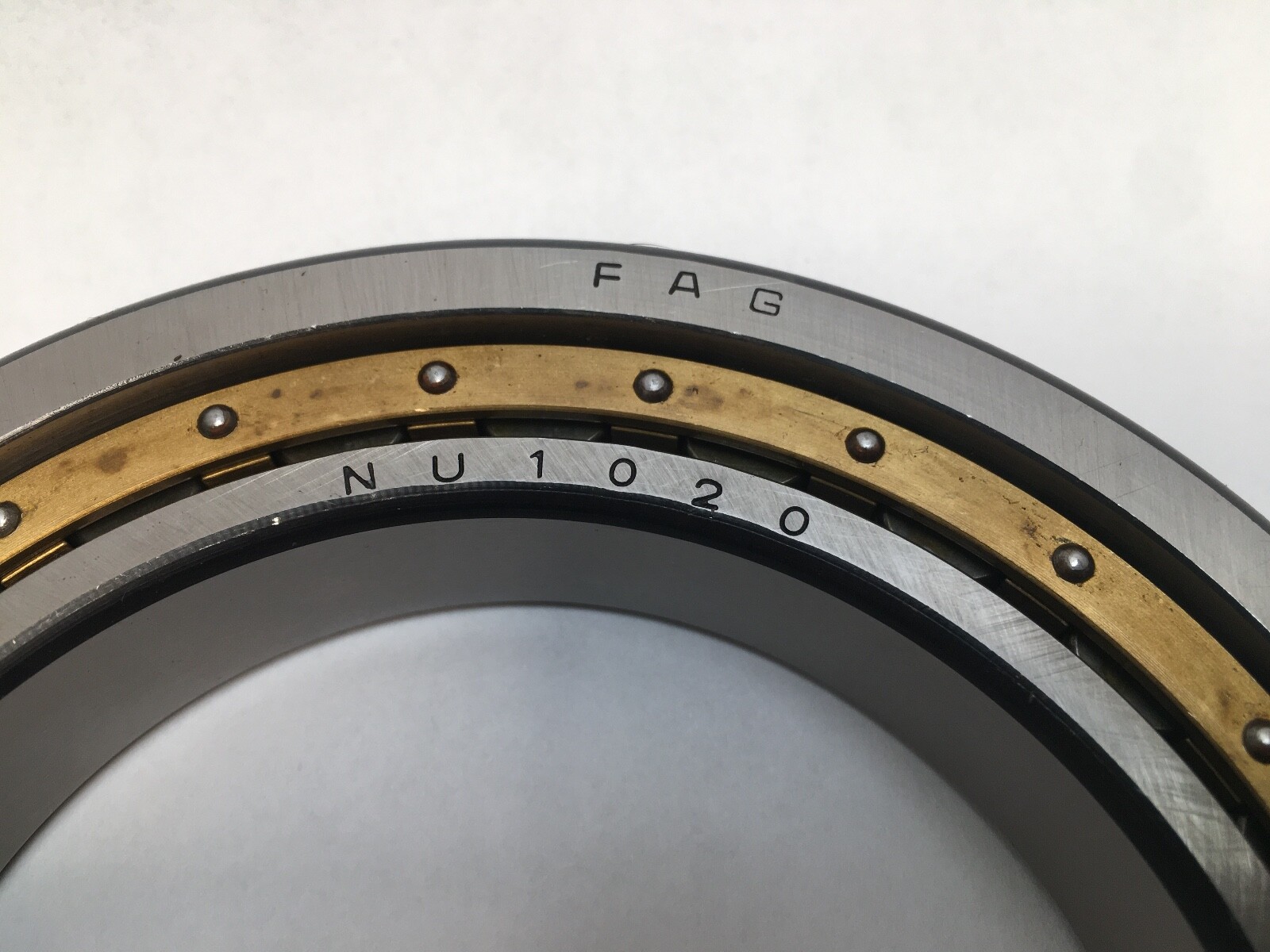

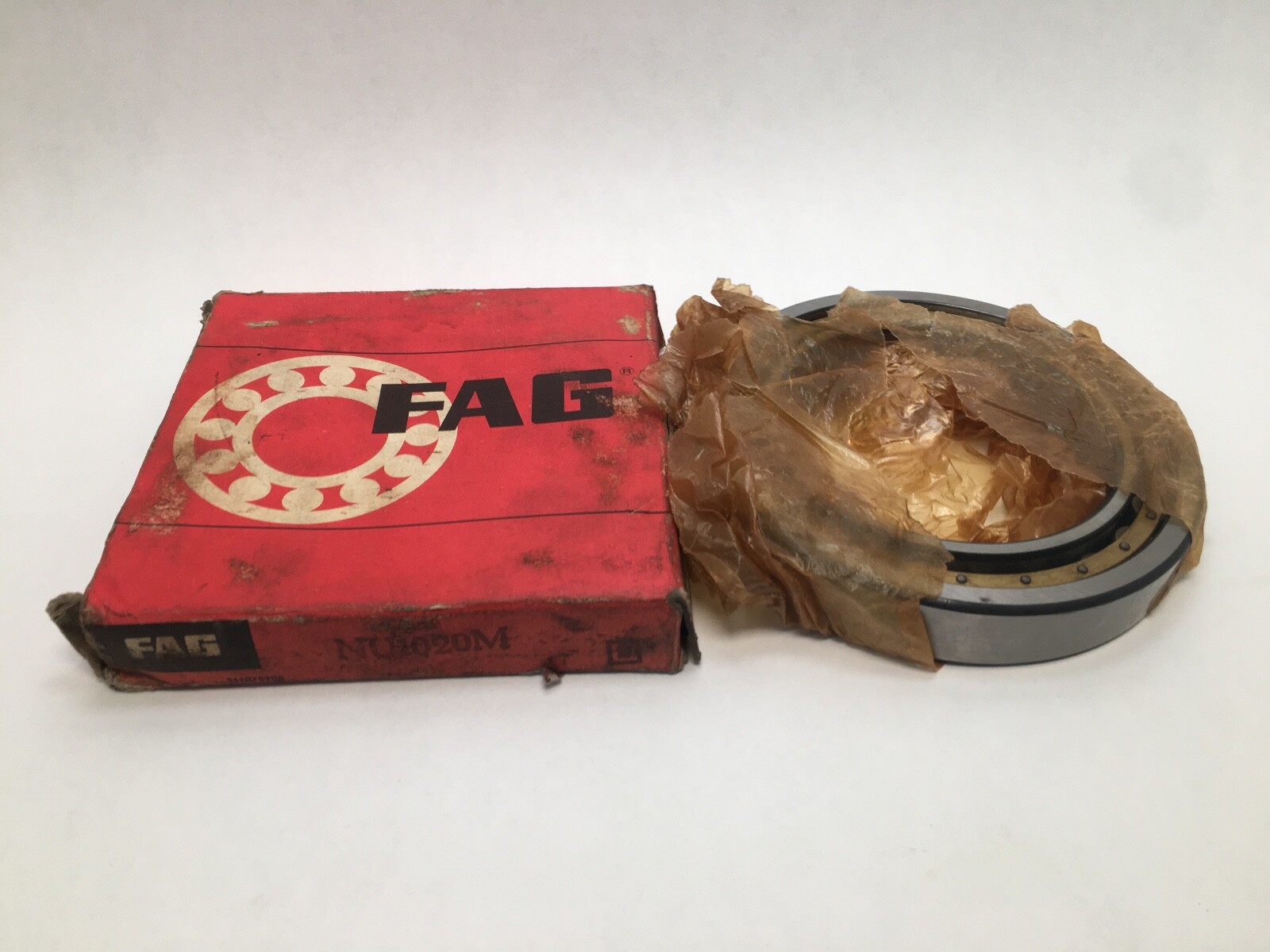

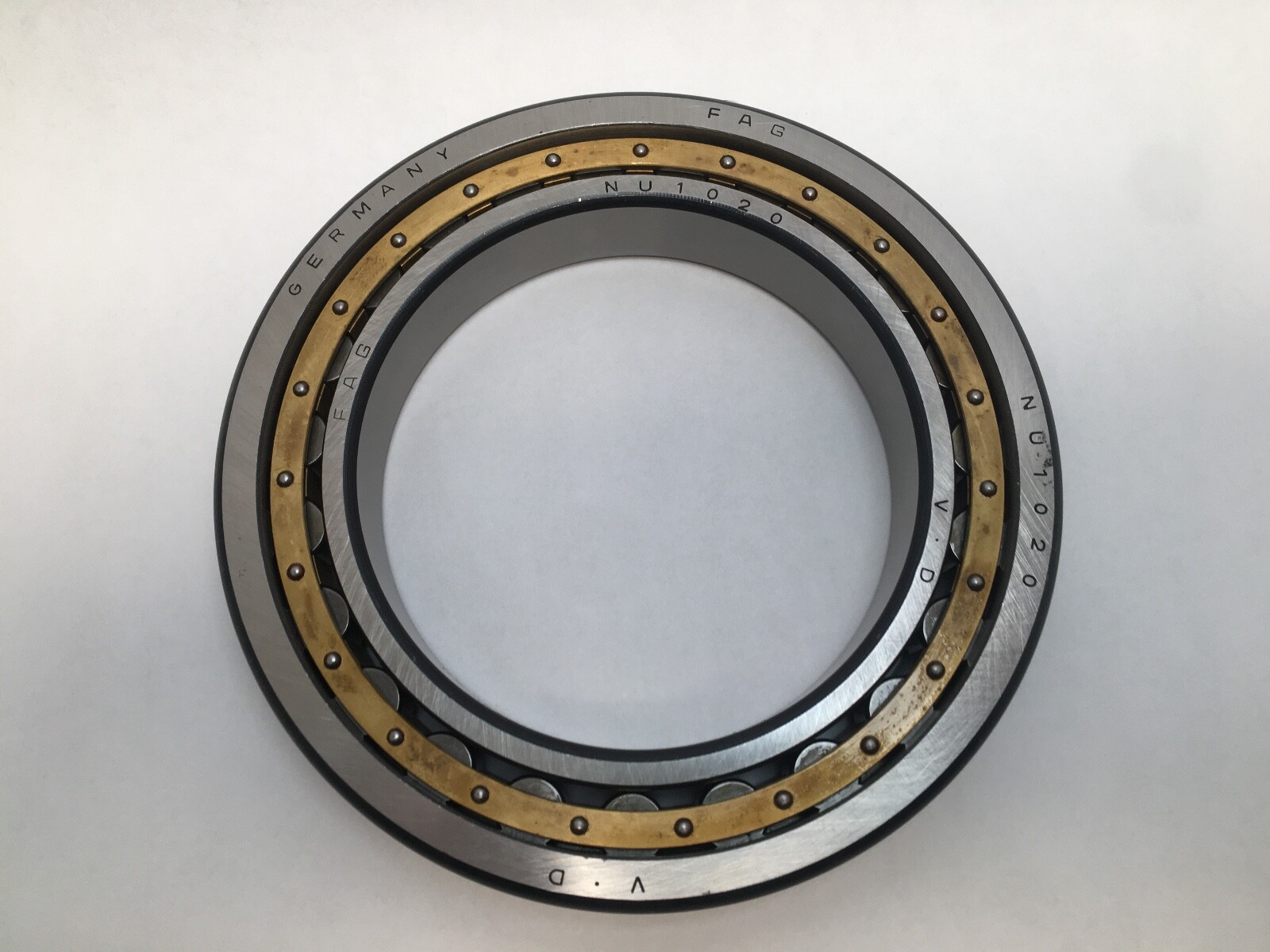

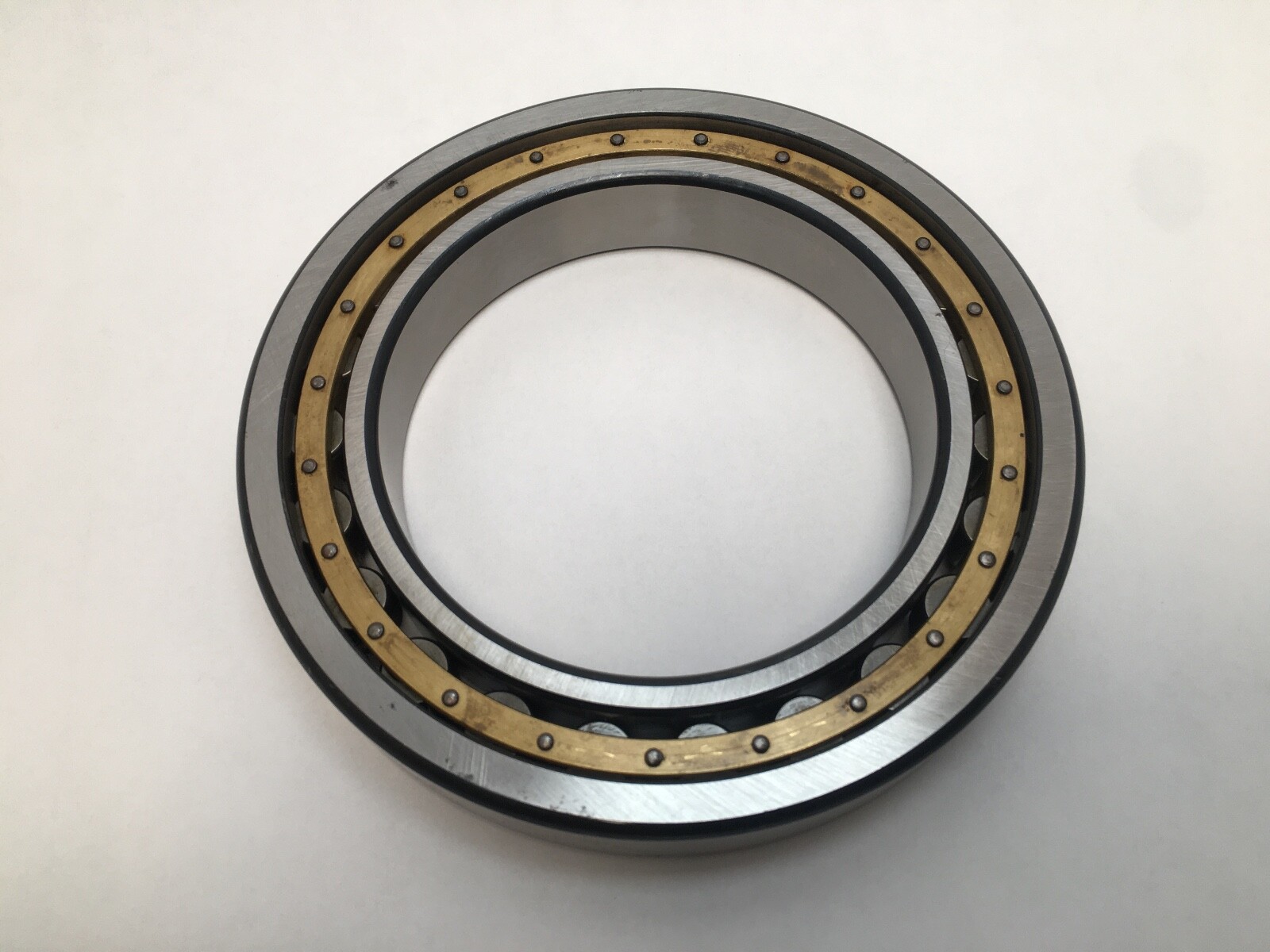

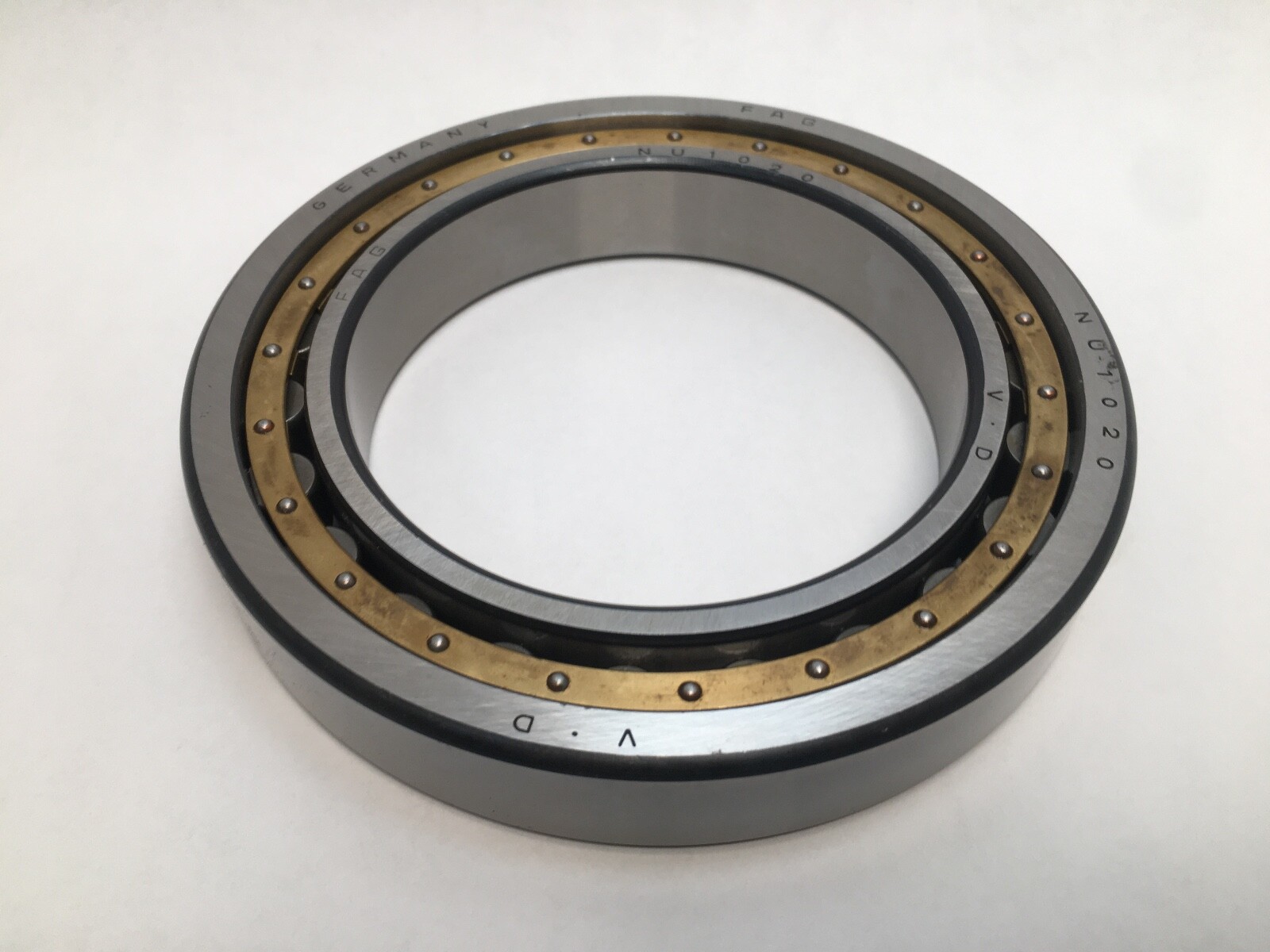

FAG NU1020-M cylindrical roller bearing, 100 mm bore, 150 mm OD, 24 mm wide, machined brass cage. Single row NU design, ribless inner ring for axial float.
List Price
$175.16
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | NU1020-M |
| Model | NU1020-M |
| Bearing Type | Cylindrical Roller Bearing, Open |
| ID | 100 mm |
| OD | 150 mm |
| Width | 24 mm |
| Material | Bearing Steel |
|---|---|
| Series | NU10 |
| Rolling Elements | Cylindrical Roller |
| Cage Material | Machined brass |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.50.00 |
| Internal Clearance | CN |
| Base Number | NU1020 |
| Overall Width | 24 mm |
| Mpn Variants | NU1020M, NU-1020-M, NU 1020 M, NU1020 |
| Compatible With Replaces | Schaeffler successor NU1020-XL-M1 |
| Additional Attributes | Successor NU1020-XL-M1 data: Dynamic Load Rating 116,000 N; Static Load Rating 135,000 N; Limiting Speed 9,000 rpm; Reference Speed 4,150 rpm; Mass 1.44 kg |
| Cross Reference 1 | SKF NU 1020 ML |
|---|---|
| Cross Reference 2 | NTN NU1020 |
| Cross Reference 3 | NSK NU1020M |
| Cross Reference 4 | Timken NU1020MA |
FAG NU1020-M single-row cylindrical roller bearing, NU design. Bore Diameter: 100 mm. Outside Diameter: 150 mm. Overall Width: 24 mm. Bore Type: Straight. Cage Material: Machined brass. Internal Clearance: CN. Number Of Rows: 1. Rolling Elements: Cylindrical Roller.
NU — two integral ribs on the outer ring, inner ring without ribs. Non-locating bearing: the shaft moves axially relative to the housing.
10 — dimension series 10, light section.
20 — bore code, 20 x 5 = 100 mm.
M — machined brass cage, roller guided.

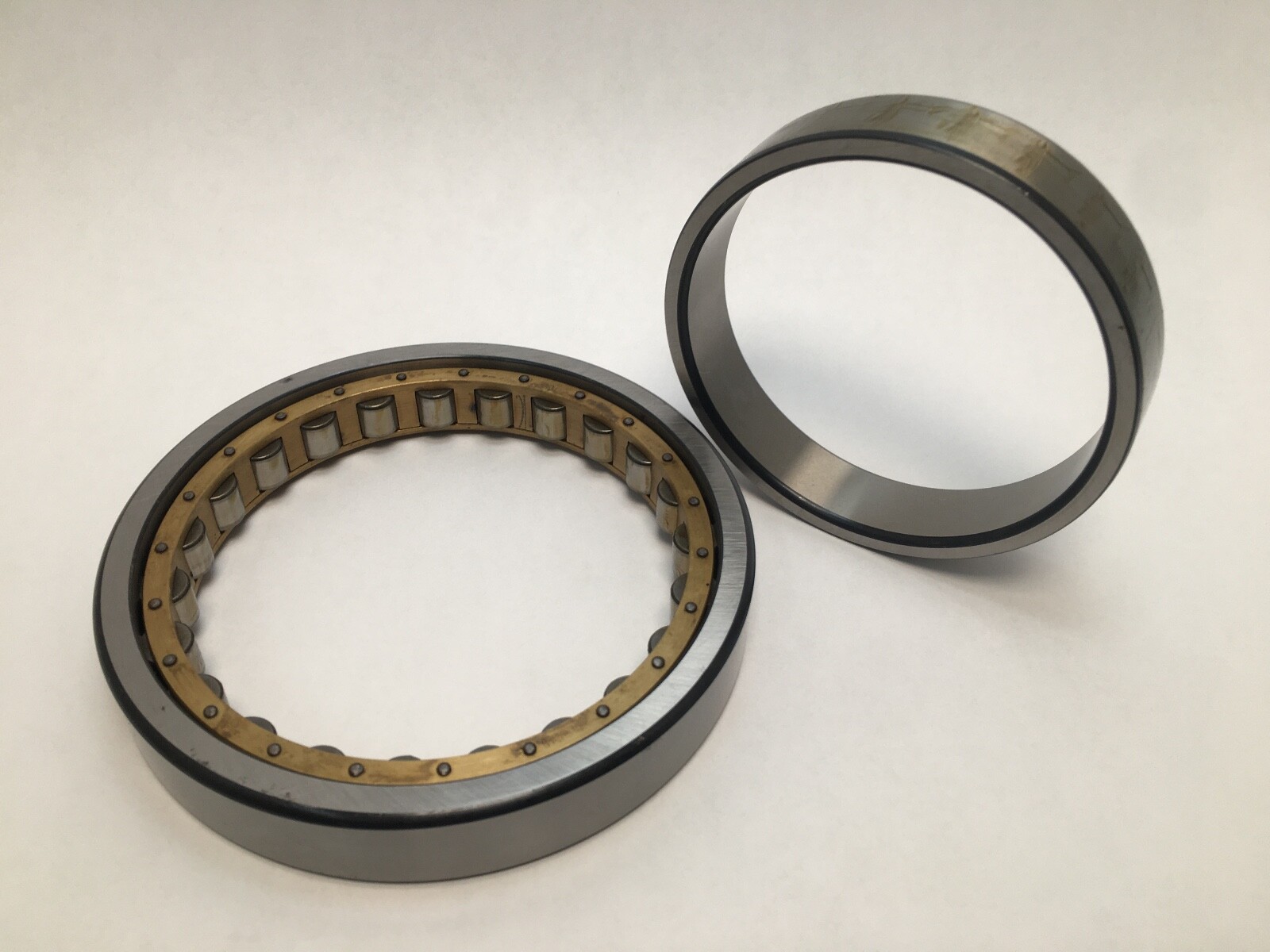

Line contact between rollers and raceways gives high radial capacity in a thin 24 mm section. The NU layout accepts thermal shaft expansion and separates for mounting of inner ring and outer ring assembly independently. The brass cage suits high speeds and vibration.
Successor NU1020-XL-M1 data: Dynamic Load Rating: 116,000 N. Static Load Rating: 135,000 N. Limiting Speed: 9,000 rpm. Reference Speed: 4,150 rpm. Item Weight: 1.44 kg (3.17 lb).
Successor NU1020-XL-M1 data: raceway diameter F: 113 mm. Axial displacement s: 2.9 mm. Fillet radius r min: 1.5 mm. Abutment da min: 106 mm. Abutment Da max: 143 mm.
Unit Quantity: 1 Pc.
Compatible With / Replaces: Schaeffler successor NU1020-XL-M1. Cross-Reference: SKF NU 1020 ML, NTN NU1020, NSK NU1020M, Timken NU1020MA. Same 100 x 150 x 24 mm envelope, NU design.
