Availability:
1 in stock
Super-precision angular contact ball bearings, 70 x 125 x 24 mm, 15° contact angle, open, machined phenolic cage, heavy preload duplex set.
List Price
$519.76
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Fafnir |
|---|---|
| MPN | 2MM214WICRDUH |
| Model | 2 MM 214 WI CR DUH / 7214 C T DUH P4 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 70 mm |
| OD | 125 mm |
| Width | 24 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7200 |
| Lubricant | Oil/Grease |
| Base Number | 2MM214WI |
| Industry Terms | Machine tool spindle bearing; super precision angular contact duplex pair; matched spindle bearing set; phenolic cage bearing |
| Common Misspellings | Fafner; Fafnier; 2MM 214 WI; 2MM214W1; Timkin 7214 |
| Application Types | Machine tool spindles; grinding and milling heads; precision rotary tables; high-speed gearboxes |
| Bore Shaft Size | 70 mm (2.7559 in), straight bore |
| Mpn Variants | 2MM214WICRDUH; 2MM214WI CR DUH; 2MM-214-WI-CR-DUH; 2 MM 214 WI CR DUH; 2MM214WIDUH; 7214C T DUH |
| Rolling Elements | Balls |
| Number Of Rows | 1 per bearing |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50.68 |
| Part Number | 2MM214WICRDUH |
| Cross Reference 1 | SKF 7214 CD/P4ADGC |
|---|---|
| Cross Reference 2 | FAG B7214-C-T-P4S-DUH |
| Cross Reference 3 | NSK 7214CTYNDUHP4 - P4 class, not P4S |
| Cross Reference 4 | RHP 7214CTDUHP4 - P4 class, not P4S |
| Cross Reference 7 | Timken 2MM214WI - single bearing, not a DUH pair |

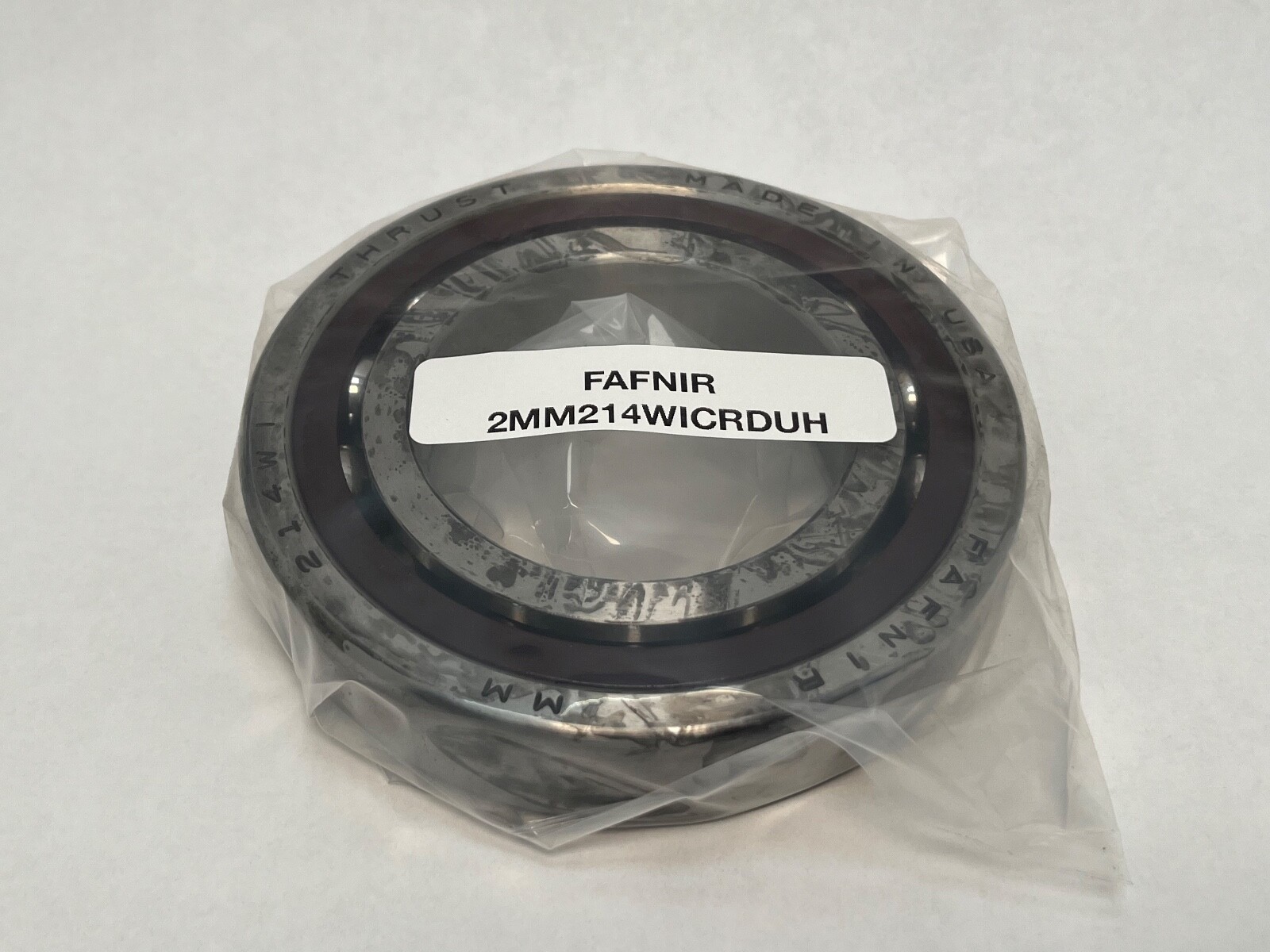

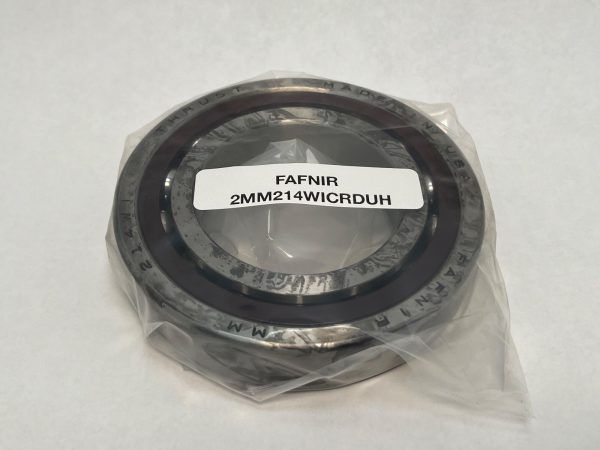

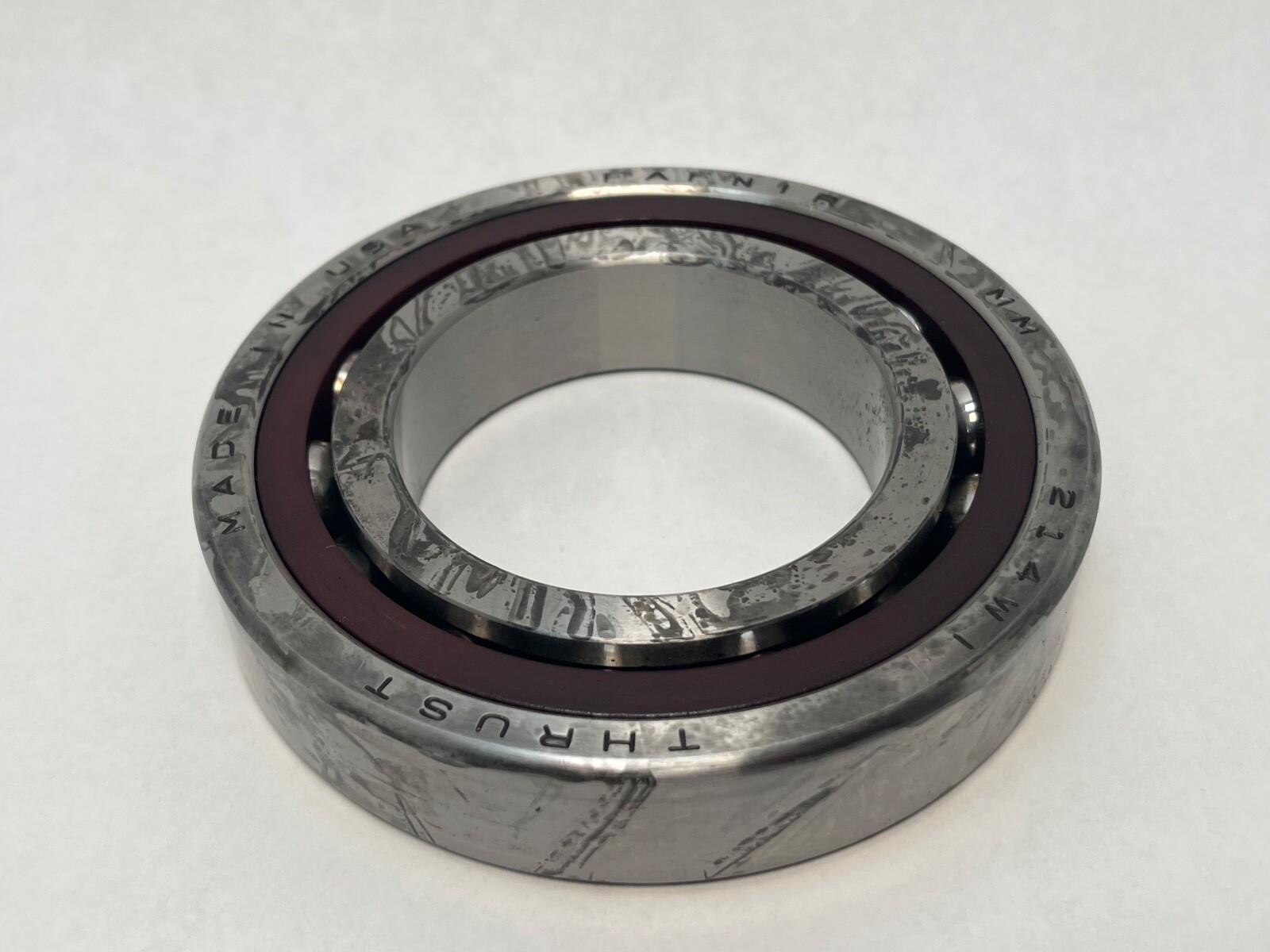

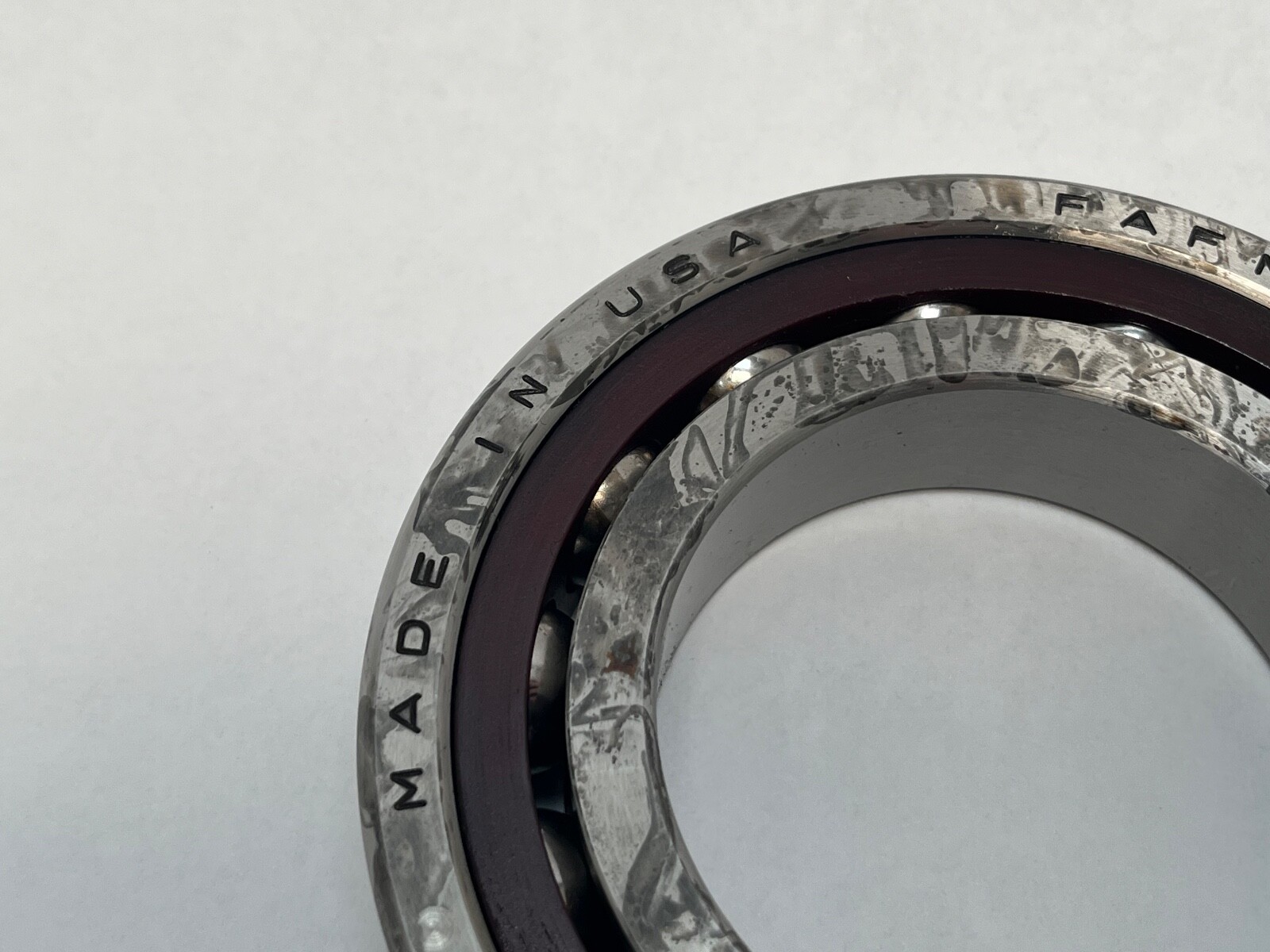

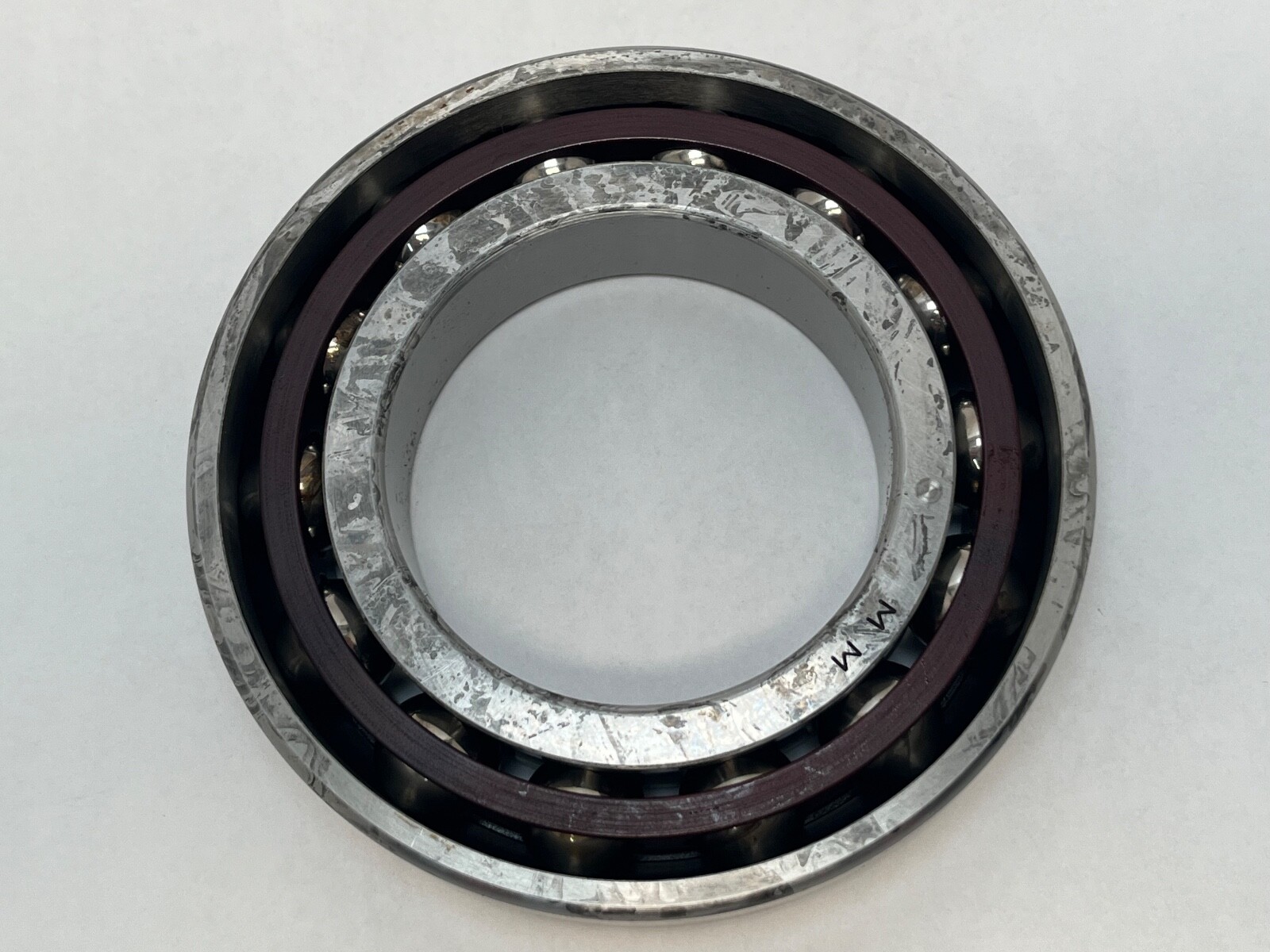

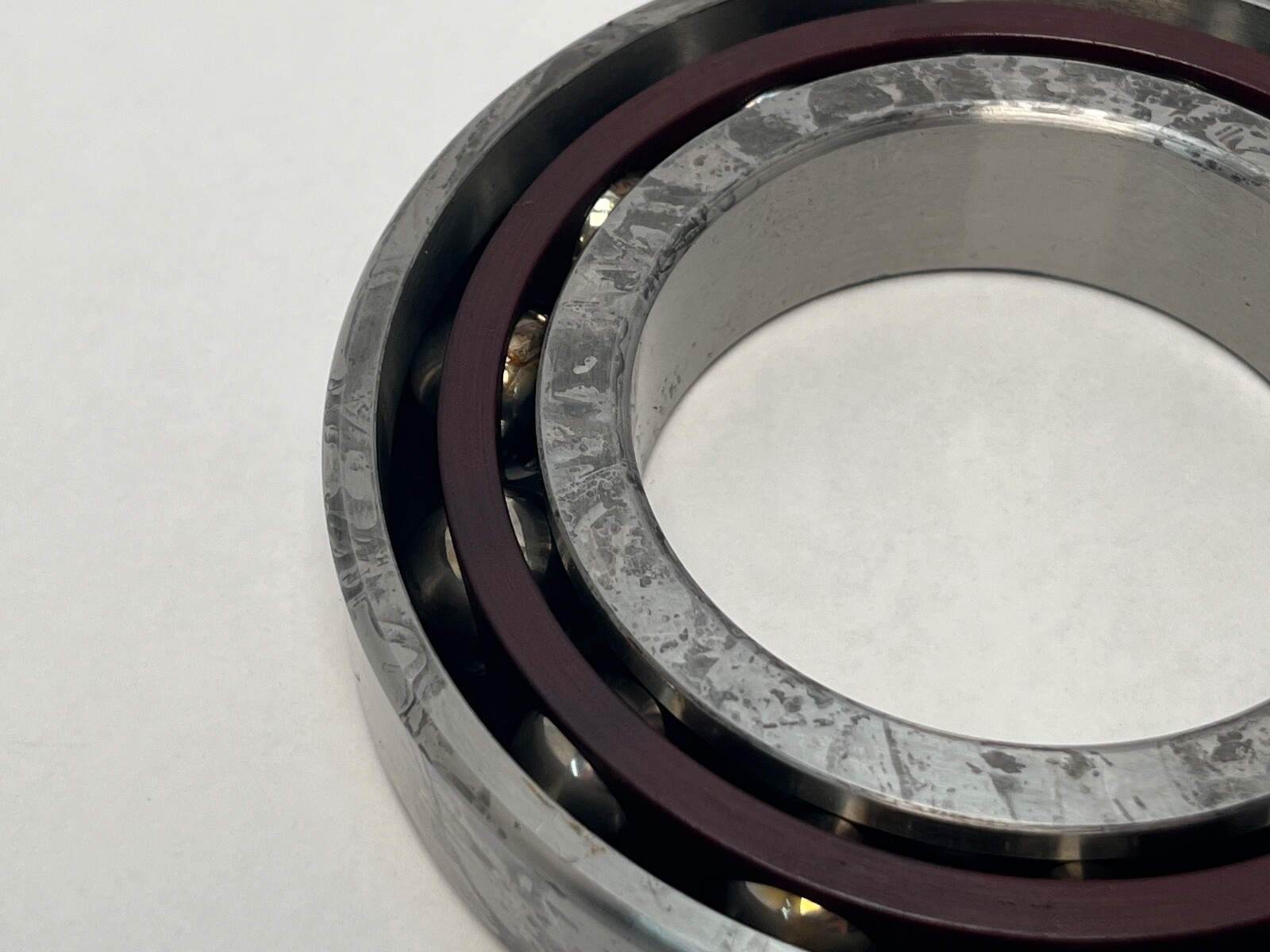

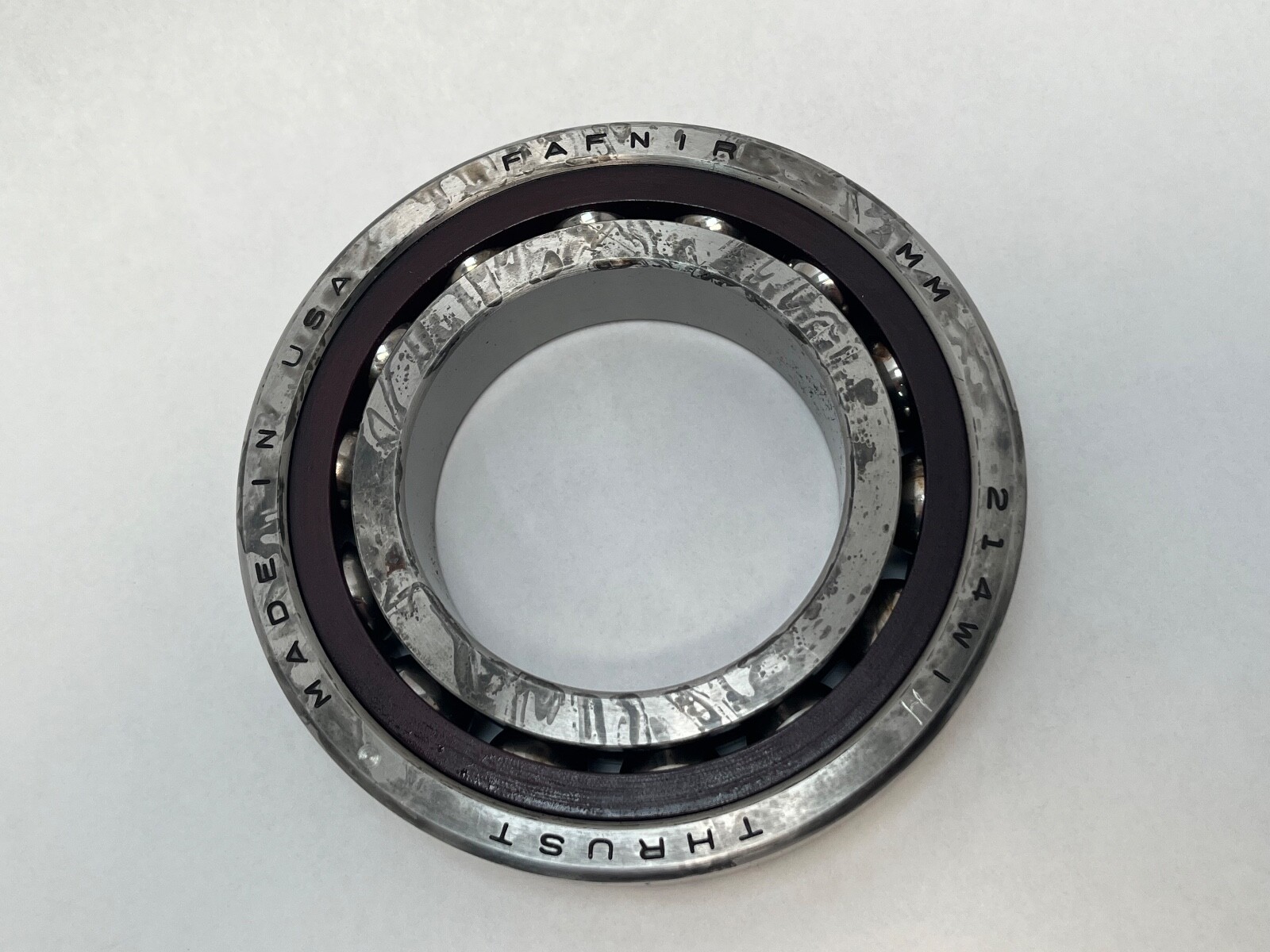

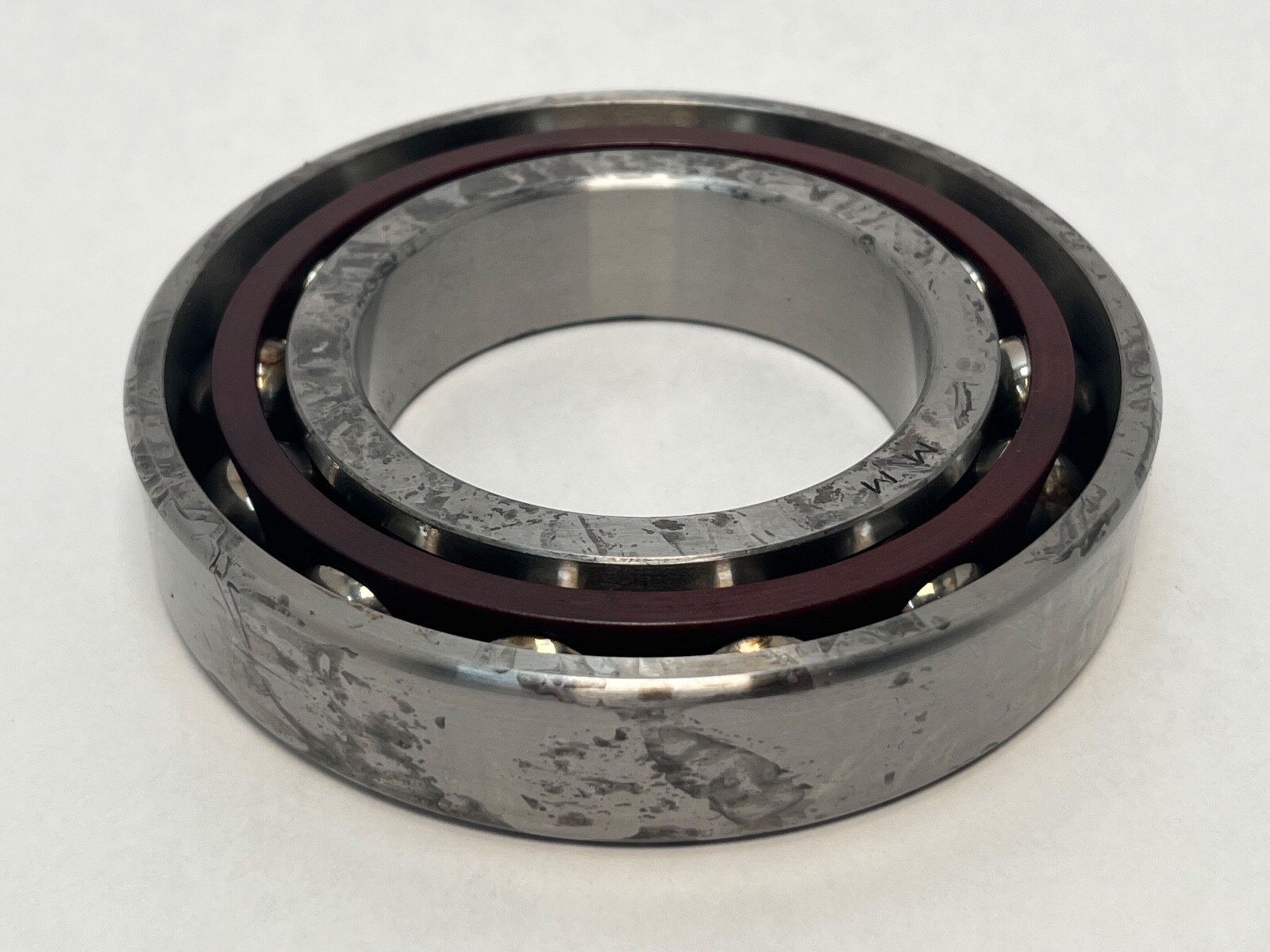

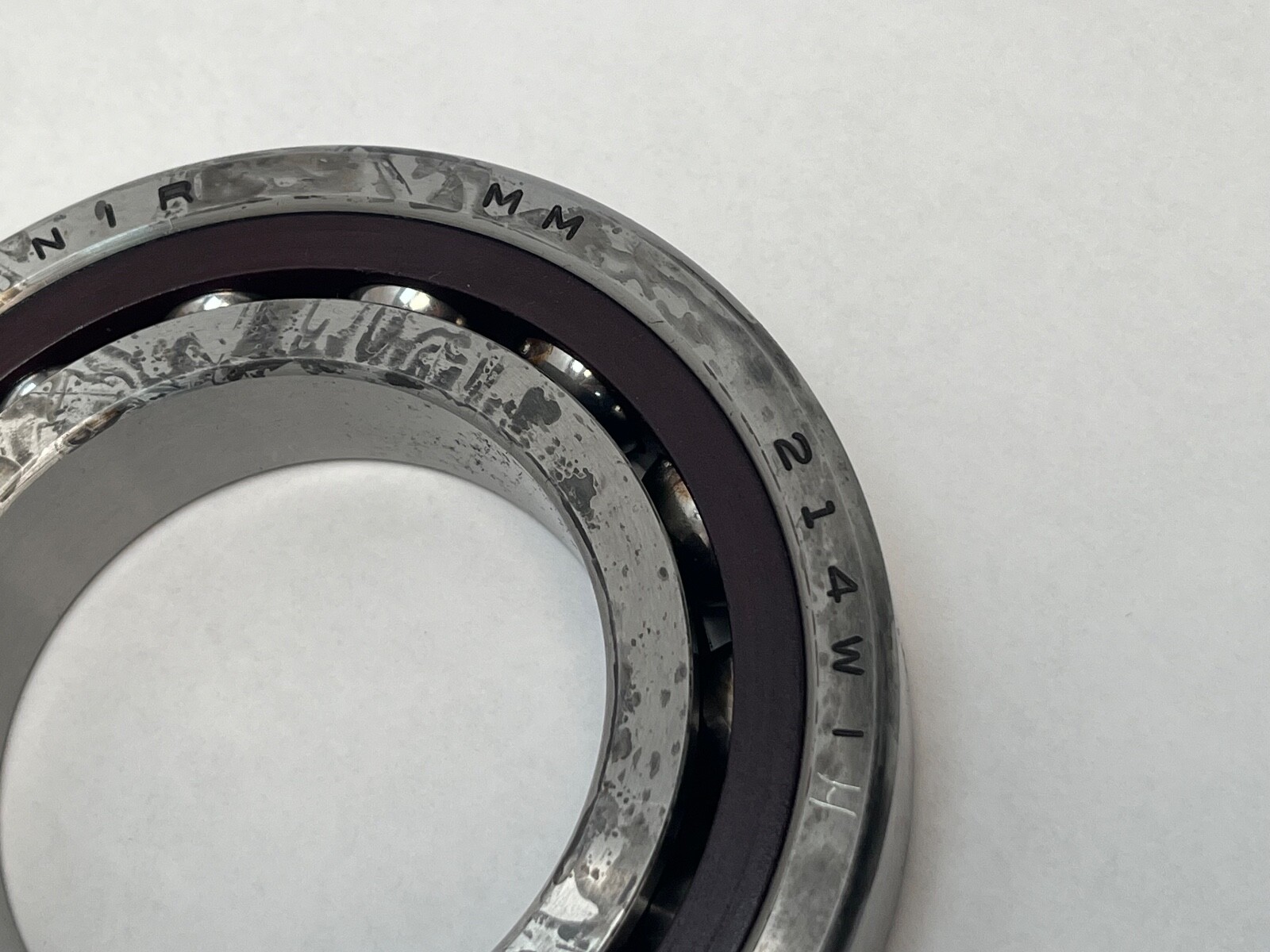

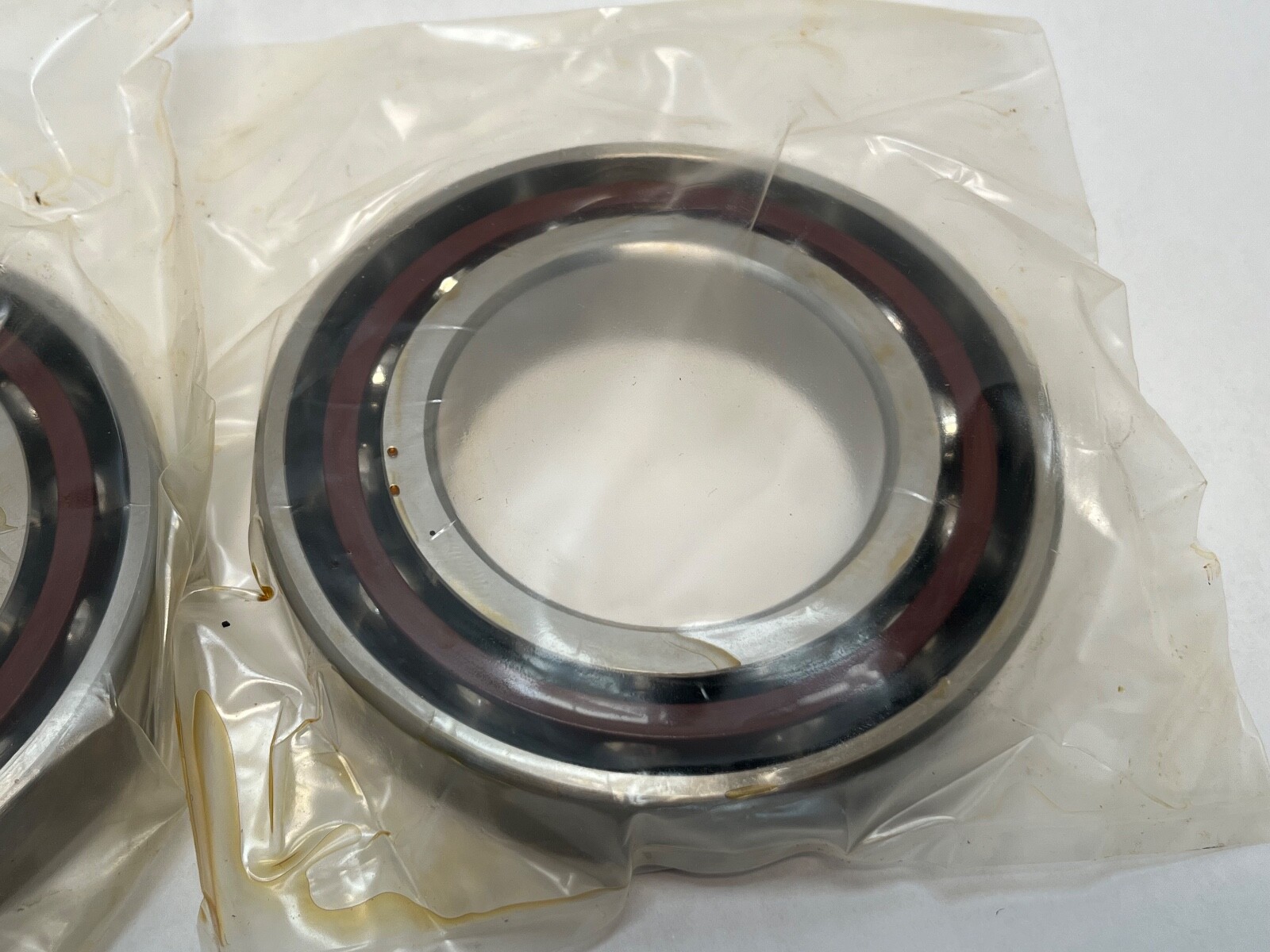

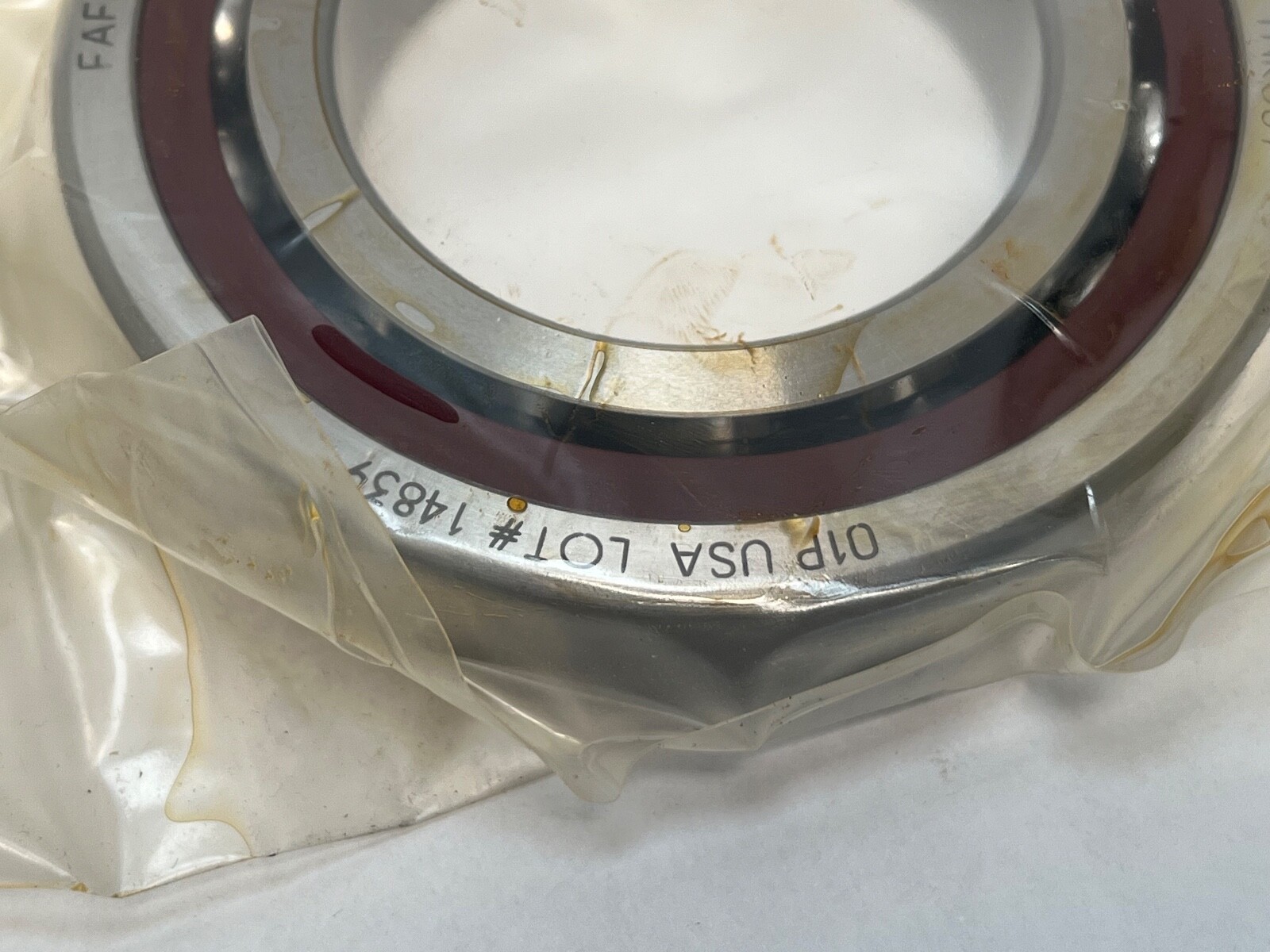

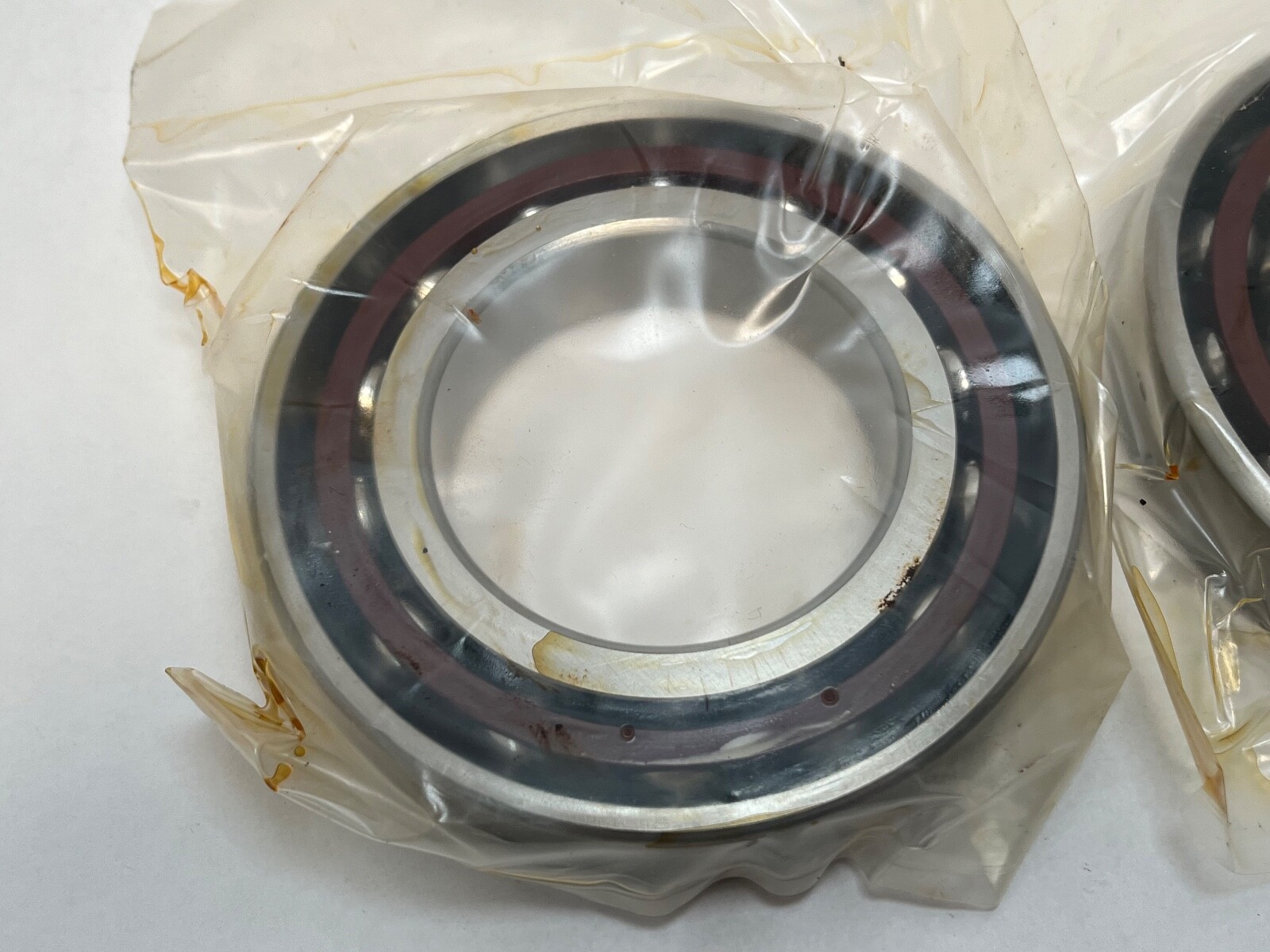

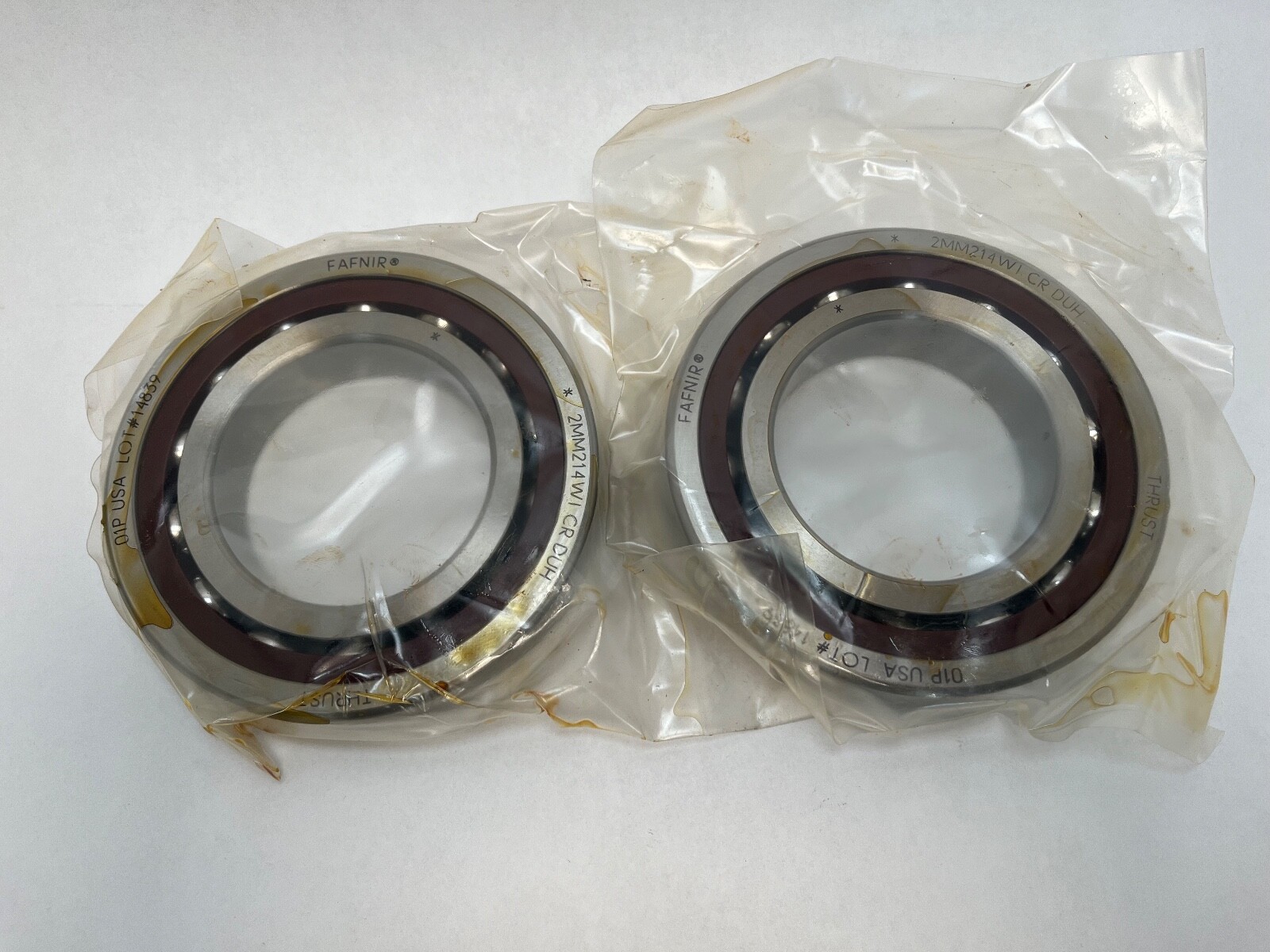

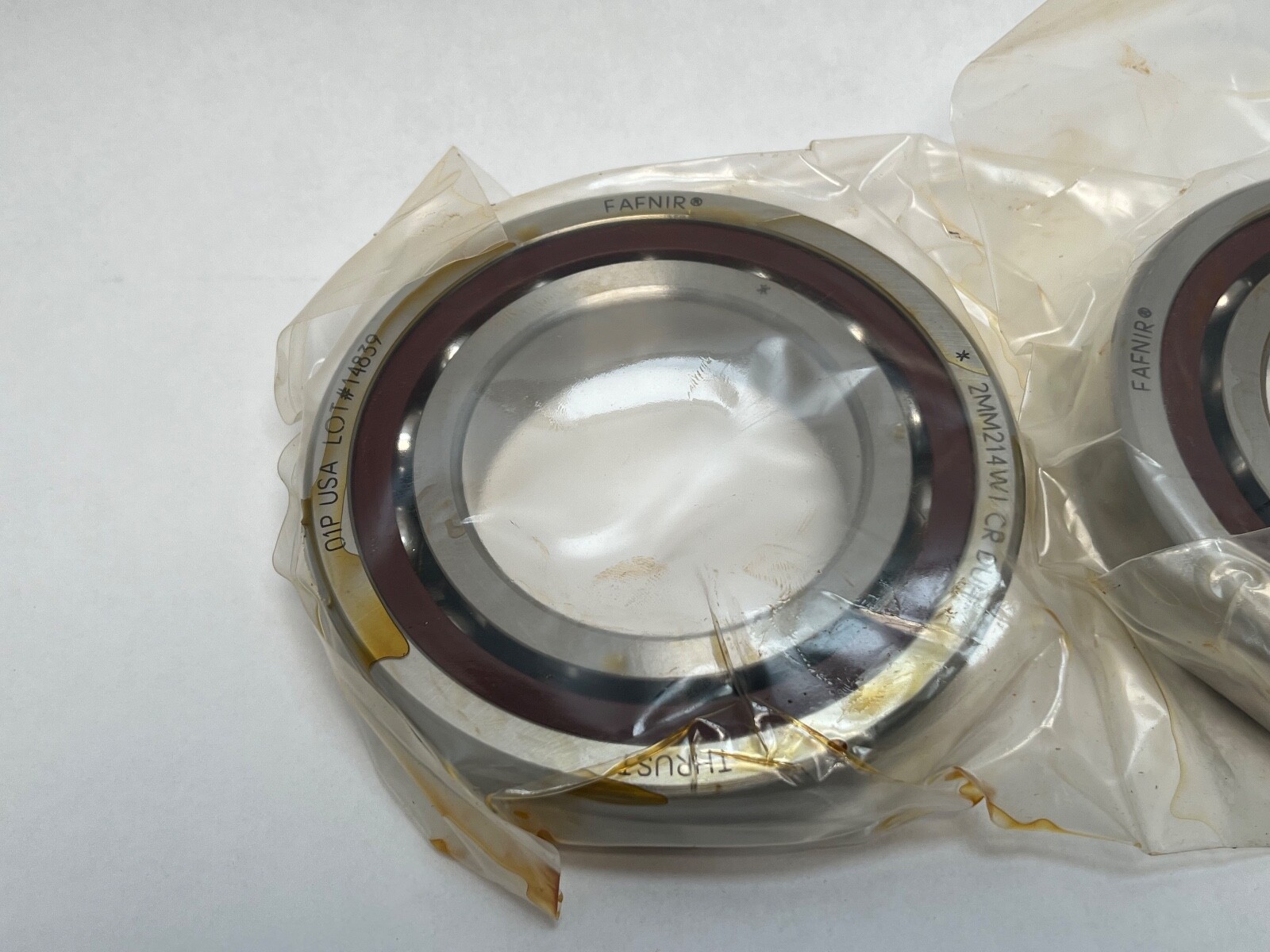

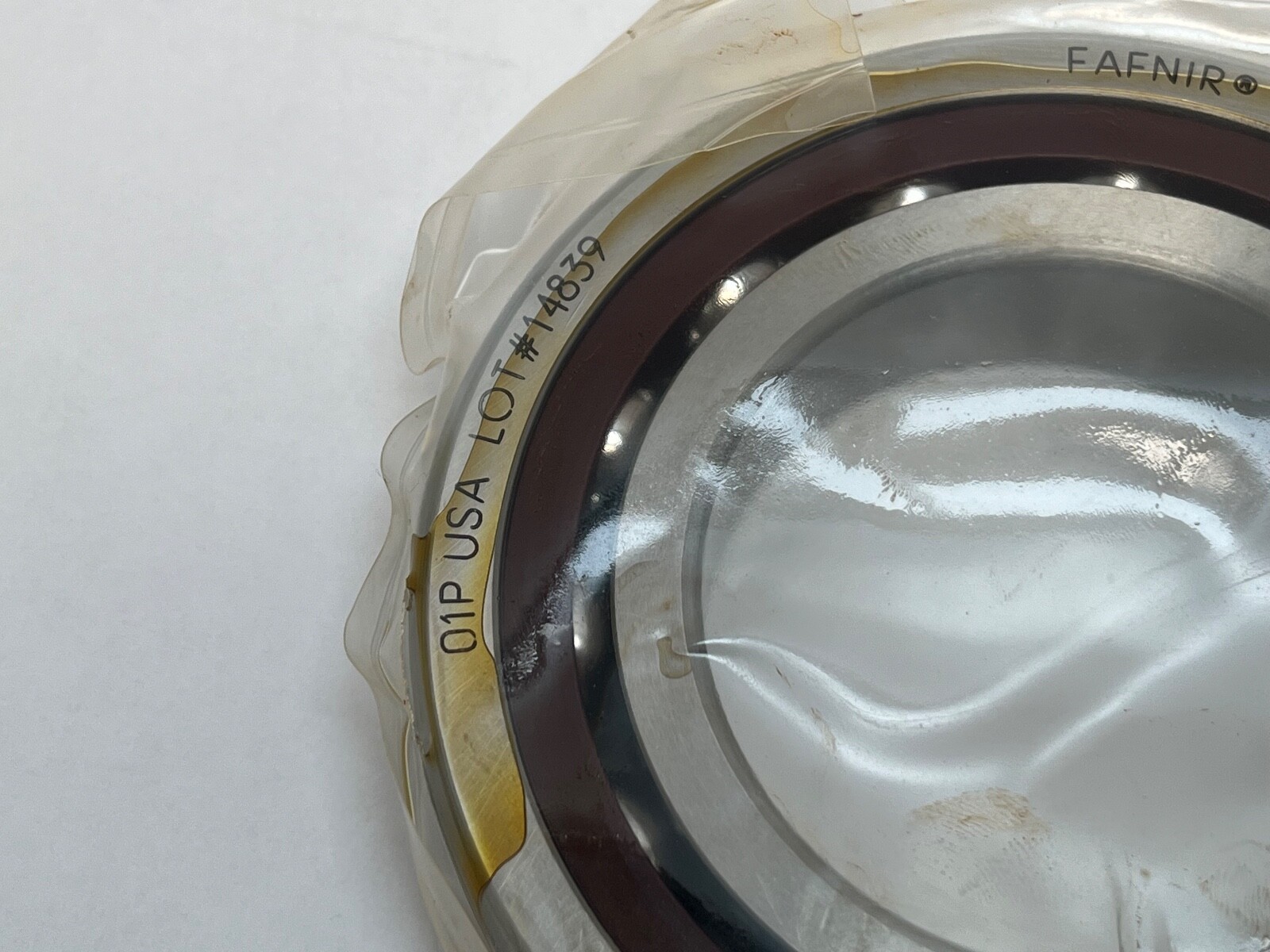

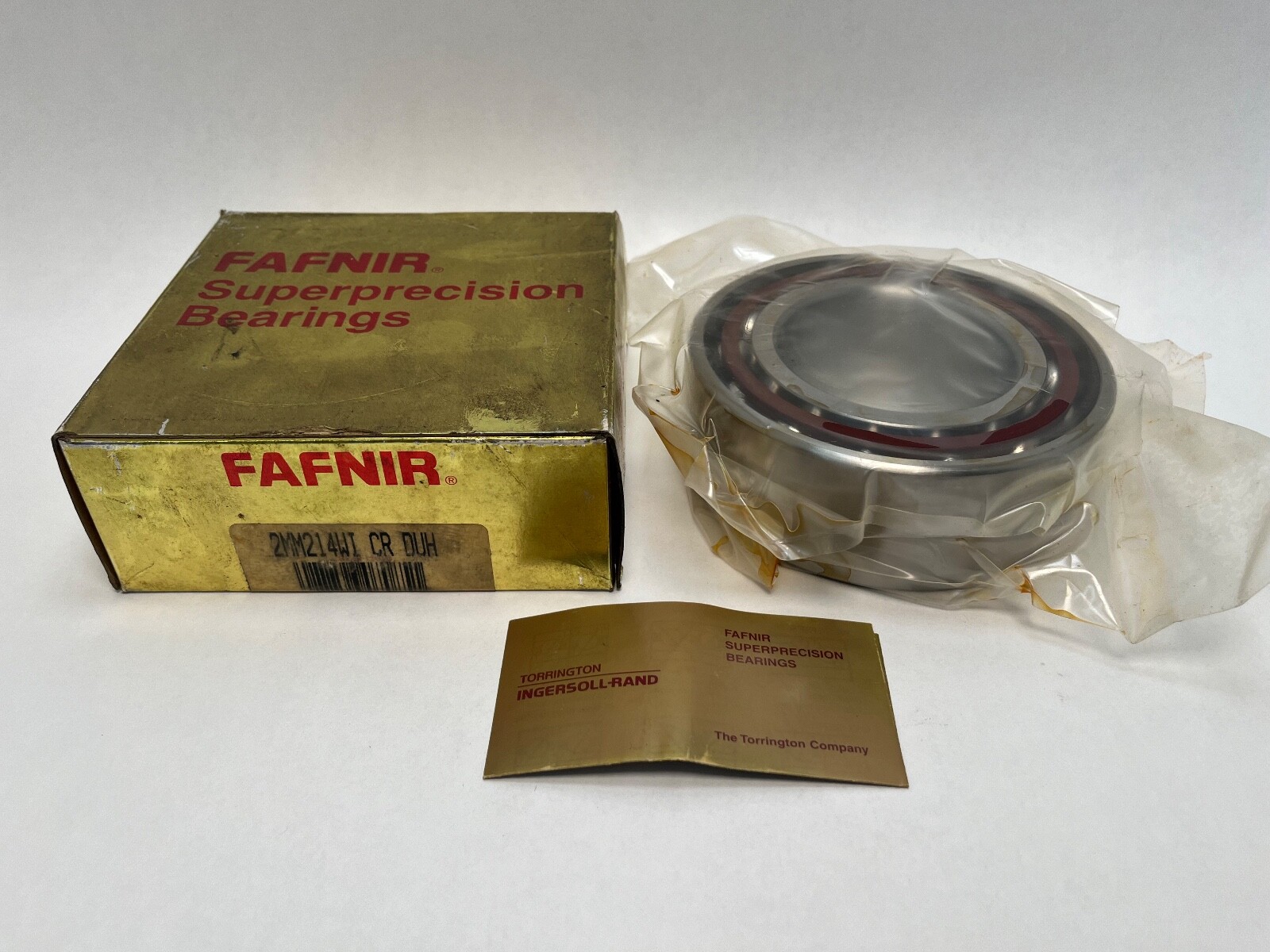

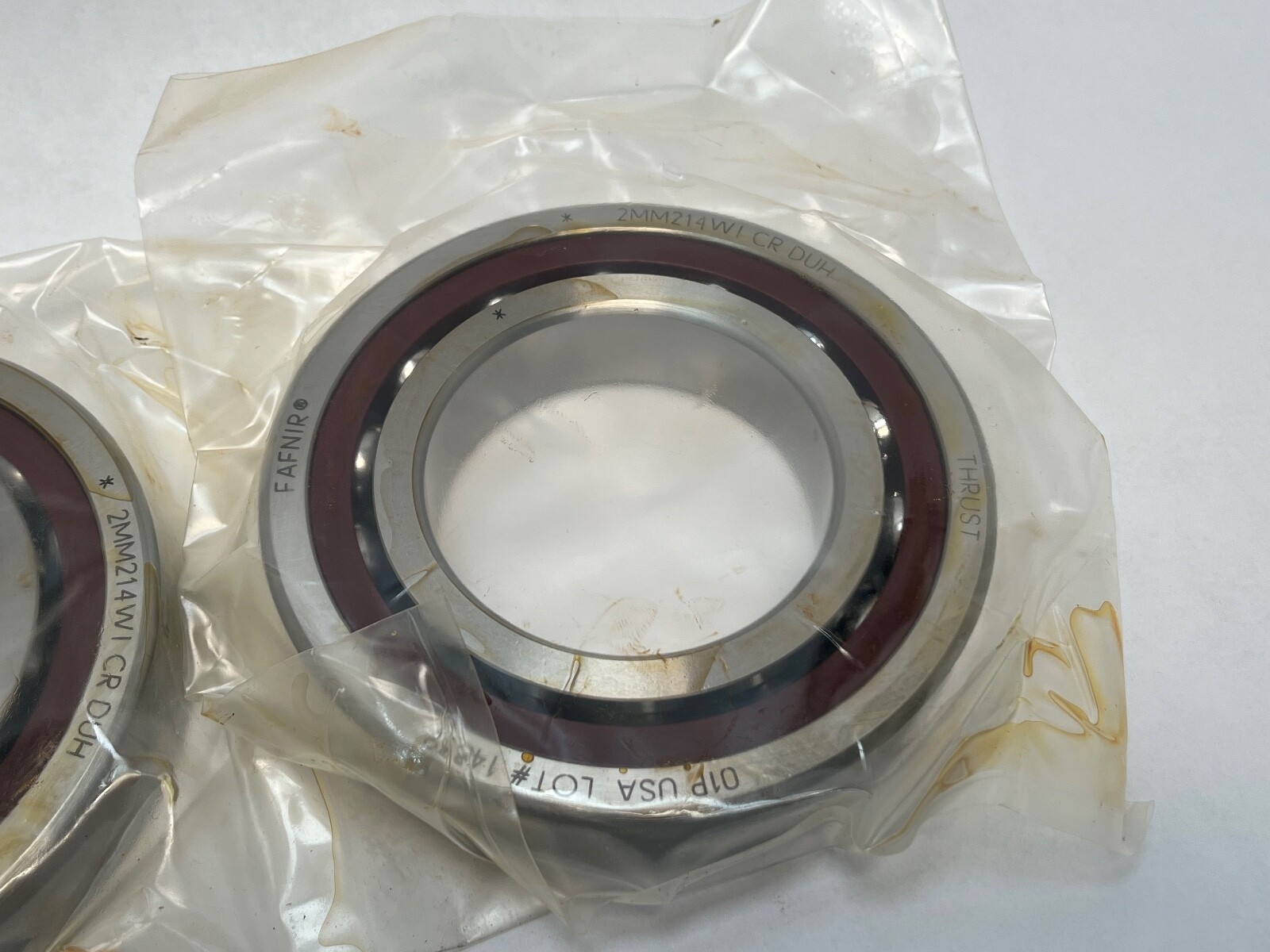

Fafnir 2MM214WICR-DUH super-precision angular contact ball bearings, 70 mm bore, 125 mm outside diameter, 24 mm width per bearing. Single row each, open both faces, machined phenolic outer-land-riding cage. ISO base number 7214. Two pieces, supplied as a duplex set.

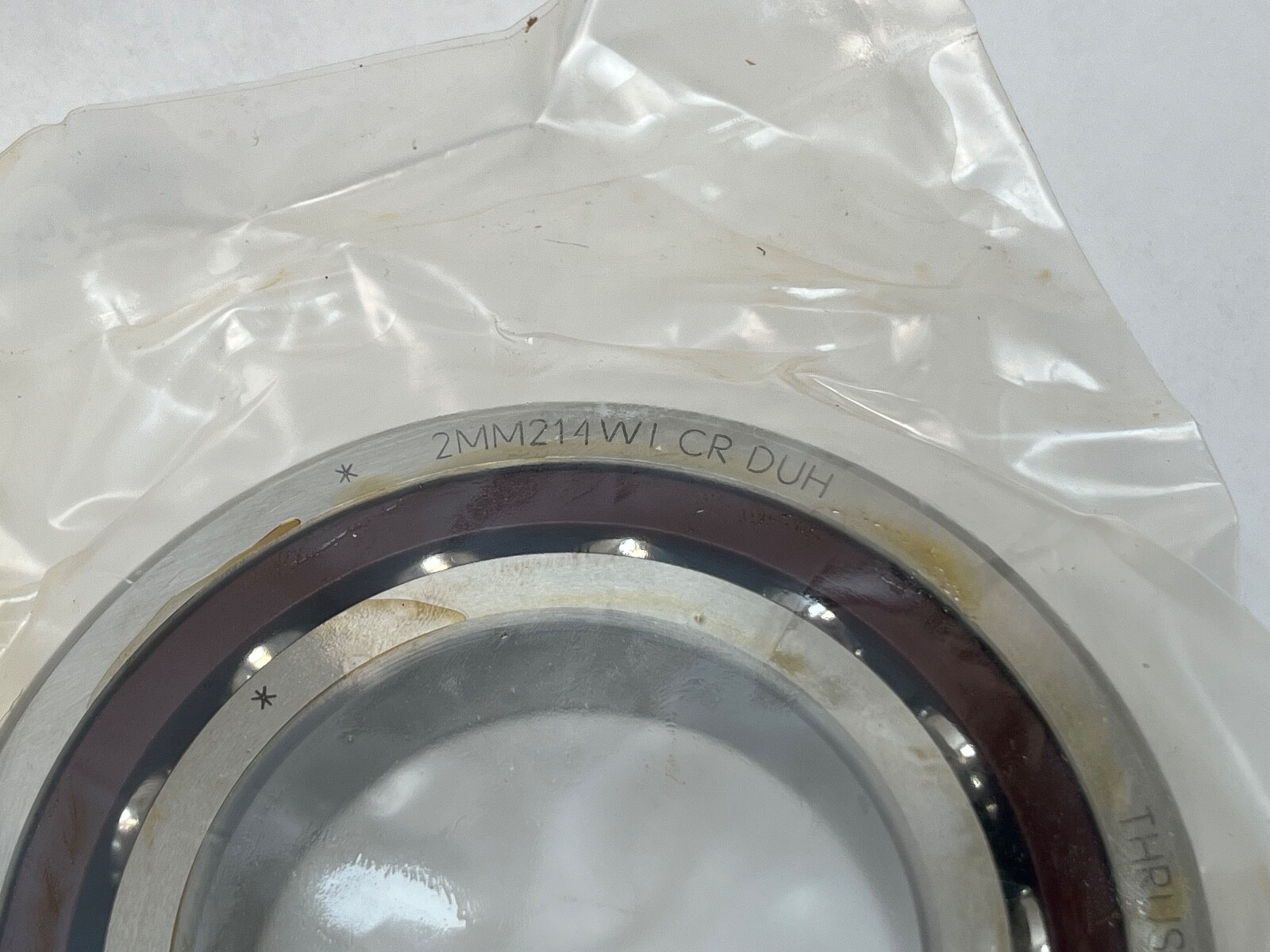

2MM sets a 15° contact angle in the Fafnir WI super-precision scheme, and the MM prefix carries P4S precision — ABEC 7 dimensional tolerances with ABEC 9 running accuracy. 214 is the ISO 72 medium dimension series at 70 mm bore. WI is the ground spindle-bearing execution, CR the phenolic outer-land-riding cage, and DUH a duplex arrangement at heavy preload.
A 15° contact angle favours speed and radial stiffness; a 25° bearing of the same envelope trades speed for thrust capacity. An outer-land-riding phenolic cage is light and tolerant of marginal lubrication, which suits high spindle speeds on oil mist or grease. Heavy preload gives the stiffest, most repeatable spindle at the cost of higher running temperature and reduced speed limit.

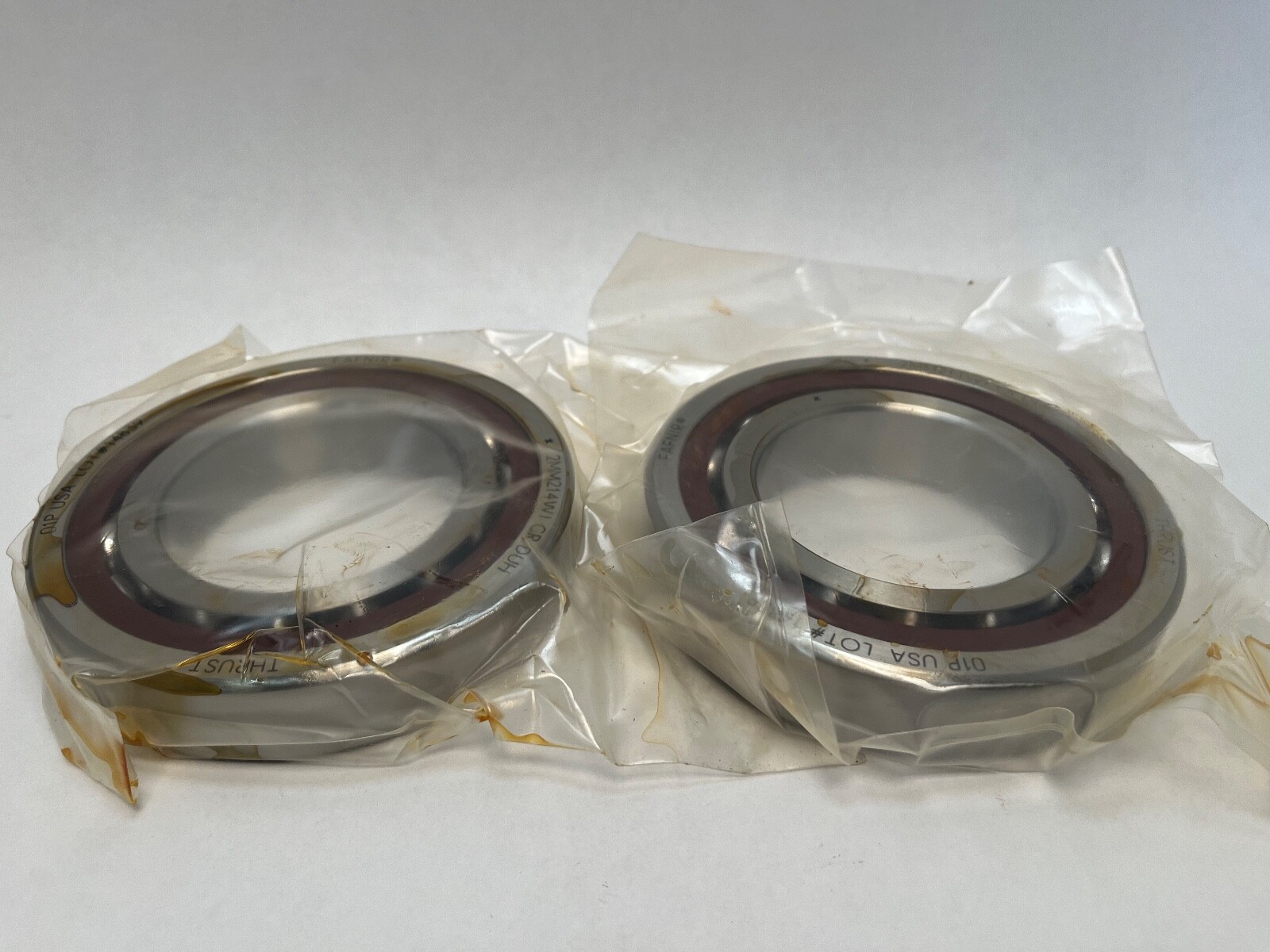

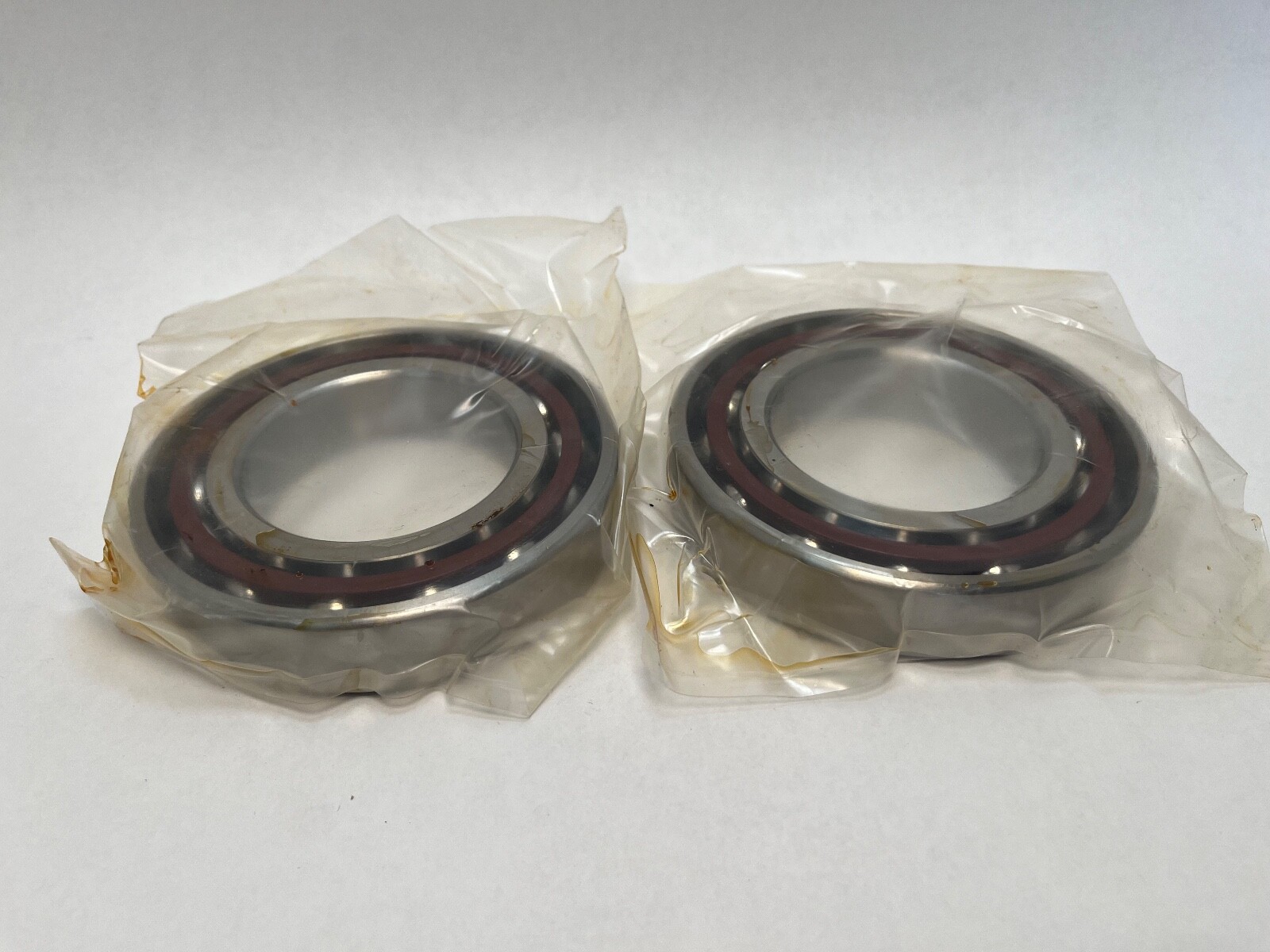

Two bearings, 24 mm wide each, 48 mm total mounted width as a duplex stack. Faces are universally ground, so the pair mounts back-to-back, face-to-face or in tandem.
Straight bore on an interference fit to the spindle journal, with the outer rings clamped square in the housing bore. The ground faces are stacked per the chosen duplex arrangement, with the marked faces oriented together. Oil or grease lubrication, filtered, is standard for this class.
Matching 15° heavy-preload duplex sets are the SKF 7214 CD/P4ADGC and FAG B7214-C-T-P4S-DUH; the NSK 7214CTYNDUHP4 and RHP 7214CTDUHP4 match in P4 rather than P4S class. A 7214A5 or 7214-E of the same envelope is a 25° bearing, and a single SU-ground 2MM214WI is a related item rather than a substitution for a duplex pair.
