Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
9 in stock

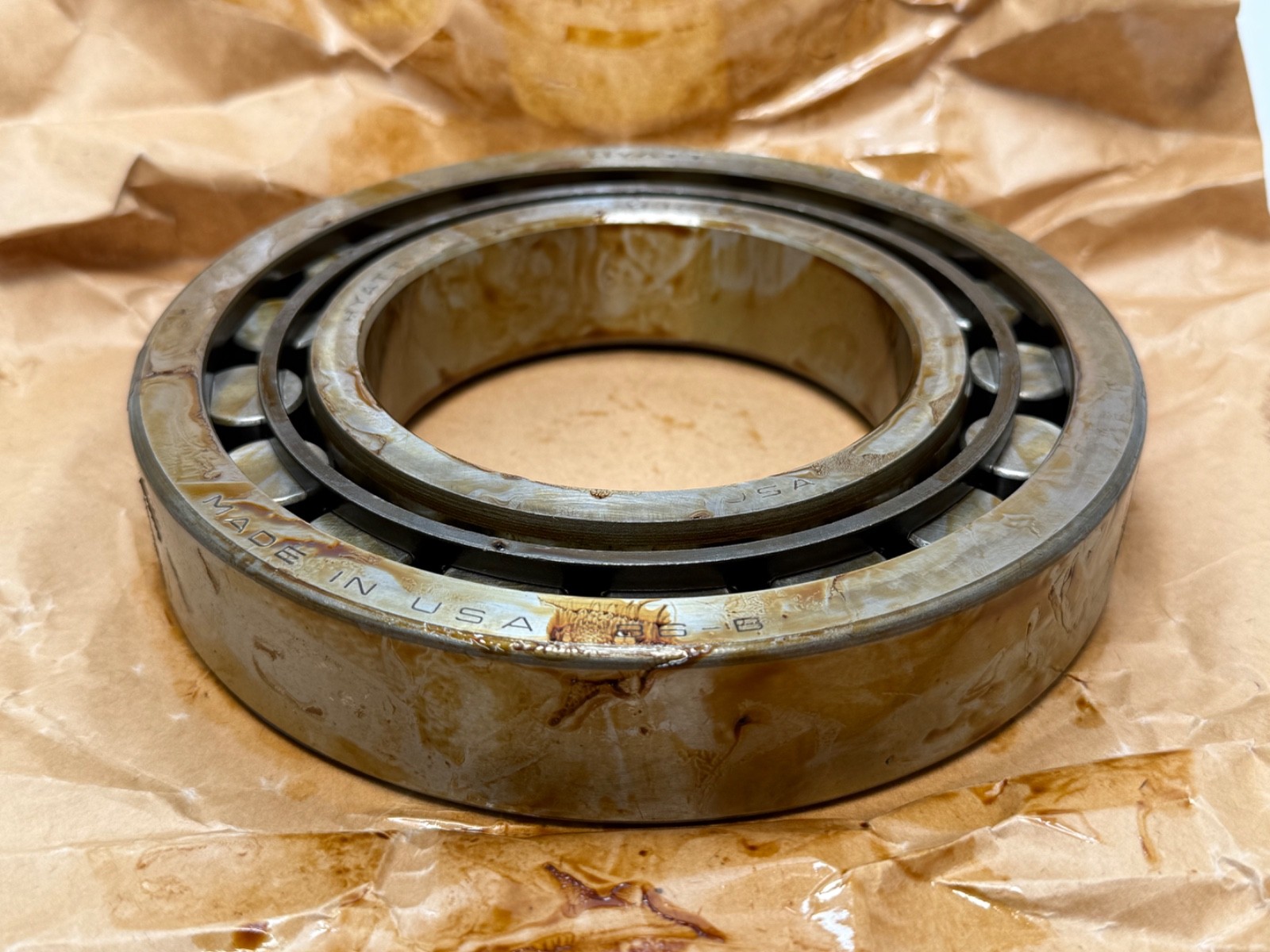

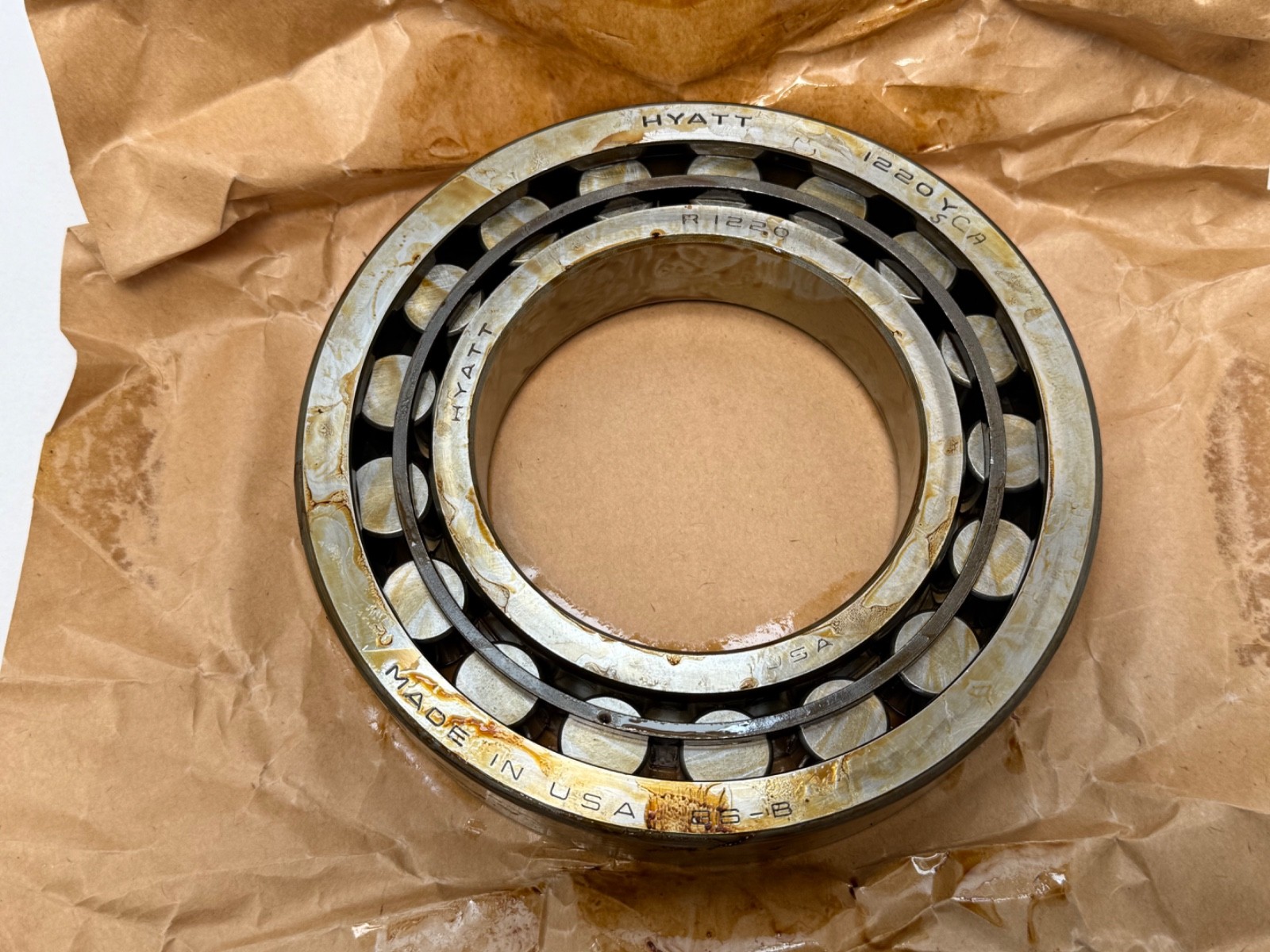

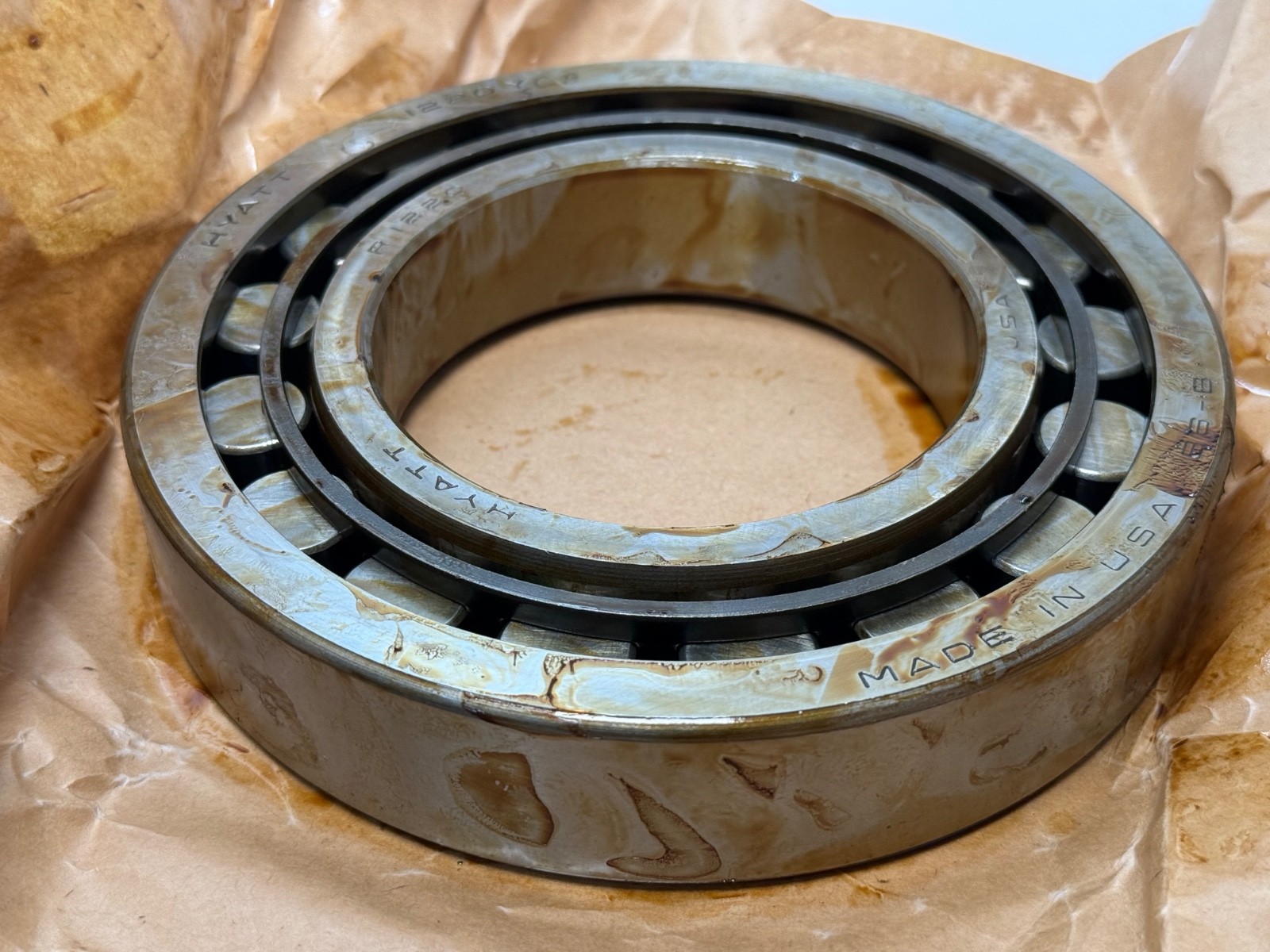

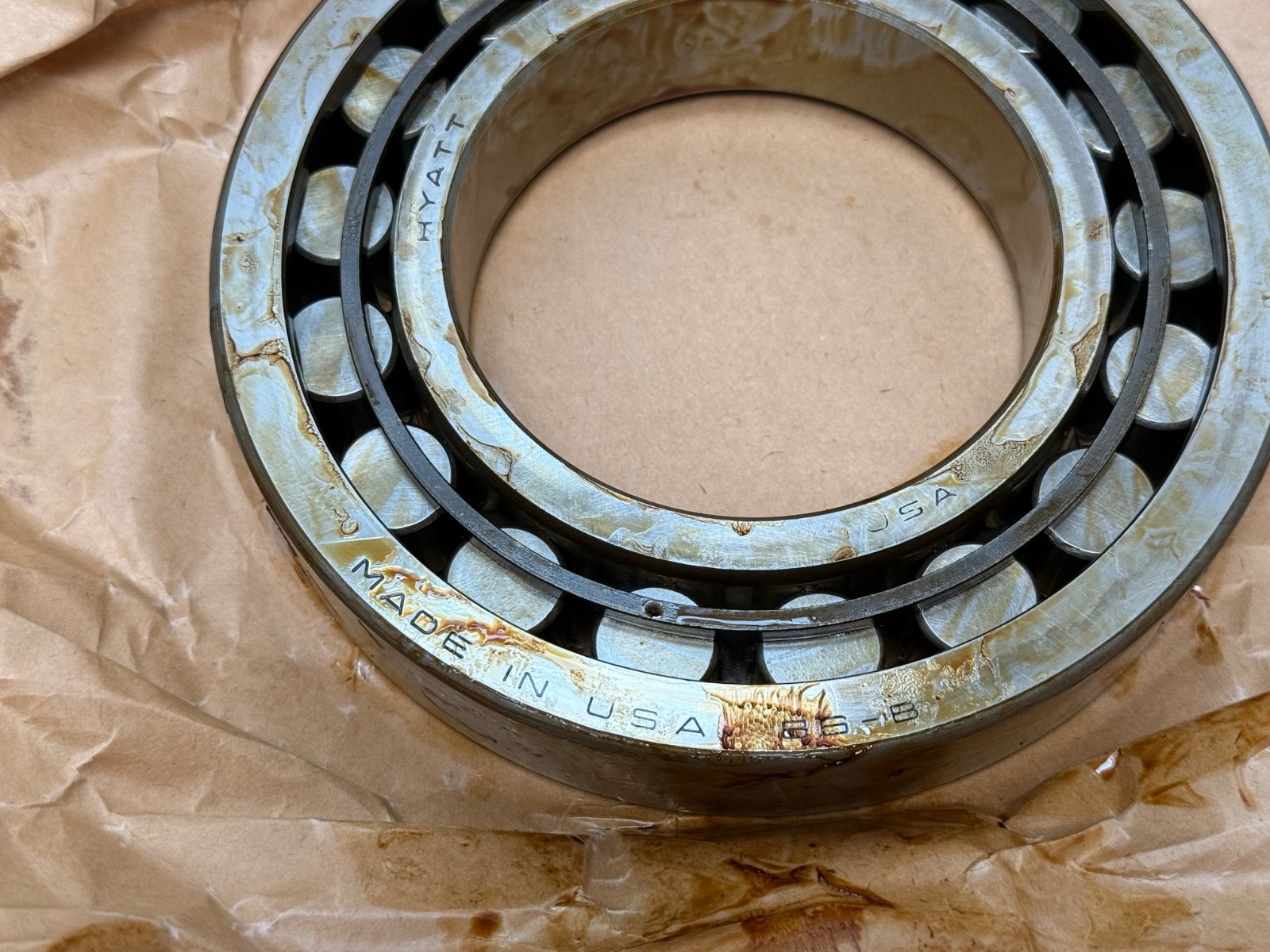

Single-row cylindrical roller bearing, NJ design: 100 mm bore, 180 mm OD, 34 mm width. Hyatt NJ220 with an inner-ring rib for one-direction axial location.
List Price
$127.30
9 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Hyatt |
|---|---|
| MPN | NJ220 |
| Model | NJ 220 |
| Bearing Type | Cylindrical Roller Bearing |
| ID | 100 mm |
| OD | 180 mm |
| Width | 34 mm |
| Overall Width | 34 mm |
|---|---|

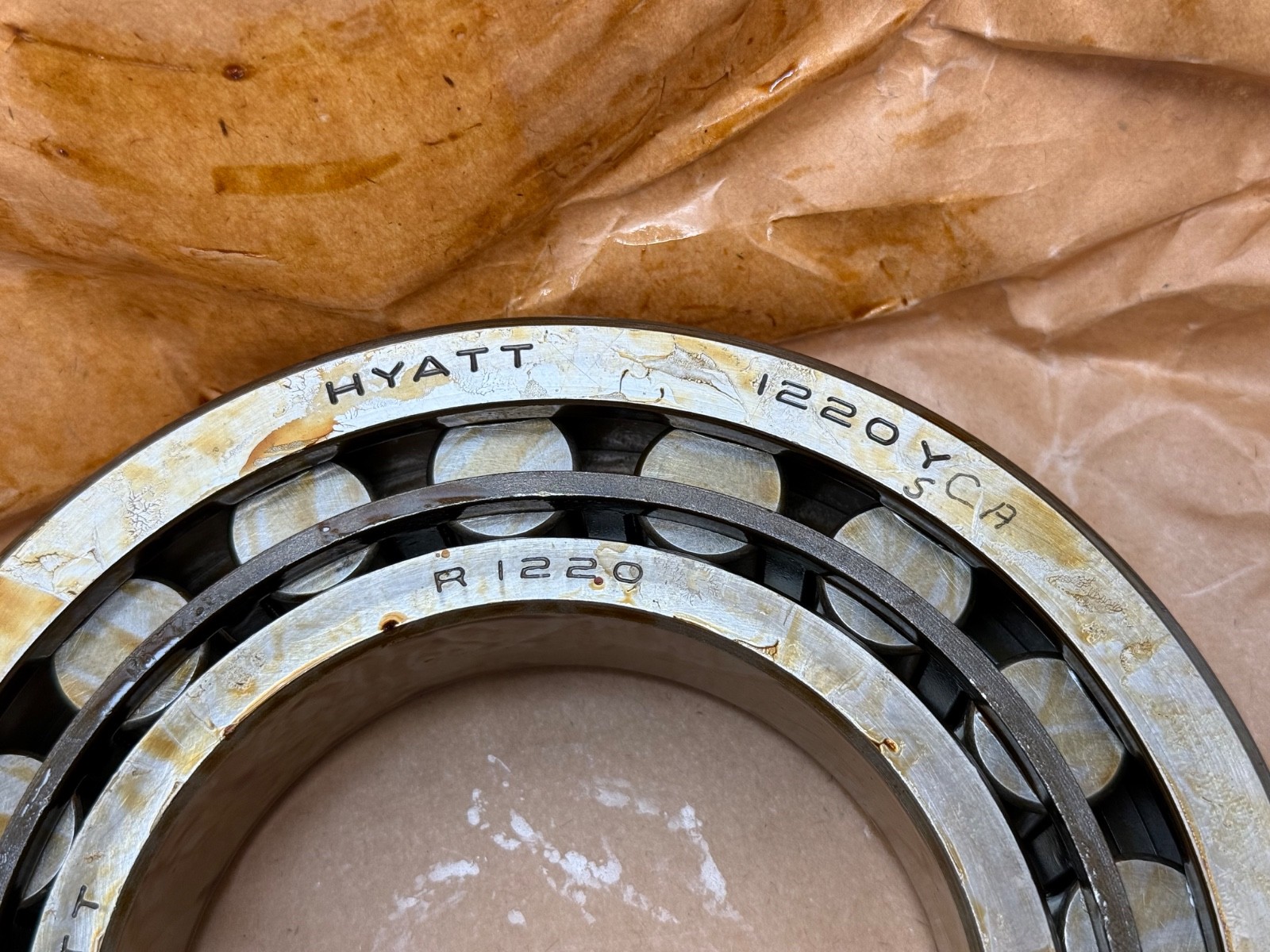

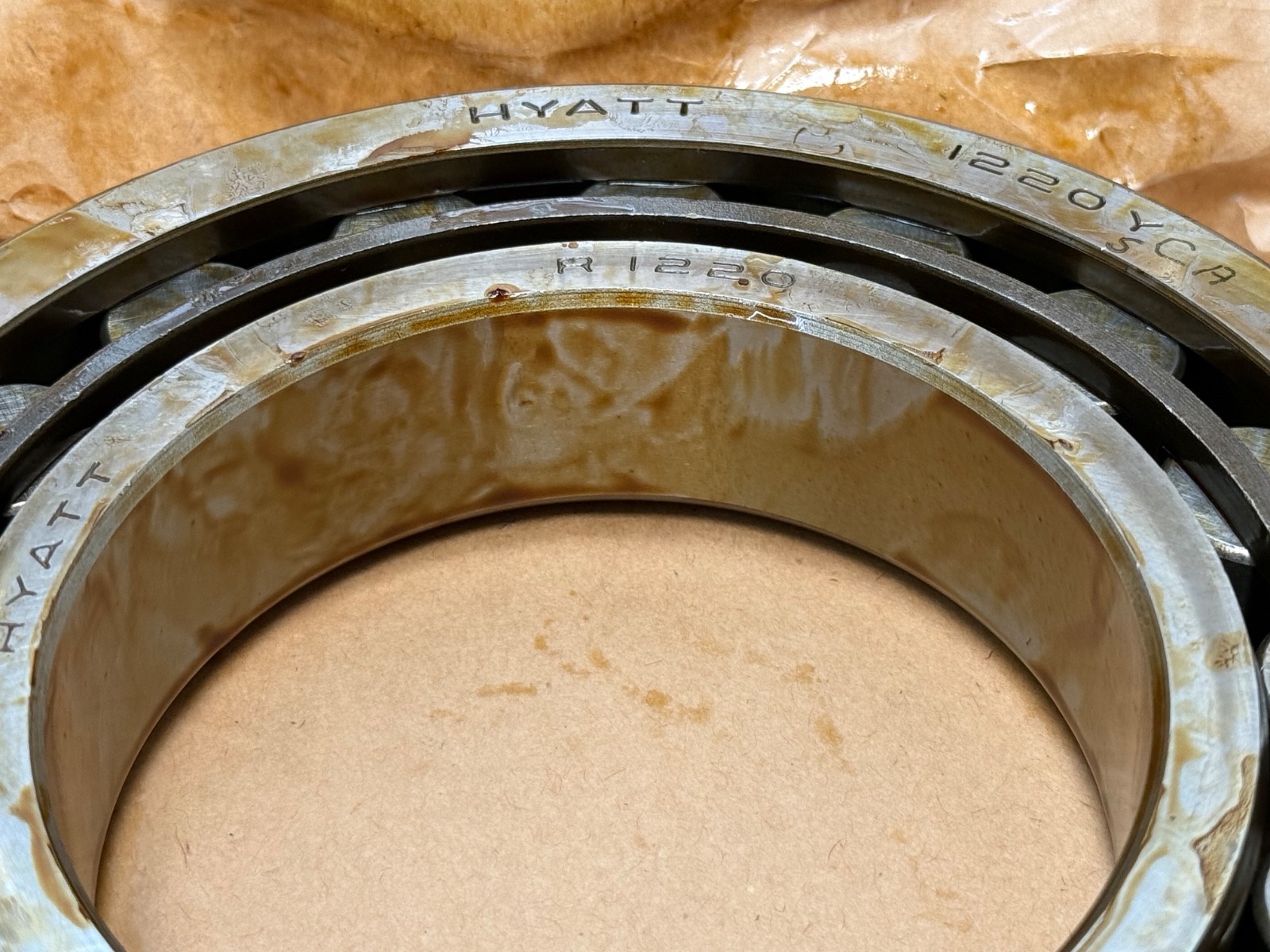

| Mpn Variants | NJ220, NJ-220, NJ 220, R1220, 1220Y-CA, BU1220 |
| Series | NJ 2 |
| Rolling Elements | Cylindrical Roller |
| Number Of Rows | 1 |
| Internal Clearance | CN |
| Cross Reference 1 | SKF NJ 220 |
|---|---|
| Cross Reference 2 | FAG NJ220 |
| Cross Reference 3 | NSK NJ220 |
| Cross Reference 4 | NTN NJ220 |
| Cross Reference 5 | Koyo NJ220 |
Hyatt NJ220 is a single-row cylindrical roller bearing in the ISO 02 dimension series. Rolling Elements: Cylindrical Roller. Number Of Rows: 1. Bore Diameter: 100 mm. Outside Diameter: 180 mm. Overall Width: 34 mm. Internal Clearance: CN.
NJ — cylindrical roller design with two ribs on the outer ring and one rib on the inner ring, locating the shaft axially in one direction.
220 — ISO 02 dimension series, bore code 20: 100 mm bore, 180 mm outside diameter, 34 mm width.
No clearance suffix — normal internal clearance, CN.
Line contact between the cylindrical rollers and raceways gives high radial load capacity. The single inner-ring rib carries light axial load in one direction and fixes the shaft against axial movement that way.

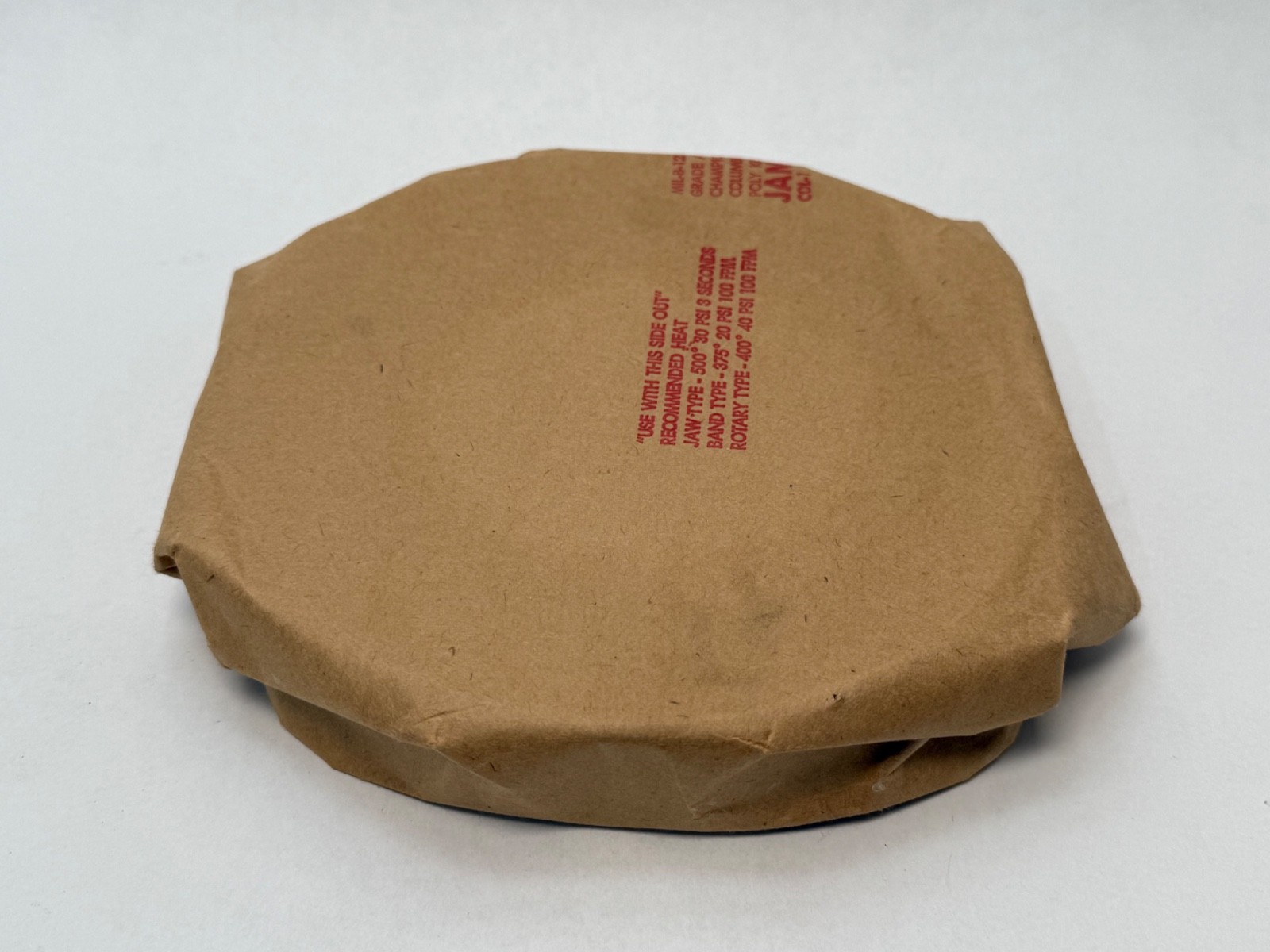

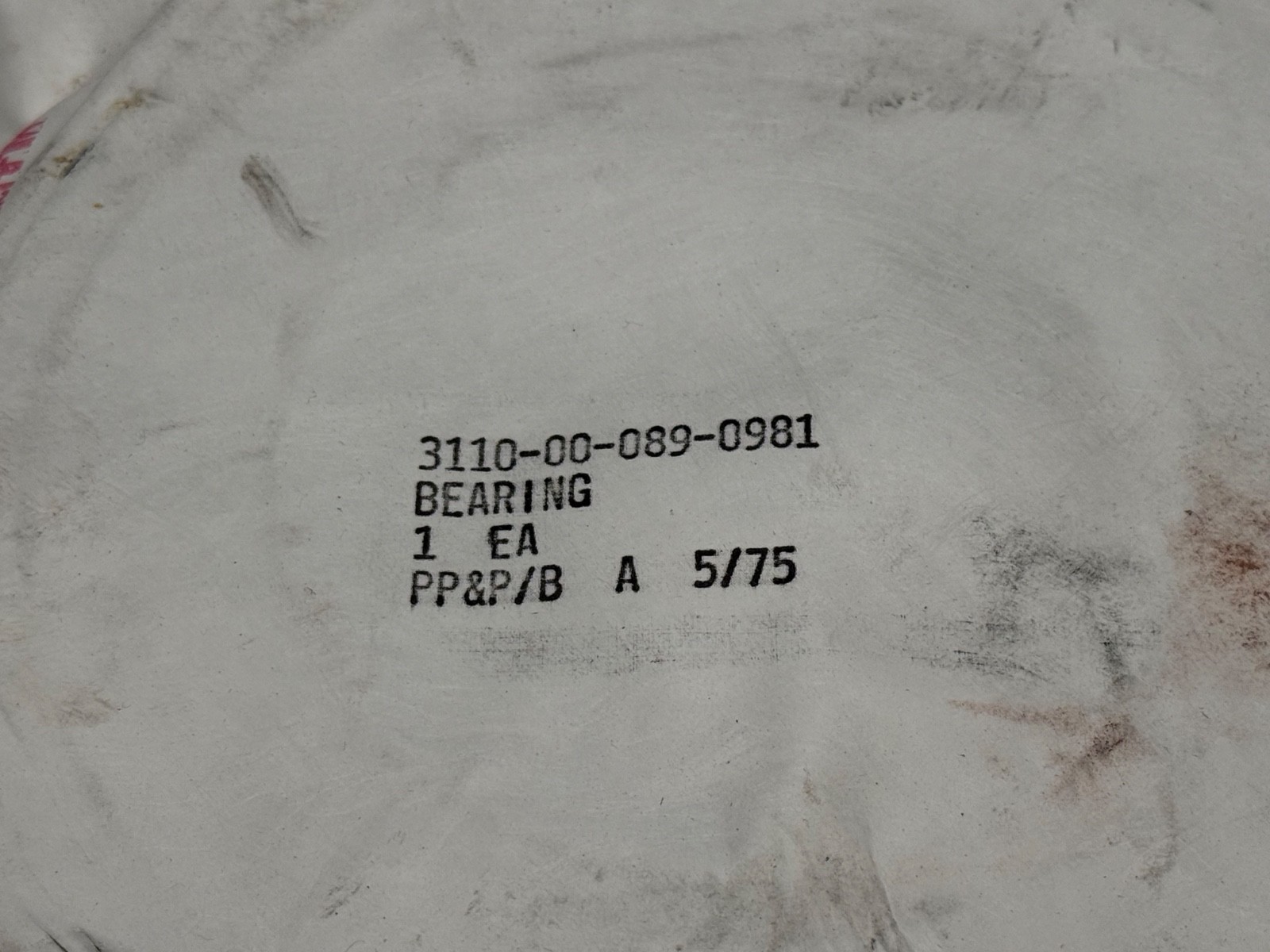

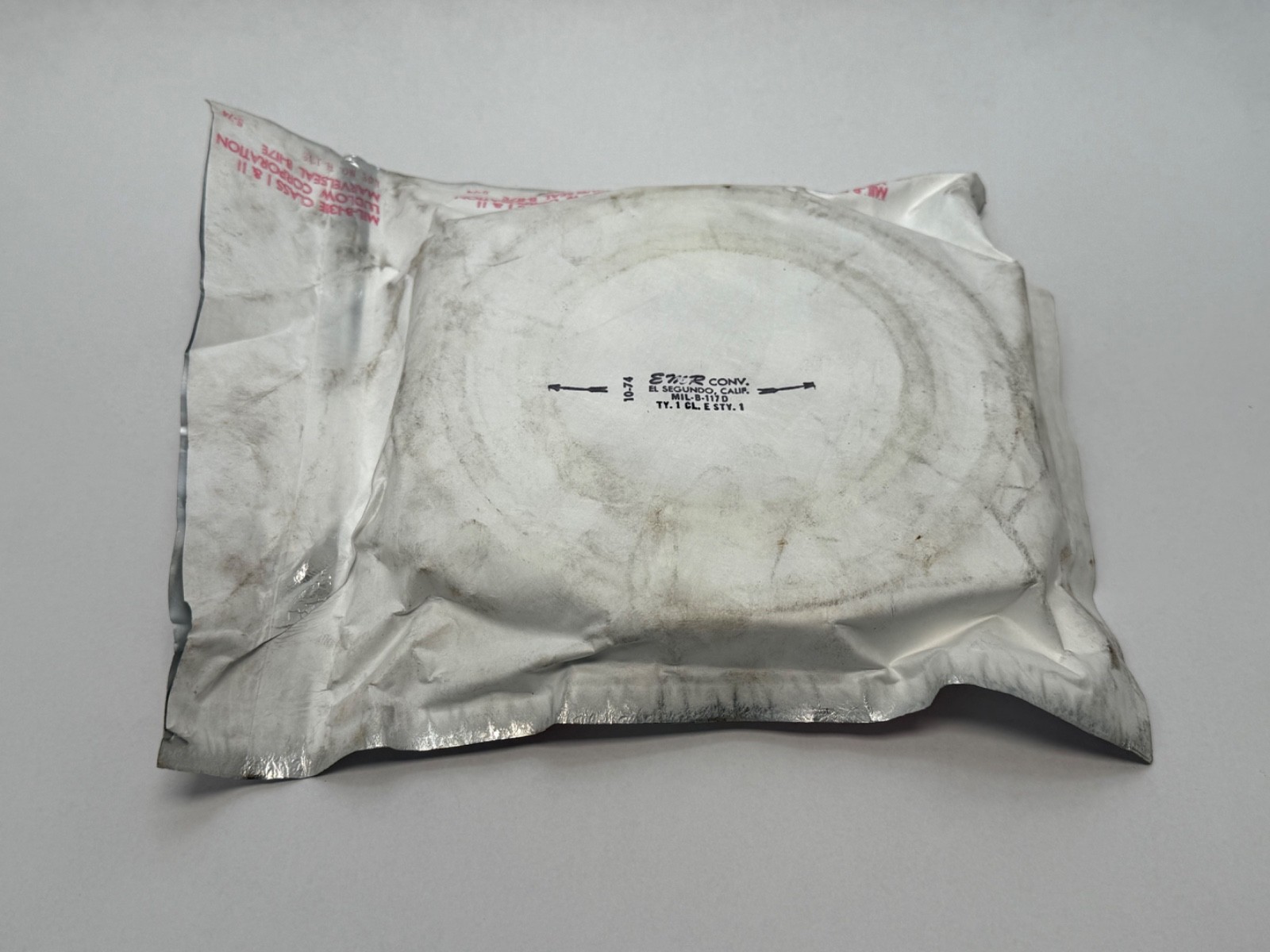

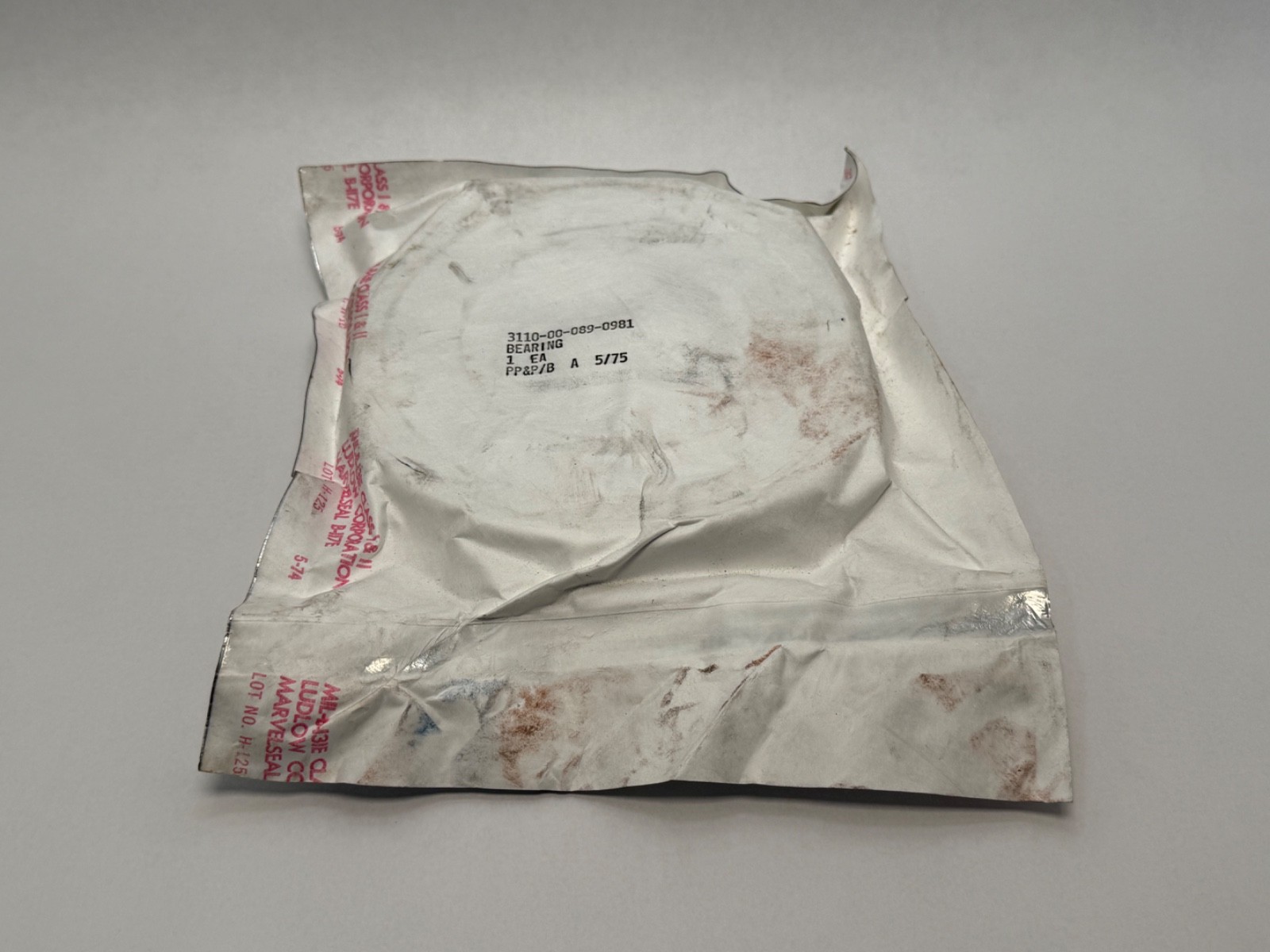

Unit Quantity: 1 Pc. One bearing. Condition: New old stock, open box.
NJ220 is an ISO envelope and design shared across major makers. Cross-Reference: SKF NJ 220, FAG NJ220, NSK NJ220, NTN NJ220, Koyo NJ220. MPN Variants: NJ220, NJ-220, NJ 220, R1220, 1220Y-CA, BU1220.
