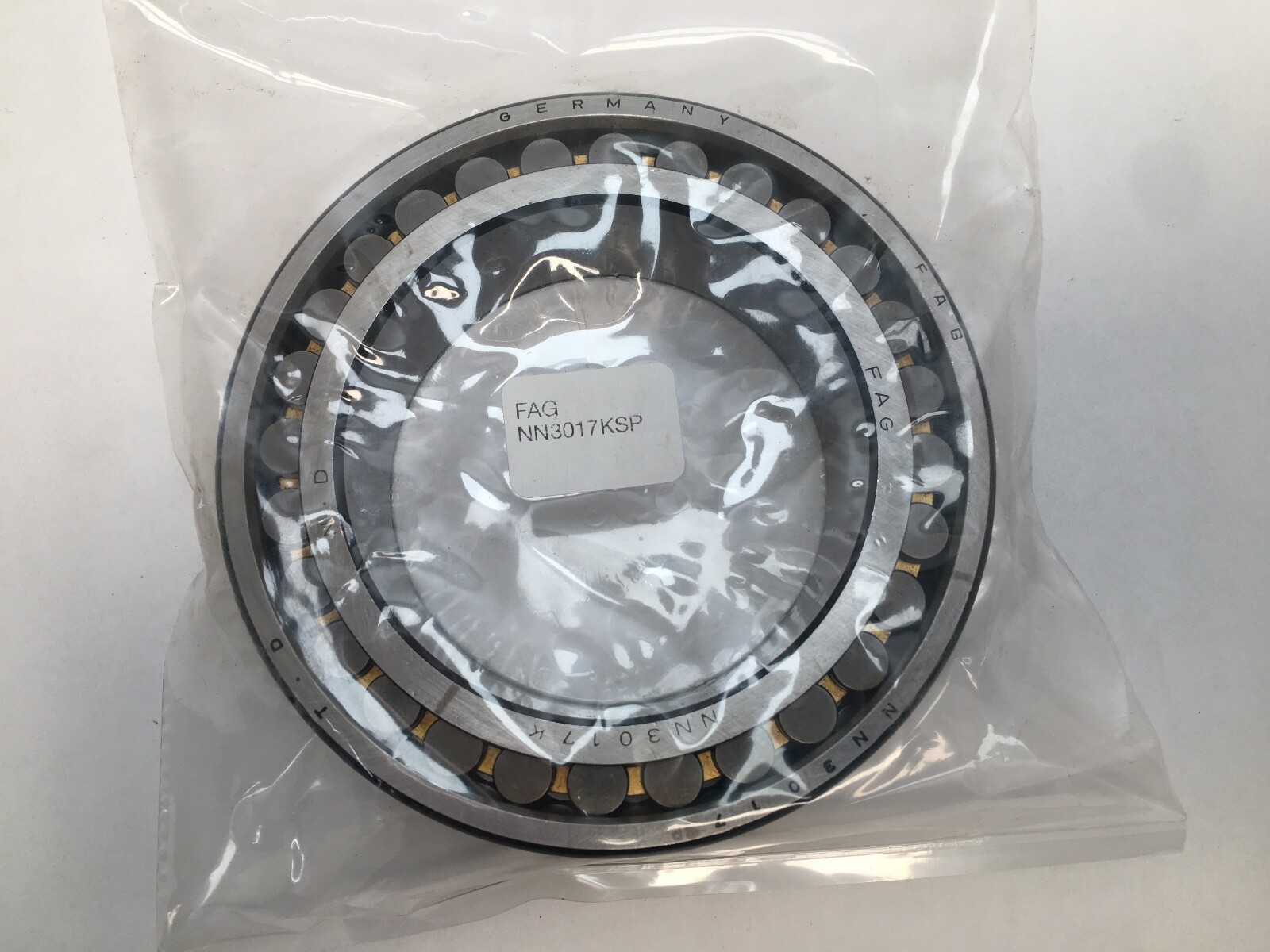

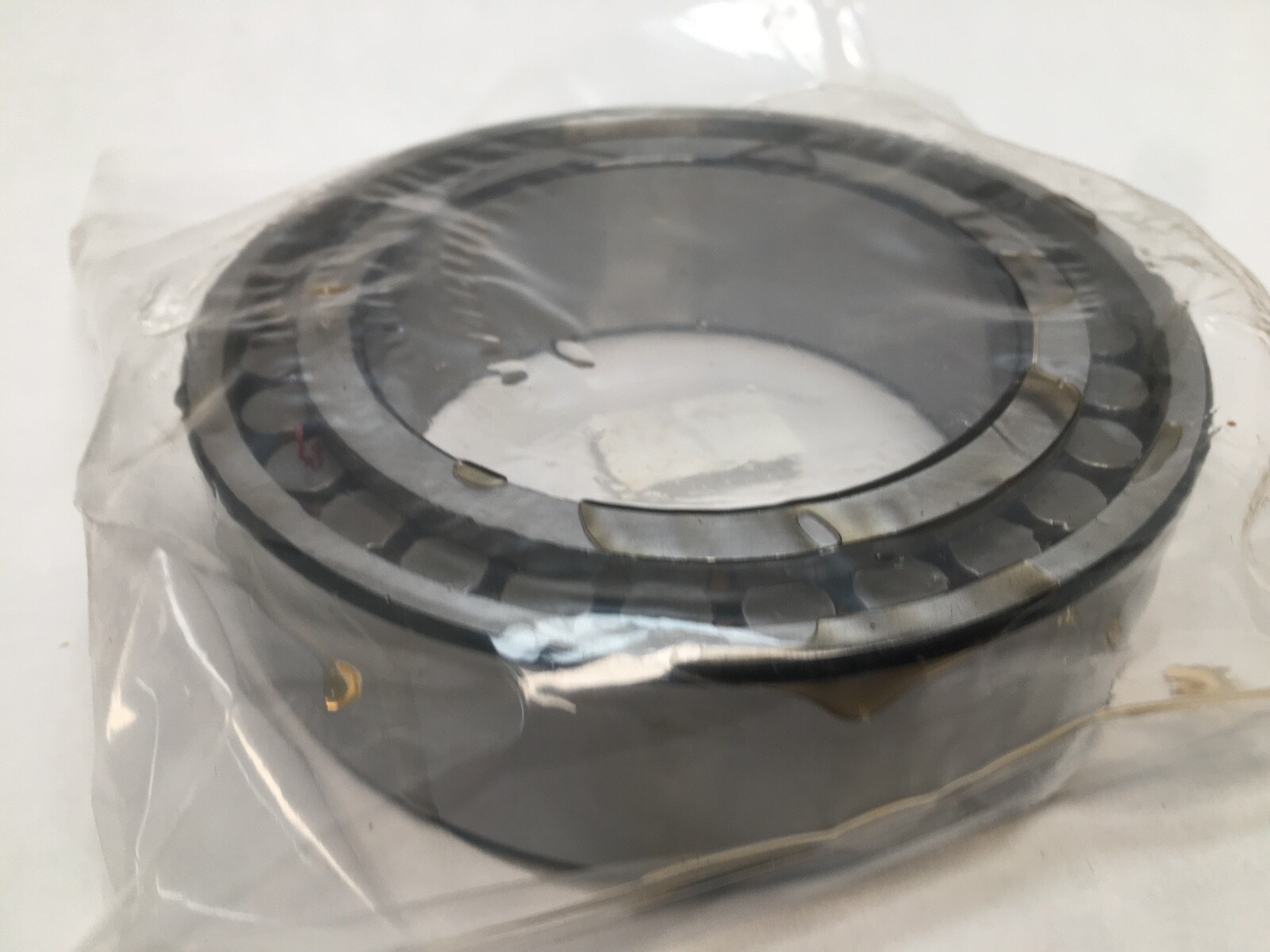

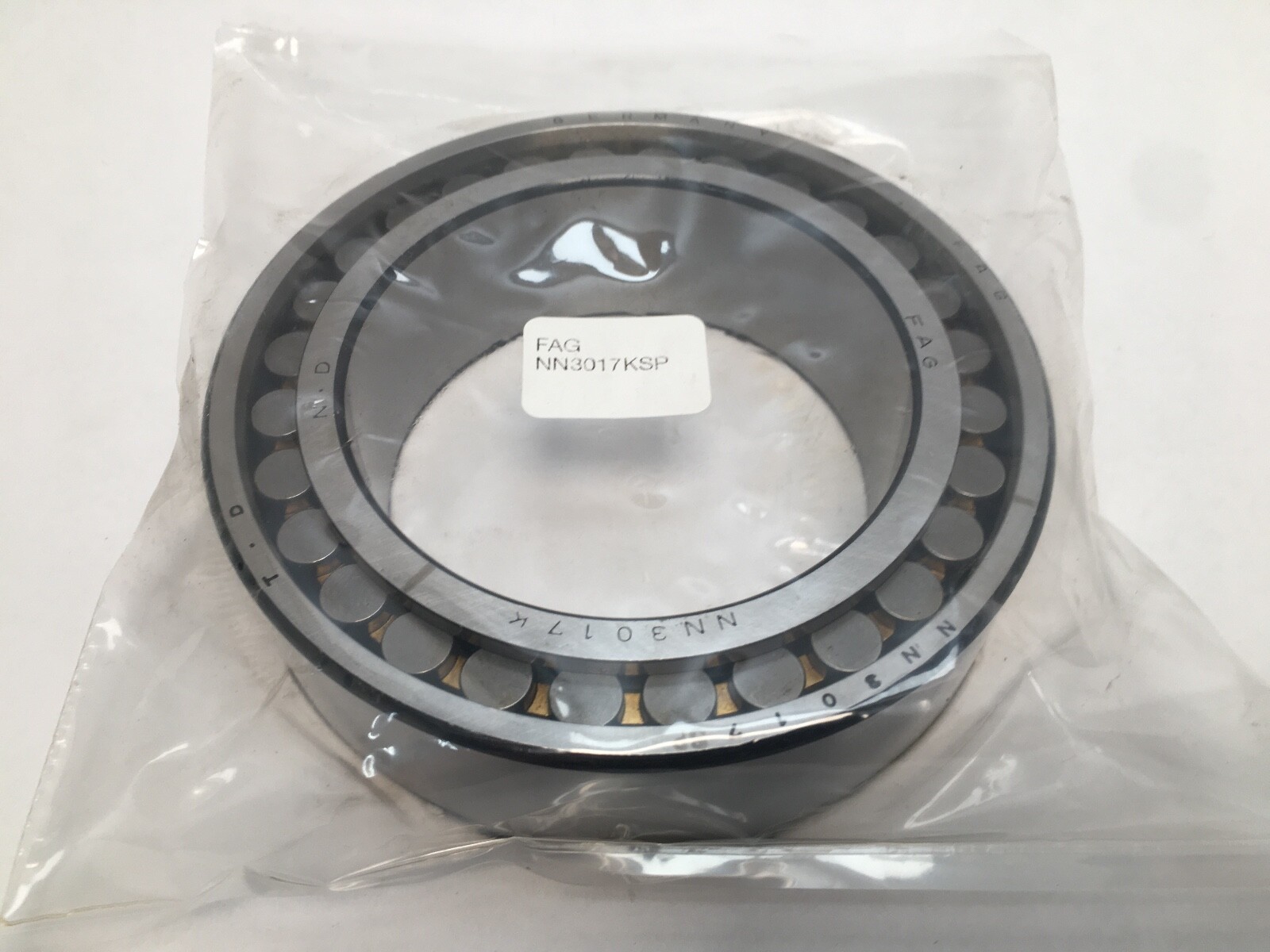

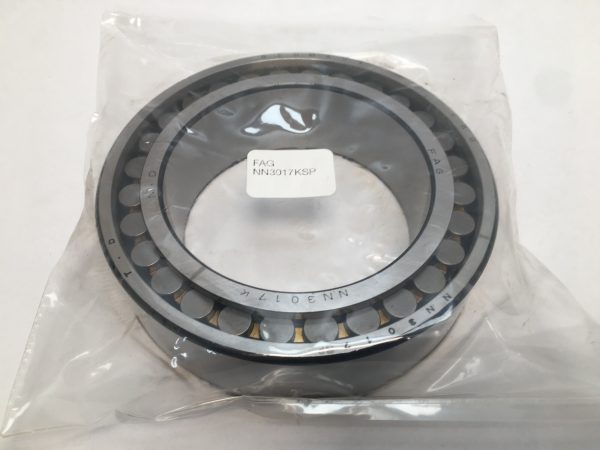

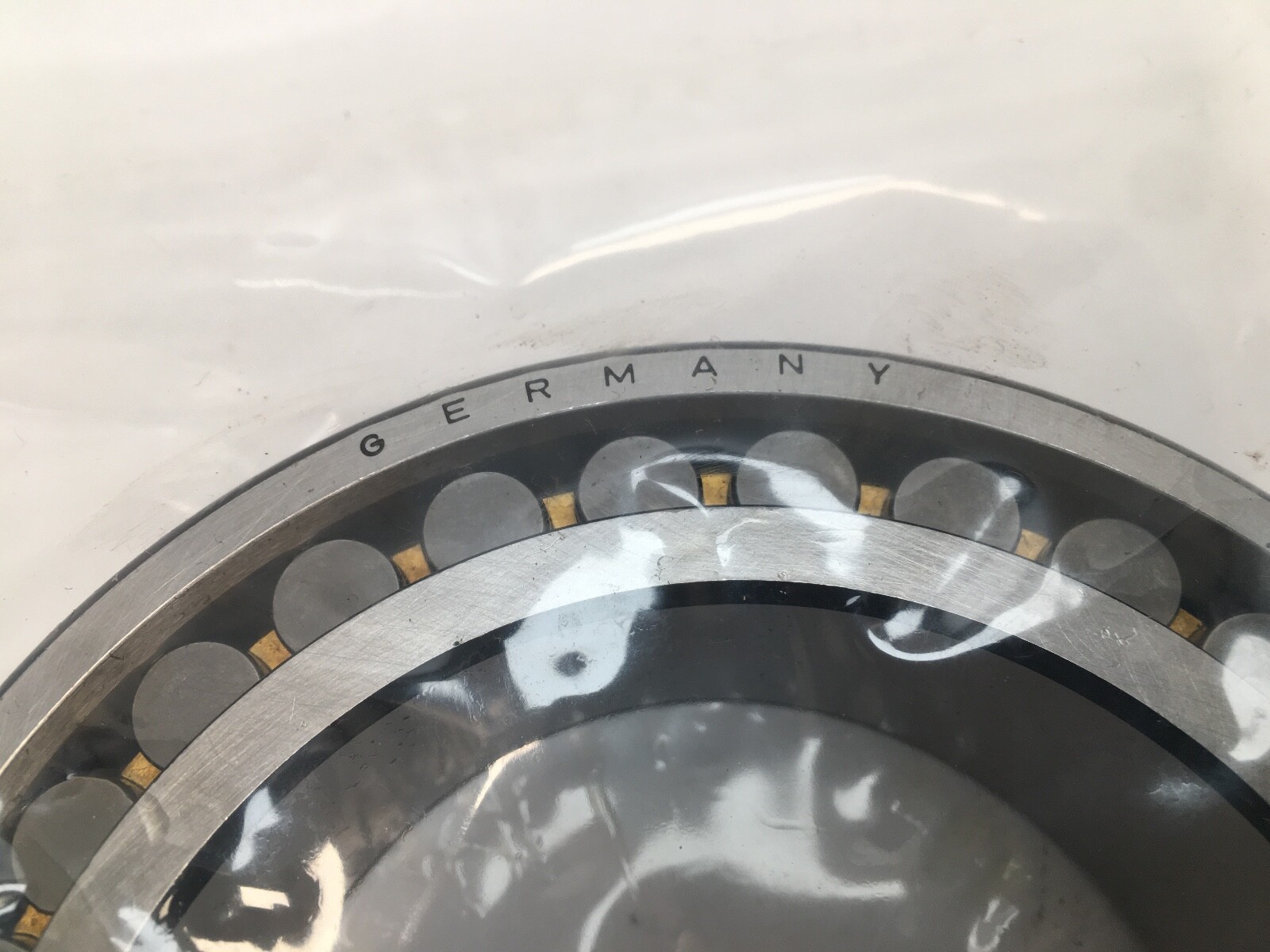

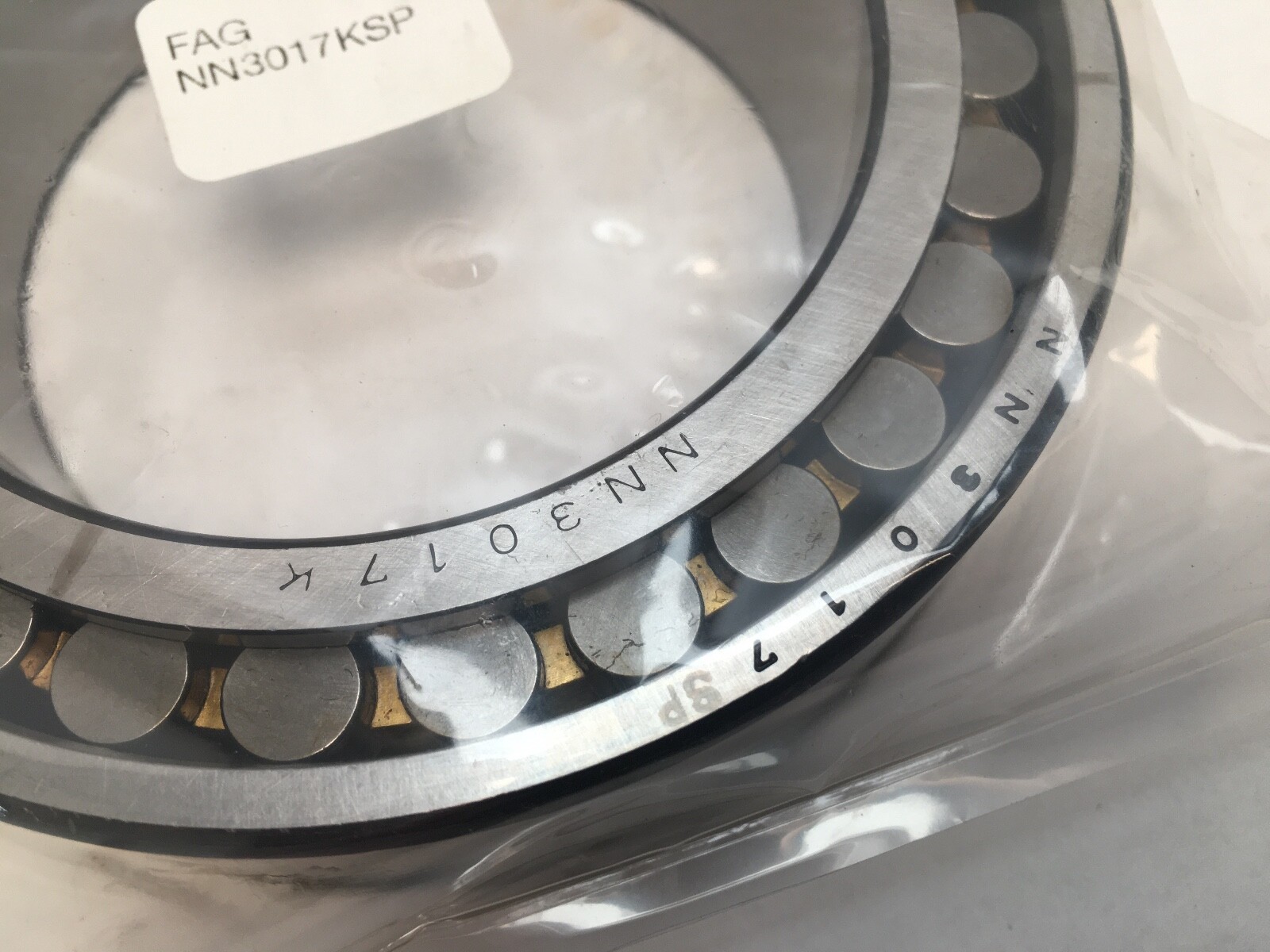

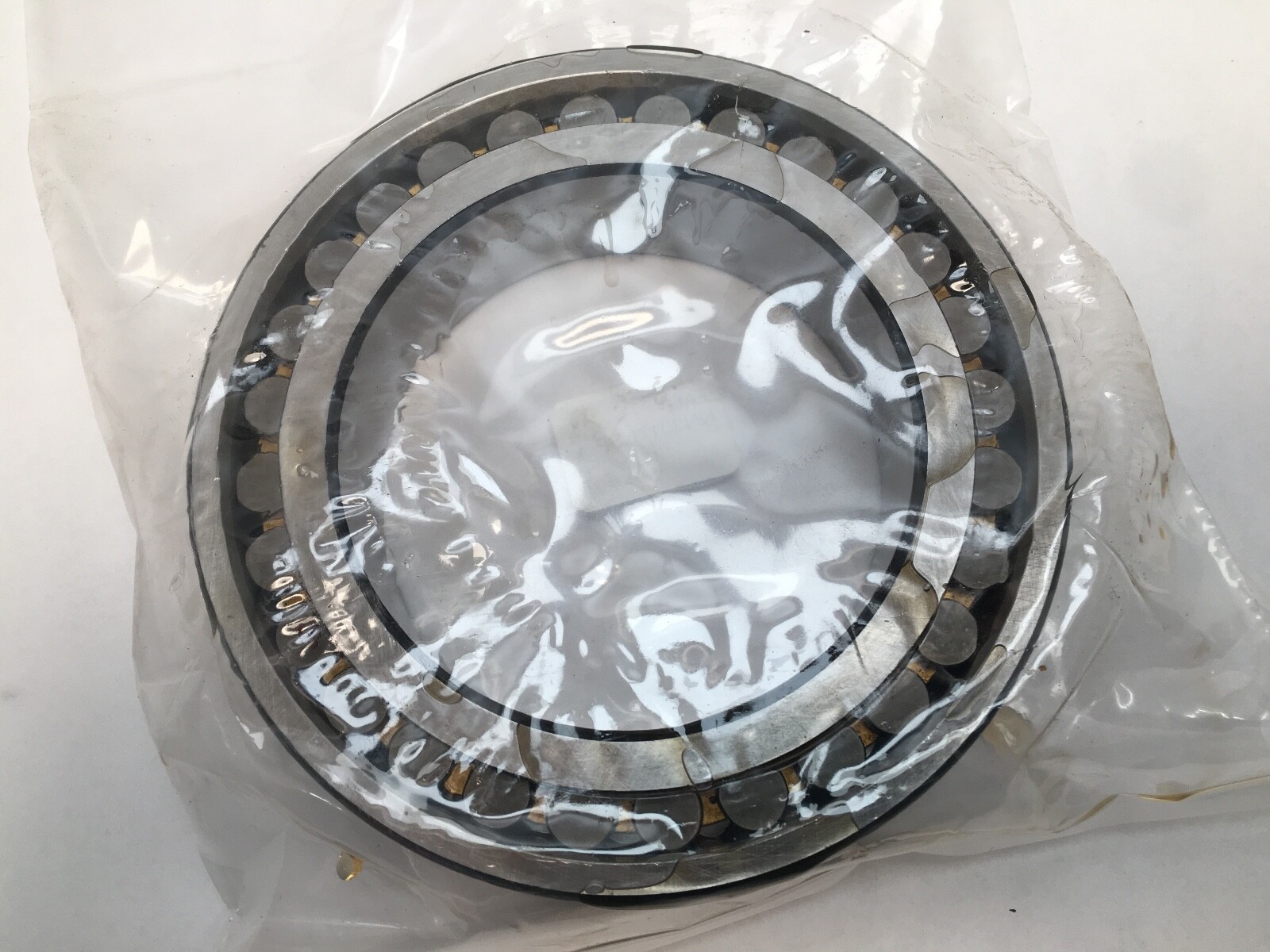

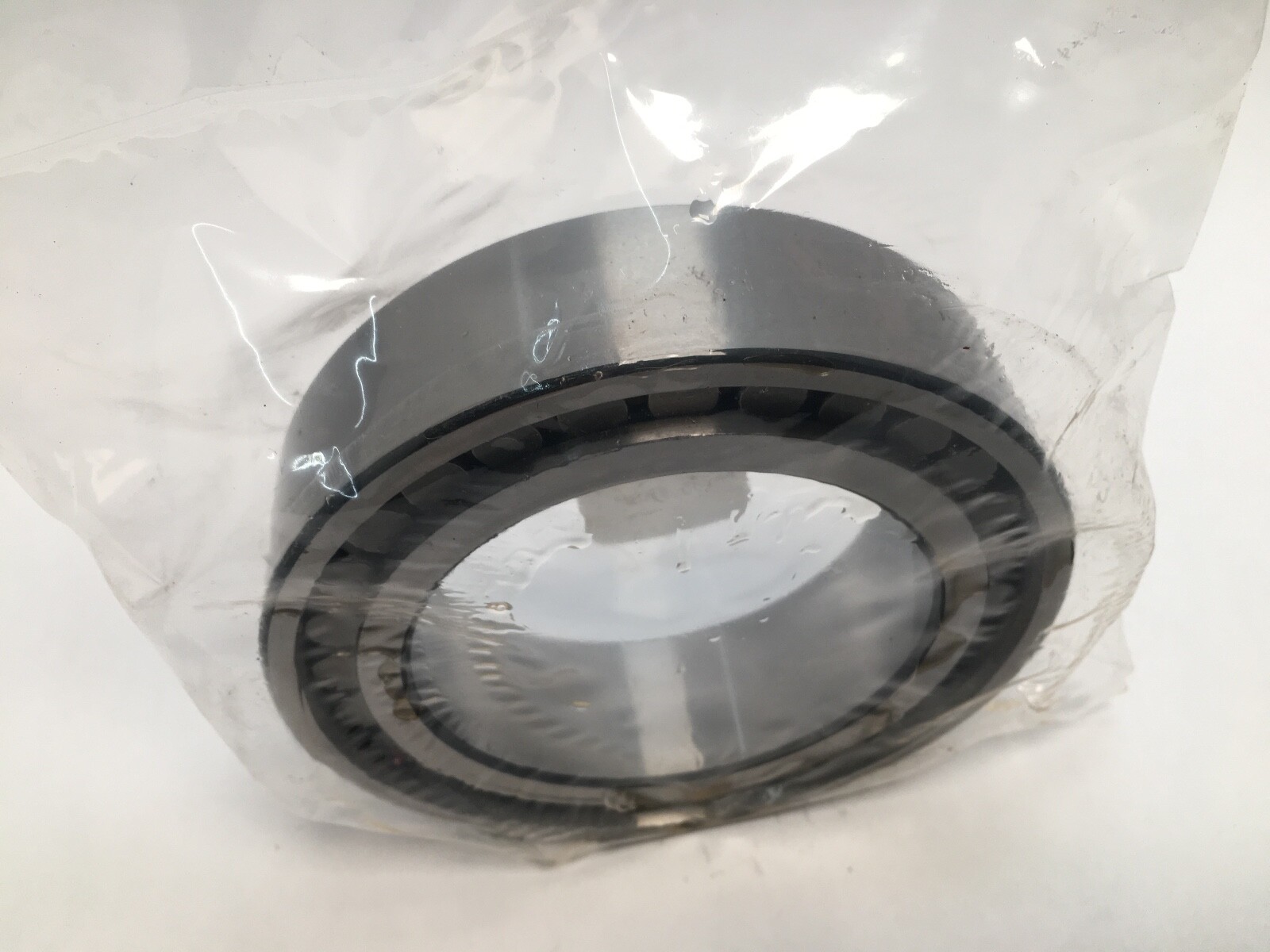

FAG NN3017KM.SP double-row cylindrical roller bearing, 85 x 130 x 34 mm, 1:12 tapered bore, SP super-precision class, machined brass cage, open.
List Price
$273.53
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | NN3017KM.SP |
| Model | NN-3017-K-M-SP |
| Bearing Type | Cylindrical Roller Bearing, Open |
| ID | 85 mm |
| OD | 130 mm |
| Width | 34 mm |
| Material | Bearing Steel |
|---|---|
| Series | NN3000 |
| Lubricant | grease or oil |
| Base Number | NN3017 |
| Industry Terms | super precision cylindrical roller bearing, spindle bearing, double row cylindrical roller bearing, tapered bore |
| Common Misspellings | NN3017KMSP, NN3017 KM SP, NN-3017-KM-SP, NN3017K |
| Application Types | Machine tool main spindles, lathes, machining centres, grinding spindles |
| Overall Width | 34 mm |
| Mpn Variants | NN3017KM.SP, NN3017-K-M-SP, NN3017KMSP, NN 3017 K M SP, NN 3017 AS K M SP |
| Precision Class | SP (Schaeffler super precision) |
| Additional Attributes | Rolling Elements: Cylindrical Roller; Location: Non-locating, separable |
| Cage Type | Machined, roller guided |
| Rolling Elements | Cylindrical Roller |
| Cage Material | Machined brass |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Harmonization Code | 8482.50.00 |
| Closure Type | Open |
| Cross Reference 1 | FAG NN3017-D-K-TVP-SP-XL – polyamide cage, current design |
|---|---|
| Cross Reference 2 | SKF NN 3017 K/SP – cage may differ from brass M |
FAG NN3017KM.SP (NN3017-K-M-SP) is a super-precision double-row cylindrical roller bearing with a 1:12 tapered bore and machined brass cage, used on machine tool main spindles. Non-locating, separable design. Unit Quantity: 1 Pc.
NN30 — double-row cylindrical roller bearing, ISO dimension series 30. Three ribs on the inner ring, plain separable outer ring; non-locating bearing.
17 — bore code, 17 x 5 = 85 mm.
K — tapered bore, taper 1:12.
M — machined brass cage, roller guided.
SP — Schaeffler super-precision tolerance class SP.
Bore Diameter: 85 mm. Outside Diameter: 130 mm. Overall Width: 34 mm. Number Of Rows: 2. Rolling Elements: Cylindrical Roller. Bore Type: Tapered 1:12. Cage Material: Machined brass. Cage Type: Machined, roller guided. Precision Class: SP (Schaeffler super precision). Closure Type: Open. Lubricant: grease or oil. Series: NN3000.
Envelope: 85 x 130 x 34 mm. Location: Non-locating, separable; the outer ring is a plain sleeve and the ribs are on the inner ring. Radial internal clearance is set by axial drive-up on the 1:12 tapered seat.
Compatible With / Replaces: FAG NN3017-D-K-TVP-SP-XL is the current Schaeffler execution on this 85 x 130 x 34 mm envelope, with a polyamide TVP cage in place of the brass M cage. Cross-reference: SKF NN 3017 K/SP. MPN Variants: NN3017KM.SP, NN3017-K-M-SP, NN3017KMSP, NN 3017 K M SP, NN 3017 AS K M SP.
Bore 85 mm, outside diameter 130 mm, width 34 mm, double row.
K is a 1:12 tapered bore, M is a machined brass cage and SP is Schaeffler super-precision tolerance class.
FAG NN3017-D-K-TVP-SP-XL, on the same 85 x 130 x 34 mm envelope with a polyamide TVP cage.
