FAGNN3012P51NAW33Double Row Cylindrical Roller Bearing – 60 mm ID, 95 mm OD, 26 mm Width, Straight Bore, W33 Lubrication Groove

Product Description

What this part is:

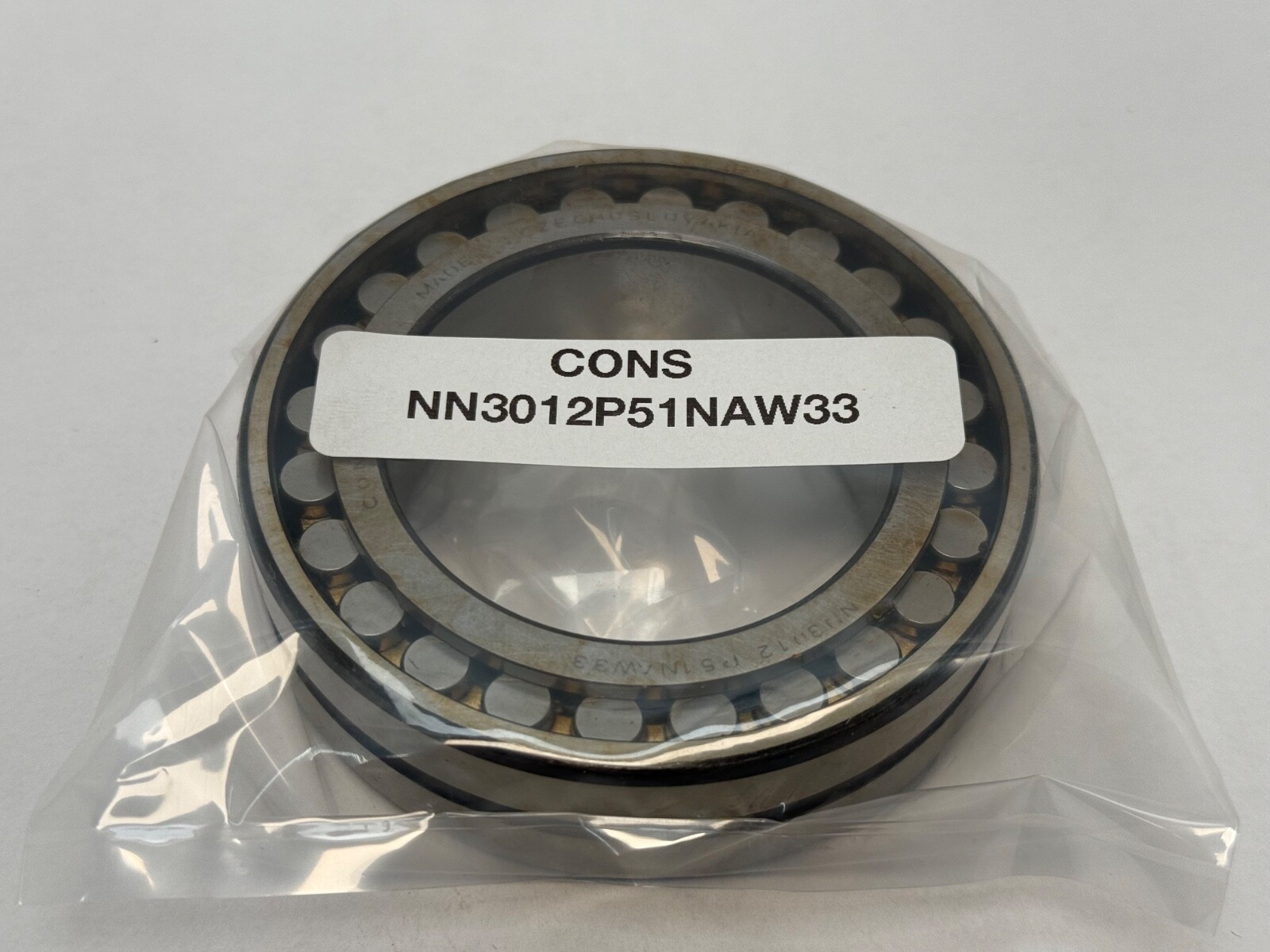

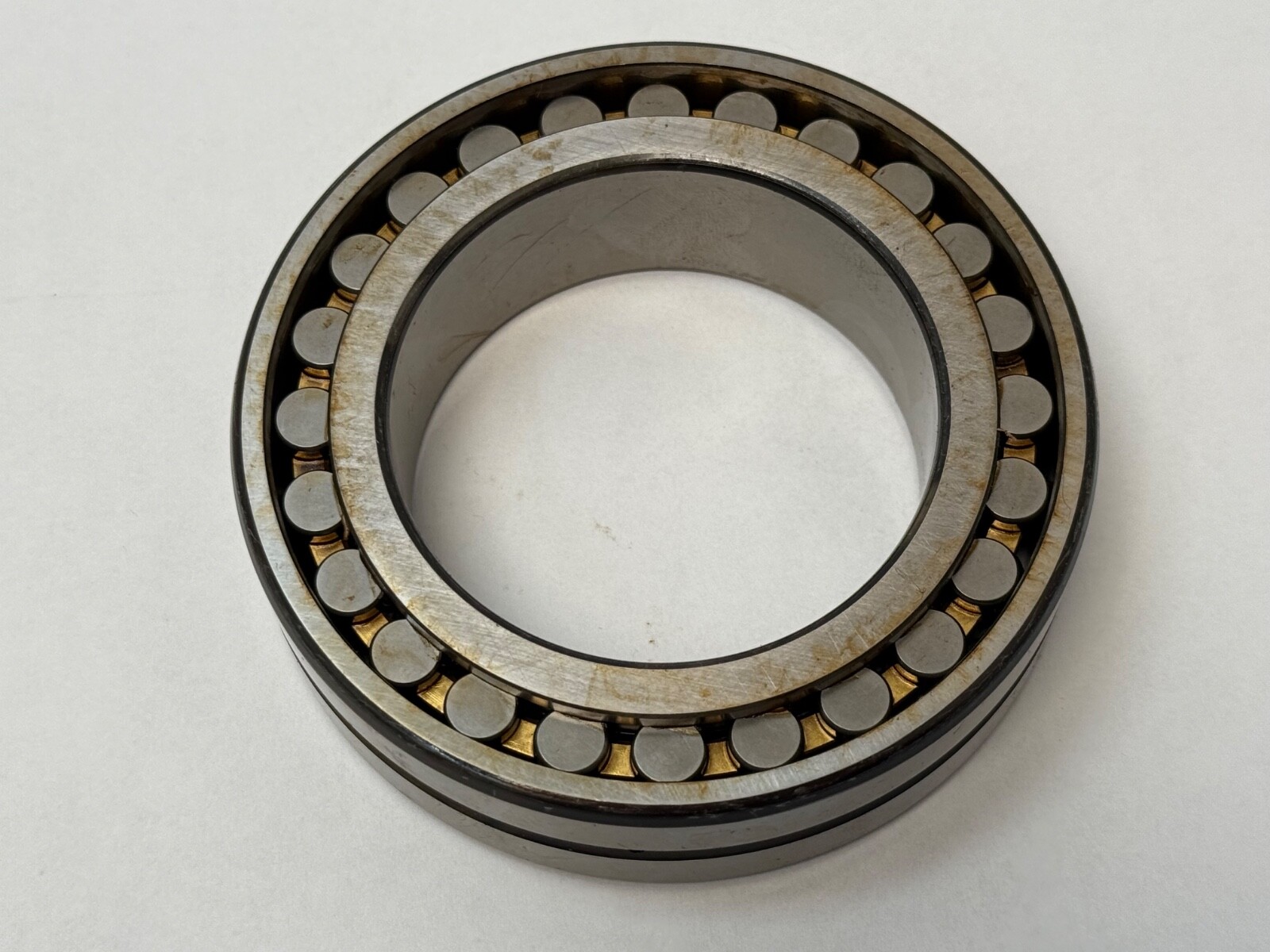

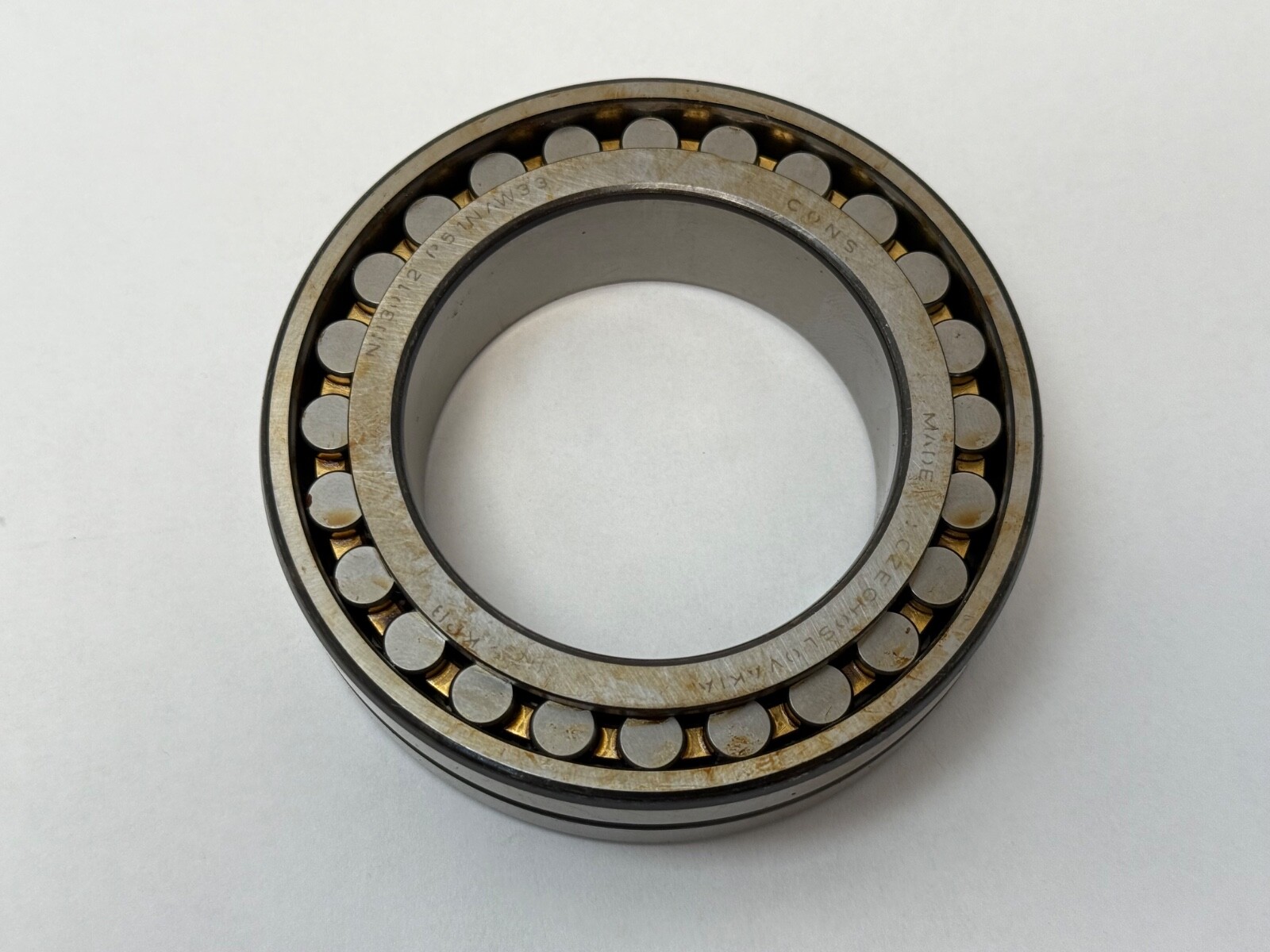

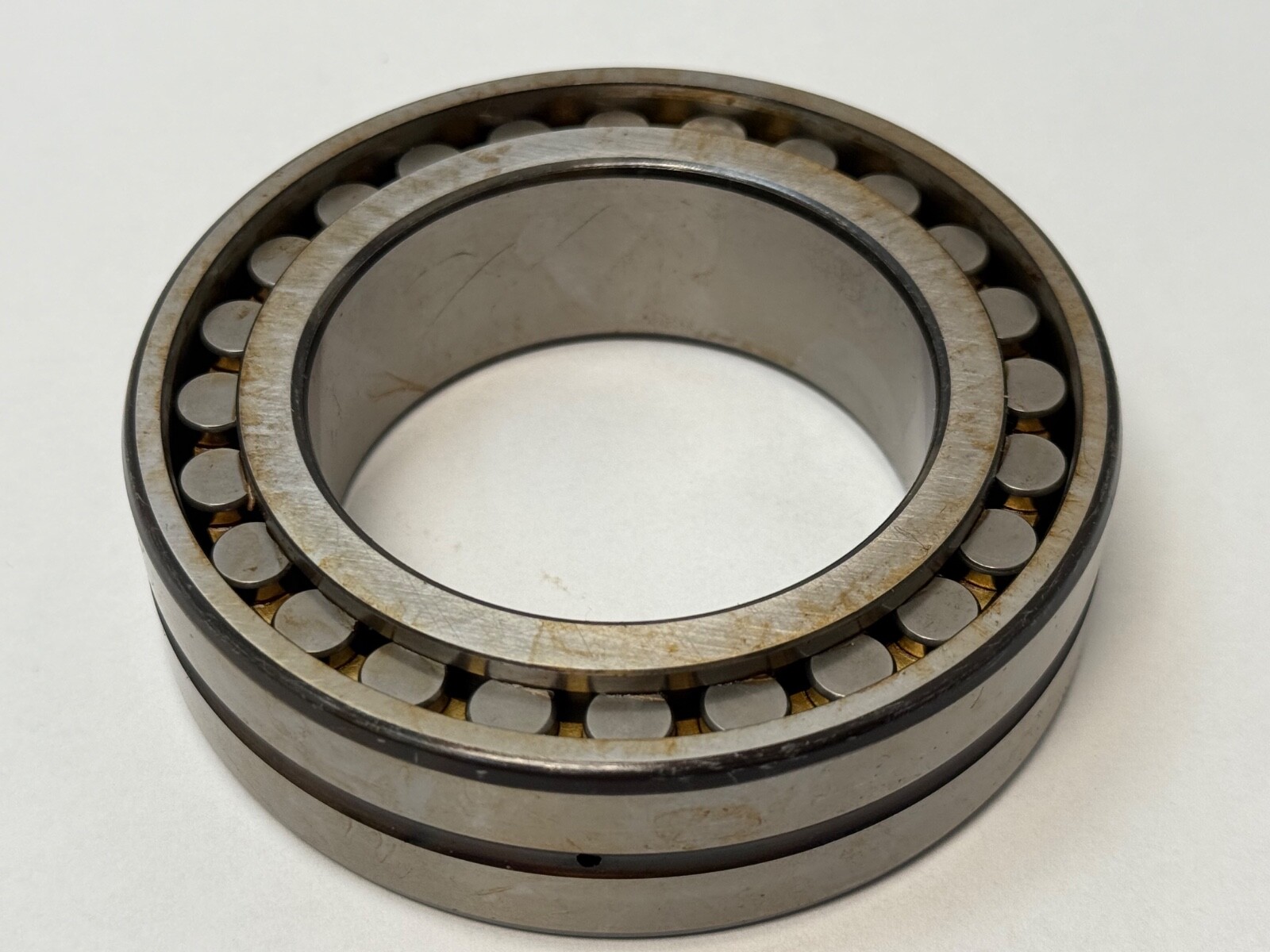

Consolidated NN3012P51NAW33 double-row cylindrical roller bearing, NN30 series. Bore 60 mm, outside diameter 95 mm, width 26 mm. Straight bore, open, lubrication groove and three holes in the outer ring (W33). Unit Quantity: 1 Pc.

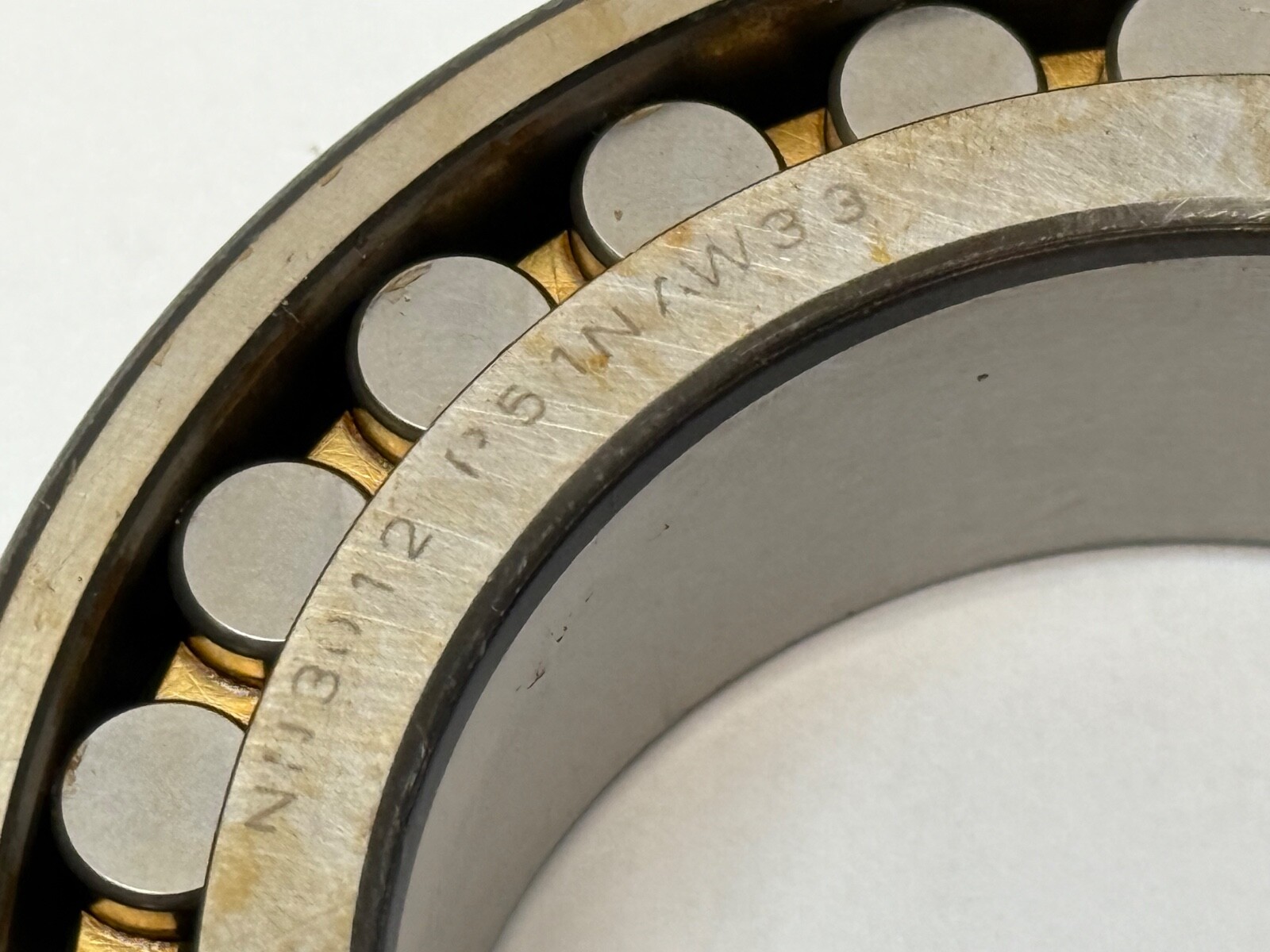

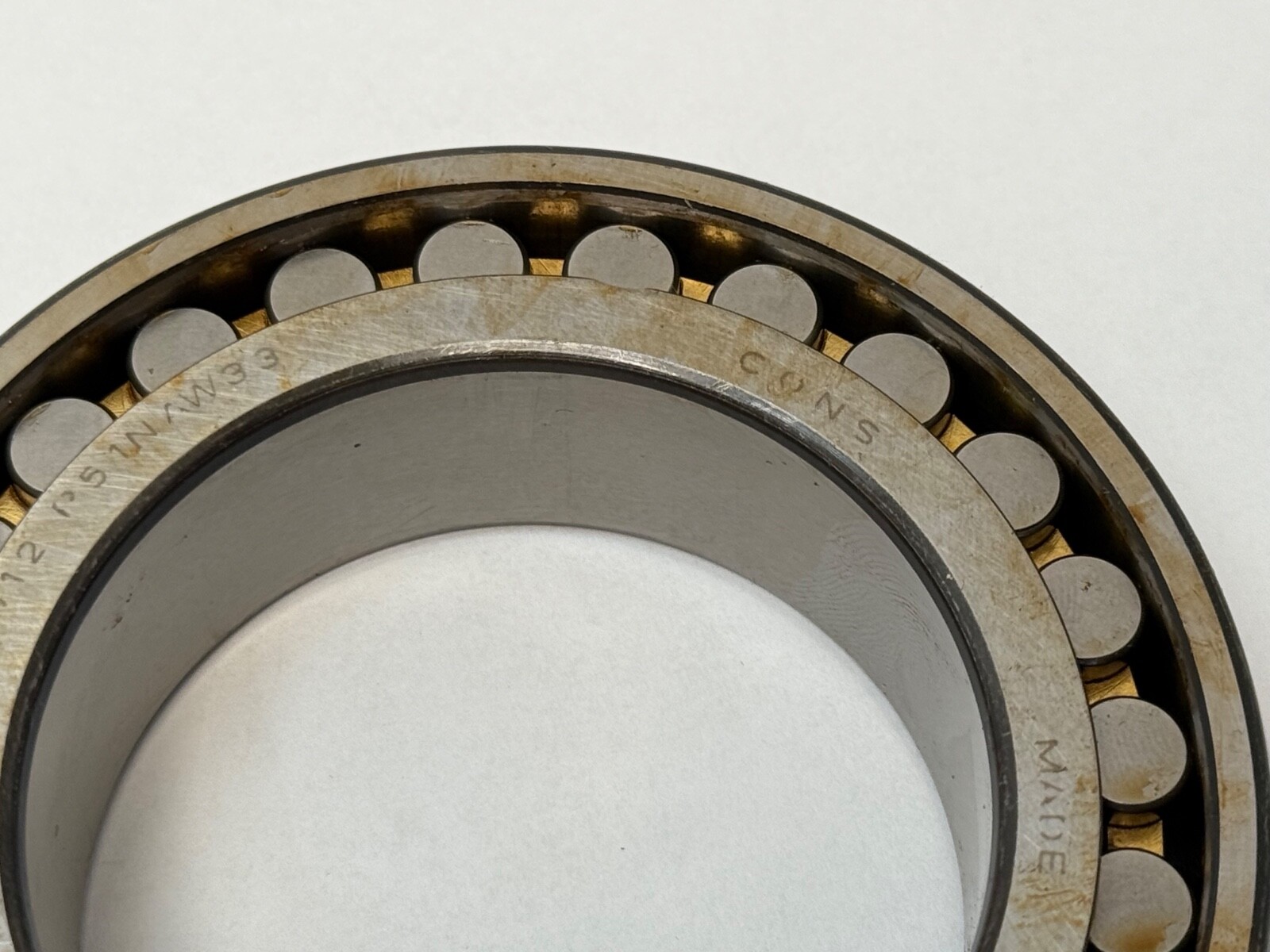

Decoding the designation:

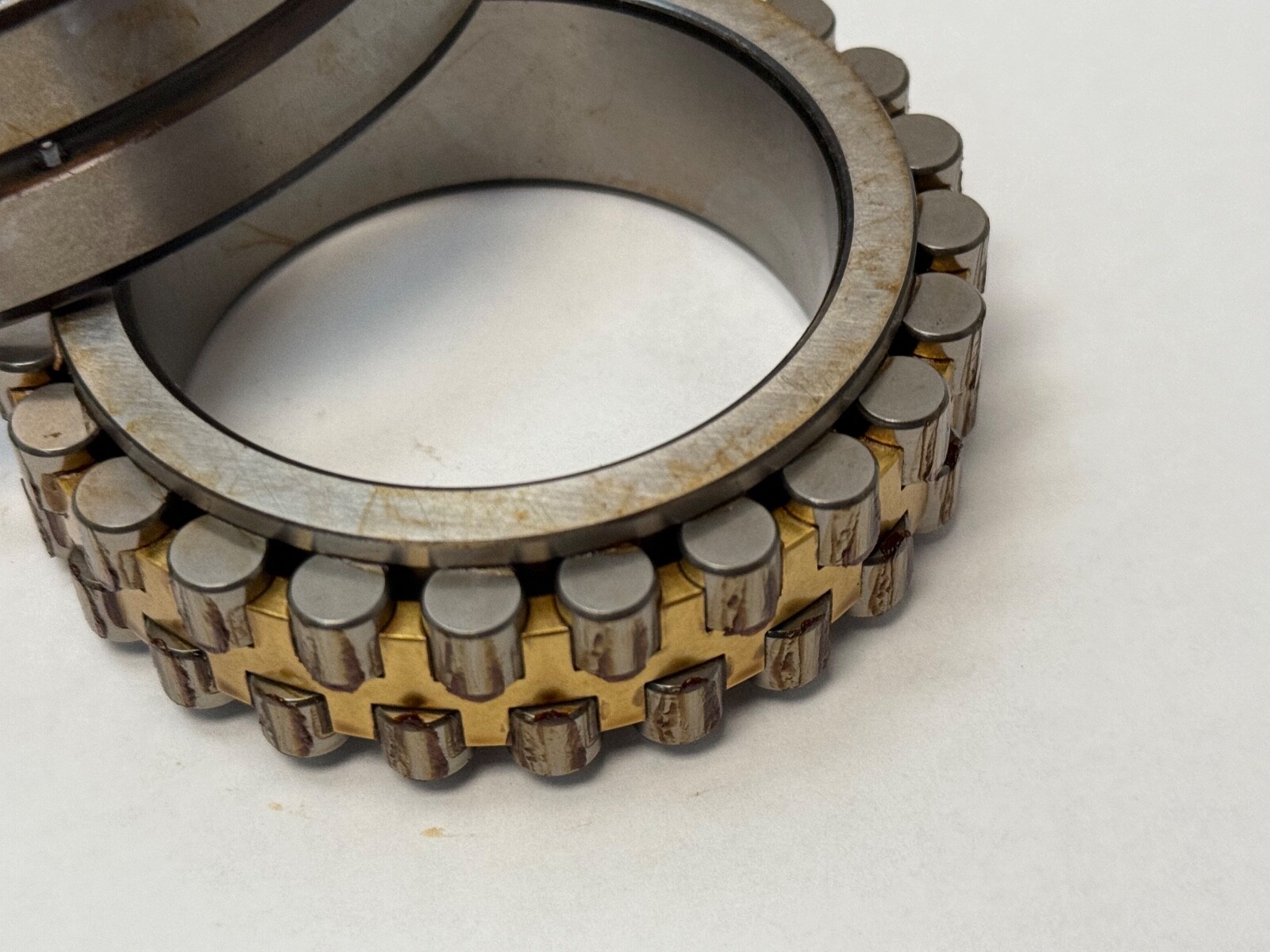

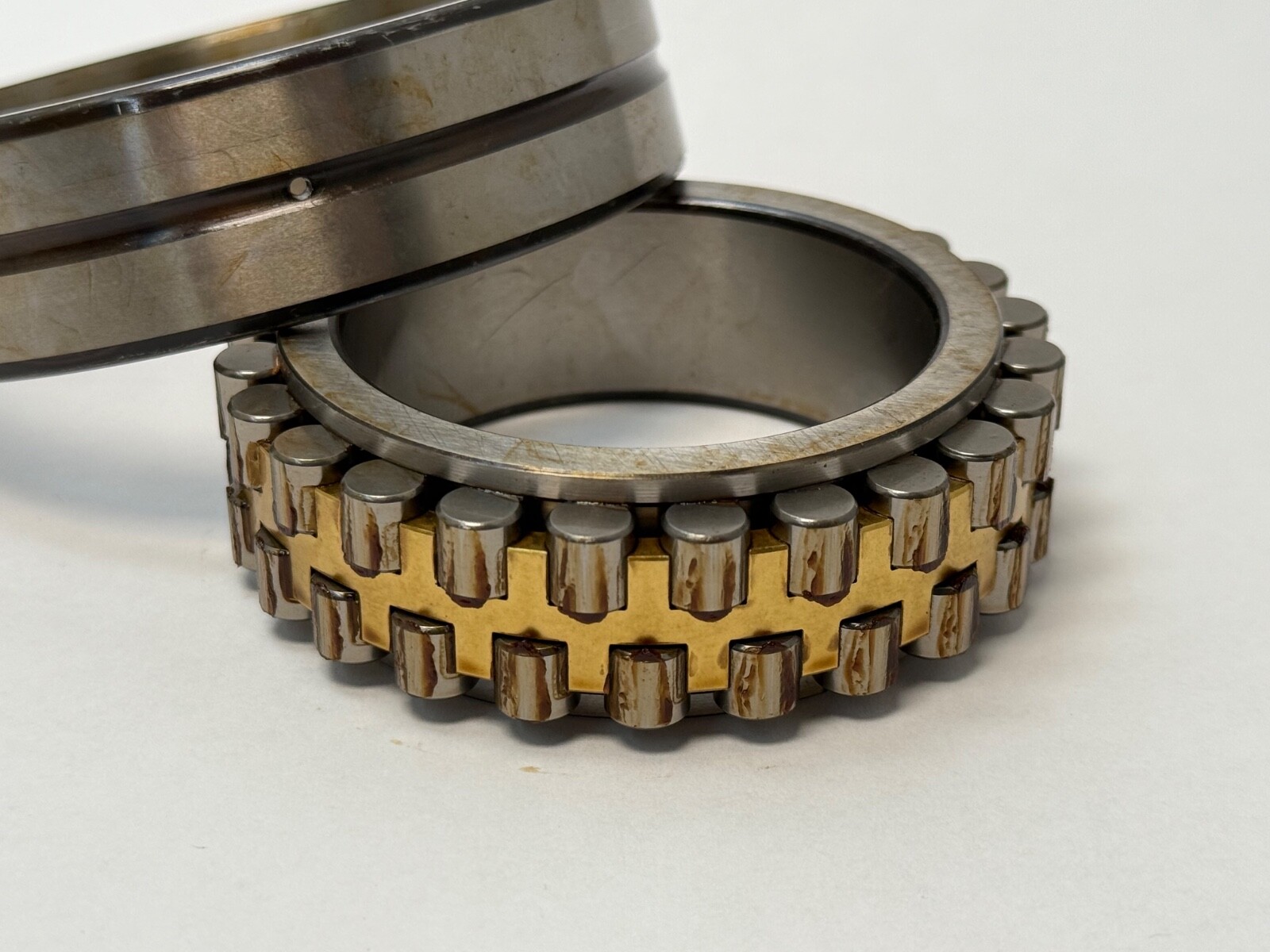

NN — double-row cylindrical roller bearing; two ribs on the inner ring, rib-less separable outer ring.

30 — dimension series 30.

12 — bore code, 12 x 5 = 60 mm.

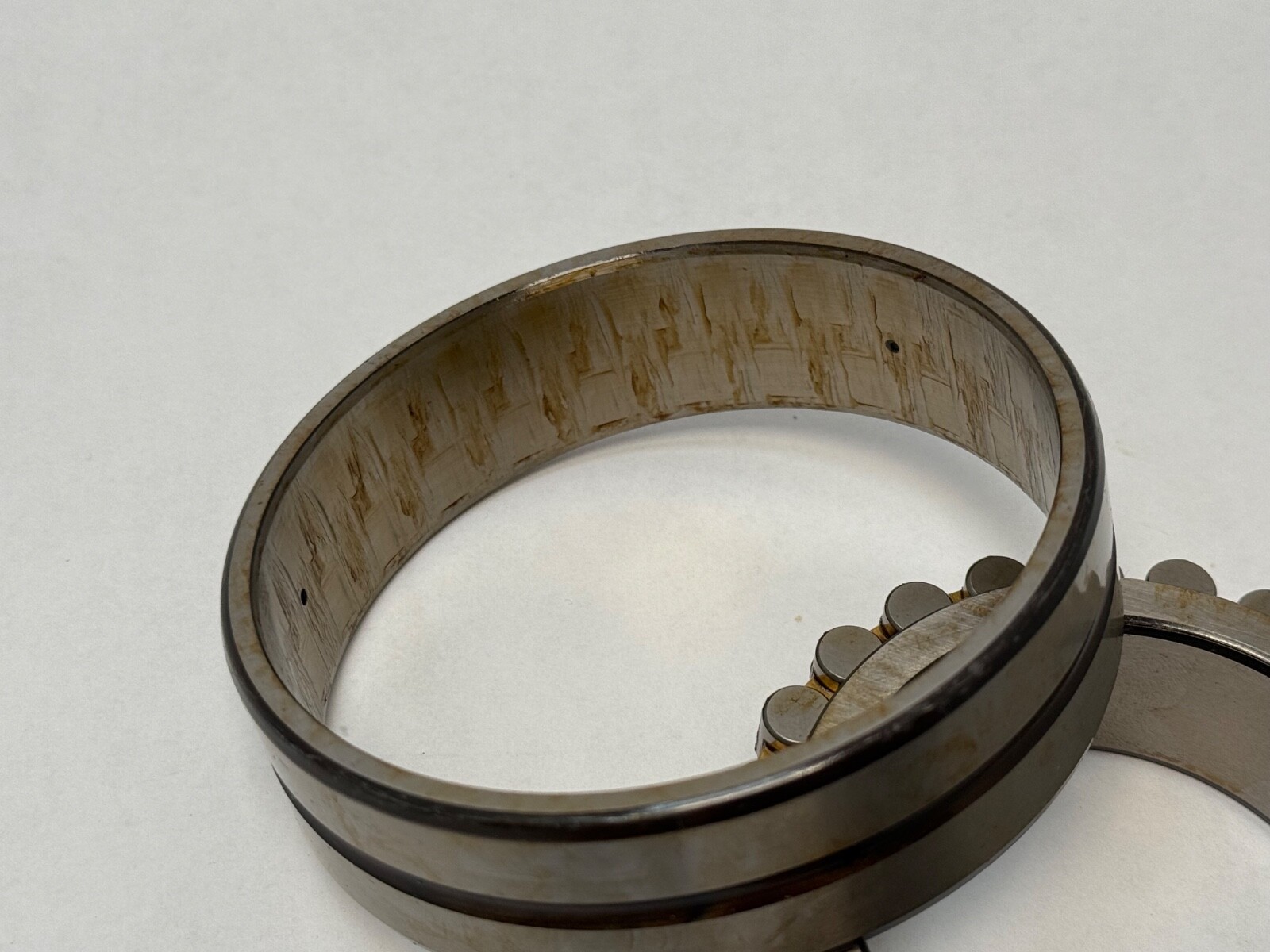

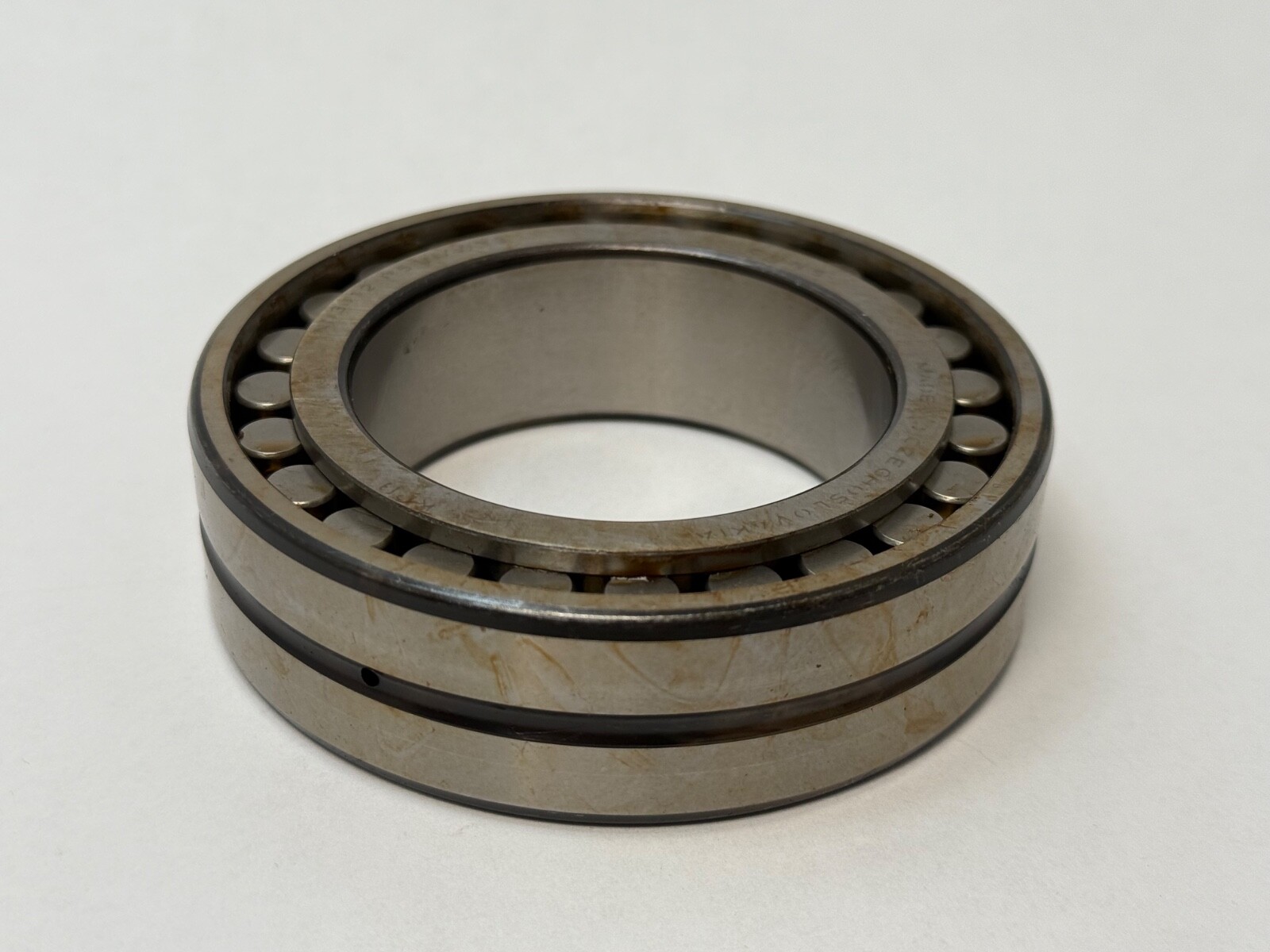

W33 — lubrication groove and three lubrication holes in the outer ring.

Specifications:

Bore Diameter: 60 mm. Outside Diameter: 95 mm. Width: 26 mm. Series: NN30. Bore Type: Straight. Number Of Rows: 2. Rolling Elements: Cylindrical Roller. Closure Type: Open. Lubricant: Grease or oil. Relubrication Feature: Lubrication groove and three holes in outer ring (W33).

Dimensions and mounting:

Minimum Chamfer Dimension: 1.1 mm. Maximum Recess Radius: 1 mm.

Compatibility and replacement:

Cross-Reference 1: NSK NN3012MB (brass cage). Cross-Reference 2: SKF NN 3012 TN/SP (polyamide cage, SP precision). Cross-Reference 3: NTN NN3012. Searchable forms of the designation: NN3012P51NAW33, NN-3012-P51-NA-W33, NN3012 P51 NA W33, NN3012W33, NN3012.

Frequently asked questions:

What are the dimensions of the Consolidated NN3012P51NAW33?

Bore 60 mm, outside diameter 95 mm, width 26 mm.

What does W33 mean in NN3012P51NAW33?

W33 is a lubrication groove with three lubrication holes in the outer ring.

How many rows of rollers does it have?

Two rows of cylindrical rollers (NN design).
