FAGNN3011ASKM.SPDouble Row Cylindrical Roller Bearing – Tapered 1:12 Bore, 55 mm ID, 90 mm OD, 26 mm Width, Machined Brass Cage, SP Class

Product Description

What this part is:

A double-row cylindrical roller bearing with a tapered bore, a machined brass cage and outer-ring lubrication provision, in the FAG super-precision SP class.

Decoding the designation:

NN — double-row cylindrical roller design.

3011 — the size: 55 mm bore, 90 mm outside diameter, 26 mm width.

AS — lubrication groove around the outer ring with radial supply holes into the raceway.

K — tapered bore, 1:12 taper.

M — machined brass cage.

SP — FAG super-precision class.

Specifications:

Bore Diameter: 55 mm. Outside Diameter: 90 mm. Overall Width: 26 mm. Number Of Rows: 2. Bore Type: Tapered, 1:12. Rolling Elements: Cylindrical roller. Cage Material: Machined brass. Closure Type: Open. Lubricant: grease or oil. Series: NN30 (NN3000). Base Number: NN3011. Unit Quantity: 1 Pc.

Dimensions and mounting:

Bore Type: Tapered, 1:12 taper. The bore seats directly on a tapered spindle journal with no adapter sleeve in the design. Lubrication: outer-ring groove with radial supply holes.

Compatibility and replacement:

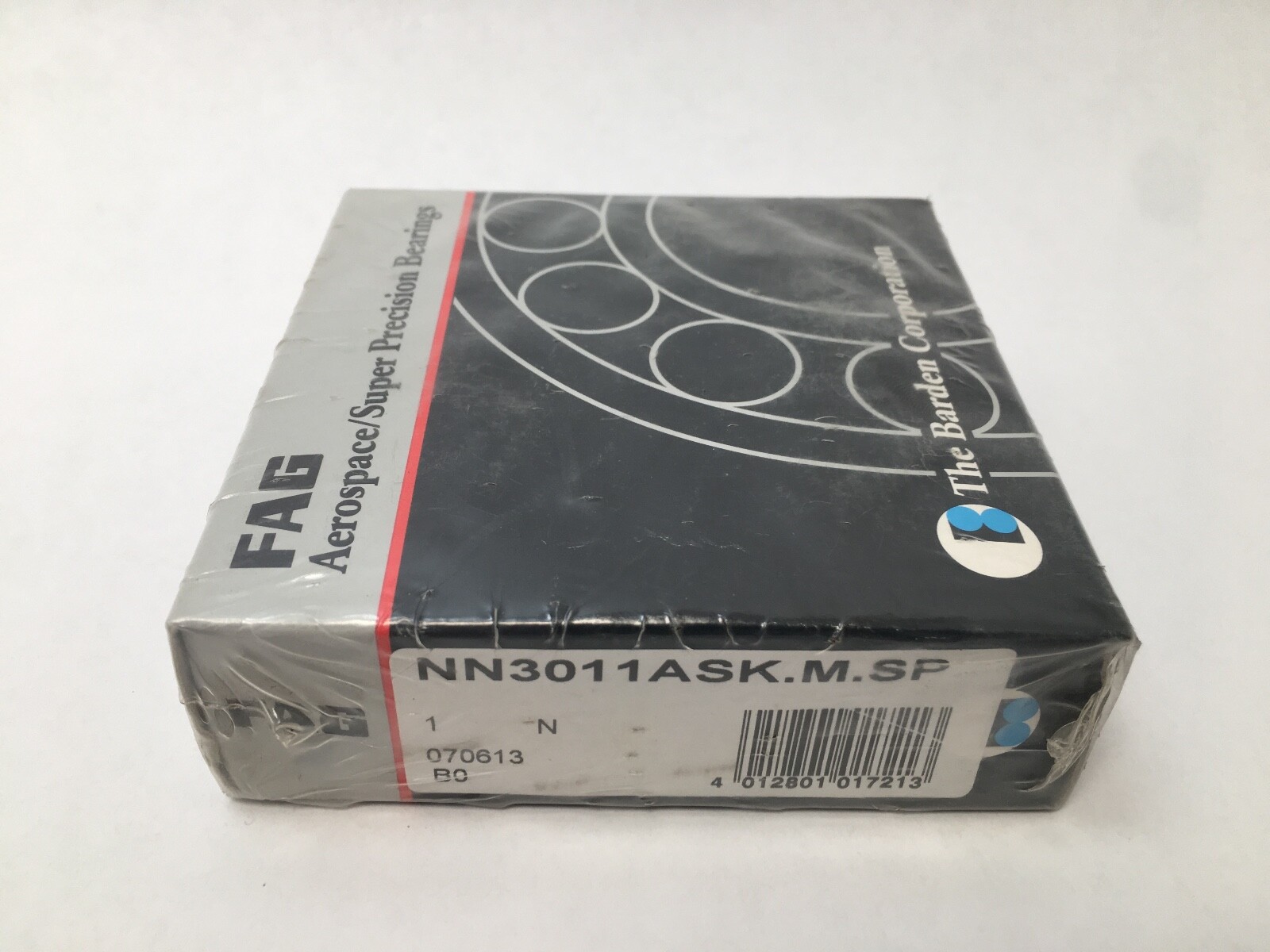

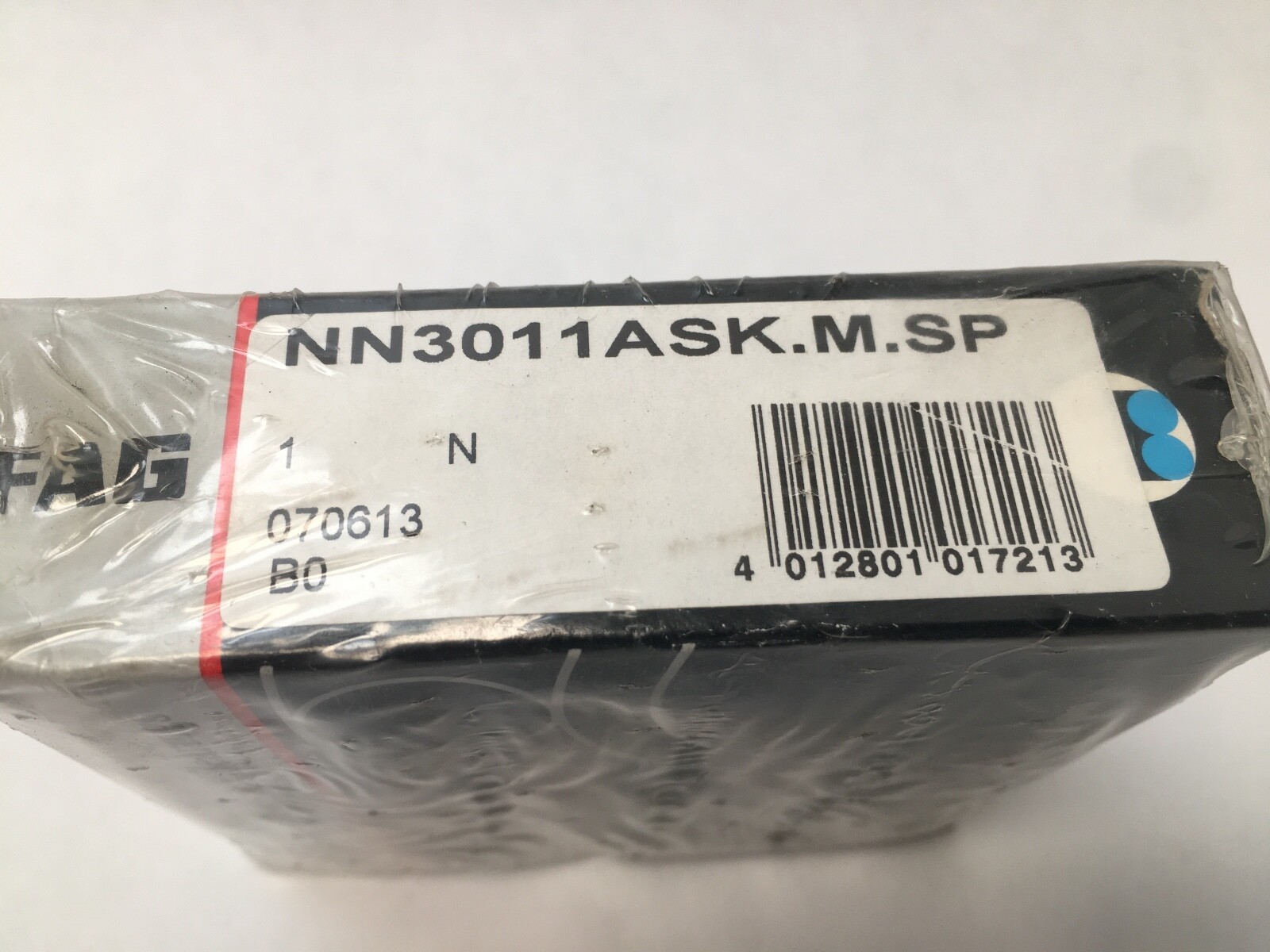

Also written NN3011ASKM.SP, NN-3011-AS-K-M-SP, NN 3011 AS K M SP, NN3011ASKMSP and NN3011ASK.M.SP.

Frequently asked questions:

What are the dimensions of the FAG NN3011ASKM.SP?

Bore Diameter: 55 mm. Outside Diameter: 90 mm. Overall Width: 26 mm.

What does the K in NN3011ASKM.SP mean?

K is a tapered bore, 1:12 taper. The bore seats directly on a tapered spindle journal.

What does AS mean in NN3011ASKM.SP?

AS is a lubrication groove around the outer ring with radial supply holes into the raceway.
