FAGN215EM1C3Cylindrical Roller Bearing – Straight Bore, 75 mm ID, 130 mm OD, 25 mm Width, 1 Row, Machined Brass Cage, C3 Internal clearance.

Product Description

What this part is

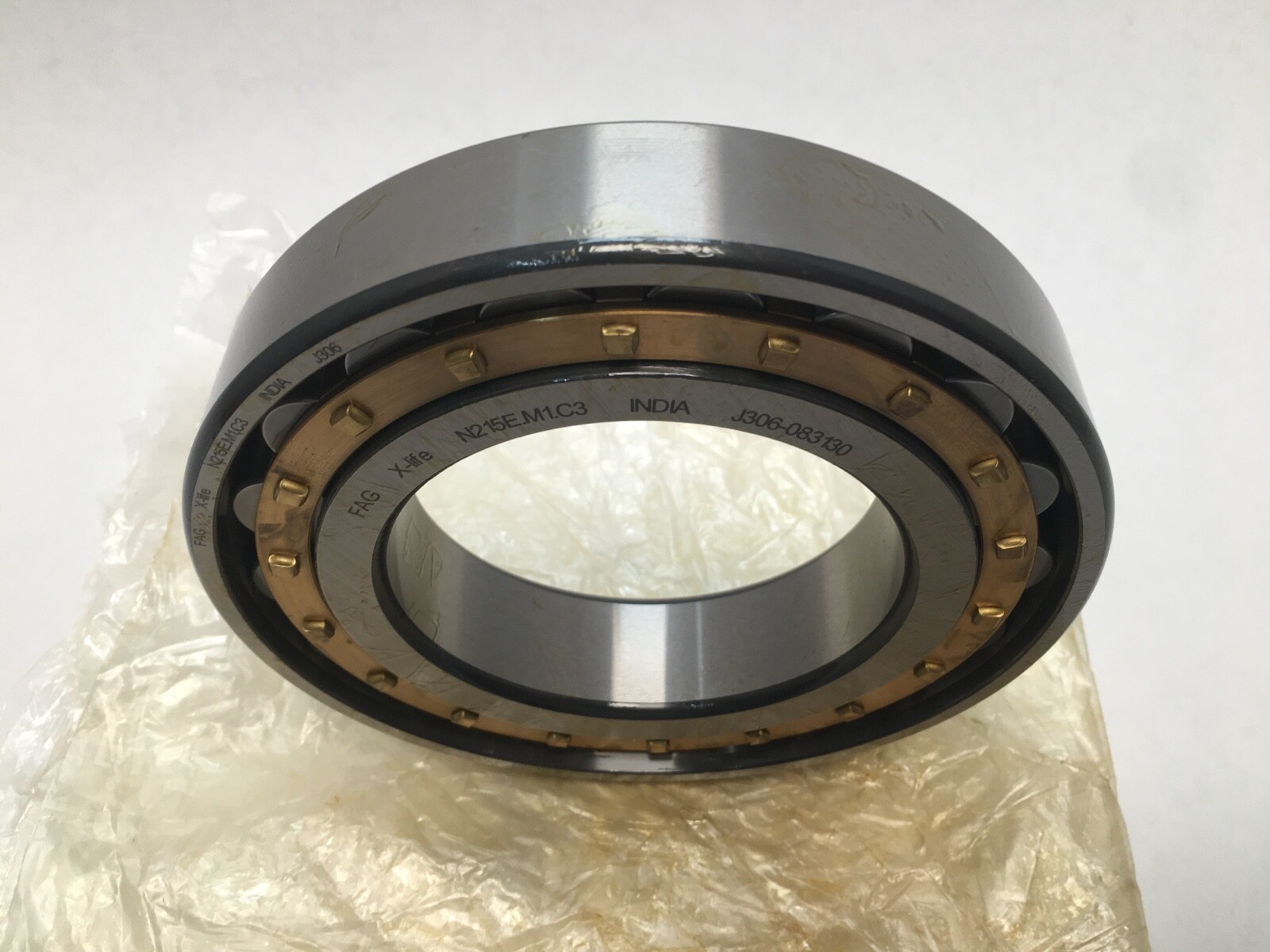

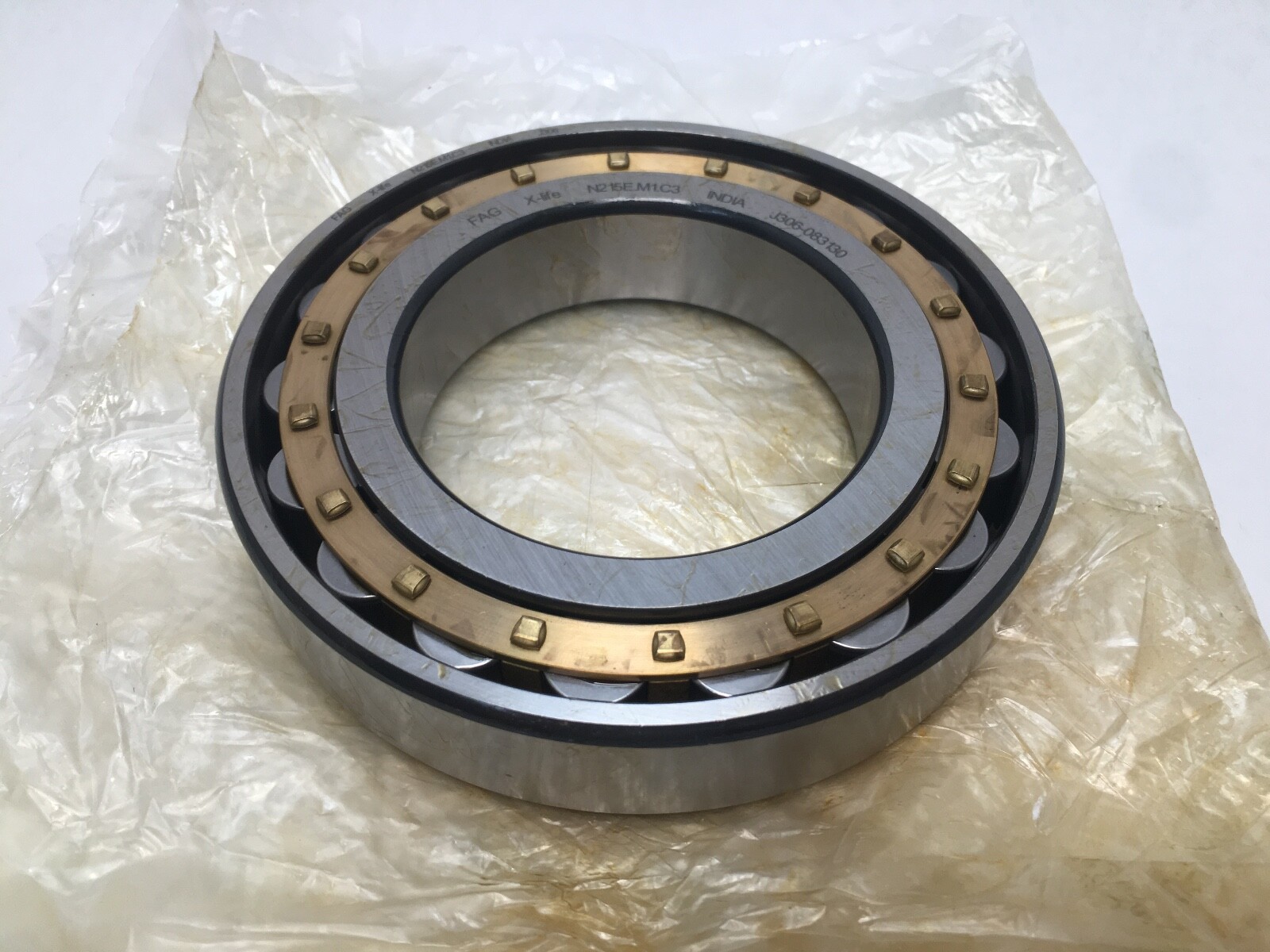

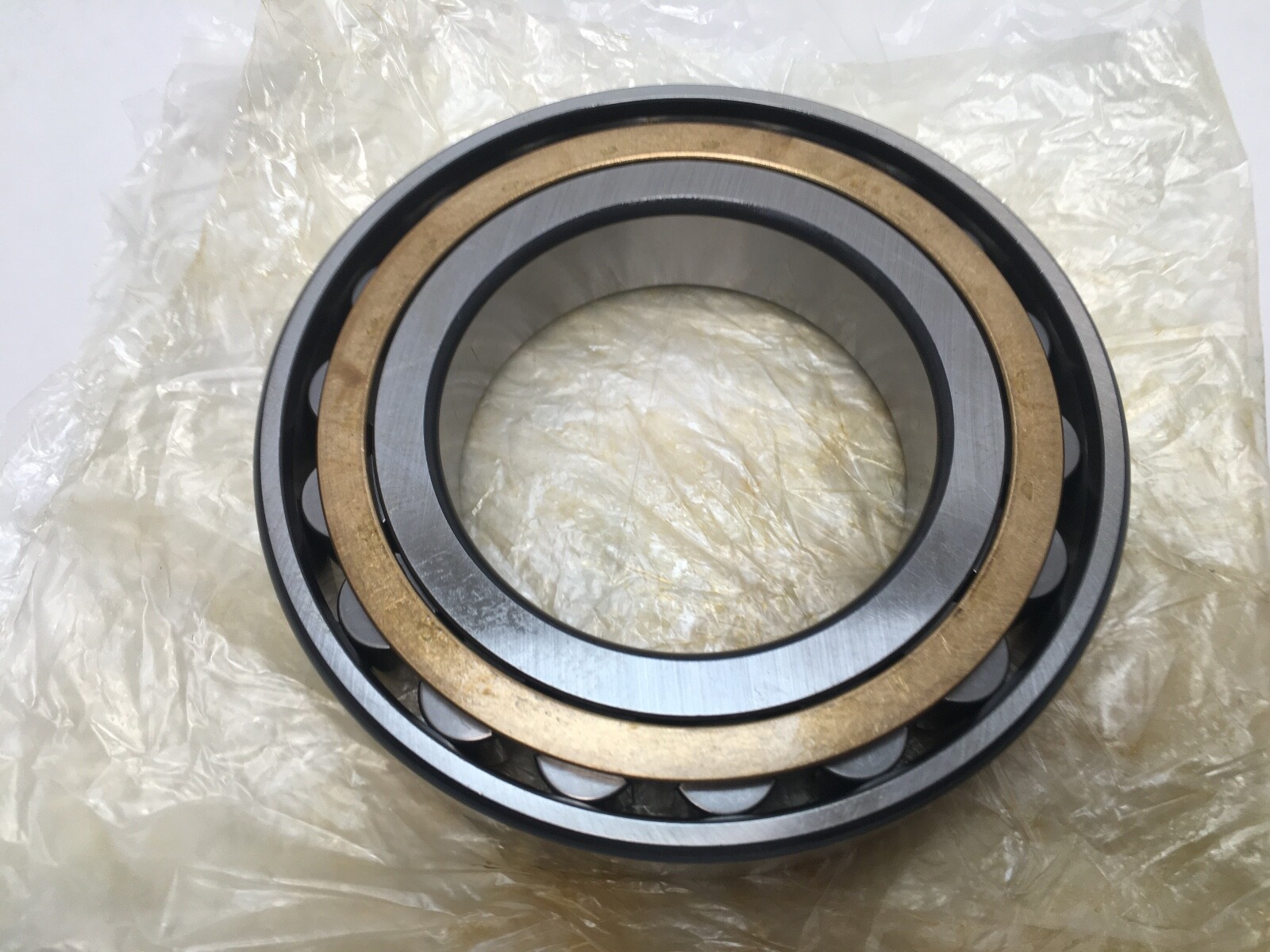

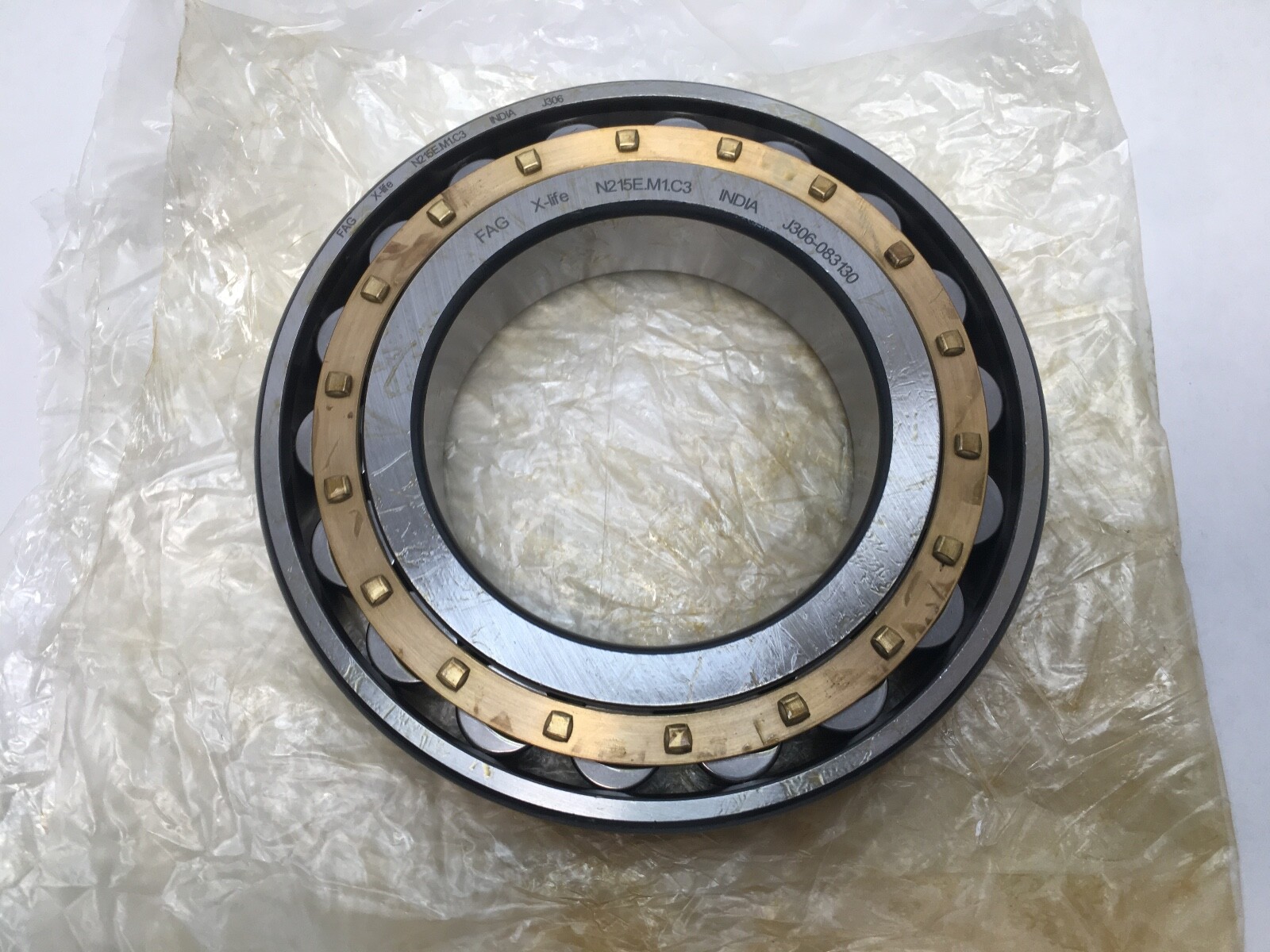

FAG N215-E-XL-M1-C3 single-row cylindrical roller bearing. Bore 75 mm, outside diameter 130 mm, width 25 mm. Series: N 2 (215). Straight bore, machined brass cage, open on both faces. Country of origin: India.

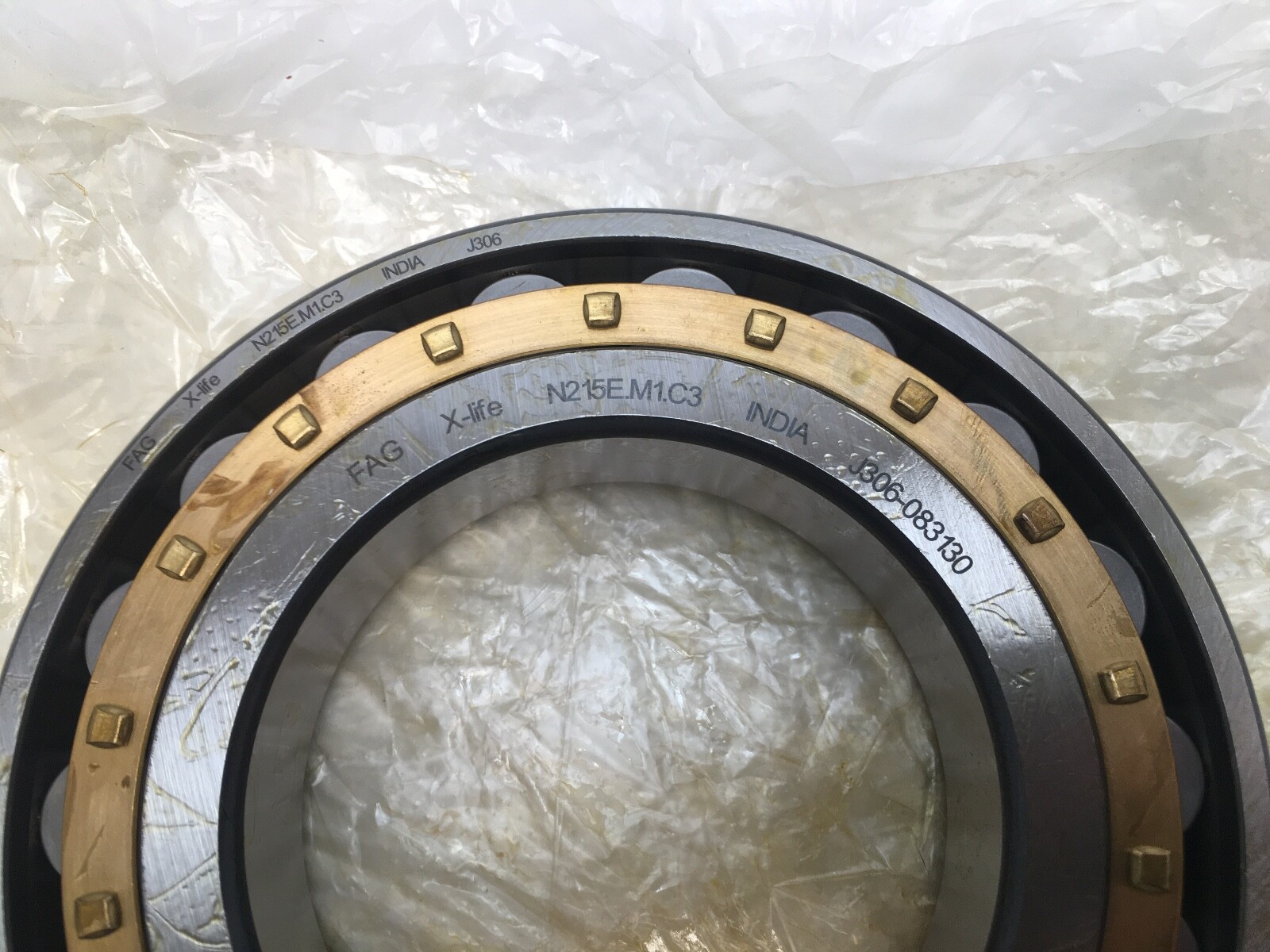

Decoding the designation

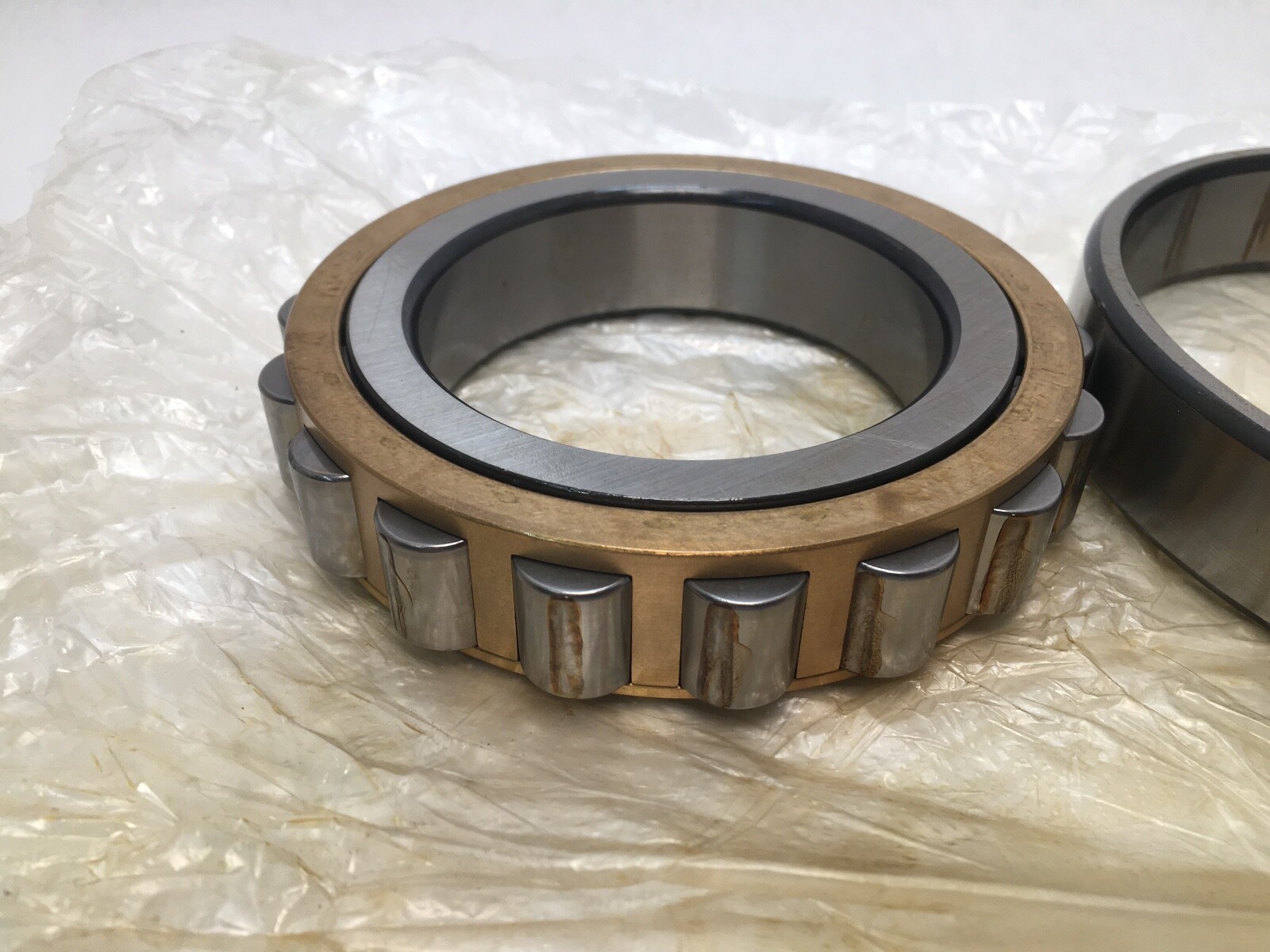

N: one row of cylindrical rollers with two integral ribs on the inner ring and a plain, ribless outer ring, so the bearing is non-locating and takes radial load only. E-XL: the reinforced X-life high-capacity design. M1: machined brass cage. C3: radial internal clearance greater than normal.

Published ratings

Dynamic load rating: 125 kN. Static load rating: 137 kN. Limiting speed: 5,600 rpm. Operating range: −30 °C to 150 °C. Mass: 2.56 lb.

What these specs mean in practice

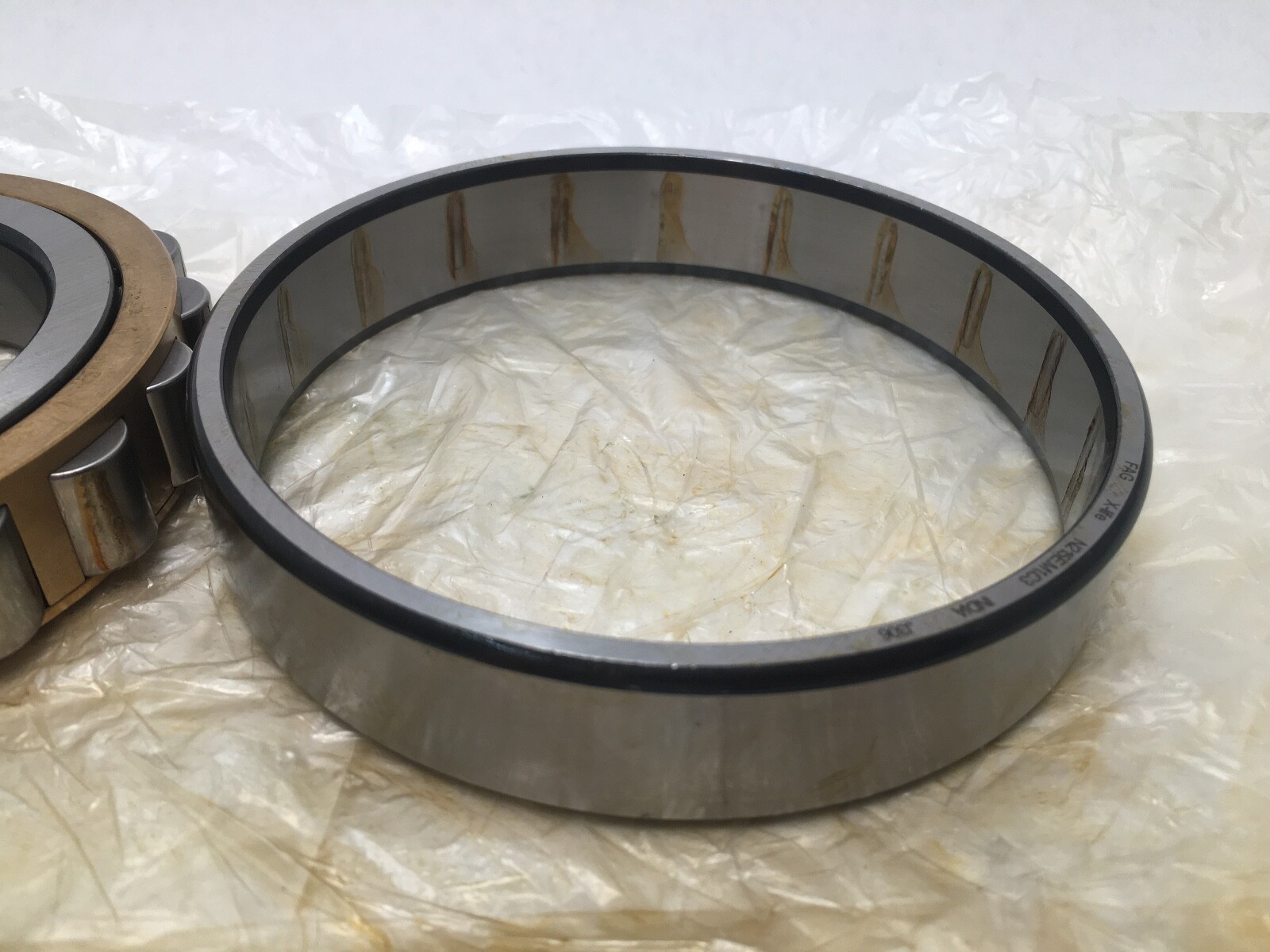

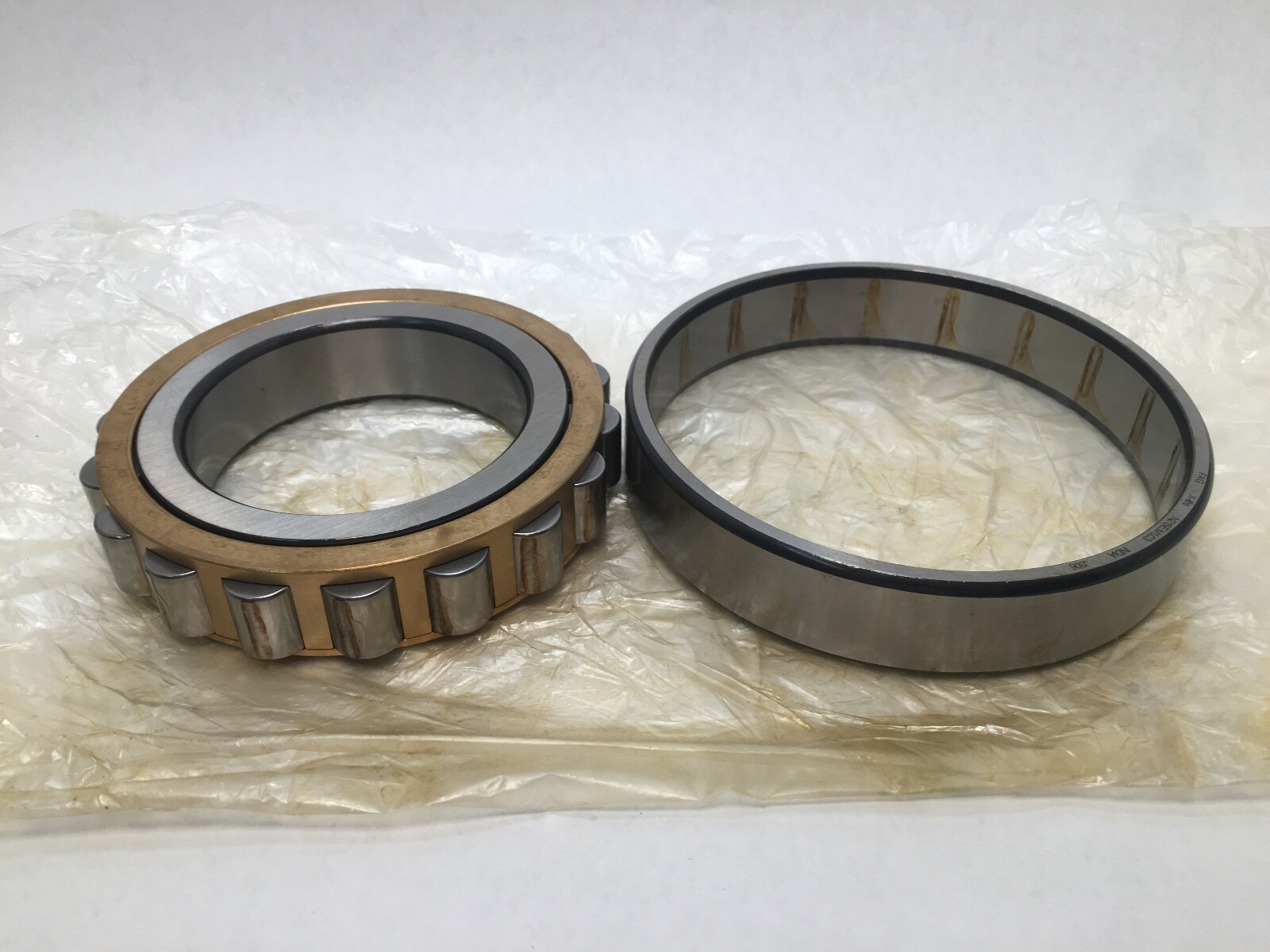

Roller line contact gives this 75 mm bore bearing 125 kN of dynamic capacity, well beyond a ball bearing on the same envelope, and the X-life reinforced internal design raises that further without changing the mounting dimensions. The plain outer ring lets the roller set travel axially inside it, so the bearing carries the radial load while the shaft expands and contracts freely — the classic free-end position in a motor or gearbox. C3 clearance keeps that running clearance intact under a tight shaft fit and a warm inner ring.

Quantity and configuration

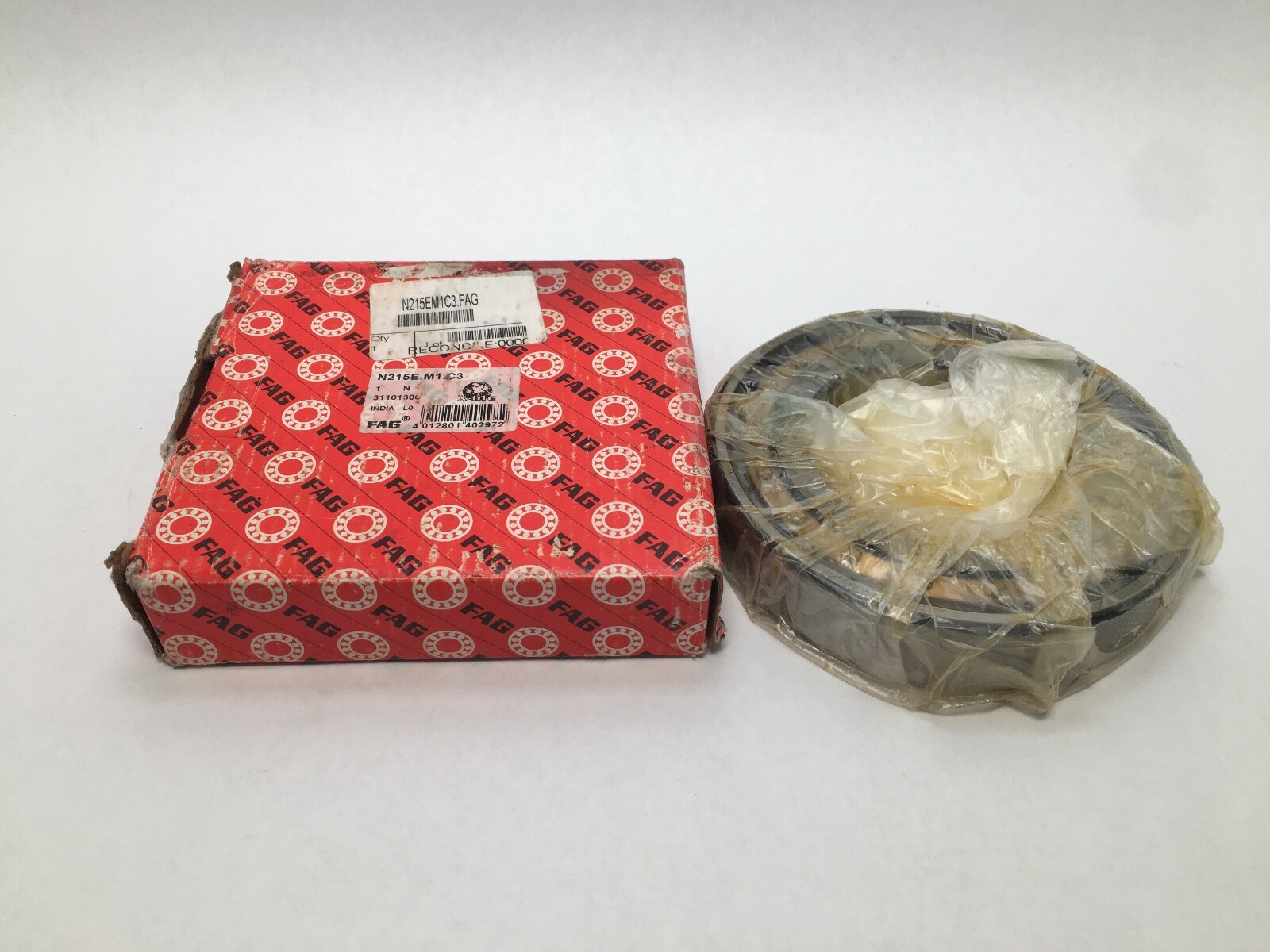

One bearing. Unit quantity: 1 Pc.

Fitting notes

Straight 75 mm bore on a cylindrical shaft seat. The outer ring runs in a plain housing bore with no axial location taken through it.

Interchange guidance

Same-specification equivalents: SKF N 215 ECM/C3 and NTN N215ET2X1C3. Searchable forms of the number: N215EM1C3, N215-E-XL-M1-C3, N 215 E M1 C3, N215E.M1.C3, N215.
