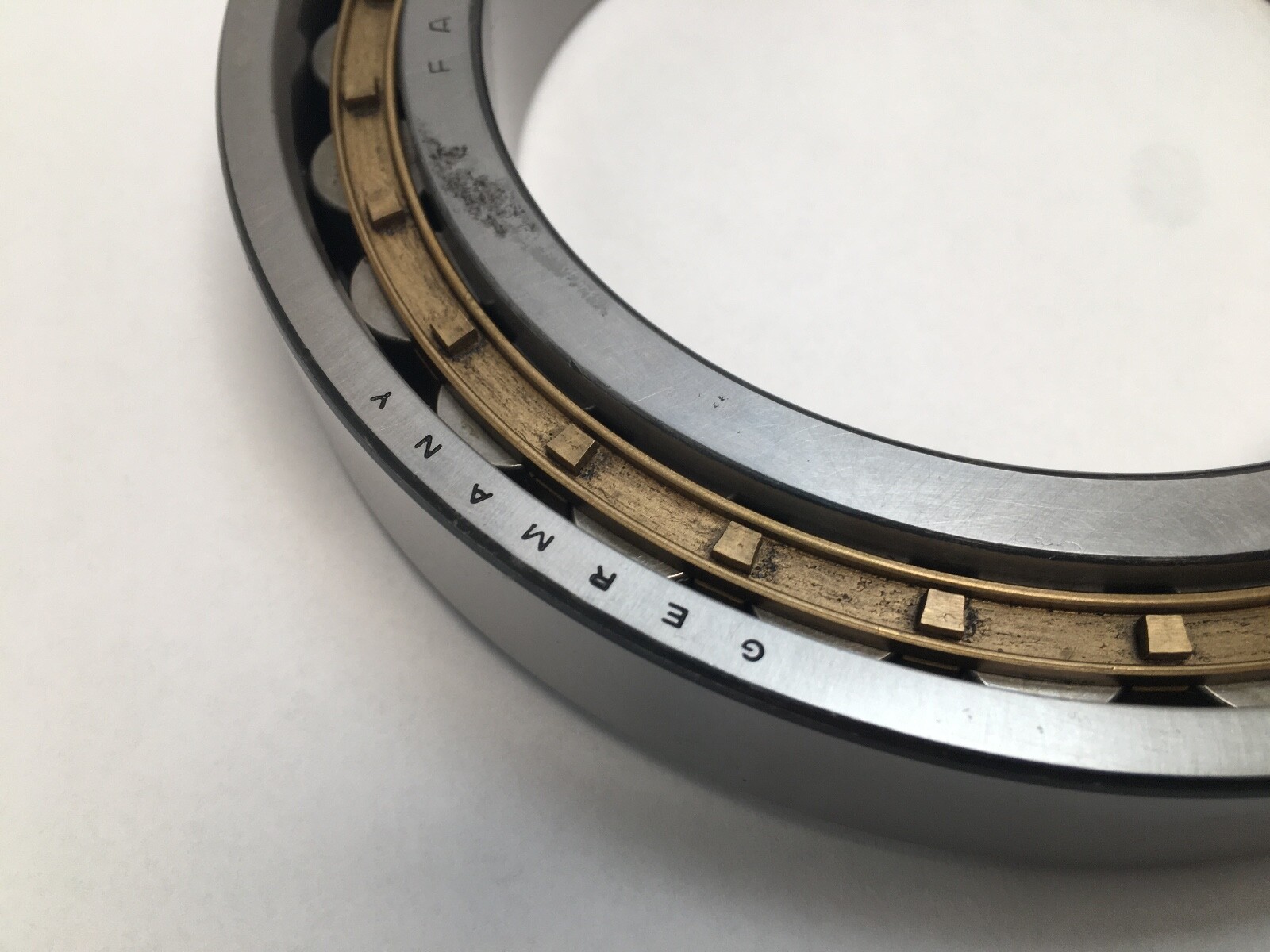

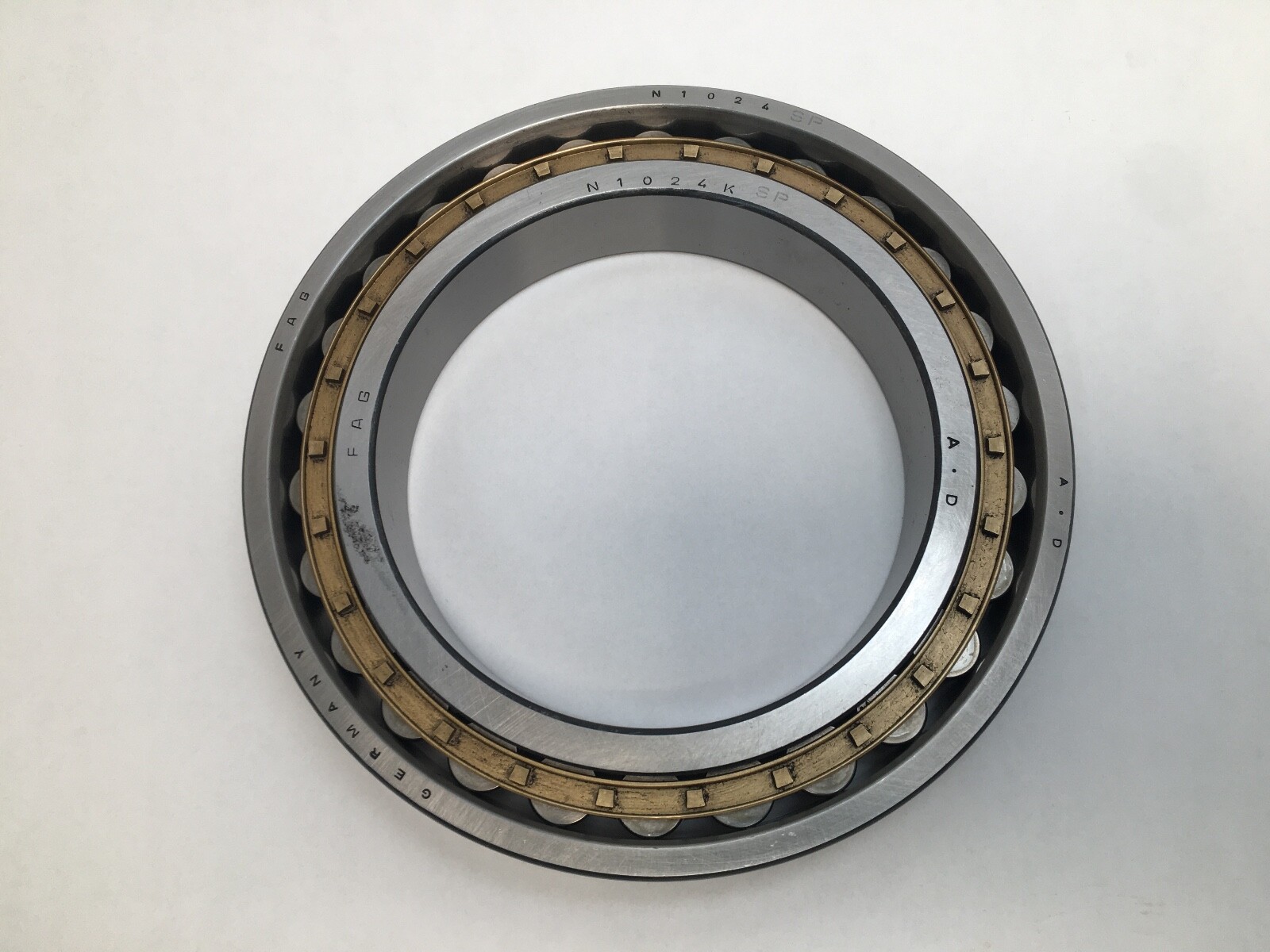

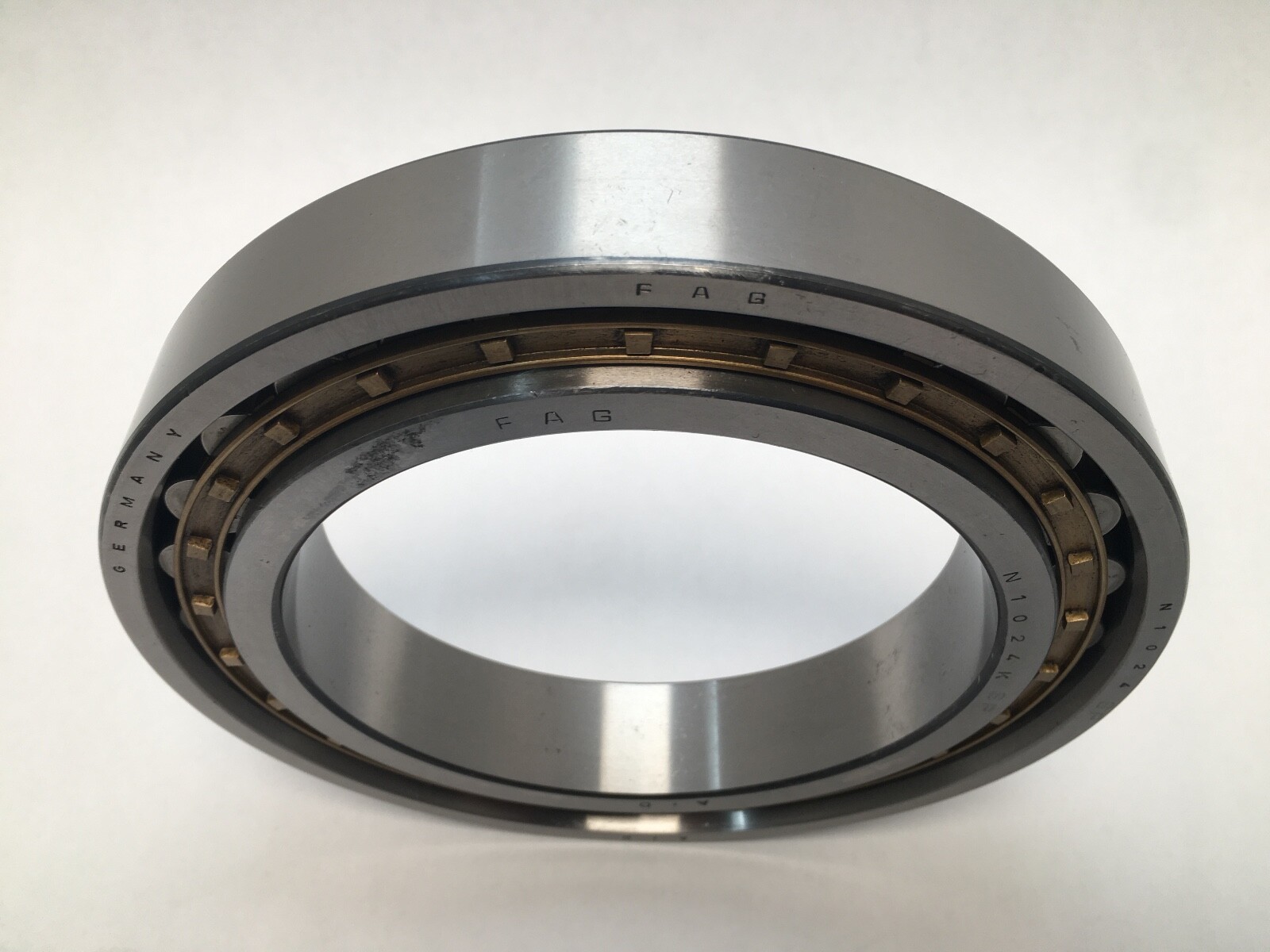

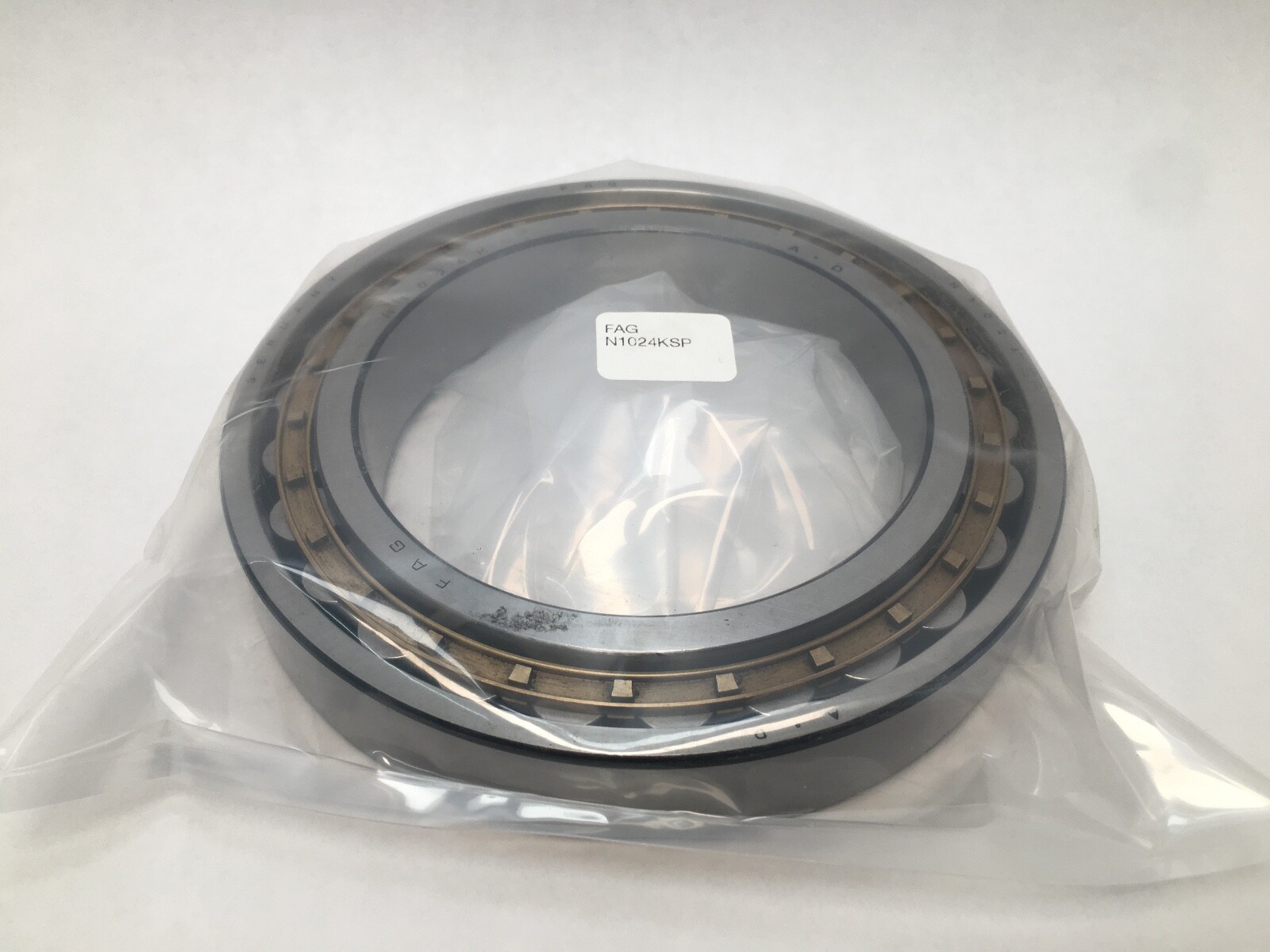

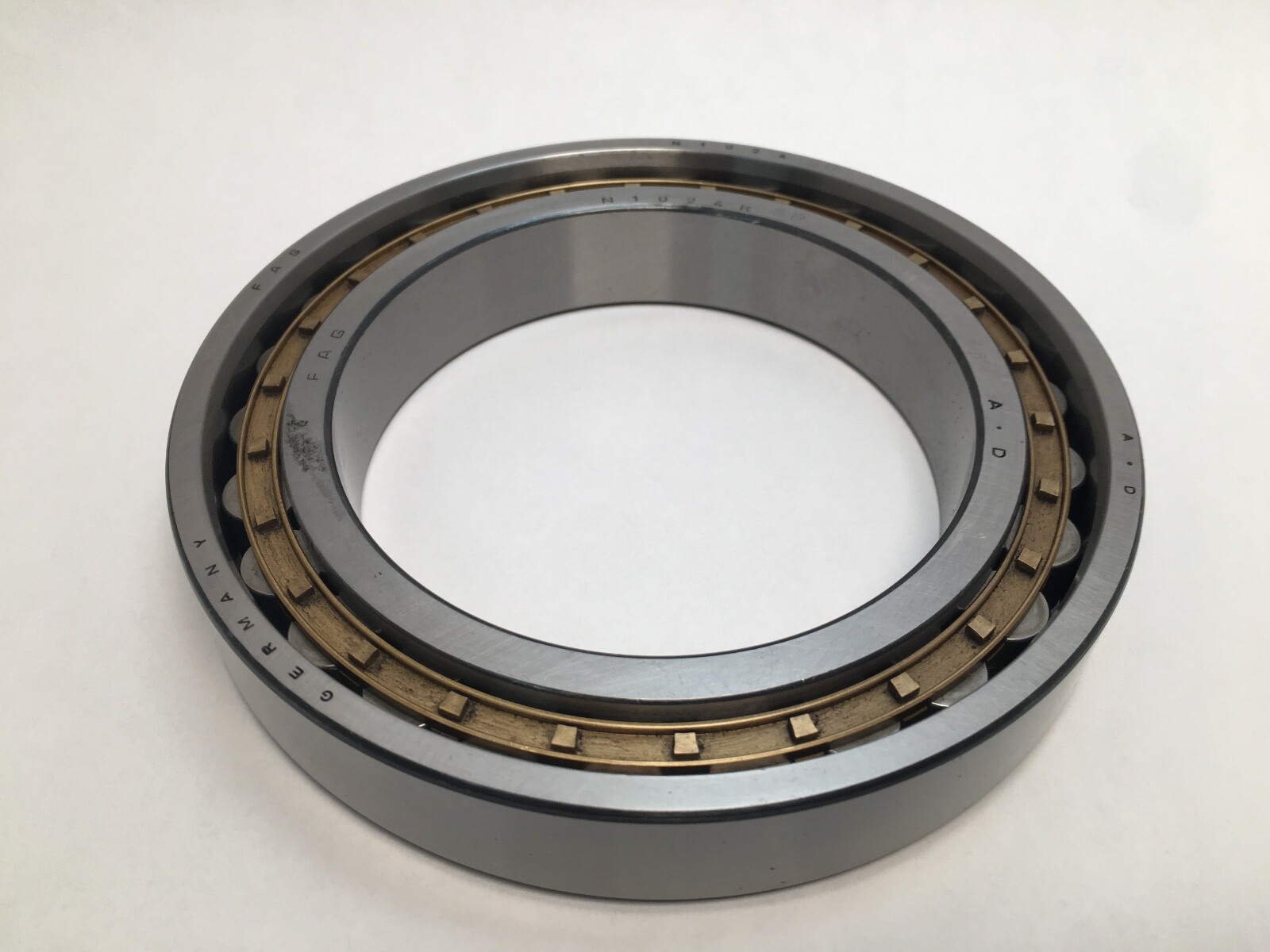

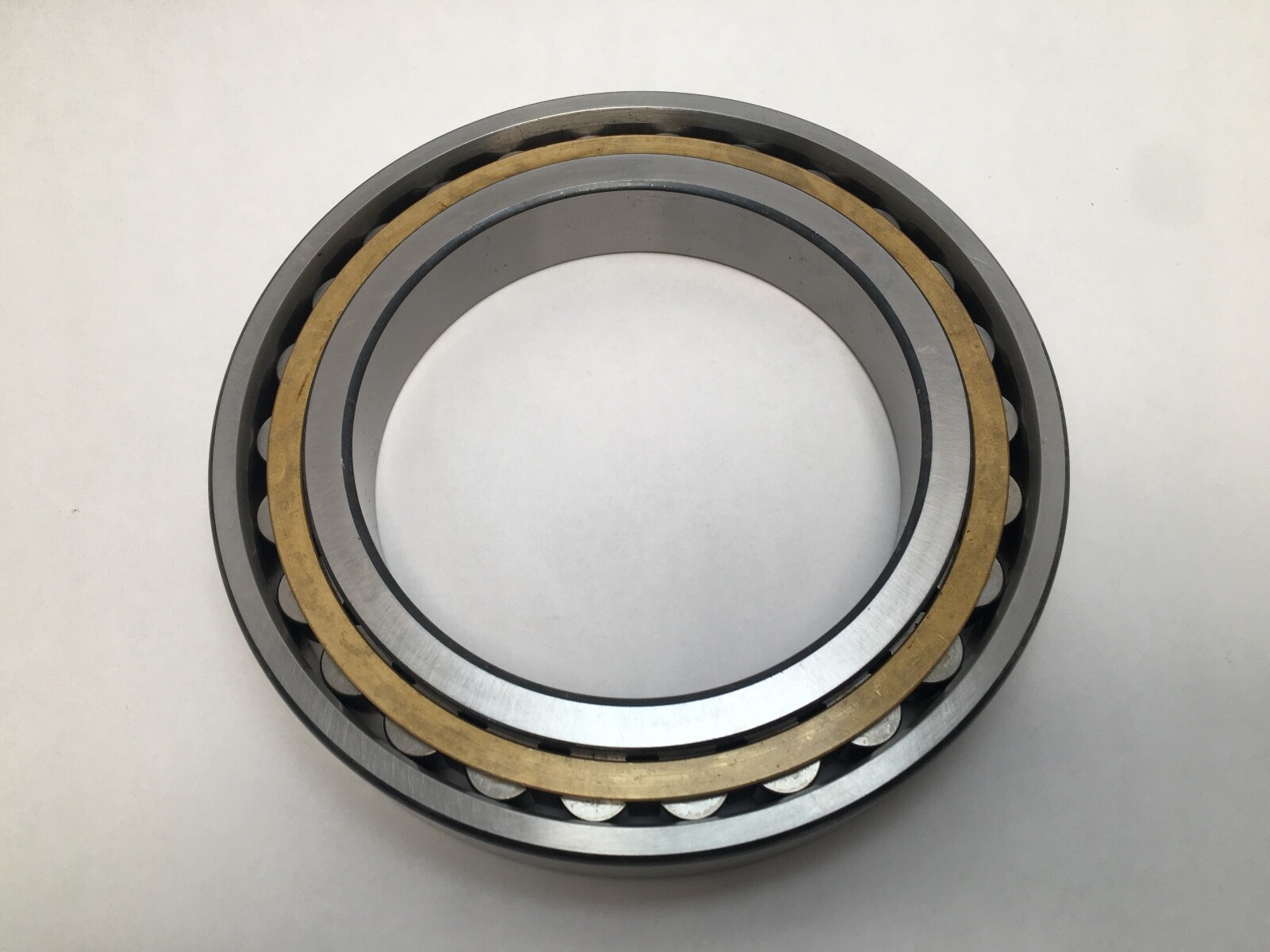

FAG N1024KM1.SP super-precision cylindrical roller bearing, 120 x 180 x 28 mm, 1:12 tapered bore, machined brass cage, SP tolerance. Single-row N design, 1 Pc.
List Price
$344.22
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | N1024KM1.SP |
| GTIN | 4012801591836 |
| Model | N 1024 K M1 SP |
| Bearing Type | Cylindrical Roller Bearing, Open |
| ID | 120 mm |
| OD | 180 mm |
| Width | 28 mm |
| Material | Bearing Steel |
|---|---|
| Series | N1000 |
| Base Number | N1024 |
| Industry Terms | super precision cylindrical roller bearing, spindle roller bearing, tapered bore cylindrical roller bearing, N type roller bearing |
| Common Misspellings | N1024KMISP, N1024-KM1-SP, NU1024KM1SP, N1024KM1.S.P |
| Application Types | Machine tool spindles, lathe headstocks, milling spindles |
| Overall Width | 28 mm |
| Mpn Variants | N1024KM1.SP, N1024-K-M1-SP, N1024KM1SP, N 1024 K M1 SP, N1024K.M1.SP, N1024 |
| Arrangement Configuration | Single bearing, N design non-locating |
| Precision Class | SP (Schaeffler special precision) |
| Additional Attributes | Single row; N design, non-locating; 1:12 tapered bore; machined brass cage; open |
| Rolling Elements | Cylindrical Roller |
| Cage Material | Machined brass |
| Number Of Rows | 1 |
| Bore Type | Tapered 1:12 |
| Harmonization Code | 8482.50 |
| Closure Type | Open |
| Cross Reference 1 | FAG N1024-D-K-TVP-SP-XL (current execution, polyamide cage) |
|---|
FAG N1024KM1.SP single-row super-precision cylindrical roller bearing, 120 x 180 x 28 mm, 1:12 tapered bore, machined brass cage, SP tolerance class, open design. Unit Quantity: 1 Pc.

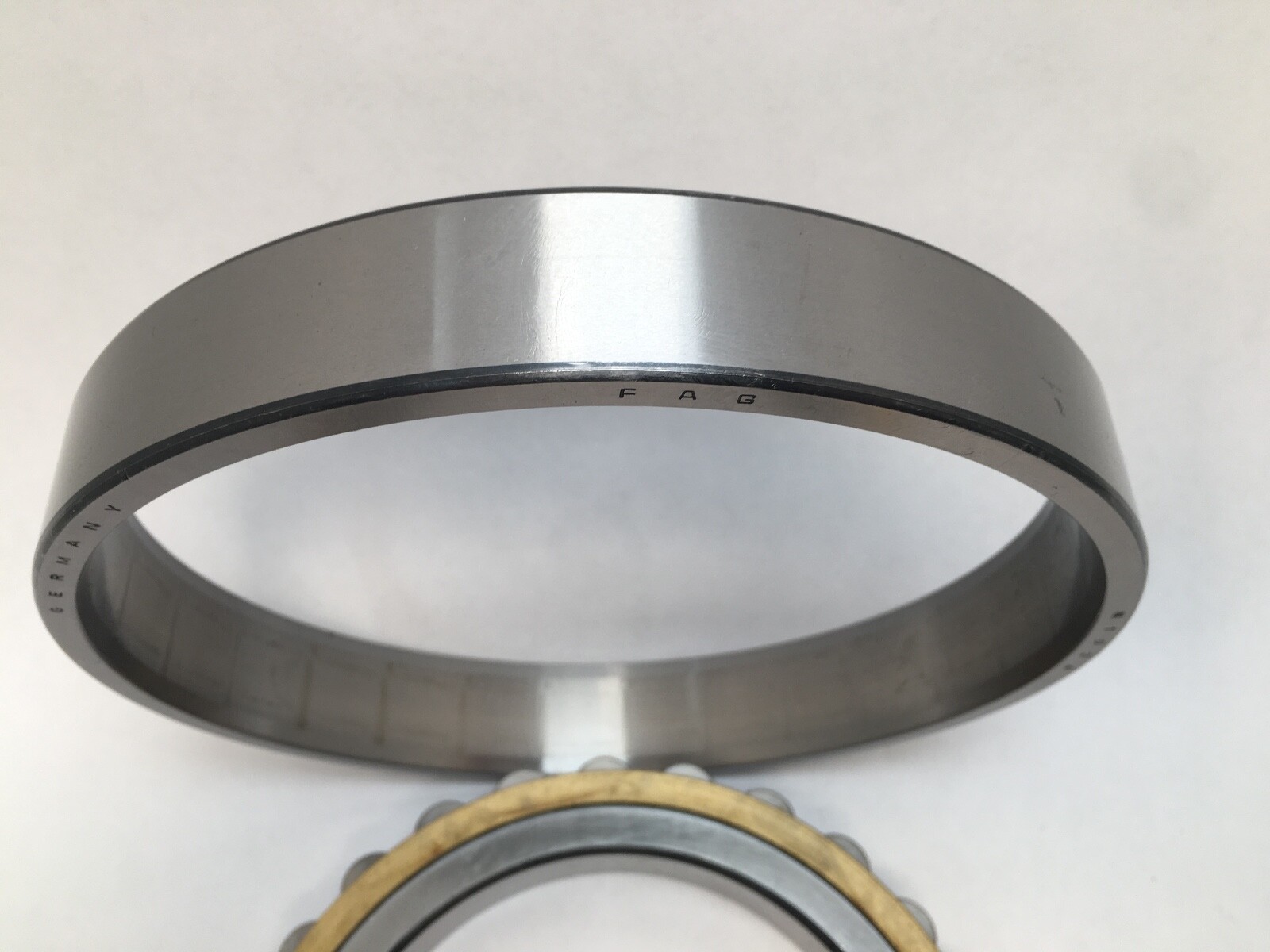

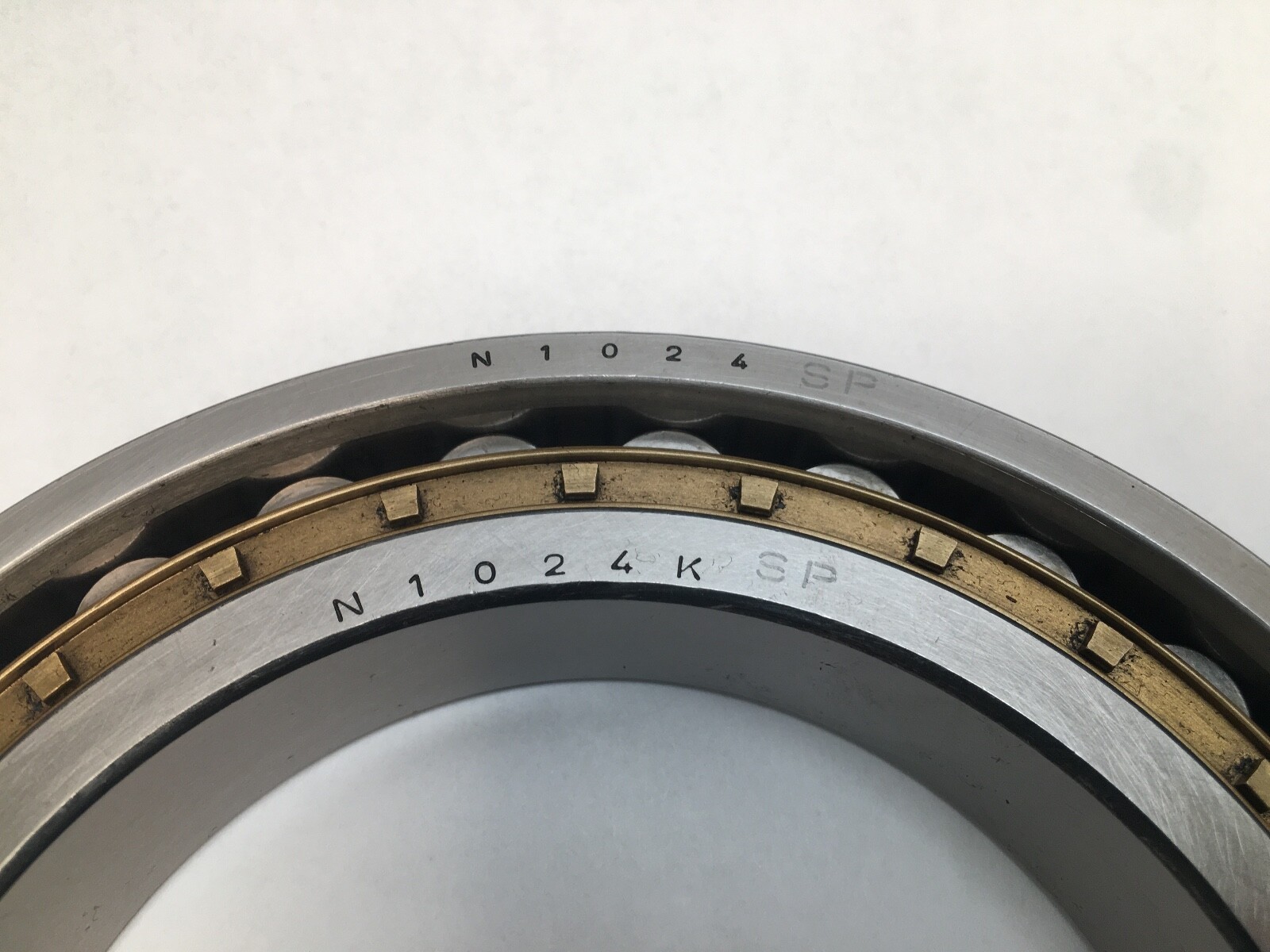

N — cylindrical roller bearing with two ribs on the inner ring and a rib-less outer ring; non-locating, the shaft moves axially relative to the housing.
10 — ISO dimension series 10.
24 — bore code, 24 x 5 = 120 mm.
K — tapered bore, taper 1:12.

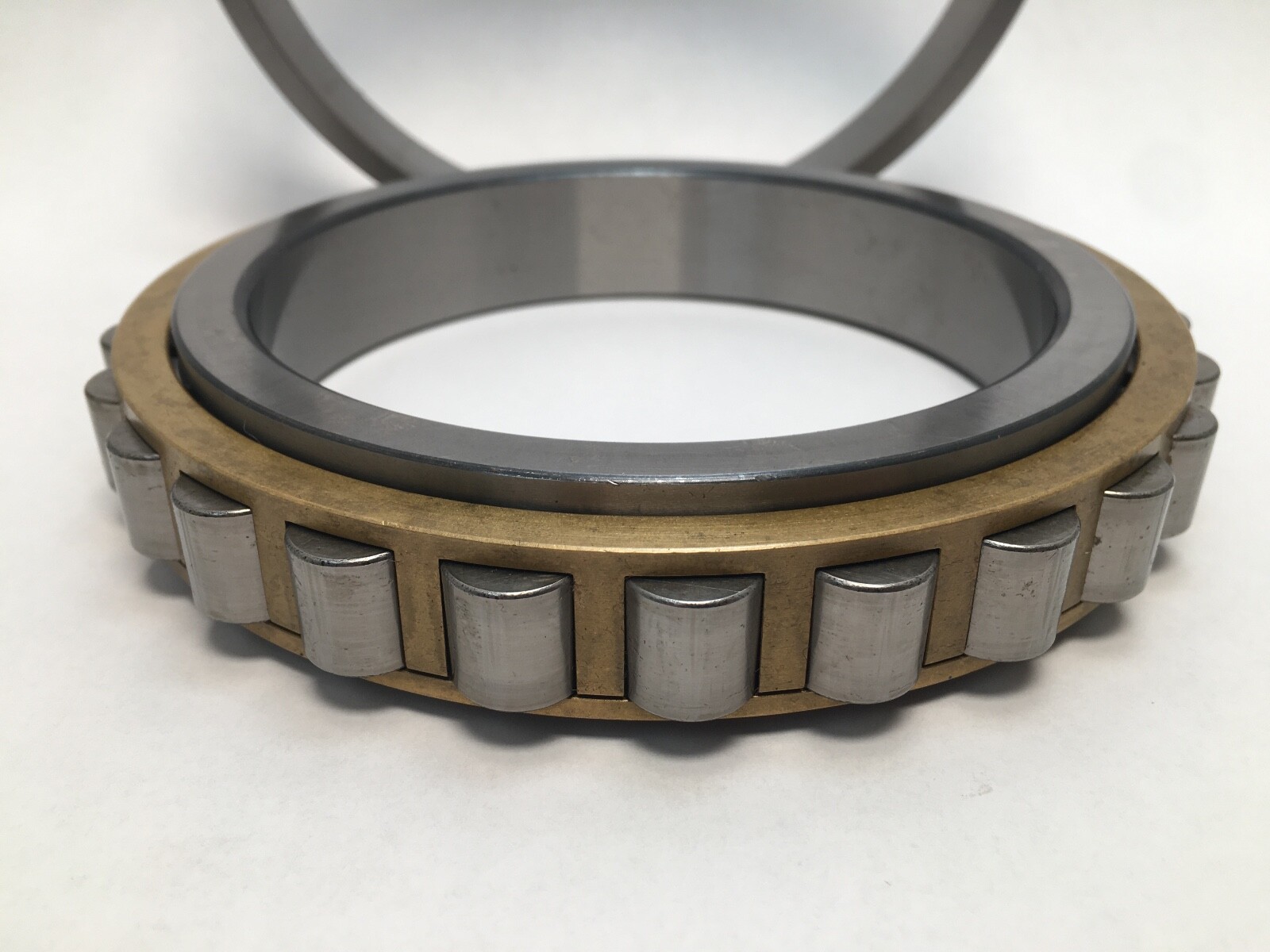

M1 — machined brass cage.
SP — Schaeffler special precision tolerance class for super-precision cylindrical roller bearings.
Bore Diameter: 120 mm. Outside Diameter: 180 mm. Overall Width: 28 mm. Number Of Rows: 1. Rolling Elements: Cylindrical Roller. Bore Type: Tapered 1:12. Cage Material: Machined brass. Precision Class: SP. Closure Type: Open. Series: N1000. Base Number: N1024.
Envelope: ISO N1024, 120 x 180 x 28 mm. Arrangement: single bearing, N design, non-locating.
Cross-references: FAG N1024-D-K-TVP-SP-XL (current Schaeffler super-precision N1024 tapered-bore execution, polyamide cage in place of the M1 brass cage). MPN variants: N1024KM1.SP, N1024-K-M1-SP, N1024KM1SP, N 1024 K M1 SP, N1024K.M1.SP.
Bore 120 mm, outside diameter 180 mm, width 28 mm.
K is a 1:12 tapered bore, M1 is a machined brass cage and SP is the Schaeffler special precision tolerance class.
N design: non-locating, the shaft moves axially relative to the housing.
