FAG20409-MBSingle Row Barrel Roller Bearing 45x120x29 mm Cylindrical Bore Brass Cage

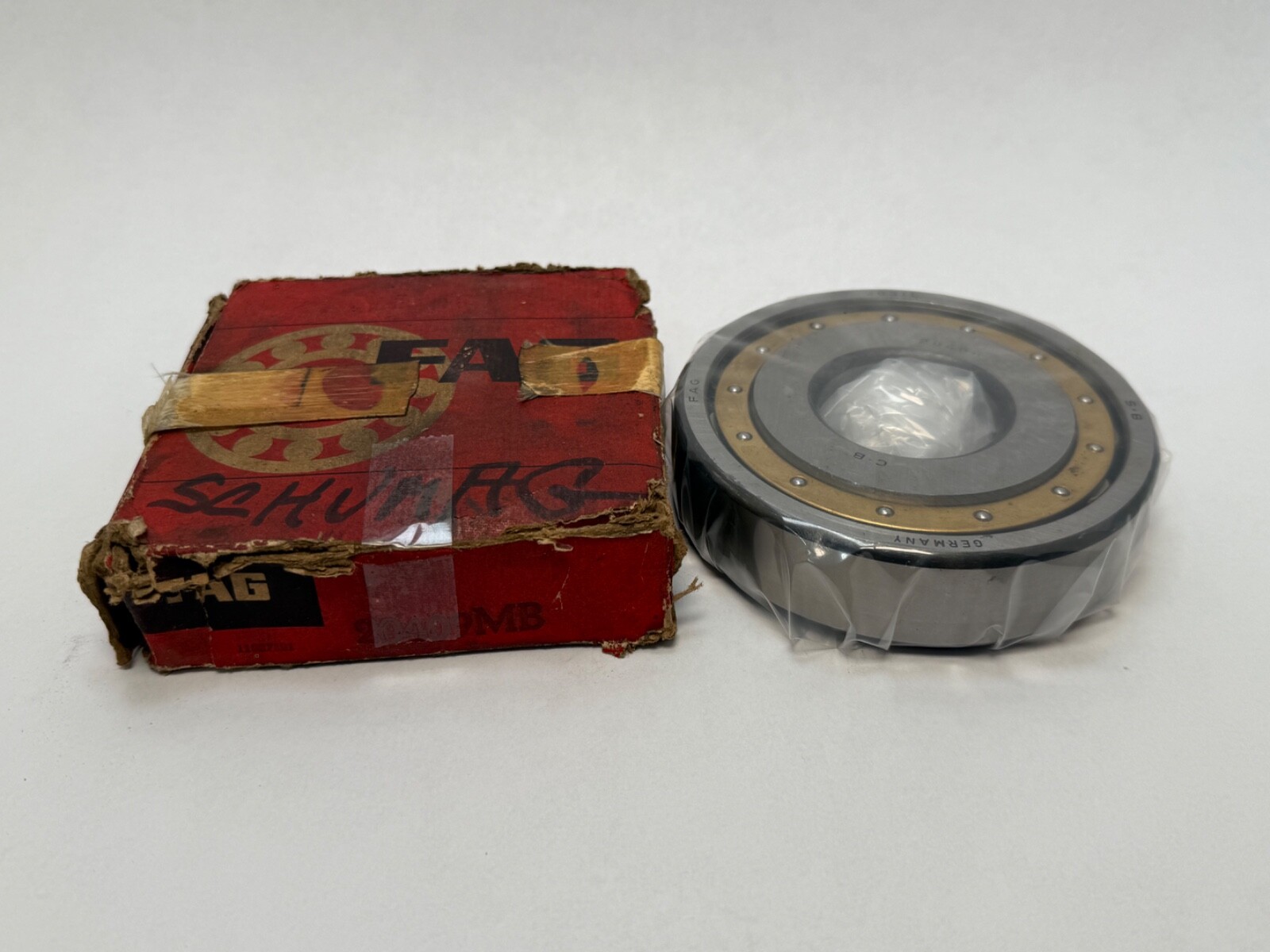

Condition: New – Open box
Condition Note: Made In Germany, New Old Stock

Availability:

1 in stock

Single-row barrel roller bearing, 45 mm bore x 120 mm OD x 29 mm wide. Cylindrical bore, machined brass cage, radial load with self-alignment. 1 Pc.

List Price

$50.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandFAG
MPN20409-MB
Model20409 MB
Bearing TypeBarrel Roller Bearing, Open
ID45 mm
OD120 mm
Width29 mm

Technical Specifications

Series20400
LubricantGrease
MaterialBearing Steel
Base Number20409
Bore Shaft Size45 mm (1.7717 in)
Mpn Variants20409-MB, 20409MB, 20409 MB, 20409M, 20409
Rolling ElementsBarrel Rollers
Number Of Rows1
Bore TypeStraight
Snap Ring IncludedWithout Snap Ring
Harmonization Code8482.3
Industry Termssingle row barrel roller bearing; self-aligning radial roller bearing; 204 series barrel bearing
Common MisspellingsFAG 20409 MB; F.A.G 20409-MB; 20409-M8; 2049MB; FAG20409MB
Seller Part Number: AL4B3#OHHSTT

Product Description

What this part is:

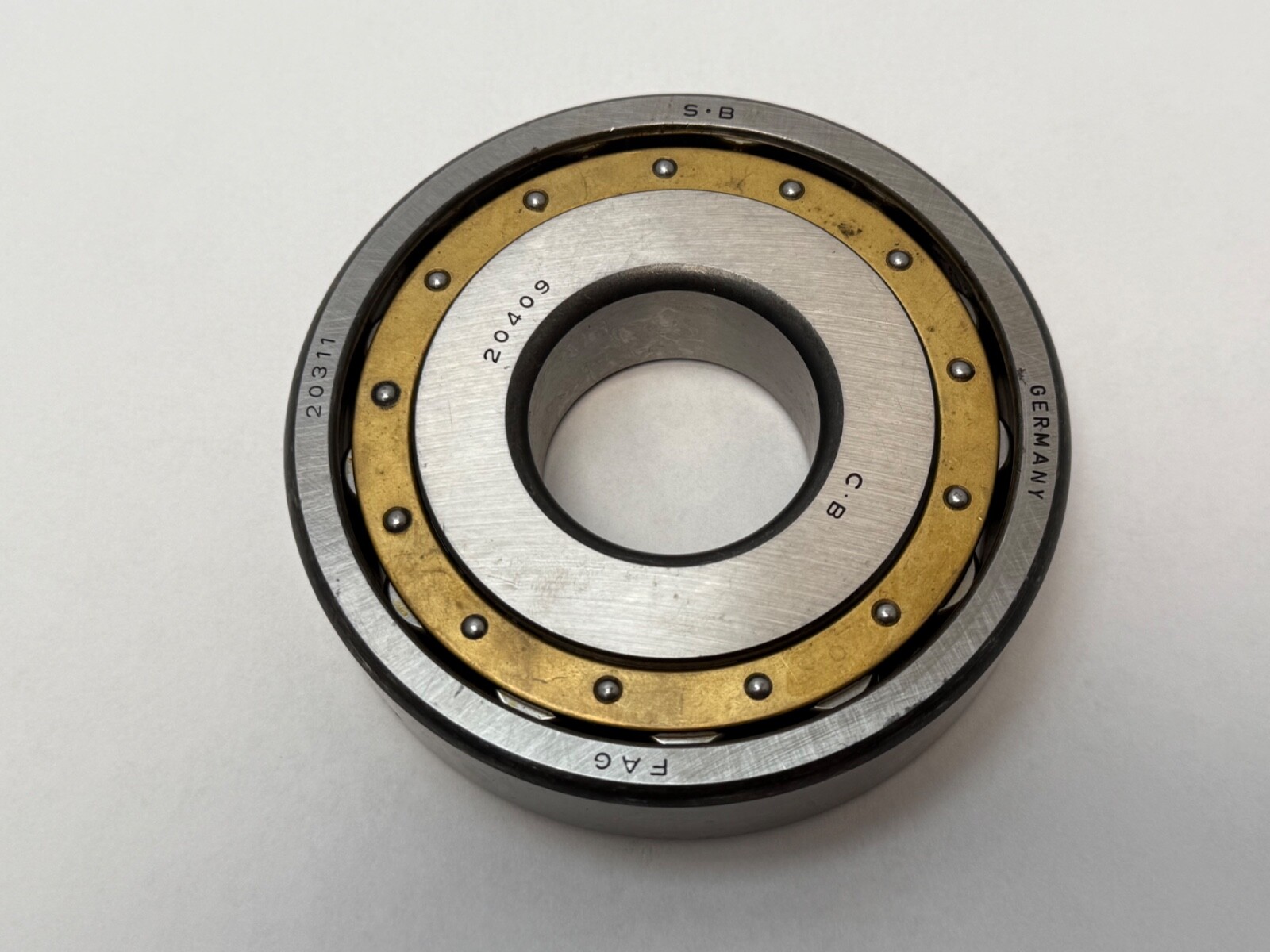

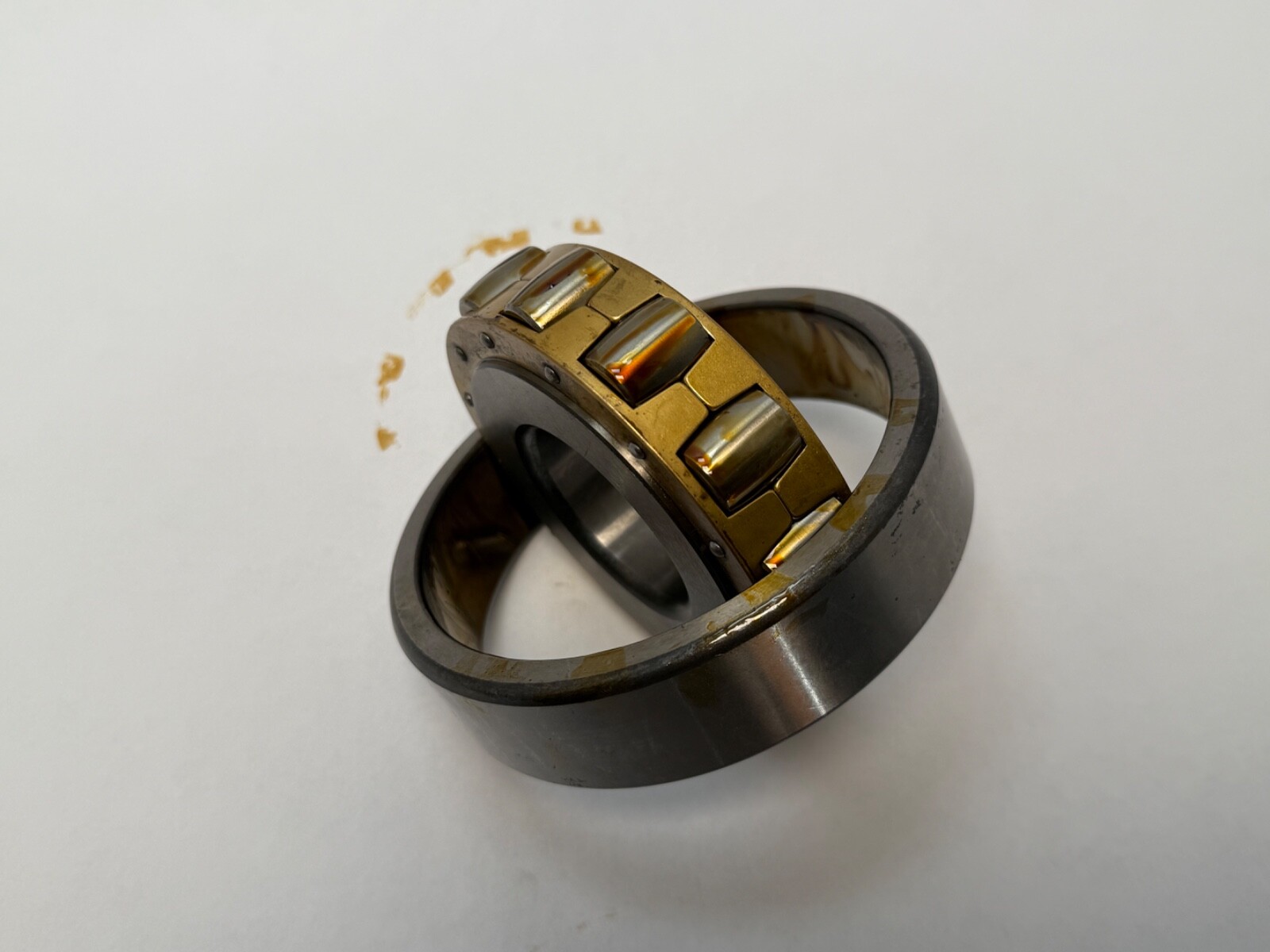

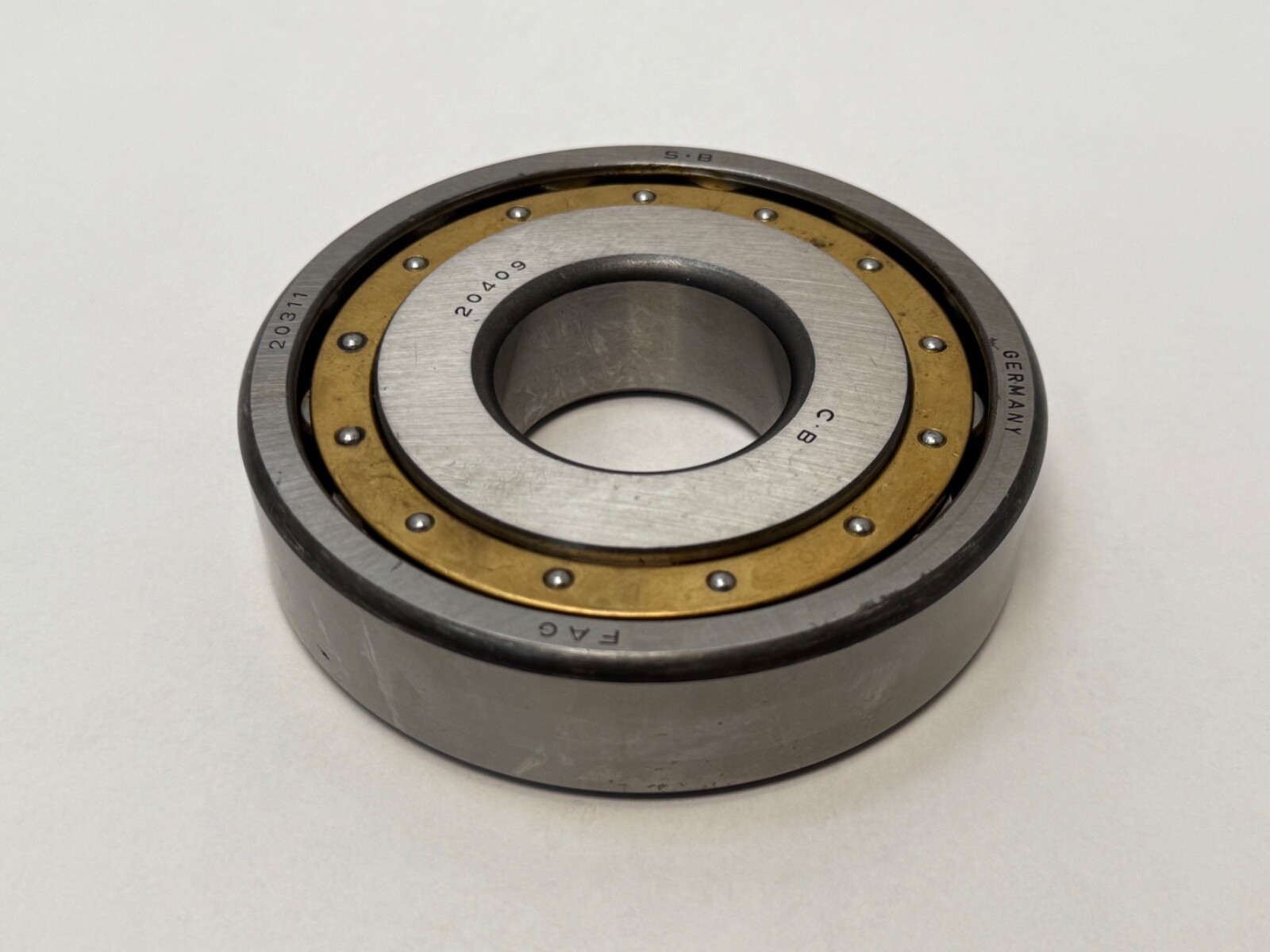

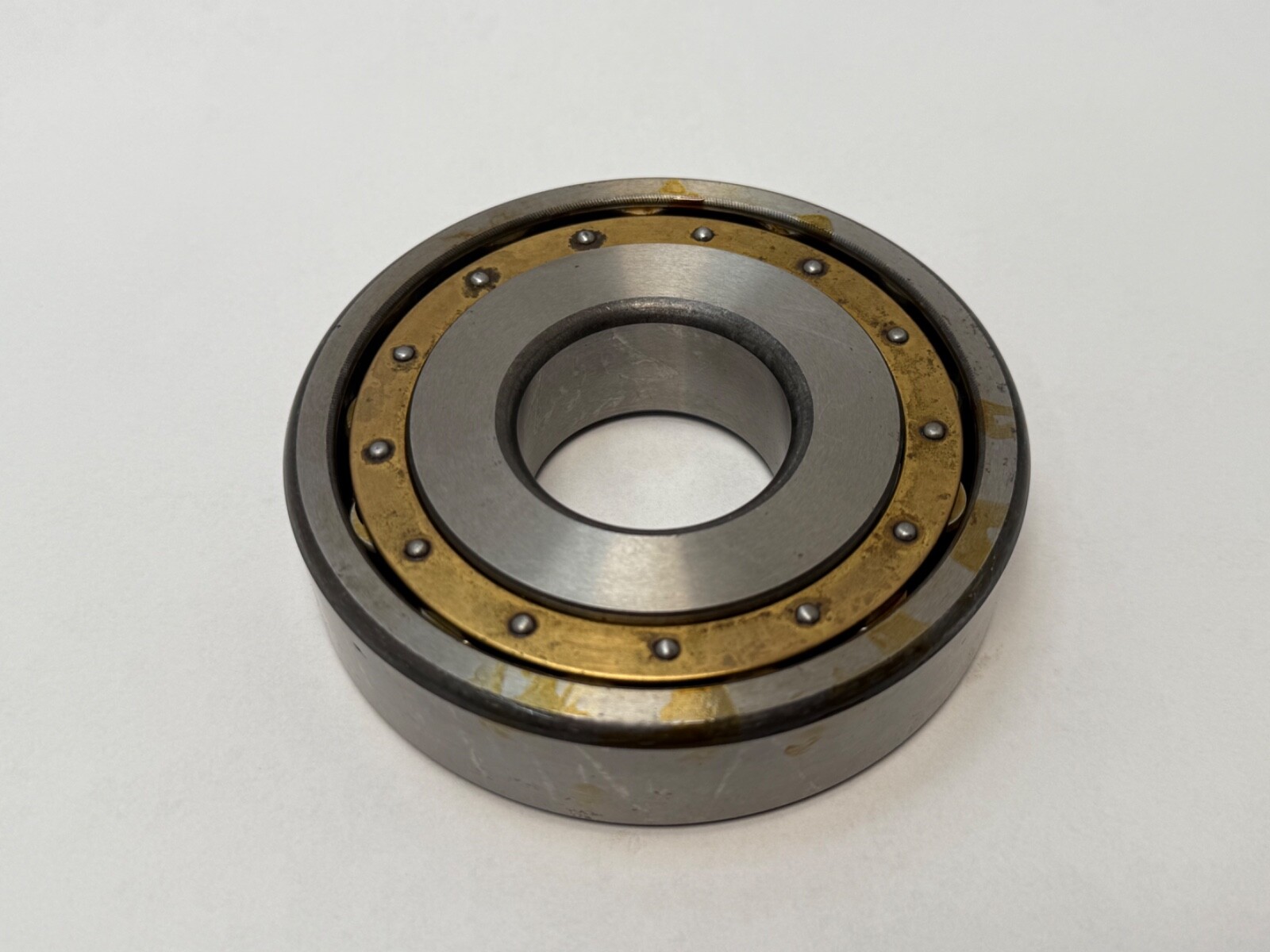

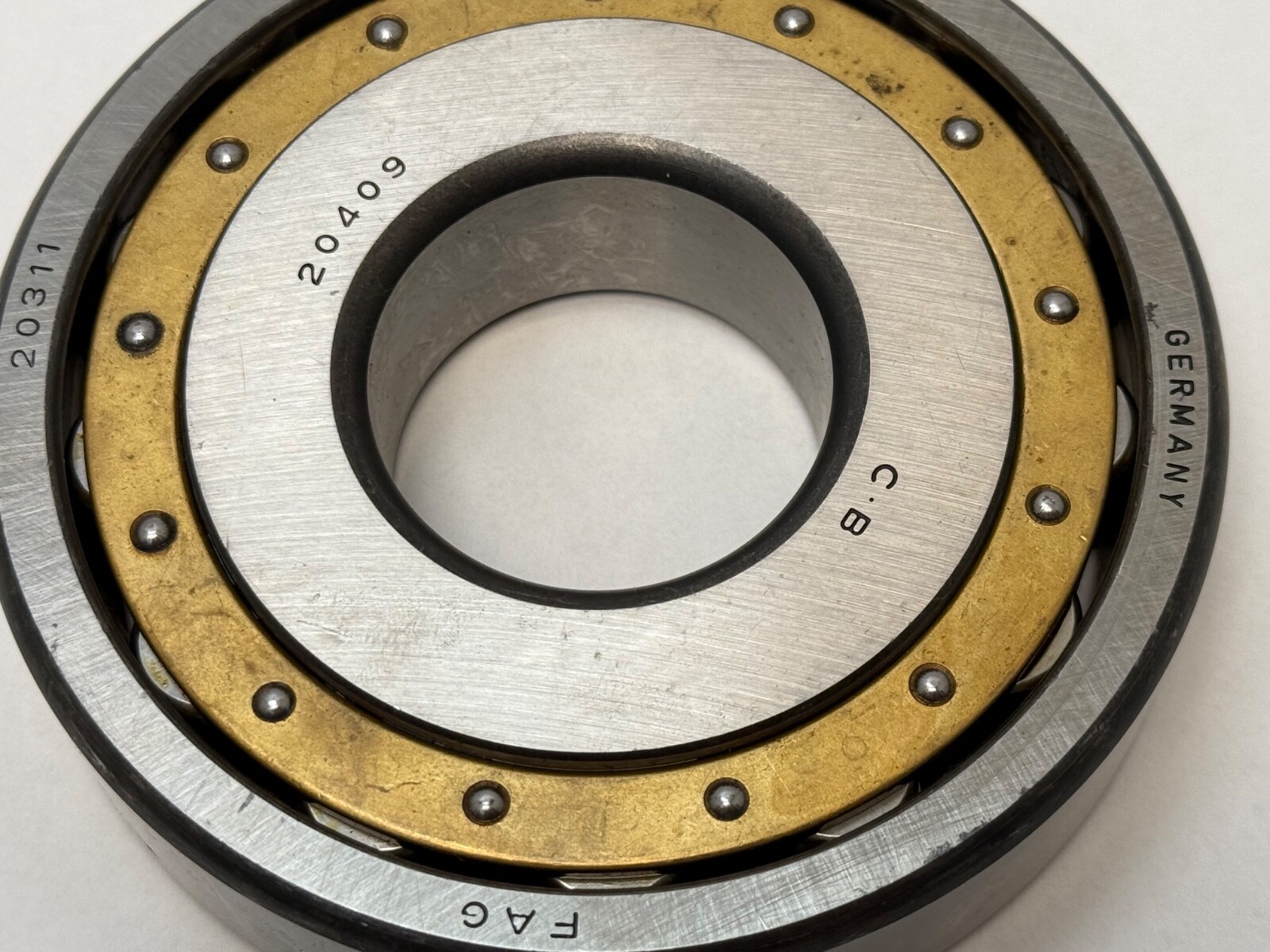

FAG 20409-MB, a single-row barrel roller bearing. One row of barrel-shaped rollers runs on a spherical outer raceway, so the inner ring, roller set and cage swivel inside the outer ring. Bore Diameter: 45 mm. Outside Diameter: 120 mm. Overall Width: 29 mm. Bore Type: Cylindrical.

Decoding the designation:

20 — barrel roller, single row.

4 — ISO dimension series 4, the heaviest of the barrel roller sections.

09 — bore code, 9 x 5 = 45 mm bore.

MB — machined brass cage, inner-ring guided.

Specifications:

Bore: 45 mm (1.7717 in). Outside Diameter: 120 mm (4.7244 in). Width: 29 mm (1.1417 in). Number Of Rows: 1. Rolling Elements: Barrel Rollers. Bore Type: Cylindrical. Cage: Machined brass (MB). Internal Clearance: CN (normal). Seal Type: Open. Series: 204. Material: Bearing Steel. Unit Quantity: 1 Pc.

Dimensions and mounting:

The cylindrical bore mounts directly on a 45 mm shaft seat. The spherical outer raceway takes shaft deflection and housing misalignment. Load direction: radial.

Compatibility and replacement:

Also written 20409-MB, 20409MB, 20409M and 20409. The 20309 and 20209 are the lighter 203 and 202 sections on the same 45 mm bore and are related sizes. The 22409 is a double-row spherical roller bearing, a different bearing type.

Frequently asked questions:

What are the dimensions of the FAG 20409-MB?

45 mm bore, 120 mm outside diameter, 29 mm width.

What does MB mean?

A machined brass cage, inner-ring guided.

How many rows of rollers does it have?

One row of barrel rollers.
