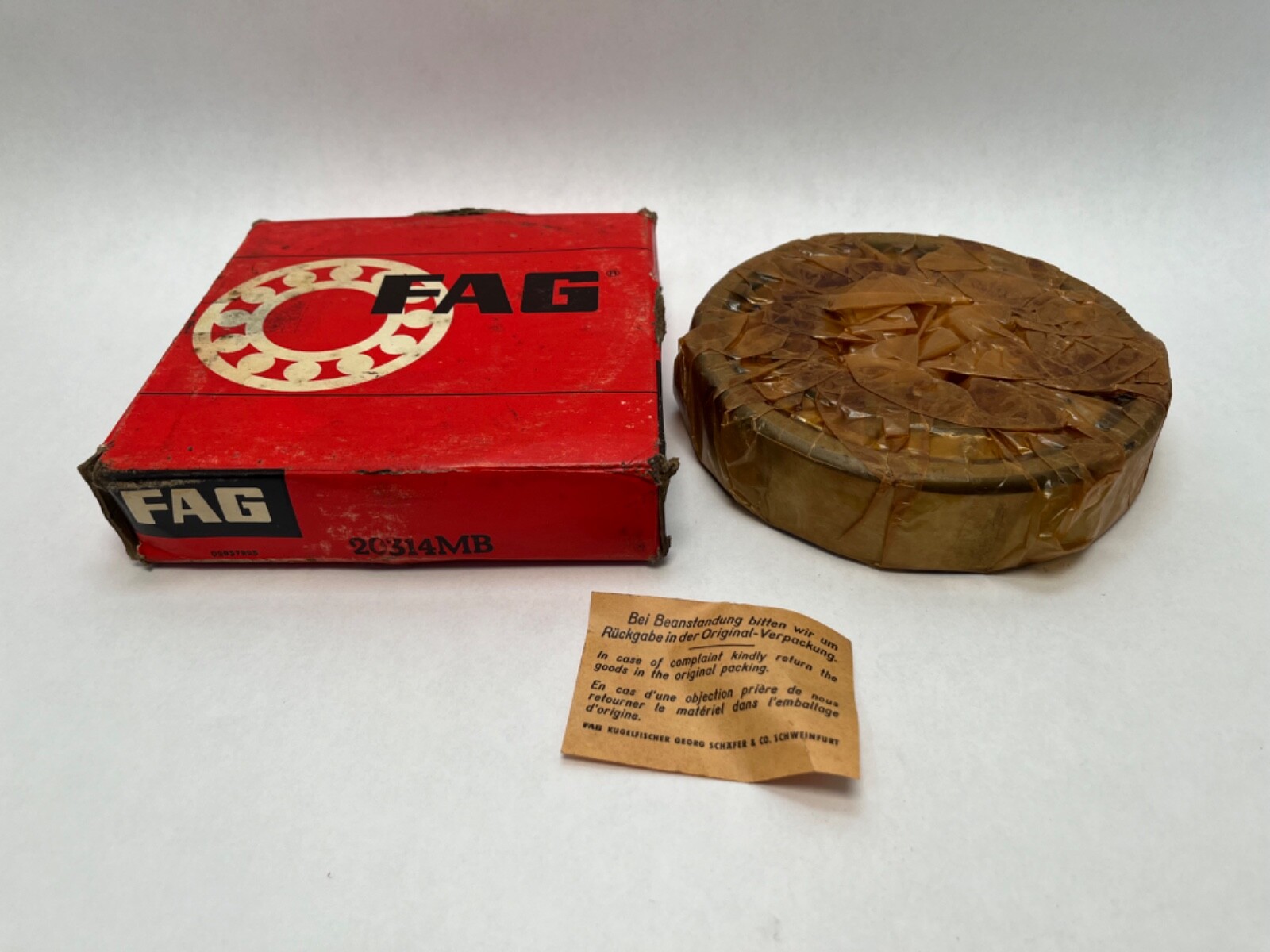

FAGSingle Row Barrel Roller Bearing 70x150x35 mm Brass Cage Straight Bore

Product Description

What this part is

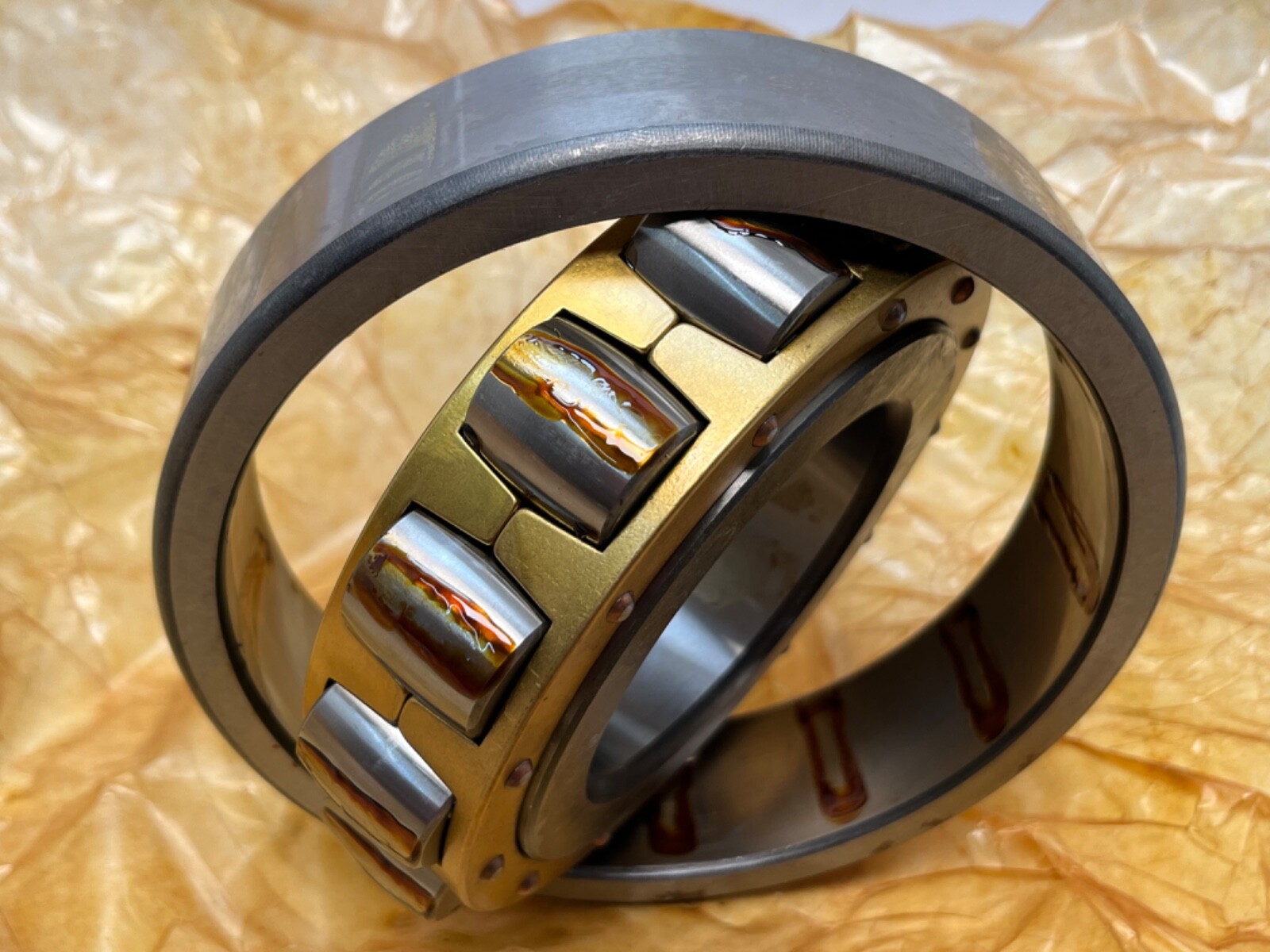

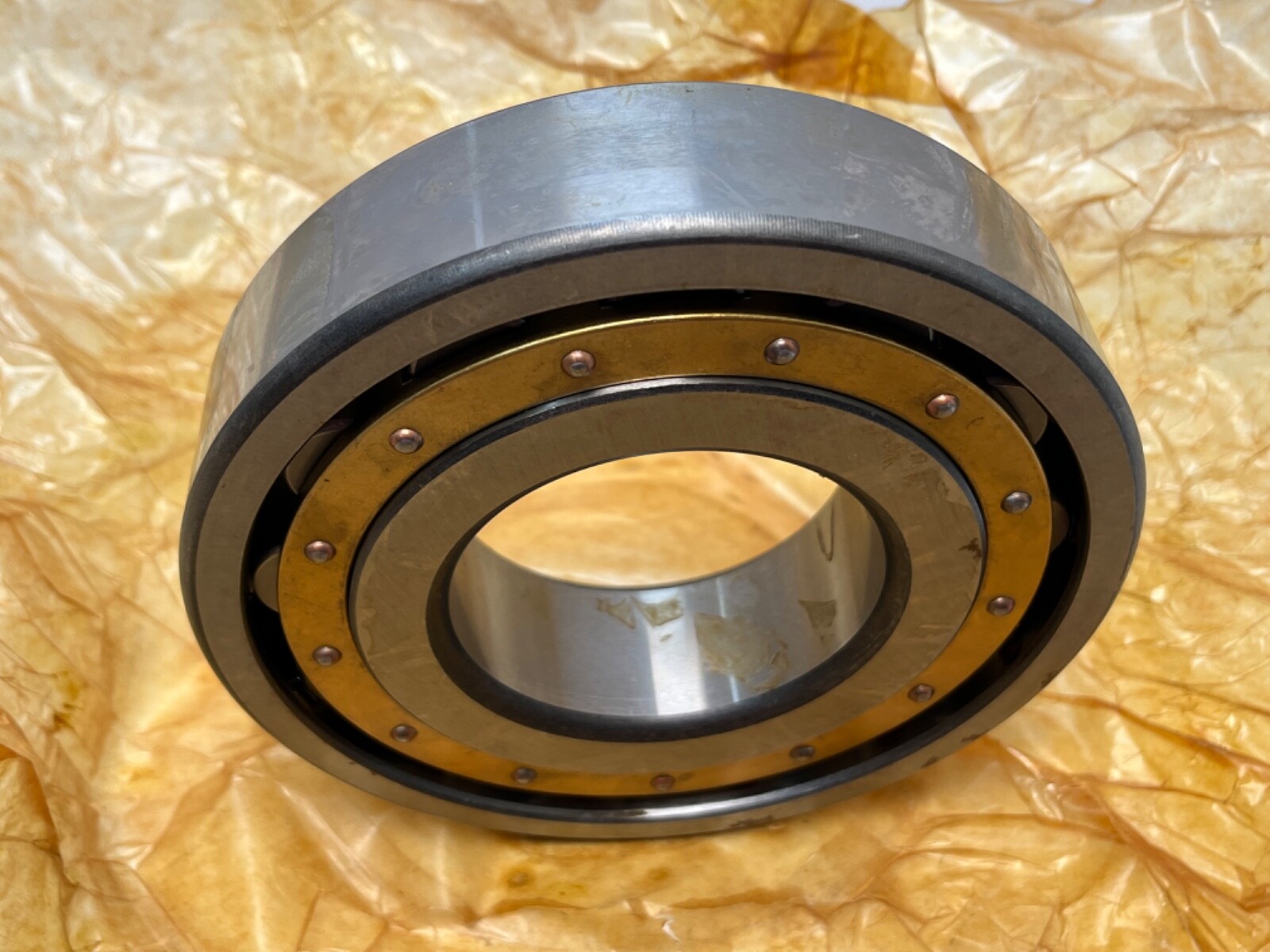

A single row barrel roller bearing in the FAG 203xx dimension series, 70 mm bore, 150 mm outside diameter, 35 mm width, fitted with a machined brass cage. The rolling elements are convex barrel-shaped rollers running in a hollow-ground spherical outer raceway, which gives the bearing self-aligning capability about its own centre while carrying radial load in a single row.

Designation decode

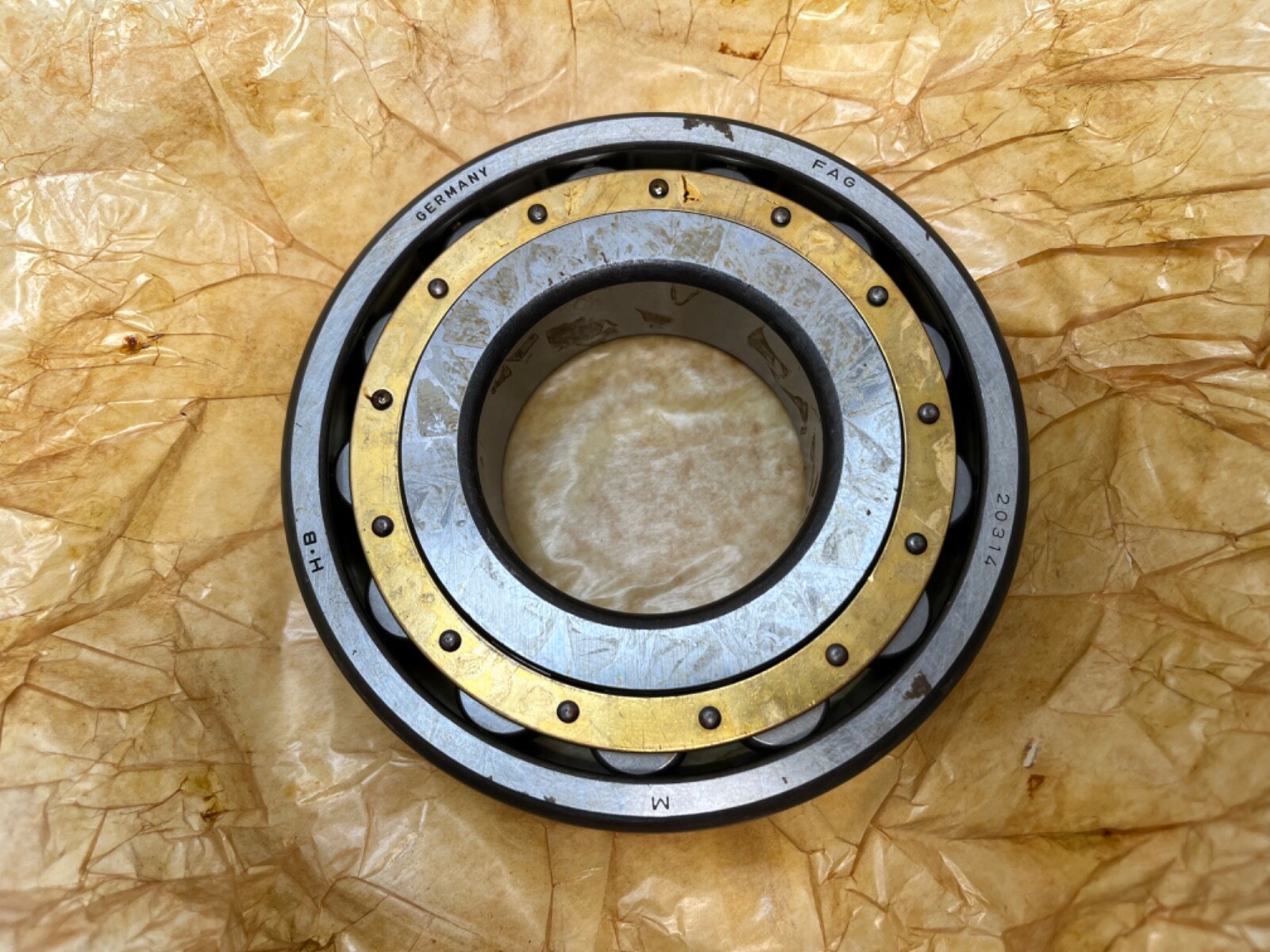

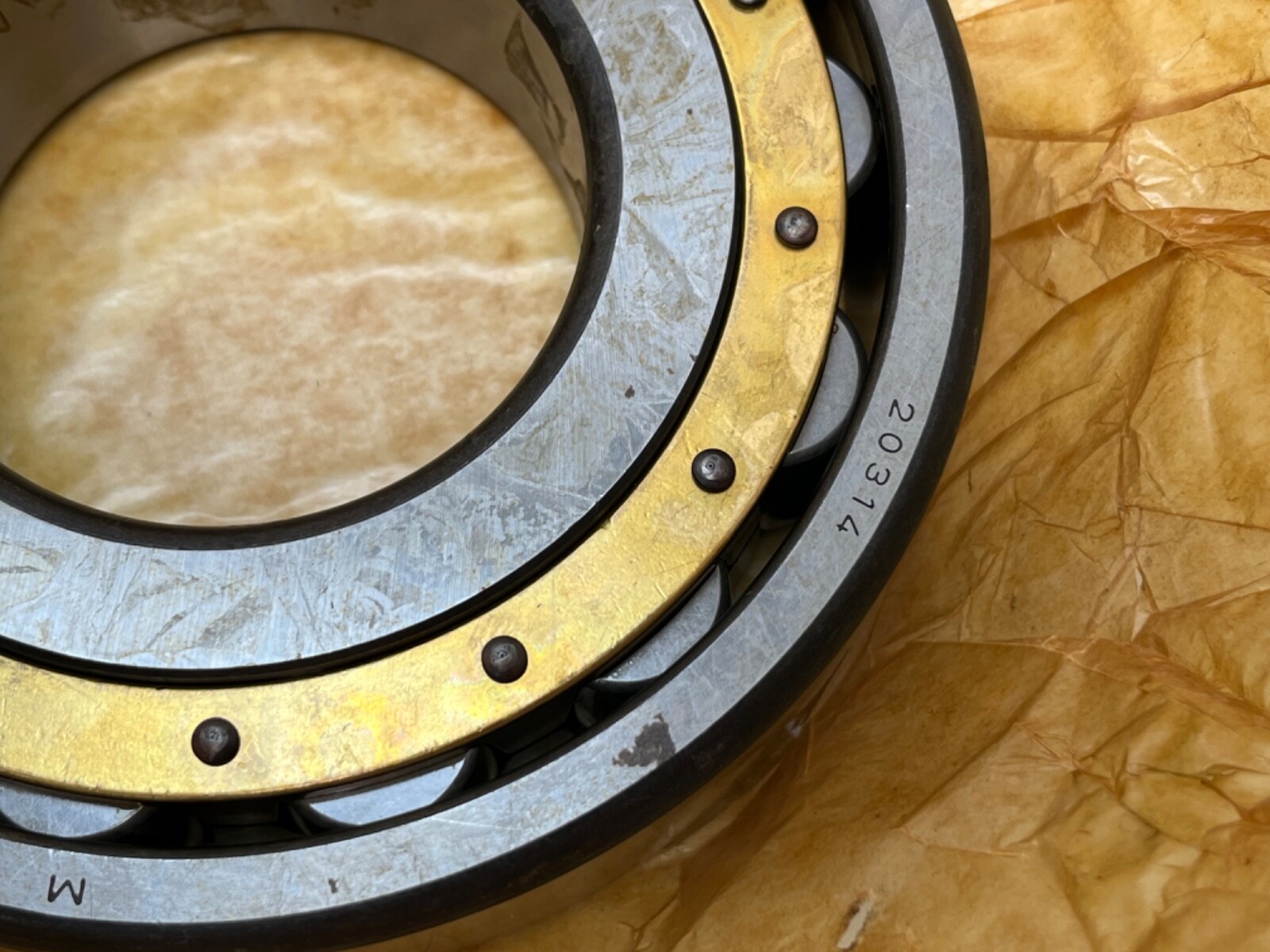

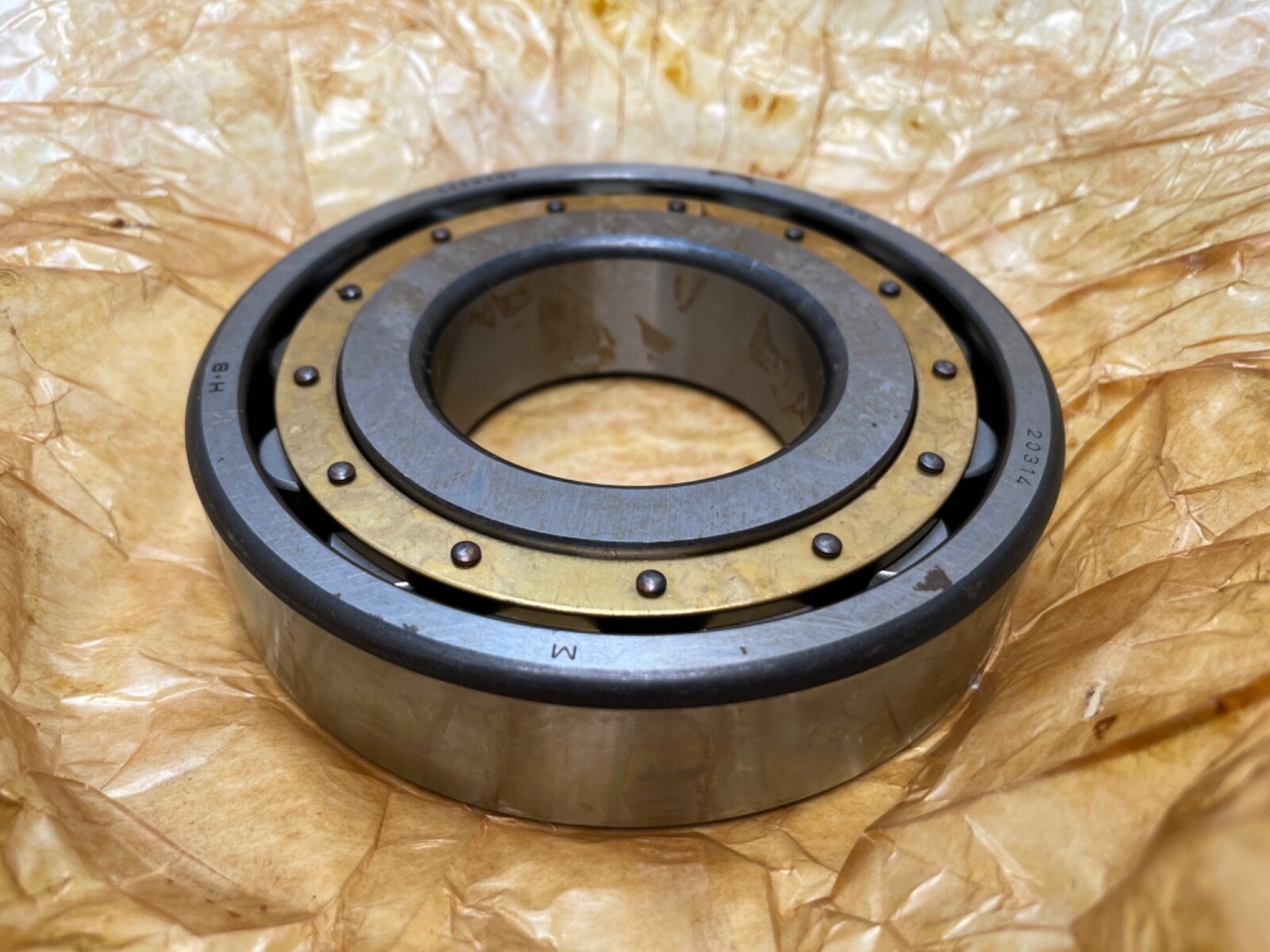

203: FAG single row barrel roller dimension series.

14: ISO bore code, multiplied by five to give the bore in millimetres, so 70 mm.

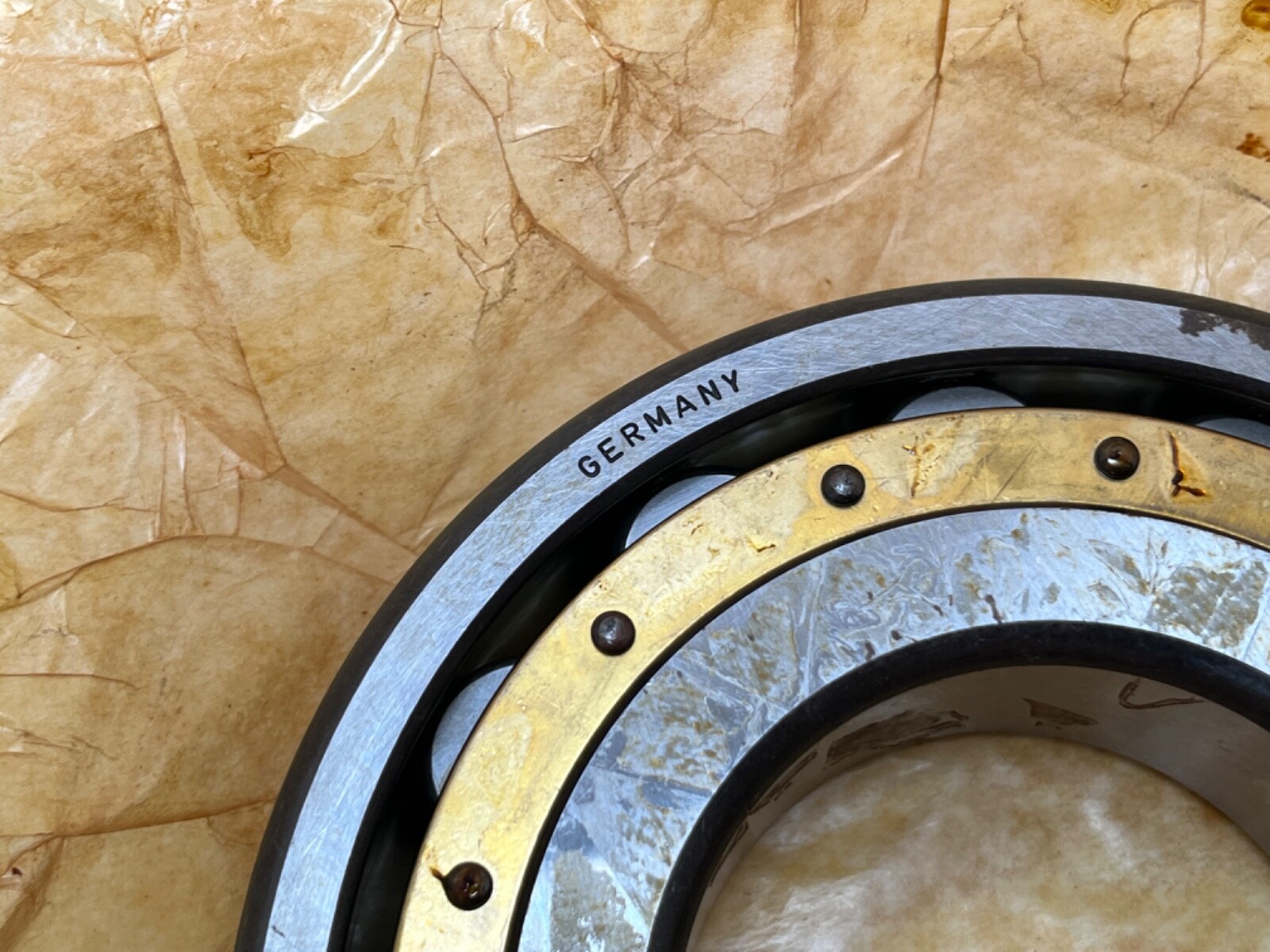

MB: machined solid brass cage.

A barrel roller bearing is a distinct family from the double row spherical roller of the 222xx and 223xx series, despite the similar spherical outer raceway.

Published performance data
Bore Diameter: 70 mm

Outside Diameter: 150 mm

Width: 35 mm

Basic Dynamic Load Rating Cr: 184,000 N

Basic Static Load Rating C0r: 215,000 N

Fatigue Limit Load Cur: 19,900 N

Limiting Speed: 4,450 rpm

Mass: 3.135 kg

Cage: MB, machined solid brass

Number of Rows: 1

Bore Form: straight cylindrical

Closure: open both faces

Rolling Elements: barrel rollers, convex profile

Load Direction: radial

Operating Temperature Range: -30 deg C to +200 deg C

Mounting data
Chamfer Dimension r min: 2.1 mm

Shaft Abutment Diameter da min: 82 mm

Housing Abutment Diameter Da max: 138 mm

Abutment Fillet Radius ra max: 2.1 mm

Housing Seat Alignment: the spherical outer raceway lets the bearing take up residual misalignment between the shaft and housing seats on assembly.

What these figures mean in practice
A single row of barrel rollers is a radial bearing: it carries high radial load and accommodates static and dynamic misalignment of the shaft relative to the housing, while axial location of the shaft is taken elsewhere in the arrangement. Compared with a double row spherical roller of the same envelope, the single row barrel is shallower, lighter and lower in cost, and suits arrangements where radial load and misalignment are the whole requirement.

The static rating of 215,000 N reads above the dynamic rating of 184,000 N. That is the published relationship for a line-contact roller bearing of this size, where the long contact between roller and raceway gives a very high resistance to permanent deformation under a stationary load, and it is not a transposition of the two figures.

A machined brass cage tolerates higher temperature and more shock and vibration than a pressed steel cage and stays dimensionally stable under sustained load. Brass is the usual choice in heavy mill, crusher, fan and gearbox positions, and it is what supports the 200 deg C top of the operating range above.

Quantity and configuration
1 Pc. Straight cylindrical bore, mounted directly on the shaft, so no adapter sleeve is involved. Open on both faces.

Interchange guidance
Direct equivalents are other makers’ 20314 barrel roller bearings of the same series and cage class, for example NTN 20314. A 22314 or 21314 shares the 70 x 150 envelope family but is a double row spherical roller with thrust capability in both directions and a different load rating, so it is a related size rather than an interchange. Changing the cage code changes the speed and temperature rating.
