Single-row barrel roller bearing, 30 mm bore x 62 mm OD x 16 mm wide. Cylindrical bore, machined brass cage, radial load with self-alignment. 1 Pc.
List Price
$52.78
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| Model | 20206 MB |
| Bearing Type | Barrel Roller Bearing |
| Width | 16 mm |
| Condition | New – Open box |
|---|---|
| Base Number | 20206 |
| Condition Note | Made In Germany, New Old Stock |
| Bore Shaft Size | 30 mm (1.1811 in) |
| Mpn Variants | 20206-MB, 20206MB, 20206M, 20206 |
| Number Of Rows | 1 |

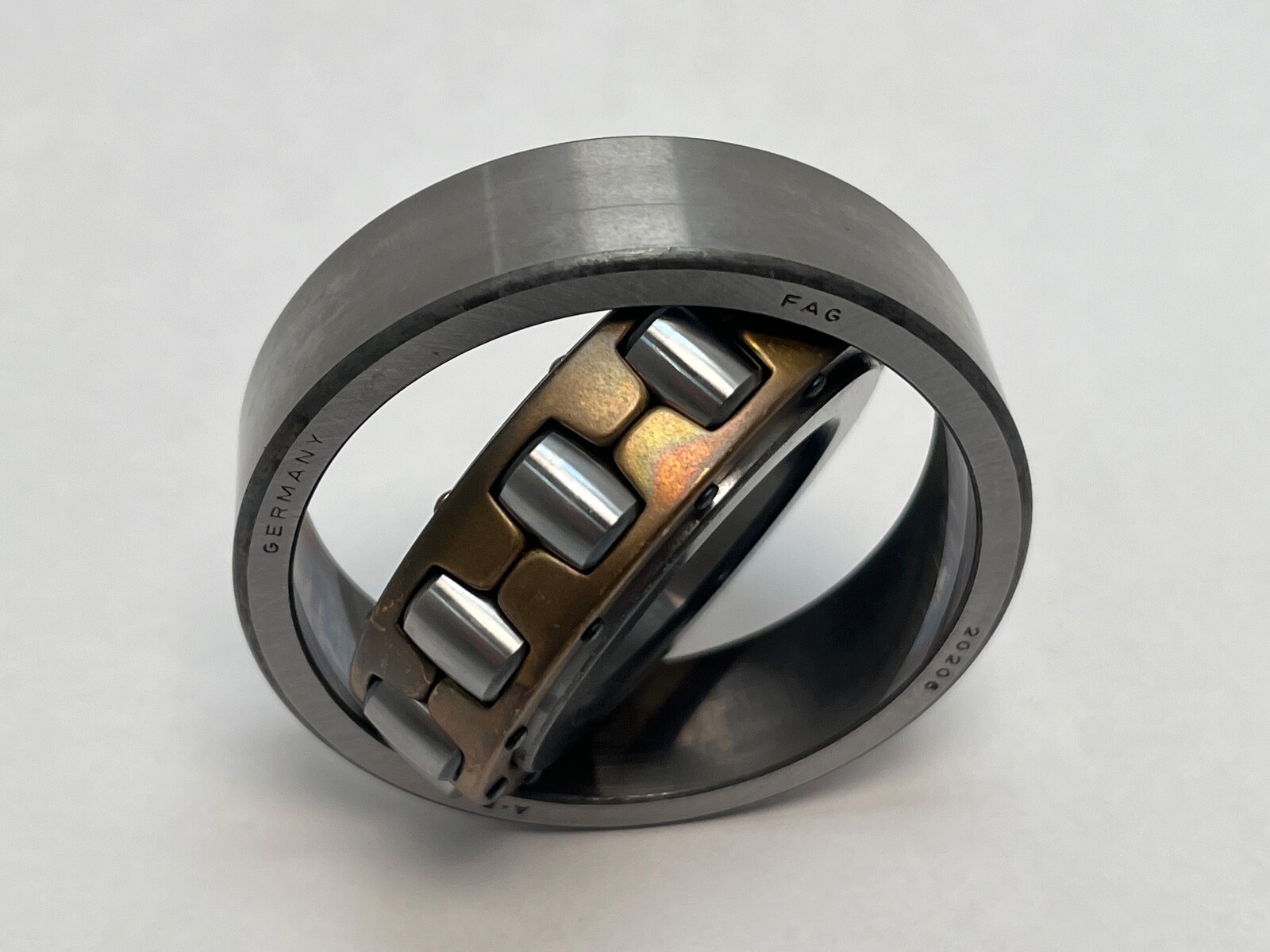

FAG 20206-MB single-row barrel roller bearing: one row of barrel-shaped rollers runs on a spherical outer raceway, so the inner ring, roller set and cage swivel inside the outer ring. Bore Diameter: 30 mm. Outside Diameter: 62 mm. Overall Width: 16 mm. Cylindrical bore. Unit Quantity: 1 Pc.
20 — barrel roller bearing, single row.
2 — ISO dimension series.
06 — bore code, 6 x 5 = 30 mm bore.
MB — machined brass cage, inner-ring guided.
Bearing Type: Single row barrel roller bearing. Bore Diameter: 30 mm (1.1811 in). Outside Diameter: 62 mm (2.4409 in). Overall Width: 16 mm (0.6299 in). Number Of Rows: 1. Bore Type: Cylindrical. Cage: Machined brass, MB. Internal Clearance: CN (normal). Series: 202. Base Number: 20206. Load direction: radial, with self-alignment on the spherical outer raceway.
Bore Diameter: 30 mm (1.1811 in). Outside Diameter: 62 mm (2.4409 in). Overall Width: 16 mm (0.6299 in). Cylindrical bore, mounted directly on the shaft seat.
FAG 20206-MB. Searchable forms of the designation: 20206-MB, 20206MB, 20206M, 20206.
What type of bearing is the FAG 20206-MB?
A single-row barrel roller bearing with a cylindrical bore and a machined brass cage.
What are the dimensions of a 20206-MB?
Bore Diameter: 30 mm. Outside Diameter: 62 mm. Overall Width: 16 mm.
What does MB mean on a FAG 20206-MB?
MB is a machined brass cage, inner-ring guided.
