Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
5 in stock
Deep groove ball bearing, 25 x 47 x 16 mm, contact rubber seals both sides, wide 63 section, 11.2 kN dynamic rating. Supplied as a ten-piece set.
List Price
$84.99
5 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 630052RS1 |
| GTIN | 7316570020984 |
| Model | 63005-RS |
| Bearing Type | Ball Bearing, Contact rubber seals both sides |
| ID | 25 mm |
| OD | 47 mm |
| Width | 16 mm |
| Material | Chrome Steel |
|---|---|
| Series | 630 |
| Lubricant | Grease |
| Base Number | 63005 |
| Bore Shaft Size | 25 mm |
| Mpn Variants | 63005-2RS1; 63005 2RS1; 63005-2RS; 63005RS; 63005 2RS; 63005 |
| Dynamic Load Rating | 11.2 kN |
| Static Load Rating | 6.55 kN |
| Rolling Elements | Ball |
| Item Weight | 0.23 lb (0.106 kg) each |
| Cage Material | Pressed steel |
| Limiting Speed | 9500 |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Internal Clearance | CN |
| Mounting Arrangement | Single |
| Design Units | Metric |
| Bearing Material | Chrome Steel |
| Part Number | 63005-2RS1 |
| Cross Reference 1 | SKF 63005-2RS |
|---|---|
| Cross Reference 2 | SKF 63005-2Z – shields, not seals |
| Cross Reference 3 | SKF 6005-2RS1 – 12 mm width, lower ratings |
SKF 63005-2RS1 single-row deep groove ball bearing. Bore: 25 mm. Outside Diameter: 47 mm. Overall Width: 16 mm. Number Of Rows: 1. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Contact rubber seals both sides. Cage Material: Pressed steel. Internal Clearance: CN. Bearing Material: Chrome steel. Dynamic Load Rating: 11.2 kN. Static Load Rating: 6.55 kN. Limiting Speed: 9 500 r/min. Item Weight: 0.106 kg (0.23 lb) each. GTIN: 7316570020984.
63005 — the wide-section variant of the 6005 size: the same 25 mm bore and 47 mm outside diameter carried in a 16 mm width instead of 12 mm.
2RS1 — a contact rubber seal pressed into each side of the outer ring, retaining the factory grease charge.
No clearance suffix — normal radial internal clearance, CN.
The extra 4 mm of width over a 6005 buys a longer ball path and a stiffer ring section, so the bearing takes more radial load and more misalignment-free axial load in the same bore and housing bore.
Contact seals rub on the inner ring land, so they exclude wet grit and washdown rather than just dry dust. That is why the limiting speed of 9 500 r/min sits below what an open or shielded version of the same size would reach.
Dynamic Load Rating 11.2 kN sets the L10 life; Static Load Rating 6.55 kN sets the limit on permanent raceway indentation at rest and under shock.
Sealed and grease-filled from the factory, so the bearing runs without a housing grease supply.

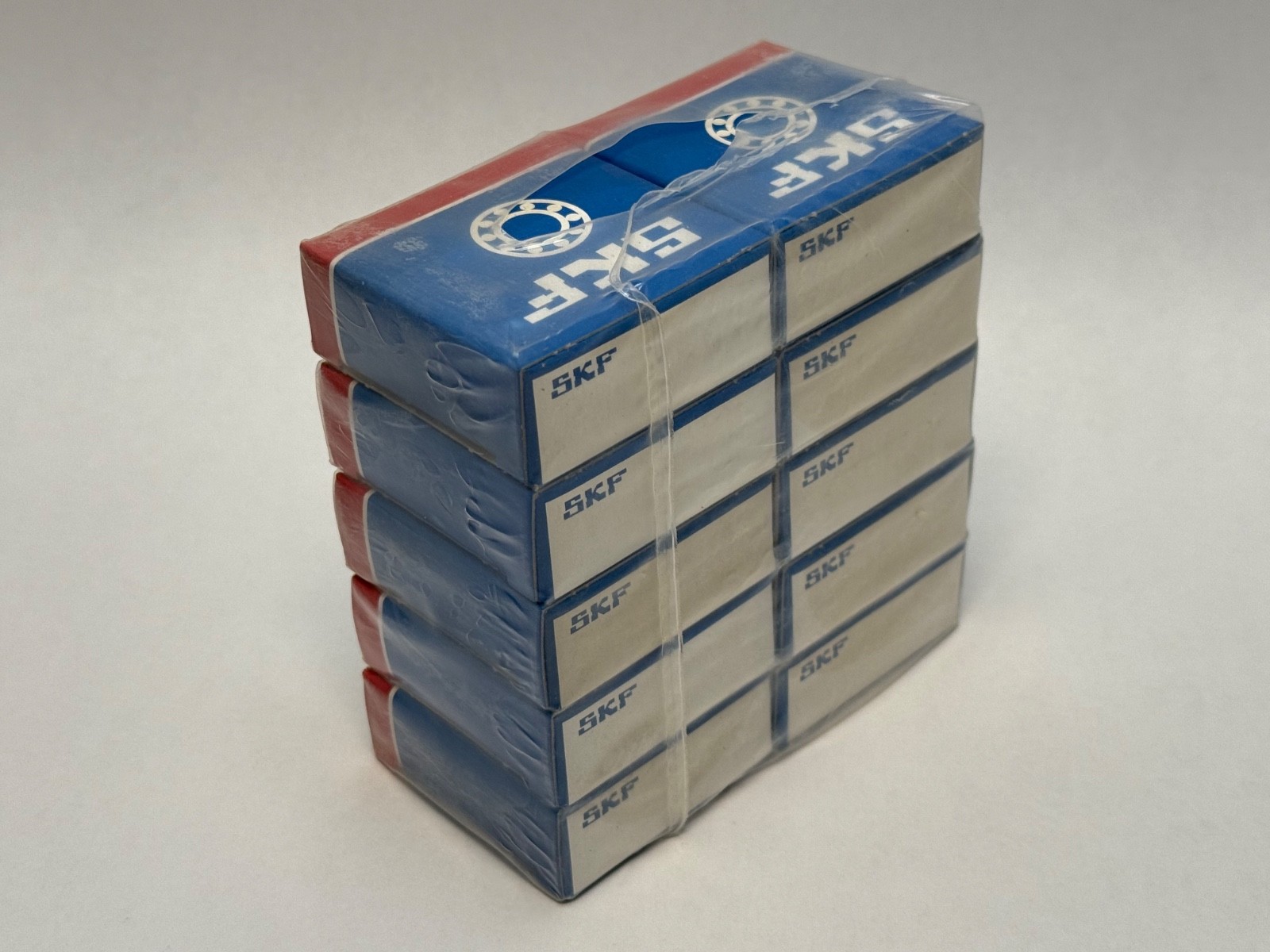

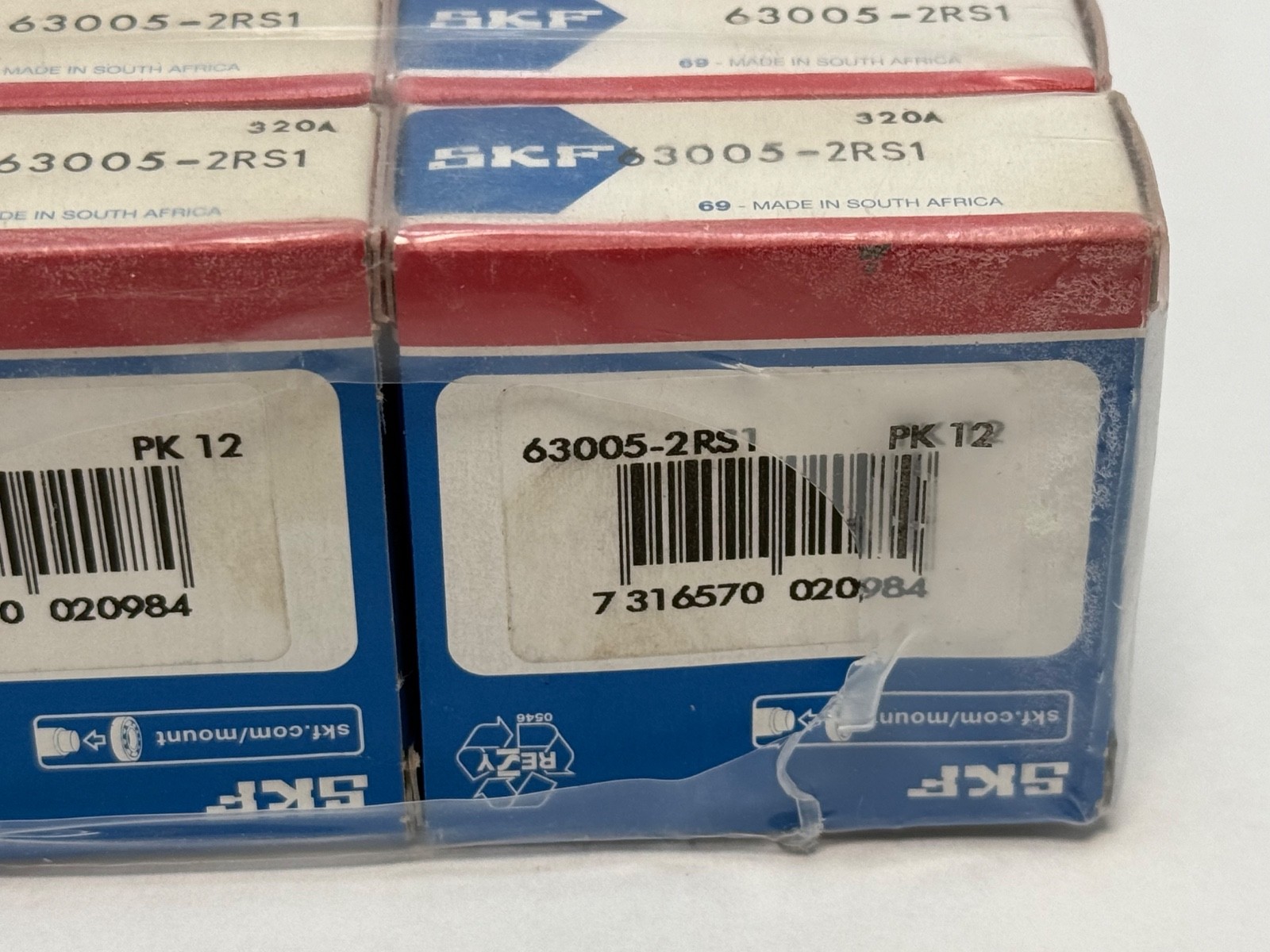

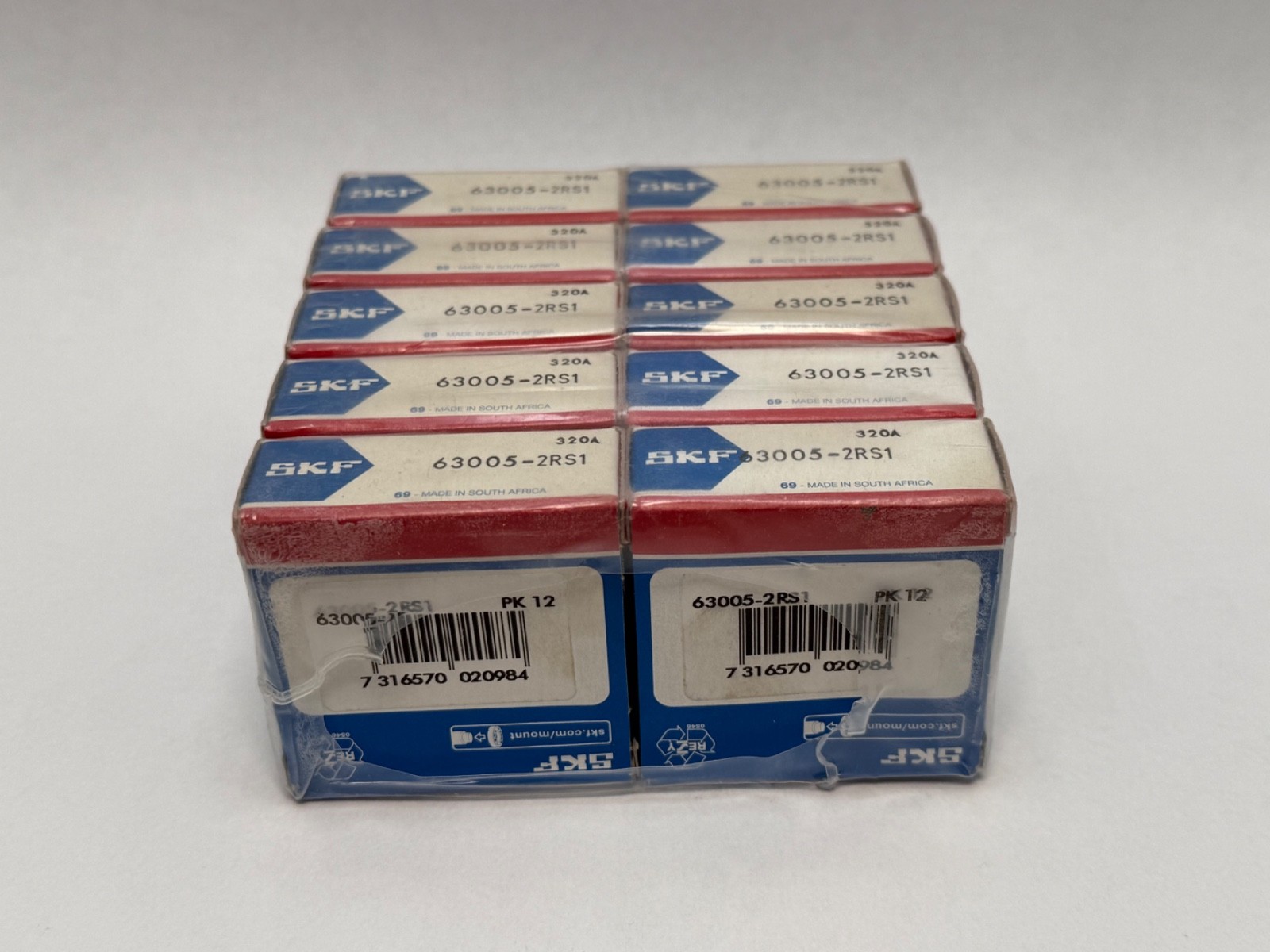

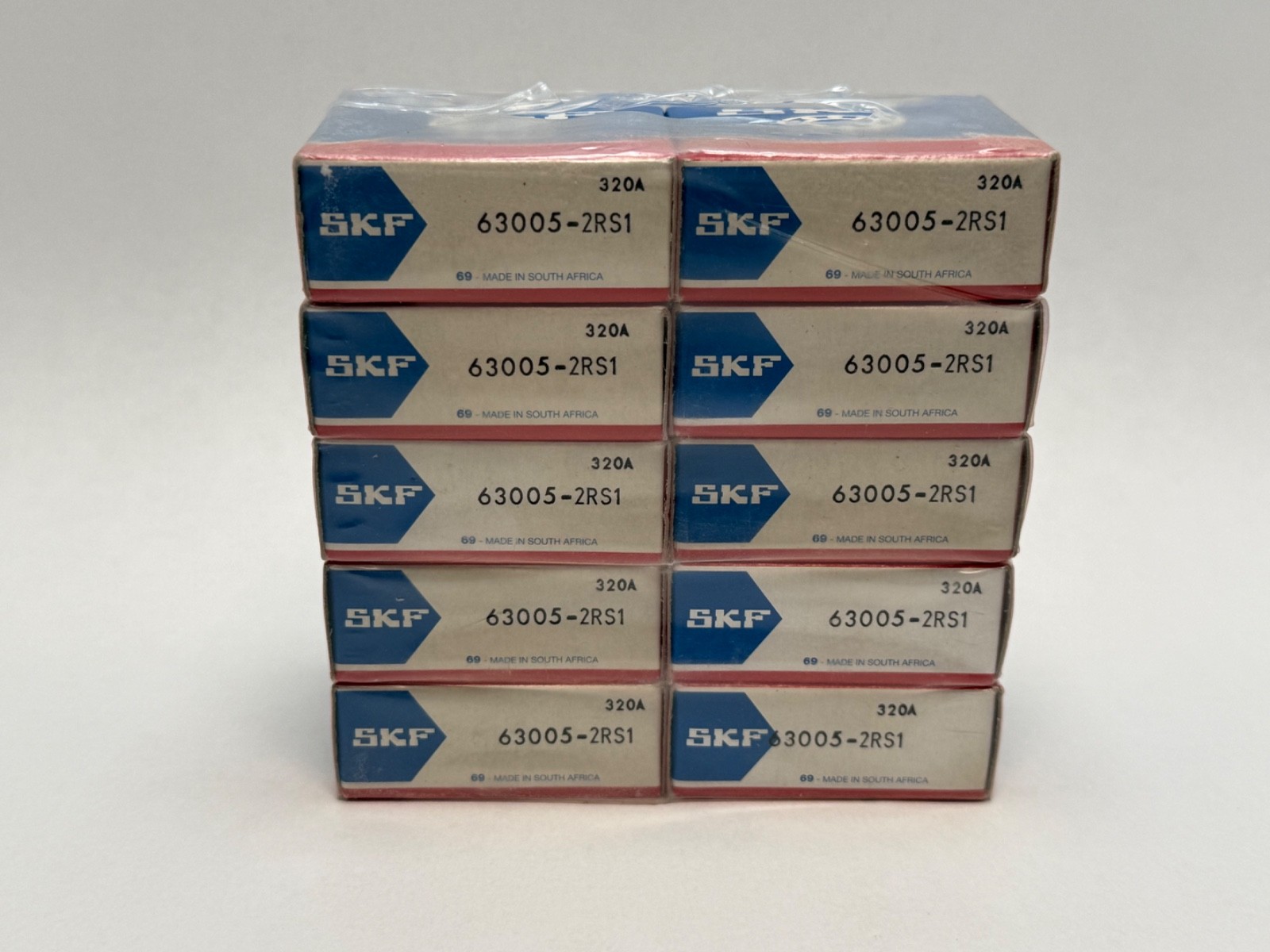

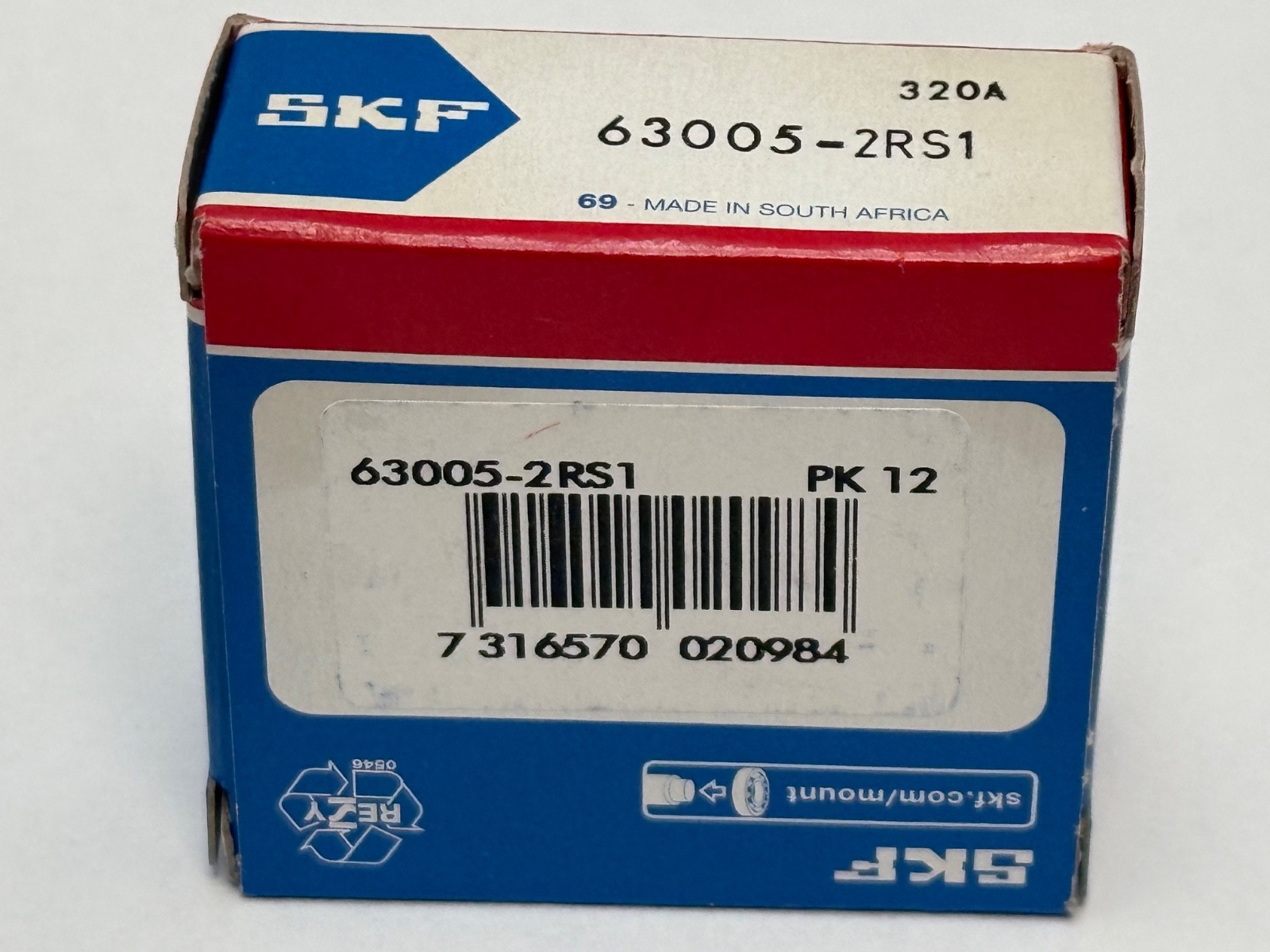

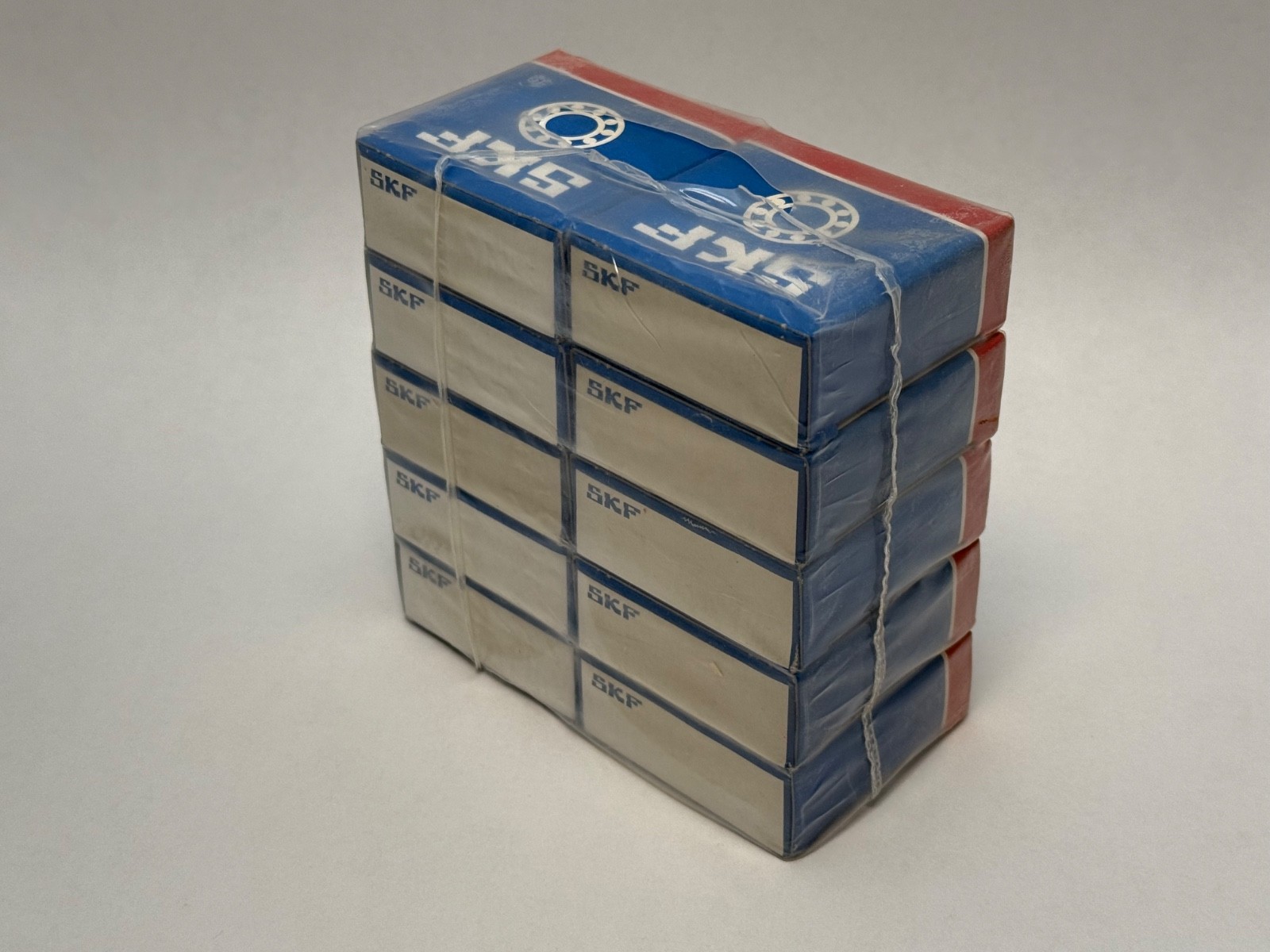

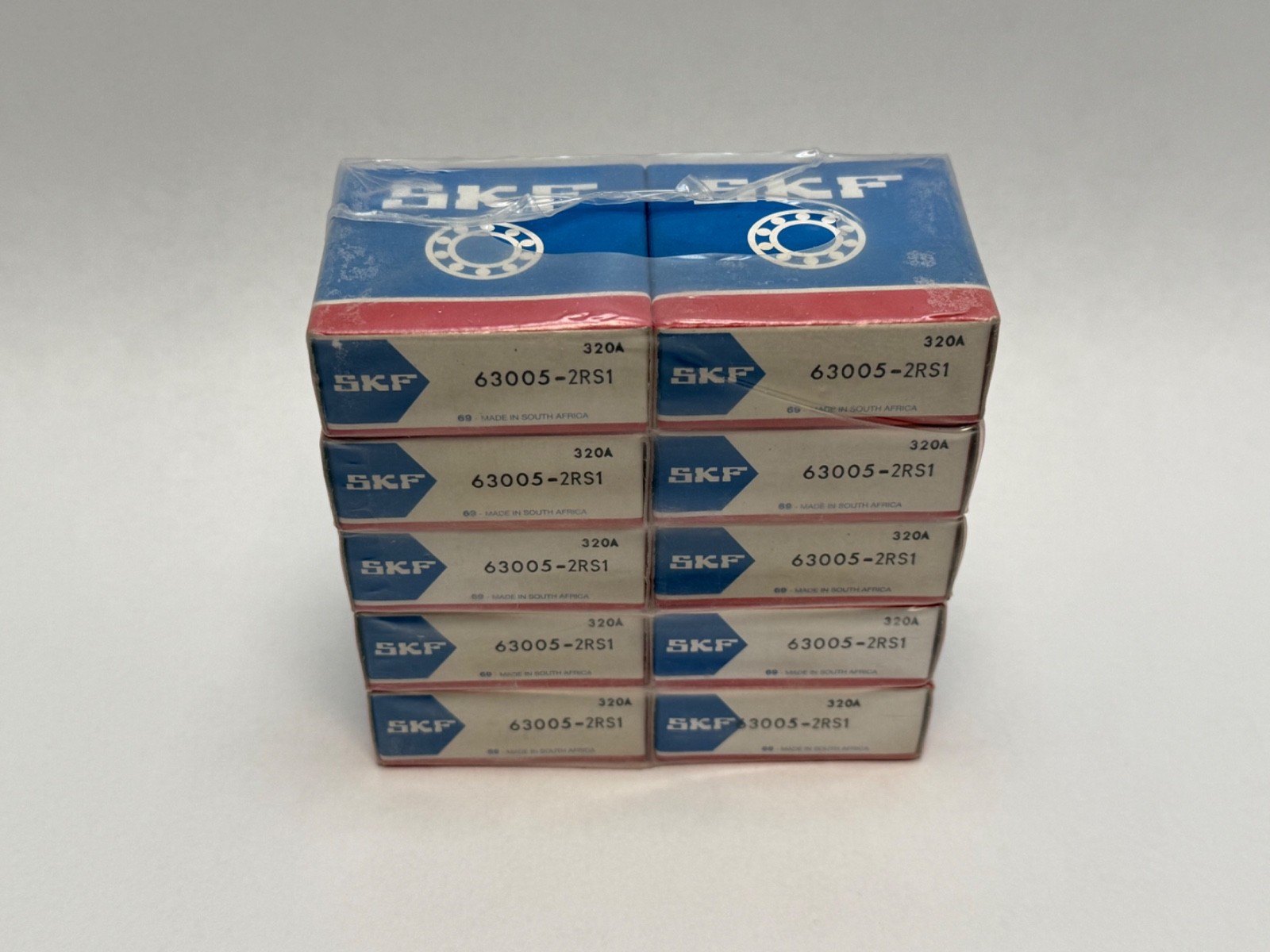

Unit Quantity: 10 Pcs. Ten individual bearings supplied together, each sealed on both sides on a straight bore.
63005-2RS is the same execution under the shortened seal code. 6005-2RS1 shares the 25 mm bore and 47 mm outside diameter in the narrower 12 mm width, with lower ratings. 63005-2Z is the shielded version of this bearing.
Searchable designation forms: 63005-2RS1, 63005 2RS1, 63005-2RS, 63005RS, 63005 2RS, 63005.
