Super precision deep groove ball bearing, 12 mm bore, 32 mm OD, 10 mm wide, ABEC 7 / P4, open, machined phenolic cage. Crosses to Fafnir MM201K.
List Price
$21.00
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | 6201TBHP4 |
| Model | 6201 TBH P4 / ABEC 7 |
| Bearing Type | Ball Bearing, Open |
| ID | 12 mm |
| OD | 32 mm |
| Width | 10 mm |
| Material | Bearing Steel |
|---|---|
| Series | 6200 |
| Category Id | 35701 |
| Currency | USD |
| Mpn Variants | 6201TBHP4, 6201-TBH-P4, 6201P4, 6201 TBH P4, MM201KCR |
| Precision Class | ABEC 7 / P4 |
| Cage Type | Machined, inner-ring centred |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Harmonization Code | 8482.10.50.68 |
| Industry Terms | super precision deep groove bearing; P4 deep groove ball bearing; ABEC 7 ball bearing; phenolic cage spindle bearing; 12x32x10 precision bearing |
| Common Misspellings | 6201 TBH P4 RHP; RHP 6201-TB-P4; 6201TBH P4; RPH 6201TBHP4; 6201TBHP-4 |
| Application Types | Machine tool spindles; indexing tables; high speed precision shafts; precision instruments |
| Closure Type | Open |
| Cross Reference 1 | Fafnir MM201K |
|---|---|
| Cross Reference 2 | SKF 6201/P4 |
| Cross Reference 3 | NSK 6201 P4 |

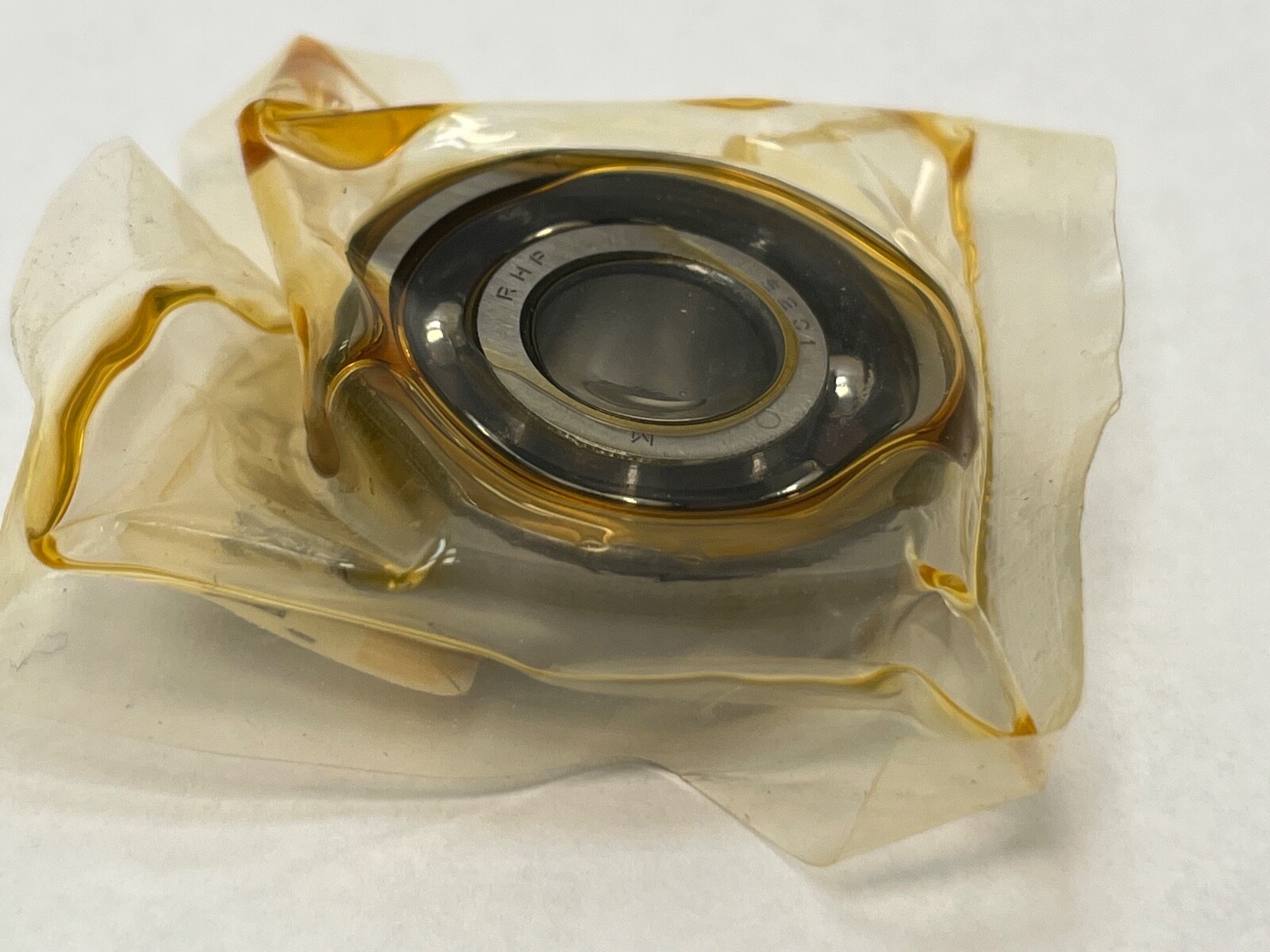

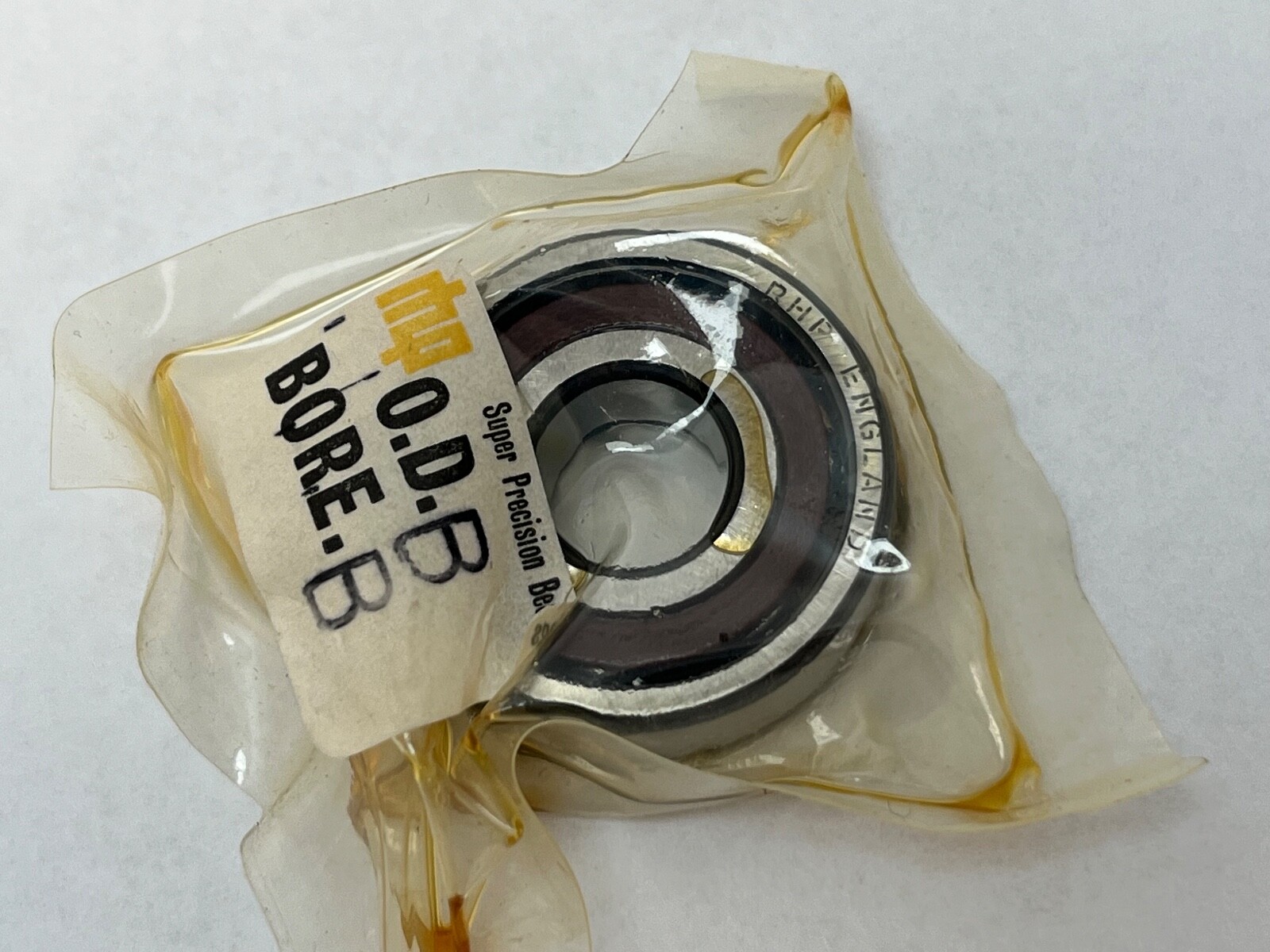

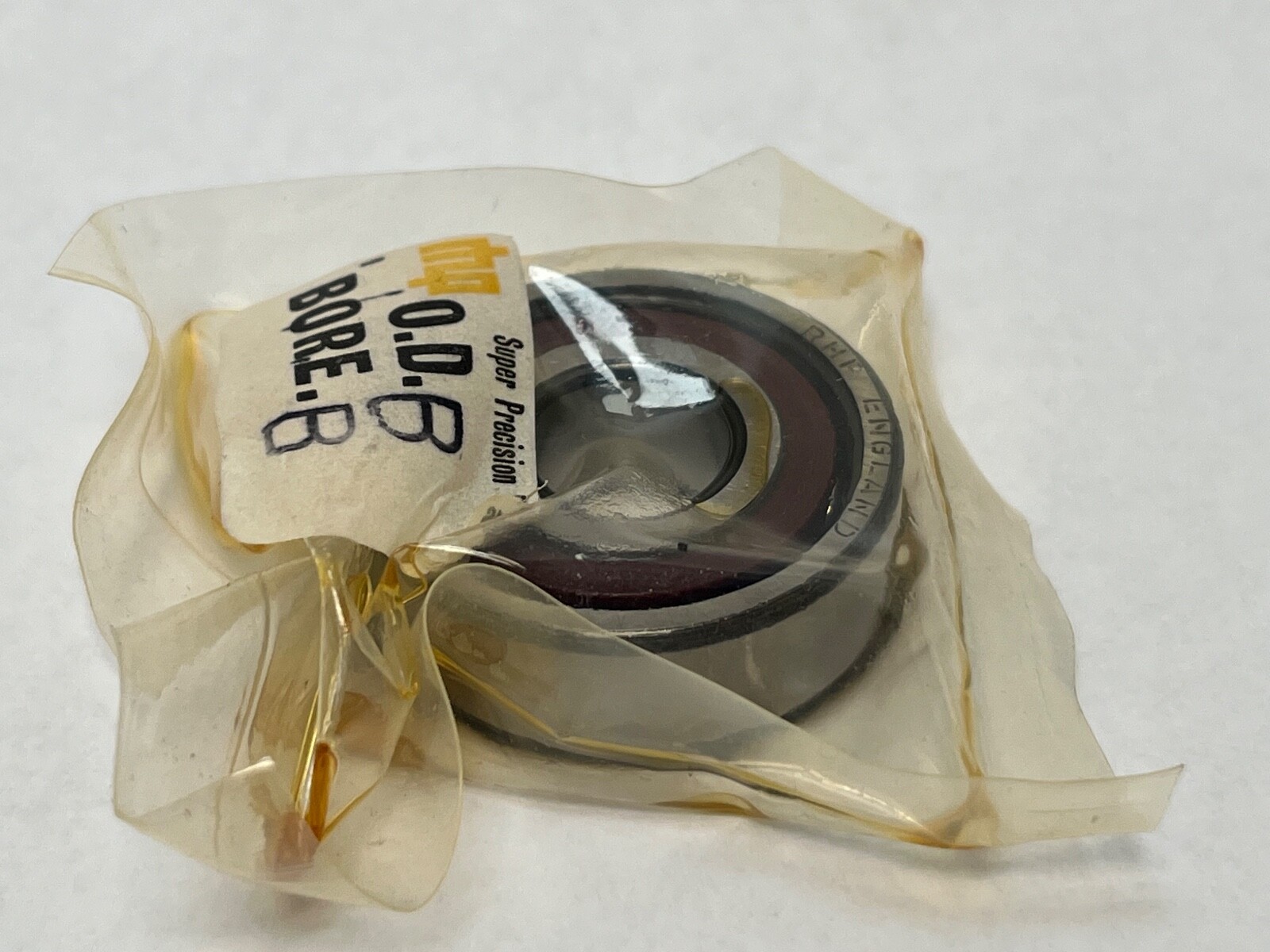

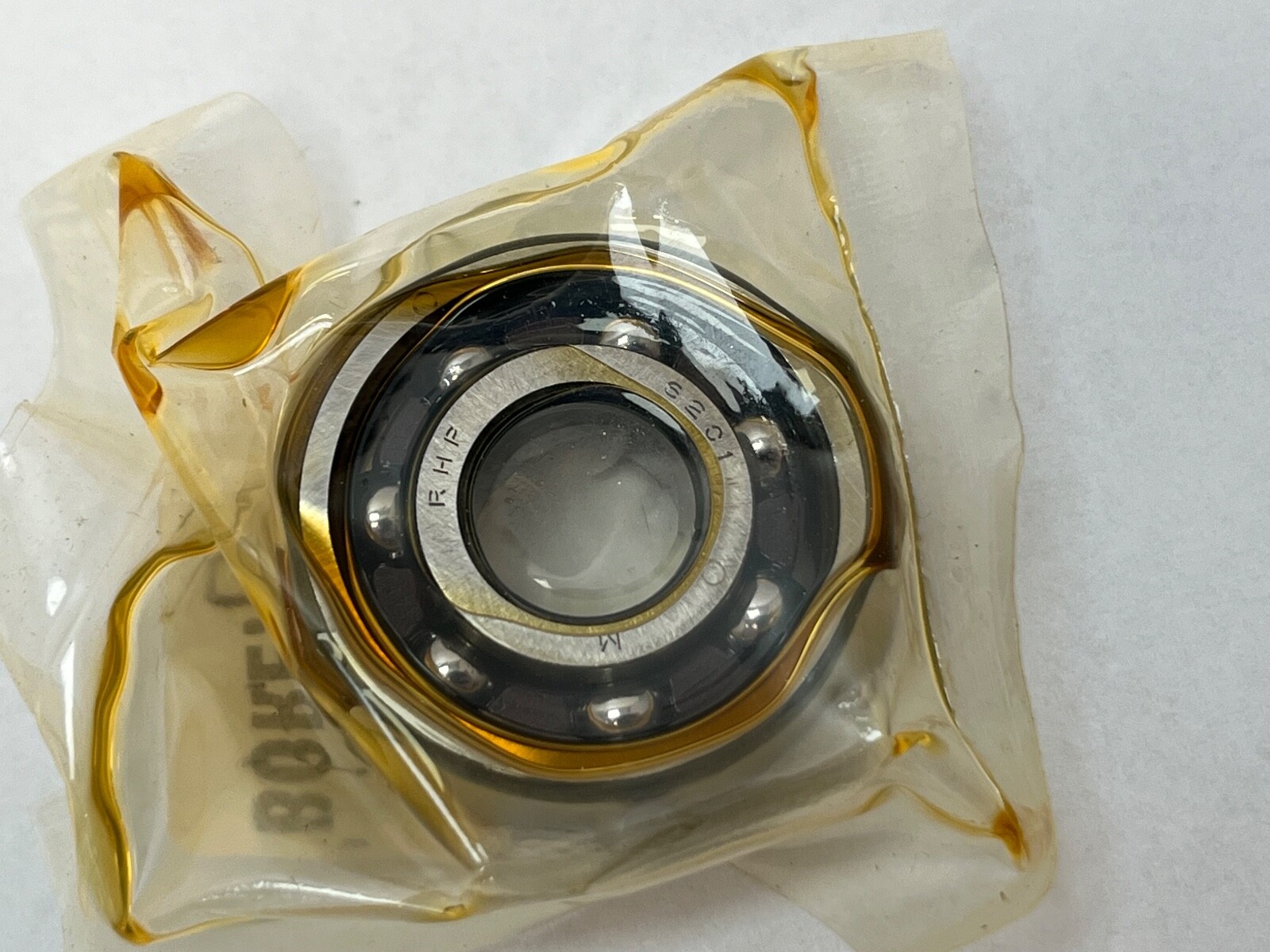

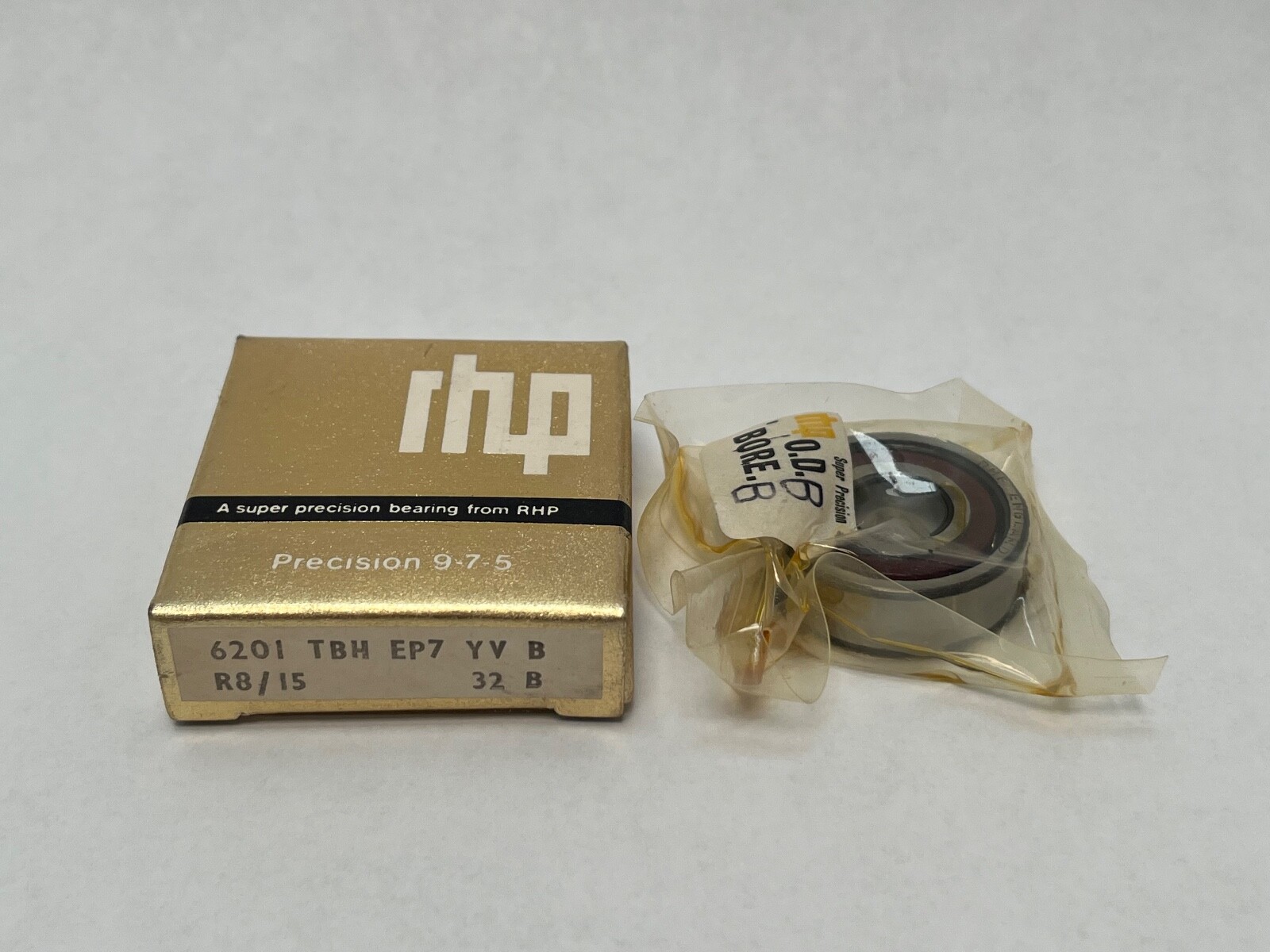

RHP 6201TBHP4 is a super precision single-row deep groove ball bearing in the ISO 6201 envelope, with a machined phenolic cage and an open design. Unit Quantity: 1 Pc.
6201 — ISO deep groove series 62, bore code 01 = 12 mm.
TB — one-piece machined laminated phenolic cage, inner-ring centred.
P4 — ISO P4 tolerance class, equivalent to ABEC 7.
Bore Diameter: 12 mm. Outside Diameter: 32 mm. Overall Width: 10 mm. Precision Class: ABEC 7 / P4. Cage Material: Phenolic. Cage Type: Machined, inner-ring centred. Closure Type: Open. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Series: 6200.
Bore Diameter: 12 mm. Outside Diameter: 32 mm. Overall Width: 10 mm.
Cross-references: Fafnir MM201K, SKF 6201/P4, NSK 6201 P4. Each is a 12 x 32 x 10 mm deep groove ball bearing in the P4 class. MPN variants: 6201TBHP4, 6201-TBH-P4, 6201P4, 6201 TBH P4, MM201KCR.
12 mm bore, 32 mm outside diameter, 10 mm width.
ISO P4, equivalent to ABEC 7.
A one-piece machined laminated phenolic cage, inner-ring centred.
