Availability:
1 in stock
Deep groove ball bearing, 55 x 100 x 21 mm, contact seals both sides, C3 clearance, Shell Alvania S2 grease. 48,000 N dynamic rating, 4,300 rpm.
List Price
$30.40
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| MPN | 6211LLUC3 |
| Model | 6211LLU C3 / 2AS |
| Bearing Type | Ball Bearing, Contact seals both sides |
| ID | 55 mm |
| OD | 100 mm |
| Width | 21 mm |
| Series | 6200 |
|---|---|
| Lubricant | Polyrex EM |
| Material | High Carbon Chrome Steel |
| Mpn Variants | 6211LLUC3/2AS, 6211LLUC3, 6211LLU C3 2AS, 6211LU |
| Precision Class | ABEC 1 / P0 |
| Dynamic Load Rating | 48,000 N |
| Static Load Rating | 29,200 N |
| Rolling Elements | Ball |
| Item Weight | 0.610 kg (1.336 lb) |
| Cage Material | Pressed steel |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 4,300 rpm grease |
| Internal Clearance | C3 |
| Duty Type | Standard Duty |
| Harmonization Code | 8482.1 |
| Cross Reference 1 | SKF 6211-2RS1/C3 |
|---|---|
| Cross Reference 2 | FAG 6211-2RSR-C3 |
| Cross Reference 3 | NSK 6211DDUC3 |
| Cross Reference 4 | Koyo 6211-2RS-C3 |
| Cross Reference 5 | TIMKEN 6211-2RS-C3 |

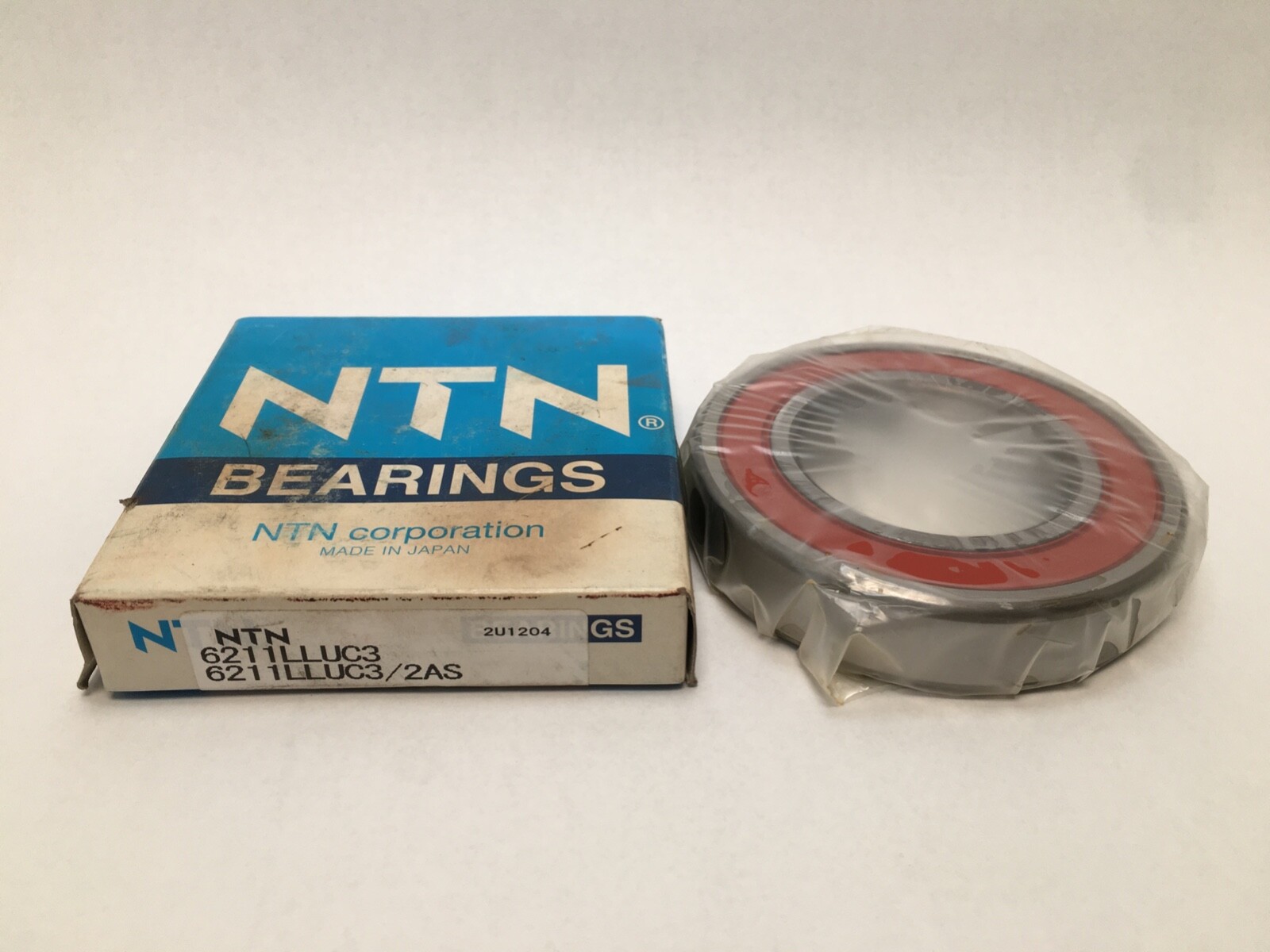

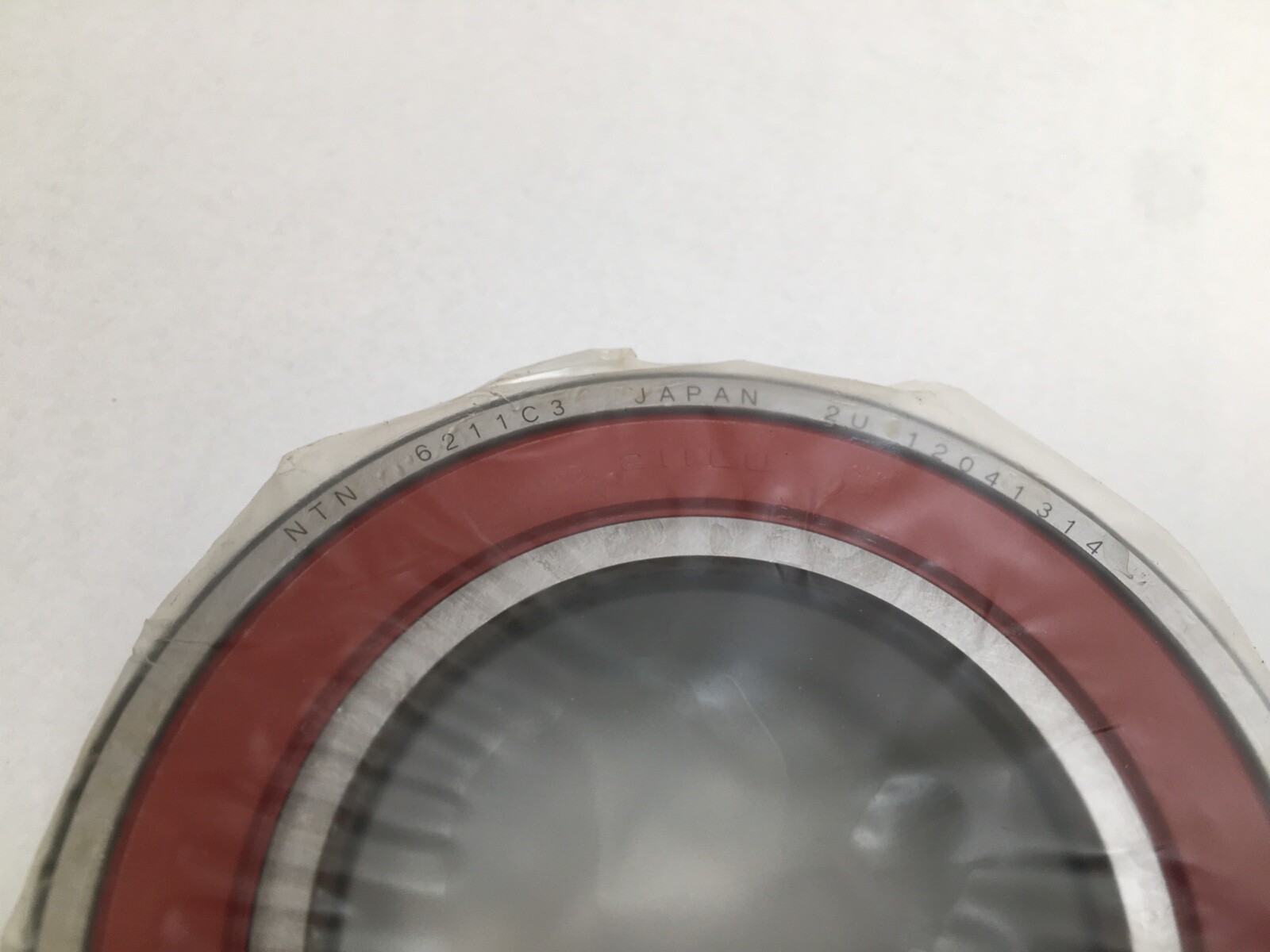

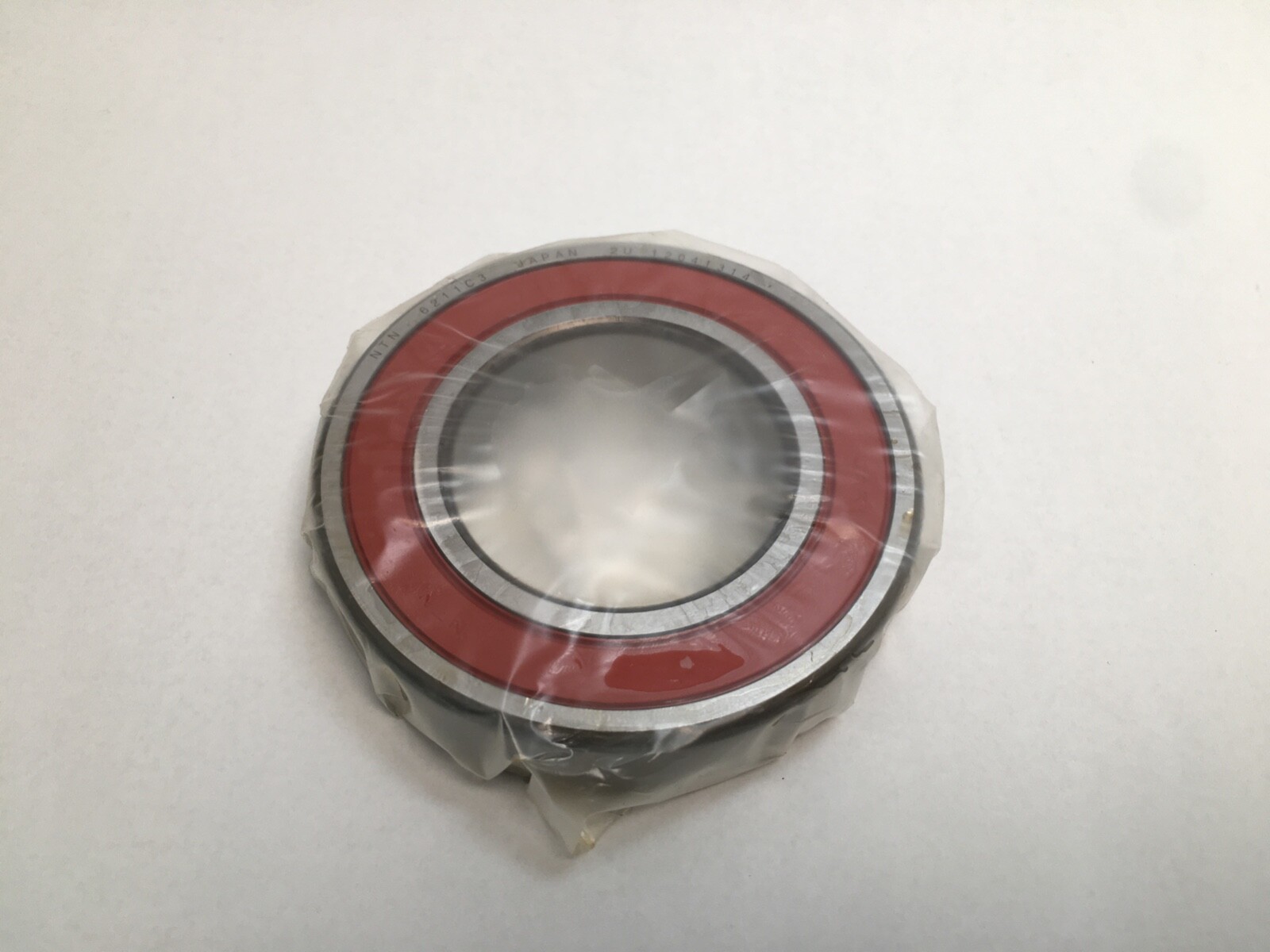

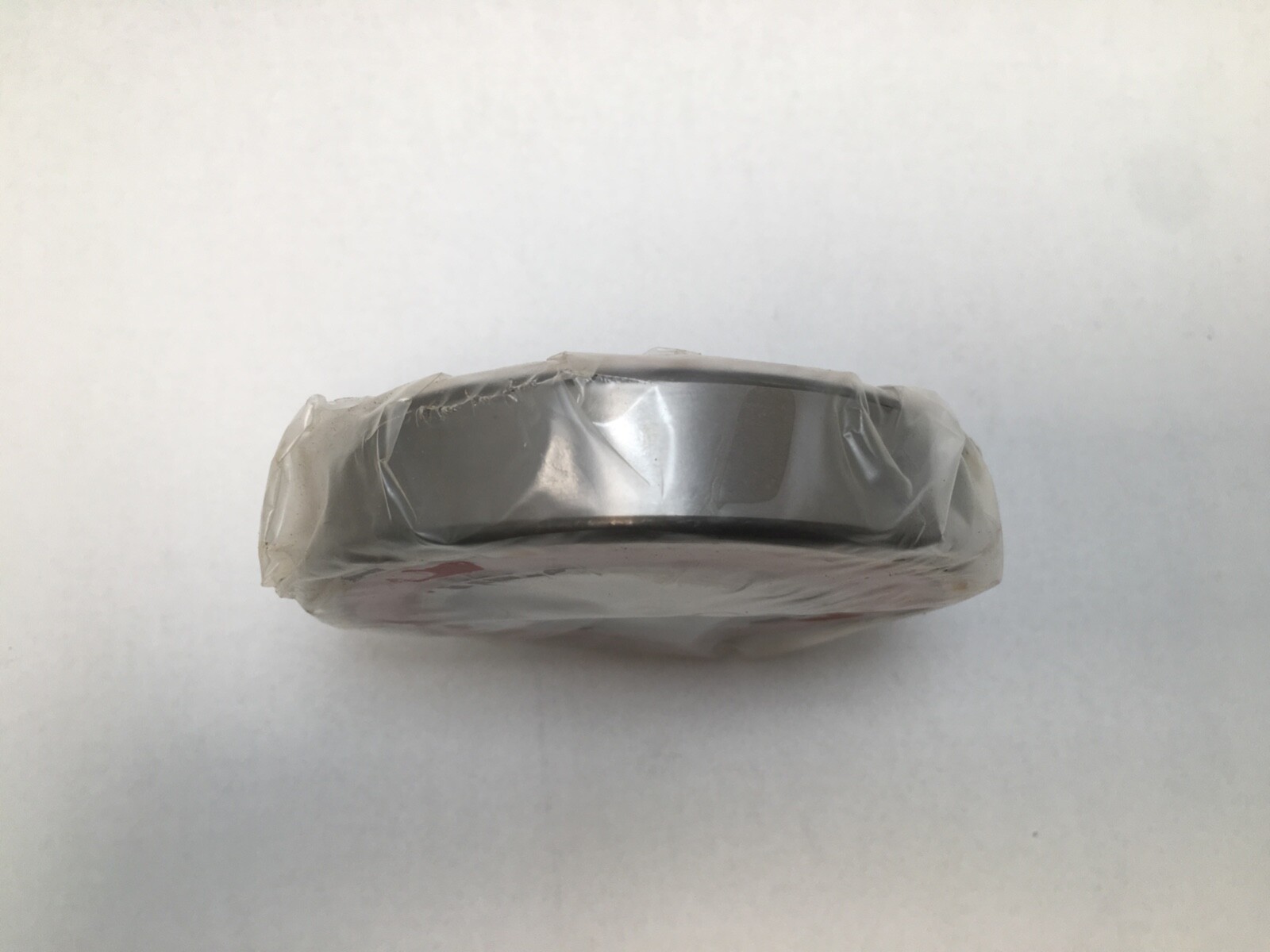

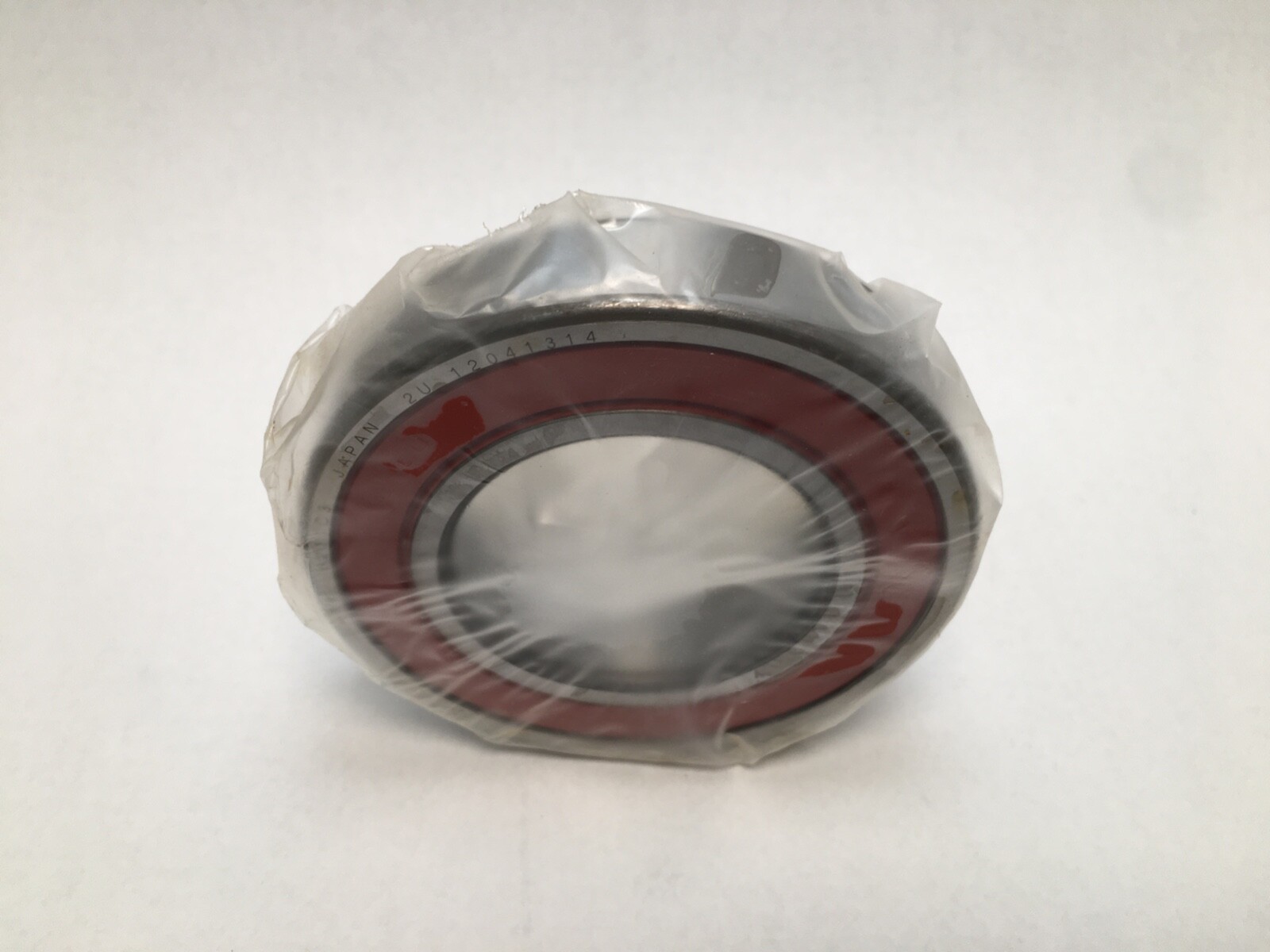

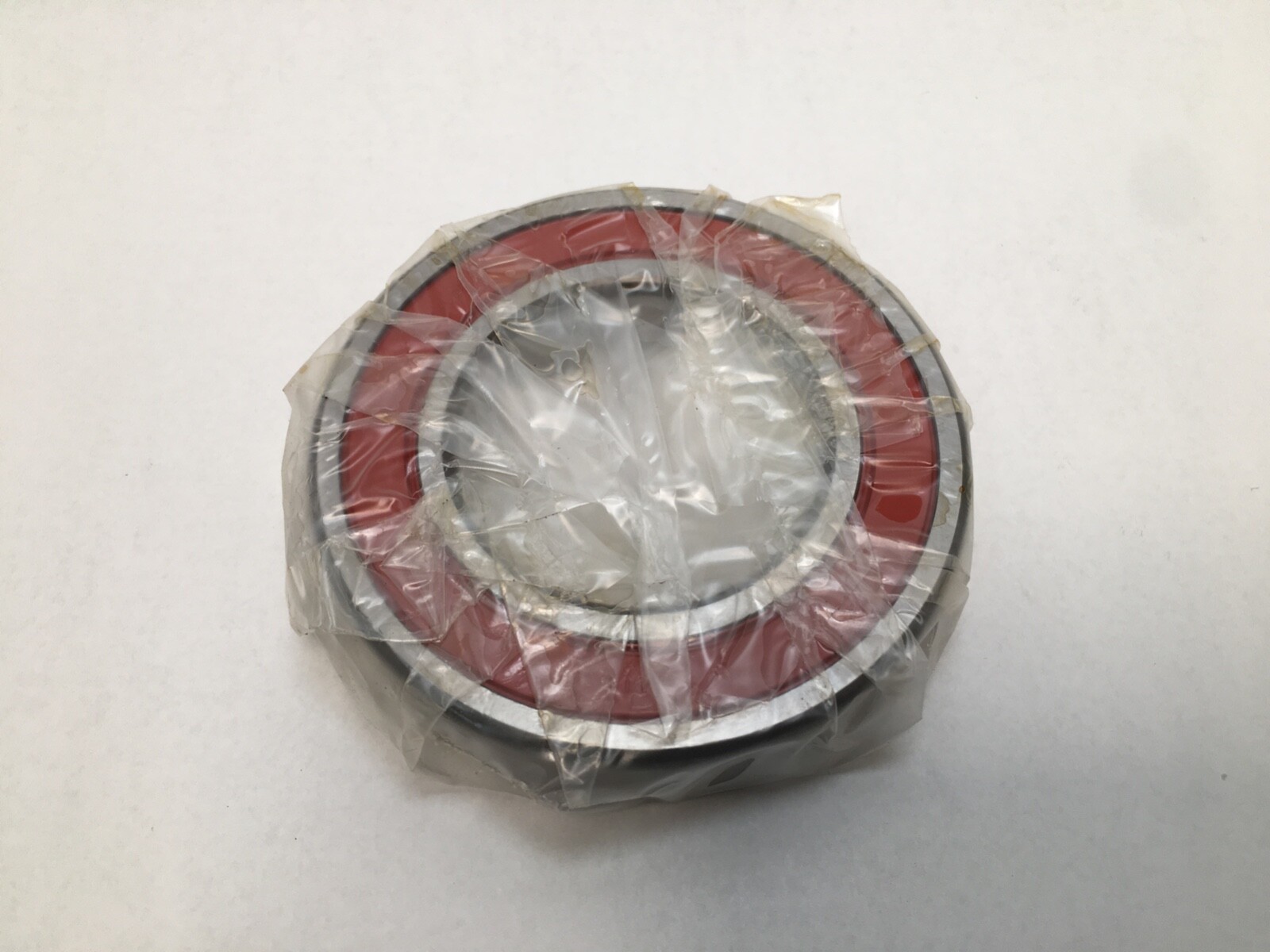

NTN 6211LLUC3/2AS single-row deep groove ball bearing with contact rubber seals on both sides. Bore Diameter: 55 mm. Outside Diameter: 100 mm. Overall Width: 21 mm. Seal Type: Contact seals both sides. Internal Clearance: C3. Lubricant: Shell Alvania S2 grease. Cage Material: Pressed steel. Precision Class: ABEC 1 / P0.
6211 — single-row deep groove ball bearing, 02 dimension series, bore code 11: 55 x 100 x 21 mm.
LLU — nitrile rubber contact seals on both sides.
C3 — radial internal clearance greater than normal.
2AS — factory grease fill, Shell Alvania S2.
Dynamic Load Rating: 48,000 N. Static Load Rating: 29,200 N. Limiting Speed: 4,300 rpm grease. Item Weight: 0.610 kg (1.336 lb). Contact seals keep contaminants out and grease in, and the bearing is lubricated for life. C3 clearance takes up thermal expansion and tight fits, common in electric motors.
Fillet Radius r min: 1.5 mm. Housing Abutment Diameter Da max: 92 mm. Max Abutment Fillet ras: 1.5 mm.
Unit Quantity: 1 Pc.
Same 55 x 100 x 21 mm envelope, double contact seals and C3 clearance: SKF 6211-2RS1/C3, FAG 6211-2RSR-C3, NSK 6211DDUC3, Koyo 6211-2RS-C3, Timken 6211-2RS-C3.
