Availability:
4 in stock
Deep groove ball bearing, 70 x 125 x 24 mm, non-contact seals both sides, C3 clearance, 68,500 N dynamic load rating; NSK 6214VVC3E electric motor grade.
List Price
$44.17
4 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NSK |
|---|---|
| MPN | 6214VVC3E |
| Model | 6214 VV C3 E |
| Bearing Type | Ball Bearing, Non-contact seals both sides |
| ID | 70 mm |
| OD | 125 mm |
| Width | 24 mm |
| Series | 6200 |
|---|---|
| Dynamic Load Rating | 68,500 N |
| Static Load Rating | 44,000 N |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Ball |
| Item Weight | 1.09 kg (2.40 lb) |
| Cage Material | Pressed steel |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 6,000 rpm grease |
| Harmonization Code | 8482.10.50 |
| Internal Clearance | C3 |
| Mpn Variants | 6214VVC3E; 6214VVC3; 6214VV C3 E; 6214-VV-C3-E |
| Precision Class | ABEC 1 / P0 |
| Additional Attributes | Electric motor grade (E). Number of balls: 10. Ball diameter: 17.462 mm. Shaft abutment 78-84 mm, housing abutment 117 mm max, fillet 1.5 mm max. |
| Closure Type | Non-contact seals both sides |
| Cross Reference 1 | NTN 6214LLBC3 - non-contact seals, C3 |
|---|---|
| Cross Reference 2 | SKF 6214-2RZ/C3 - non-contact seals, C3 |

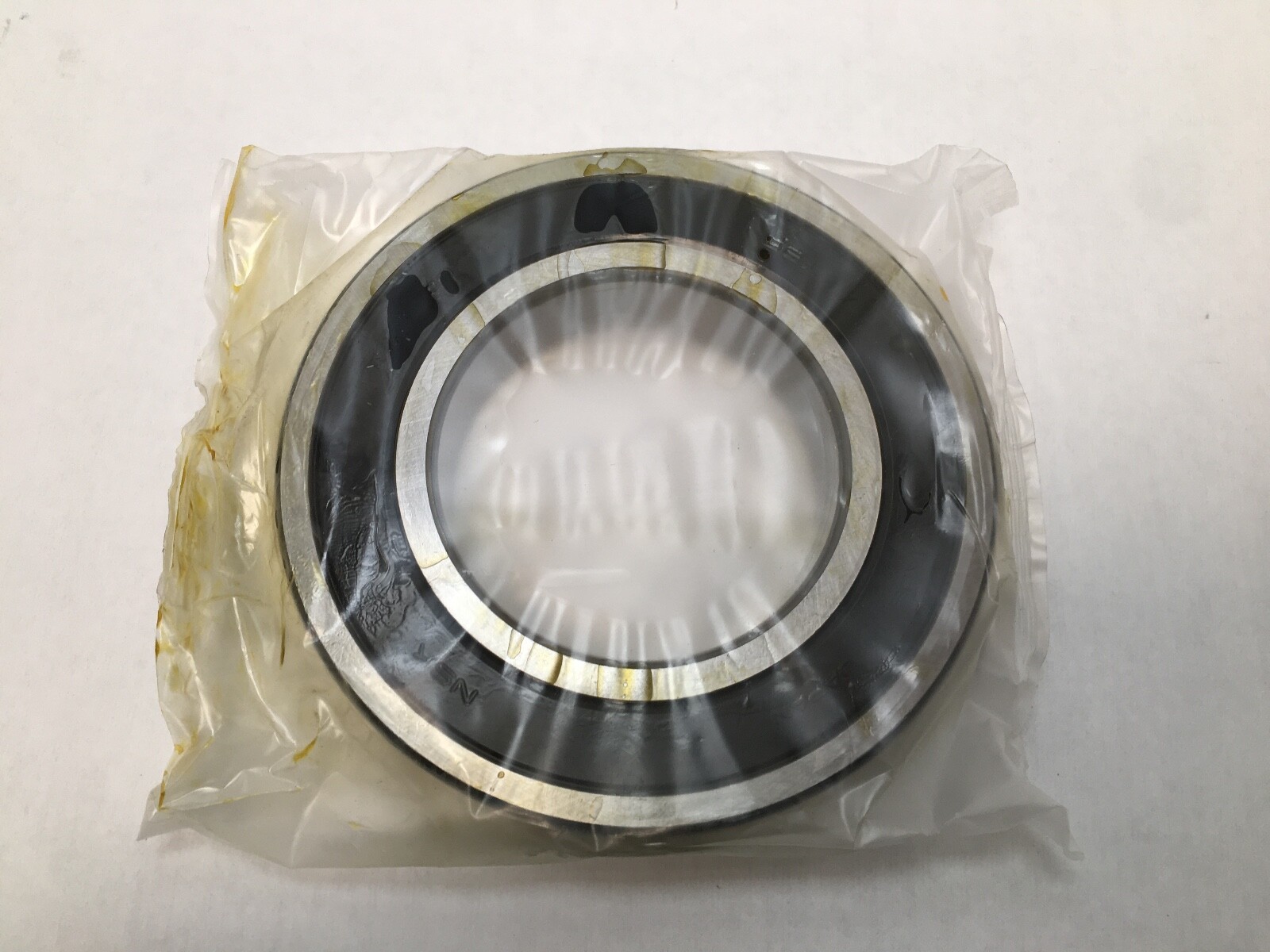

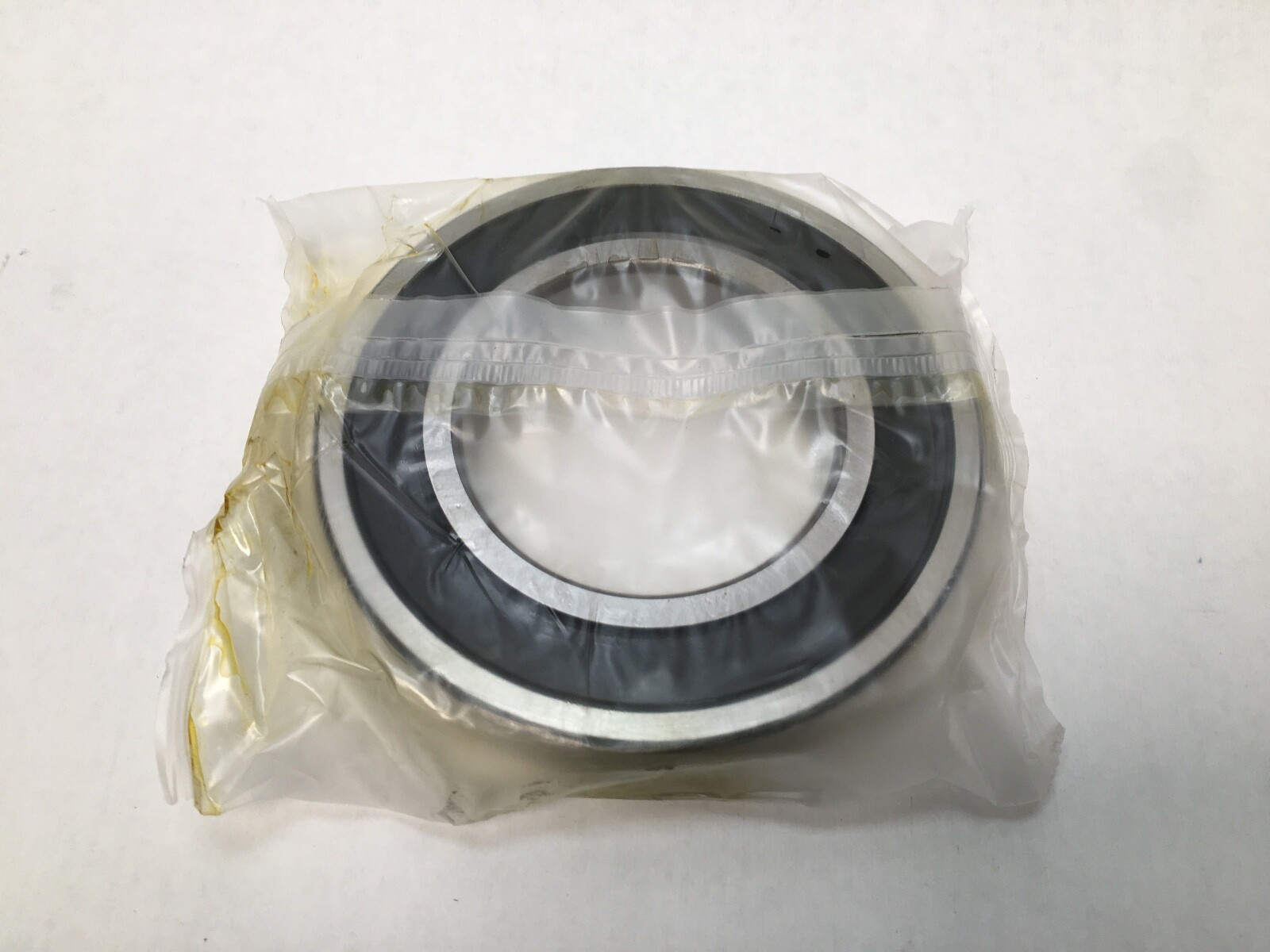

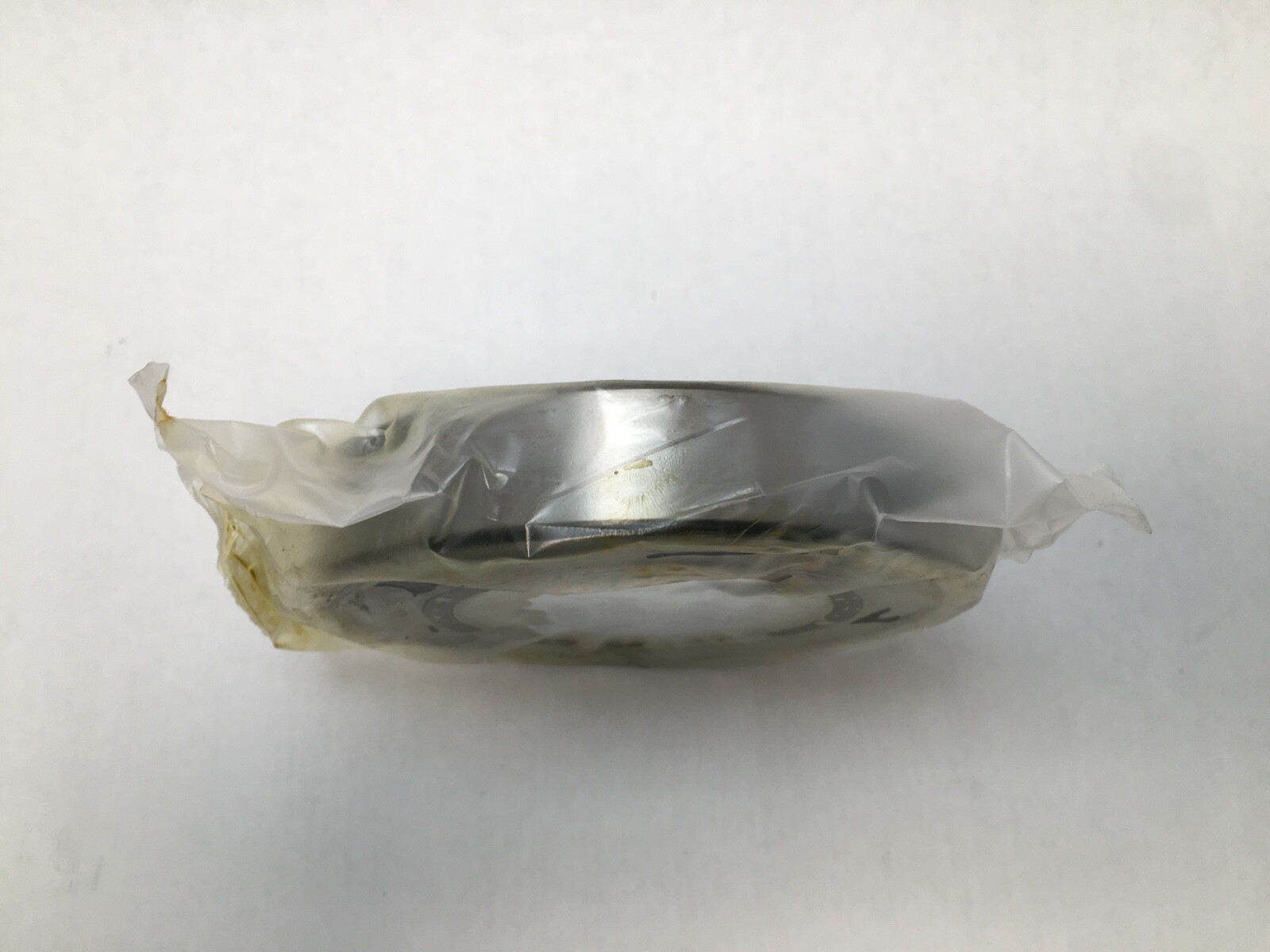

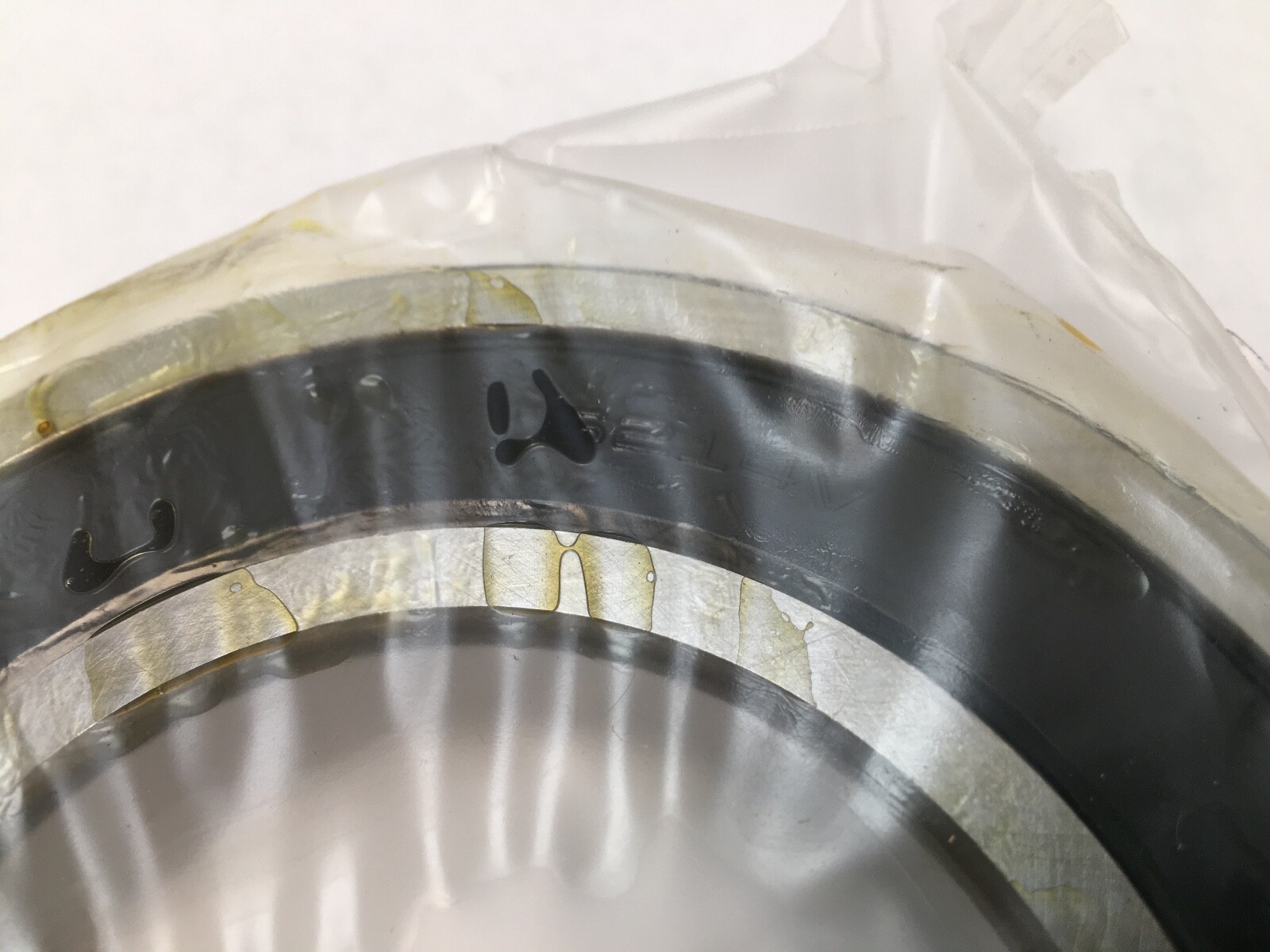

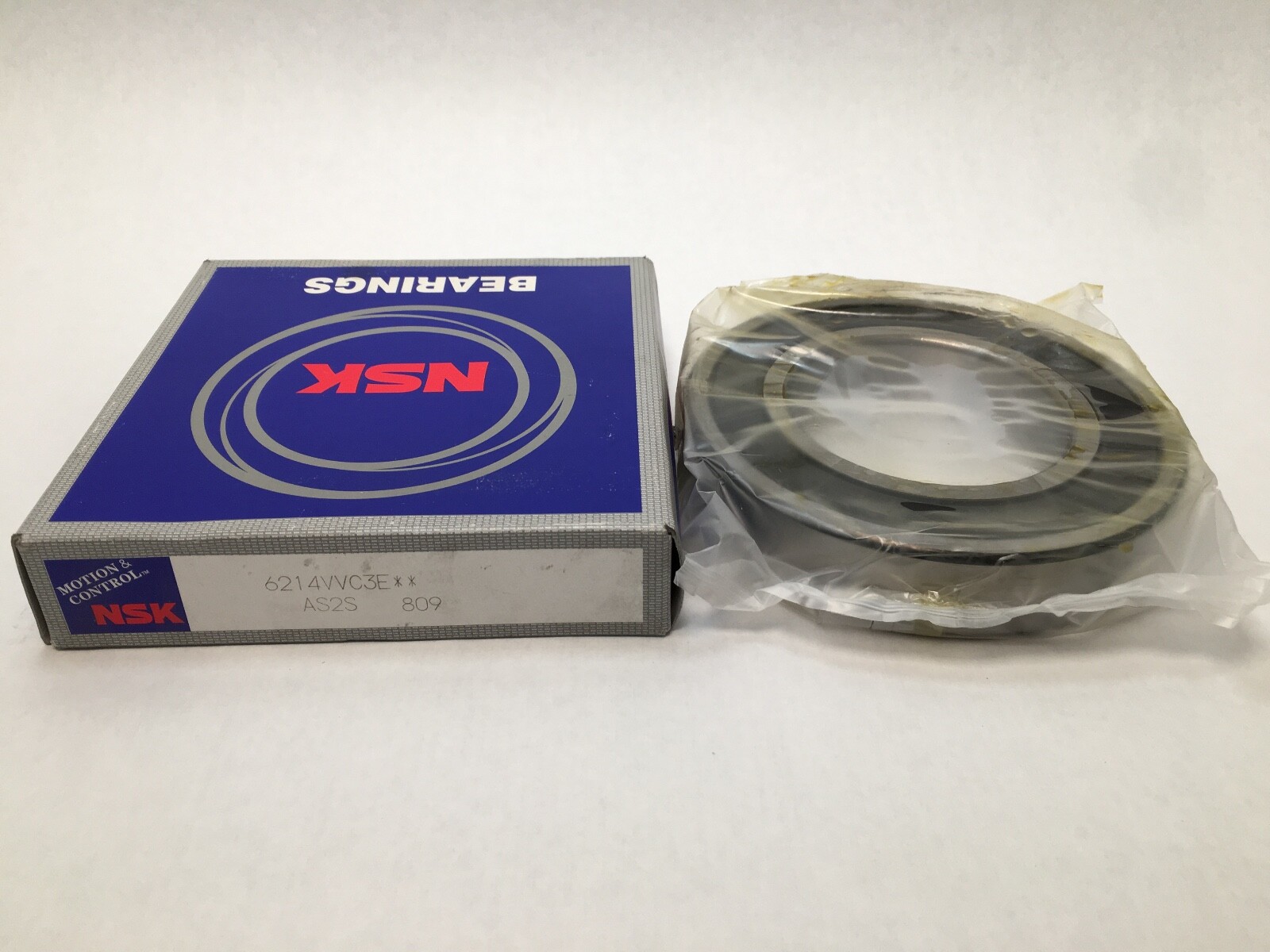

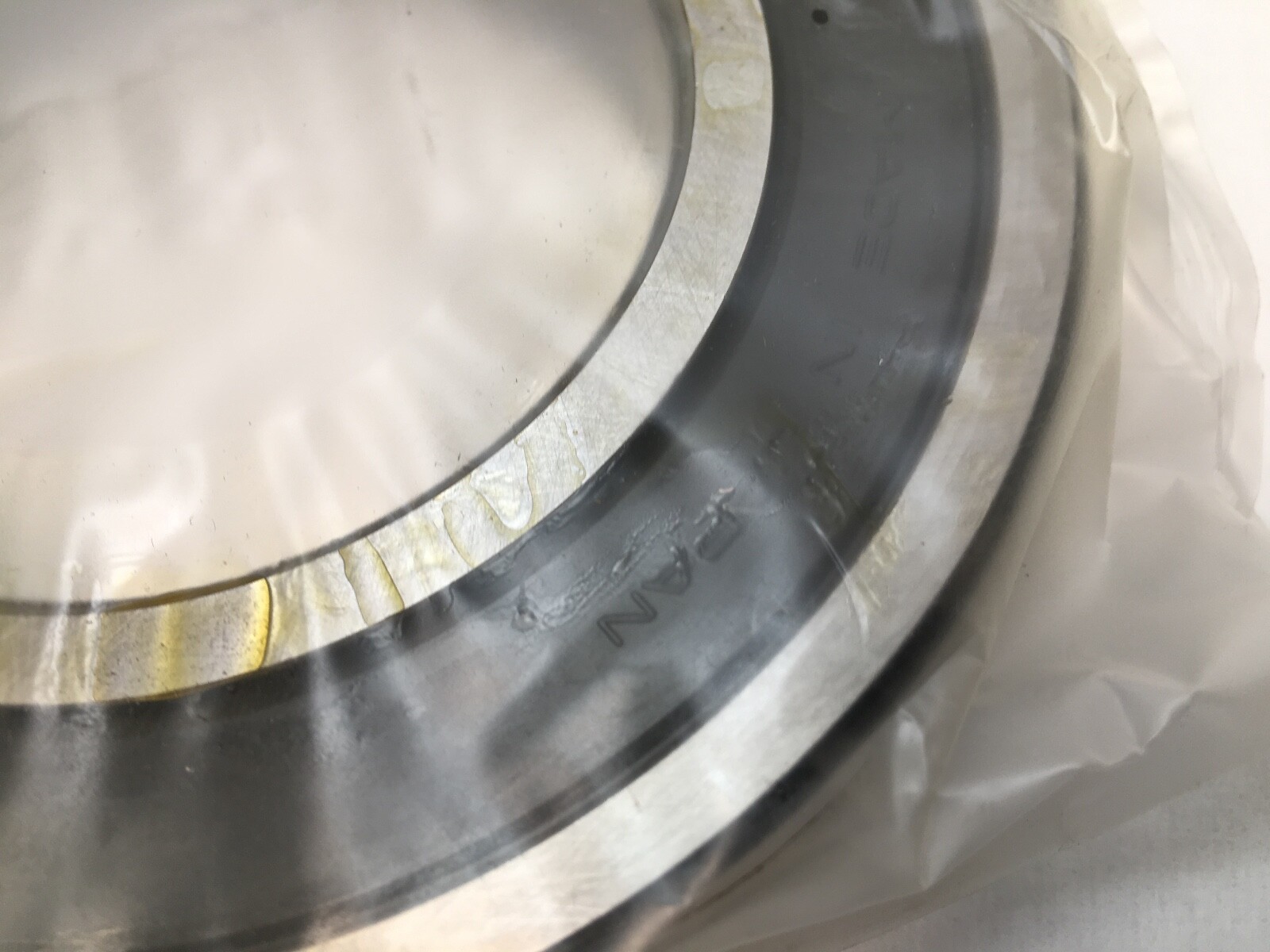

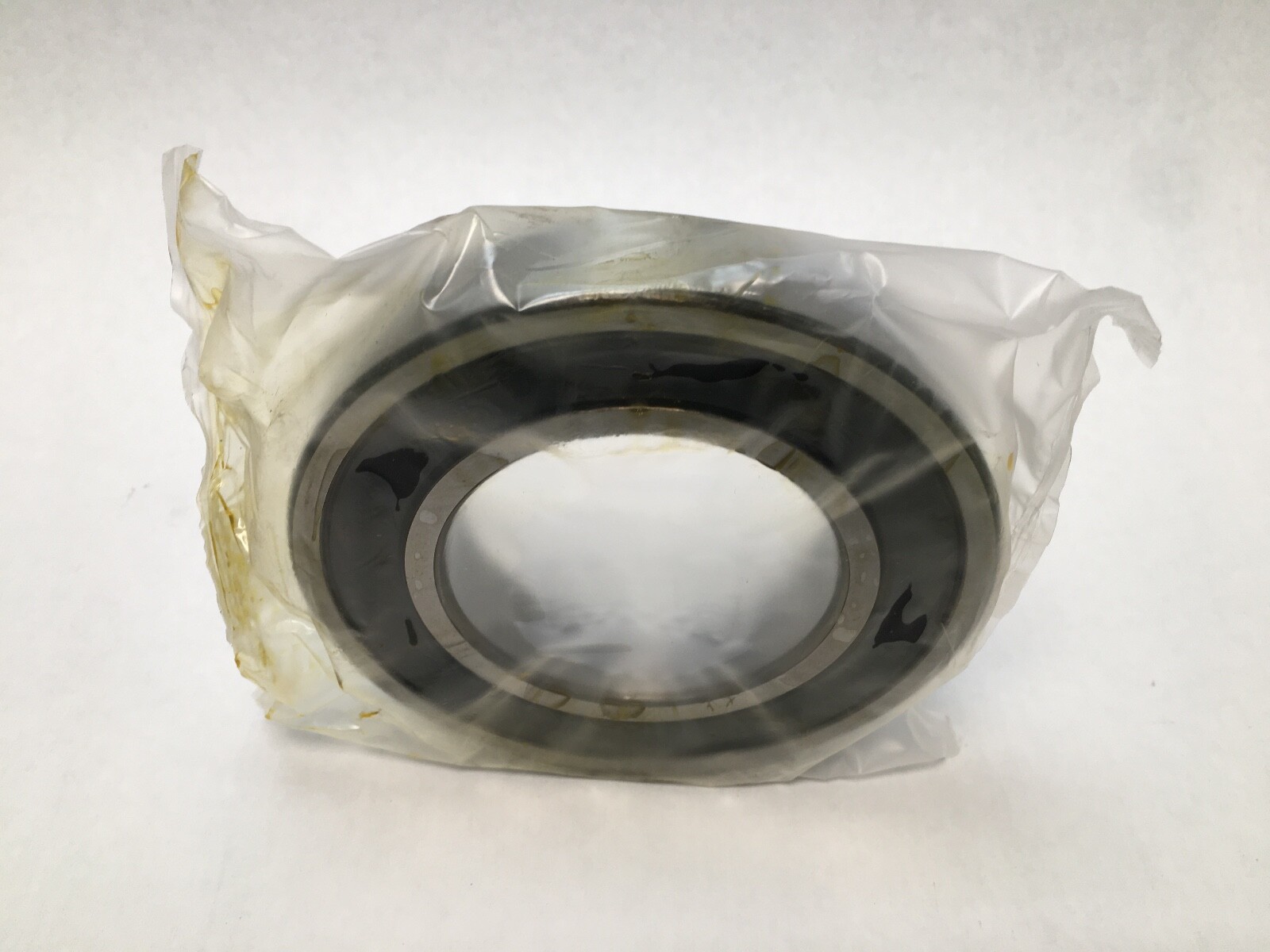

NSK 6214VVC3E is a single-row deep groove ball bearing in the 62 light series with non-contact rubber seals on both sides, C3 internal clearance and electric motor grade. Bore Diameter: 70 mm. Outside Diameter: 125 mm. Overall Width: 24 mm. Unit Quantity: 1 Pc.
62 — NSK single-row deep groove ball bearing, light 62 series.
14 — bore code; 14 x 5 = 70 mm bore.
VV — non-contact rubber seals on both sides.
C3 — radial internal clearance greater than normal.
E — NSK electric motor grade.
Bore Diameter: 70 mm.
Outside Diameter: 125 mm.
Overall Width: 24 mm.
Dynamic Load Rating: 68,500 N.
Static Load Rating: 44,000 N.
Limiting Speed: 6,000 rpm grease.
Internal Clearance: C3.
Precision Class: ABEC 1 / P0.
Cage Material: Pressed steel.
Closure Type: Non-contact seals both sides.
Rolling Elements: Ball.
Number Of Balls: 10.
Ball Diameter: 17.462 mm.
Item Weight: 1.09 kg (2.40 lb).
Snap Ring Included: No.
Shaft Abutment Diameter (da): 78 mm min, 84 mm max. Housing Abutment Diameter (Da): 117 mm max. Maximum Abutment Fillet Radius (ra): 1.5 mm. Minimum Chamfer (r): 1.5 mm.
Closest in the 70 x 125 x 24 mm size with non-contact seals and C3: NTN 6214LLBC3 and SKF 6214-2RZ/C3. Other forms of the number: 6214VVC3E, 6214VV C3 E and 6214-VV-C3-E.
70 mm bore, 125 mm outside diameter and 24 mm width.
VV is NSK’s code for non-contact rubber seals on both sides.
Dynamic load rating 68,500 N and static load rating 44,000 N, with a limiting speed of 6,000 rpm on grease.
