NSK 6200ZZP5 deep groove ball bearing, 10 x 30 x 9 mm, steel shields both sides, P5 class. Cr 5,600 N, C0r 2,390 N, 28,000 rpm grease, pressed steel cage.
List Price
$53.41
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NSK |
|---|---|
| MPN | 6200ZZP5 |
| Model | 6200 ZZ P5 |
| Bearing Type | Ball Bearing, Shields both sides |
| ID | 10 mm |
| OD | 30 mm |
| Width | 9 mm |
| Material | Chrome Steel |
|---|---|
| Series | 62 |
| Lubricant | Grease |
| Dynamic Load Rating | 5,600 N |
| Static Load Rating | 2,390 N |
| Precision Rating | ABEC 5 / P5 |
| Rolling Elements | Ball |
| Item Weight | 0.032 kg |
| Cage Material | Pressed steel |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.68 |
| Internal Clearance | CN |
| Limiting Speed | 28,000 rpm grease |
| Base Number | 6200 |
| Mpn Variants | 6200ZZP5, 6200 ZZ P5, 6200-ZZ-P5, 6200Z, 6200-2Z |
| Precision Class | ABEC 5 / P5 |
| Closure Type | Shields both sides |
| Cross Reference 1 | SKF 6200-2Z (P0 class) |
|---|---|
| Cross Reference 2 | FAG 6200-2Z (P0 class) |
| Cross Reference 3 | NTN 6200ZZ (P0 class) |
| Cross Reference 4 | Koyo 6200ZZ (P0 class) |
| Cross Reference 5 | Fafnir 200KDD (P0 class) |
| Cross Reference 6 | MRC 200SFF (P0 class) |

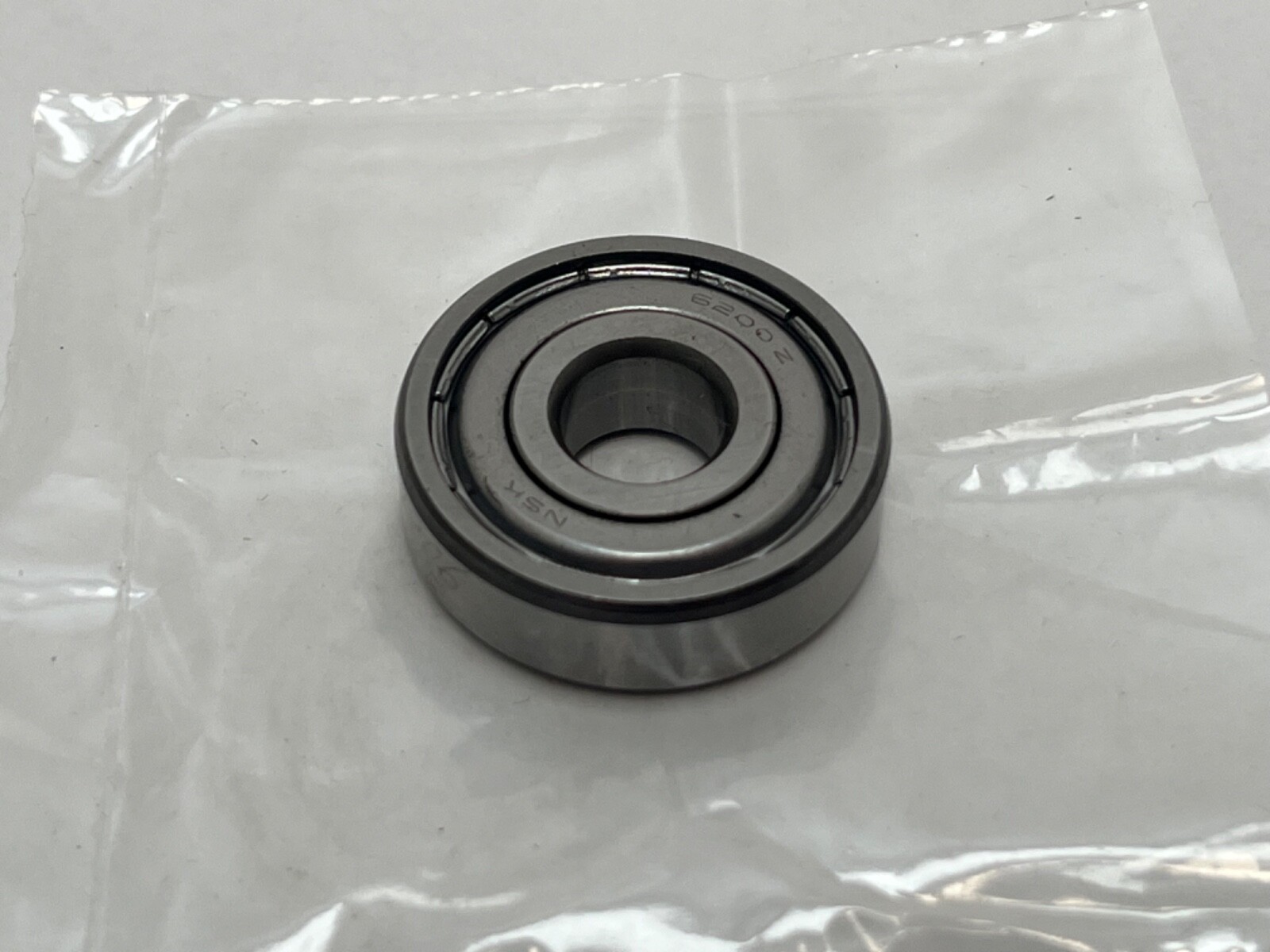

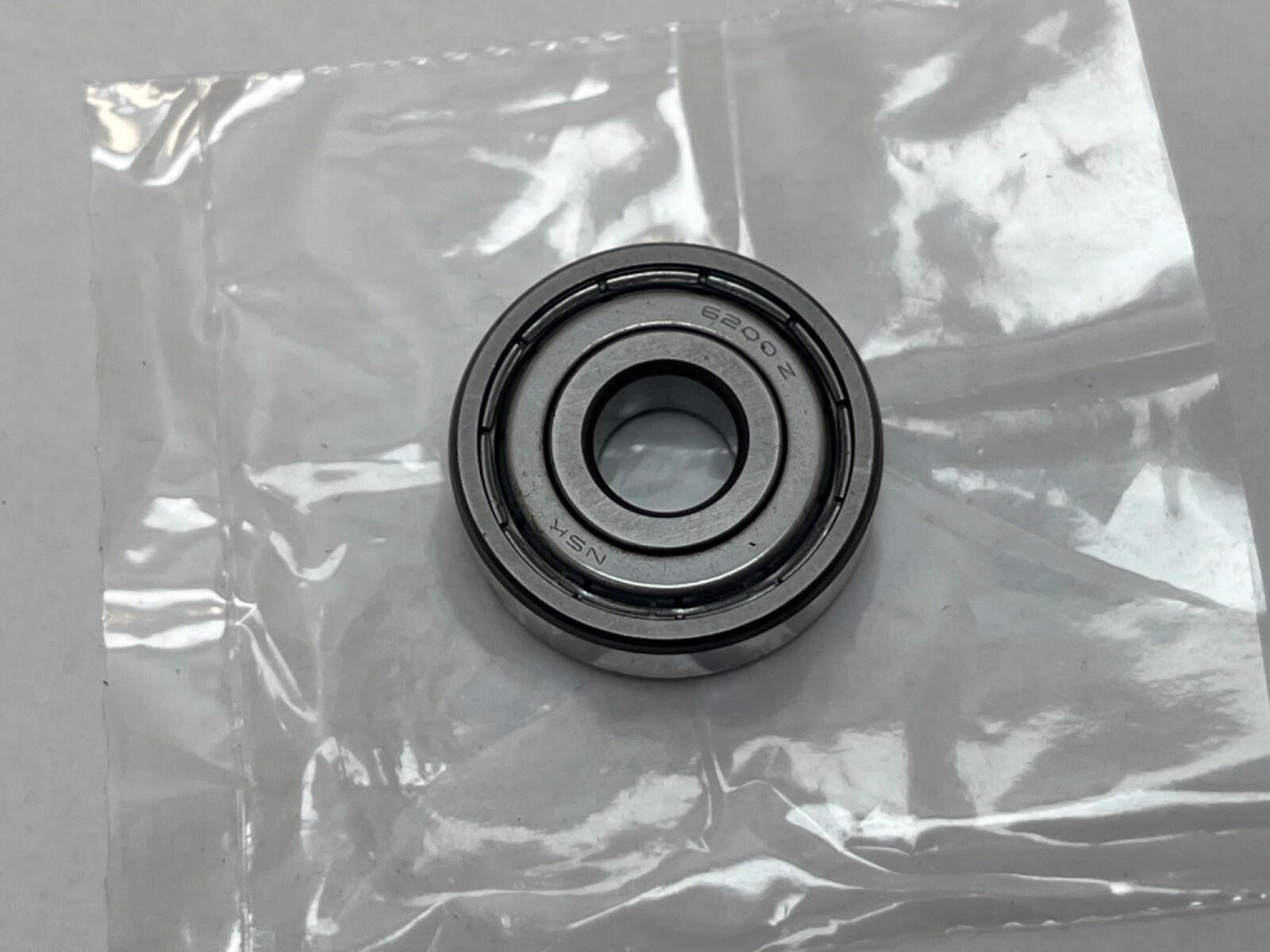

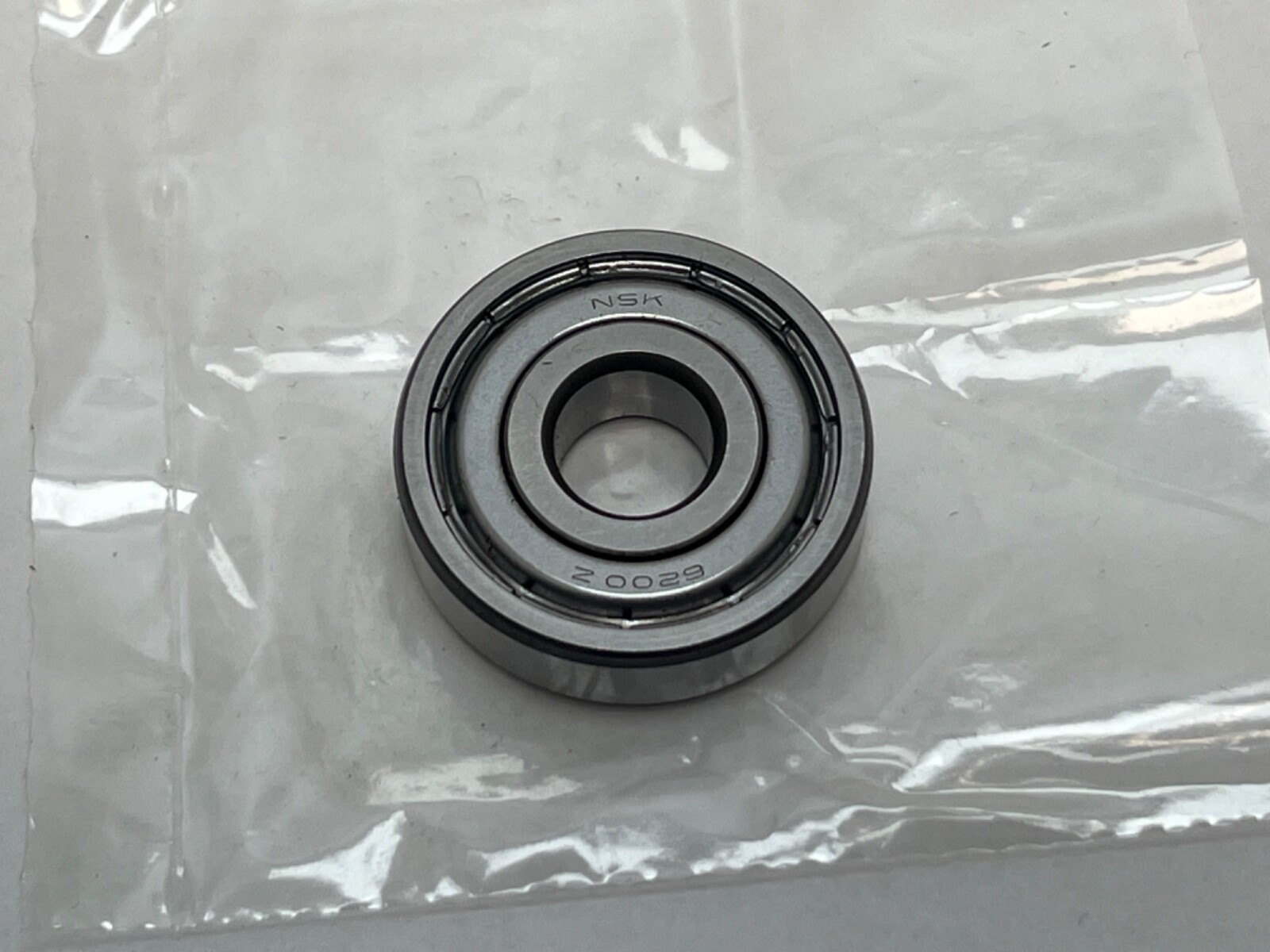

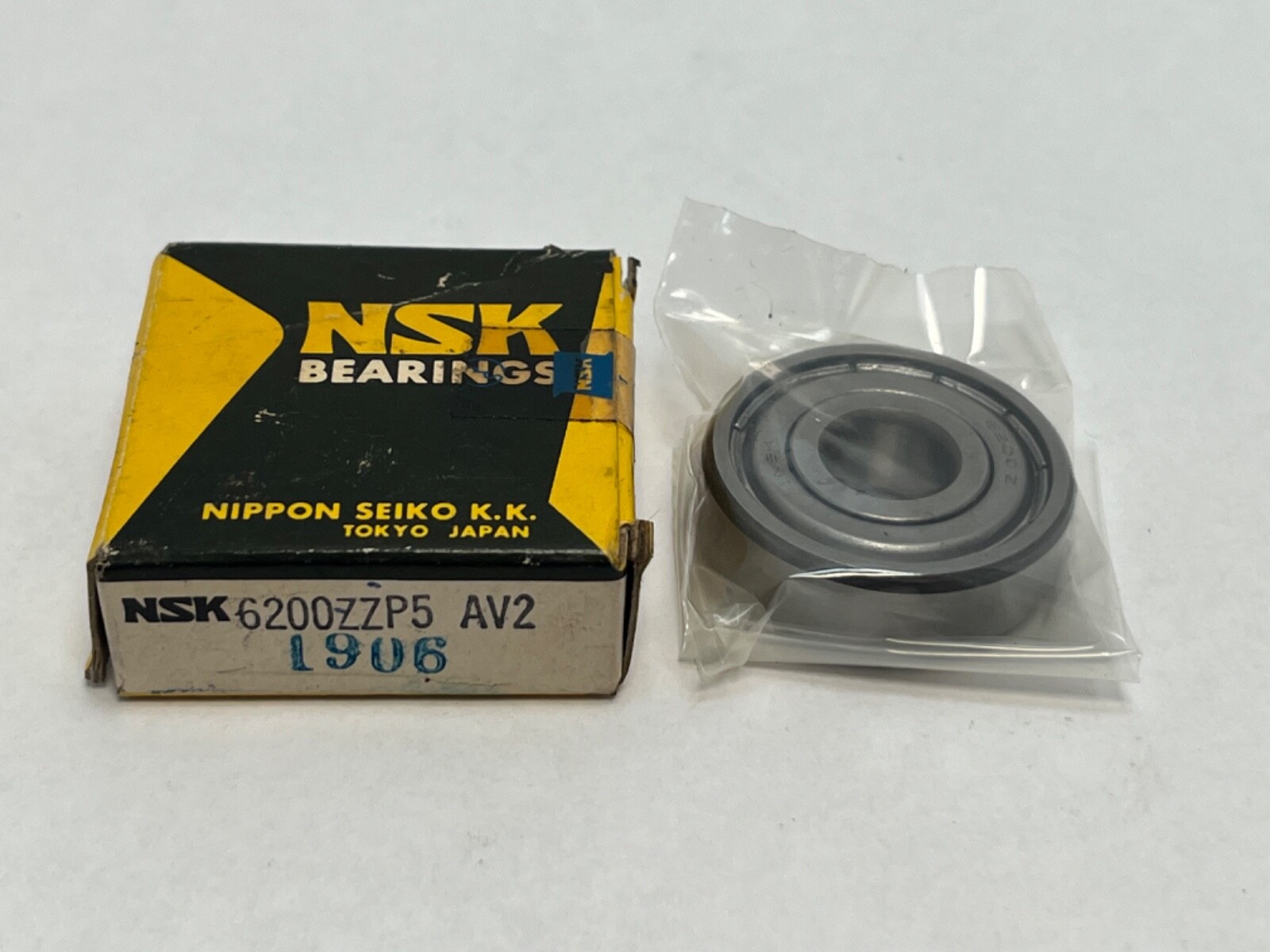

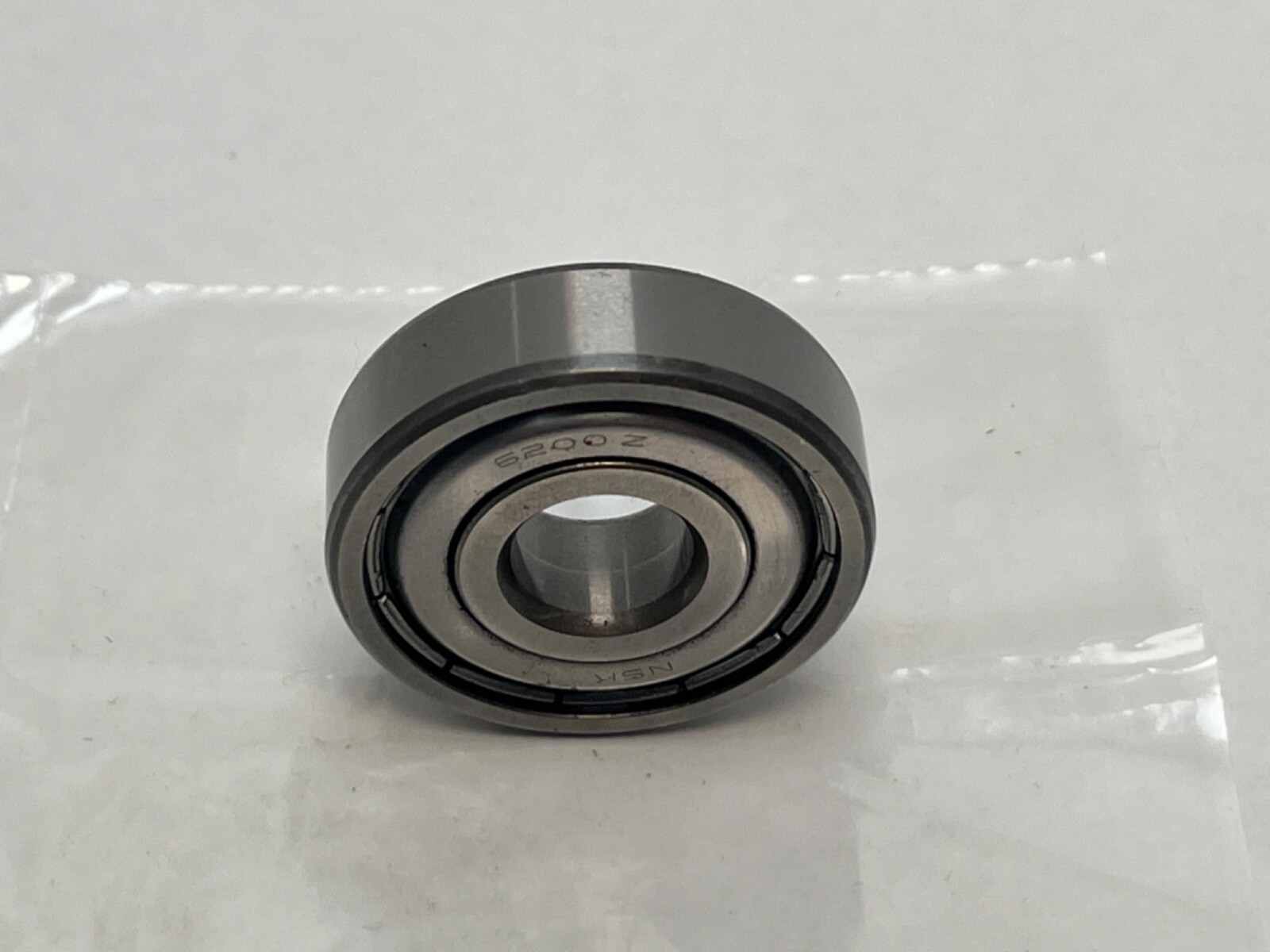

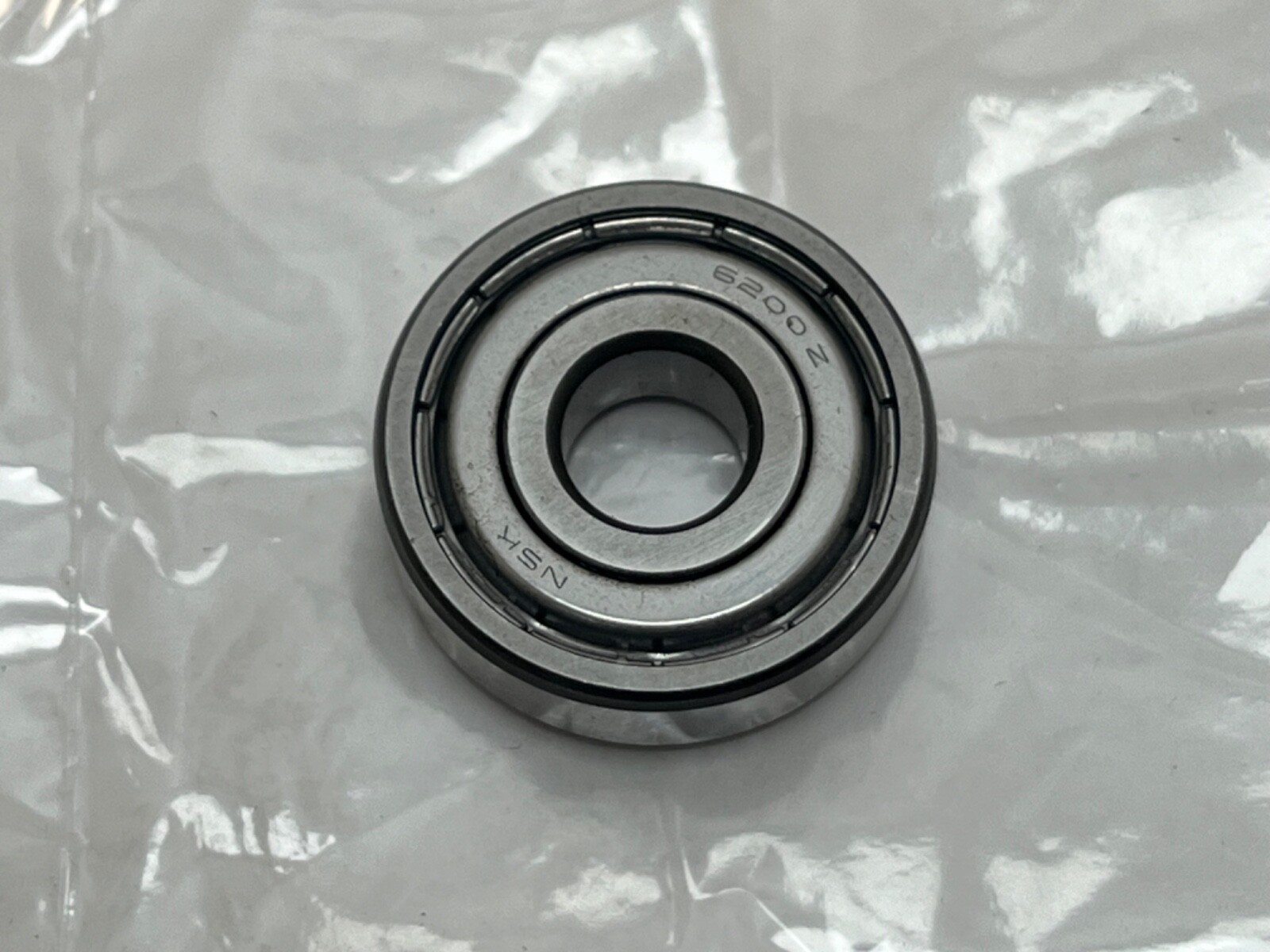

NSK 6200ZZP5 is a single-row deep groove ball bearing in the 62 series with steel shields on both sides, made to P5 tolerance. Bore Diameter: 10 mm. Outside Diameter: 30 mm. Width: 9 mm. Precision Class: ABEC 5 / P5.
6200 — NSK 62 series deep groove ball bearing, 10 x 30 x 9 mm.
ZZ — steel shields on both sides.
P5 — ISO P5 tolerance class, equivalent to ABEC 5.
Bearing Type: Deep groove ball bearing. Rolling Elements: Ball. Number Of Rows: 1. Number Of Balls: 8. Ball Diameter: 4.762 mm. Closure Type: Shields both sides. Cage Material: Pressed steel. Internal Clearance: CN. Precision Class: ABEC 5 / P5. Dynamic Load Rating: 5,600 N. Static Load Rating: 2,390 N. Limiting Speed: 28,000 rpm grease. Item Weight: 0.032 kg. Bore Type: Straight.
Bore Diameter: 10 mm. Outside Diameter: 30 mm. Width: 9 mm. Chamfer Dimension r min: 0.6 mm.
Same 10 x 30 x 9 mm envelope and double-shield closure as SKF 6200-2Z, FAG 6200-2Z, NTN 6200ZZ, Koyo 6200ZZ, Fafnir 200KDD and MRC 200SFF, which are standard P0 class. MPN variants: 6200ZZP5, 6200 ZZ P5, 6200-ZZ-P5, 6200Z, 6200-2Z.
CAD model and data sheet: available from NSK (nsk.com).
P5, equivalent to ABEC 5.
Steel shields on both sides (ZZ).
Dynamic 5,600 N and static 2,390 N, per NSK.
