This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Precision Deep Groove Ball Bearing — Straight Bore, 70 mm ID, 110 mm OD, 20 mm Width, Open, P4 Accuracy, CN Clearance Original price was: $134.50.$100.88Current price is: $100.88.
Deep Groove Ball Bearing - Straight Bore, 70 mm ID, 110 mm OD, 20 mm Width, Open, Without Snap Ring$51.03
KOYO 16014 Bearing Open 70x110x13 mm Japan$40.93

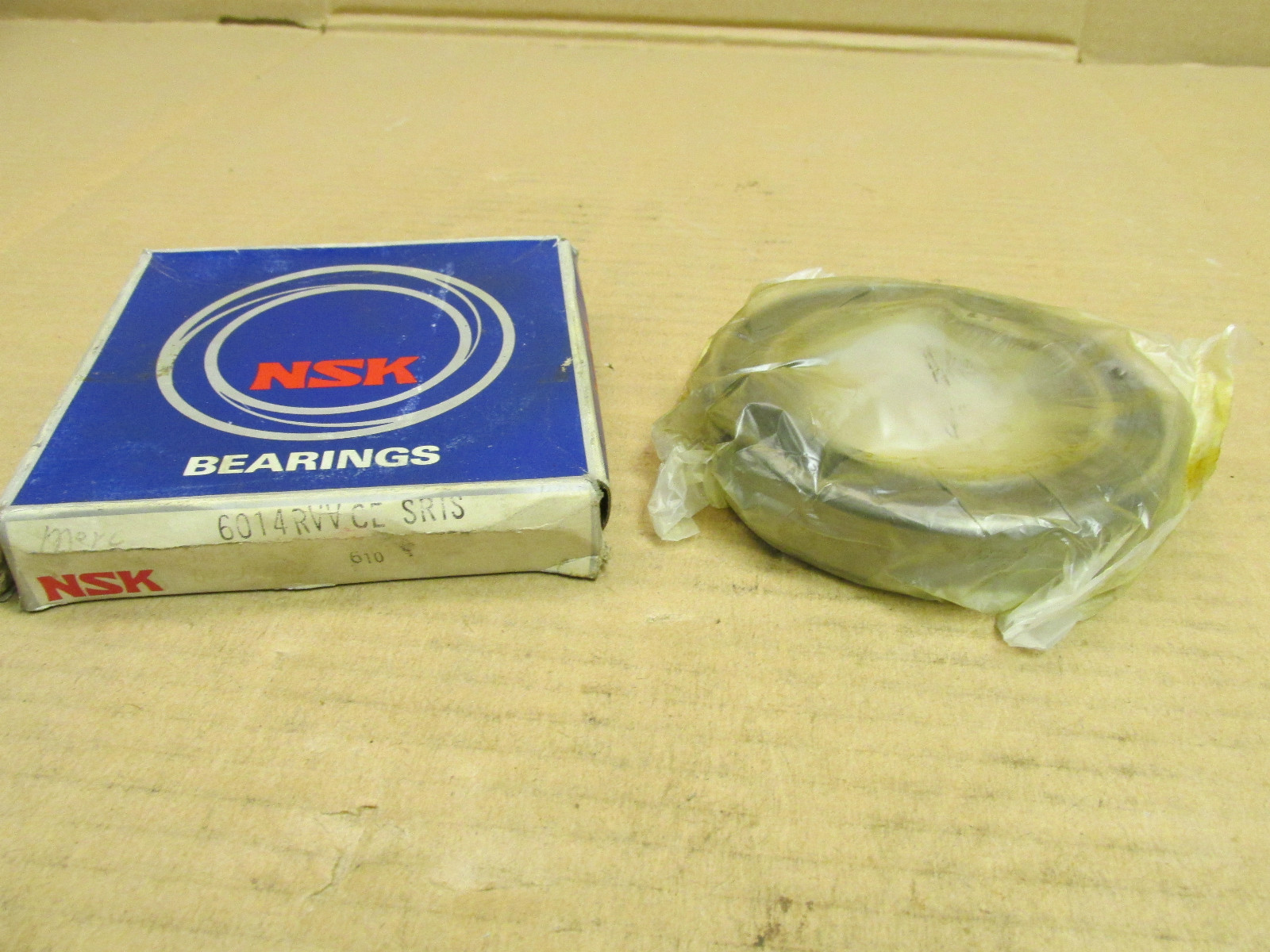

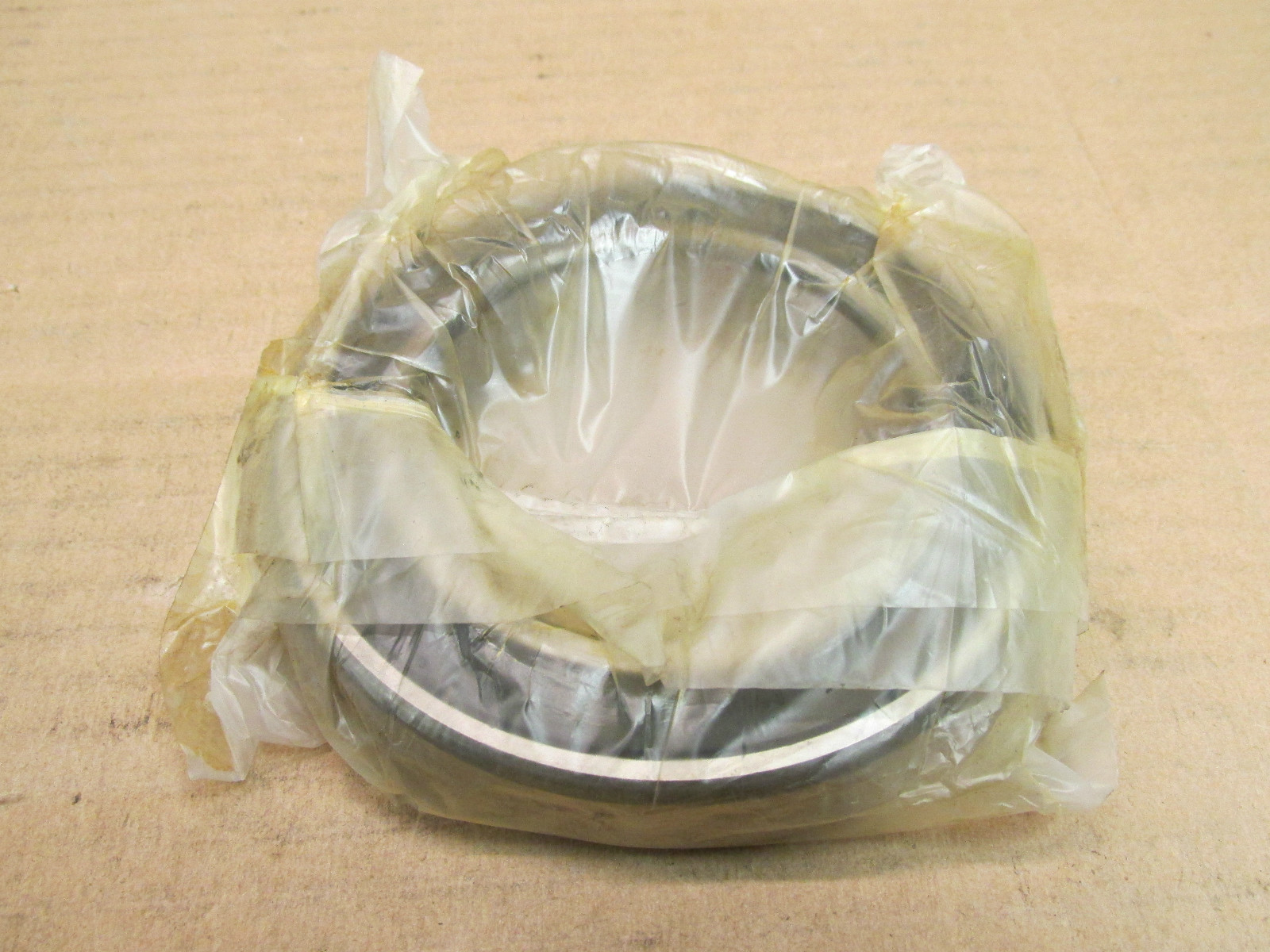

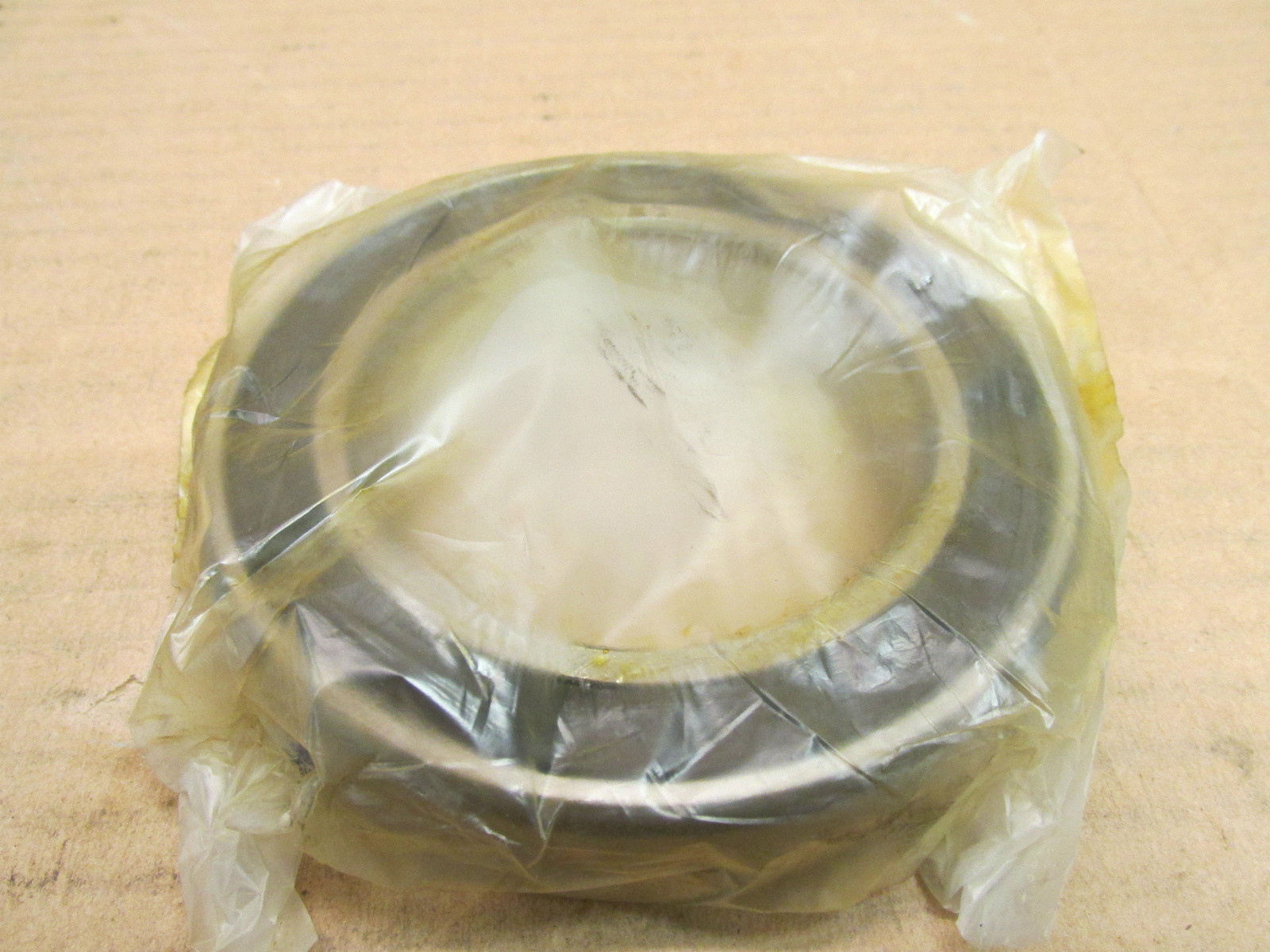

Deep Groove Ball Bearing - Straight Bore, 70 mm ID, 110 mm OD, 13 mm Width, Open Both Sides, Narrow 160 Series, Pressed Steel Cage$42.31| MFR / Brand | NSK |
|---|---|
| MPN | 6014RVVCE |
| Model | 6014R 60142RS |
| Bearing Type | Ball Bearing, Double Rubber Seal |
| ID | 70 mm |
| OD | 110 mm |
| Width | 20 mm |
| Series | 6000 |
|---|---|
| Condition | New |
| Lubricant | Grease |
| Min Temp | -30°C |
| Cage Type | Pressed Steel |
| Dynamic Load Rating | 38.0 kN / 8540 lbf |
| Static Load Rating | 31.0 kN / 6970 lbf |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Balls |
| Max Temp | 110°C |
| Item Weight | 1.32 lbs |
| Limiting Speed | 5000 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | CN |
| Cross Reference 1 | SKF 6014-2RS1 |
|---|---|
| Cross Reference 2 | FAG 6014-2RSR |
| Cross Reference 3 | NTN 6014LLU |
| Cross Reference 4 | KOYO 60142RS |
| Cross Reference 5 | Timken 6014-2RS |
Deep Groove Ball Bearing – Straight Bore, 70 mm ID, 110 mm OD, 20 mm Width, Double Rubber Seal, Without Snap Ring
$52.41
2 in stock
$44.54
6 in stock
$52.41
2 in stock
$45.69
23 in stock
Original price was: $152.43.$114.32Current price is: $114.32.
25 in stock
