Availability:
3 in stock
Deep groove ball bearing, 70 x 110 x 13 mm, open, narrow 160 series. Pressed steel cage, CN clearance, 27.0 kN dynamic, 22.6 kN static, 7,100 rpm on oil.
List Price
$42.31
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SNR |
|---|---|
| MPN | 16014 |
| GTIN | 3413520078010 |
| Model | 16014 |
| Bearing Type | Ball Bearing, Open |
| ID | 70 mm |
| OD | 110 mm |
| Width | 13 mm |
| Material | Chrome steel |
|---|---|
| Series | 16000 (160) |
| Base Number | 16014 |
| Total Width | 13 mm |
| Bore Shaft Size | 70 mm |
| Mpn Variants | 16014, 160-14, SNR 16014, NTN-SNR 16014 |
| Min Temp | -40 °C |
| Cage Type | Pressed |
| Dynamic Load Rating | 27.0 kN |
| Static Load Rating | 22.6 kN |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 0.441 kg (0.972 lb) |
| Cage Material | Steel |
| Limiting Speed | 7,100 rpm (oil) / 6,100 rpm (grease) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Internal Clearance | CN |
| Lubricant | grease or oil |
| Harmonization Code | 8482.10.50.68 |
| Part Number | 16014 |
| Cross Reference 1 | SKF 16014 - 70x110x13 mm; ratings differ by maker |
|---|---|
| Cross Reference 2 | FAG 16014 - 70x110x13 mm; ratings differ by maker |
| Cross Reference 3 | NSK 16014 - 70x110x13 mm; ratings differ by maker |
| Cross Reference 4 | NTN 16014 - 70x110x13 mm; ratings differ by maker |

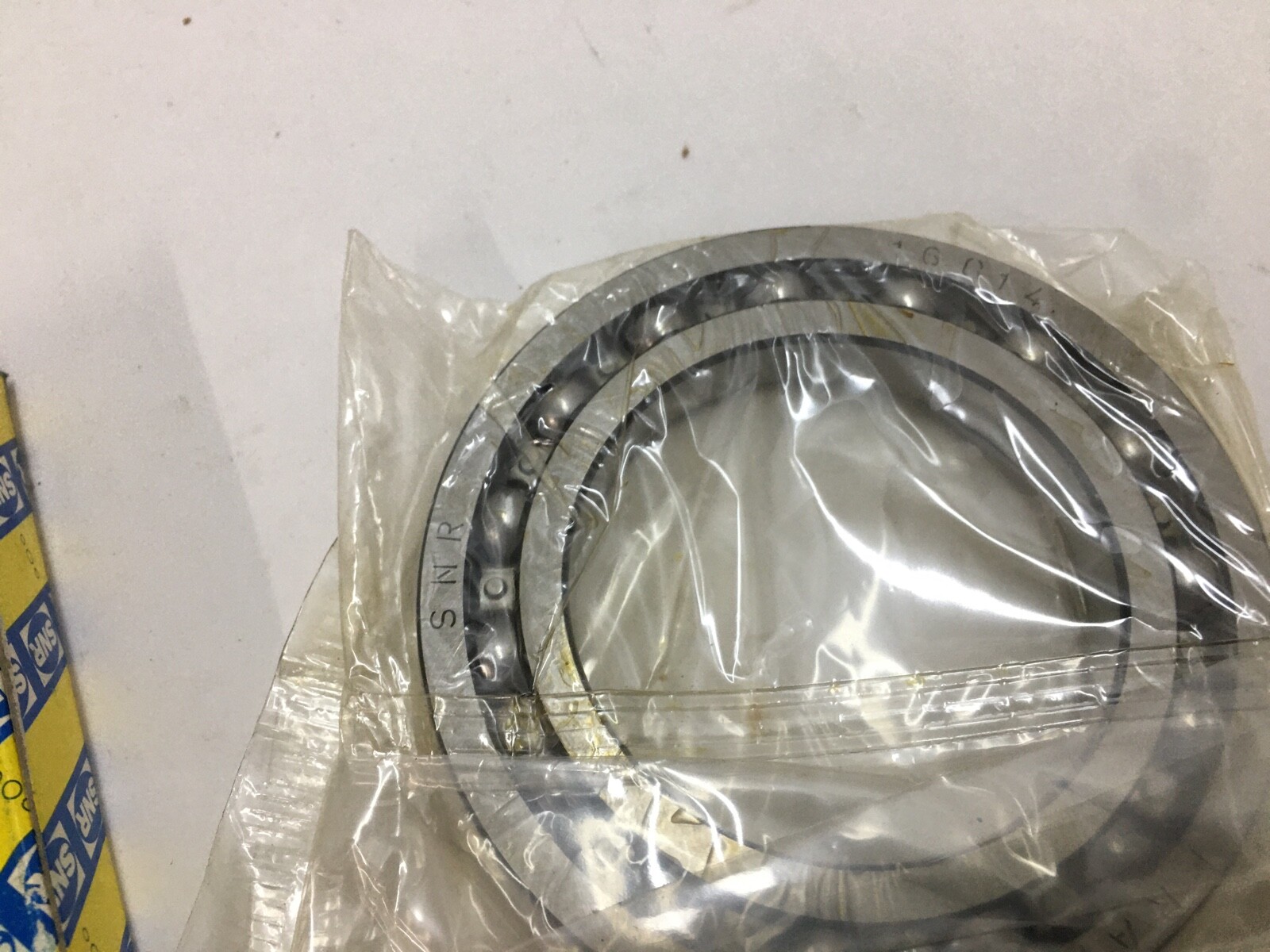

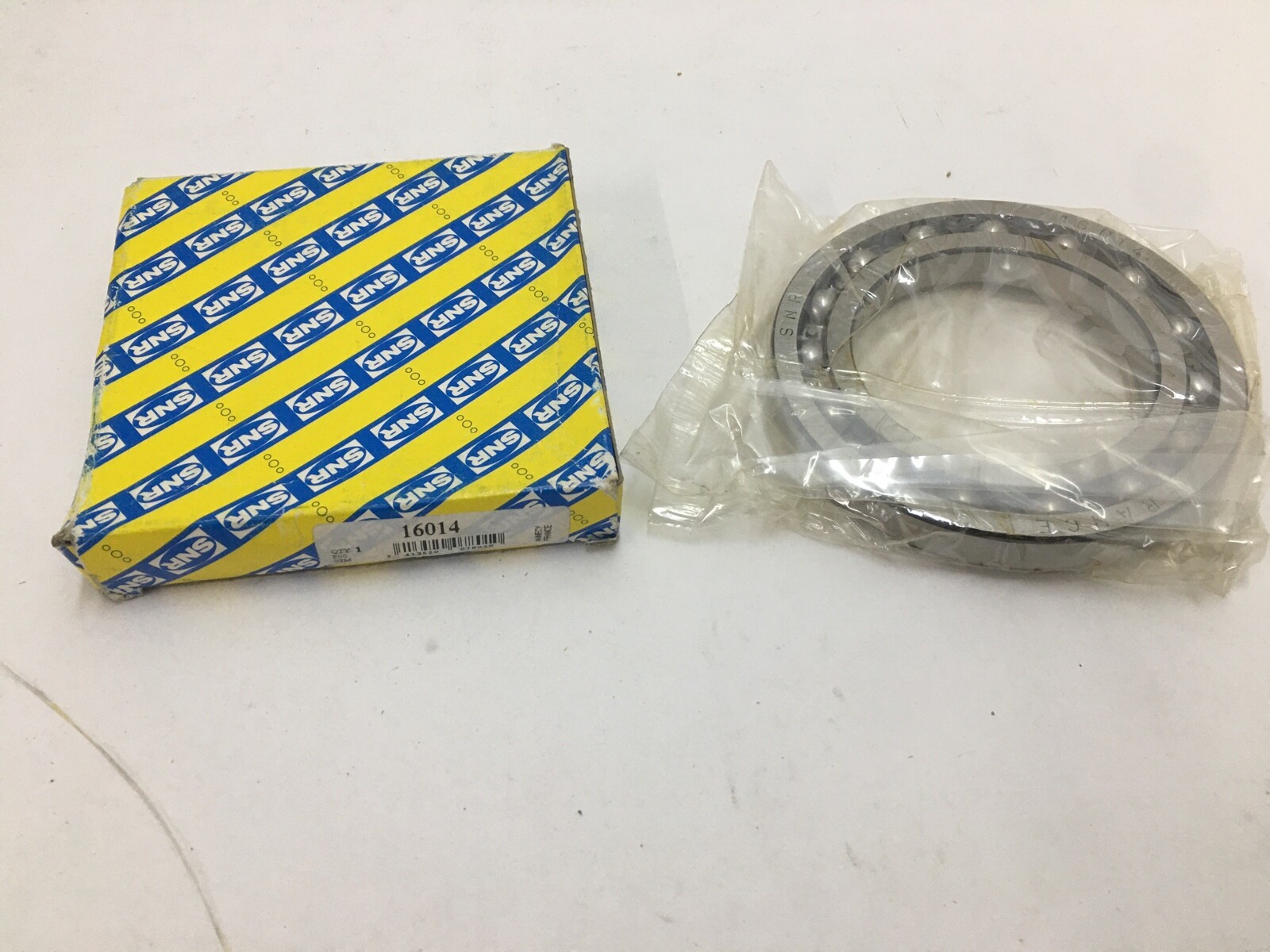

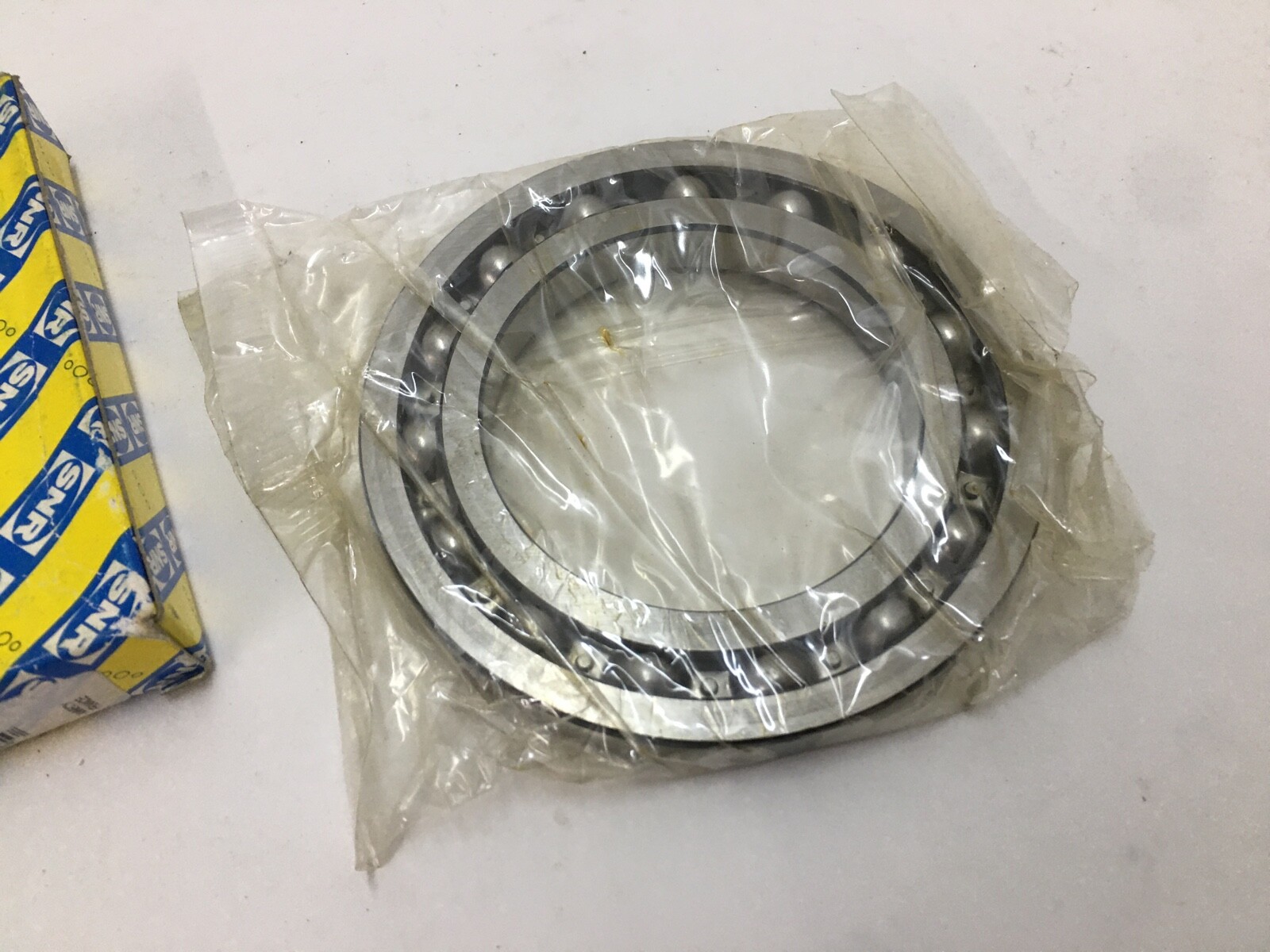

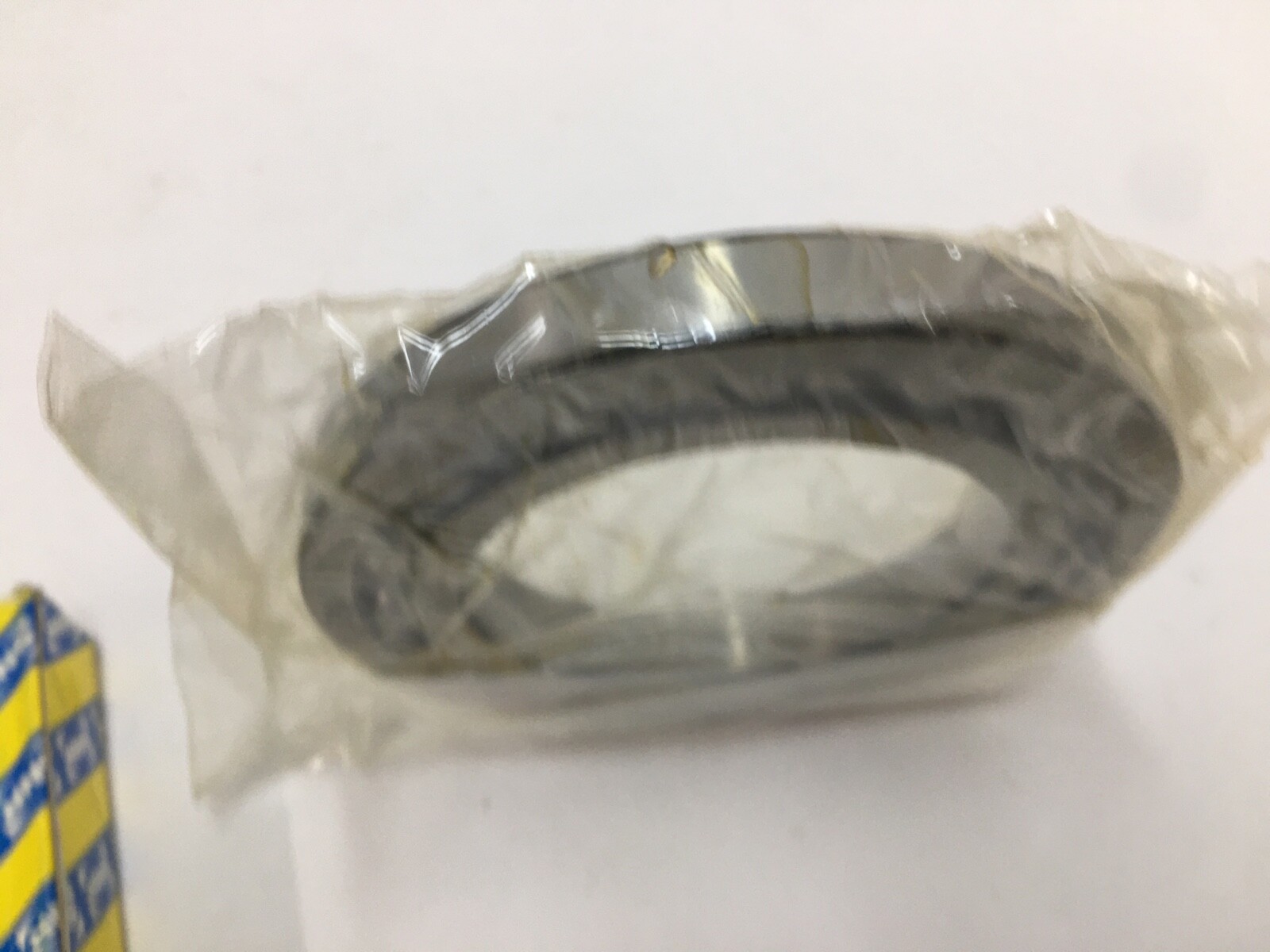

SNR 16014 single-row deep groove ball bearing, open both sides. Series: 16000, the narrow section of the deep groove range. Bore: 70 mm. Outside Diameter: 110 mm. Width: 13 mm. Bore Type: Straight. Rolling Elements: Ball. Closure Type: Open. GTIN: 3413520078010.
16014 — the 160 series, 70 x 110 x 13 mm. The 160 series shares the 60 series outside diameter and runs a narrower width with a smaller ball complement.
Dynamic Load Rating: 27.0 kN. Static Load Rating: 22.6 kN. Fatigue Limit Load Cu: 1.52 kN. Limiting Speed: 7,100 r/min on oil, 6,100 r/min on grease. Internal Clearance: CN. Cage Material: Steel. Cage Type: Pressed. Chamfer rs min: 0.6 mm. Calculation factor f0: 16.5. Mass: 0.441 kg. Minimum operating temperature: −40 °C. Maximum operating temperature: 120 °C.
The 160 series is used where the housing bore is already fixed at a 60 series diameter but the axial space has been cut back, typically on pump covers, textile machinery and light gearbox end plates. The narrower width means a smaller ball set than a 6014, so the ratings are lower while the 70 mm bore and 110 mm outside diameter stay the same.
Open faces take lubricant from the housing rather than a captive charge, and the fatigue limit load Cu is the load below which the raceways run indefinitely under clean lubrication.
Shaft abutment diameter da: 74 mm minimum. Housing abutment diameter Da: 106 mm maximum. Shaft or housing fillet radius ra: 0.6 mm maximum.
Unit Quantity: 1 Pc.
Cross-references at 70 x 110 x 13 mm: SKF 16014, FAG 16014, NSK 16014, NTN 16014. Ratings differ by maker. Searchable variants of the designation: 16014, 160-14, SNR 16014, NTN-SNR 16014. The 6014 shares the 70 mm bore and 110 mm outside diameter at 20 mm wide and carries higher ratings.
Bore: 70 mm. Outside Diameter: 110 mm. Width: 13 mm.
Dynamic Load Rating: 27.0 kN. Static Load Rating: 22.6 kN. Fatigue Limit Load Cu: 1.52 kN.
Limiting Speed: 7,100 r/min on oil, 6,100 r/min on grease.
Closure Type: Open. Internal Clearance: CN. Cage Type: Pressed steel.
