Availability:
2 in stock

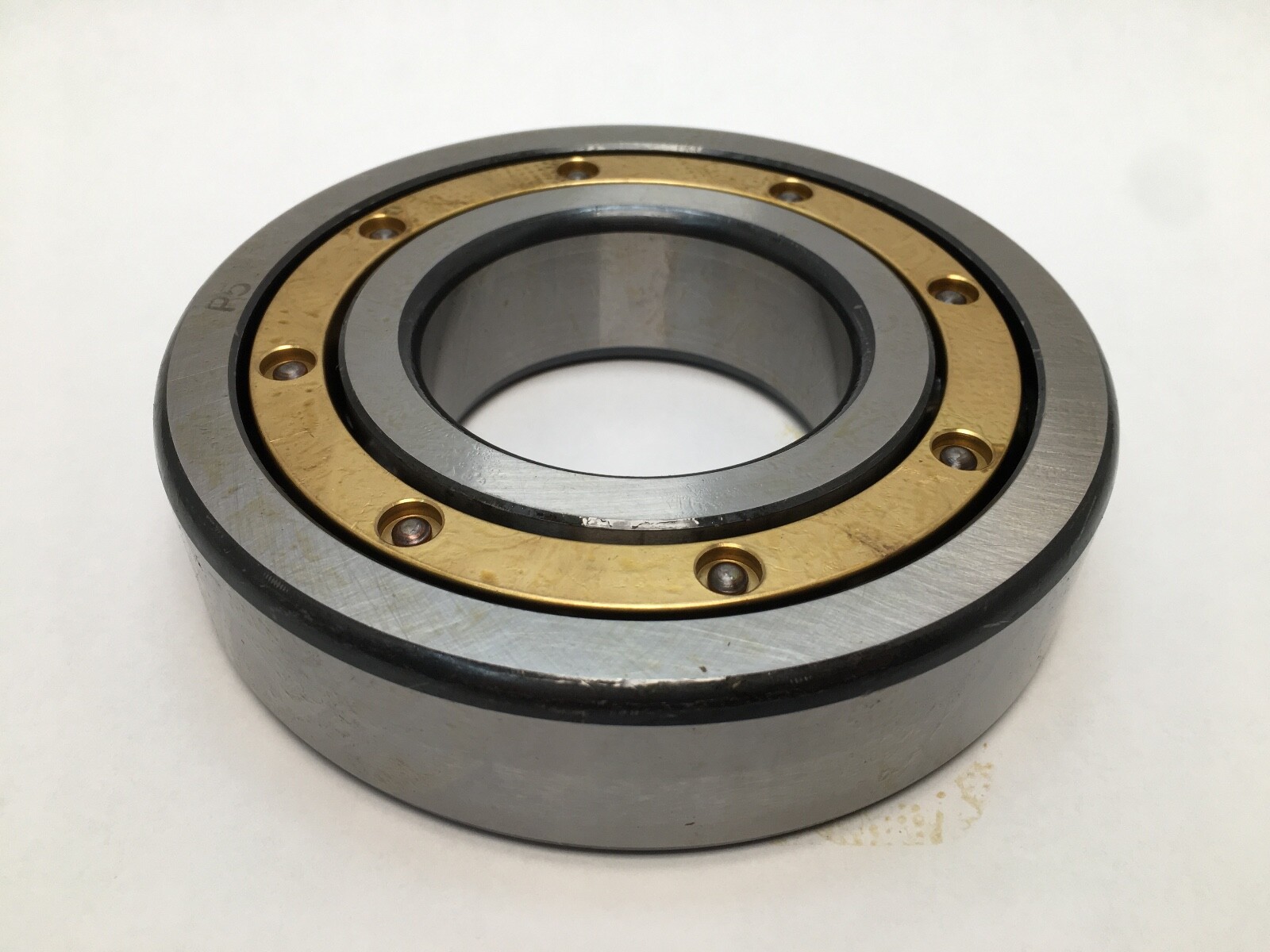

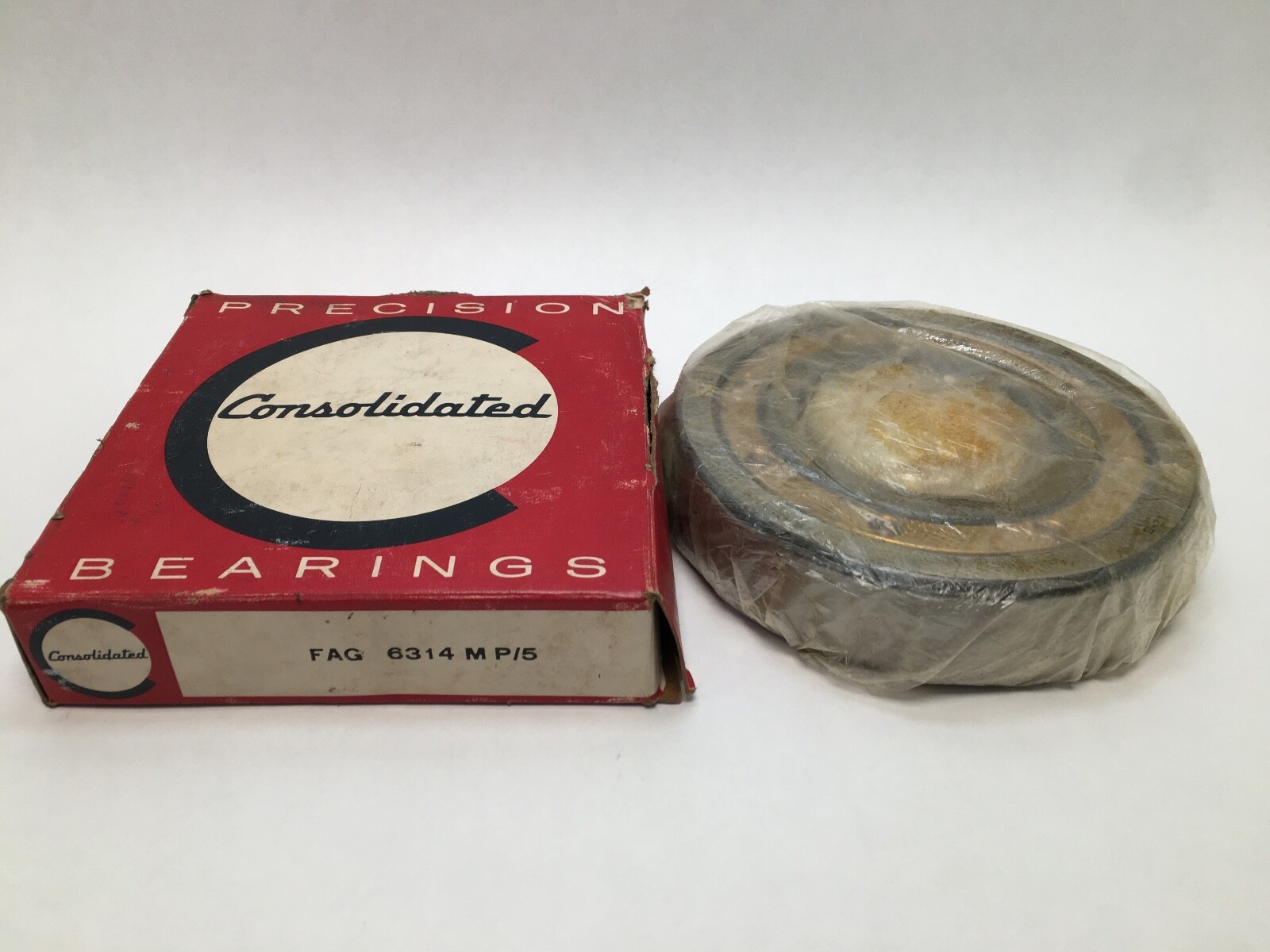

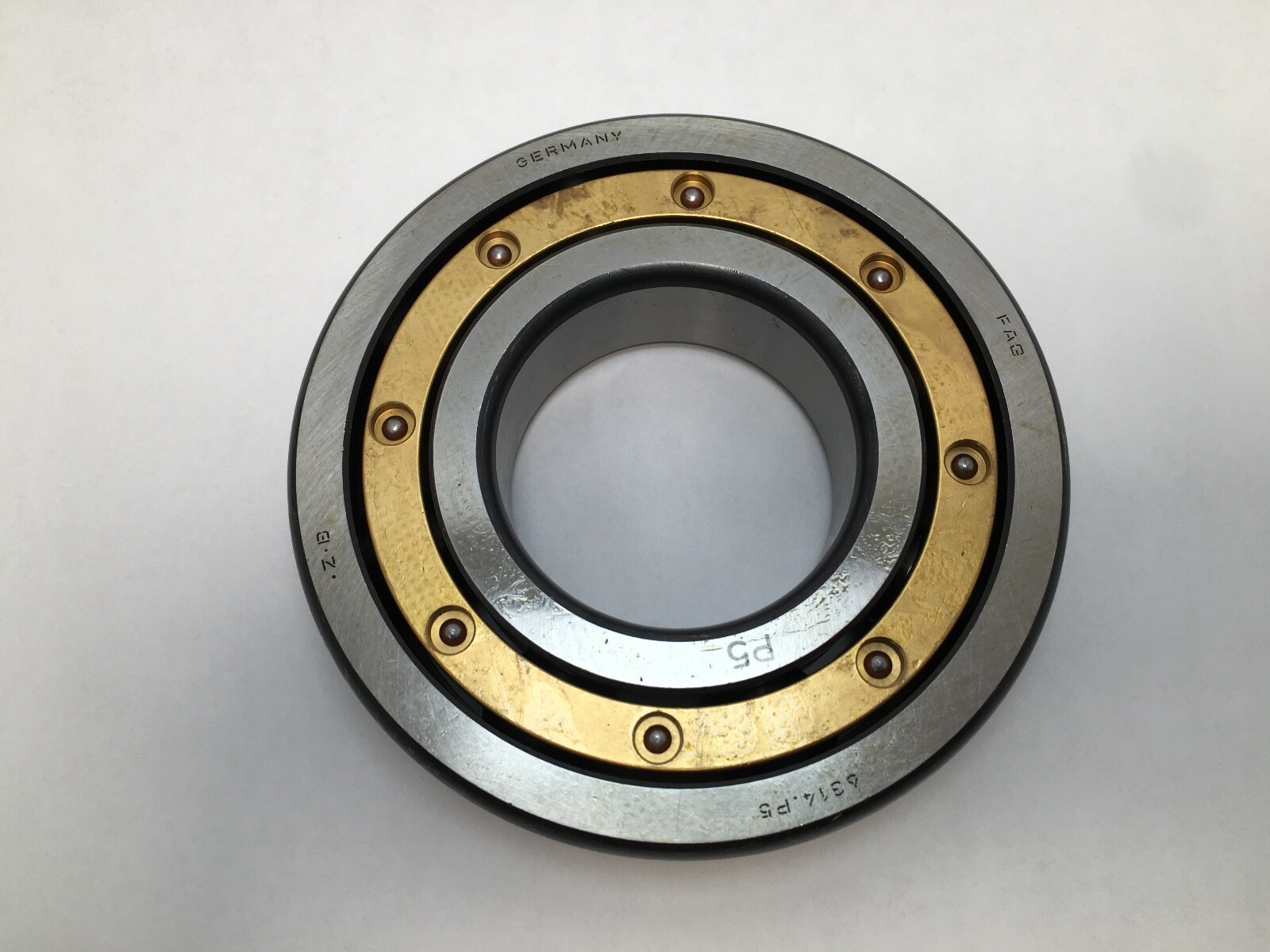

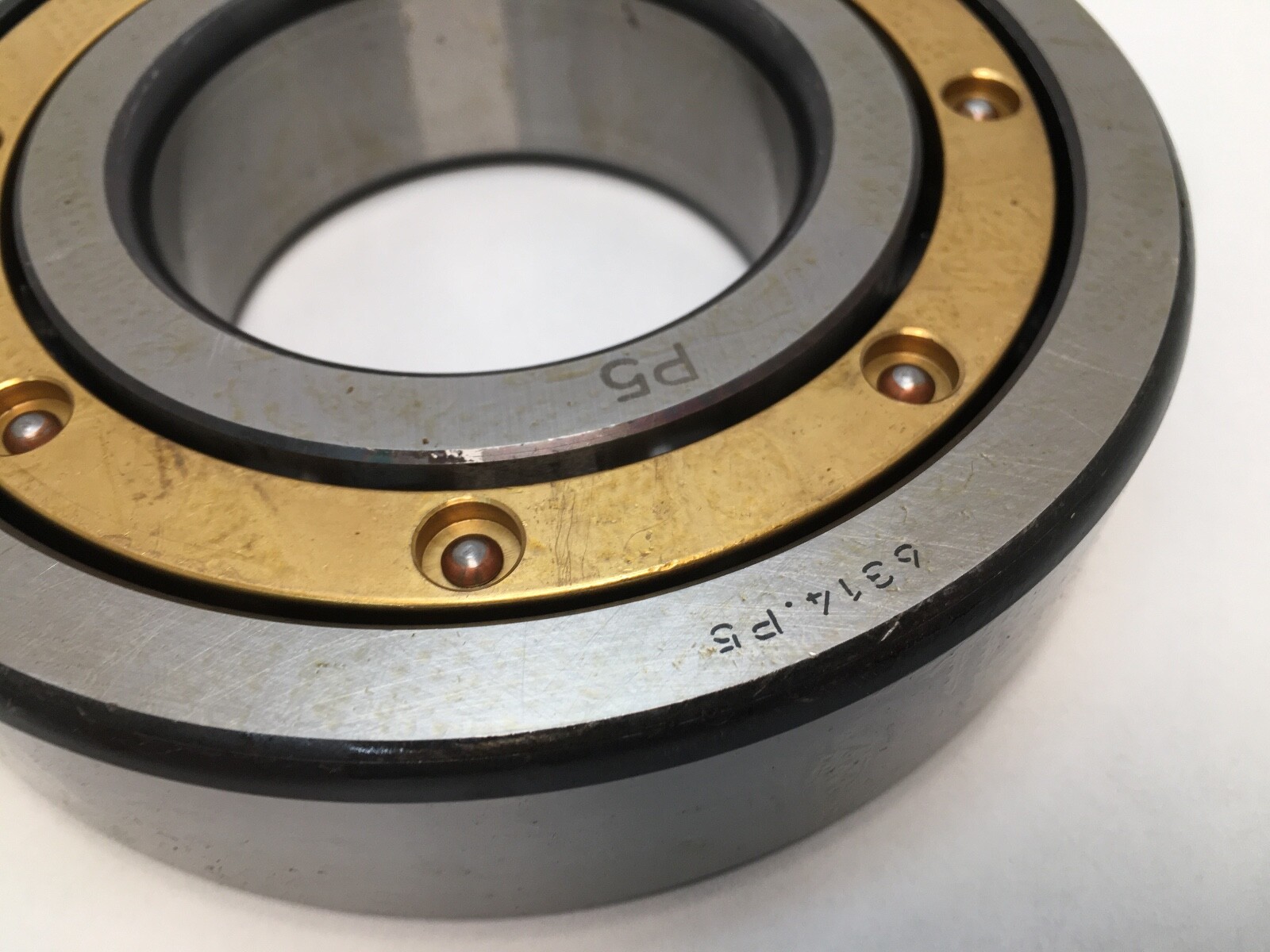

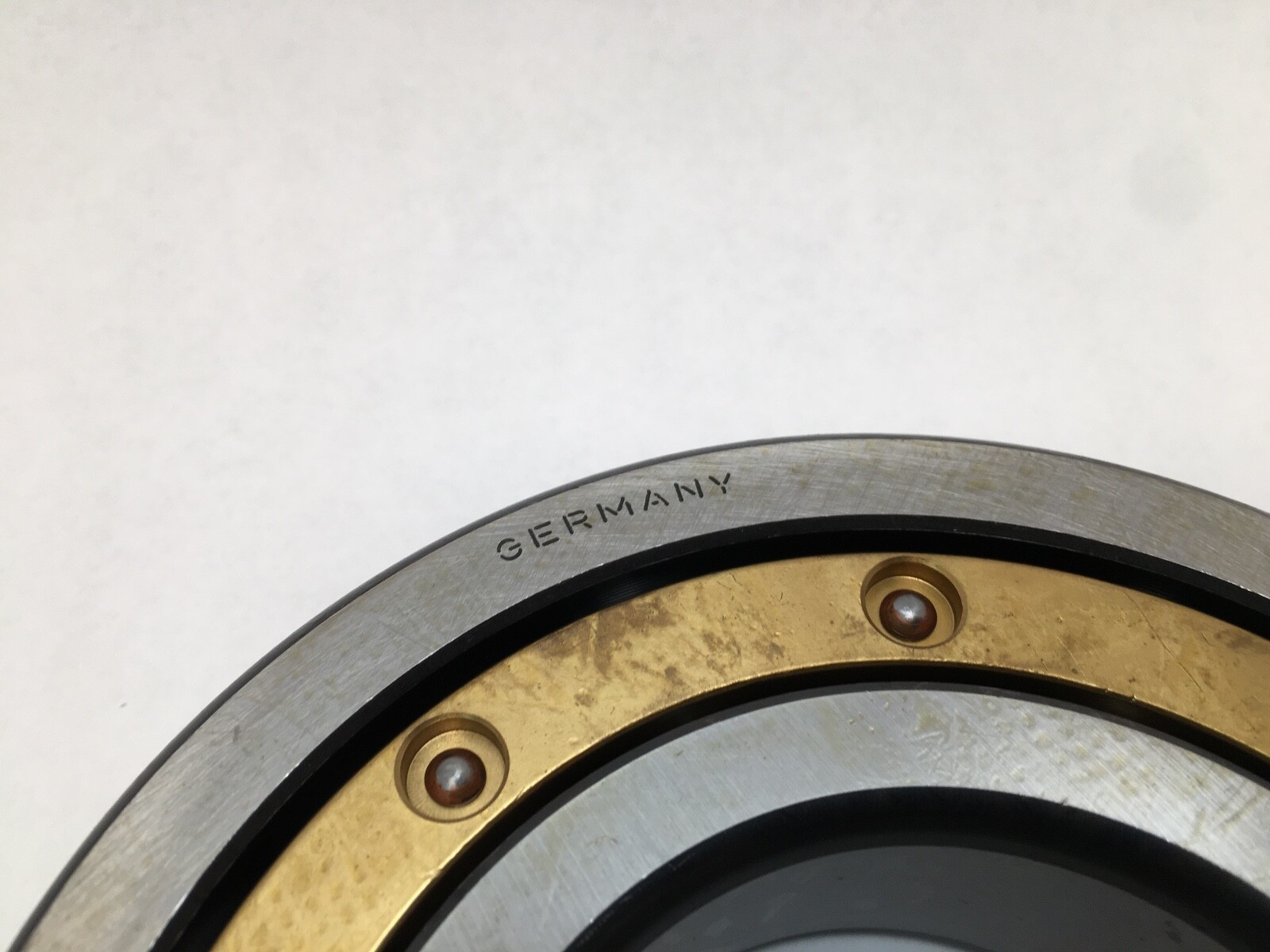

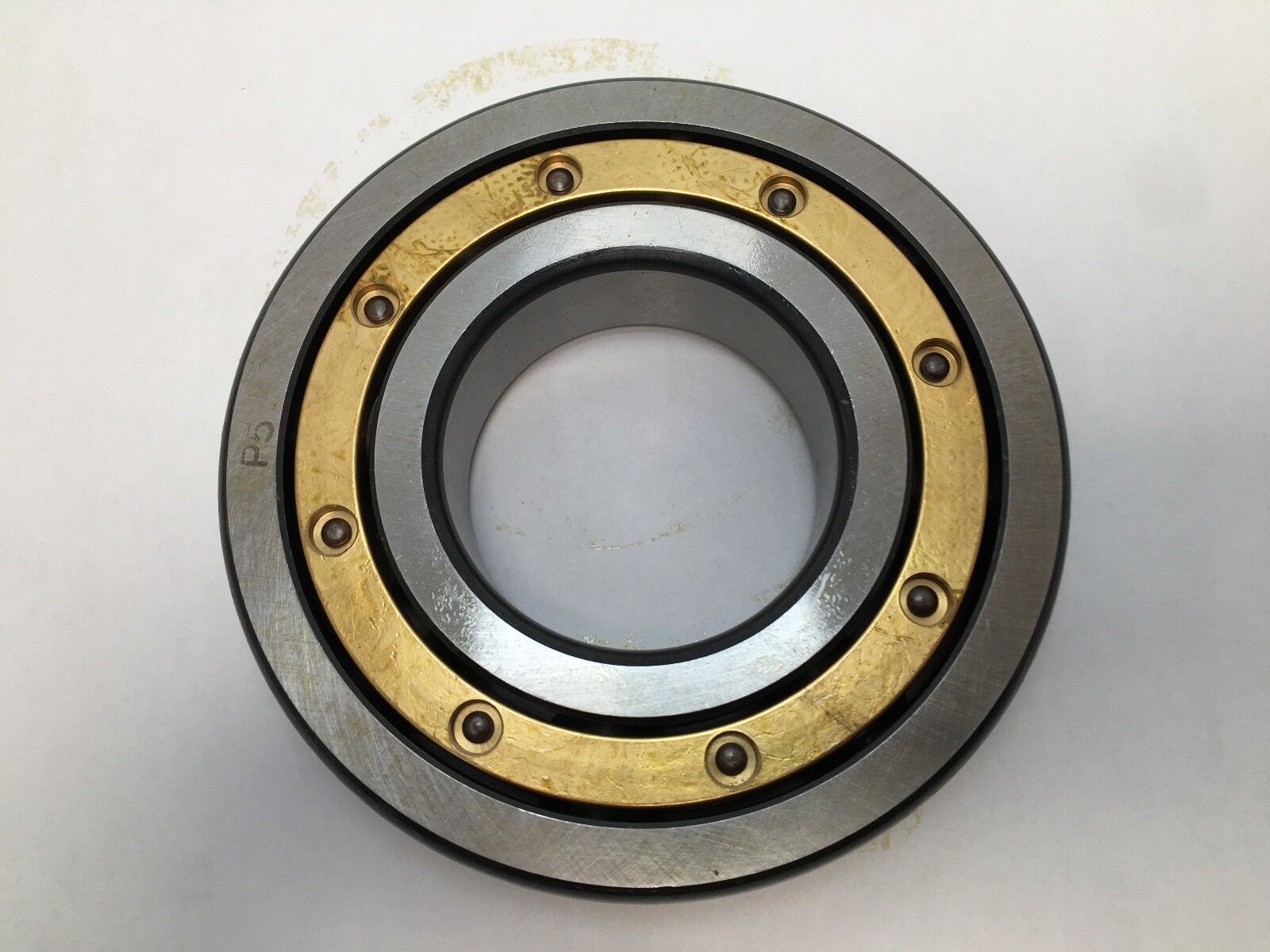

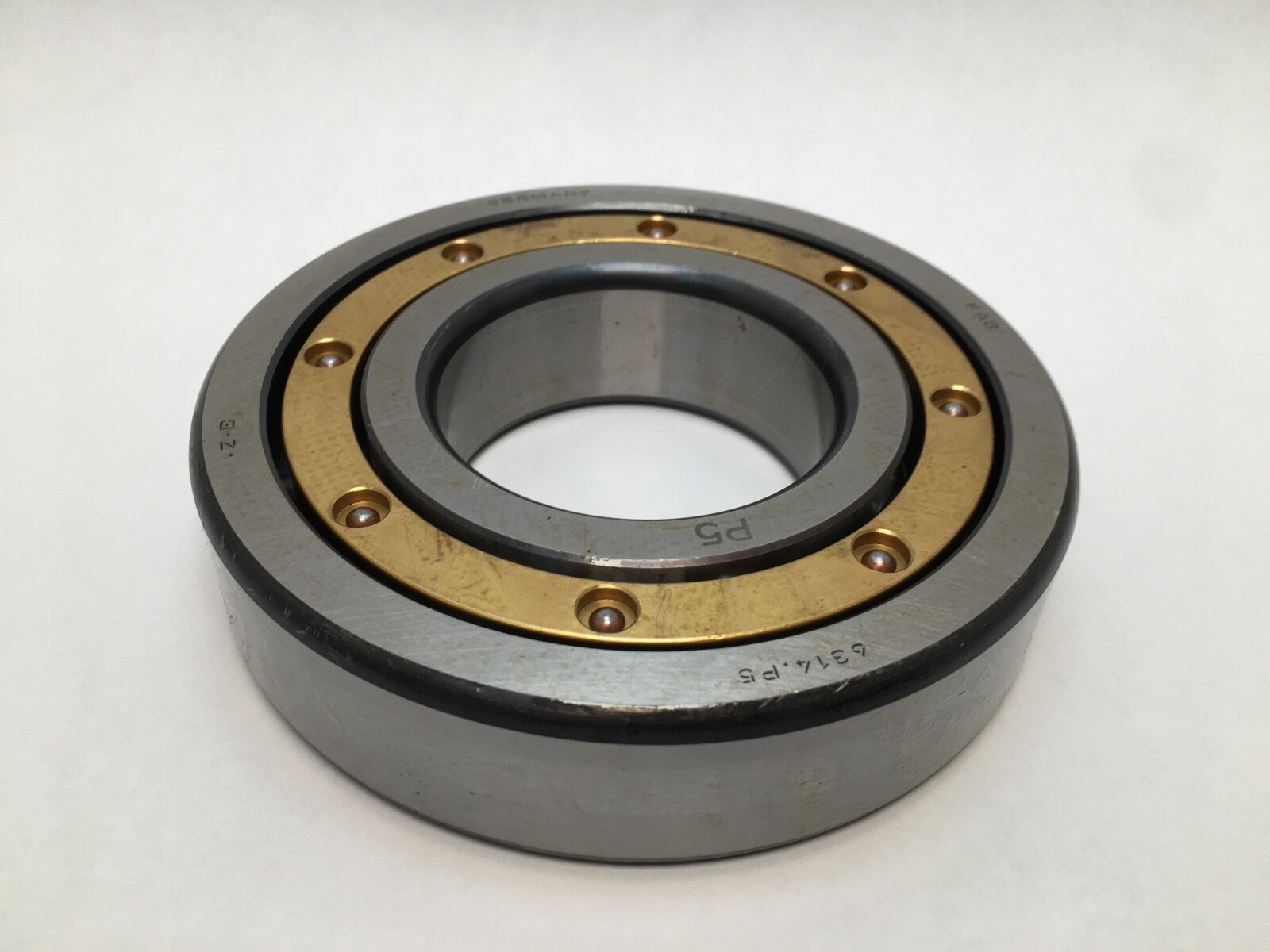

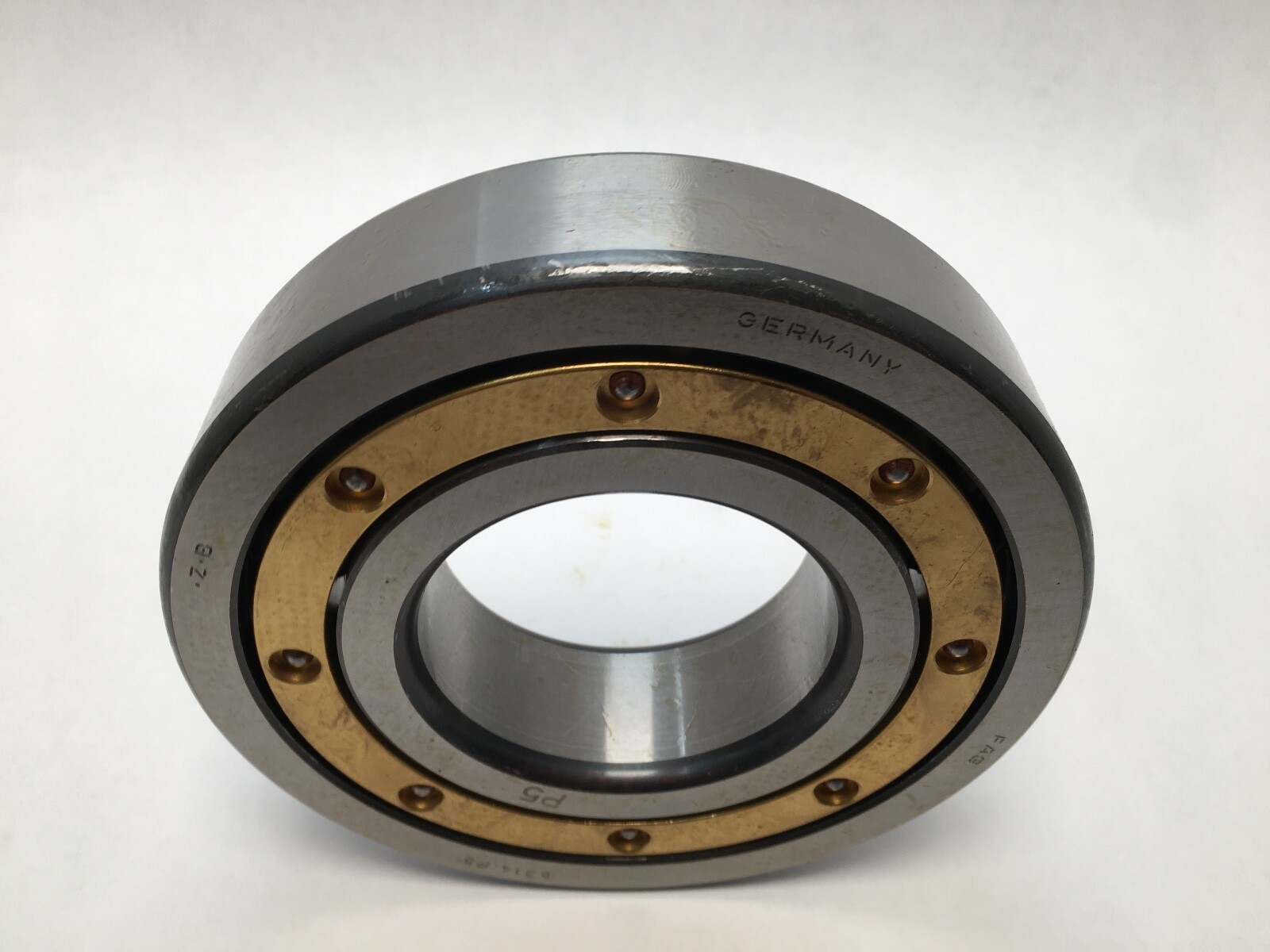

Deep groove ball bearing, 70 mm bore x 150 mm OD x 35 mm width, ABEC 5 / P5, machined brass cage, CN clearance. Consolidated (FAG designation) 6314M.P5.
List Price
$81.63
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| Model | 6314 M P5 |
| Bearing Type | Ball Bearing, Open |
| ID | 70 mm |
| OD | 150 mm |
| Width | 35 mm |
| Material | Chrome Steel |
|---|---|
| Series | 6300 |
| Mpn Variants | 6314M.P5, 6314-M-P5, 6314MP5, Consolidated 6314M.P5 |
| Precision Class | ABEC 5 / P5 |
| Cage Type | Machined |
| Rolling Elements | Ball |
| Cage Material | Machined brass |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | CN |
| Harmonization Code | 8482.10.50.68 |
| Cross Reference 1 | SKF 6314 M/P5 |
|---|---|
| Cross Reference 2 | NSK 6314P5 |
| Cross Reference 3 | NTN 6314P5 |
| Cross Reference 4 | Koyo 6314P5 |
Consolidated (FAG designation) 6314M.P5 single-row deep groove ball bearing in the ISO 6314 envelope. Bearing Type: Deep Groove Ball Bearing. Bore Diameter: 70 mm. Outside Diameter: 150 mm. Width: 35 mm. Closure Type: Open. Bore Type: Straight.
6314 — 63 medium diameter series, bore code 14 = 70 mm bore.
M — machined brass cage.
P5 — precision class P5, equivalent to ABEC 5.
Precision Class: ABEC 5 / P5. Cage Material: Machined brass. Internal Clearance: CN. Rolling Elements: Ball. The machined brass cage is rigid and tolerates shock, vibration and high acceleration; the P5 grade holds tighter dimensional and running tolerances than a standard P0 bearing.
Chamfer r min: 2.1 mm. Shaft abutment diameter da min: 82 mm. Housing abutment diameter Da max: 138 mm. Fillet radius ra max: 2.1 mm.
Unit Quantity: 1 Pc. Single-row open bearing, no snap ring.
Cross-references, P5 class: SKF 6314 M/P5, NSK 6314P5, NTN 6314P5, Koyo 6314P5. Current FAG form: 6314-M-P5. MPN Variants: 6314M.P5, 6314-M-P5, 6314MP5, Consolidated 6314M.P5.
