Availability:
1 in stock
FAG 6213-M-P5-C3 deep groove ball bearing, 65 x 120 x 23 mm, machined brass cage, P5 (ABEC 5) tolerance, C3 clearance. Cr 63,000 N, C0r 41,500 N.
List Price
$51.99
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 6213-M-P5-C3 |
| Model | 6213-M-P5-C3 |
| Bearing Type | Ball Bearing, Open |
| ID | 65 mm |
| OD | 120 mm |
| Width | 23 mm |
| Series | 6200 |
|---|---|
| Cage Type | Solid machined |
| Dynamic Load Rating | 63,000 N |
| Static Load Rating | 41,500 N |
| Rolling Elements | Ball |
| Item Weight | 1.16 kg (2.56 lb) |
| Cage Material | Machined brass |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Internal Clearance | C3 |
| Industry Terms | deep groove ball bearing; brass cage bearing |
| Overall Width | 23 mm |
| Mpn Variants | 6213-M-P5-C3, 6213M.P5.C3, 6213MP5C3, 6213 M P5 C3 |
| Compatible With Replaces | FAG 6213-M-C3 (base part, normal precision) |
| Precision Class | ABEC 5 / P5 |
| Cross Reference 1 | SKF 6213 M/C3 (related, normal precision) |
|---|

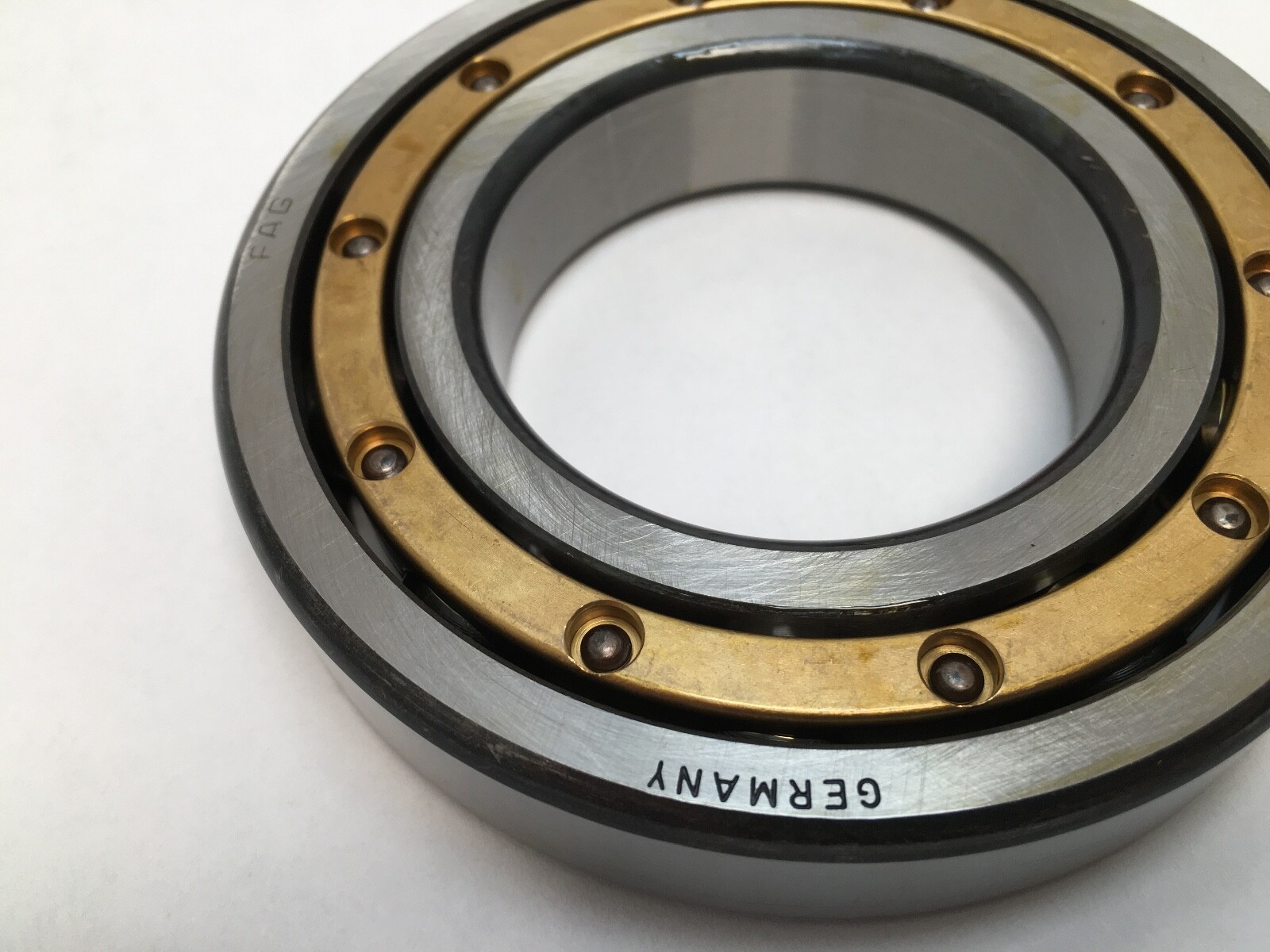

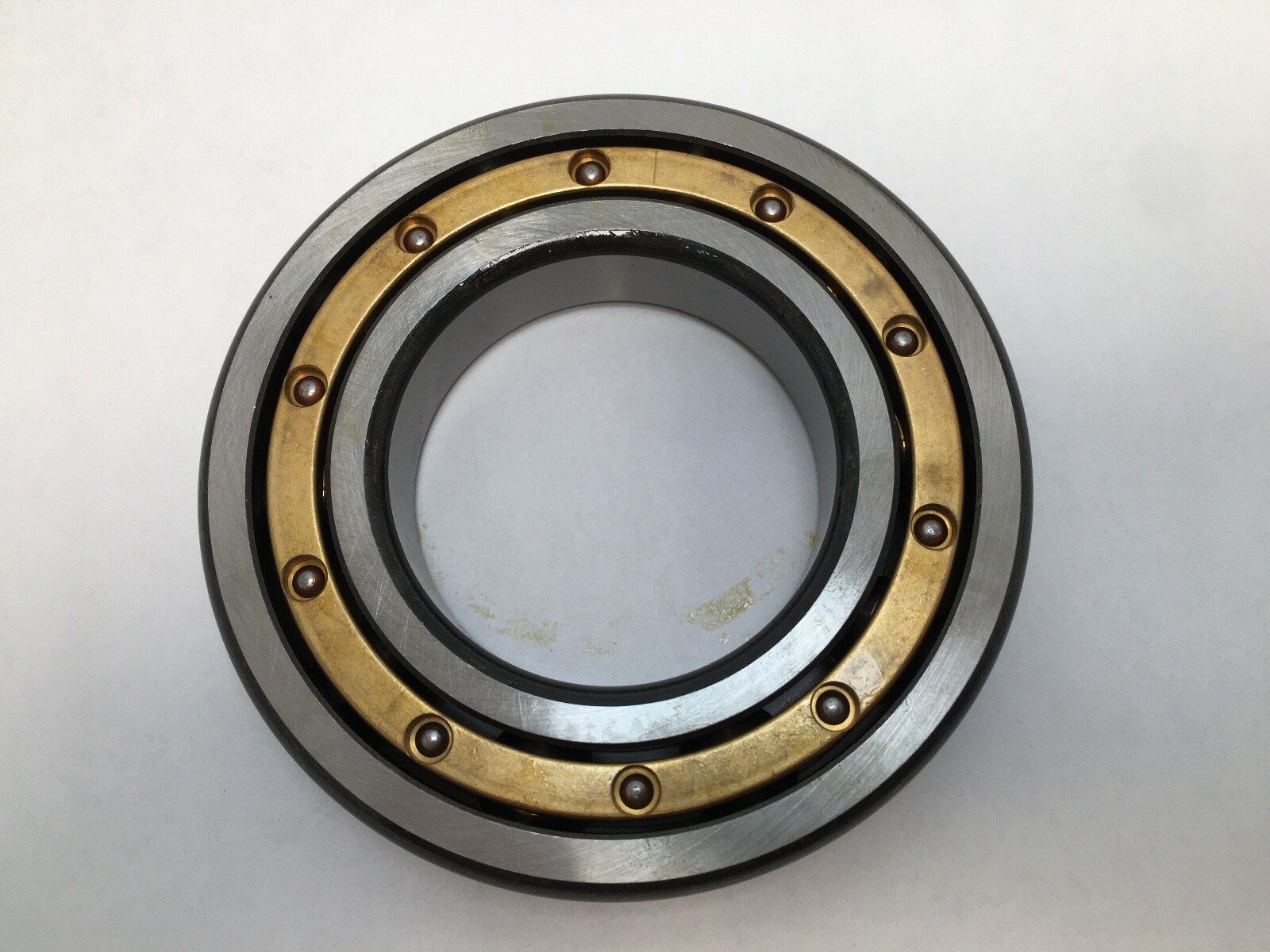

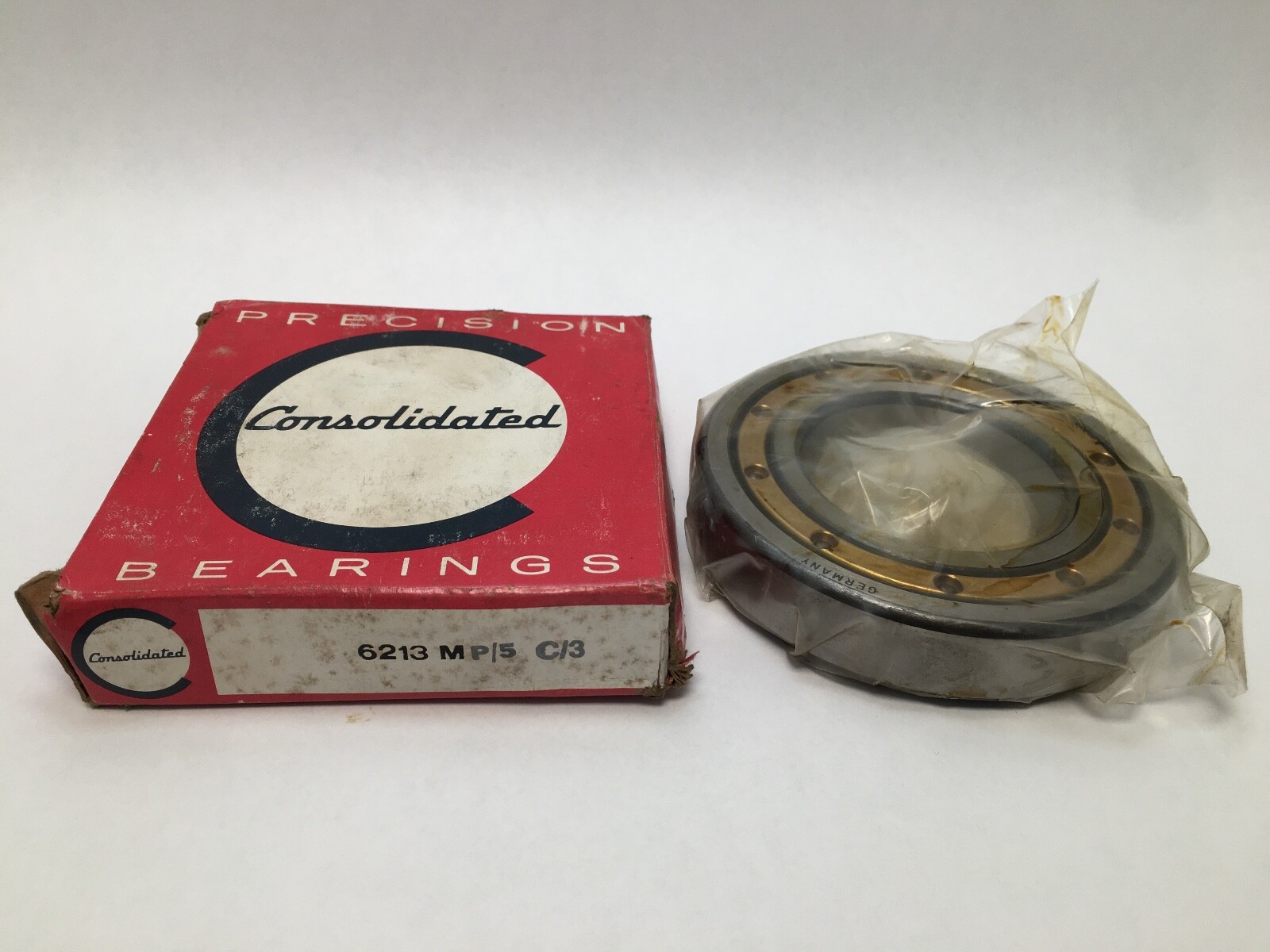

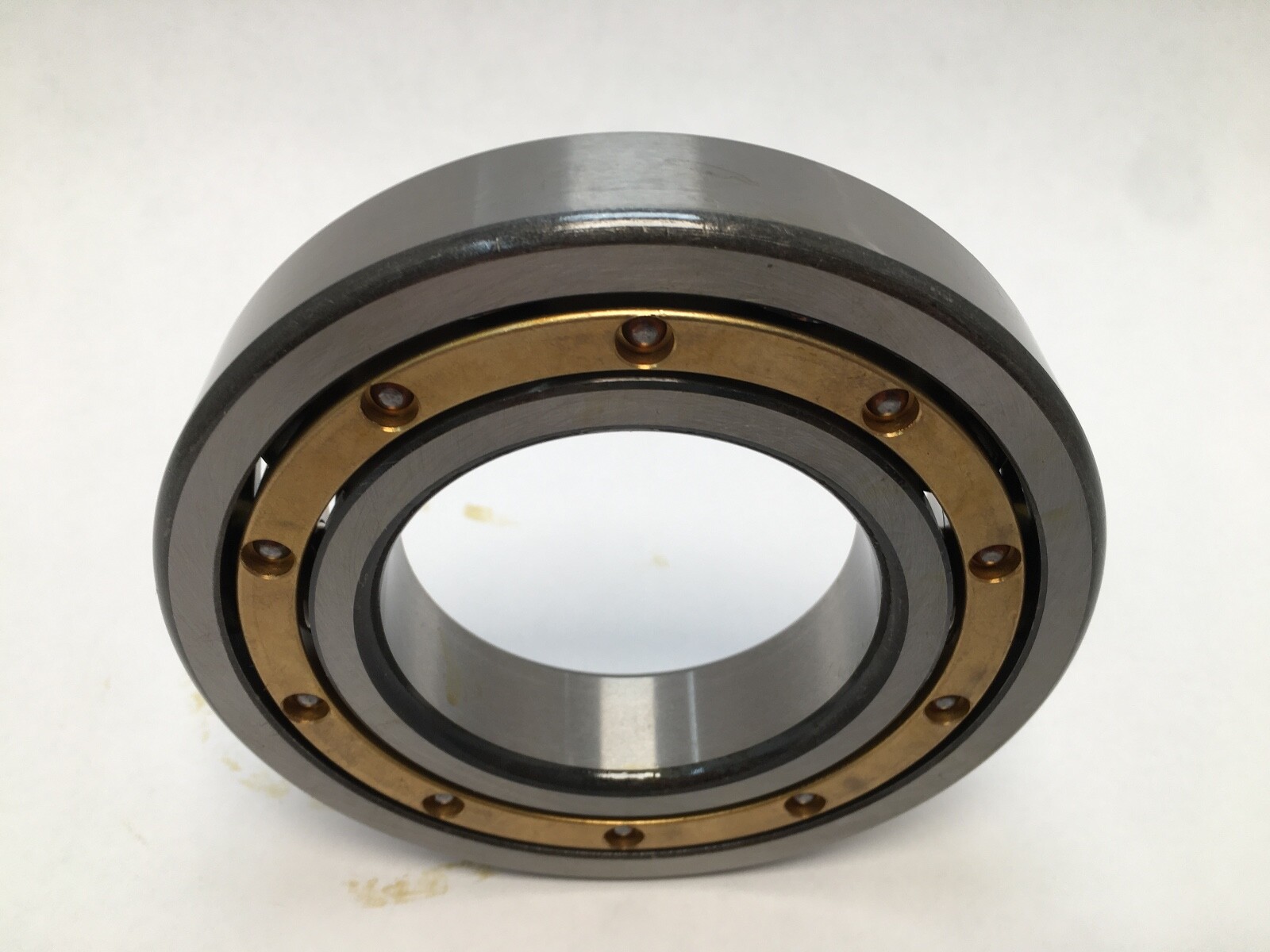

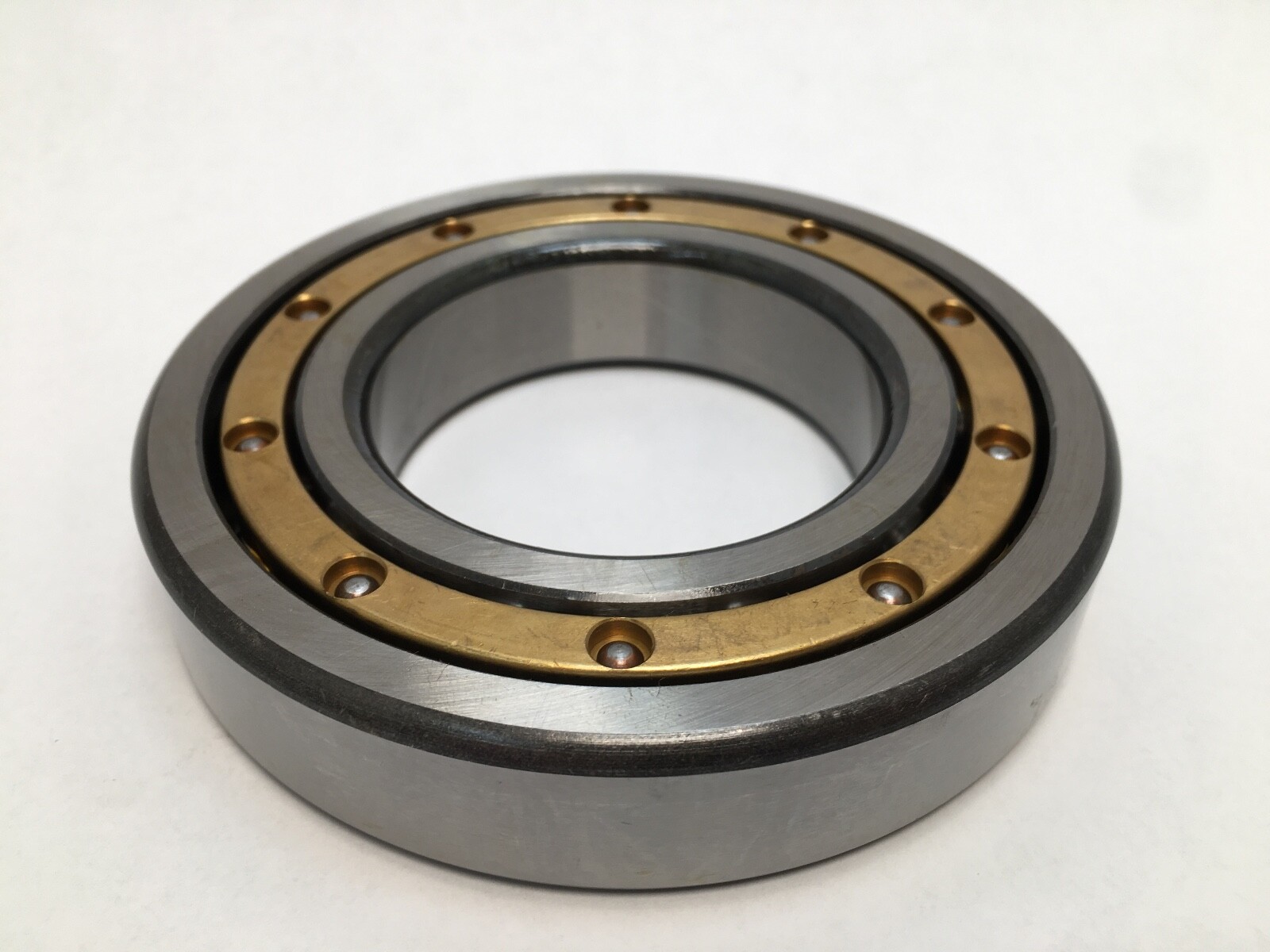

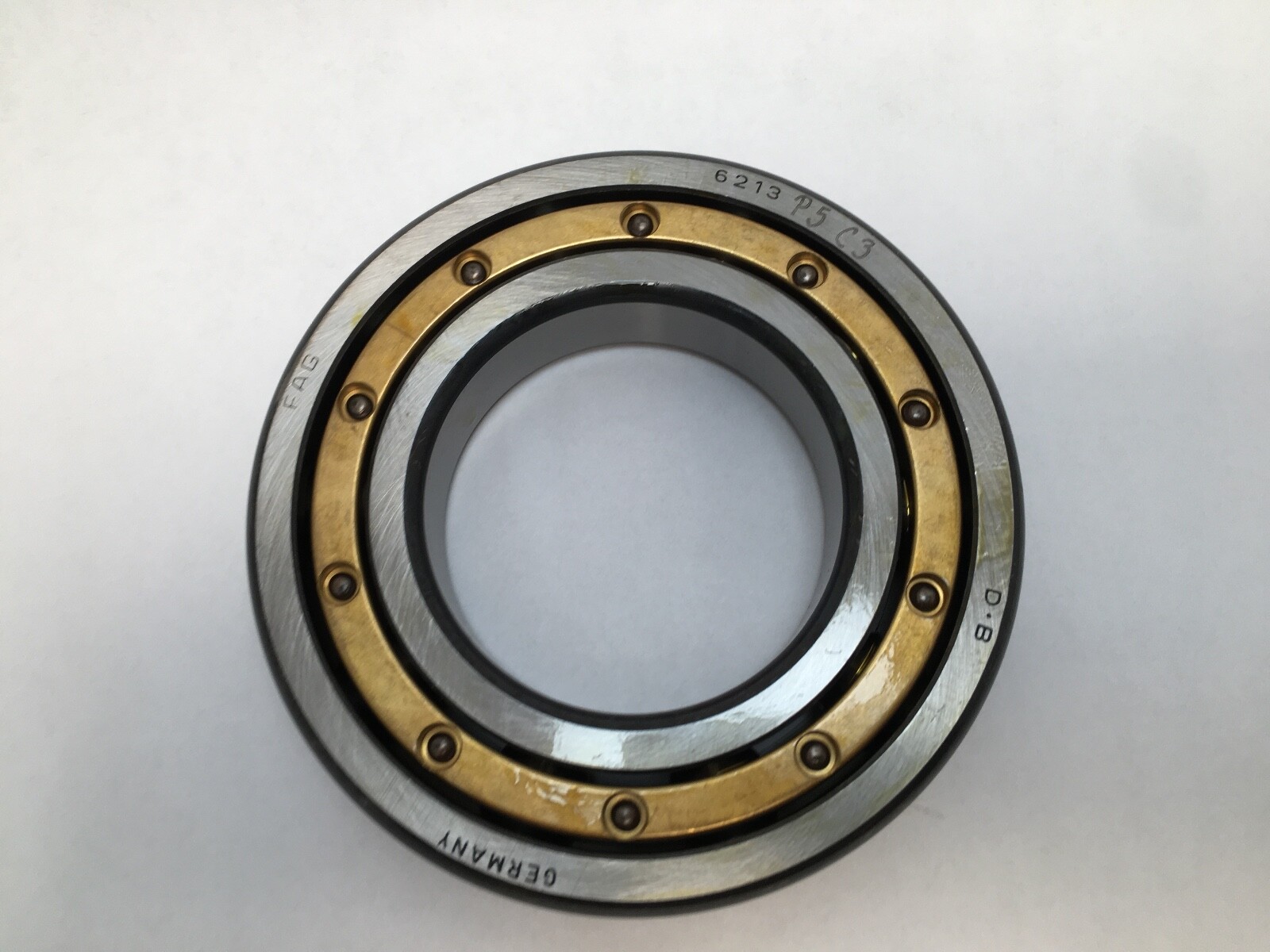

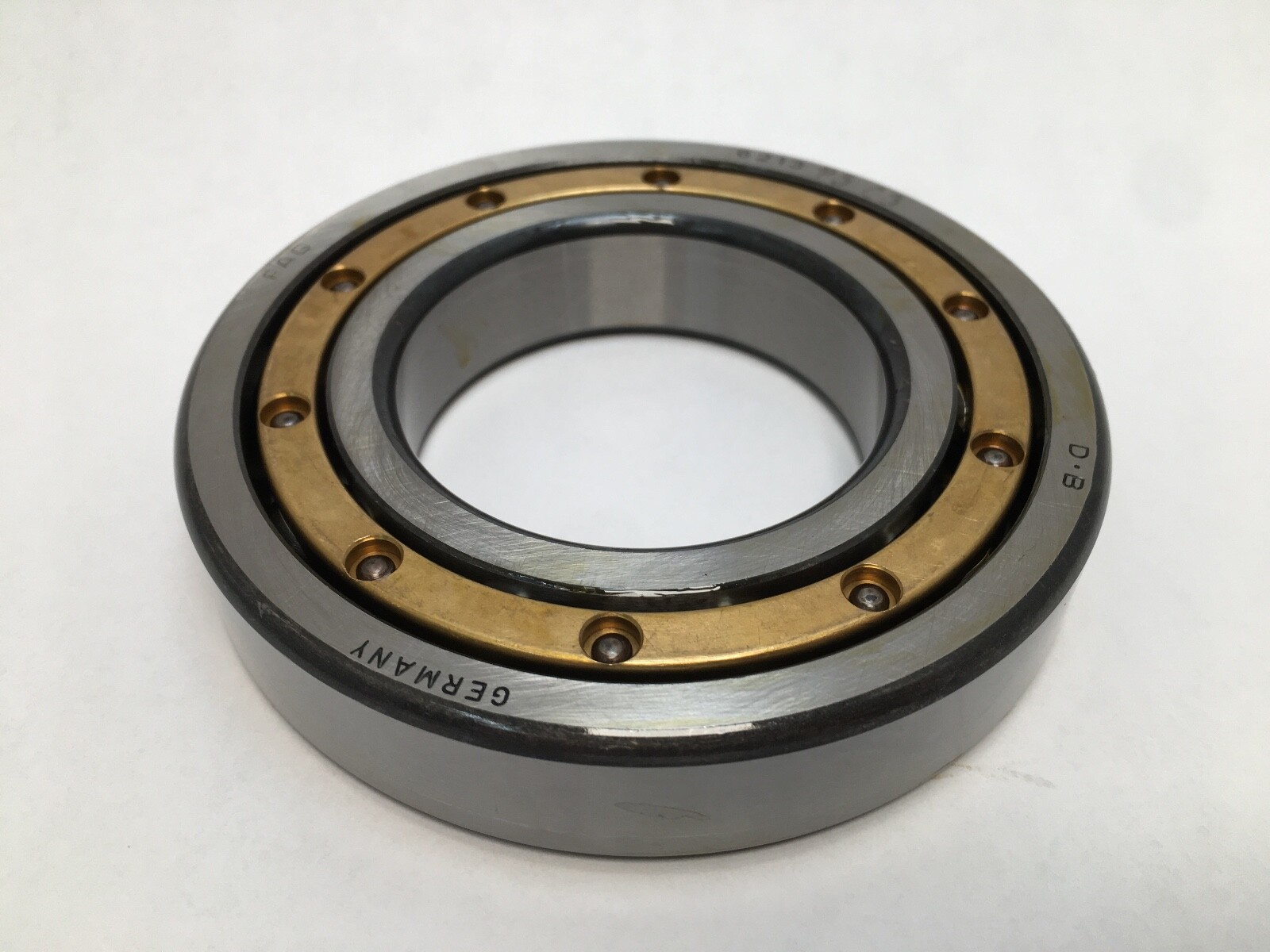

FAG 6213-M-P5-C3 is a single-row deep groove ball bearing with a solid machined brass cage, P5 tolerance and C3 clearance. Bore Diameter: 65 mm. Outside Diameter: 120 mm. Overall Width: 23 mm. Closure Type: Open. Unit Quantity: 1 Pc.

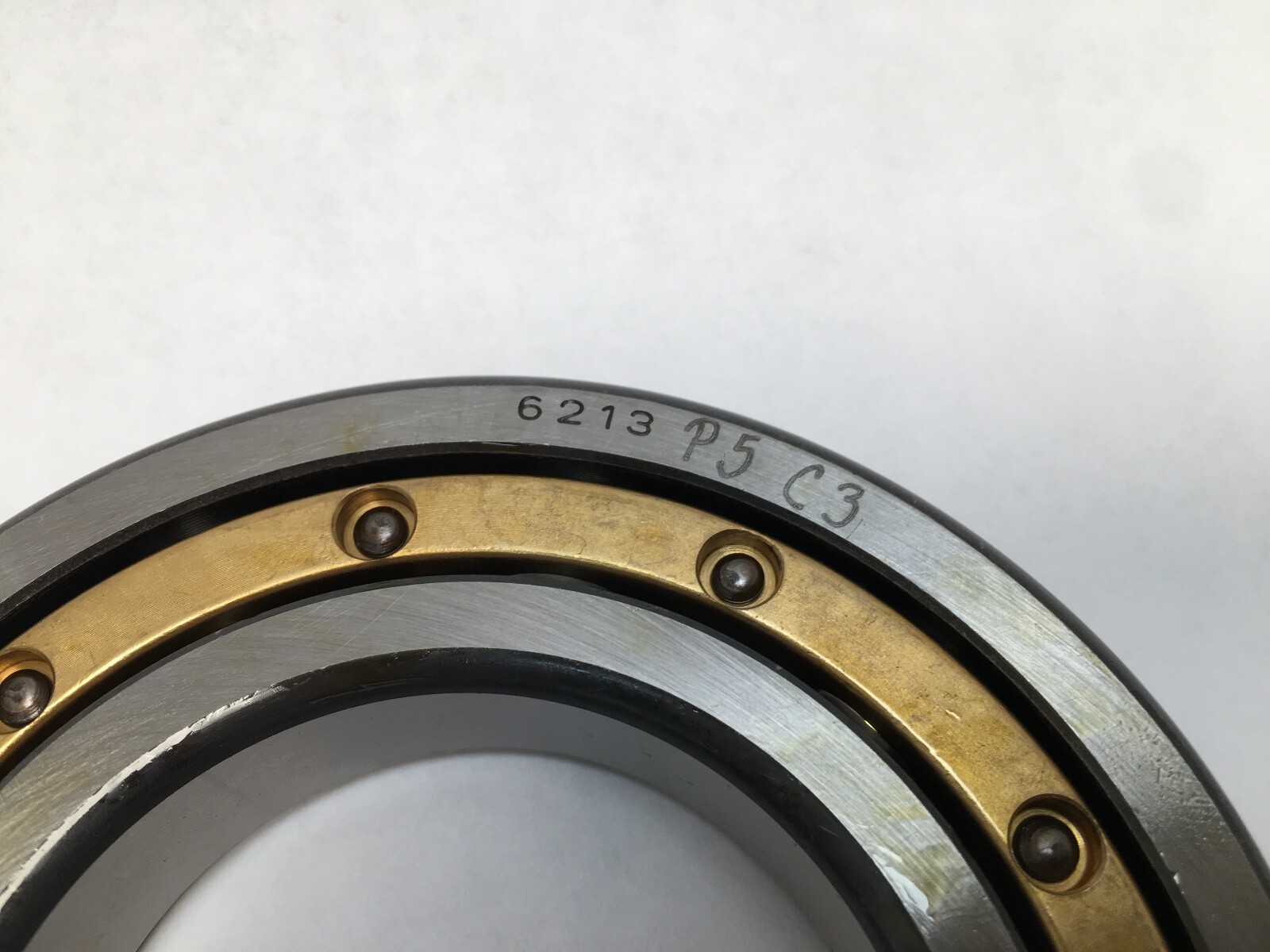

6213 — ISO 62 series deep groove ball bearing, bore code 13 = 65 mm.
M — solid machined brass cage.
P5 — tolerance class P5, equivalent to ABEC 5.
C3 — radial internal clearance larger than normal.
Dynamic Load Rating: 63,000 N. Static Load Rating: 41,500 N. Fatigue Limit Load: 2,850 N. Item Weight: 1.16 kg (2.56 lb). Precision Class: ABEC 5 / P5. Internal Clearance: C3. Cage Material: Machined brass. Cage Type: Solid machined. Series: 6200. Harmonization Code: 8482.10.50. Country of Origin: Germany.
Chamfer r min: 1.5 mm. Fillet ra max: 1.5 mm. Shaft Abutment da min: 74 mm. Housing Abutment Da max: 111 mm.
Base part: FAG 6213-M-C3, normal precision. Related part: SKF 6213 M/C3, normal precision, brass cage. Searchable variants: 6213M.P5.C3, 6213MP5C3, 6213 M P5 C3.
65 mm bore, 120 mm outside diameter and 23 mm width.
Tolerance class P5, equivalent to ABEC 5.
A solid machined brass cage.
