2 in stock
Deep groove ball bearing, 60 mm bore x 110 mm OD x 22 mm width, ABEC 5 / P5, phenolic cage, CN clearance. Consolidated (FAG designation) 6212T.P5.
List Price
$49.05
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 6212T.P5 |
| Model | 6212 T P5 |
| Bearing Type | Deep Groove Ball Bearing, Open |
| ID | 60 mm |
| OD | 110 mm |
| Width | 22 mm |
| Material | Chrome Steel |
|---|---|
| Series | 6200 |
| Mpn Variants | 6212T.P5, 6212-T-P5, 6212TP5, 6212-TB-P5, Consolidated 6212T.P5 |
| Precision Class | ABEC 5 / P5 |
| Precision Rating | ABEC 5 / P5 |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | CN |
| Harmonization Code | 8482.10.50.68 |
| Closure Type | Open |
| Cross Reference 1 | SKF 6212/P5 (P5; cage may differ) |
|---|---|
| Cross Reference 2 | NSK 6212P5 (P5; cage may differ) |
| Cross Reference 3 | NTN 6212P5 (P5; cage may differ) |
| Cross Reference 4 | Koyo 6212P5 (P5; cage may differ) |

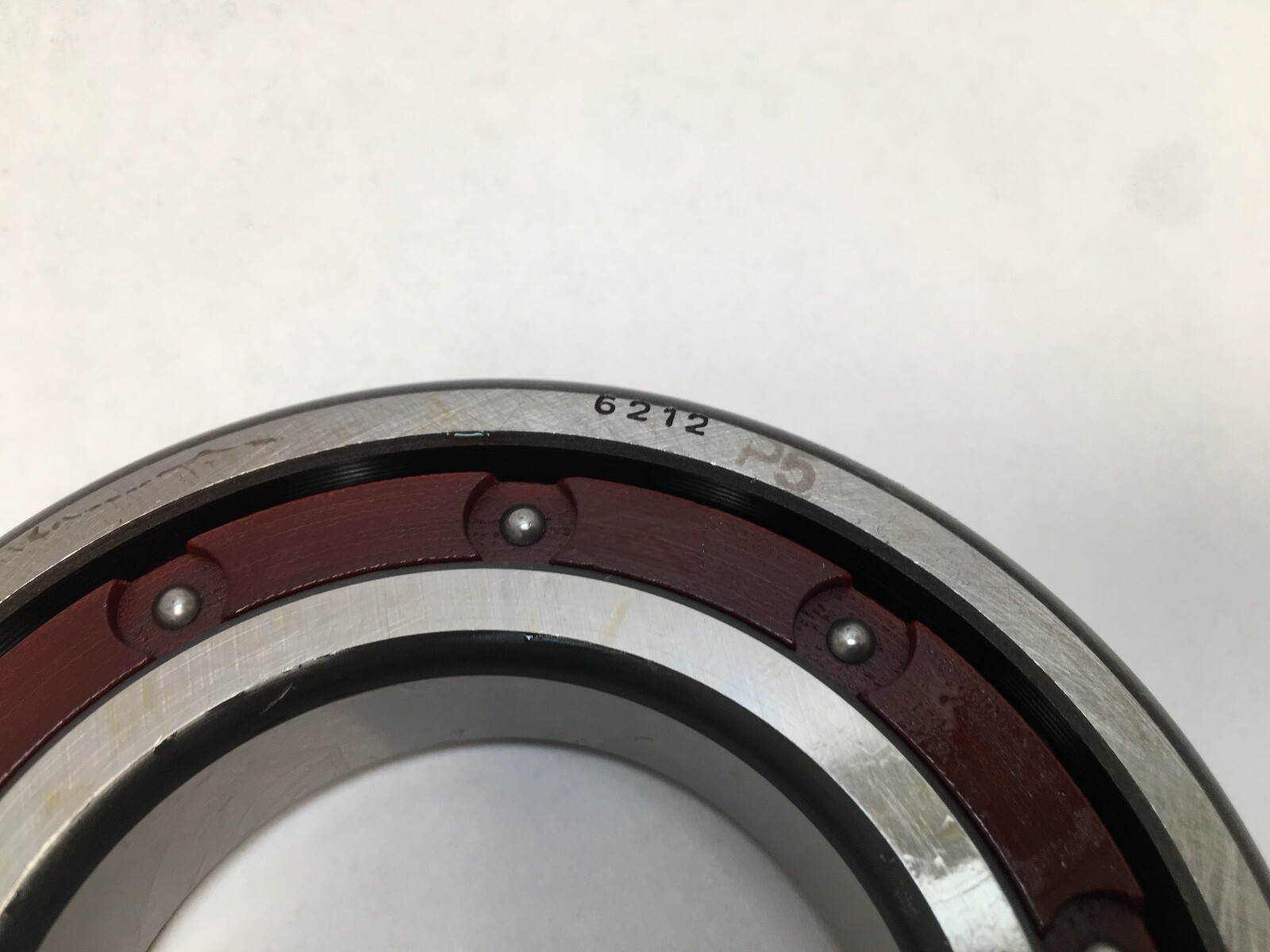

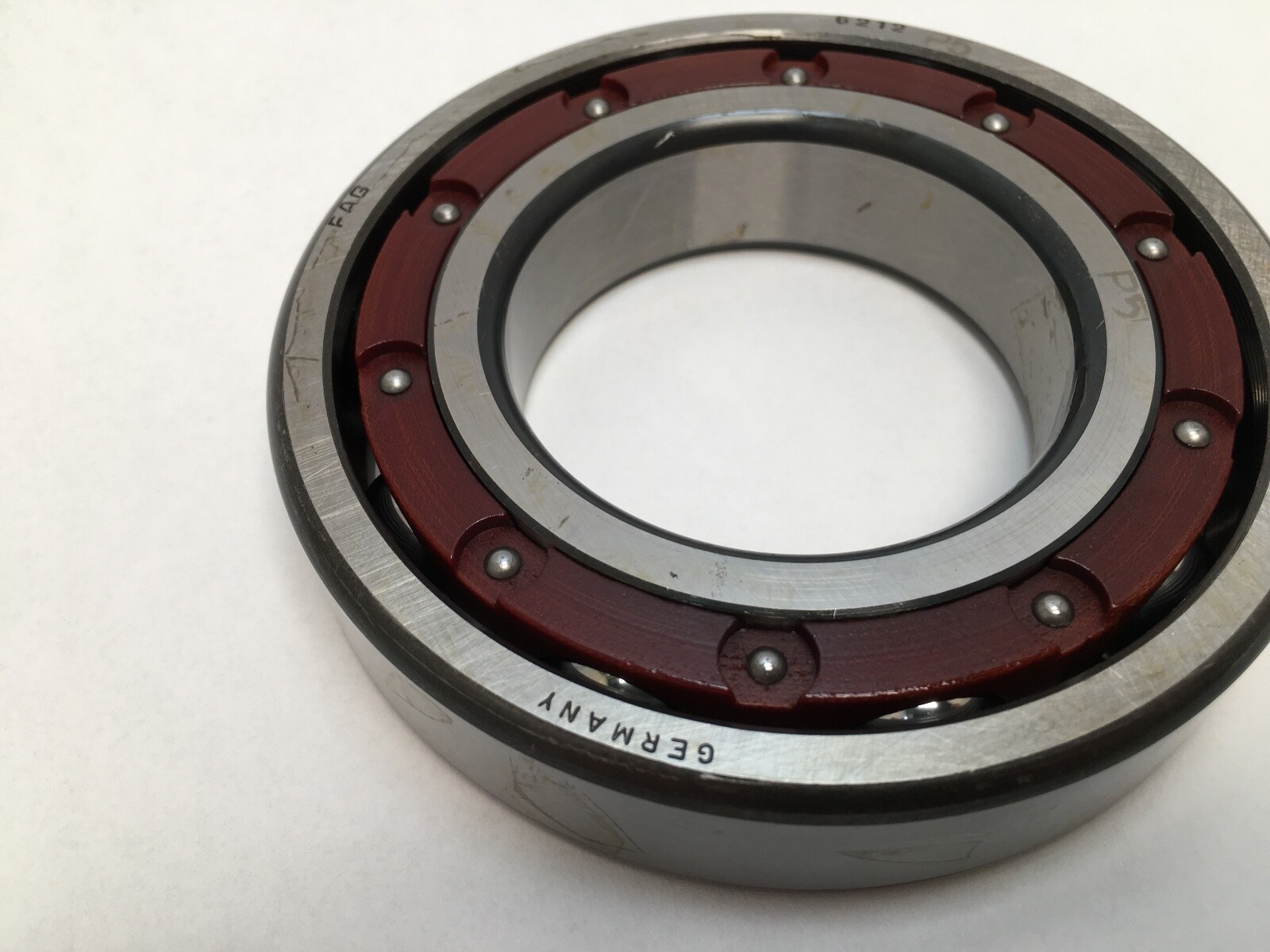

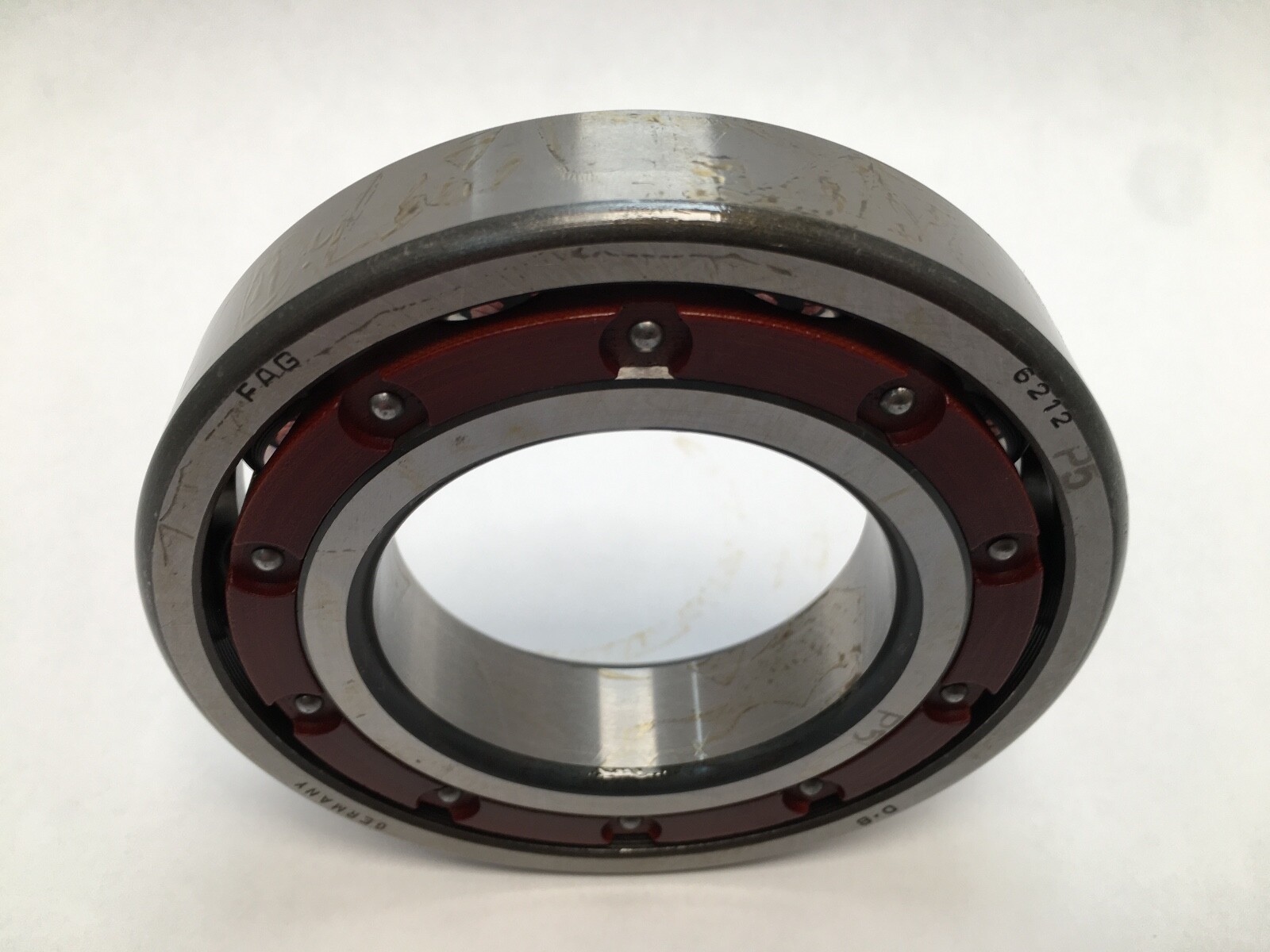

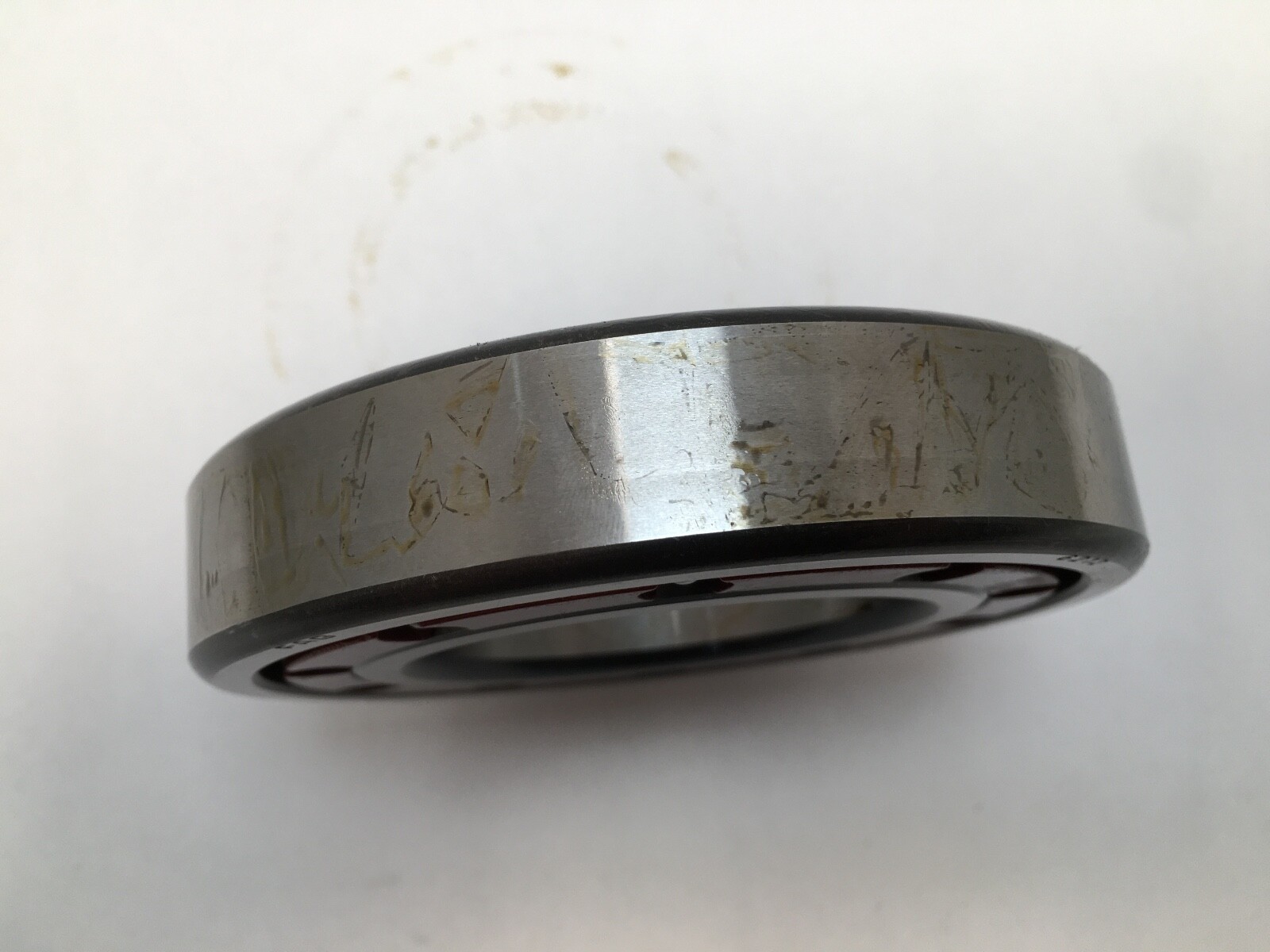

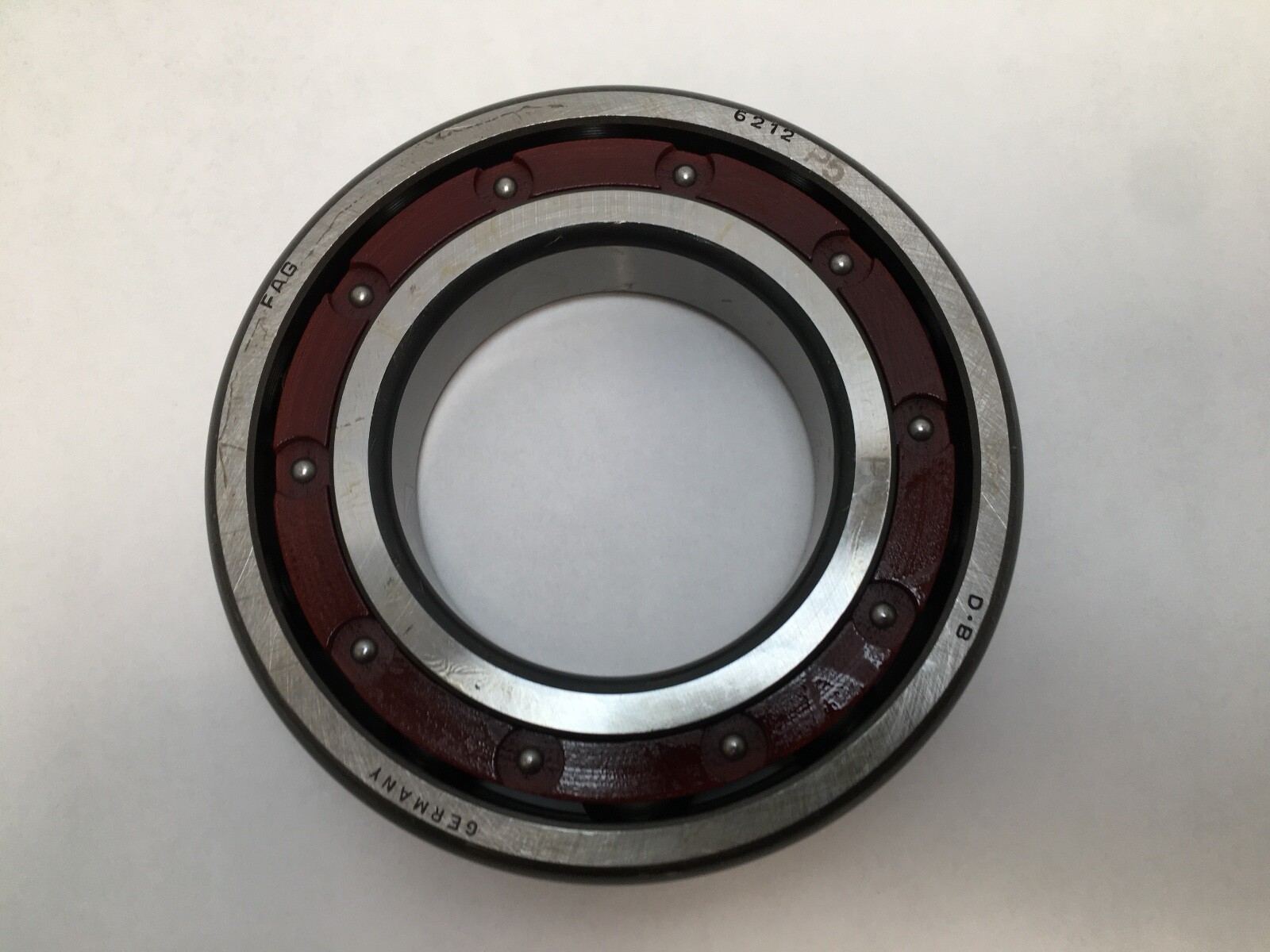

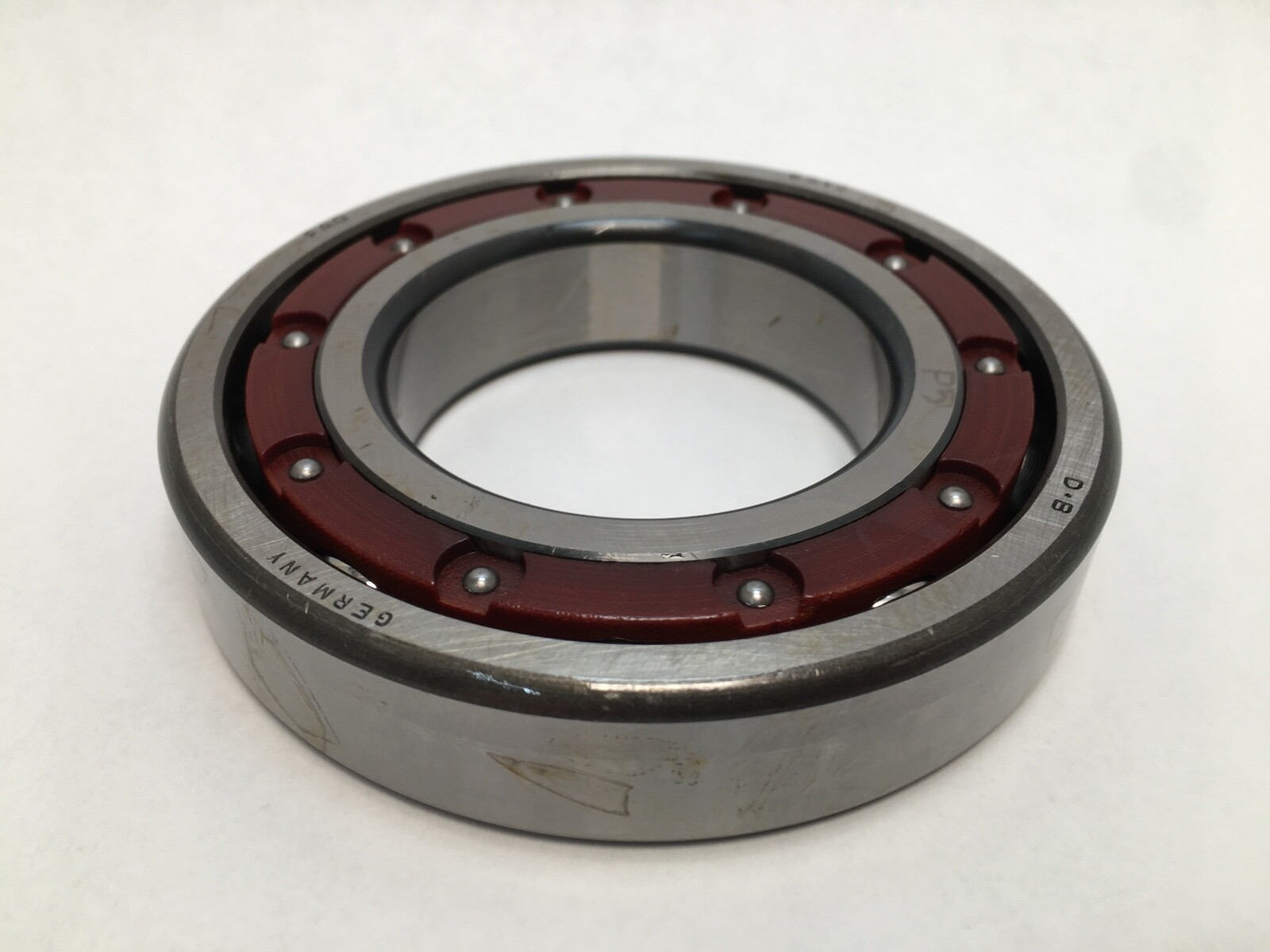

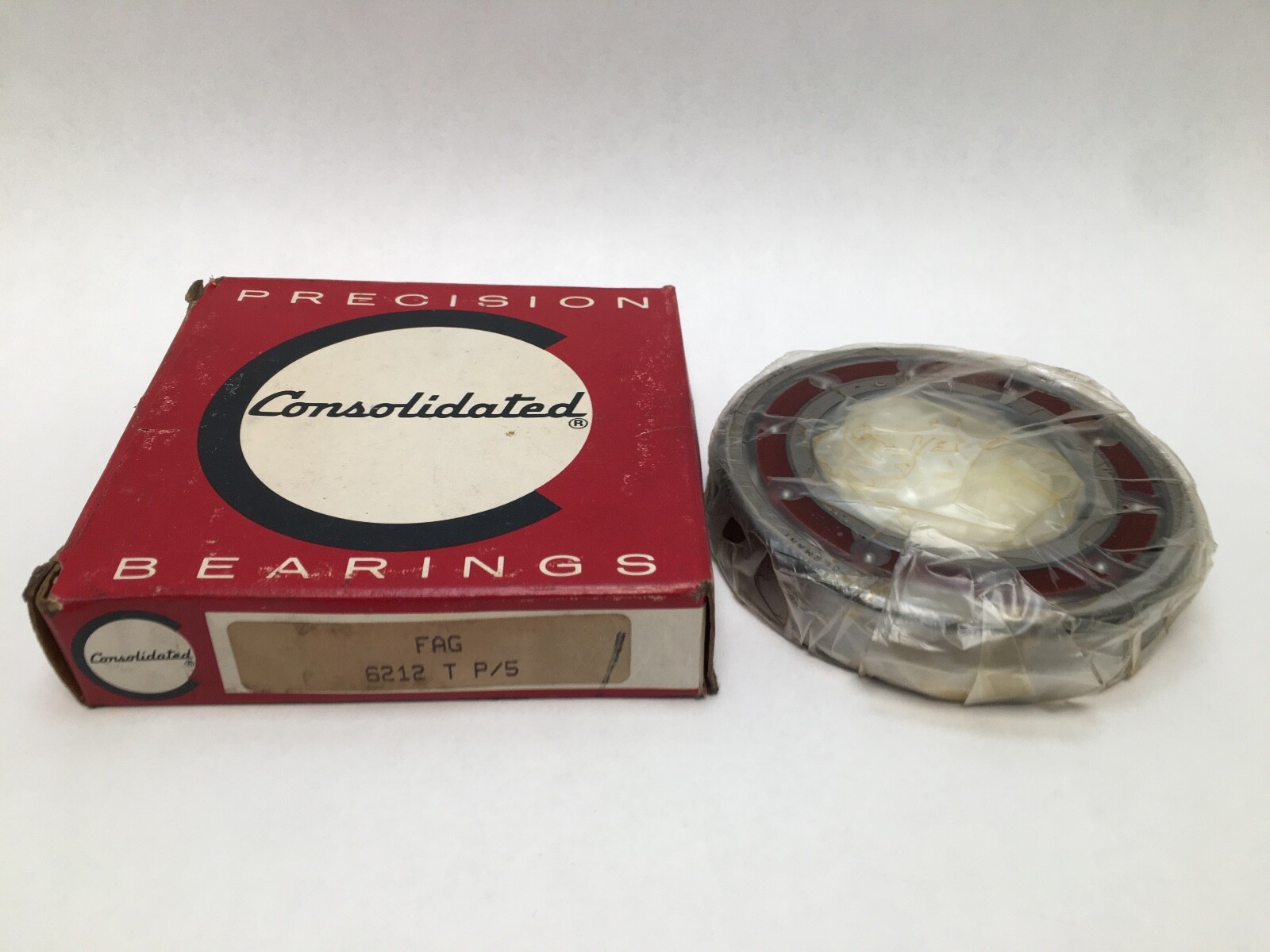

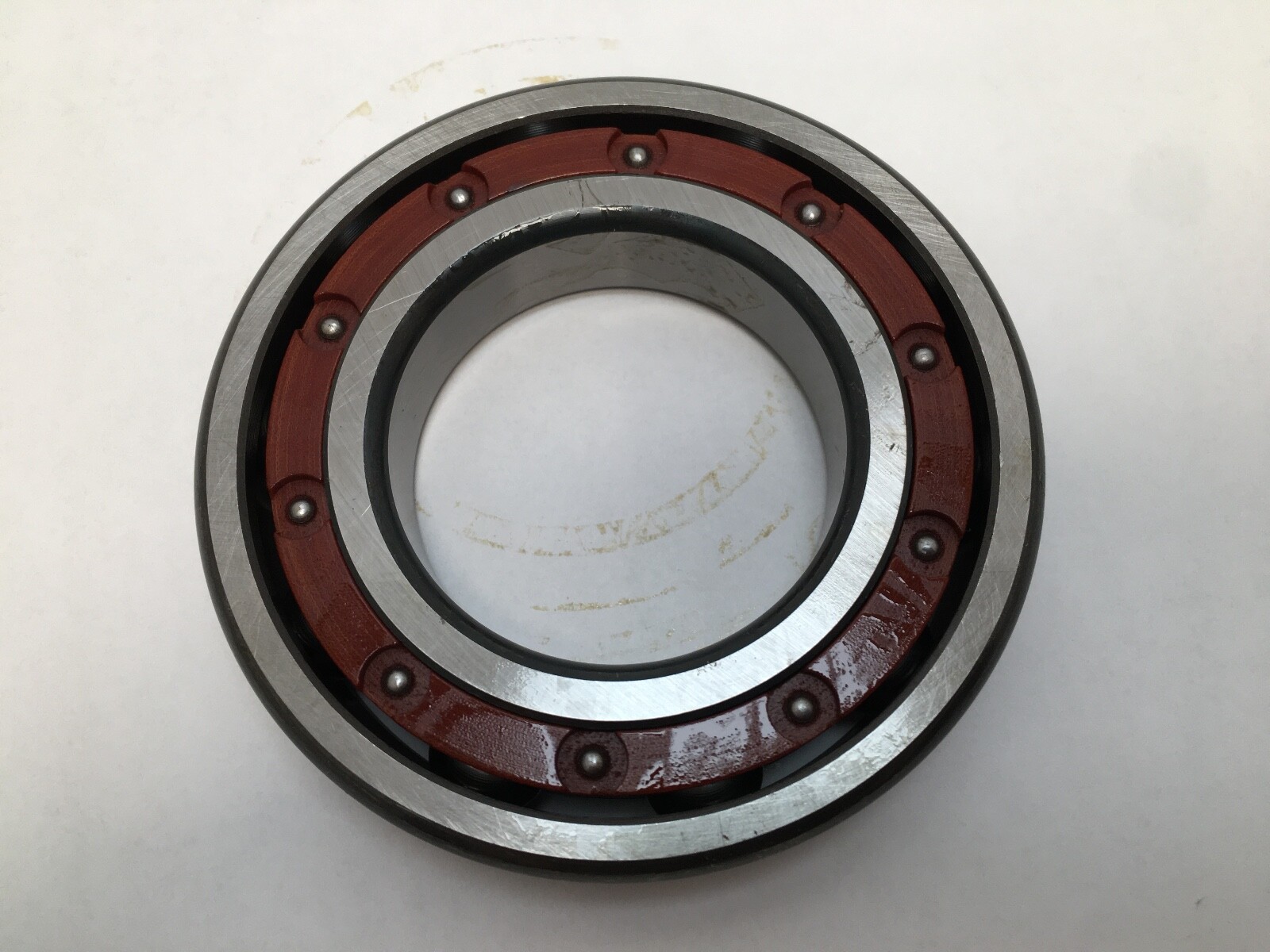

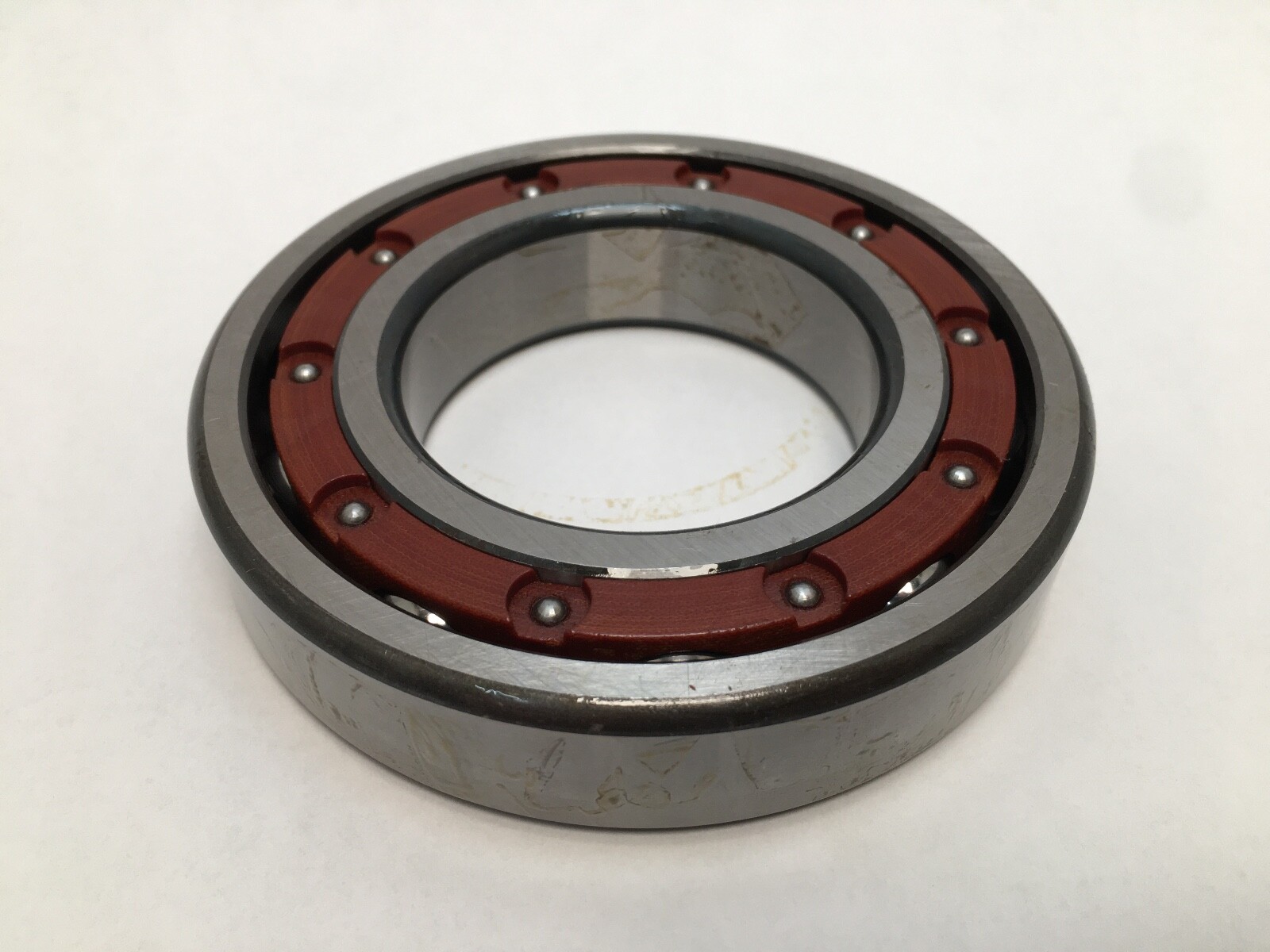

Consolidated (FAG designation) 6212T.P5 single-row deep groove ball bearing in the ISO 6212 envelope, 60 x 110 x 22 mm, open, with a phenolic laminate cage and ABEC 5 / P5 precision. Unit Quantity: 1 Pc.
6212 — 62 light diameter series, bore code 12 = 60 mm bore.
T — phenolic laminate cage.
P5 — precision class P5, equivalent to ABEC 5.
Bearing Type: Deep Groove Ball Bearing. Bore Diameter: 60 mm. Outside Diameter: 110 mm. Width: 22 mm. Closure Type: Open. Bore Type: Straight. Precision Class: ABEC 5 / P5. Cage Material: Phenolic. Internal Clearance: CN. Rolling Elements: Ball. Number Of Rows: 1. Series: 6200. Snap Ring Included: No.
Chamfer r min: 1.5 mm. Shaft abutment diameter da min: 69 mm. Housing abutment diameter Da max: 101 mm. Fillet radius ra max: 1.5 mm.
Same 60 x 110 x 22 mm envelope and P5 class: Cross-Reference 1: SKF 6212/P5. Cross-Reference 2: NSK 6212P5. Cross-Reference 3: NTN 6212P5. Cross-Reference 4: Koyo 6212P5. The cage may differ between makers. Current FAG form: 6212-TB-P5. MPN Variants: 6212T.P5, 6212-T-P5, 6212TP5, 6212-TB-P5, Consolidated 6212T.P5.
A phenolic laminate cage.
Precision class P5, equivalent to ABEC 5.
Bore 60 mm, outside diameter 110 mm, width 22 mm.
