FAG6201TP5Precision Deep Groove Ball Bearing 12 x 32 x 10 mm, P5 / ABEC 5, Phenolic Cage, Open Both Faces — Set of 7

Product Description

What this part is

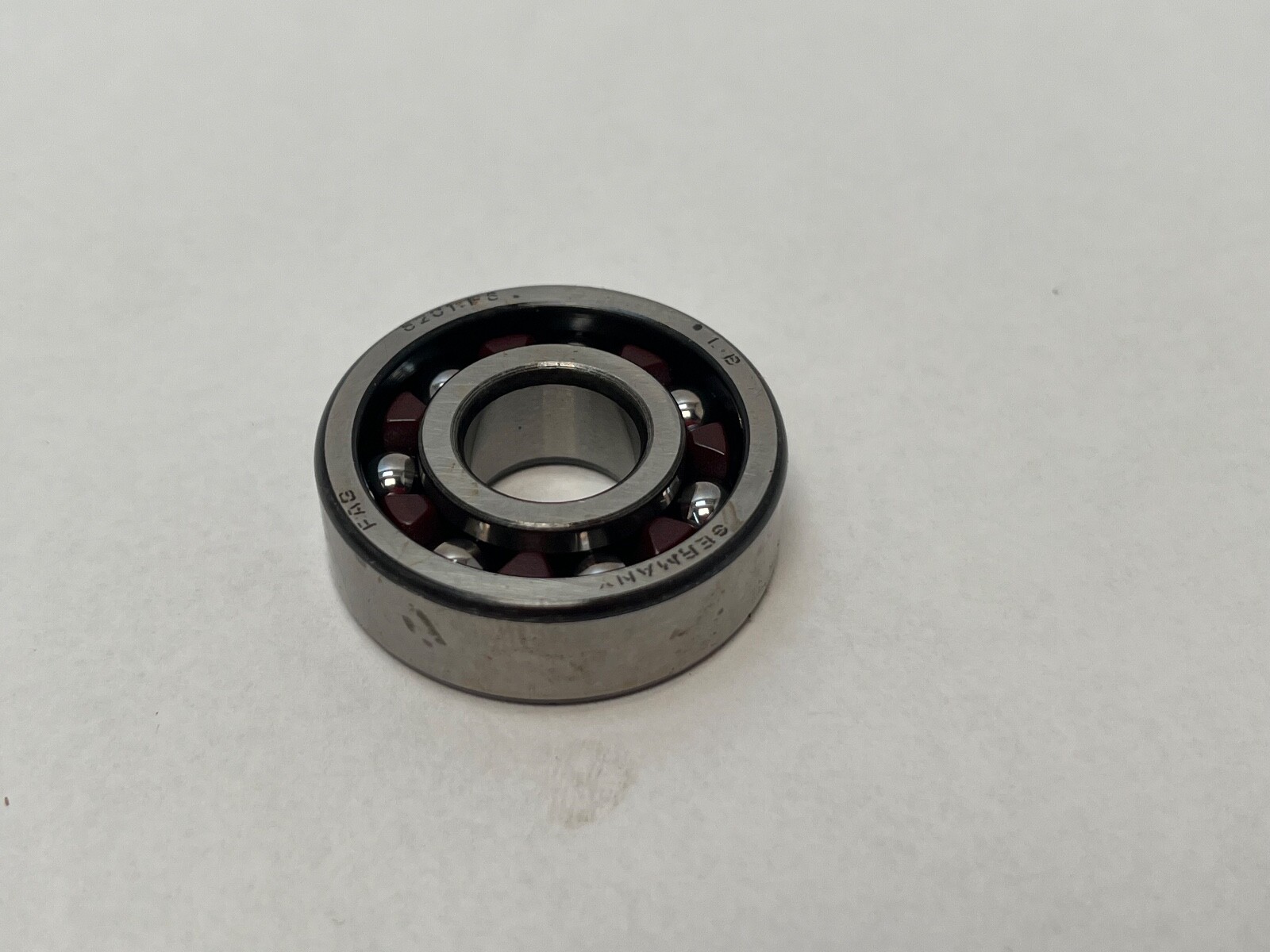

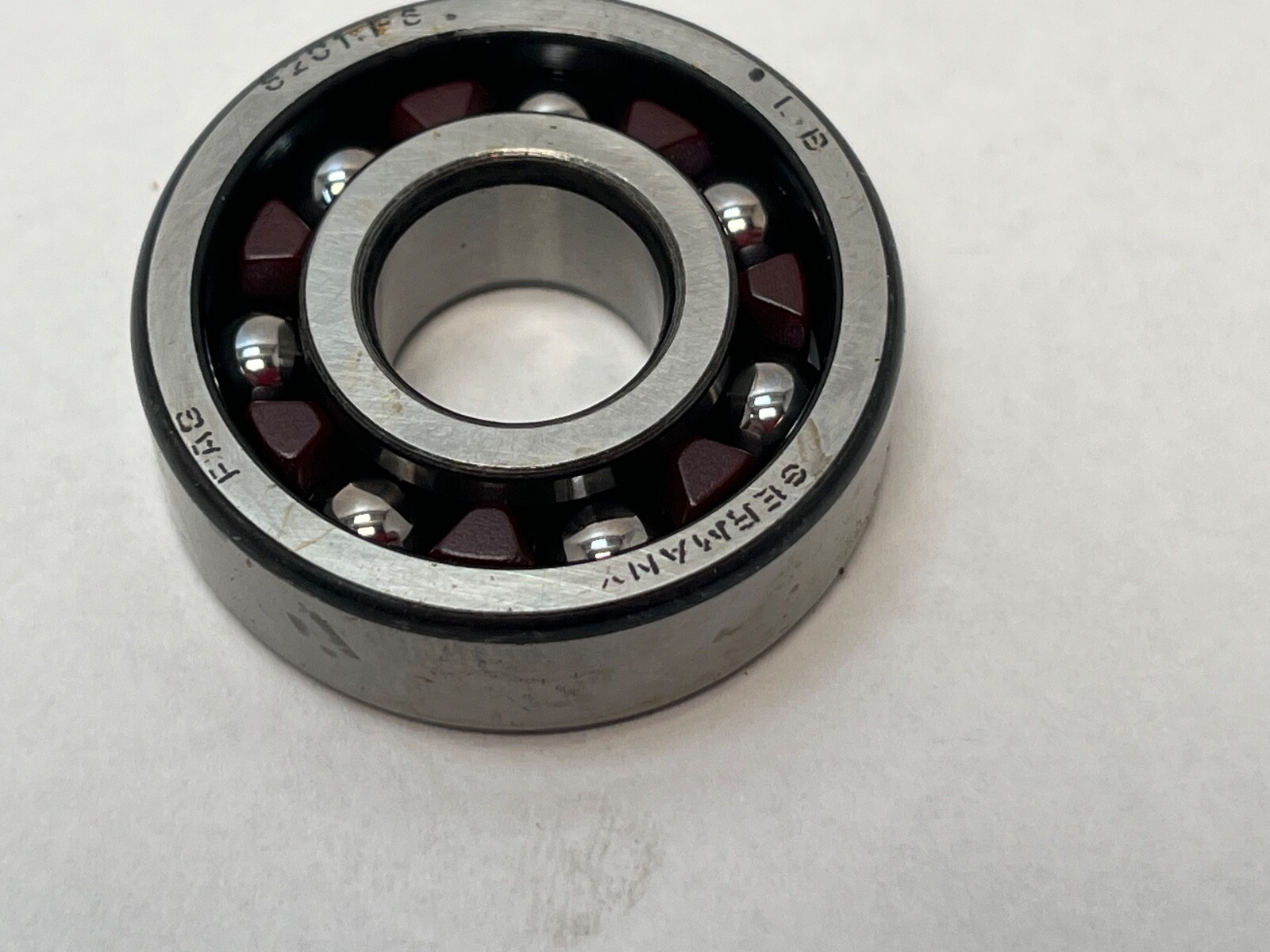

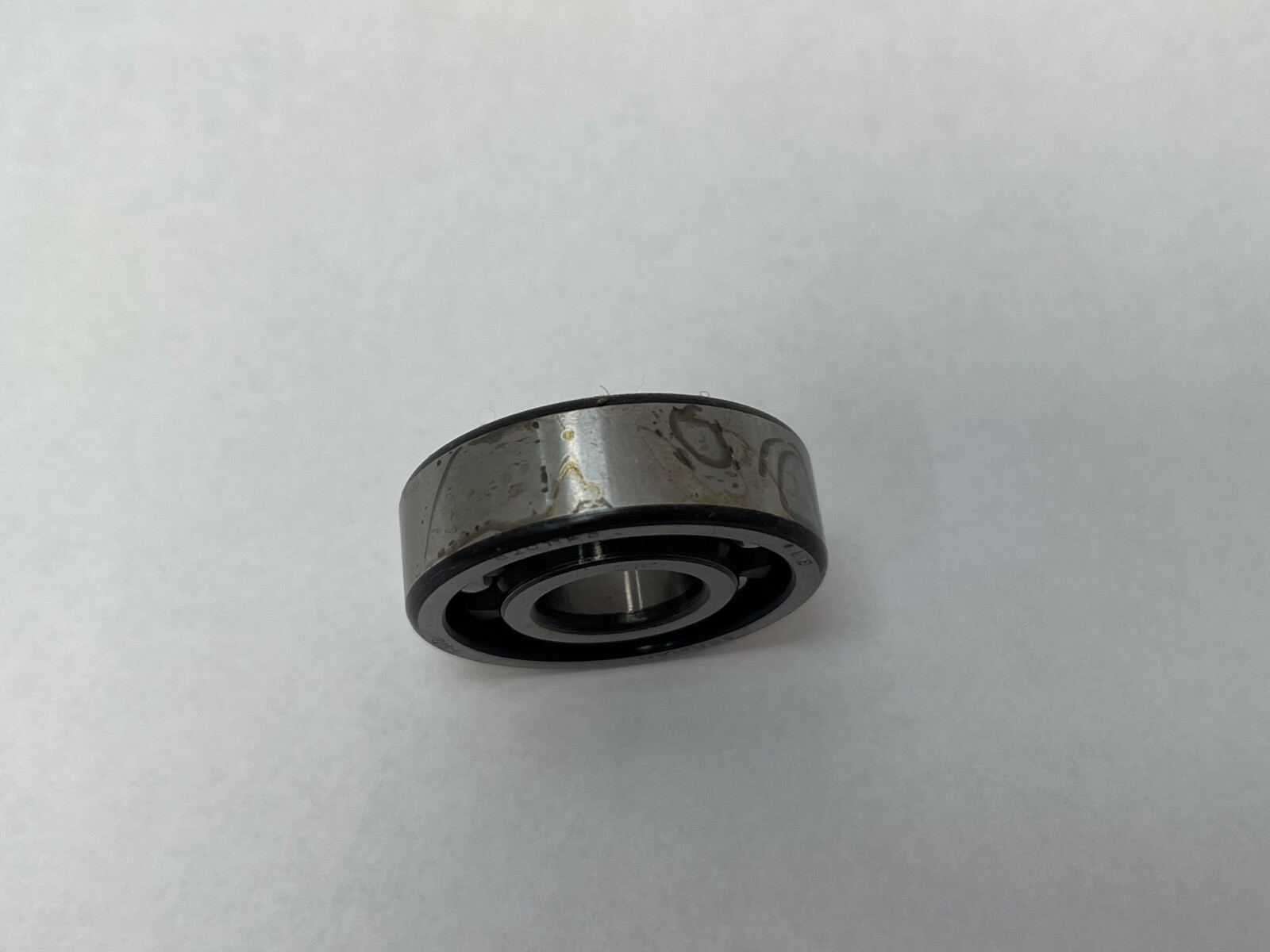

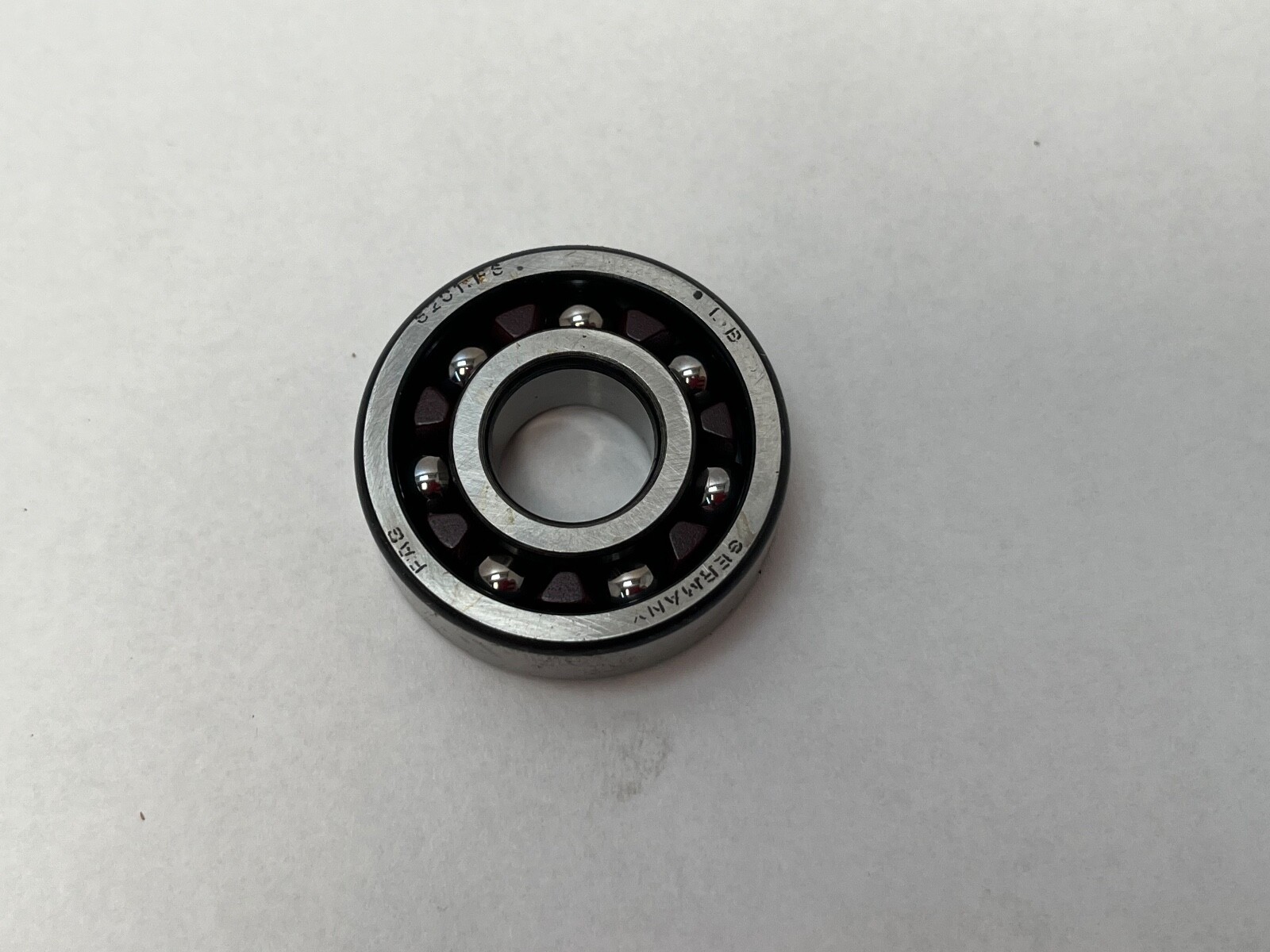

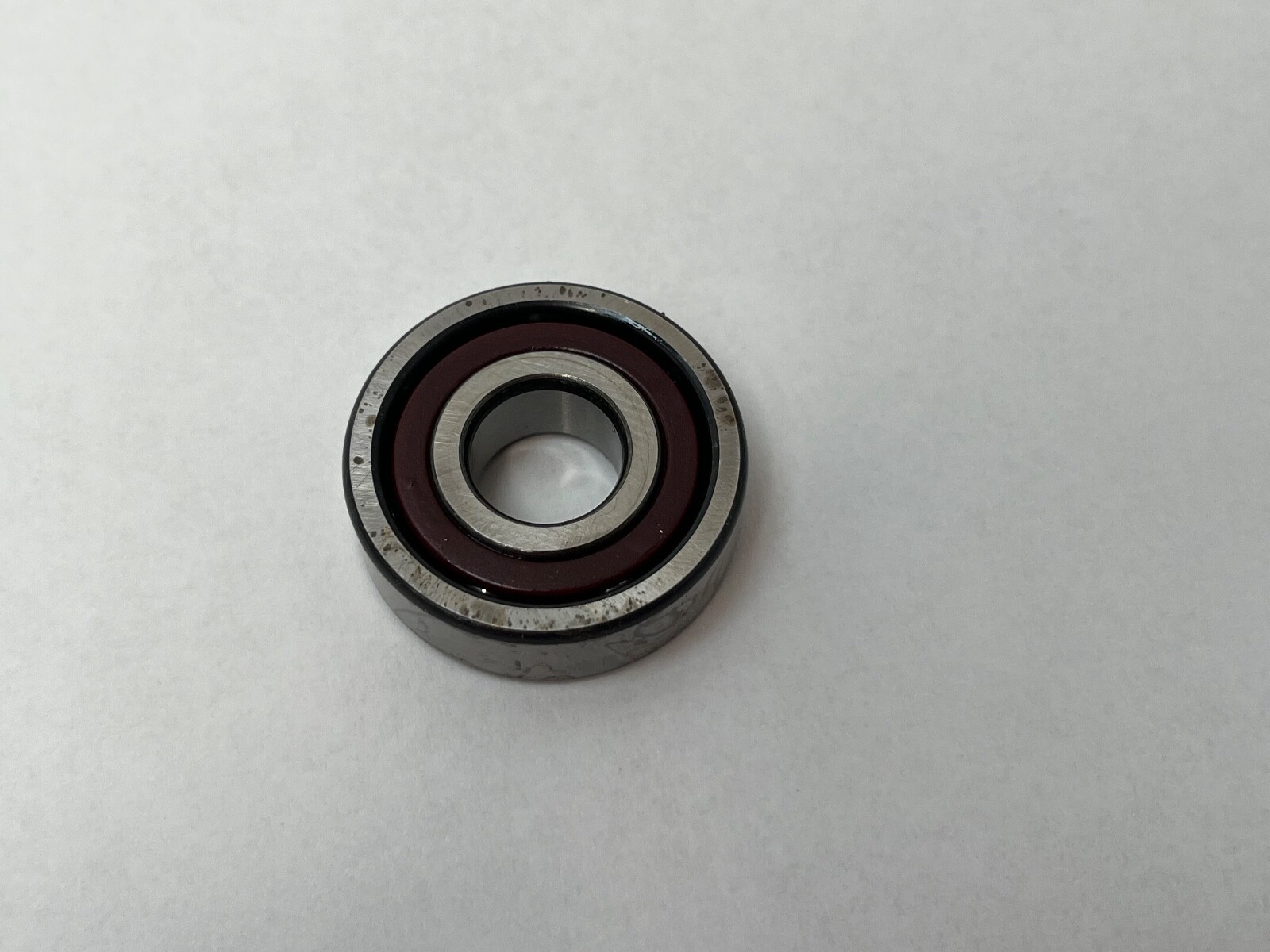

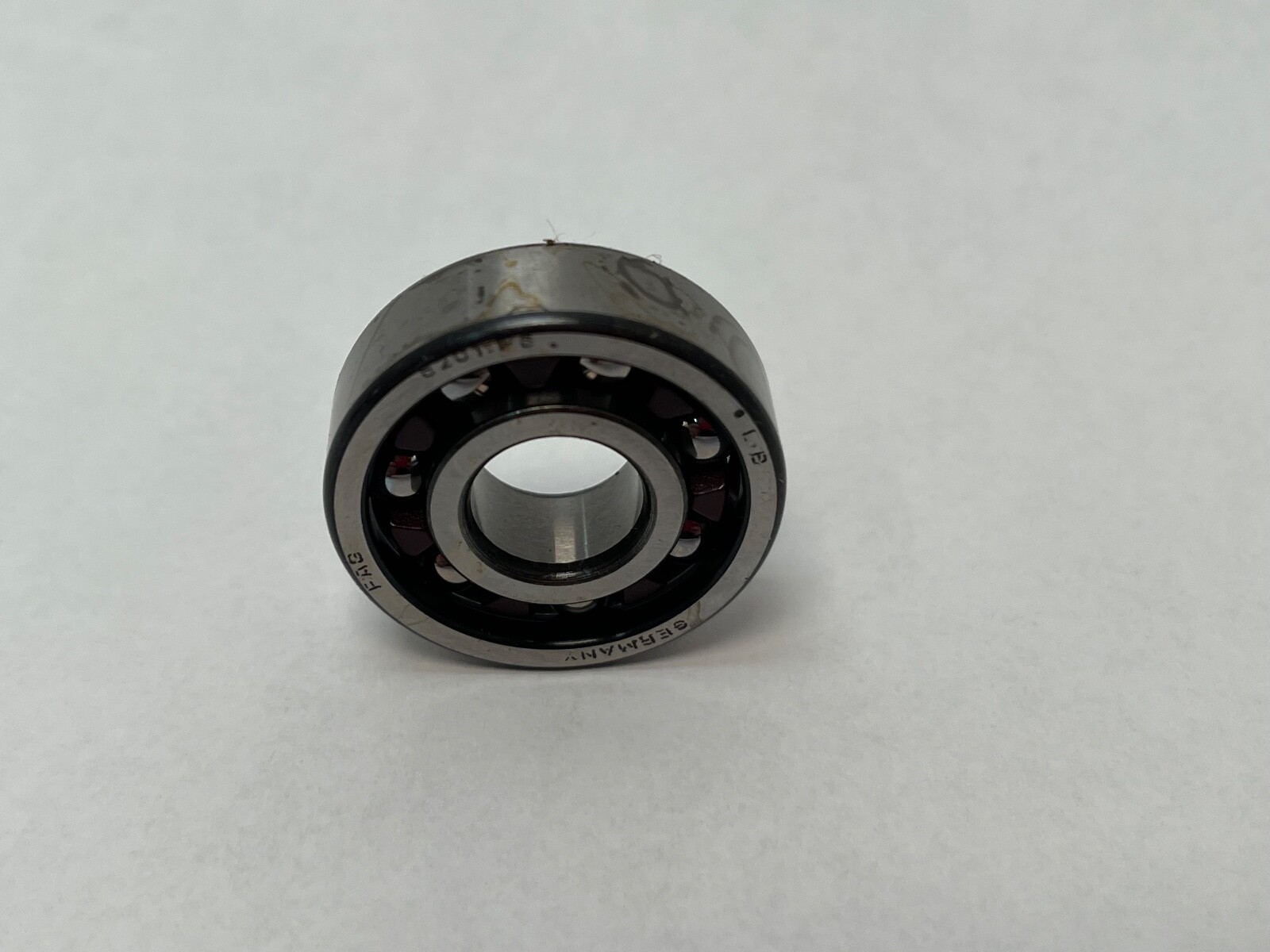

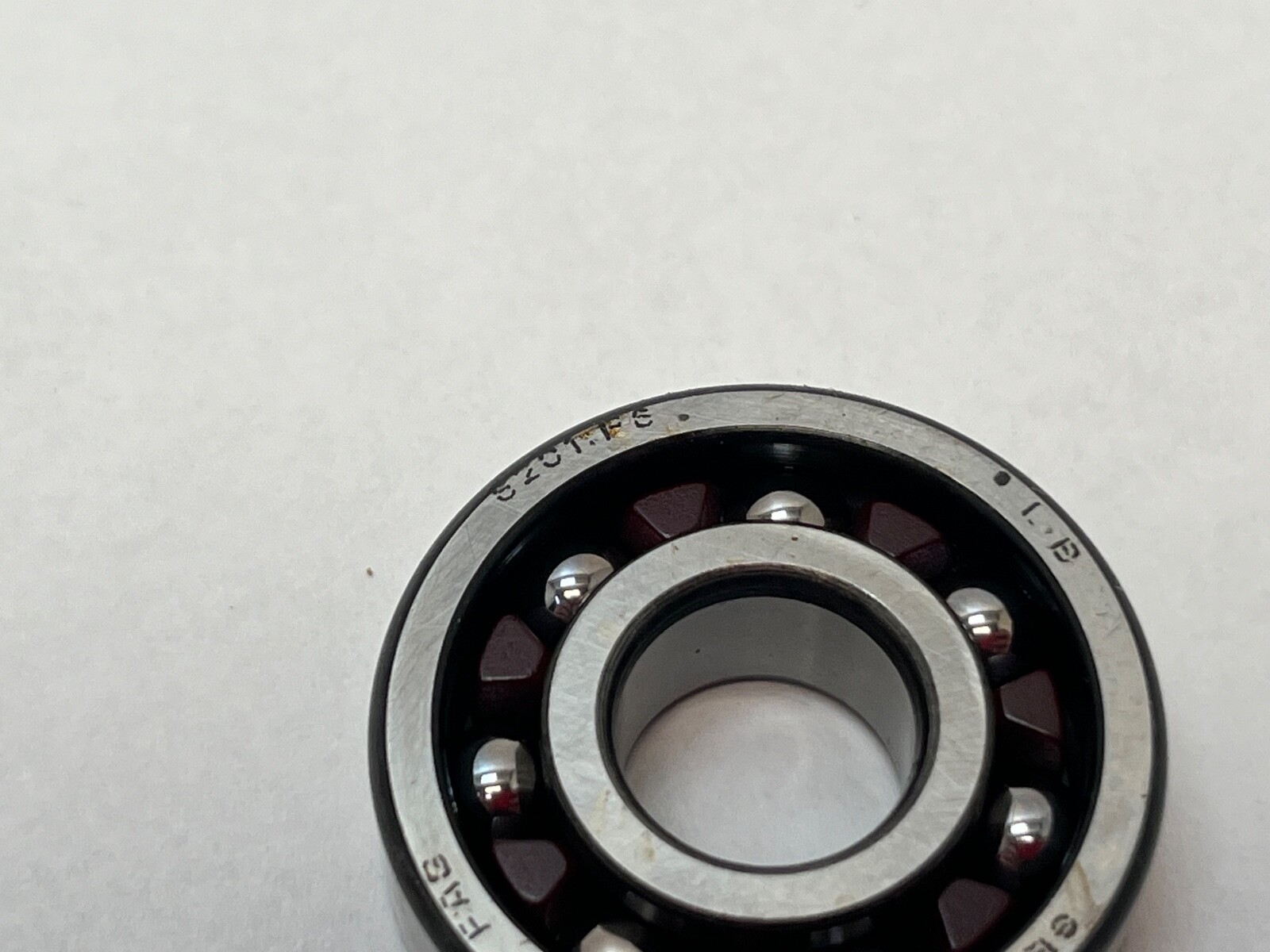

A FAG 6201-T-P5 single-row deep groove ball bearing, 12 mm bore, 32 mm outside diameter, 10 mm wide, built to P5 precision with a phenolic laminate cage and open on both faces. This is a precision-class version of the commonest bearing size in industry: the same envelope as a standard 6201, ground and gauged to tighter dimensional and running accuracy.

Decoding the designation

62 is the ISO light dimension series for deep groove ball bearings. 01 is the bore code, which in the 00 to 03 block does not follow the five-millimetre rule — 00 is 10 mm, 01 is 12 mm, 02 is 15 mm and 03 is 17 mm. T is the fabric-reinforced phenolic laminate cage. P5 is ISO tolerance class 5, equivalent to ABEC 5. No closure suffix appears, so the bearing is open on both faces, and no clearance suffix appears, so radial internal clearance is CN, normal.

What these specs mean in practice

P5 tightens bore and outside diameter tolerance and, more importantly, tightens radial and axial runout of the assembled bearing. That is what buys a quiet, low-vibration shaft and repeatable position, which is why the class turns up on instrument spindles, small grinding heads, encoder shafts and precision gearheads rather than on general machinery. The phenolic cage is light, self-lubricating and quiet, and suits high speed with oil or light grease; its temperature ceiling is lower than a pressed steel or brass cage, which is the trade for the speed and the running smoothness. Open faces let the bearing be lubricated by the machine’s own oil supply and cleaned before assembly.

Quantity and configuration

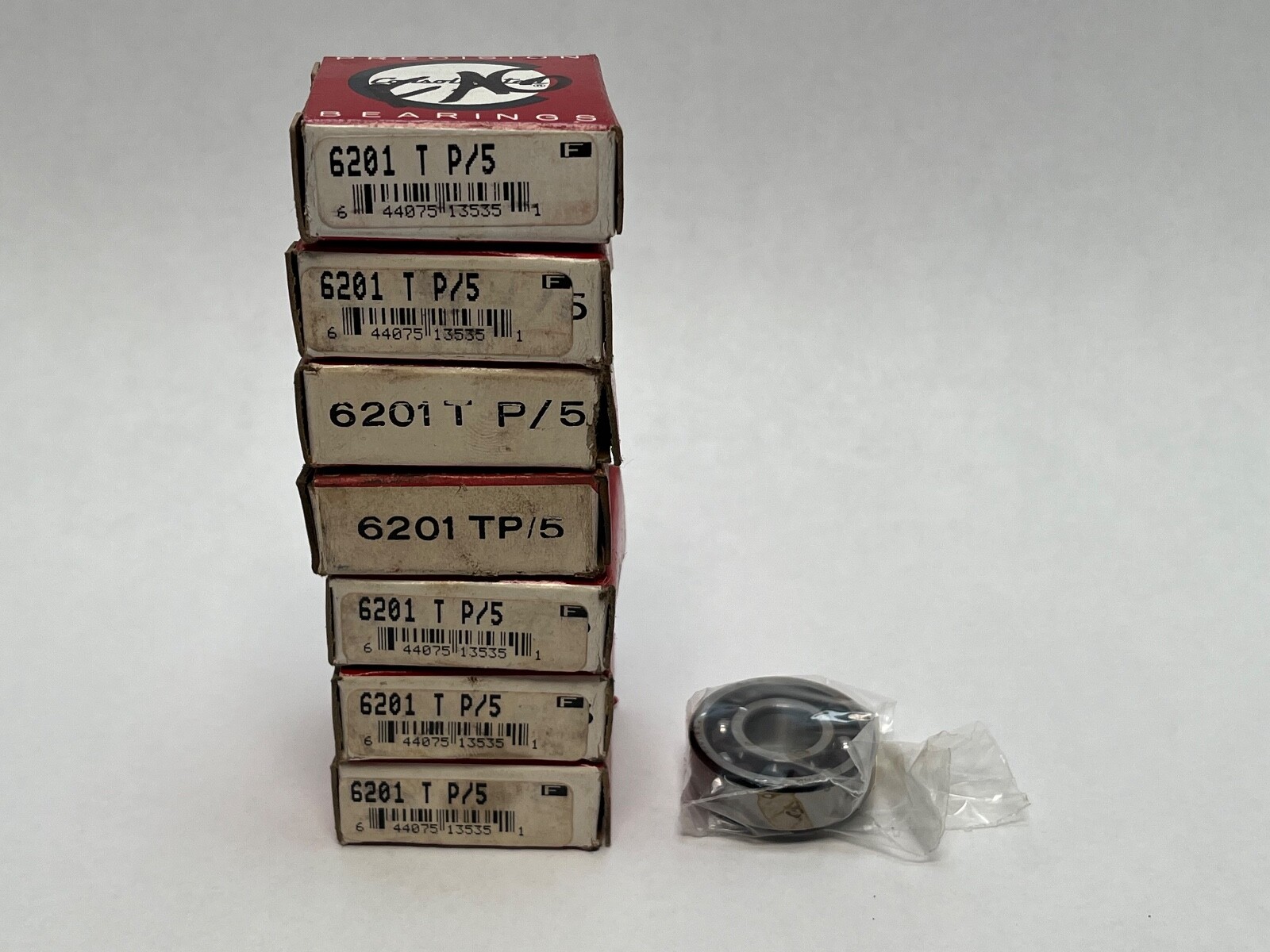

7 Pcs. Complete bearings, open both faces, no seals and no shields. No snap ring and no snap-ring groove.

Fitting notes

At P5 the bearing’s own accuracy exceeds that of an ordinary shaft seat, so the shaft and housing want to be ground and held to a matching tolerance for the accuracy to reach the spindle. Mounting force goes through the ring being fitted and never across the ball complement, and the open bearing is kept clean and lubricated before it is closed up, since there is no factory grease charge retained by a shield.

Interchange guidance

The ISO base number is 6201, so another maker’s 6201 P5 or 6201 TB P5 open precision deep groove ball bearing at class 5 with a phenolic or polyamide cage is a genuine interchange. A standard 6201 is a related size, not a substitution, because it is normal class and its runout is not controlled to P5. 6201-2Z and 6201-2RSR fit the same seat but are shielded and sealed, and 6201-T-P53 is the same bearing with C3 clearance added — each a different part.
