Availability:
2 in stock

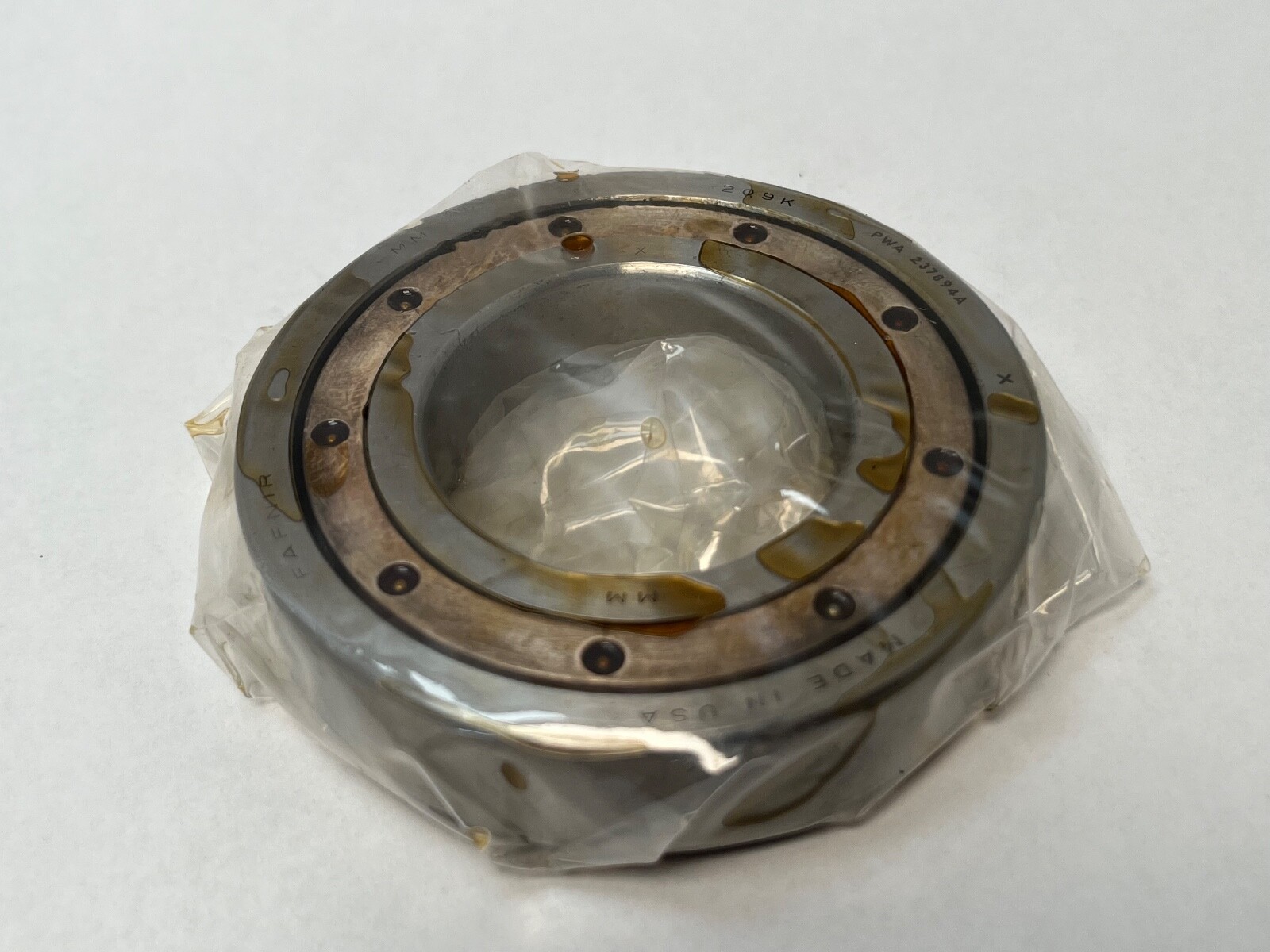

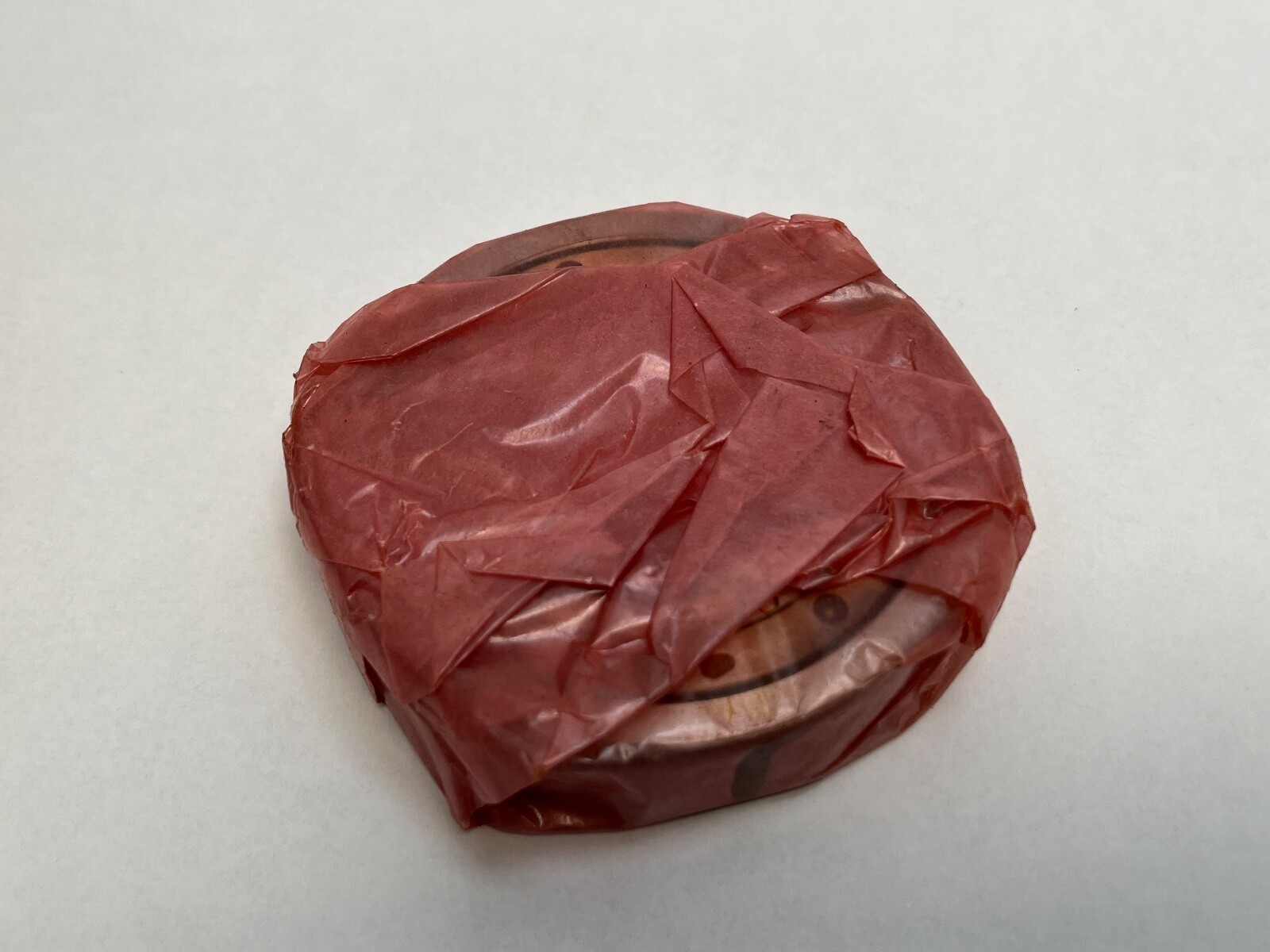

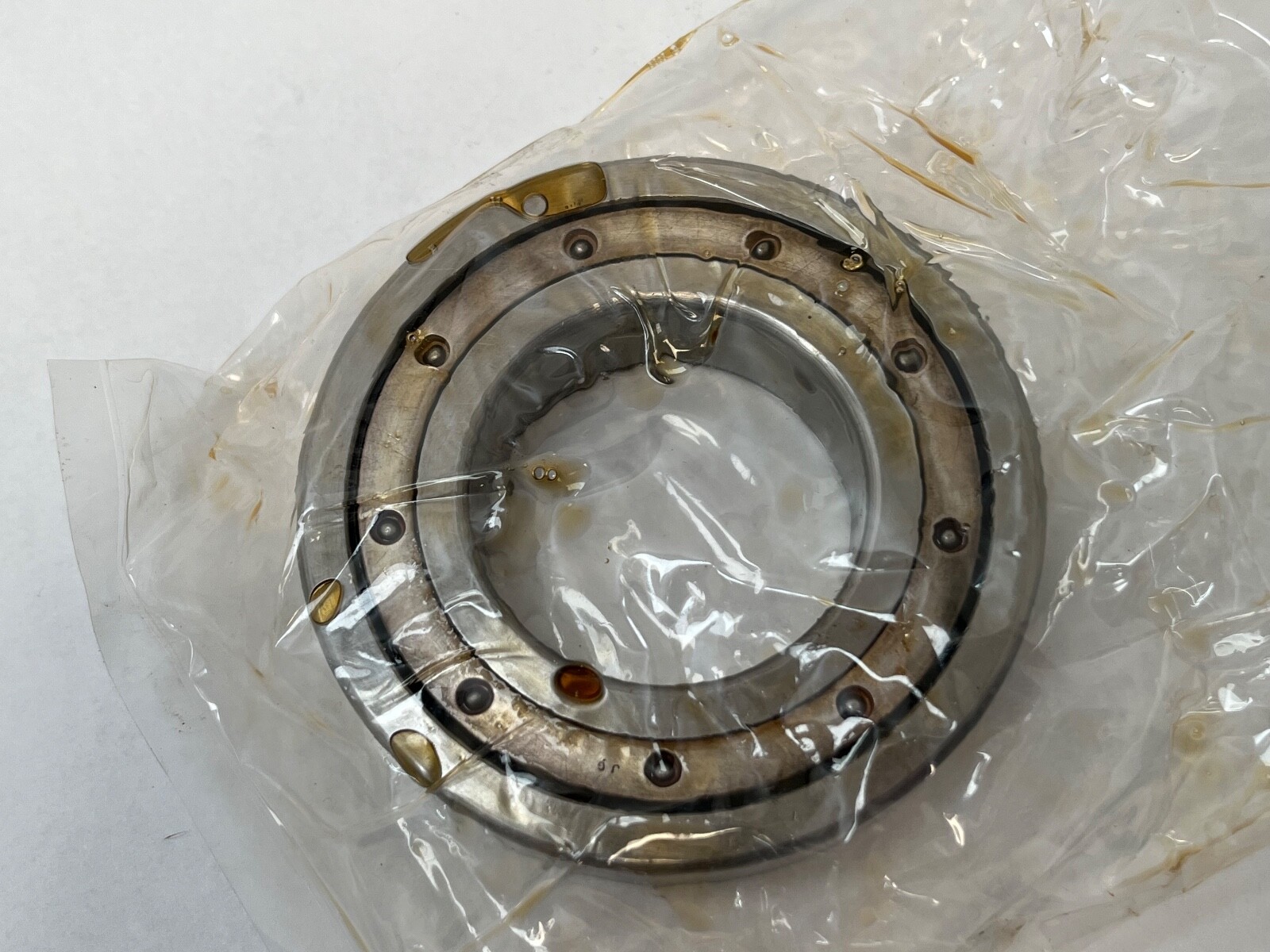

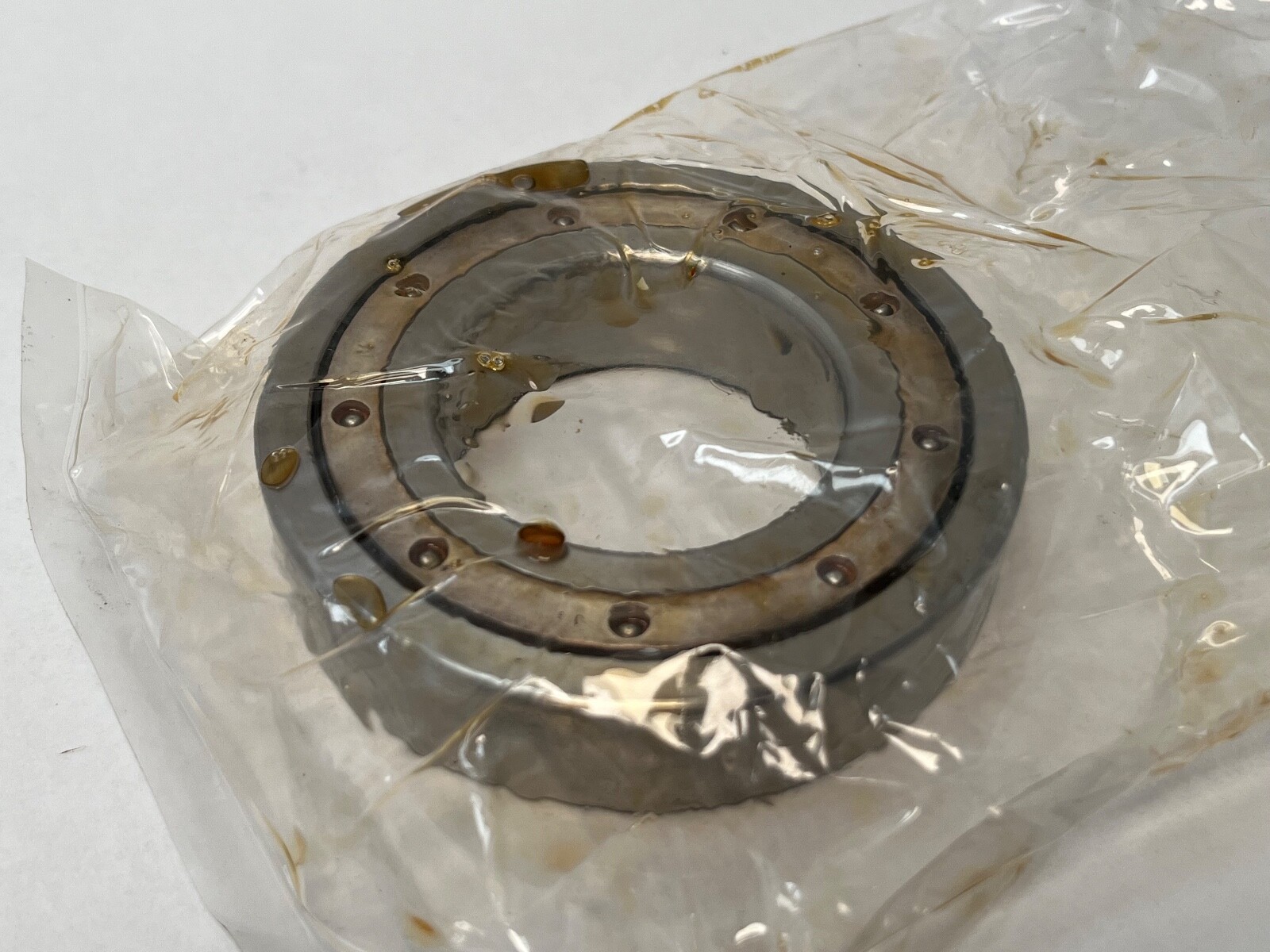

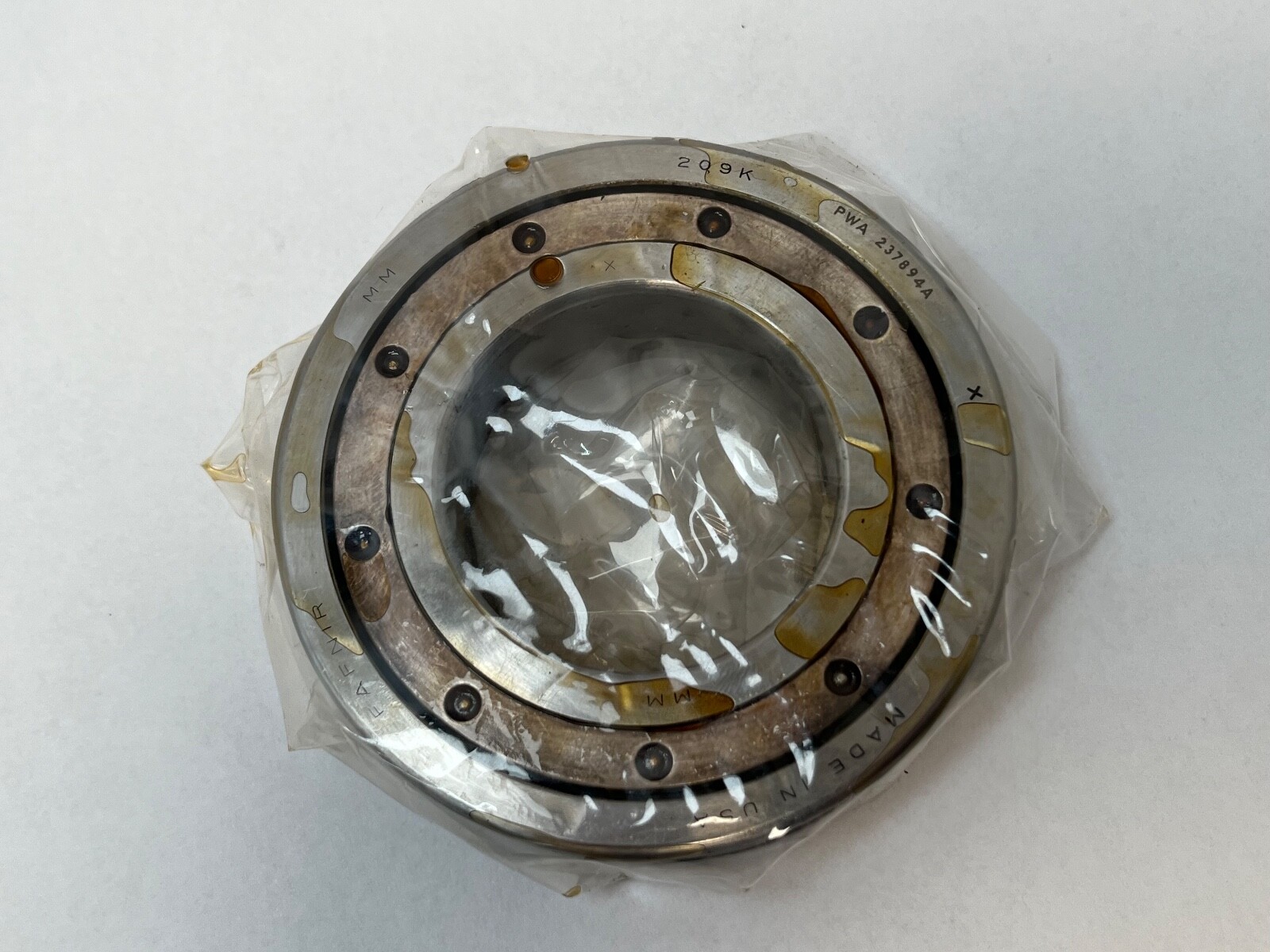

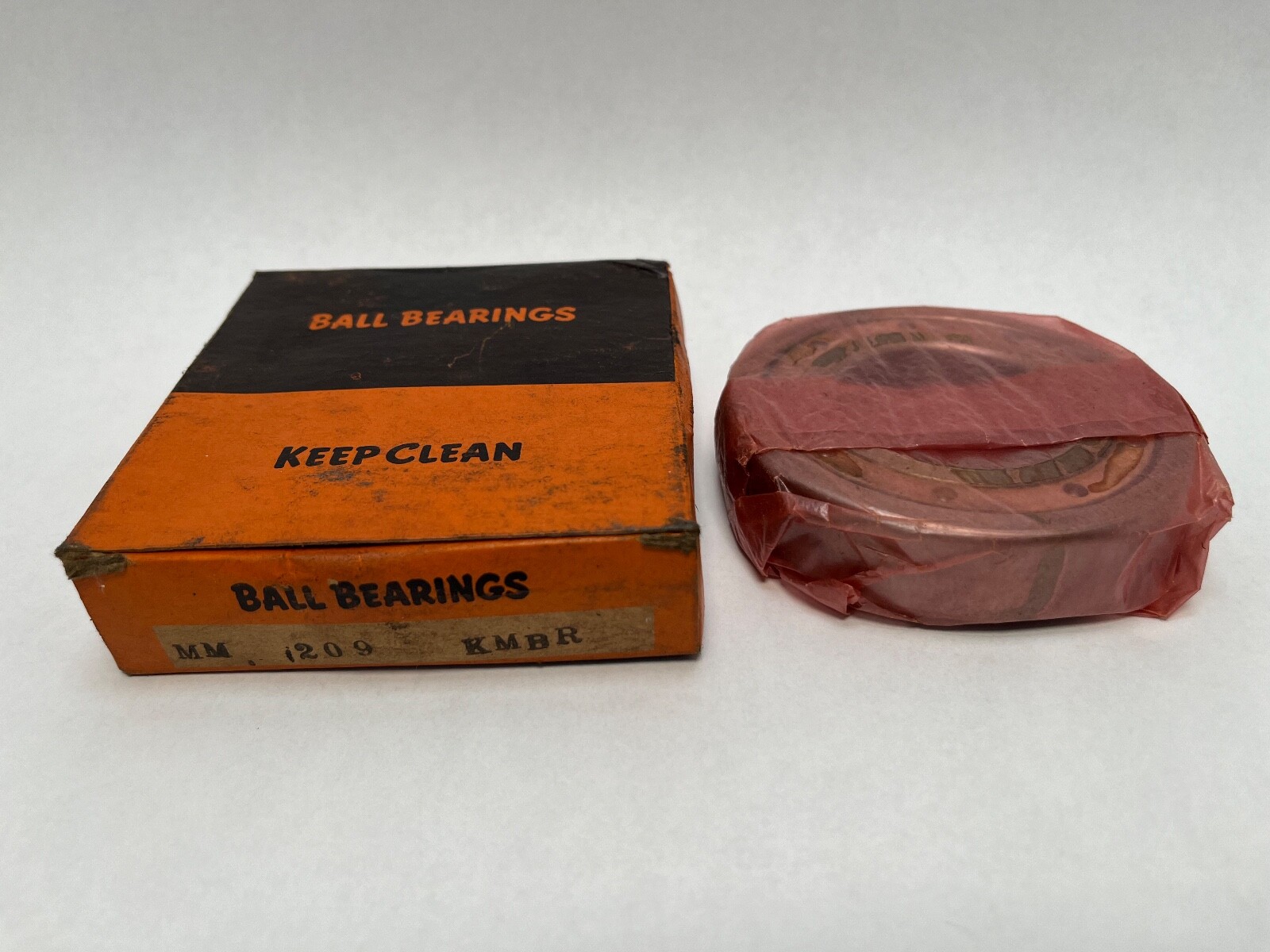

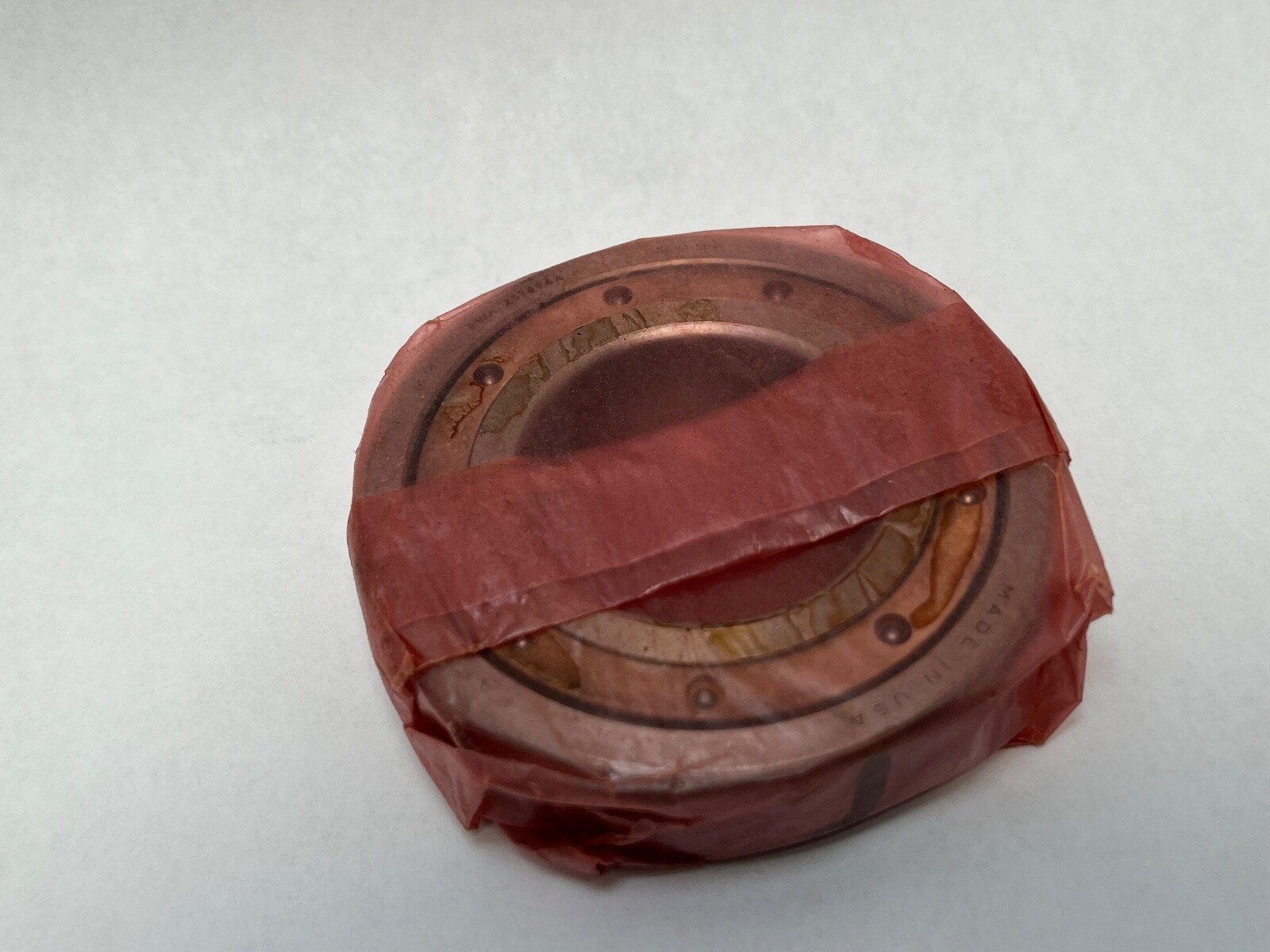

Super-precision spindle deep groove ball bearing, Conrad type, 45 x 85 x 19 mm, ISO P4S accuracy, machined bronze cage, straight bore, open, single row.
List Price
$120.50
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Fafnir |
|---|---|
| Model | MM209K-MBR / 6209 P4S |
| Bearing Type | Ball Bearing |
| ID | 45 mm |
| OD | 85 mm |
| Width | 19 mm |
| Base Number | MM209K |
|---|---|
| Bore Shaft Size | 45 mm |
| Mpn Variants | MM209KMBR; MM-209-K-MBR; MM 209 K MBR |
| Arrangement Configuration | Single |
| Precision Class | ABEC 7/9 |
| Cage Type | Machined, land riding |
| Precision Rating | ISO P4S (ABEC 7/9) |
| Series | 200K |
| Cage Material | Bronze |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.68 |
| Design Units | Metric |
| Bearing Class | P4S |
| Part Number | MM209KMBR |
| Cross Reference 1 | MM209K (Timken base, phenolic cage; ours is MBR bronze) |
|---|---|
| Cross Reference 2 | 6209 (ISO envelope only; not P4S spindle grade) |

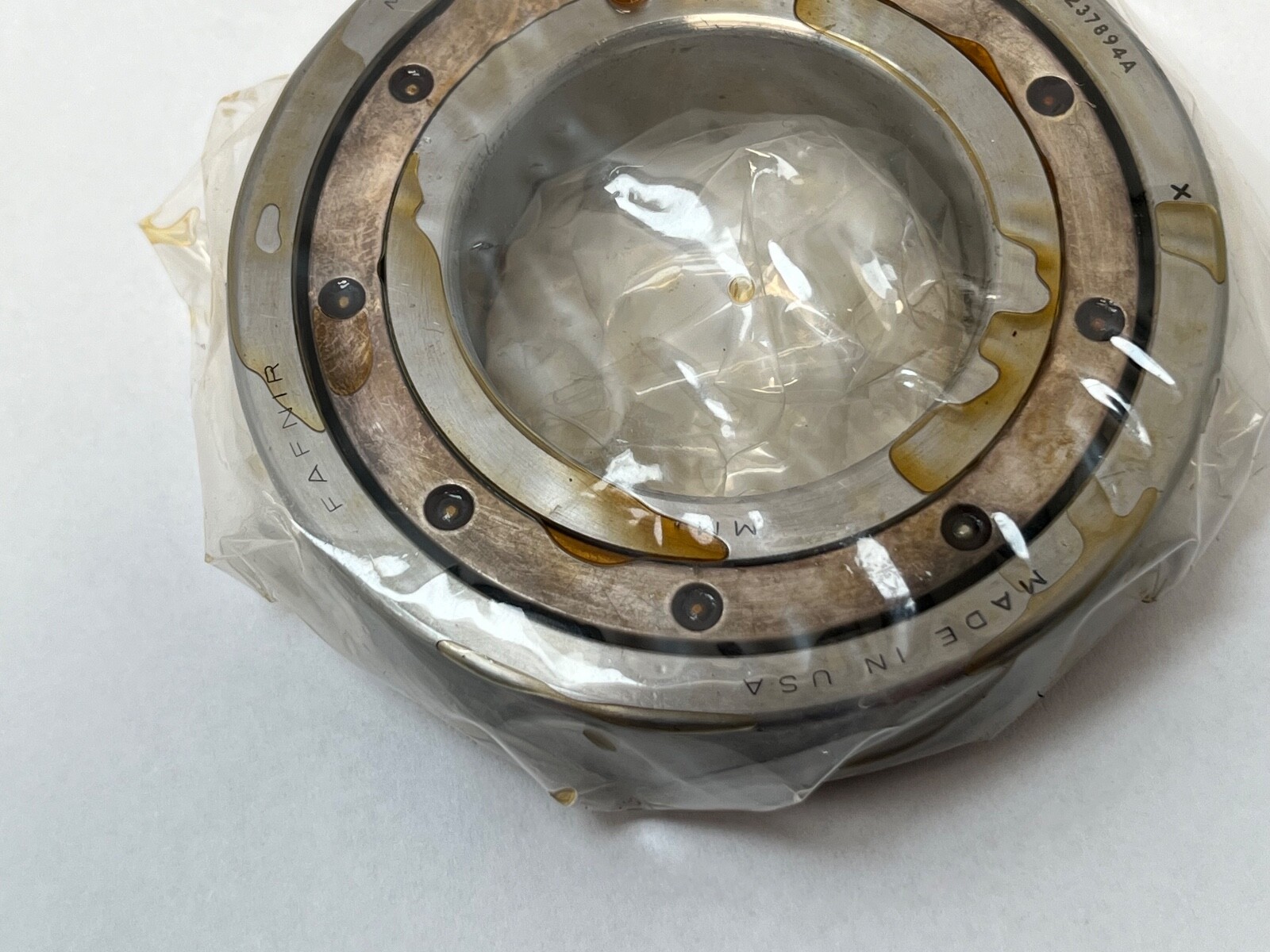

Fafnir MM209KMBR super-precision spindle deep groove ball bearing, built by The Timken Company. Series: 200K. Bore: 45 mm. Outside Diameter: 85 mm. Bearing Width: 19 mm. Precision Class: ISO P4S (ABEC 7/9). Cage Material: Bronze. Cage Type: Machined, land riding. Rolling Elements: steel balls. Bore Type: Straight. Closure Type: Open. Number Of Rows: 1. Design Units: Metric. The ISO envelope is 6209.

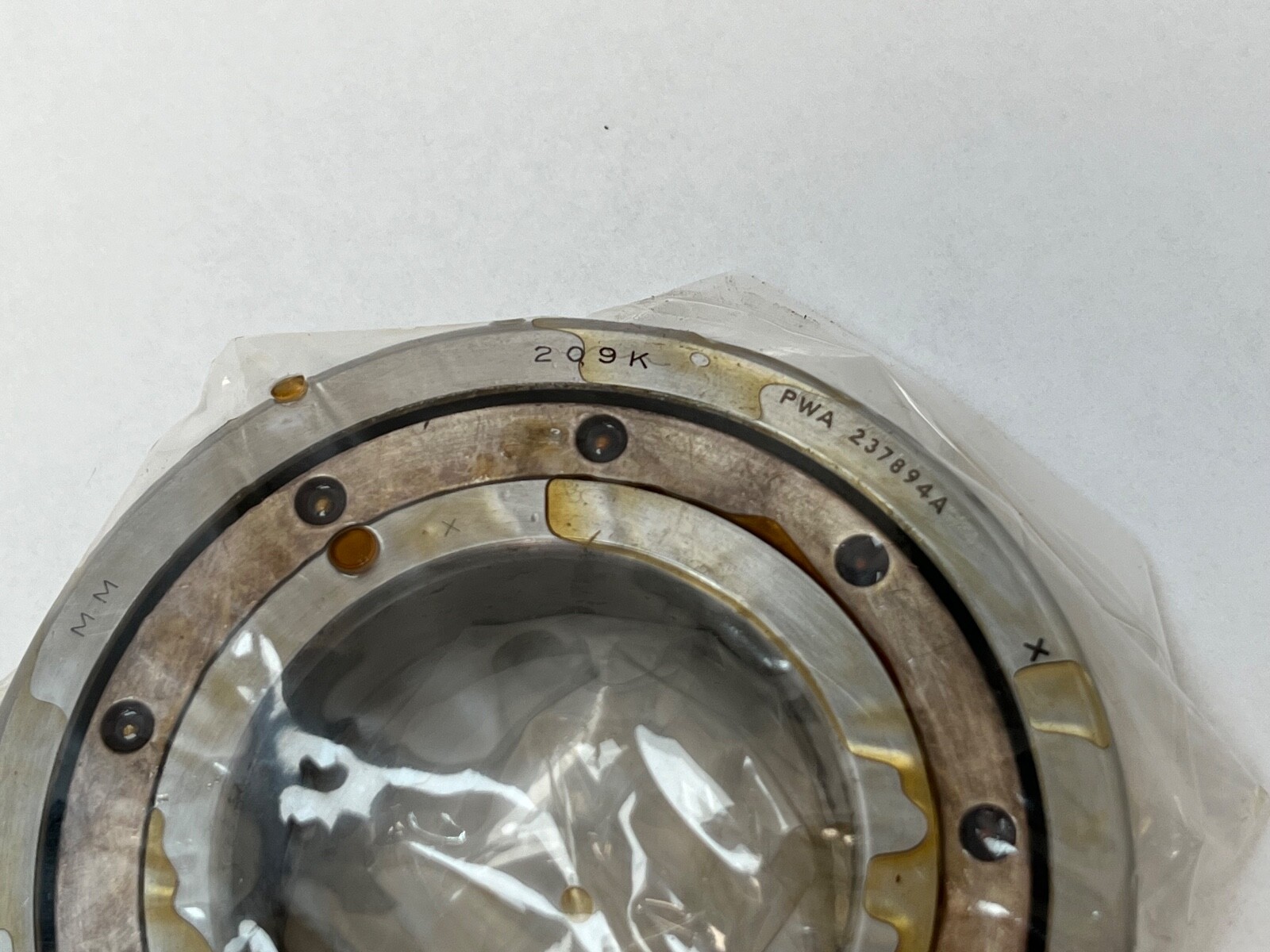

MM is Timken’s super-precision spindle prefix and carries ISO P4S accuracy. 209 in the 200K series is the 6209 envelope. K identifies the spindle deep groove family. MBR is the machined bronze cage.
A Conrad deep groove bearing carries radial load and axial load in either direction, which is what makes it the usual choice for the rear, floating position of a machine-tool spindle where the shaft has to grow with temperature. P4S accuracy holds running and axial runout to super-precision limits, so the bearing locates the shaft closely enough for a ground finish. A machined bronze cage tolerates higher temperature and marginal lubrication than a phenolic cage and holds its form under shock loading.
Unit Quantity: 1 Pc. Arrangement / Configuration: Single. Rows per Set: Single.
Max Shaft Fillet Radius: 1 mm (0.039 in). Outer Ring To Clear Radius: 1 mm (0.039 in). Shaft Backing Shoulder Diameter: 52.3 mm (2.060 in). Housing Backing Shoulder Diameter: 78.2 mm (3.080 in).
Timken base designation: MM209K. ISO envelope: 6209. Searchable forms of the designation: MM209KMBR, MM-209-K-MBR, MM 209 K MBR.
