Angular contact ball bearing pair, 35 x 72 x 17 mm, 40° contact angle, duplex universal ground. Fafnir 7207WN-DU, ISO 7207B size, 30,800 N C1 per bearing.
List Price
$166.66
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 7207WN DU |
| GTIN | 087796081611 |
| Model | 7207 WNDU 7207WN DU |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 35 mm |
| OD | 72 mm |
| Width | 17 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7200 |
| Mpn Variants | 7207WNDU, 7207WN-DU, 7207 WN DU, 7207W |
| Dynamic Load Rating | 30,800 N |
| Static Load Rating | 18,000 N |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 5,600 rpm grease; 7,500 rpm oil |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 40° |
| Mounting Arrangement | Duplex universal (DB, DF or DT) |
| Cross Reference 1 | SKF 7207 BECBP (single bearing, 40°) |
|---|---|
| Cross Reference 2 | FAG 7207-B-XL-JP-UA (single bearing, 40°) |
| Cross Reference 3 | NSK 7207BW (single bearing, 40°) |

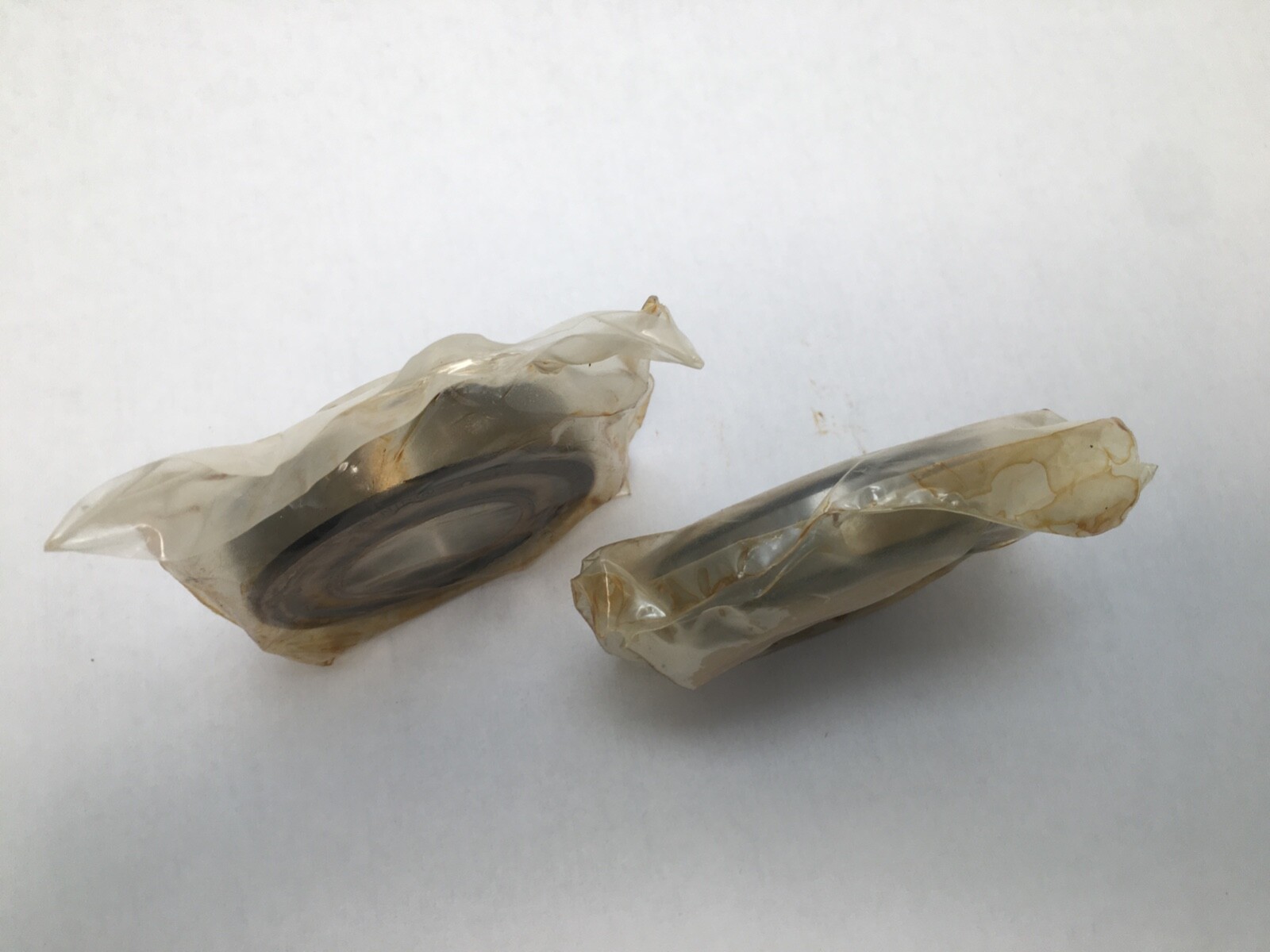

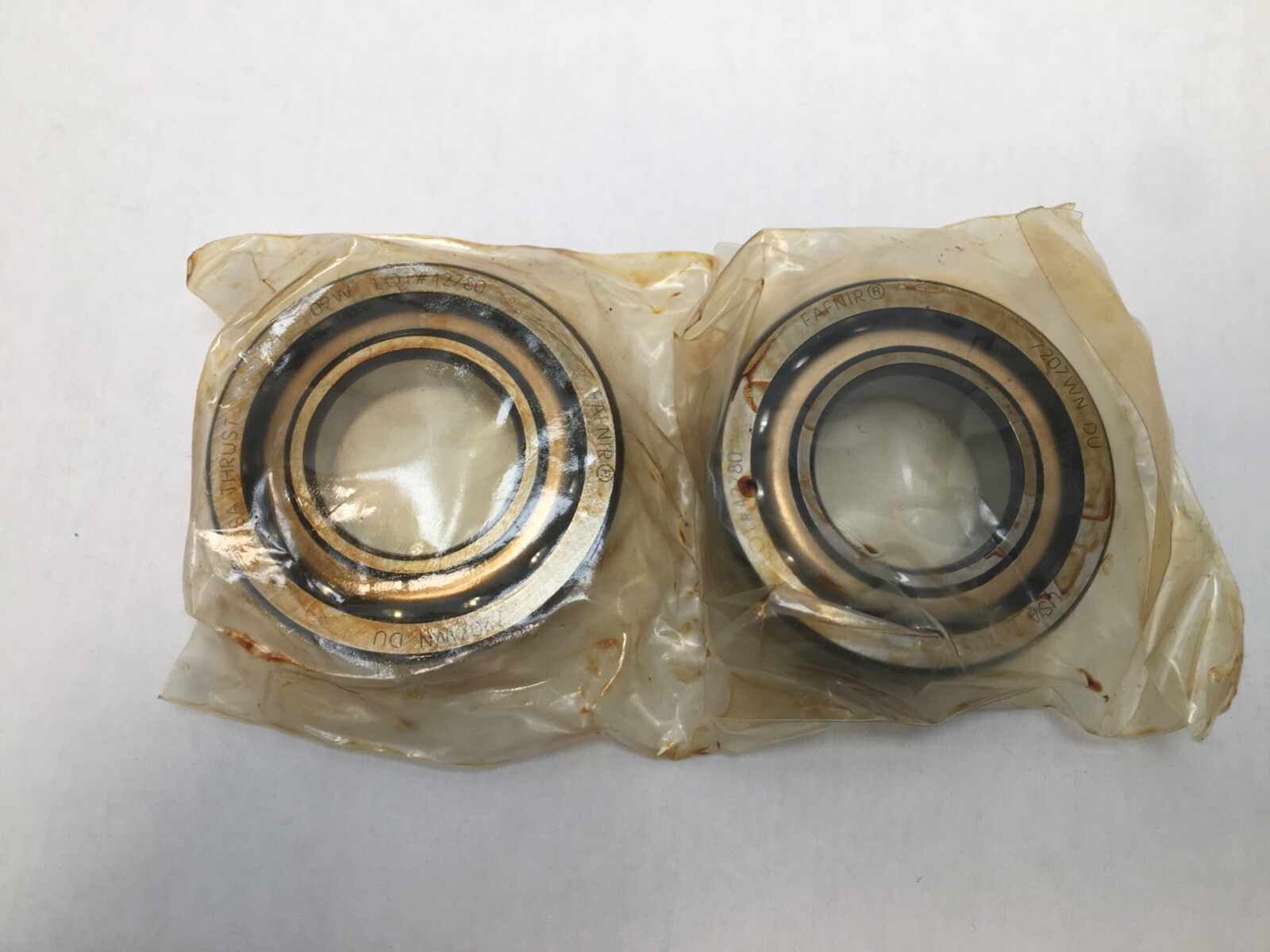

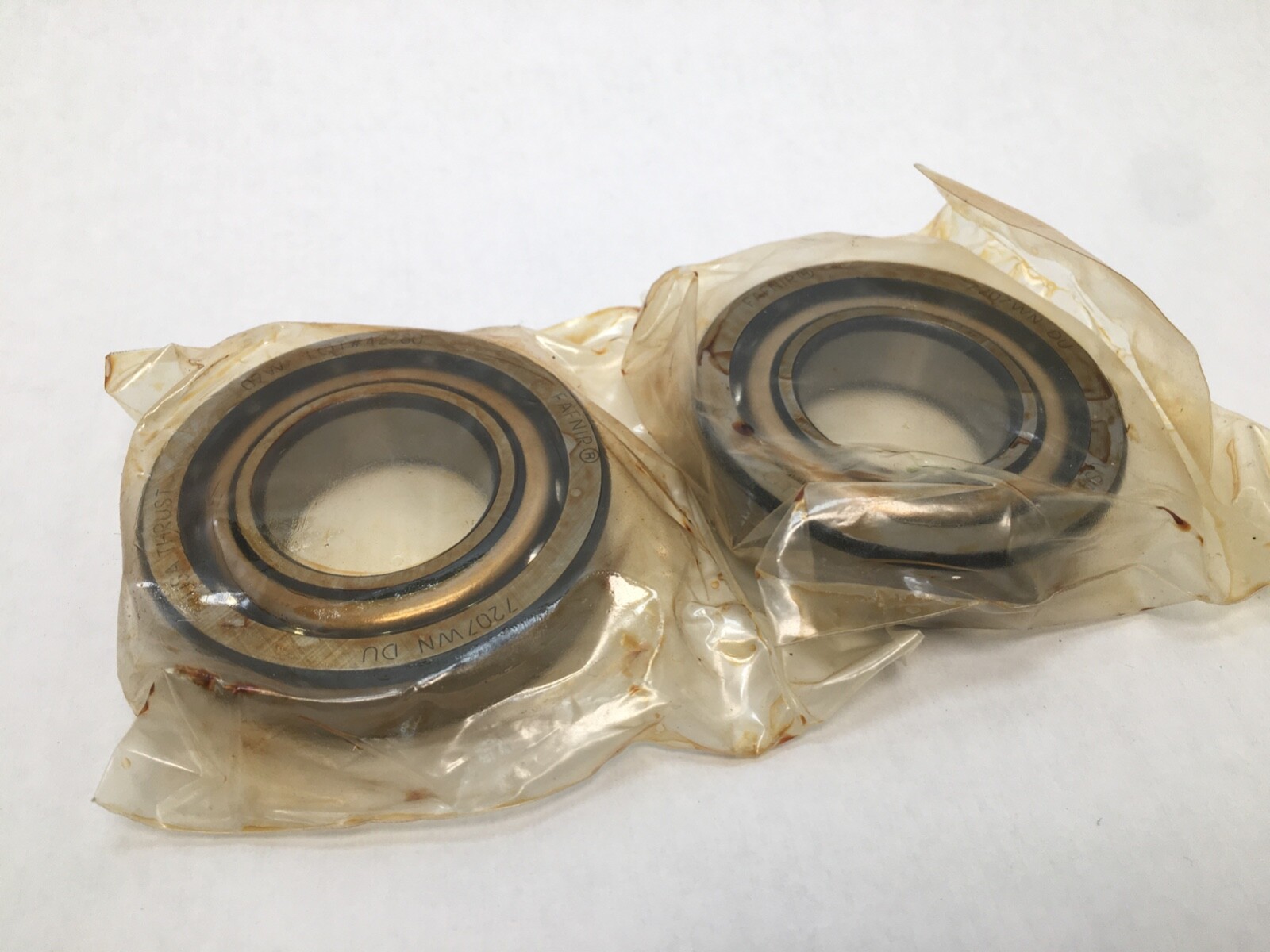

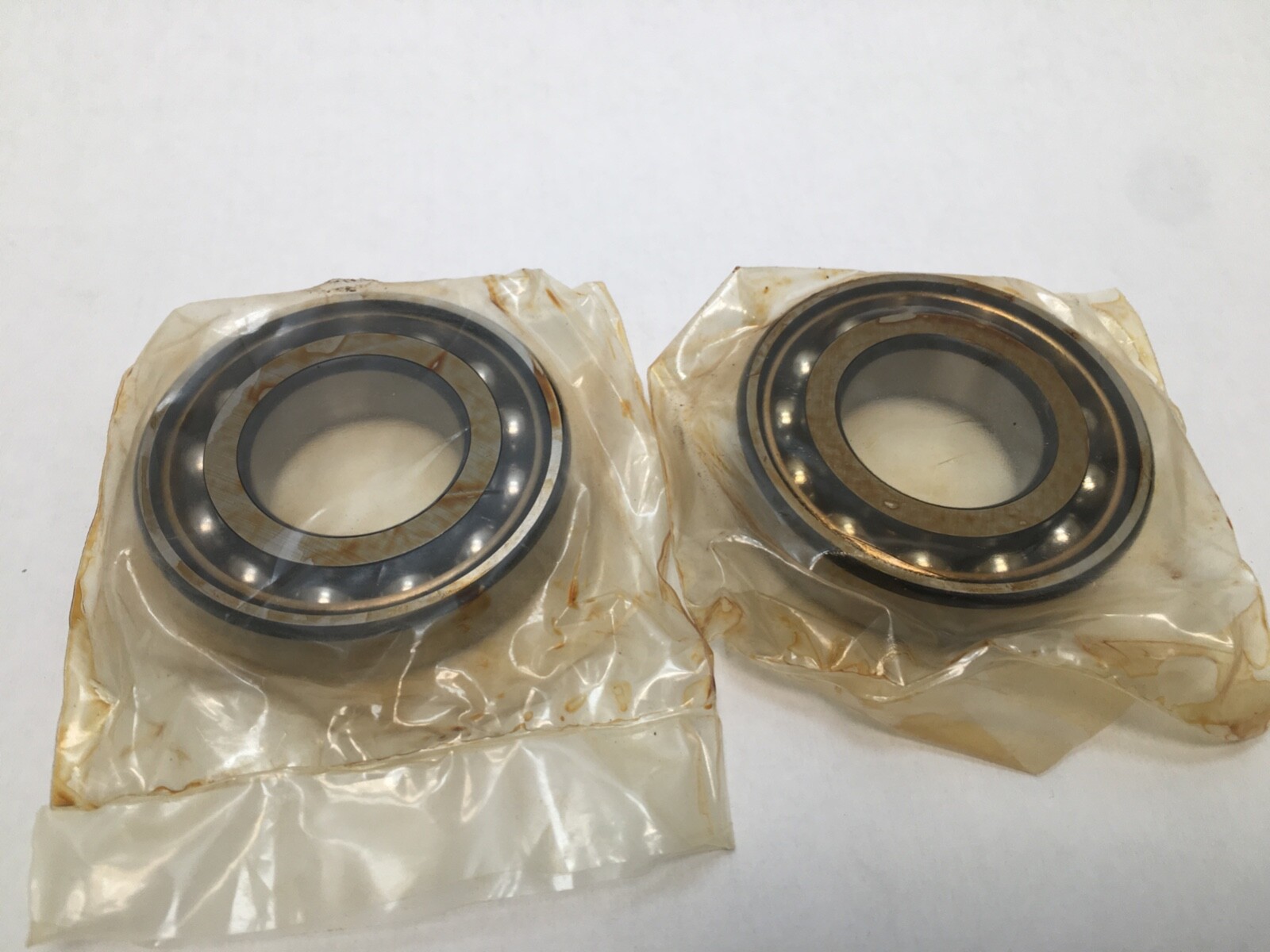

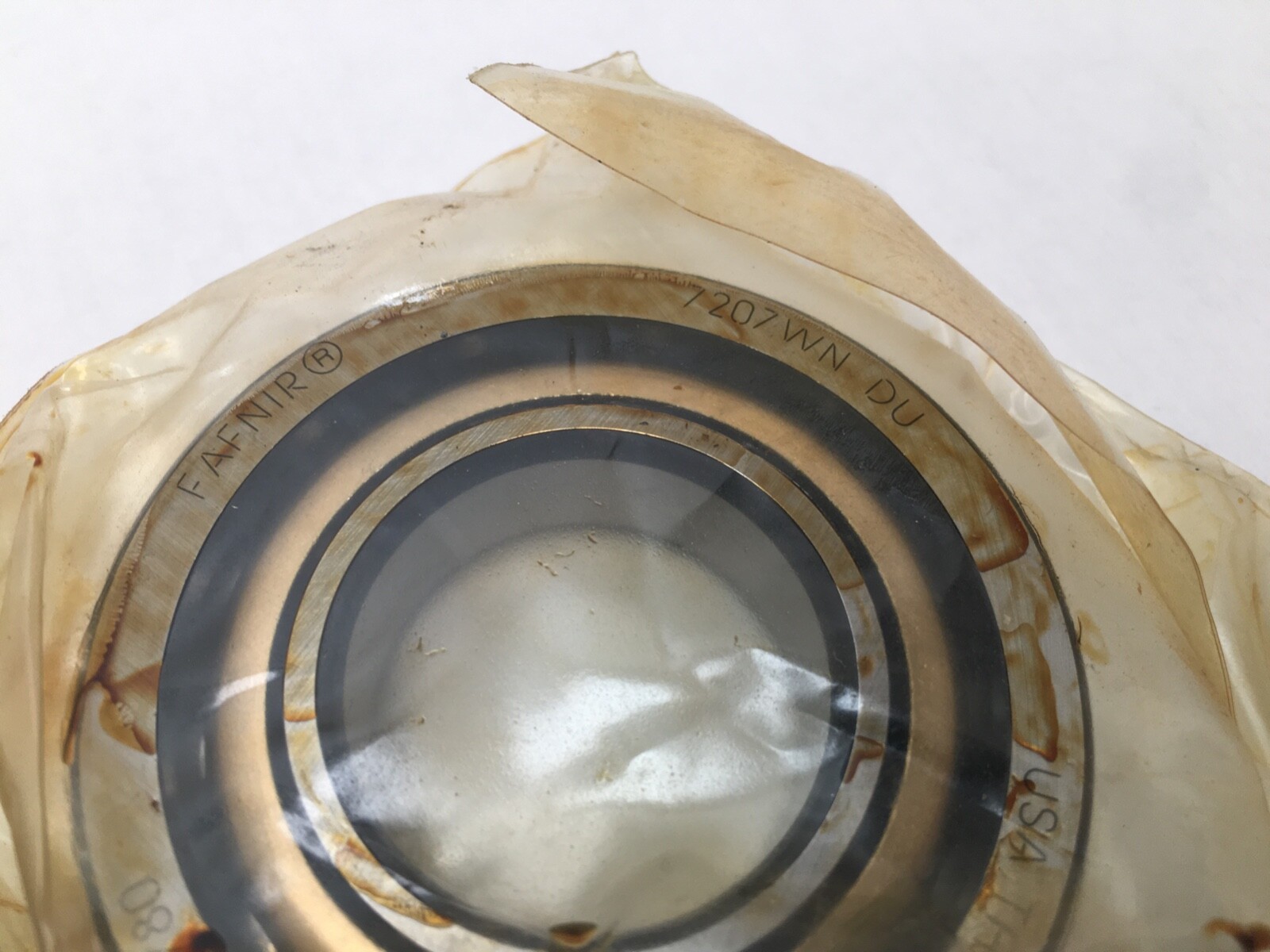

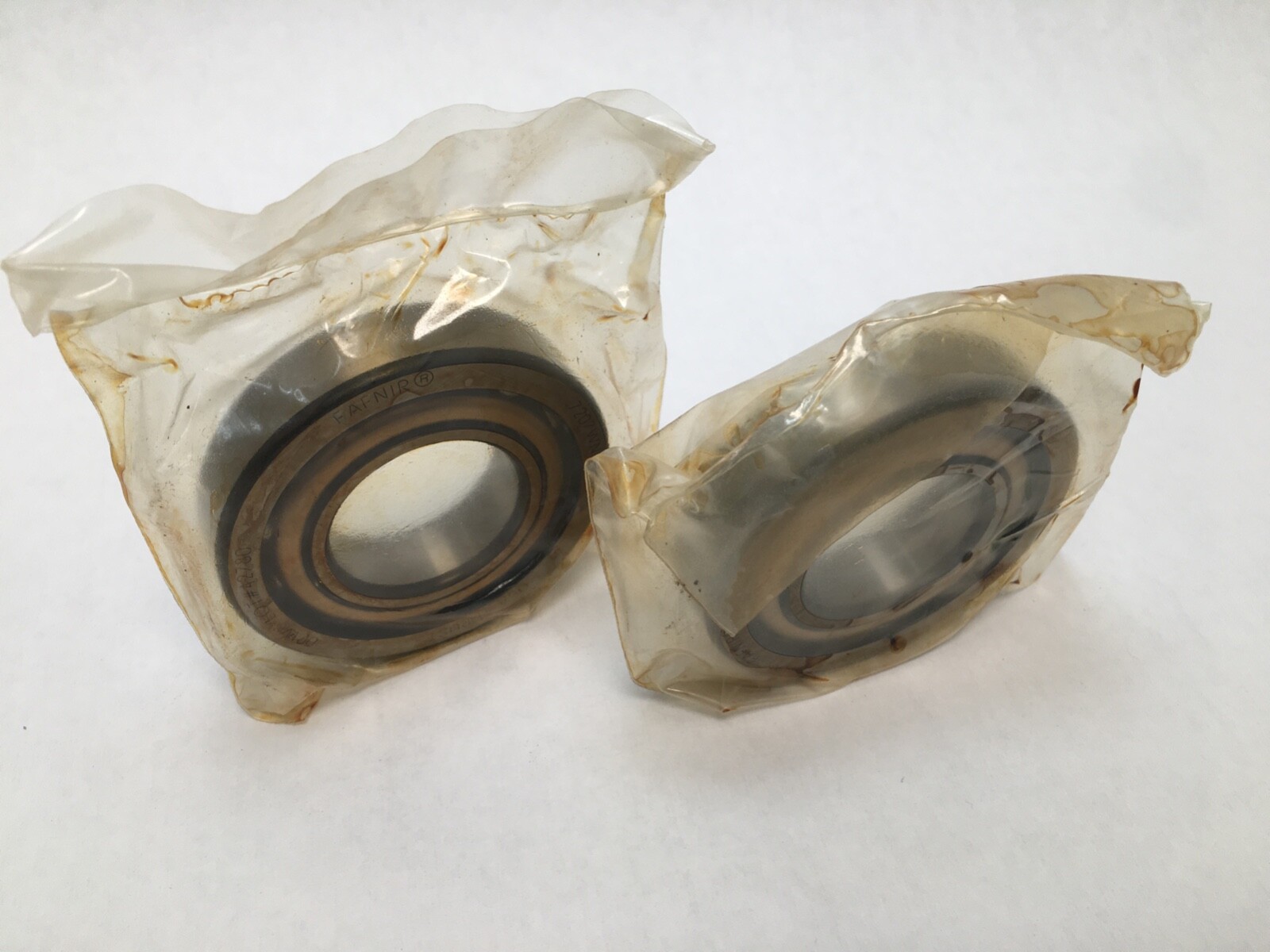

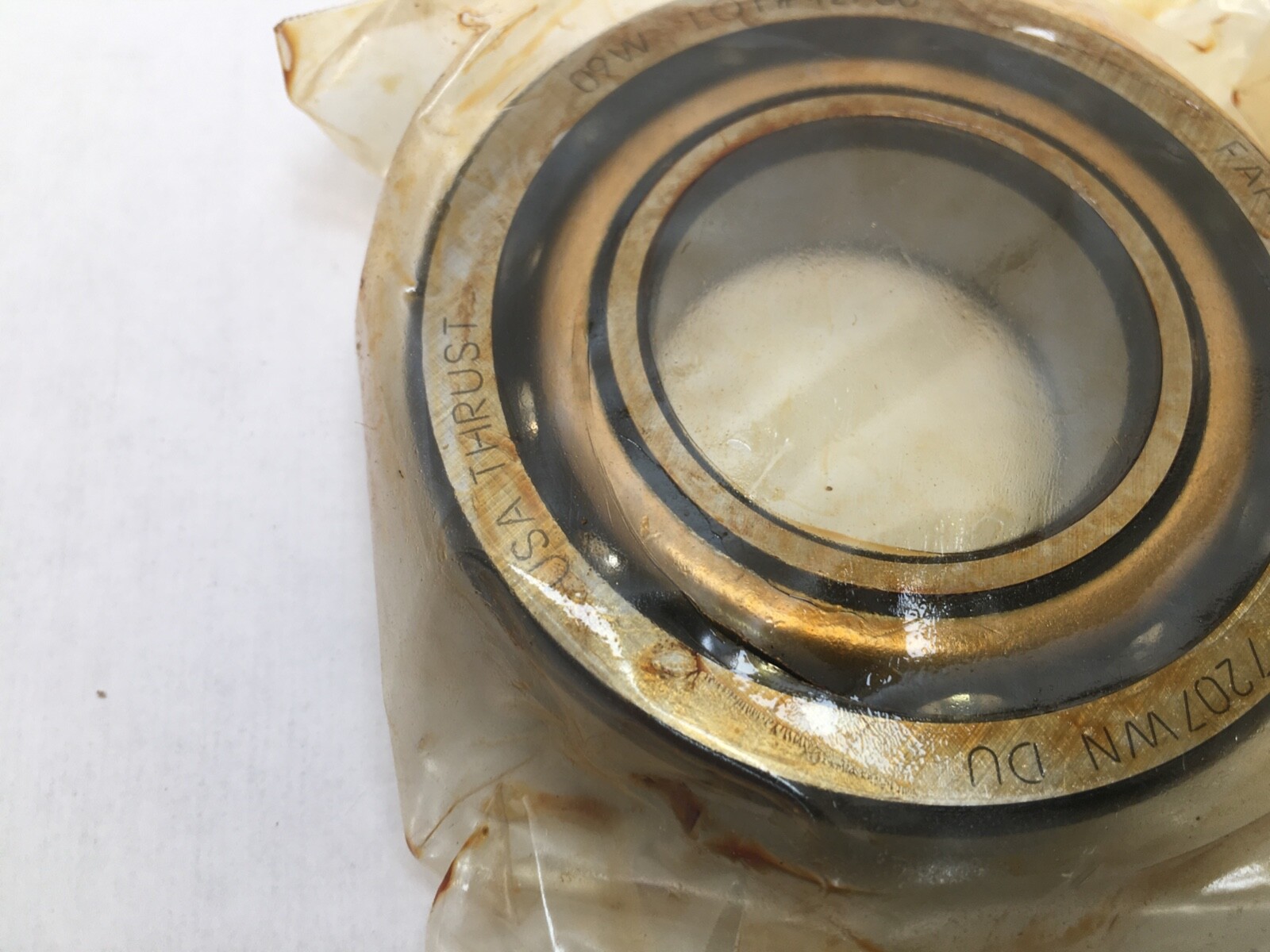

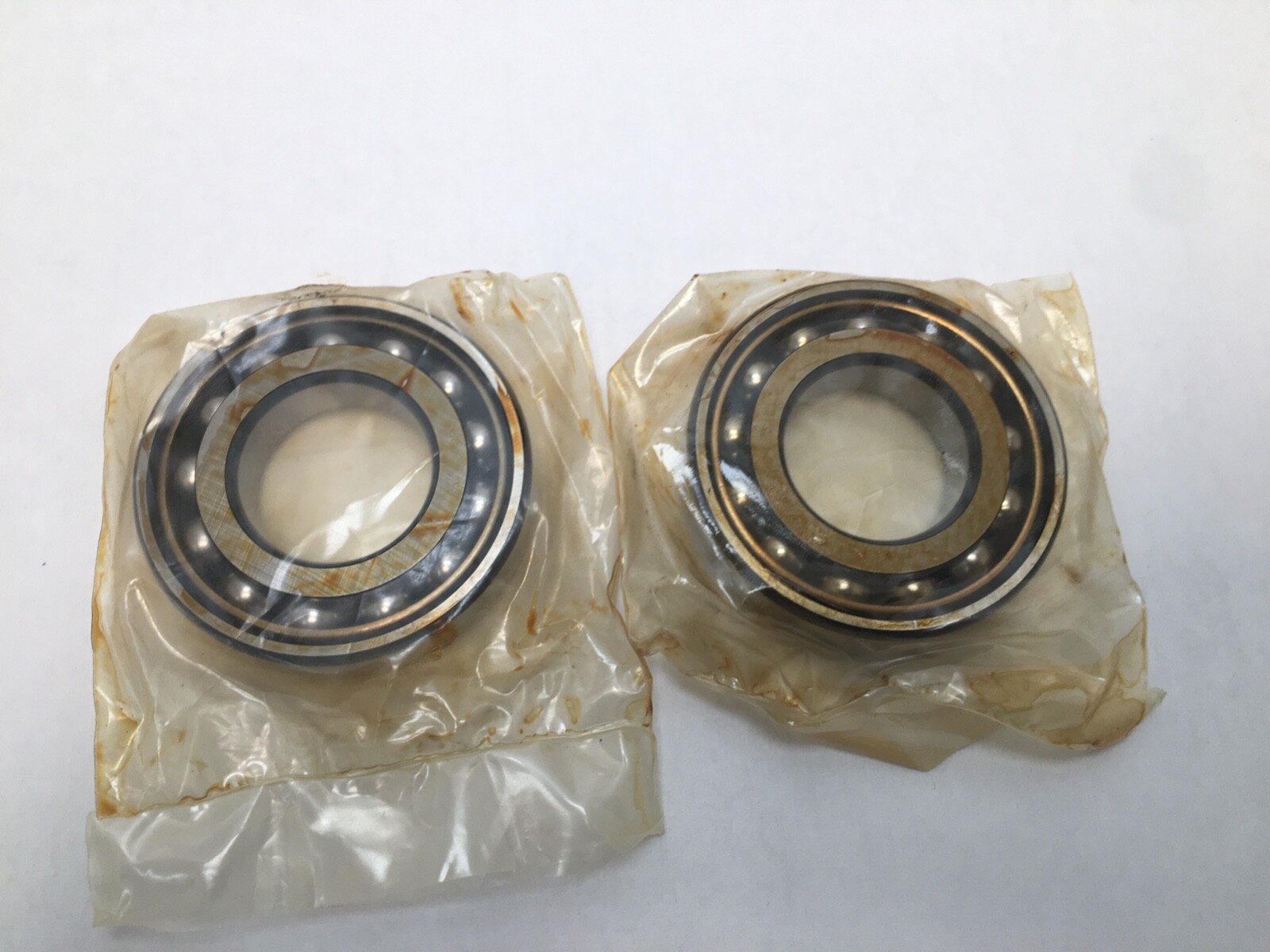

Fafnir 7207WN-DU is a pair of single-row angular contact ball bearings, flush-ground for duplex mounting. Bore Diameter: 35 mm. Outside Diameter: 72 mm. Width: 17 mm per bearing. Contact Angle: 40°. Closure Type: Open. Rolling Elements: Ball.
7207 — ISO 72 series angular contact size, 35 x 72 x 17 mm.
WN — Fafnir 40° contact angle execution on the 72xxW standard-precision range.
DU — duplex universal: two bearings flush-ground to mount back-to-back, face-to-face or tandem.
Dynamic Load Rating: 30,800 N (6,950 lbf) per bearing, Timken C1. Static Load Rating: 18,000 N (4,150 lbf) per bearing. Limiting Speed: 5,600 rpm grease; 7,500 rpm oil. The 40° angle gives the highest thrust capacity in the angular contact range, suited to pumps, gearboxes and other combined-load duty.
Max Fillet Radius (mating part): 1.1 mm (0.043 in). Shaft Backing Shoulder Diameter: 38.9 mm (1.530 in). Housing Backing Shoulder Diameter: 65 mm (2.560 in).

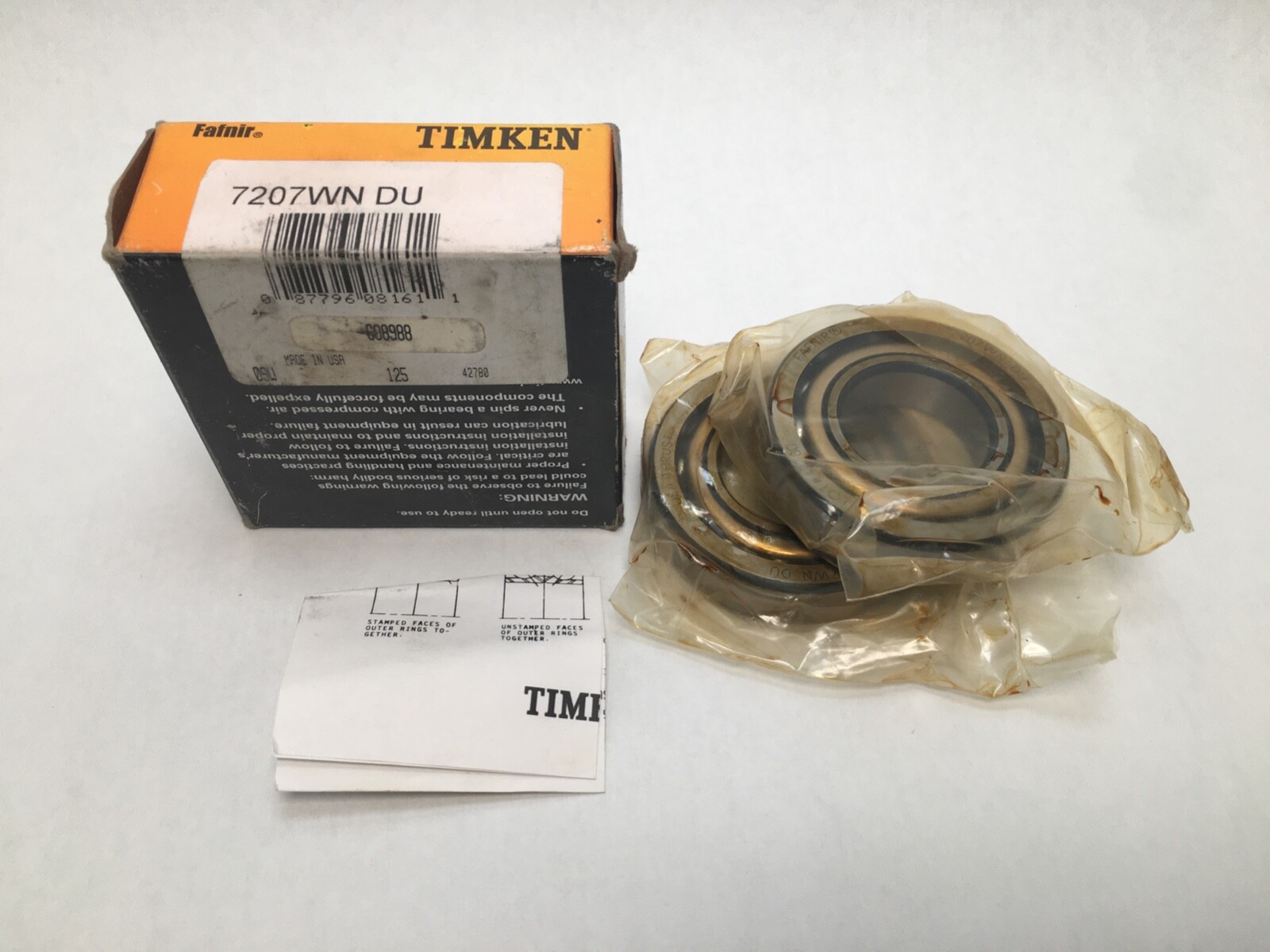

Unit Quantity: 2 Pcs, one duplex pair. GTIN: 087796081611.
ISO 7207 40° single-bearing equivalents: SKF 7207 BECBP, FAG 7207-B-XL-JP-UA, NSK 7207BW.
