Availability:
2 in stock

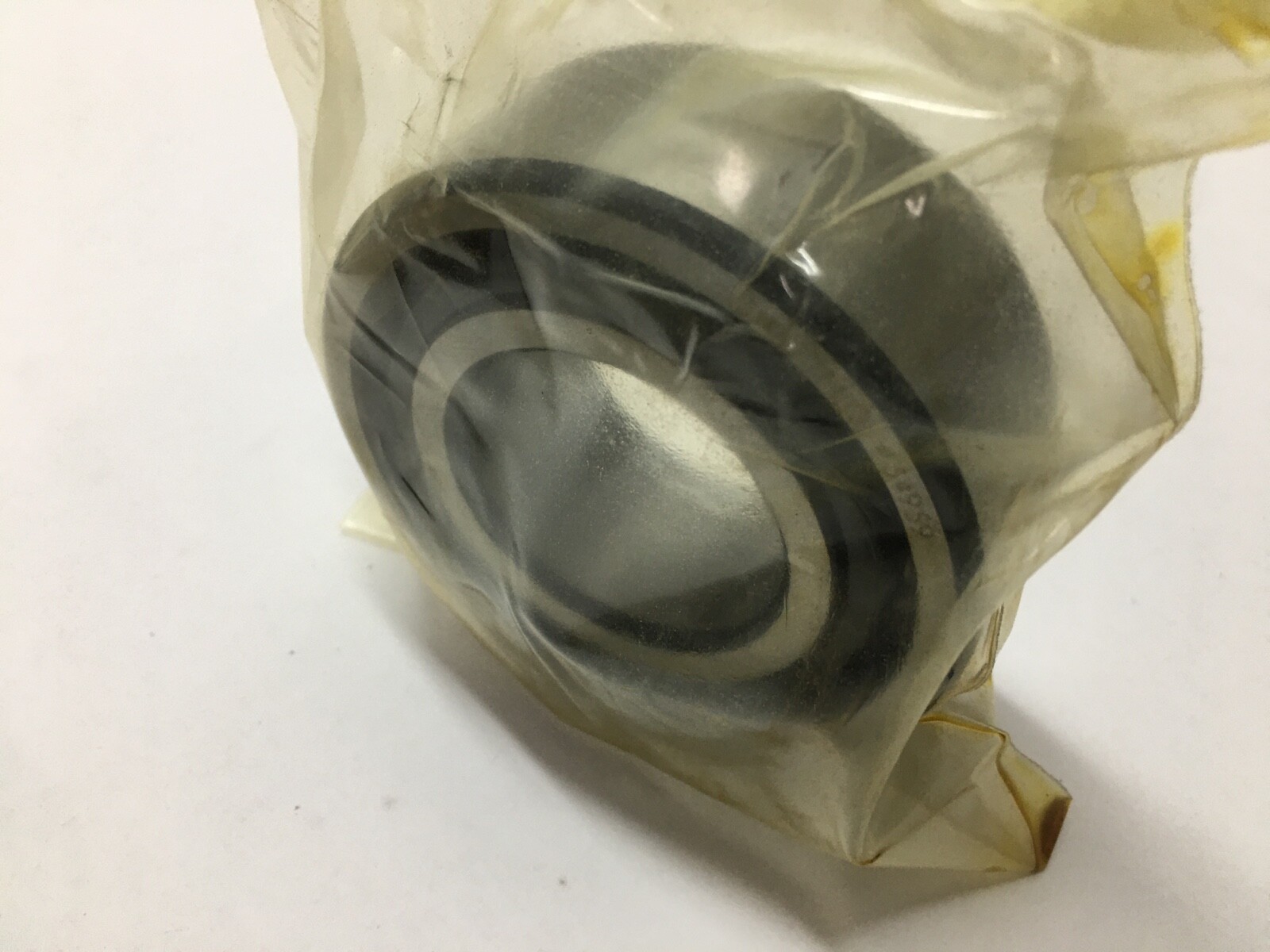

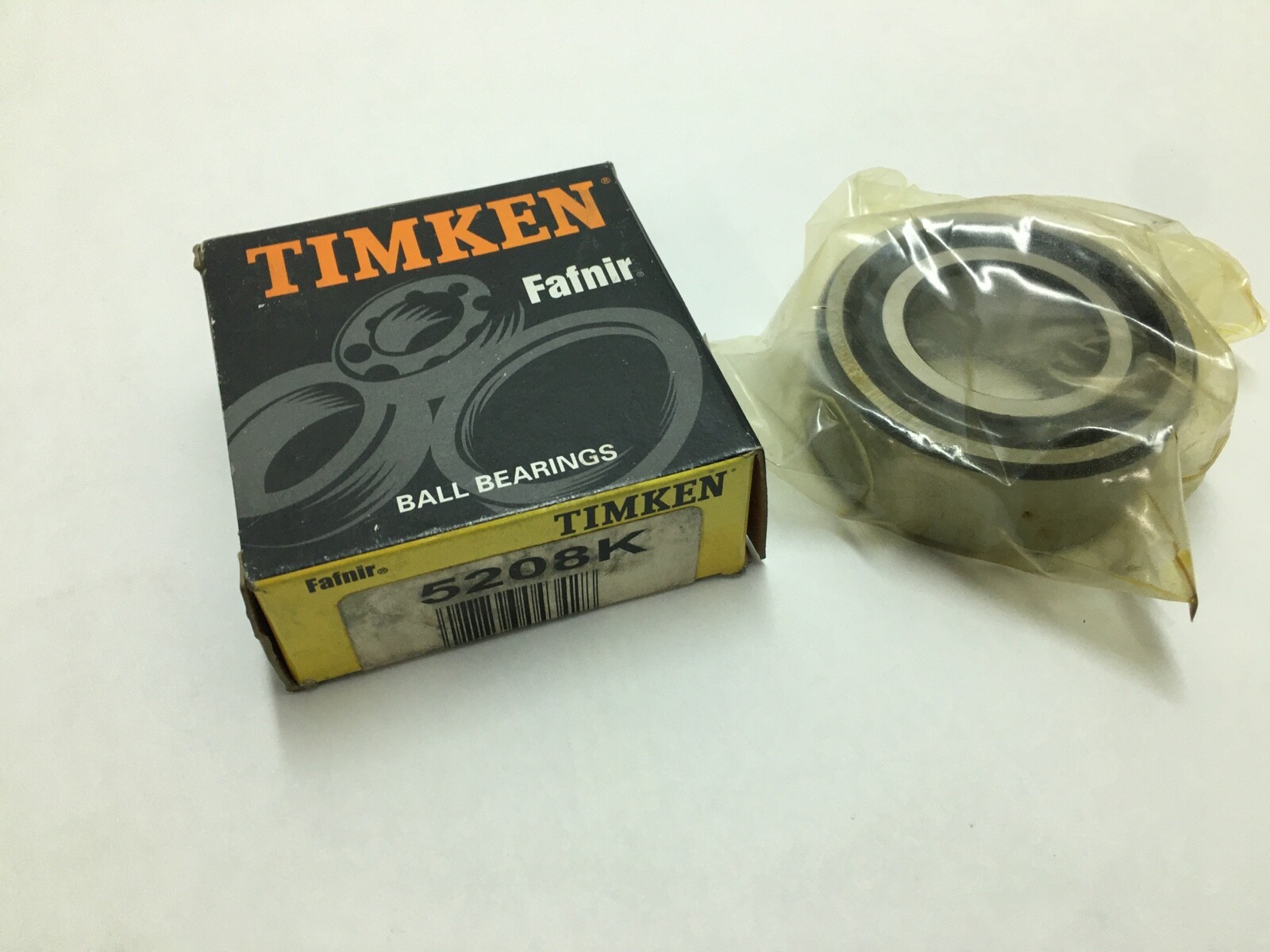

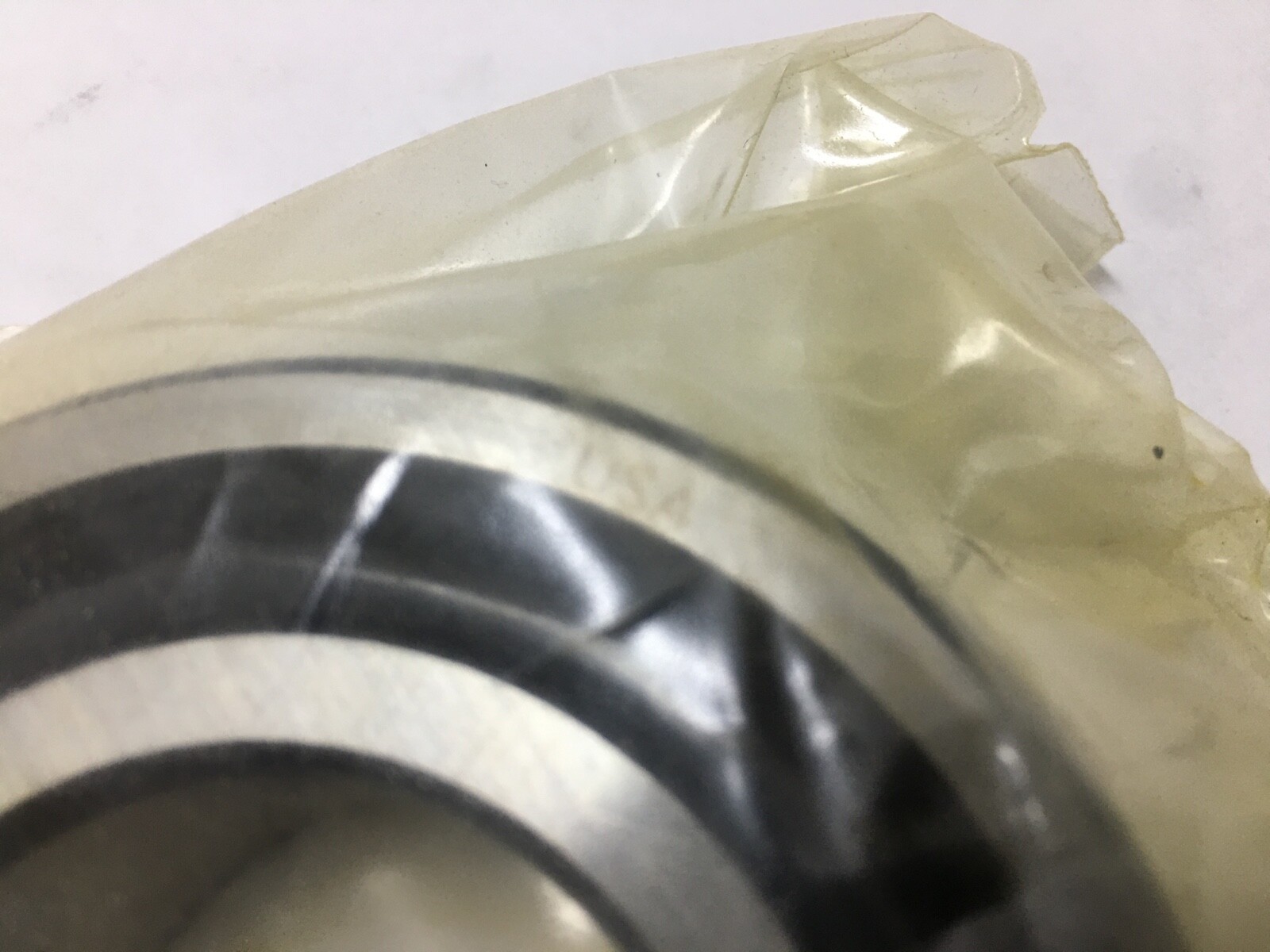

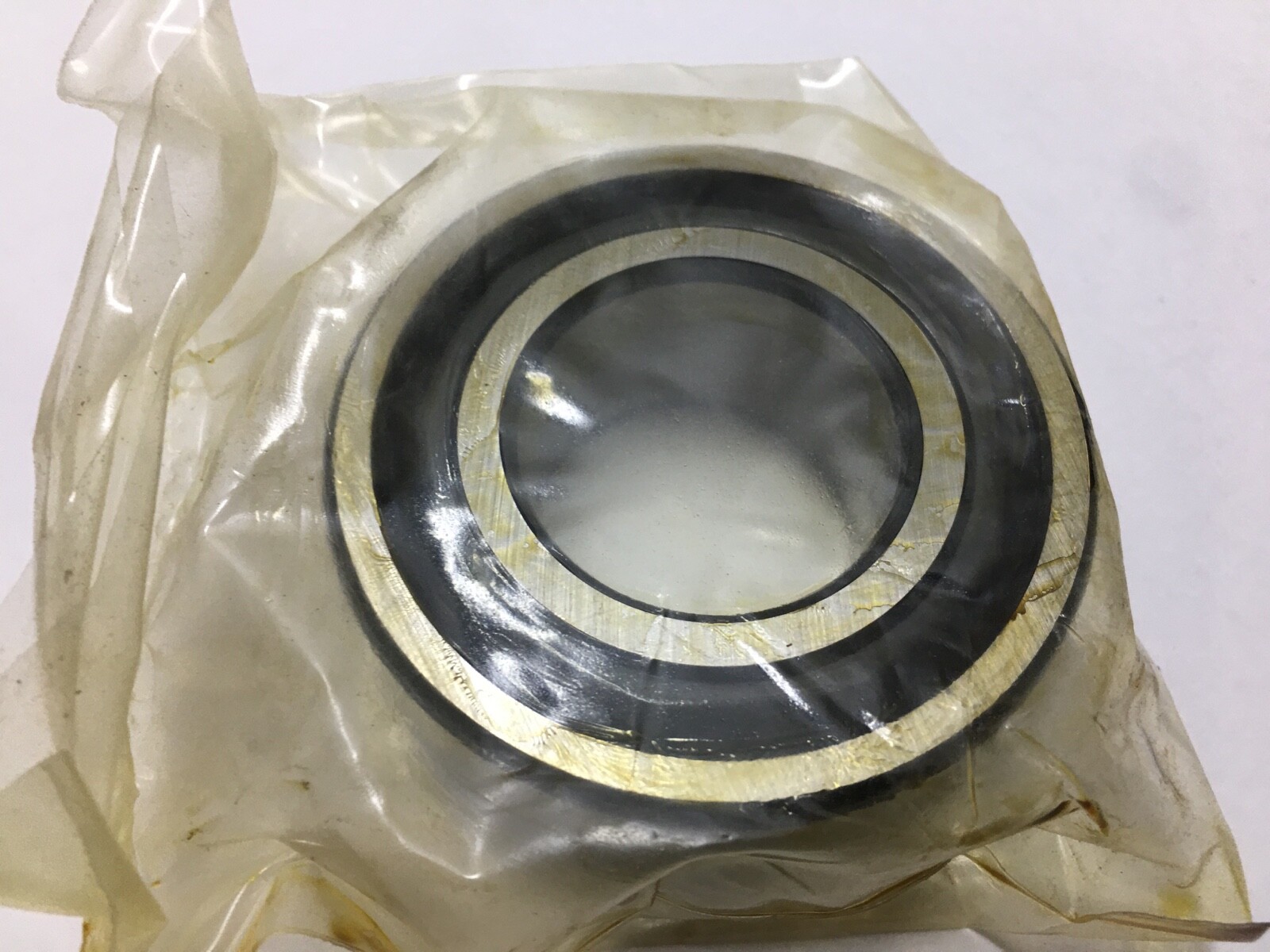

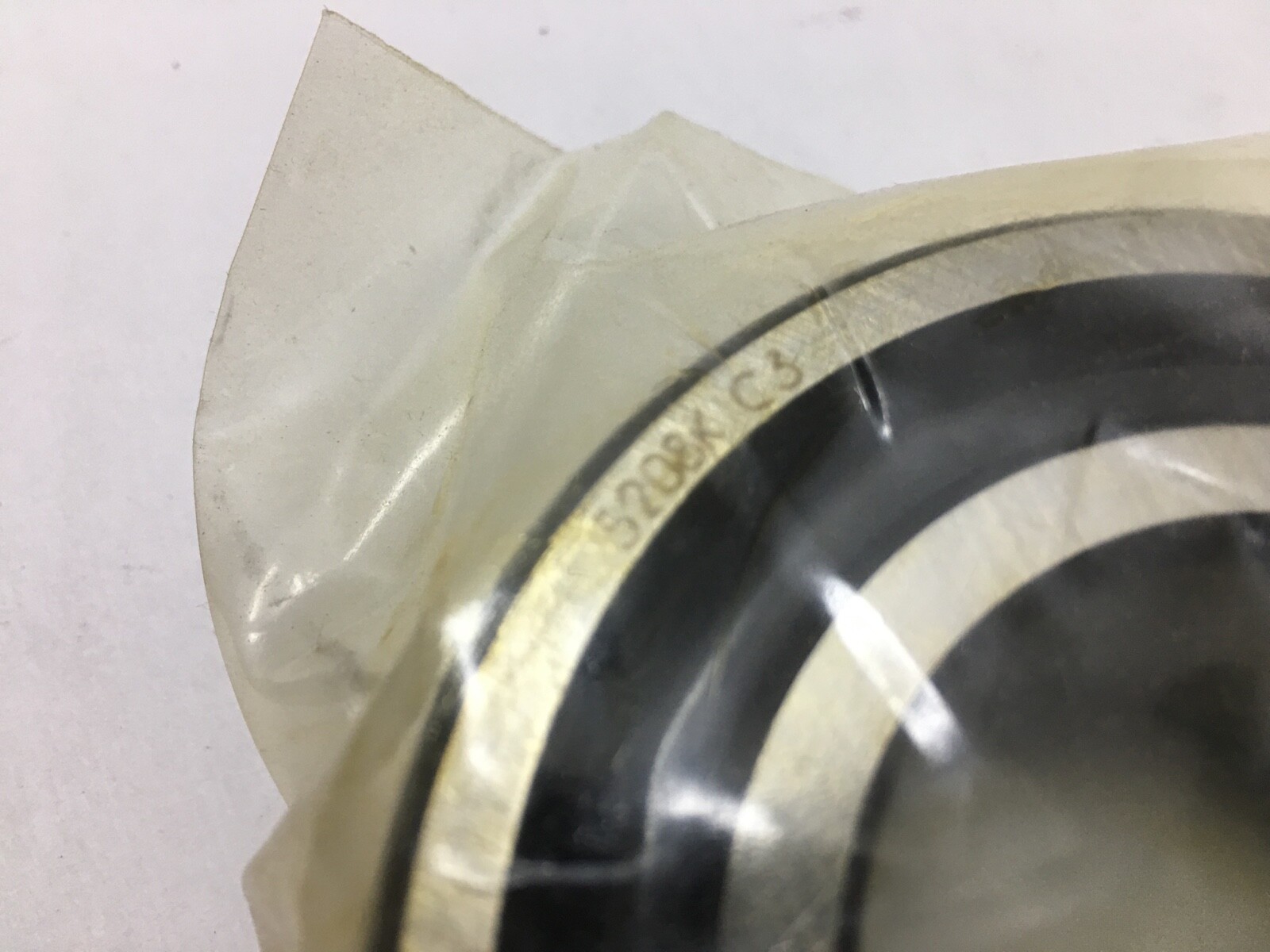

Fafnir 5208K double-row angular contact ball bearing, 40 mm bore, 80 mm OD, 30.17 mm wide, 20° contact angle. Carries radial load and thrust in both directions.
List Price
$38.12
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 5208K |
| GTIN | 087796043428 |
| Model | 5208K |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 40 mm |
| OD | 80 mm |
| Width | 1-3/16 in |
| Material | Steel |
|---|---|
| Series | 5200 |
| Base Number | 5208 |
| Industry Terms | double row angular contact ball bearing, Conrad bearing, 5200 series, Fafnir |
| Overall Width | 30.17 mm (1.188 in) |
| Mpn Variants | 5208K, 5208-K, 5208 K |
| Additional Attributes | Shaft Backing Shoulder Diameter: 46.61 mm (1.835 in); Housing Backing Shoulder Diameter: 71.76 mm (2.825 in); Max Housing Fillet Radius: 1 mm (0.039 in); Series: Fafnir 5200 Light; Construction: Conrad |
| Dynamic Load Rating | 51,500 N |
| Static Load Rating | 33,900 N |
| Rolling Elements | Balls |
| Item Weight | 0.566 kg |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 20° |
| Cross Reference 1 | NTN 5208 |
|---|
Timken Fafnir 5208K, a double-row angular contact ball bearing from the Fafnir 5200 light series. Conrad-type construction with no filling slot, open with no seals or shields. Bore Diameter: 40 mm. Outside Diameter: 80 mm (3.1496 in). Overall Width: 30.17 mm (1.188 in). Number Of Rows: 2. Contact Angle: 20°.
52 — Fafnir 5200 light series double-row angular contact ball bearing, sharing bore and OD with the single-row 200 series.
08 — bore code, 40 mm.
K — Conrad-type assembly with no filling slot, supporting thrust in both directions.
Dynamic Load Rating: 51,500 N (11,600 lbf), C1 at 1 million revolutions. Static Load Rating: 33,900 N (7,650 lbf). The two rows at 20° carry radial load together with axial load in either direction, giving more axial rigidity than a single-row deep groove bearing of the same bore and OD. Seal type: Open. Snap ring included: No. Item Weight: 0.566 kg.
Shaft Backing Shoulder Diameter: 46.61 mm (1.835 in). Housing Backing Shoulder Diameter: 71.76 mm (2.825 in). Maximum Housing Fillet Radius: 1 mm (0.039 in).
Same envelope as the 5208 double-row size in other makers’ ranges: NTN 5208. The Fafnir 5208W is a filling-slot design in the same envelope with different ratings.
