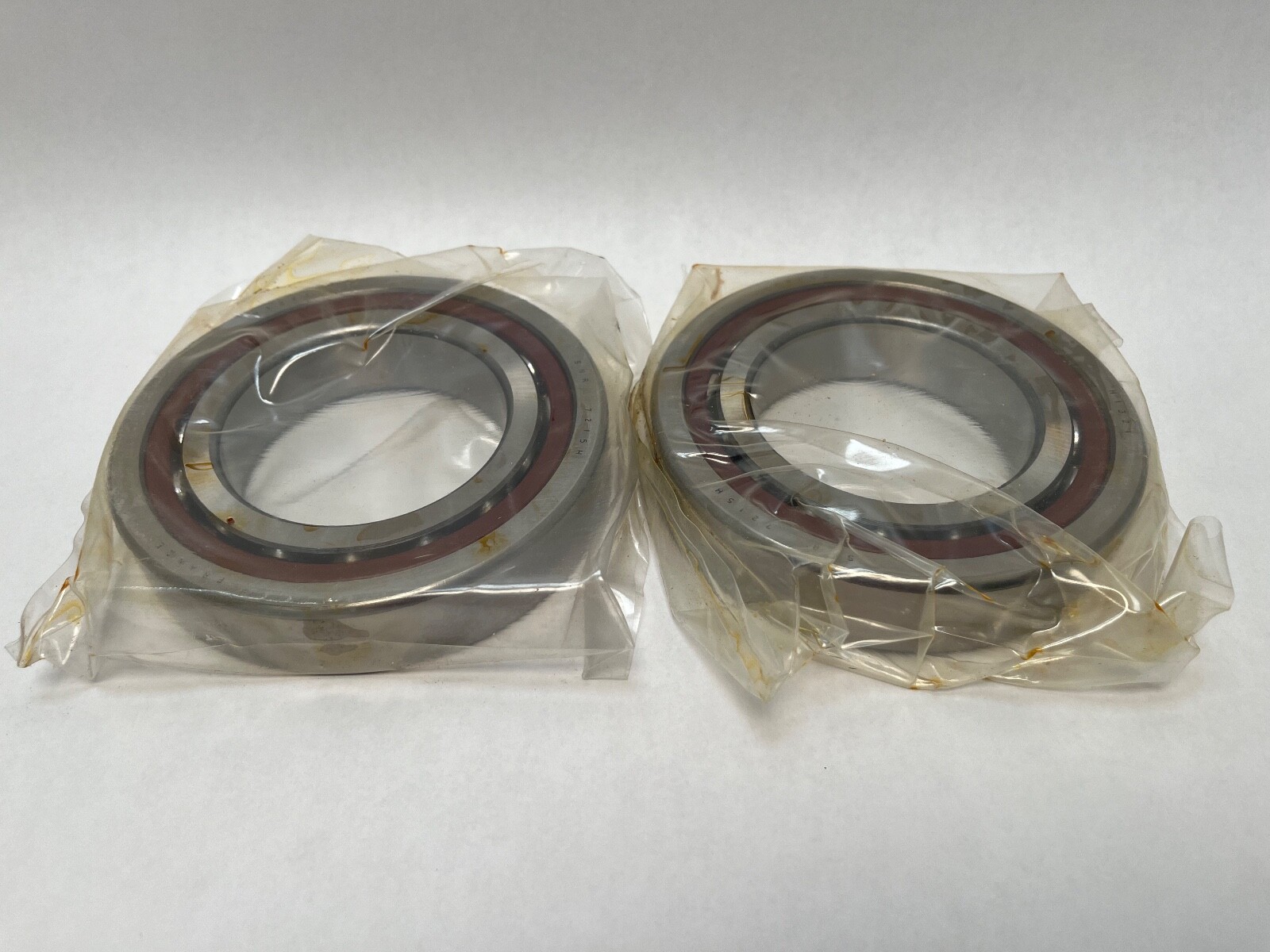

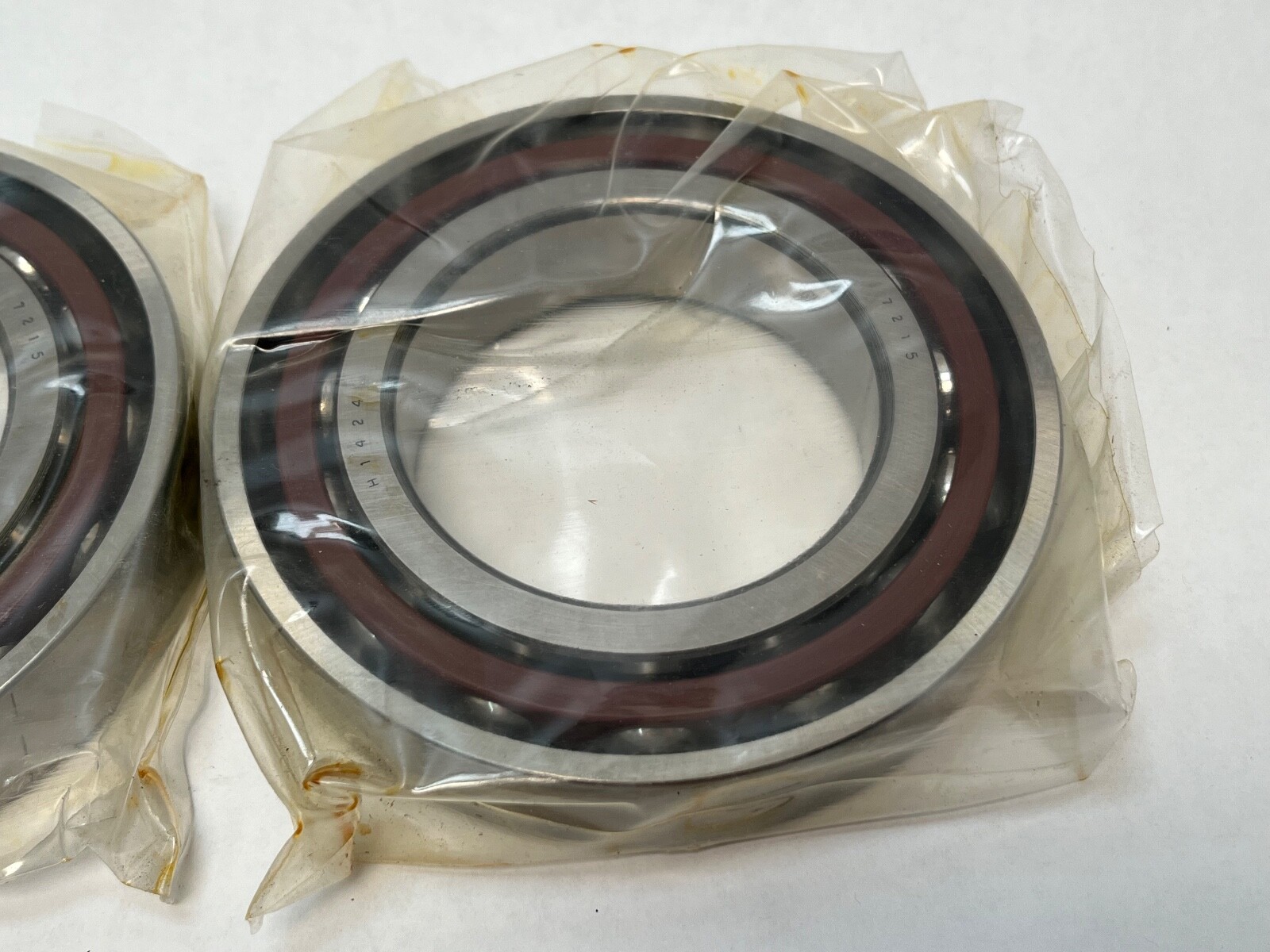

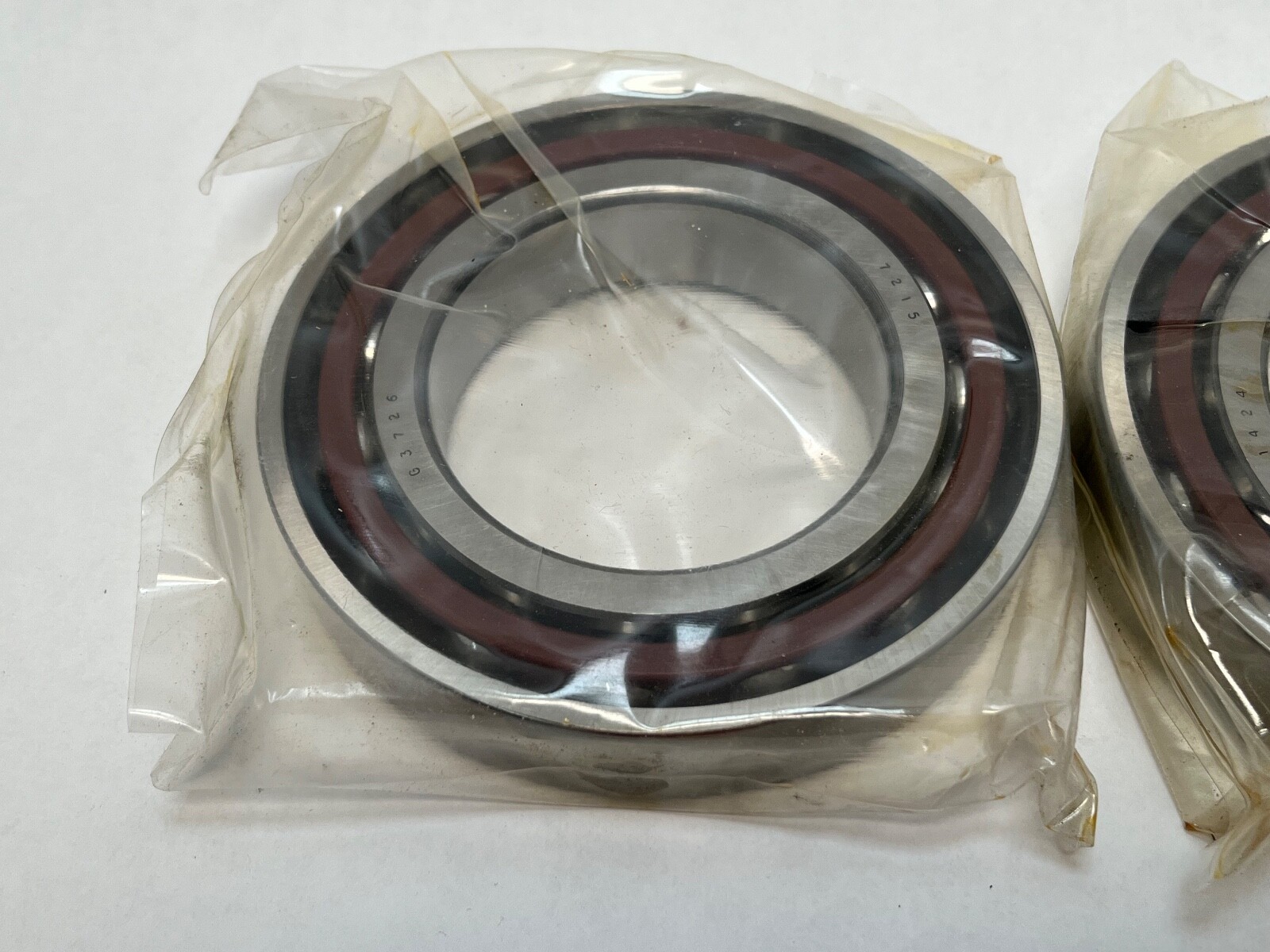

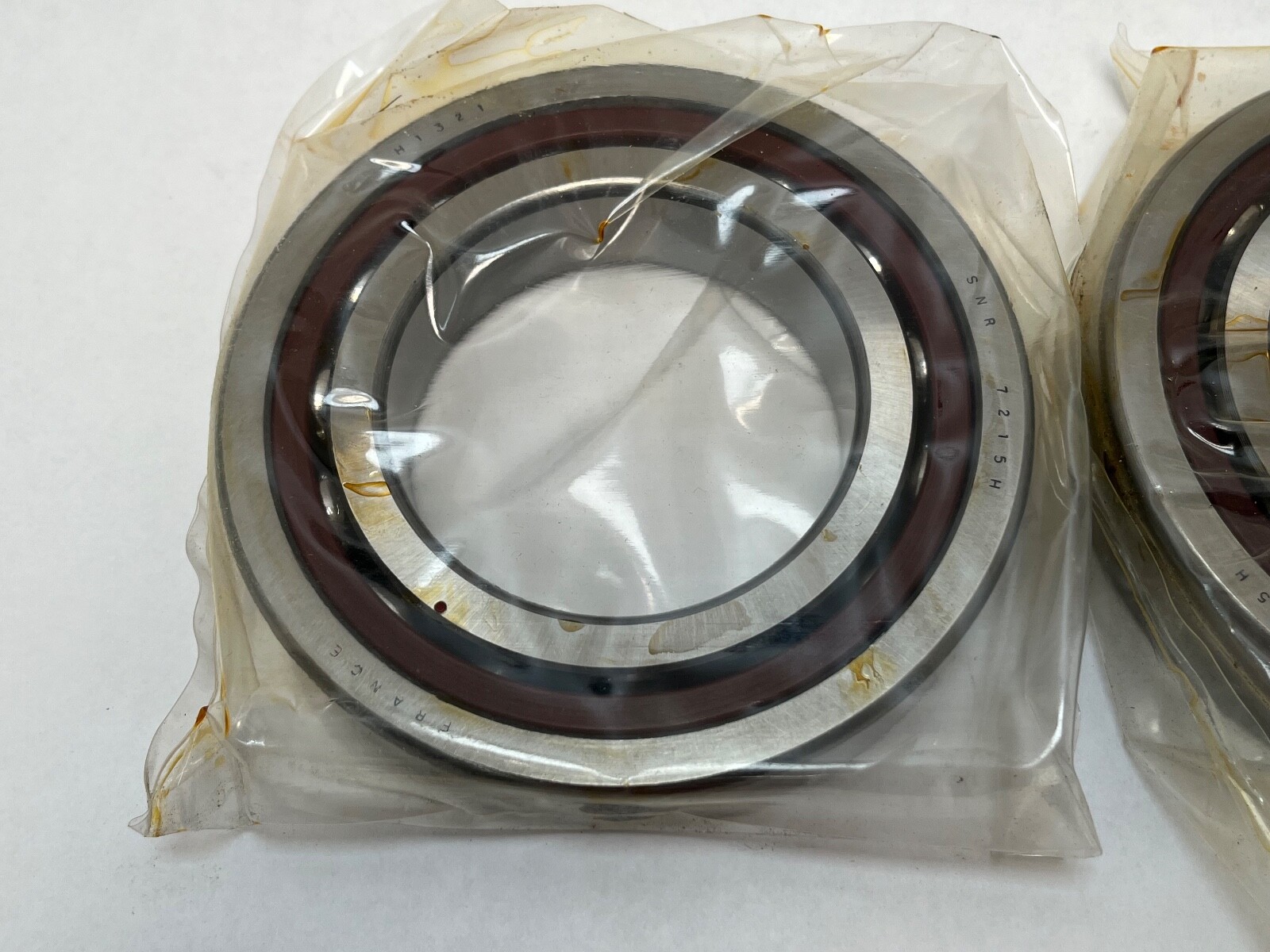

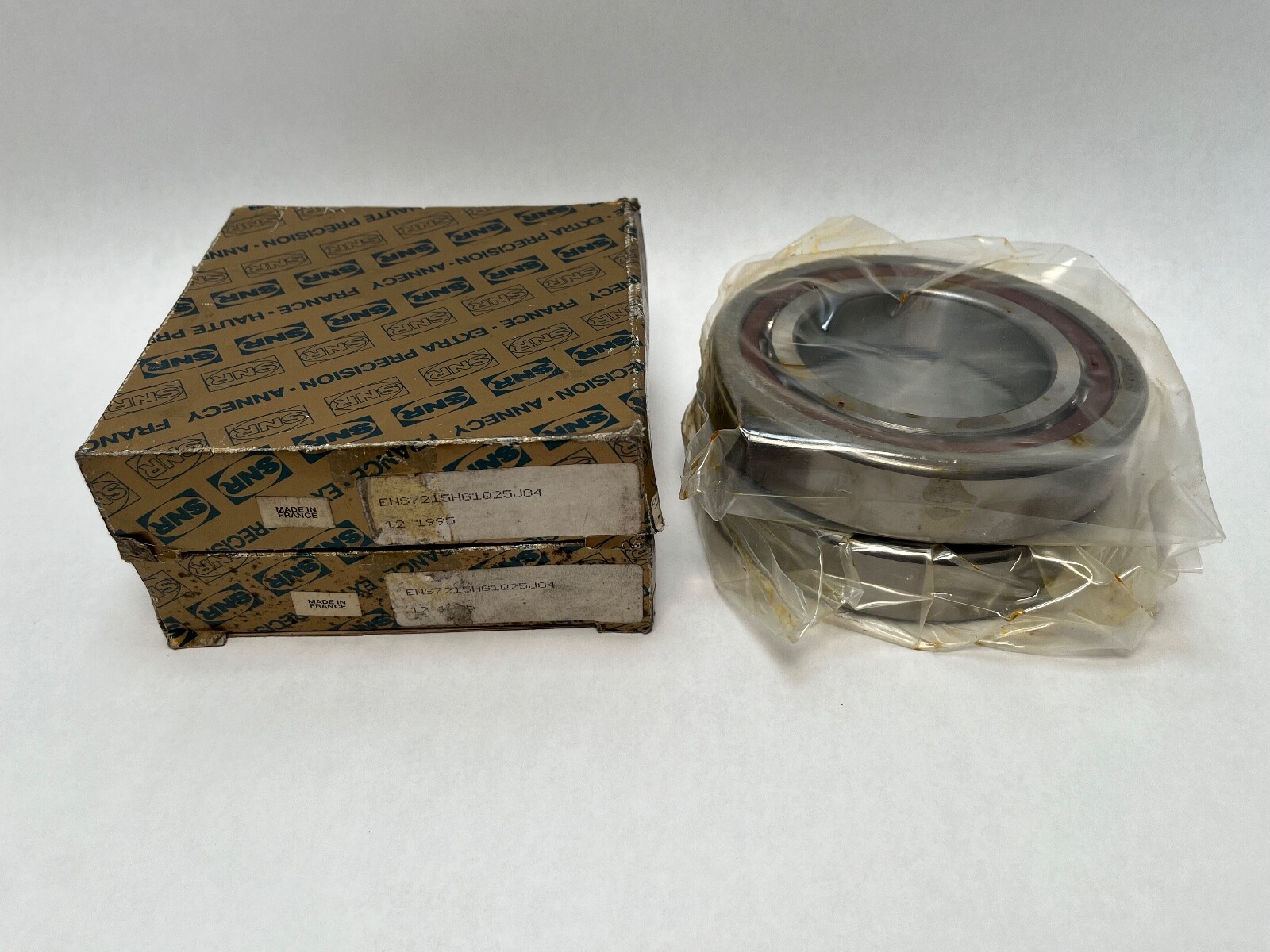

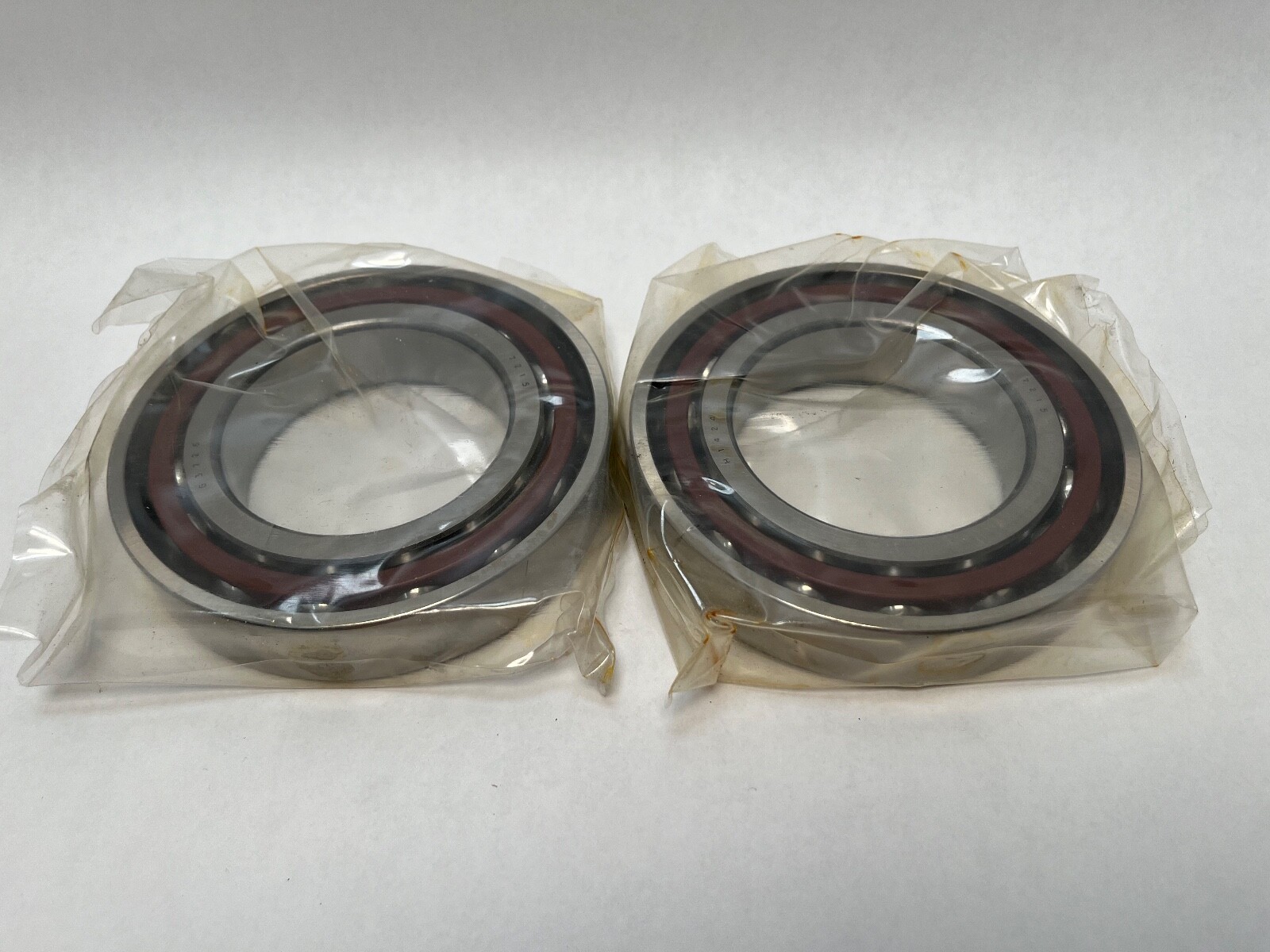

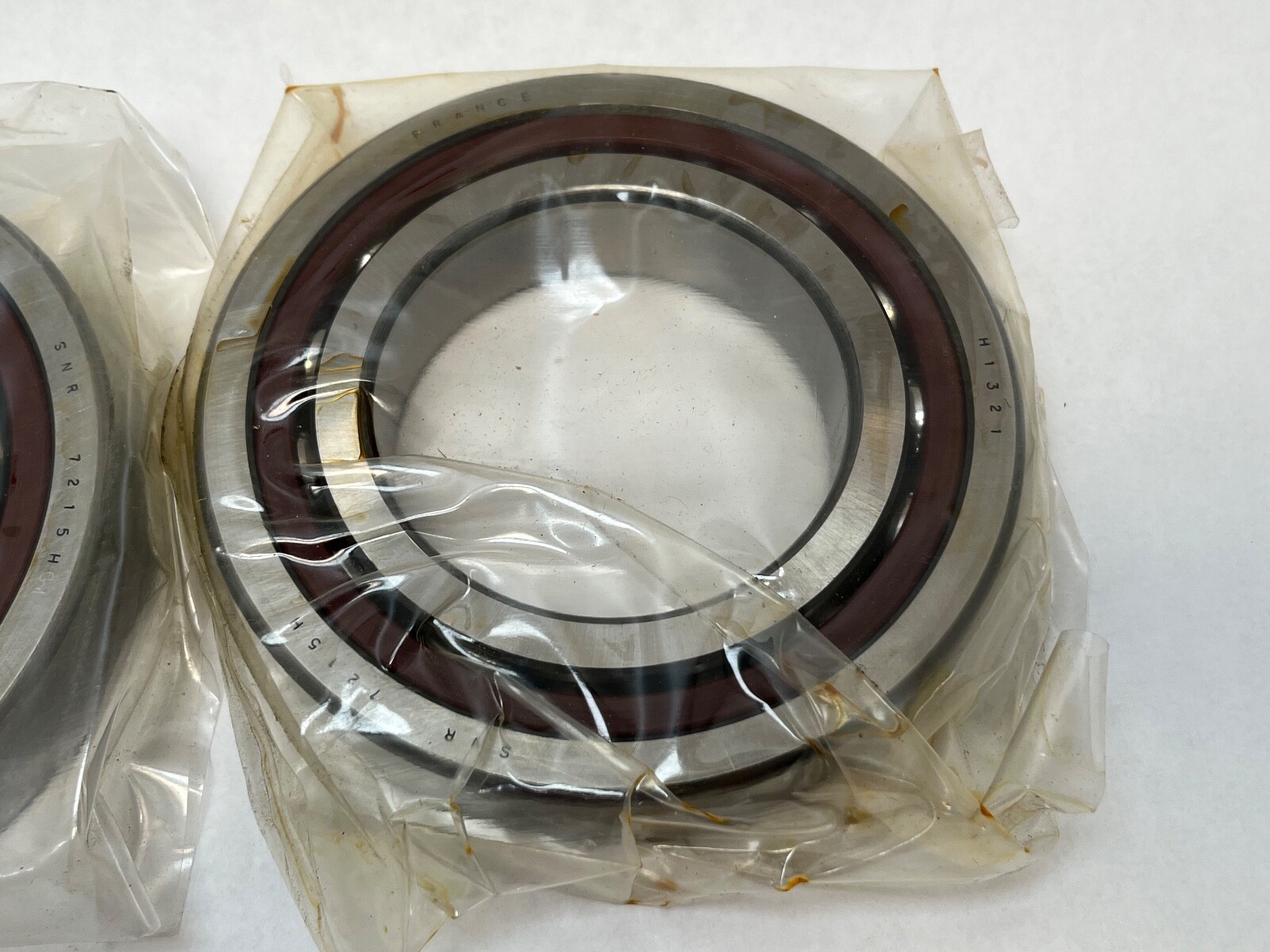

Super-precision angular contact ball bearing pair, 75 x 130 x 25 mm, 25° contact angle, medium preload, phenolic cage, ABEC 7, straight bore, open.
List Price
$374.82
1 in stock
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | SNR |
|---|---|
| MPN | 7215HG1DUJ84 |
| Model | 7215 E T DUM P4 / 3MM215WI CR DUM / ENS 7215 H G1 DU J84 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 75 mm |
| OD | 130 mm |
| Width | 25 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7200 |
| Condition | New |
| Lubricant | Oil/Grease |
| Preload | Medium |
| Base Number | 7215 |
| Industry Terms | Super precision spindle bearing, machine tool angular contact bearing, matched duplex pair |
| Common Misspellings | 7215HGIDUJ84, 7215 HG1 DU J84, ENS7215HGIDUJ84 |
| Bore Shaft Size | 75 mm |
| Mpn Variants | 7215HG1DUJ84, ENS7215HG1DUJ84, ENS-7215-H-G1-Q25-J84, 7215 E T DUM P4, 3MM215WI CR DUM |
| Arrangement Configuration | DU universally matchable duplex |
| Precision Class | ABEC 7 / P4 |
| Min Temp | -30 °C |
| Cage Type | Machined, outer-ring centred |
| Dynamic Load Rating | 66.0 kN |
| Static Load Rating | 62.0 kN |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 2.60 lbs |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Not specified |
| Internal Clearance | N/A |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 25° |
| Mounting Arrangement | Universal duplex |
| Design Units | Metric |
| Bearing Material | Chrome steel |
| Part Number | 7215HG1DUJ84 |
| Cross Reference 1 | SKF 7215 ACD/P4DGB |
|---|

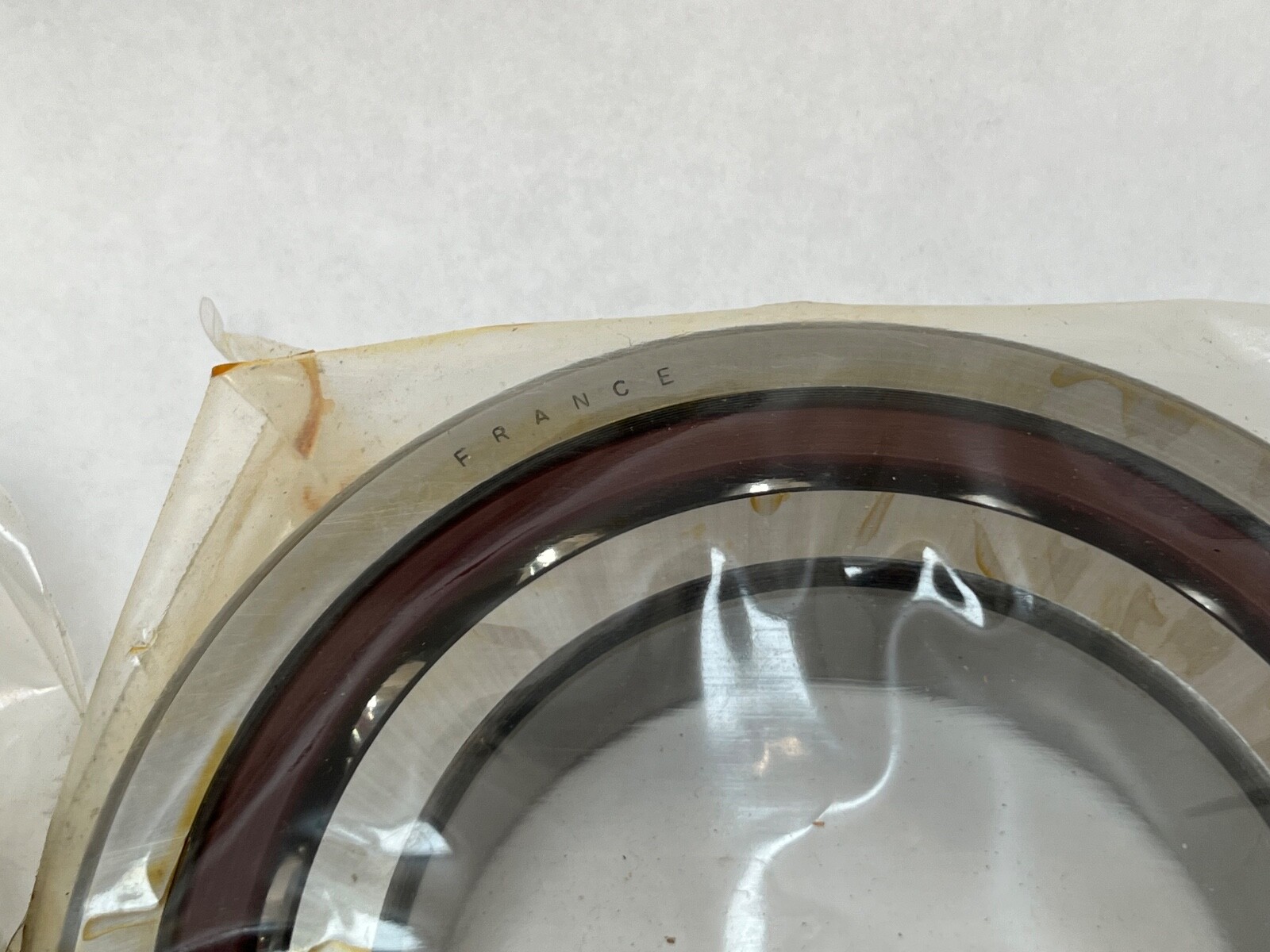

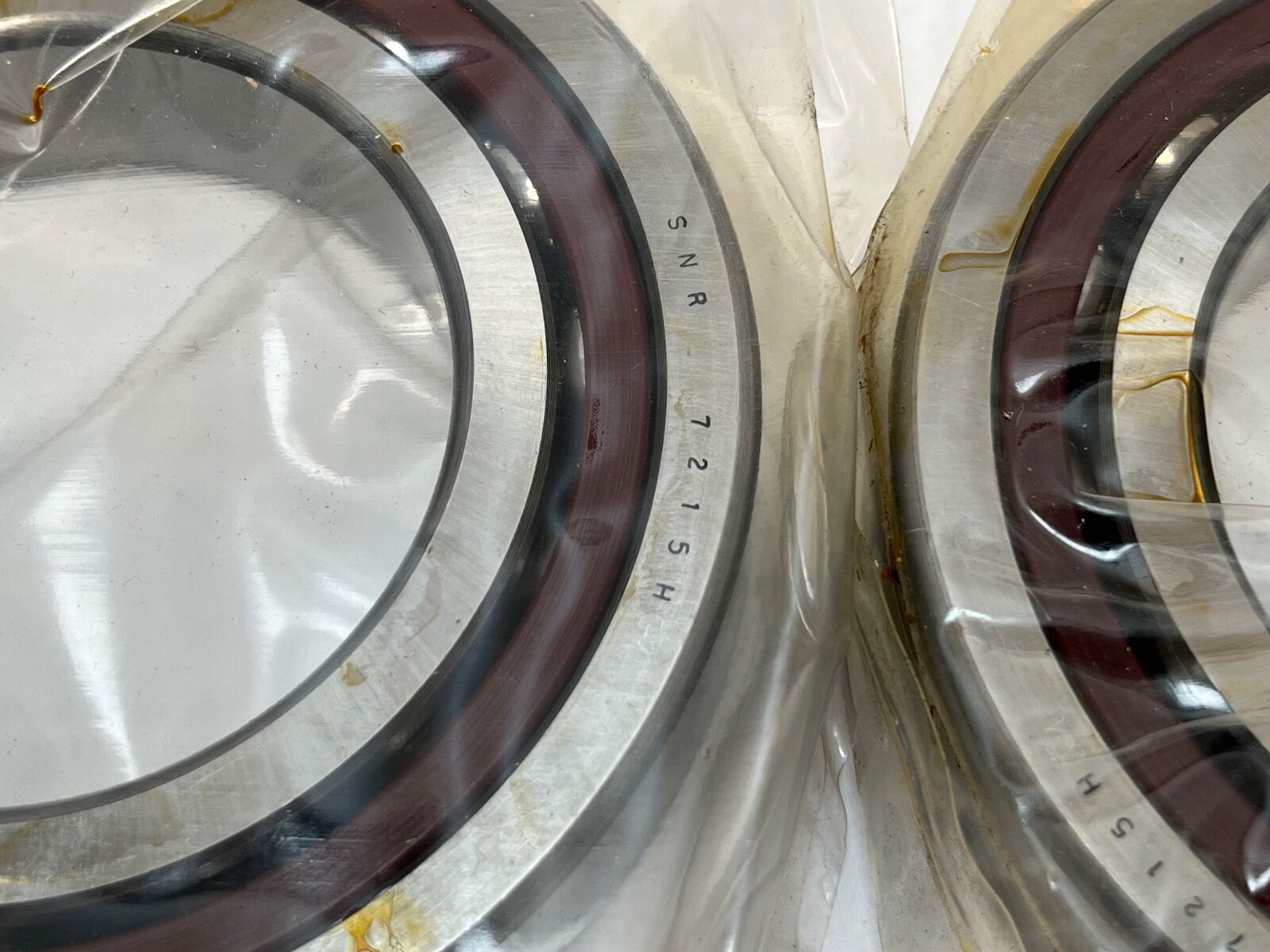

SNR 7215HG1DUJ84 super-precision angular contact ball bearing, supplied as a universally matchable duplex pair. Brand: SNR. Manufacturer Part Number: 7215HG1DUJ84. Bearing Type: Angular contact ball bearing. Series: 7200. Base Number: 7215. Bore: 75 mm. Outside Diameter: 130 mm. Width: 25 mm. Bore Type: Straight. Closure Type: Open. Number of Rows: 1 per bearing. Rolling Elements: Ball. Bearing Material: Chrome steel. Design Units: Metric. Country of Origin: France.
Contact Angle: 25°. Cage Material: Phenolic laminated resin. Cage Type: Machined, centred on the outer ring. Arrangement: DU, a universally matchable duplex set. Preload: Medium. Precision Class: ABEC 7 / P4. A 25° contact angle carries more thrust and less speed than a 15° angle on the same envelope, and the outer-ring-centred phenolic cage keeps cage mass low for spindle service.
Dynamic Load Rating: 66.0 kN. Static Load Rating: 62.0 kN. Limiting Speed: 6300 rpm. Maximum Operating Temperature: 120 °C. Minimum Operating Temperature: -30 °C. Lubricant: grease or oil. Item Weight: 2.60 lbs. Internal Clearance: N/A — the J84 class sets a medium axial preload across the pair, so the set runs preloaded rather than clearance-set.
Unit Quantity: 2 Pcs. Mounting Arrangement: Universal duplex. Flush-ground faces let the pair be mounted back-to-back, face-to-face or in tandem, and the medium preload is built into the grinding rather than set at assembly.
Cross-Reference: SKF 7215 ACD/P4DGB, matching the 25° angle and the medium preload class. MPN Variants: 7215HG1DUJ84, ENS7215HG1DUJ84, ENS-7215-H-G1-Q25-J84, 7215 E T DUM P4, 3MM215WI CR DUM. Harmonization Code: 8482.10.50.
