SNR7205.C.G1.DU.J84Super-Precision Angular Contact Ball Bearing, 25 x 52 x 15 mm, 15° Contact Angle, ABEC 7 / P4, Medium Preload

Product Description

What this part is:

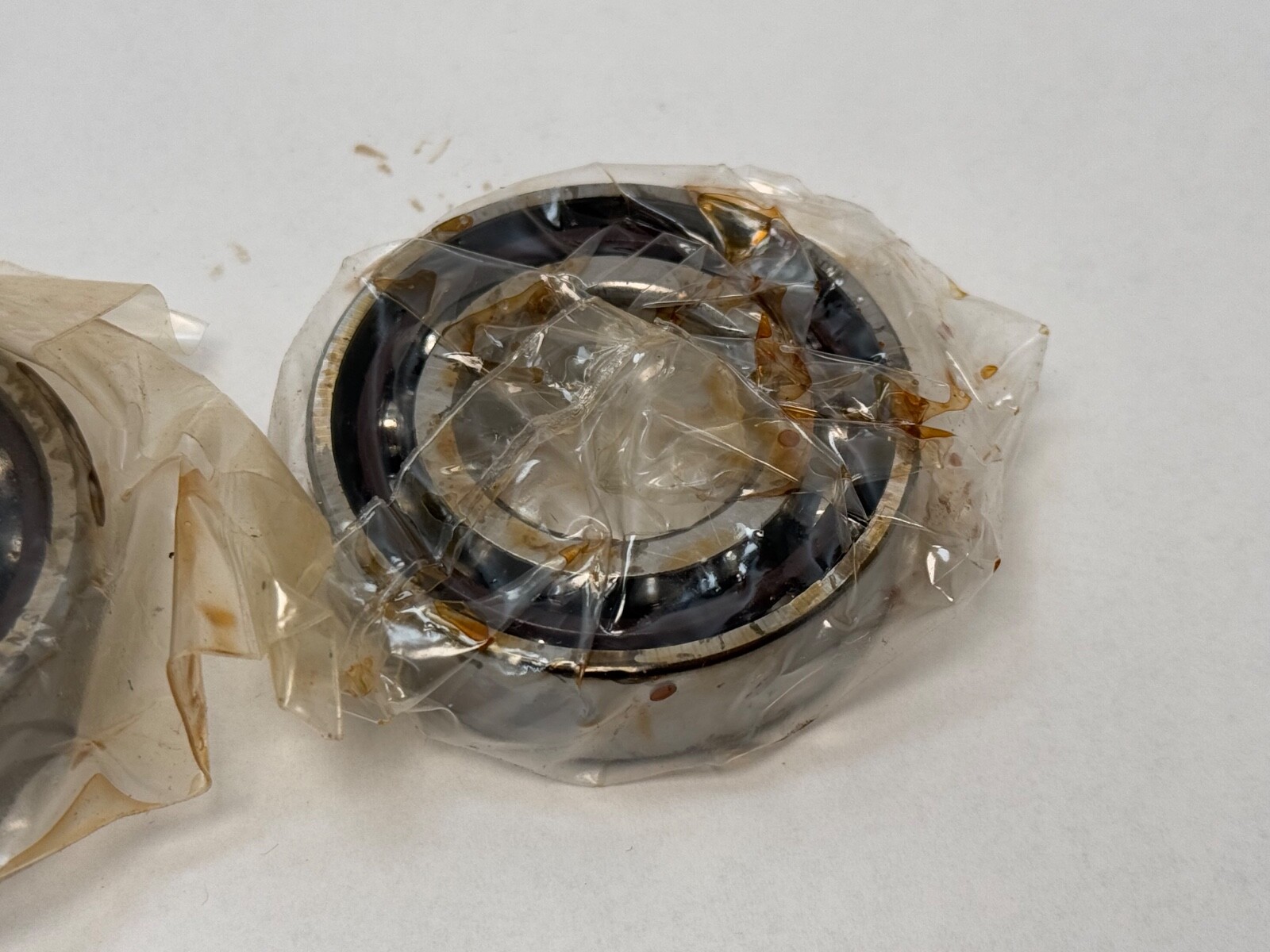

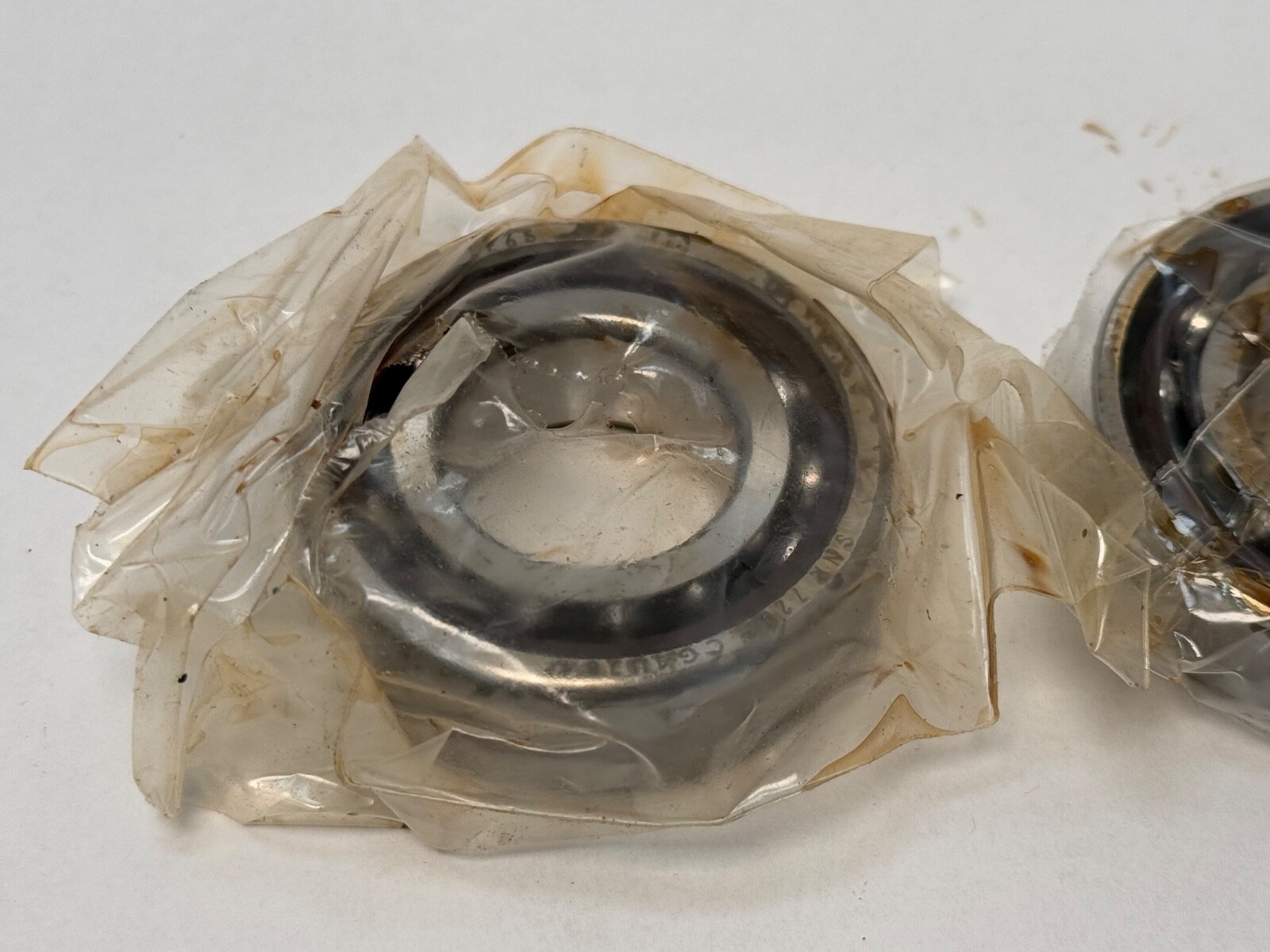

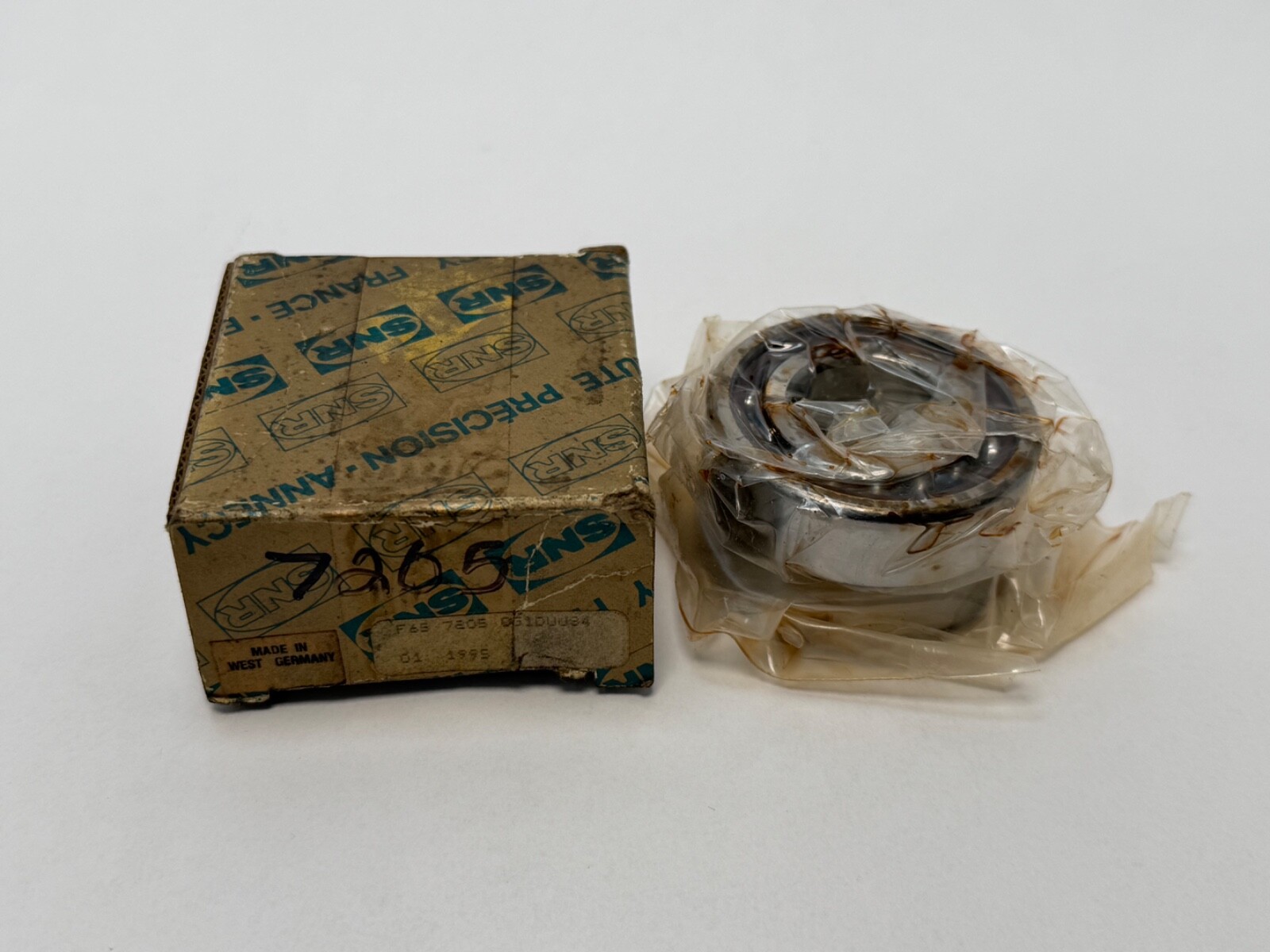

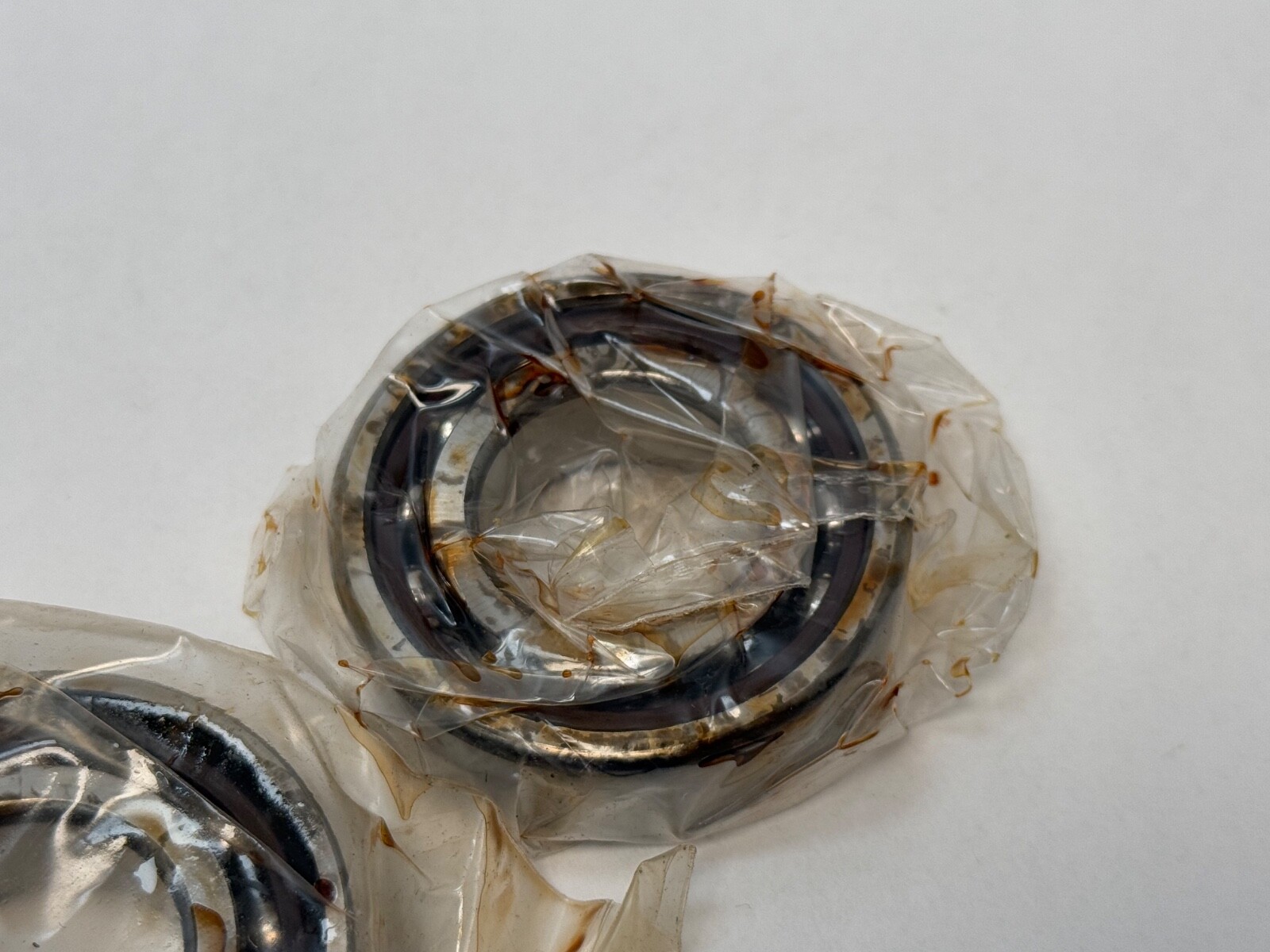

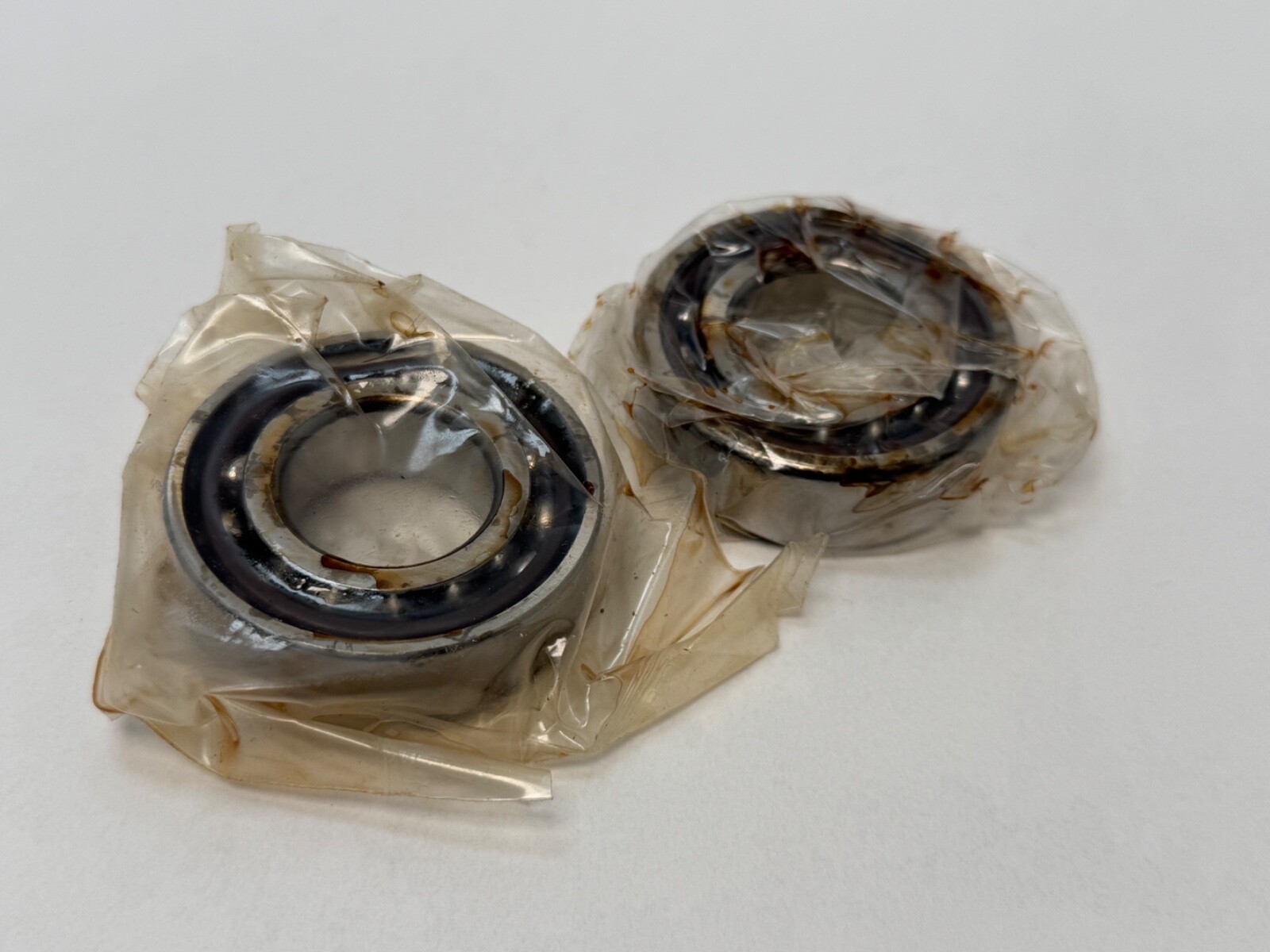

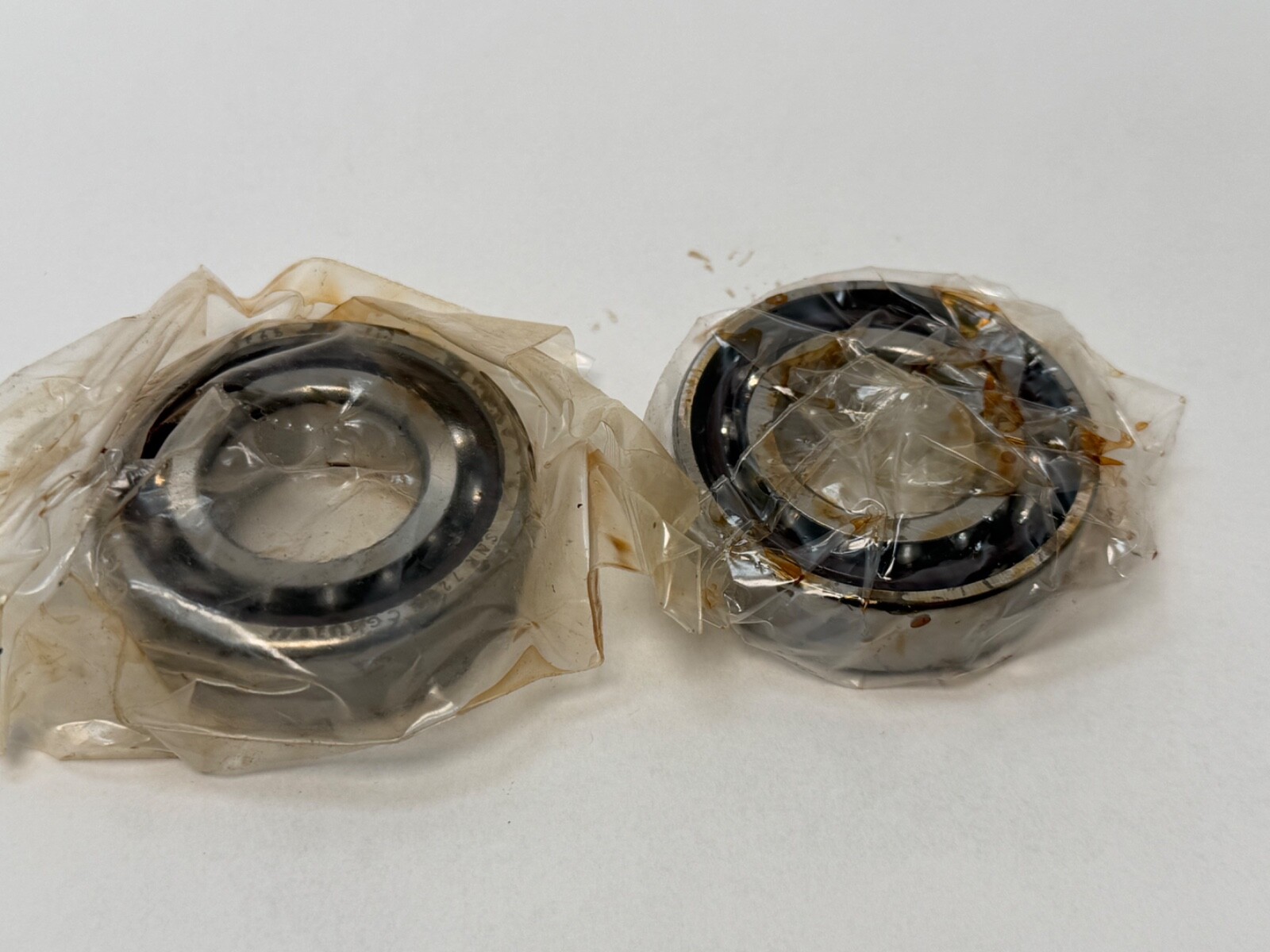

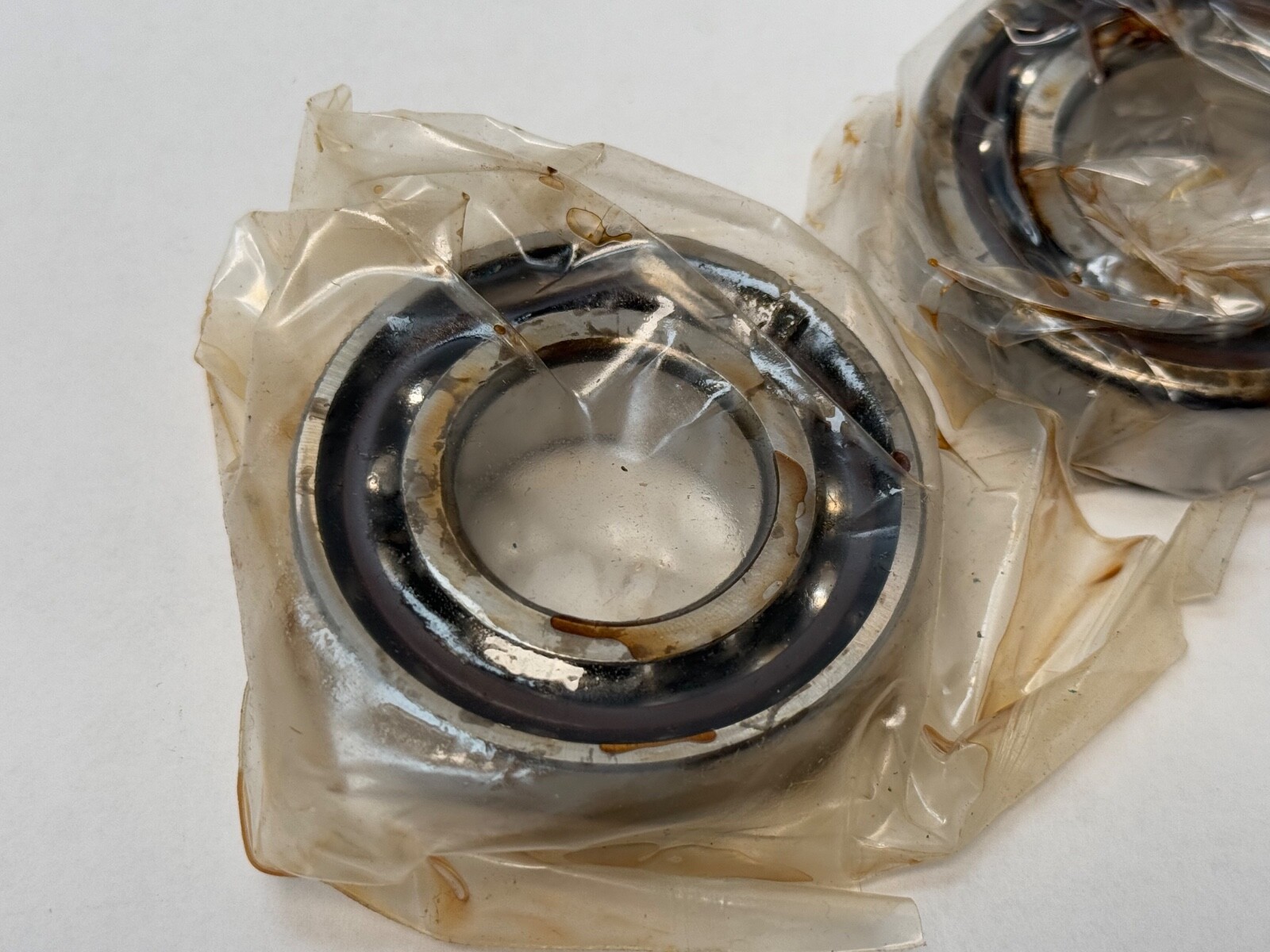

SNR Machline 7205CG1DUJ84 super-precision angular contact ball bearings, supplied as a universal duplex pair. Bore: 25 mm. Outside Diameter: 52 mm. Width: 15 mm per bearing. Contact Angle: 15°. Unit Quantity: 2 Pcs.

Decoding the designation:

7205 — ISO 72-dimension series angular contact envelope, 25 x 52 x 15 mm.

C — 15° contact angle in SNR’s scheme.

G1 — SNR’s high-load-capacity version code, developed for the 72 series.

DU — a pair of universal bearings. Universal grinding leaves the ring faces flush once preloaded, so the pair can be mounted in any arrangement; DU also selects bore and outside diameter to within half the ISO tolerance.

J84 — the 8 is the medium preload grade; the 4 is precision class ISO 4 / P4 / ABEC 7.

Specifications:

Brand: SNR (NTN-SNR). Bore Diameter: 25 mm. Outside Diameter: 52 mm. Width: 15 mm per bearing. Total Width: 30 mm for the assembled pair. Contact Angle: 15°. Preload: Medium. Precision Class: ABEC 7 / P4 (ISO 4). Dynamic Load Rating: 17.6 kN (3,957 lbf), per single bearing. Static Load Rating: 11.1 kN (2,495 lbf), per single bearing. Cage Material: Stratified cotton-fabric-reinforced phenolic. Cage Type: Machined, centred on and guided by the outer ring. Bearing Material: 52100 vacuum-degassed steel rings and balls. Rolling Elements: Steel balls. Closure Type: Open. Bore Type: Straight. Lubricant: Grease or oil. Series: 72 (ISO 02 dimension series). Base Number: 7205CG1. Item Weight: 0.31 lb per bearing. Unit Quantity: 2 Pcs, one universal duplex pair.

Dimensions and mounting:

Bore Diameter: 25 mm. Outside Diameter: 52 mm. Width: 15 mm per bearing; 30 mm for the pair. Bore Type: Straight. The universal pair mounts back-to-back, face-to-face or in tandem.

Compatibility and replacement:

Cross-references: FAG B7205-C-T-P4S-DUM, Fafnir 2MM205WI CR DUM, NSK 7205CTYNDULP4 (light preload), SKF 7205 CD/P4ADGA (light preload). World number format: 7205C-T-DUM-P4. Part number variants: 7205.C.G1.DU.J84, 7205-C-G1-DU-J84, 7205 C G1 DU J84, 7205CG1DU J84. Related sizes in the 25 x 52 x 15 mm envelope: 7205A5 at 25° and 7205A at 30°.

Frequently asked questions:

What are the dimensions of the SNR 7205CG1DUJ84?

Bore Diameter: 25 mm. Outside Diameter: 52 mm. Width: 15 mm per bearing.

What contact angle and preload does the 7205CG1DUJ84 have?

Contact Angle: 15°. Preload: Medium (J84).

What are the load ratings of the 7205CG1DUJ84?

Dynamic Load Rating: 17.6 kN. Static Load Rating: 11.1 kN. Both per single bearing.
