SNRAngular contact bearing – 12 mm ID, 32 mm OD, 10 mm Width, Open, 15°.

Product Description

What this part is

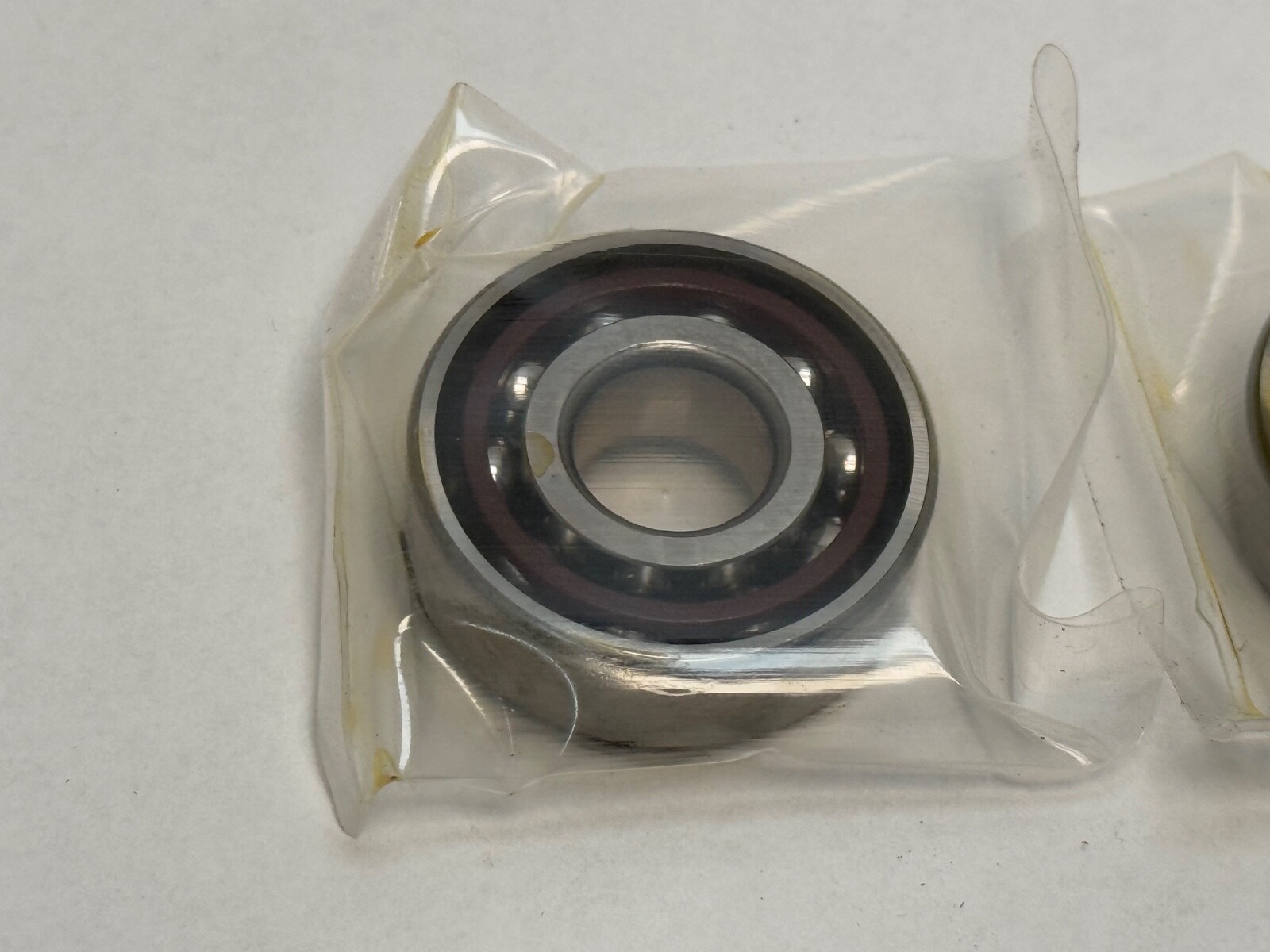

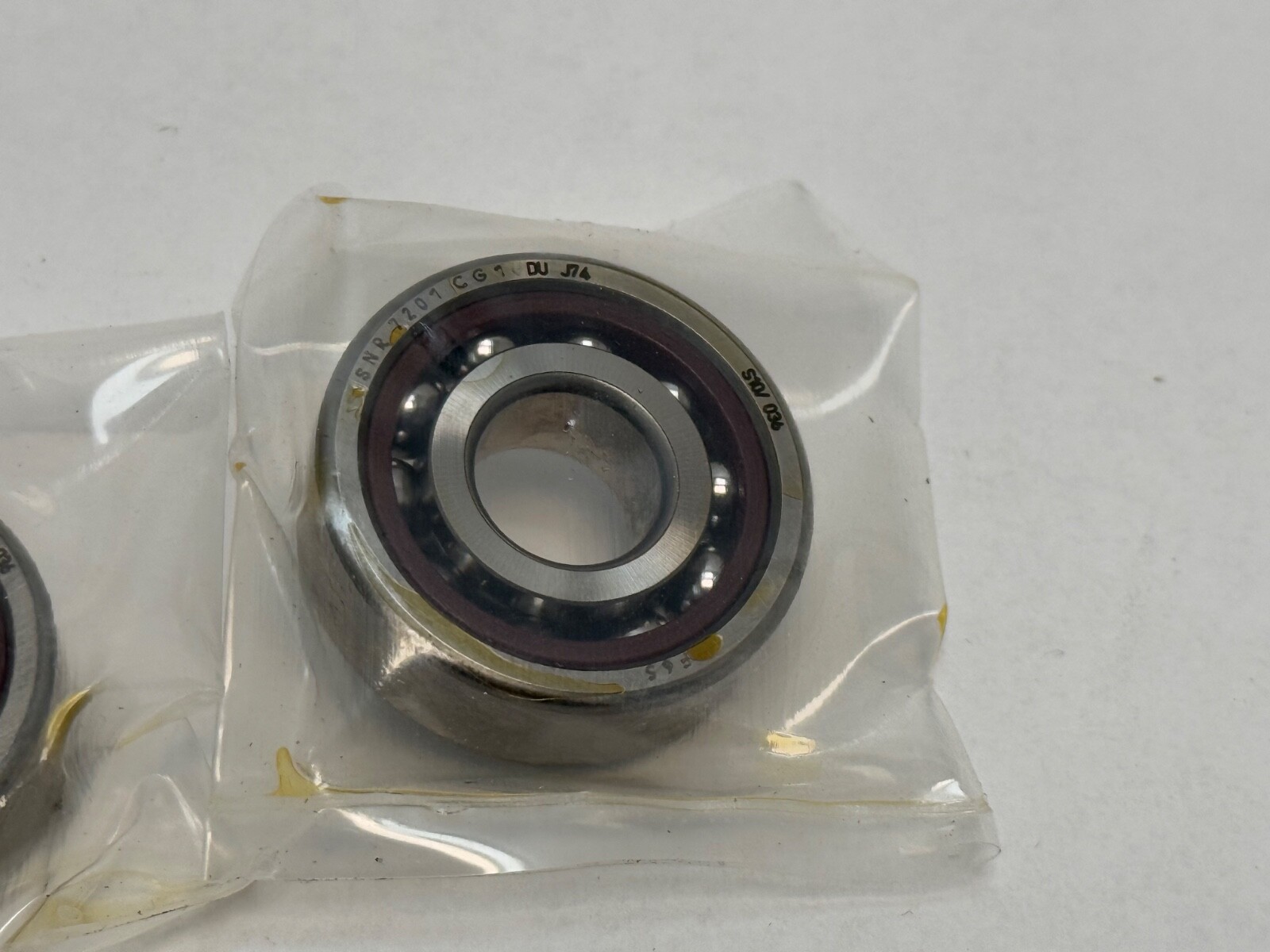

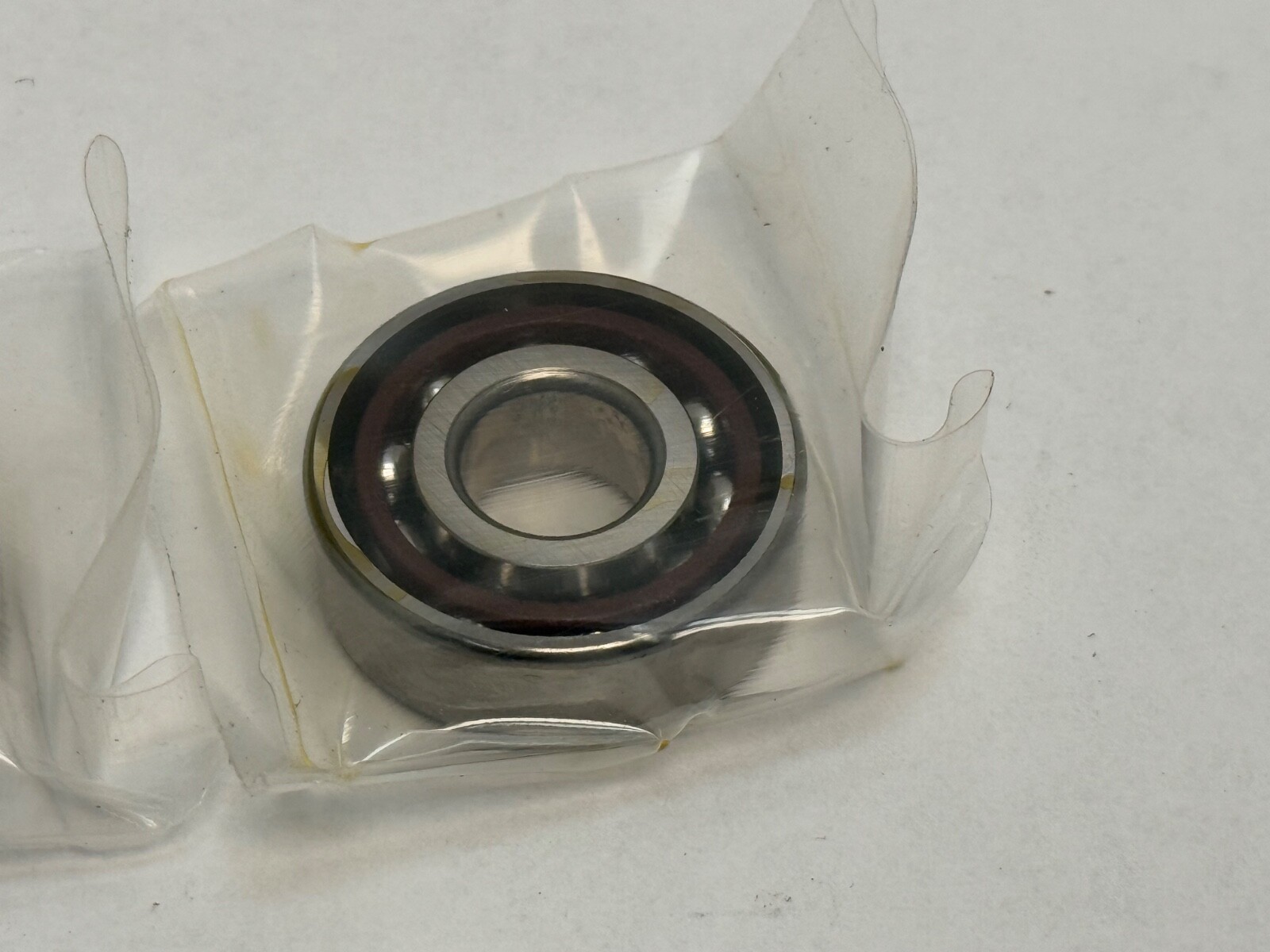

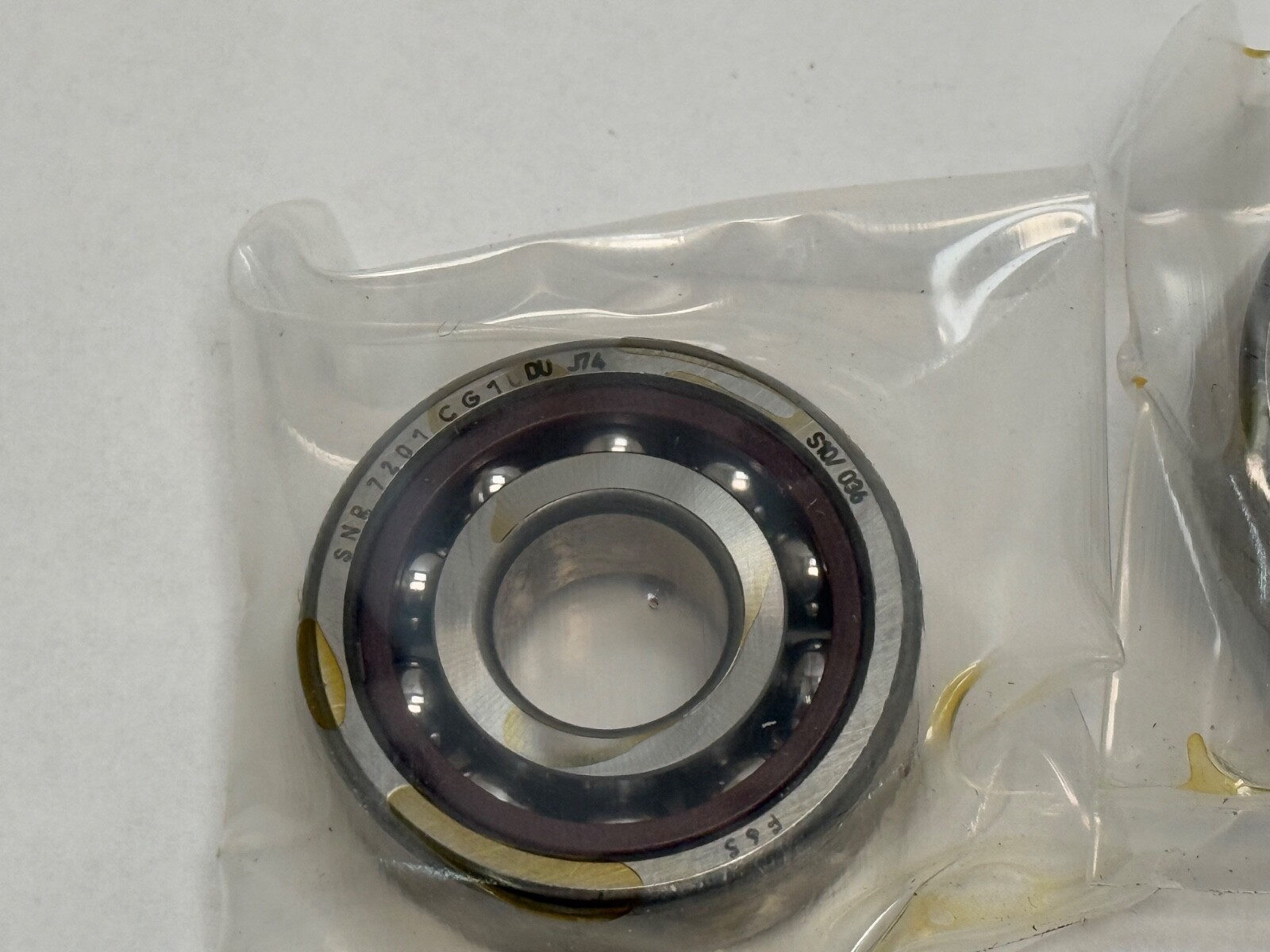

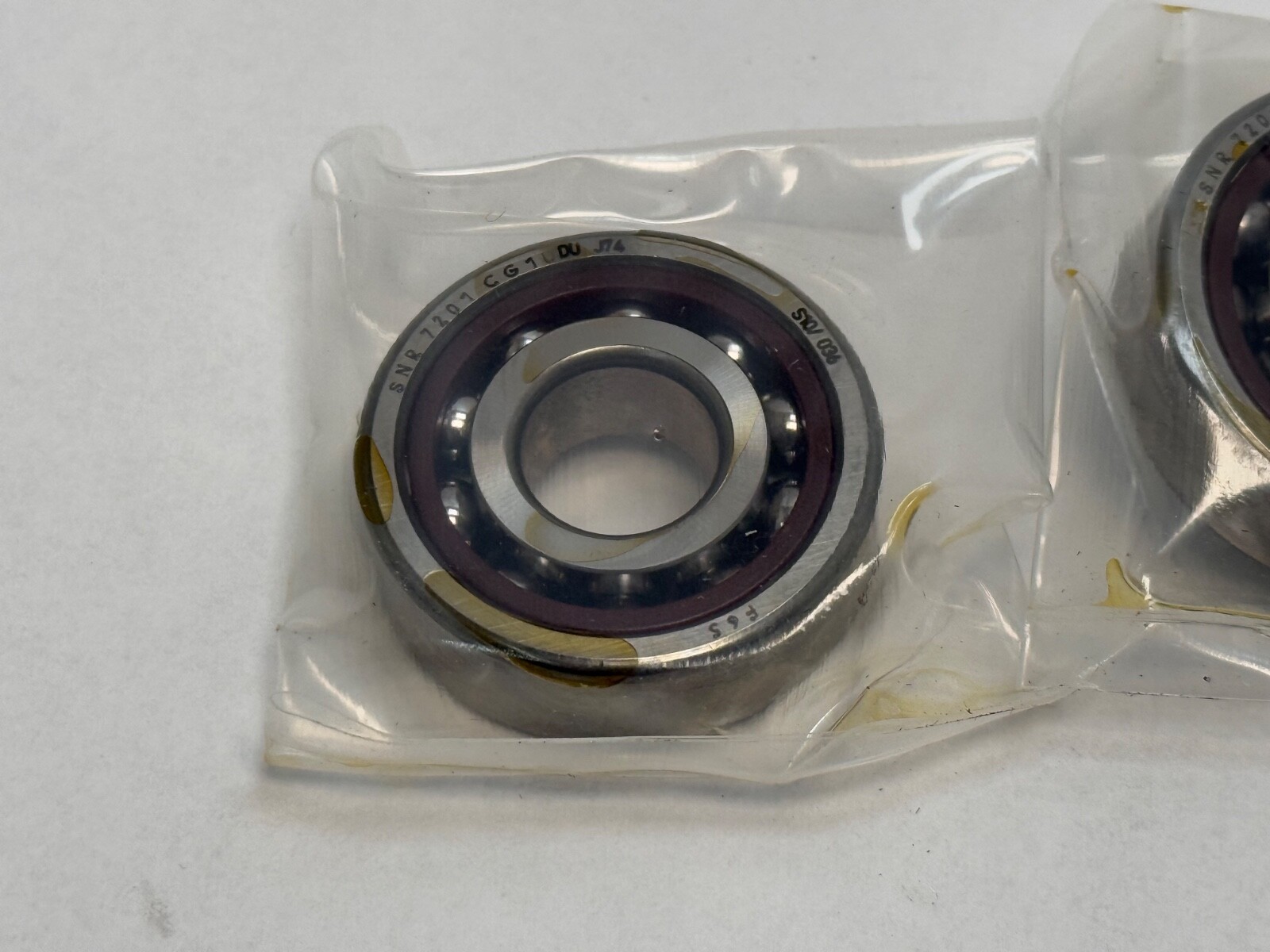

NTN-SNR 7201CG1DUJ74 super-precision angular contact ball bearing, ISO 7200 light series, 12 x 32 x 10 mm. Bore: 12 mm. Outside Diameter: 32 mm. Overall Width: 10 mm. Contact Angle: 15°. Number of Rows: 1. Rolling Elements: Ball. Bearing Material: Bearing steel. Bore Type: Straight. Closure Type: Open. Cage Material: Phenolic (laminated resin). Cage Type: Machined, outer-ring centred. Precision Class: ISO Class 4 (ABEC 7 / P4). Preload: Light. Series: 7200. Unit Quantity: 2 Pcs.

Decoding the designation

7201 — ISO 7200 light series angular contact ball bearing on a 12 mm bore.

C — Contact Angle: 15°.

G1 — Cage Material: Phenolic (laminated resin), machined and centred on the outer ring.

J74 — Preload: Light, at Precision Class: ISO Class 4 (ABEC 7 / P4).

Searchable forms of the number: 7201CG1DUJ74, 7201 C G1 DU J74, 7201-C-G1-DU-J74, 7201CDUJ74, 7201 C DU J74.

What these specs mean in practice

A 15° contact angle favours speed and radial capacity; a 25° bearing on the same 12 x 32 x 10 mm envelope carries more thrust and less speed.

Precision Class: ISO Class 4 (ABEC 7 / P4) gives tighter bore, outer-ring and runout tolerances than a standard-class bearing, which holds a spindle centred and lowers running vibration.

Cage Material: Phenolic (laminated resin) is light, low-inertia and retains oil in its fabric base. Cage Type: Machined, outer-ring centred — the cage rides on the outer-ring land, which keeps it stable at high rotational speed.

Preload: Light — the pair is ground so that clamping the rings sets a small axial load, giving stiffness and defined ball tracking with the least heat of the preload ladder. A preloaded pair is set by preload rather than by a clearance class.

Quantity and configuration

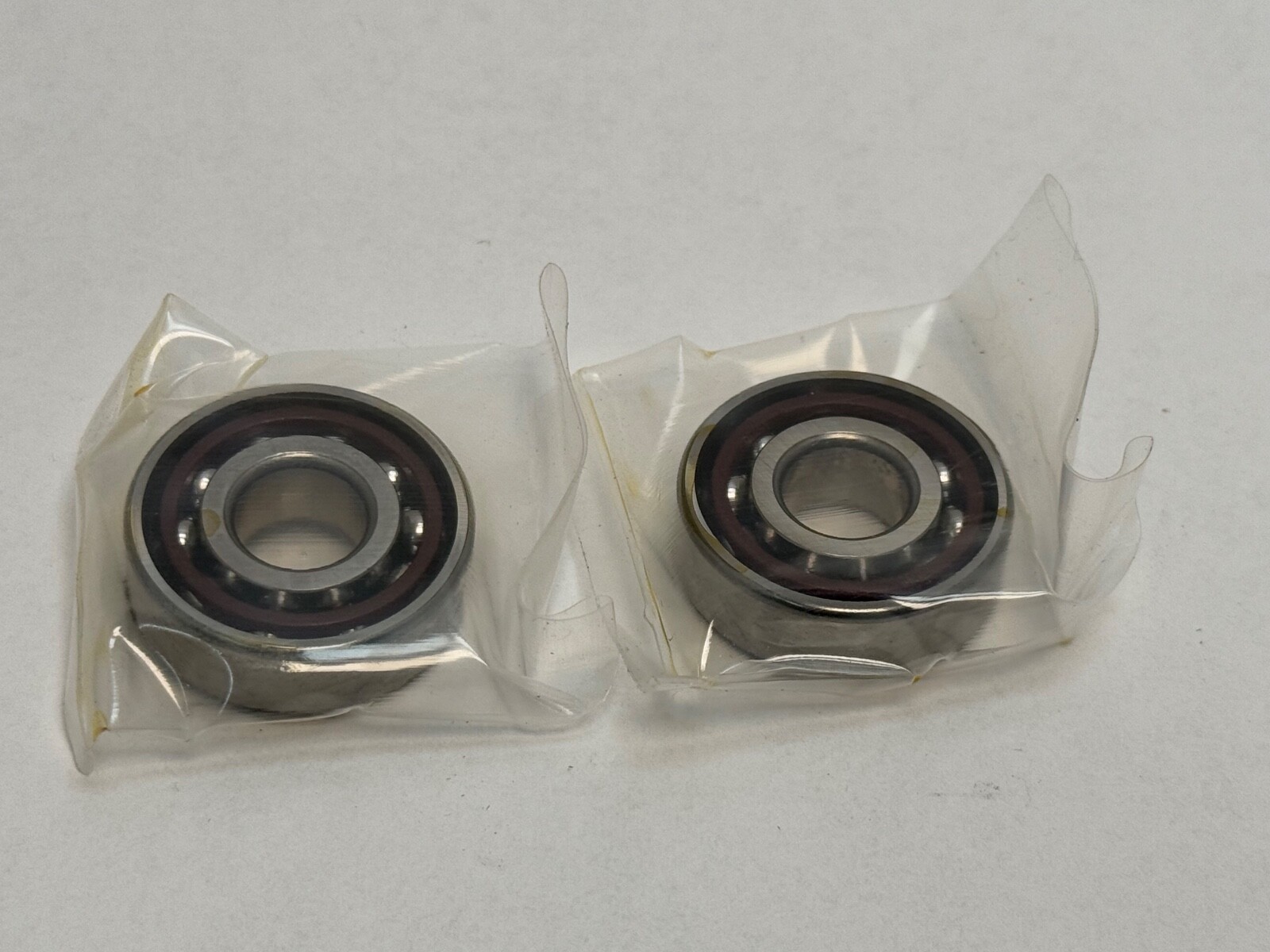

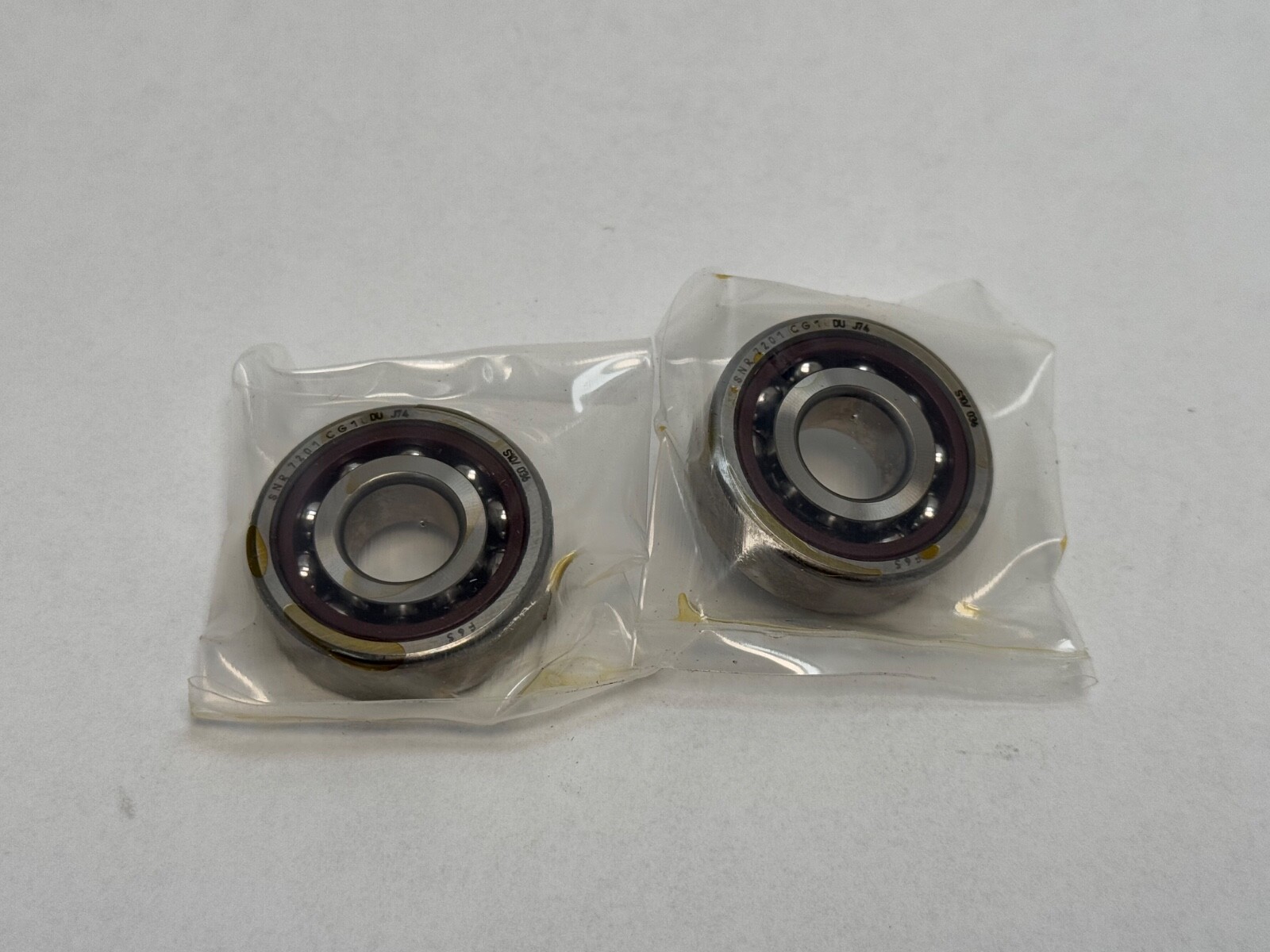

Unit Quantity: 2 Pcs — a matched pair. The faces are universally ground, so the pair can be clamped back-to-back, face-to-face or in tandem and reaches its rated light preload in any of the three. Mounting Arrangement: Universal (DB, DF or DT).

Interchange guidance

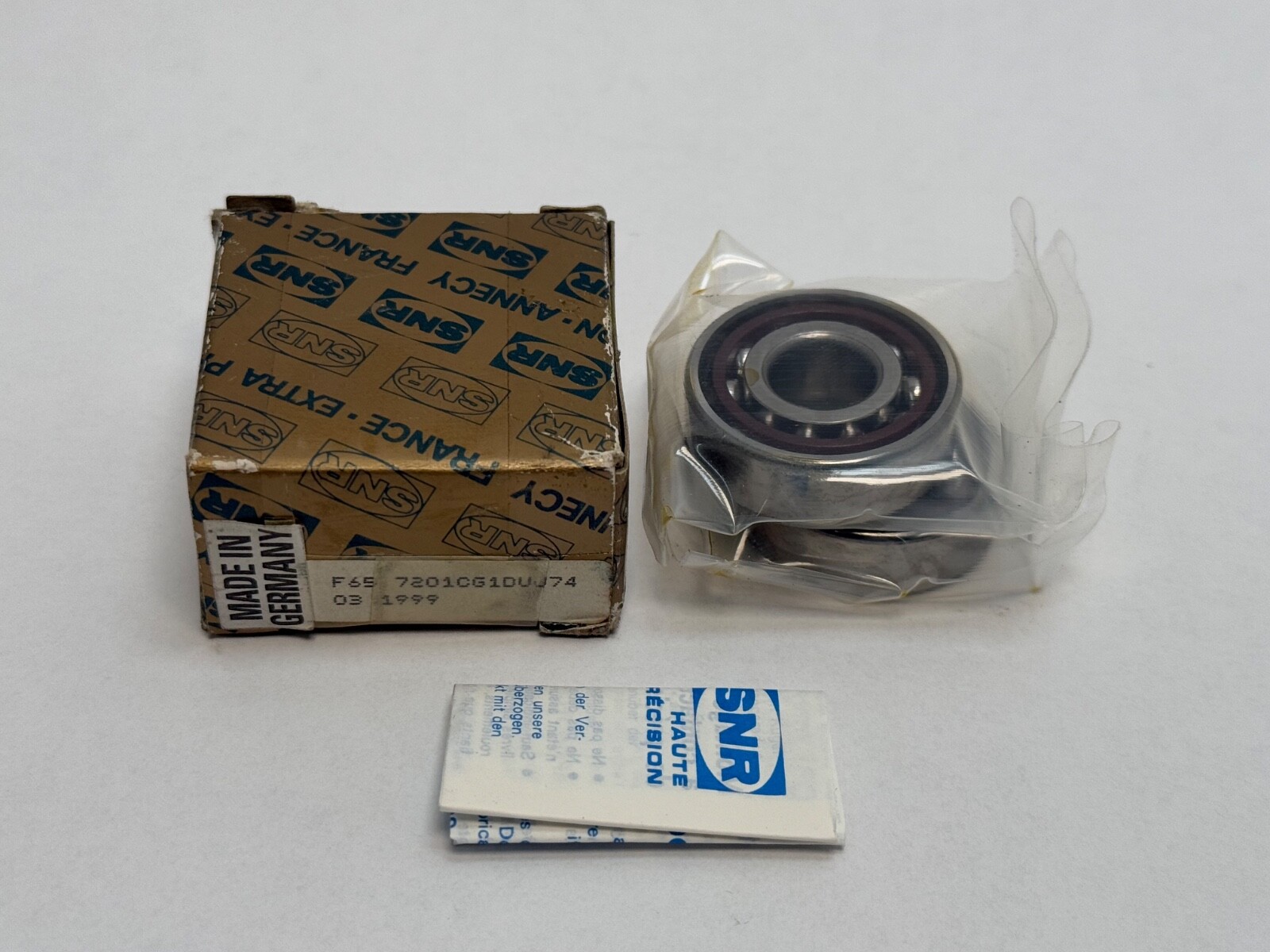

Carton cross-references: FAG 7201-C-T-DUL-P4, Fafnir 2MM201WI CR DUL, SKF 7201 CDGA/P4A. Each is a 12 x 32 x 10 mm 15° universally matchable light-preload pair in ABEC 7 with a phenolic cage, so each is a direct substitution. A 7201 at 25°, or one at medium or heavy preload, shares the same envelope but changes the axial stiffness and speed of the spindle, and is a related size rather than an equivalent.
