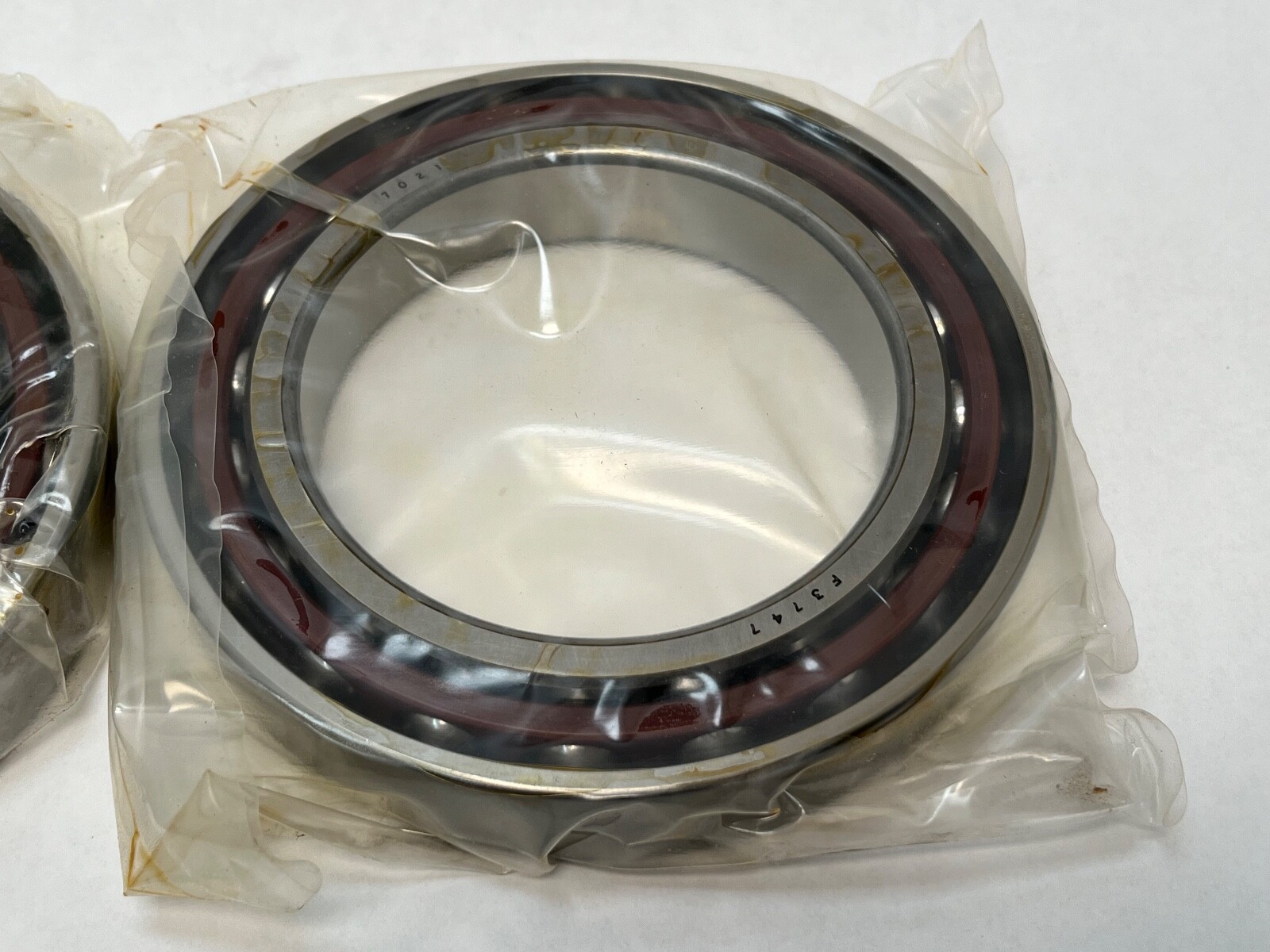

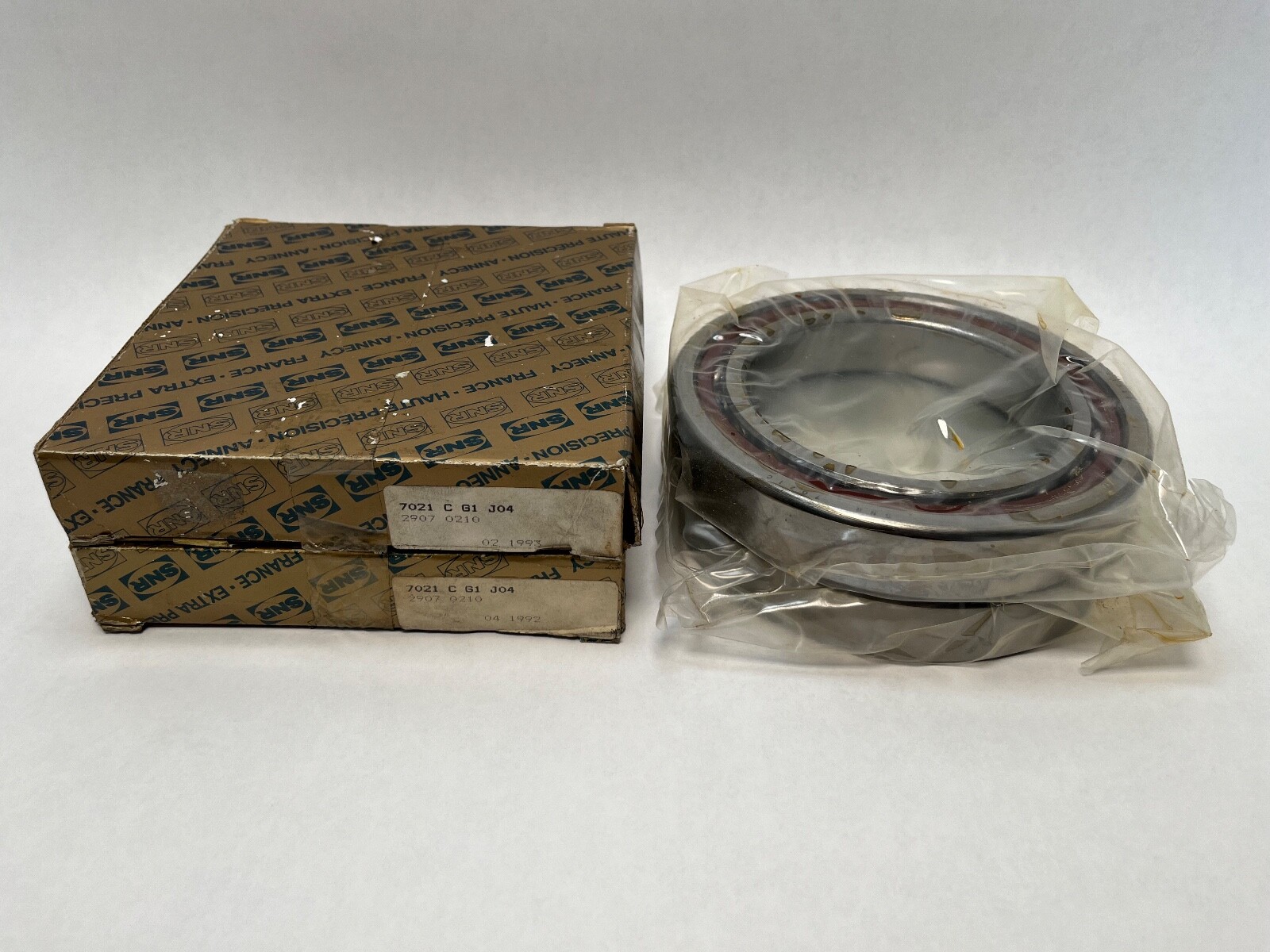

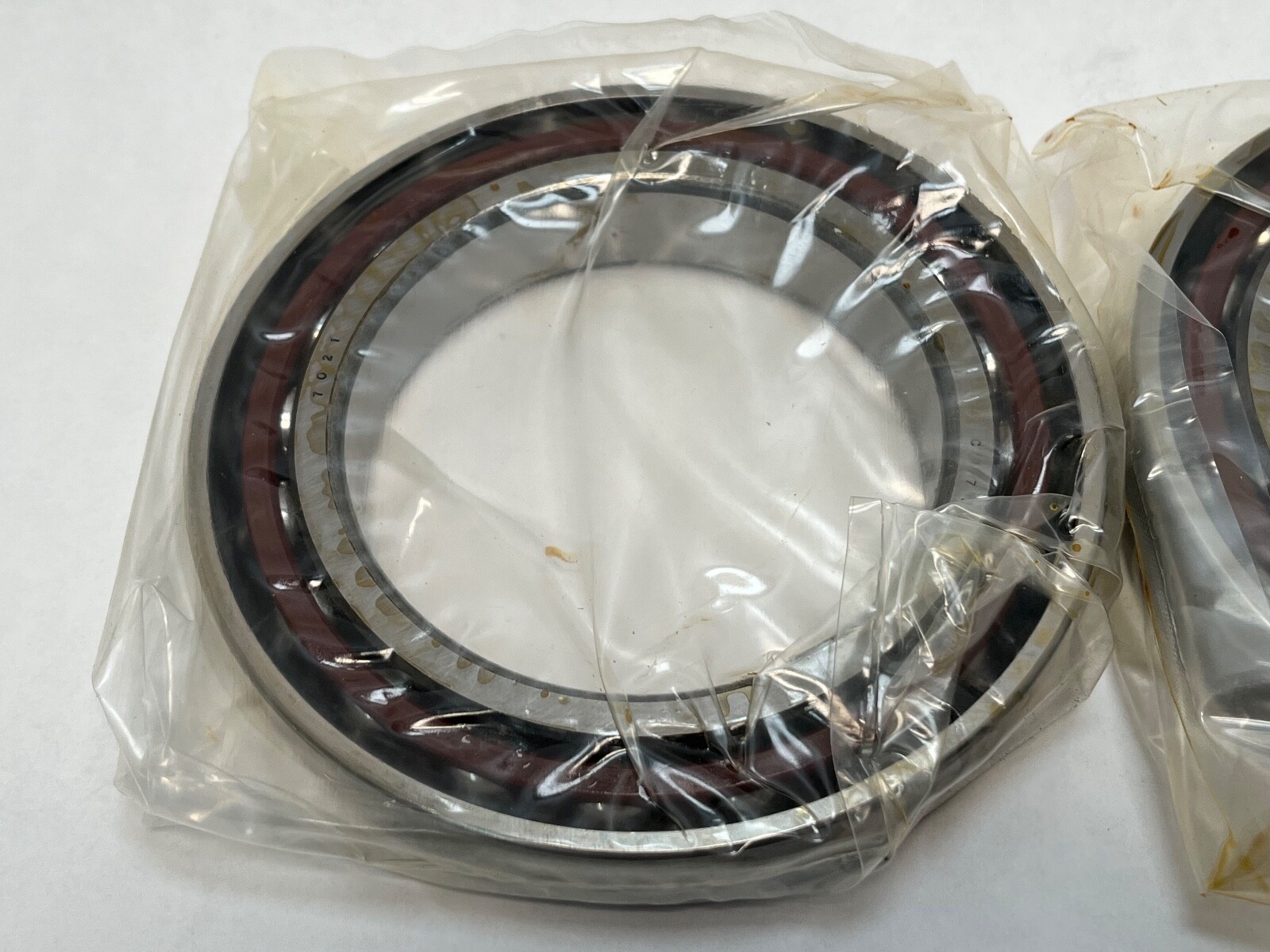

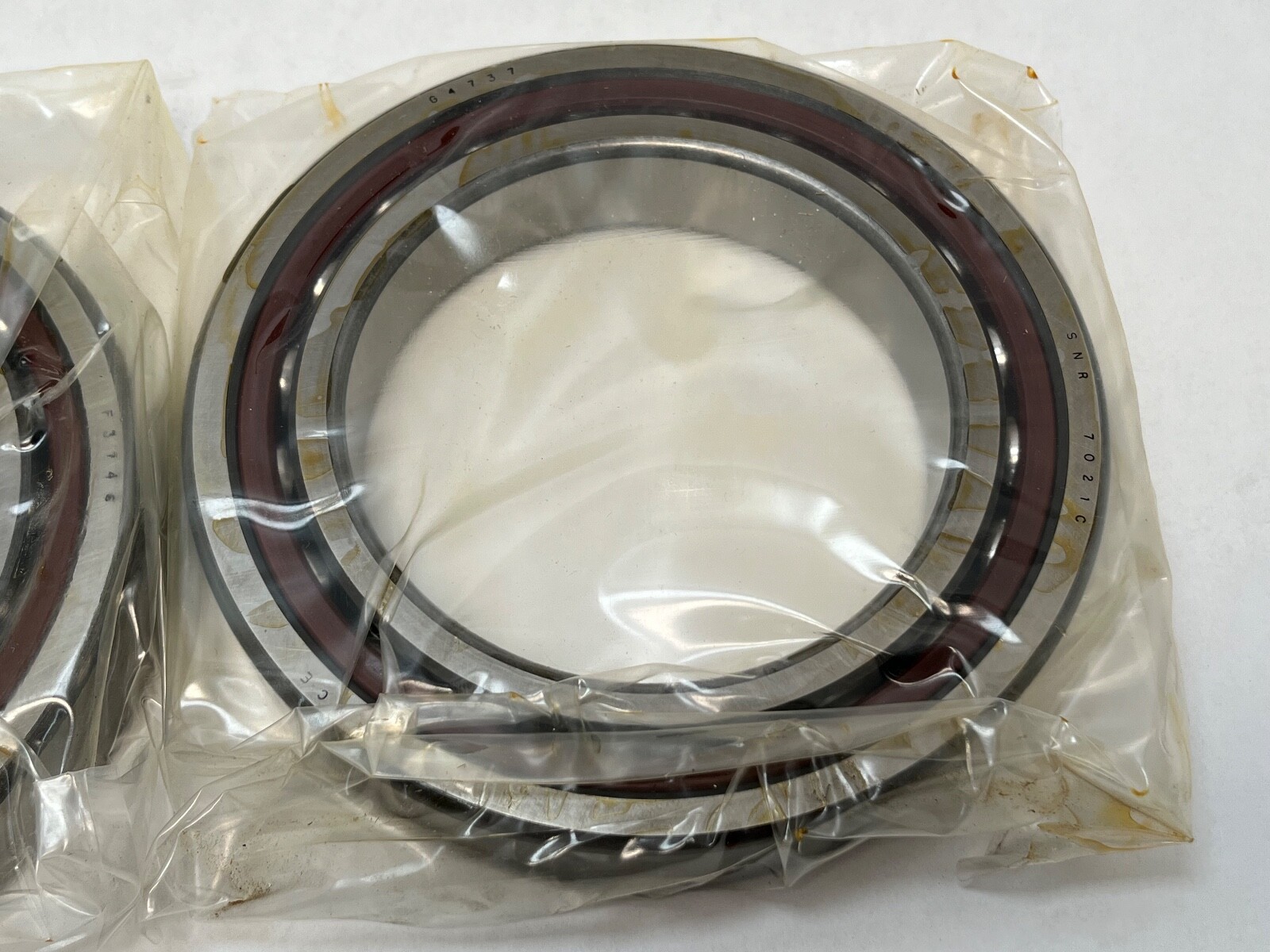

Super-precision angular contact ball bearing, 105 x 160 x 26 mm, 15° contact angle, ABEC 7 / P4, laminated phenolic cage, open. Universally ground matched pair.
List Price
$639.32
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Super Precision Angular Contact Ball Bearing - Straight Bore, 105 mm ID, 160 mm OD, 26 mm Width, Open, 15° Contact Angle.$359.35
Angular Contact Ball Bearing - 105 mm ID, 160 mm OD, 26 mm Width, Open, 15° Contact Angle, Light Preload, ABEC 7 / P4$818.29
Angular Contact Ball Bearing — 105 mm ID, 160 mm OD, 26 mm Width, Single Row, Open$172.78
Angular Contact Ball Bearing - 105 mm ID, 160 mm OD, 26 mm Width, 15° Contact Angle, Open$172.78| MFR / Brand | SNR |
|---|---|
| MPN | 7021CG1J04 |
| Model | 7021C / 7021 C V DU J04 / 7021 C T DU P4 / 2MM9121WI CR DU |
| Bearing Type | Angular Contact Ball Bearing |
| ID | 105 mm |
| OD | 160 mm |
| Width | 26 mm |
| Material | Bearing Steel |
|---|---|
| Base Number | 7021 |
| Bore Shaft Size | 105 mm |
| Mpn Variants | 7021-C-T-DU-P4, 7021-C-G1-J04, 7021 C V DU J04, 2MM9121WI CR DU, 7021C |
| Precision Class | ABEC 7 / P4 |
| Cage Type | Outer-ring centred |
| Dynamic Load Rating | 88.0 kN |
| Static Load Rating | 85.0 kN |
| Cage Material | Phenolic (laminated) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Contact Angle | 15° |
| Bearing Material | Bearing steel |
| Series | 7000 |
| Part Number | 7021CG1J04 |
| Cross Reference 1 | SKF 7021 CD/P4ADGA |
|---|---|
| Cross Reference 2 | FAG B7021-C-T-P4S-DUL |

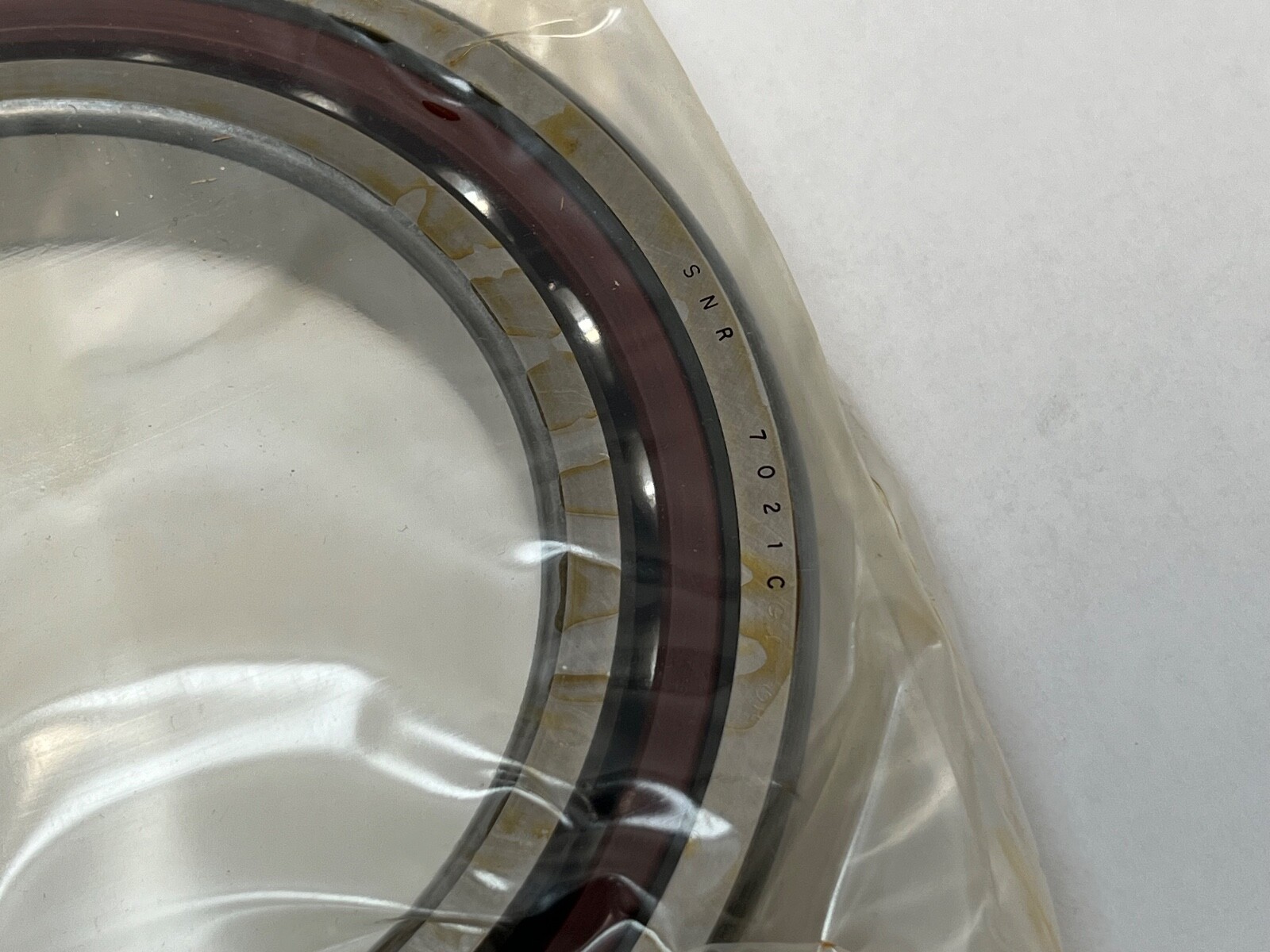

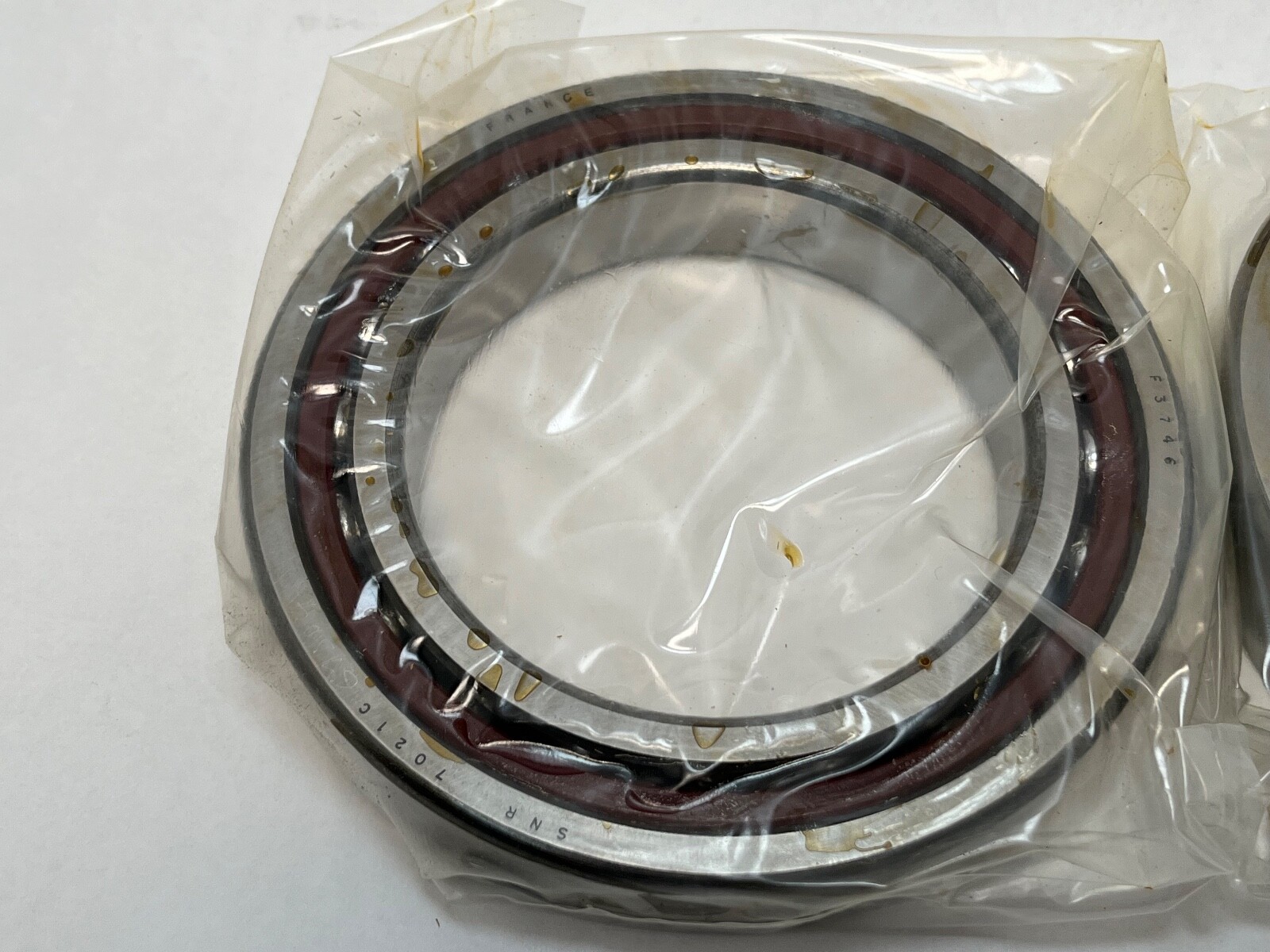

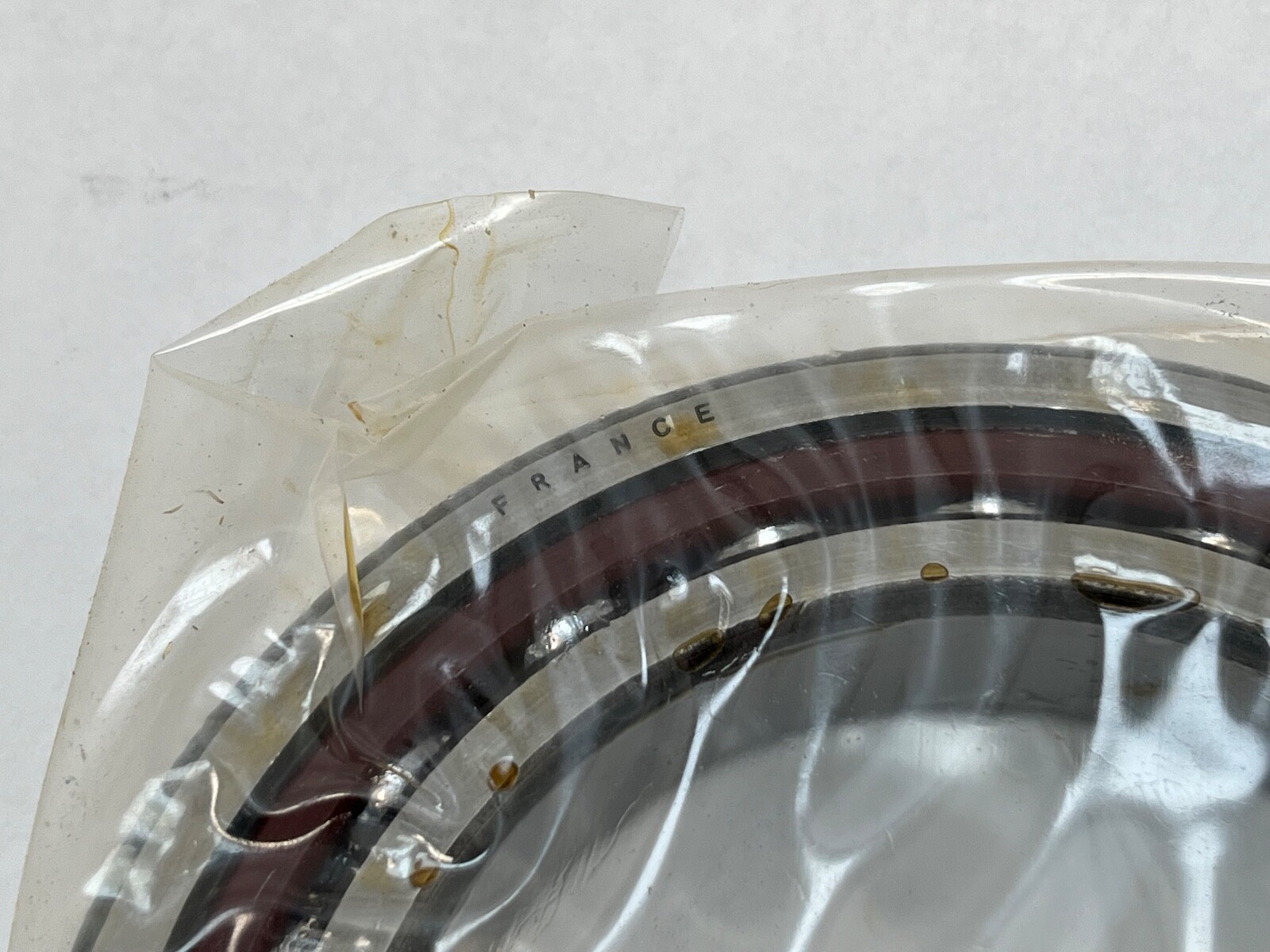

SNR 7021CG1J04 super-precision angular contact ball bearing. Bore: 105 mm. Outside Diameter: 160 mm. Overall Width: 26 mm. Series: 7000. Number Of Rows: 1. Rolling Elements: Ball. Bearing Material: Bearing steel. Closure Type: Open. Bore Type: Straight.
Contact Angle: 15°. Precision Class: ABEC 7 / P4. Cage Material: Phenolic (laminated). Cage Type: Outer-ring centred. Base Number: 7021. Part Number: 7021CG1J04.
Dynamic Load Rating: 88.0 kN. Static Load Rating: 85.0 kN. A 15° contact angle favours speed and radial rigidity over thrust capacity, which suits a high-speed spindle position. ABEC 7 / P4 gives tight running accuracy and close shaft location.
The laminated phenolic cage is centred on the outer ring, which holds it stable at speed and keeps its mass low. Lubricant: grease or oil.

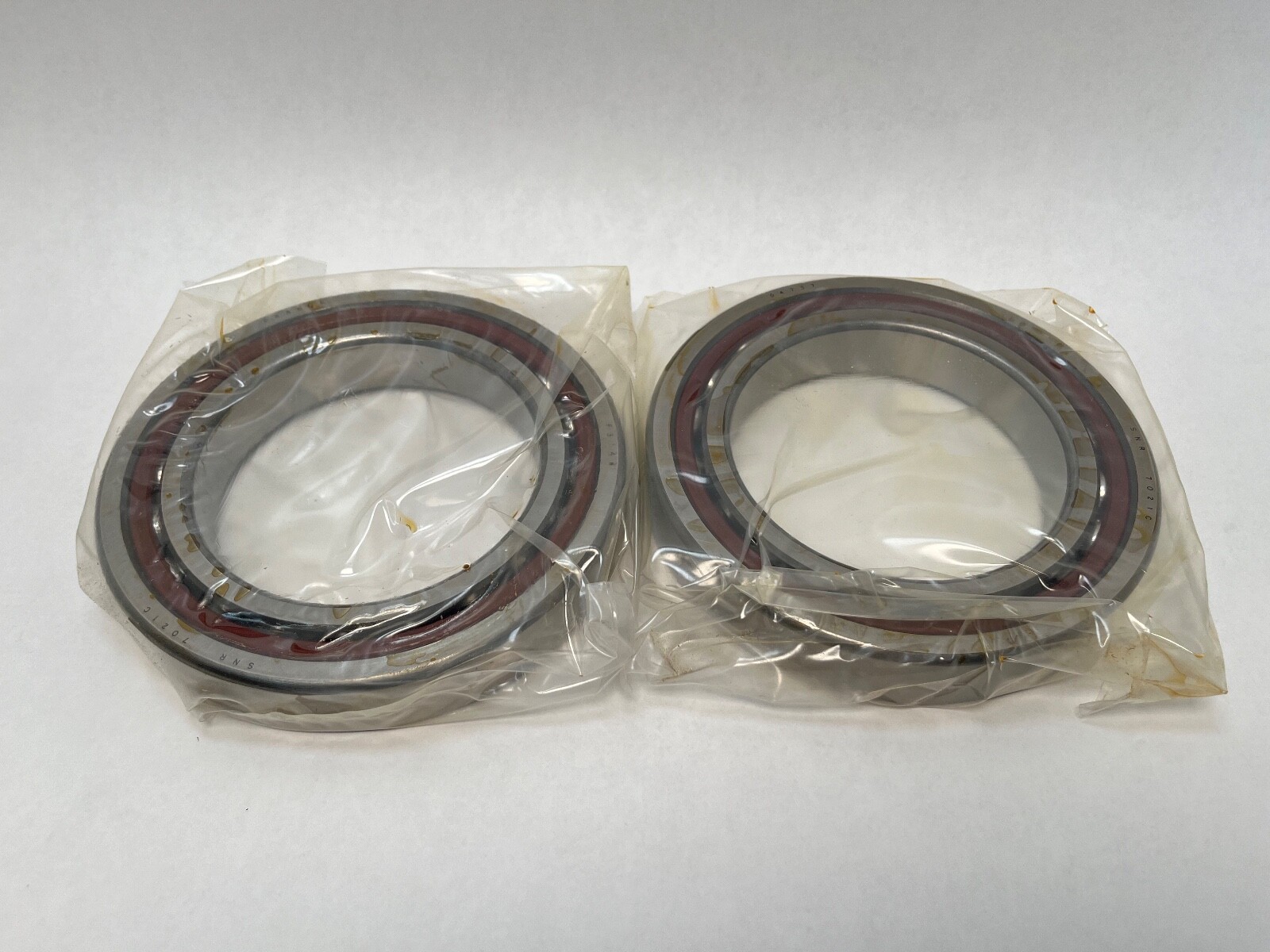

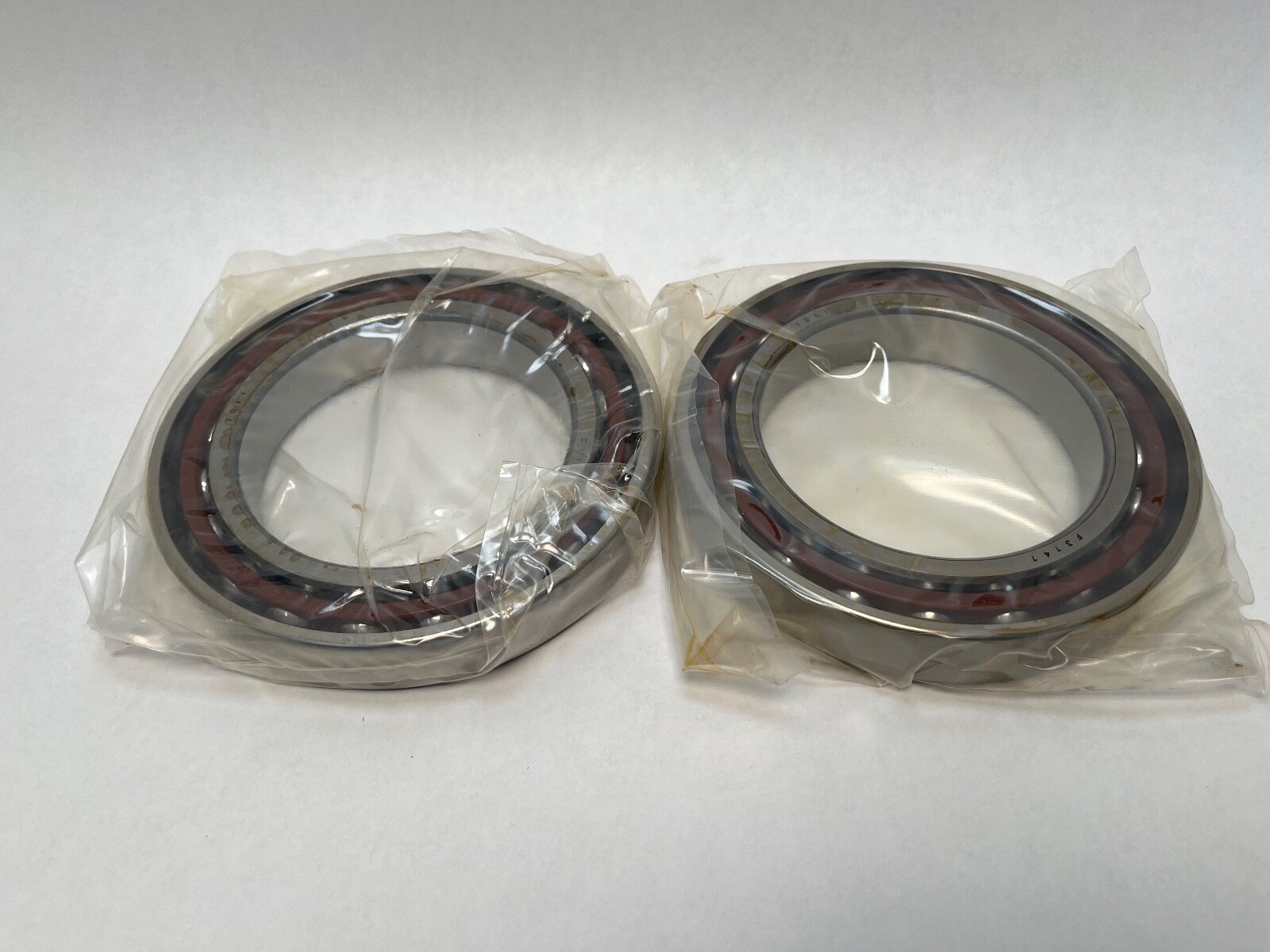

Unit Quantity: 2 Pcs. A universally ground matched pair, which can be set back-to-back, face-to-face or in tandem.
Cross-Reference 1: SKF 7021 CD/P4ADGA. Cross-Reference 2: FAG B7021-C-T-P4S-DUL. Both are 15° super-precision executions on the same 105 x 160 x 26 mm envelope. MPN Variants: 7021-C-T-DU-P4, 7021-C-G1-J04, 7021 C V DU J04, 2MM9121WI CR DU, 7021C.
