SNR 7010 C V DU J84 super-precision angular contact bearing pair, 50x80x16 mm, 15° contact angle, phenolic cage, medium preload. 2 Pcs, 29 kN dynamic.
List Price
$198.87
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SNR |
|---|---|
| MPN | 7010CDUJ84 |
| Model | 7010C 7010 C T DUM P4 / 2MM9110WI CR DUM / 7010 C V DU J84 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 50 mm |
| OD | 80 mm |
| Width | 16 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Base Number | 7010 C |
| Industry Terms | Spindle bearing pair; super precision angular contact bearing; matched duplex set; machine tool bearing; medium preload; 15 degree bearing; 50mm bore spindle bearing |
| Common Misspellings | 7010C DU J84; 7010cduj84; SNR 7010CDU J30; 7010-CDUJ84; 7010 CVDU J84; Angular Contract Bearing |
| Application Types | Machine tool spindles; grinding spindles; high-speed gearboxes; screw drives; precision rotary assemblies |
| Bore Shaft Size | 50 mm (1.9685 in) |
| Mpn Variants | 7010CDUJ84; 7010-C-DU-J84; 7010CVDUJ84; 7010-C-V-DU-J84; 7010 C V DU J84; 7010CDU; 7010C |
| Rolling Elements | Ball |
| Number Of Rows | 1 per bearing, 2 in the assembled pair |
| Bore Type | Straight |
| Snap Ring Included | Without snap ring |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Part Number | 7010-C-V-DU-J84 |
| Cross Reference 1 | SKF 7010 CD/P4ADGB |
|---|---|
| Cross Reference 2 | FAG B7010-C-T-P4S-DUM |
| Cross Reference 3 | NSK 7010CTYNDUMP4 |
| Cross Reference 4 | RHP 7010CTDUMP4 |
| Cross Reference 5 | Fafnir 2MM9110WI-CR-DUM |
| Cross Reference 6 | SNR 7010CDUJ74 - light preload, not medium |

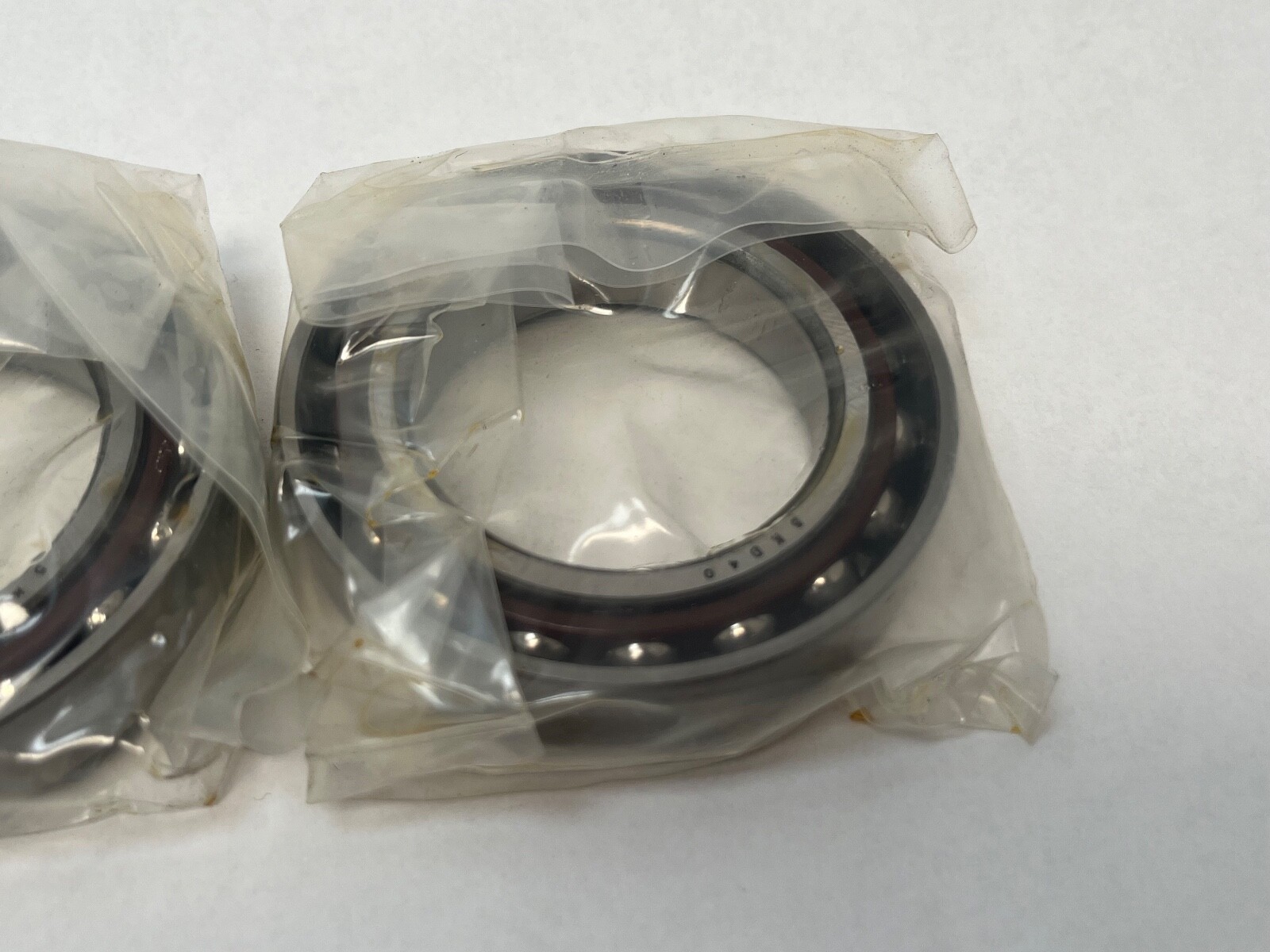

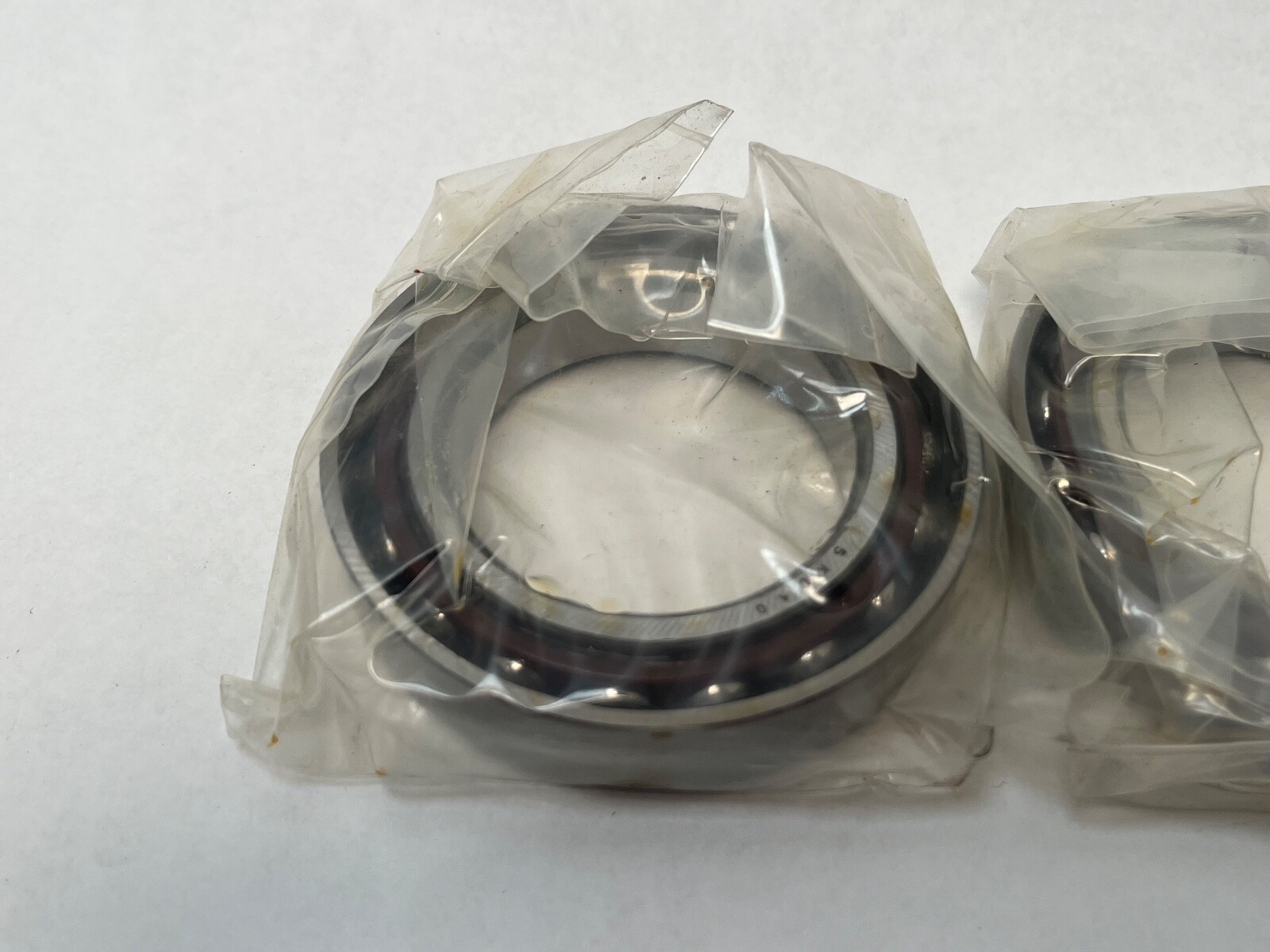

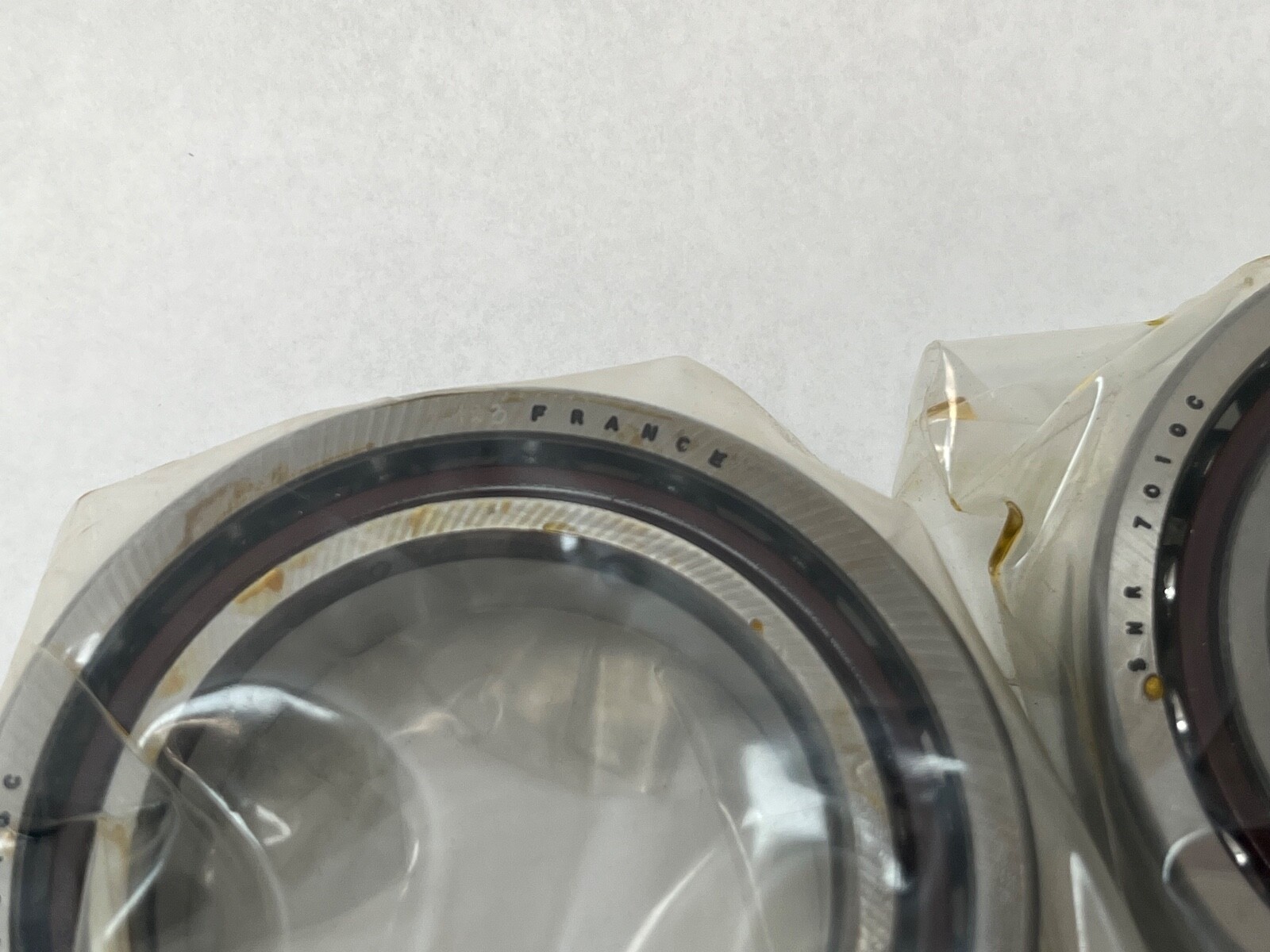

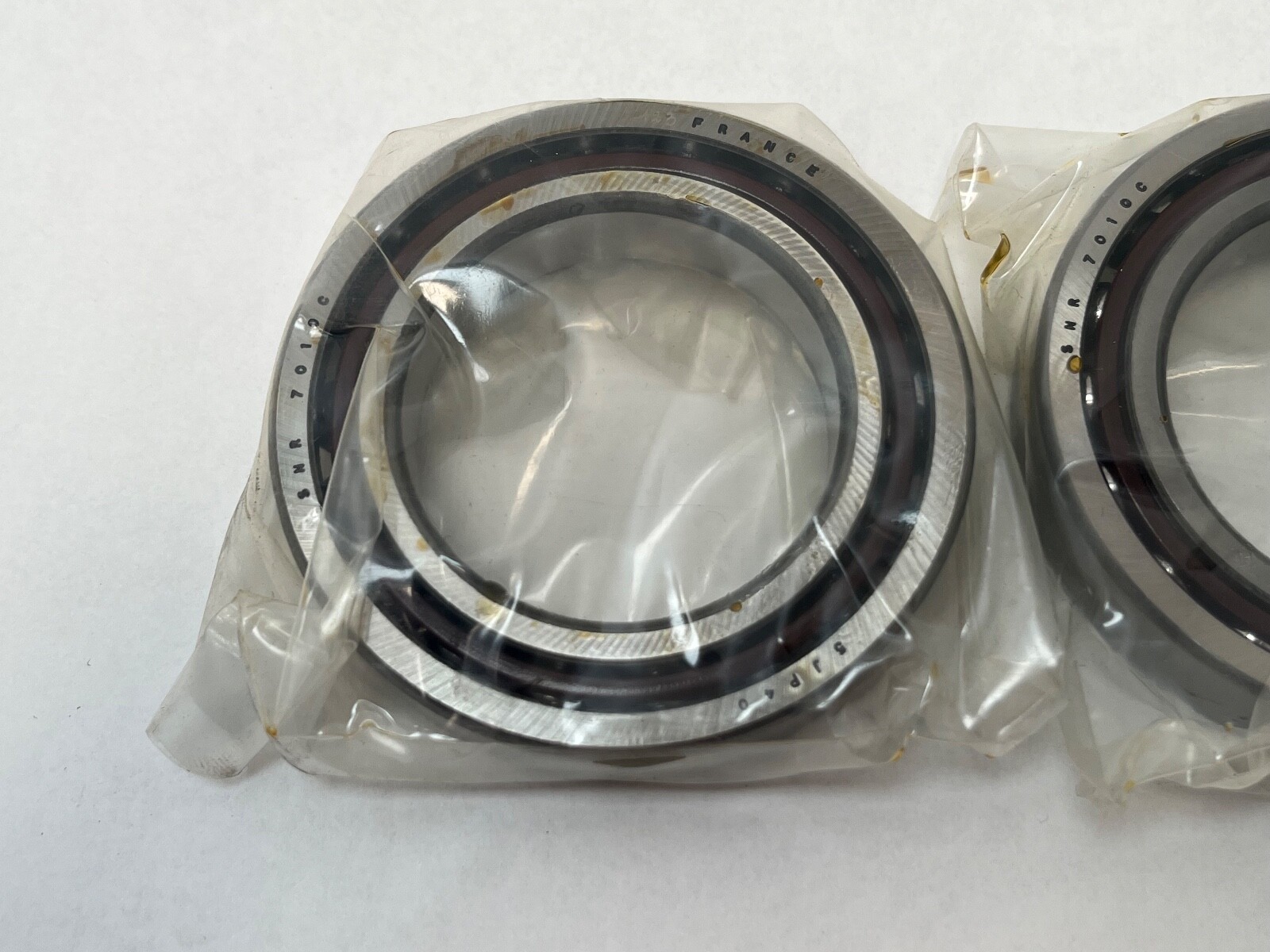

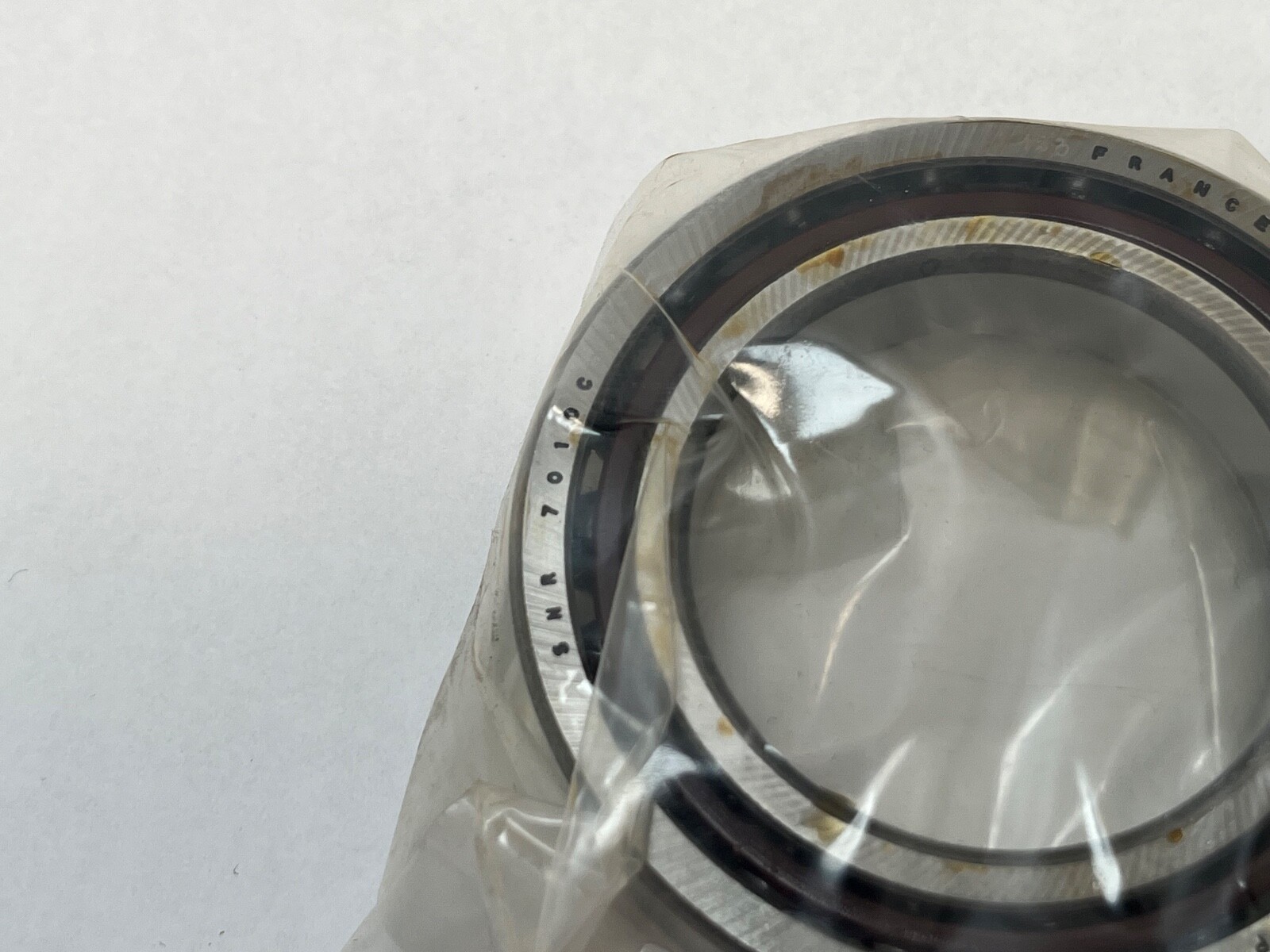

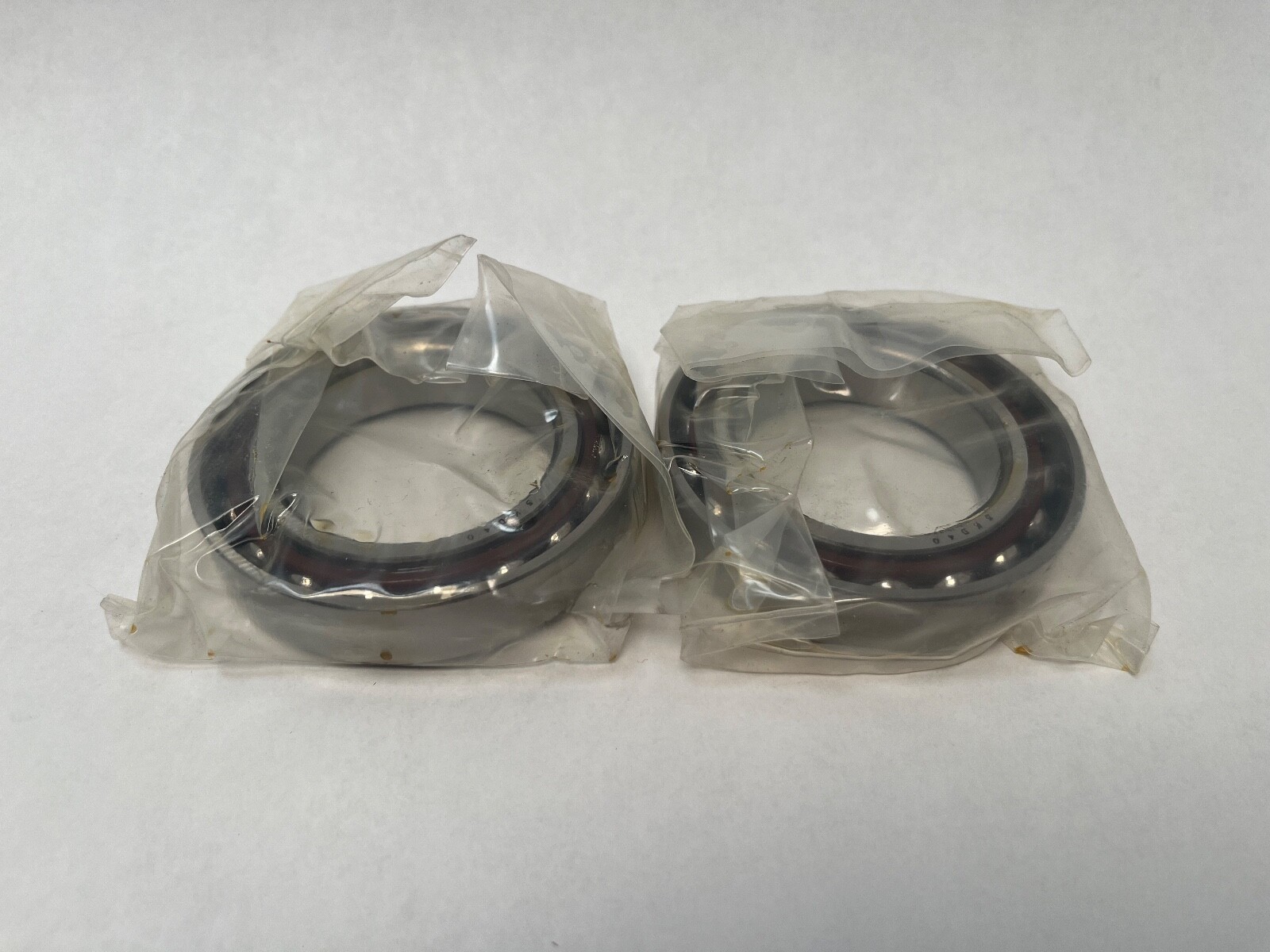

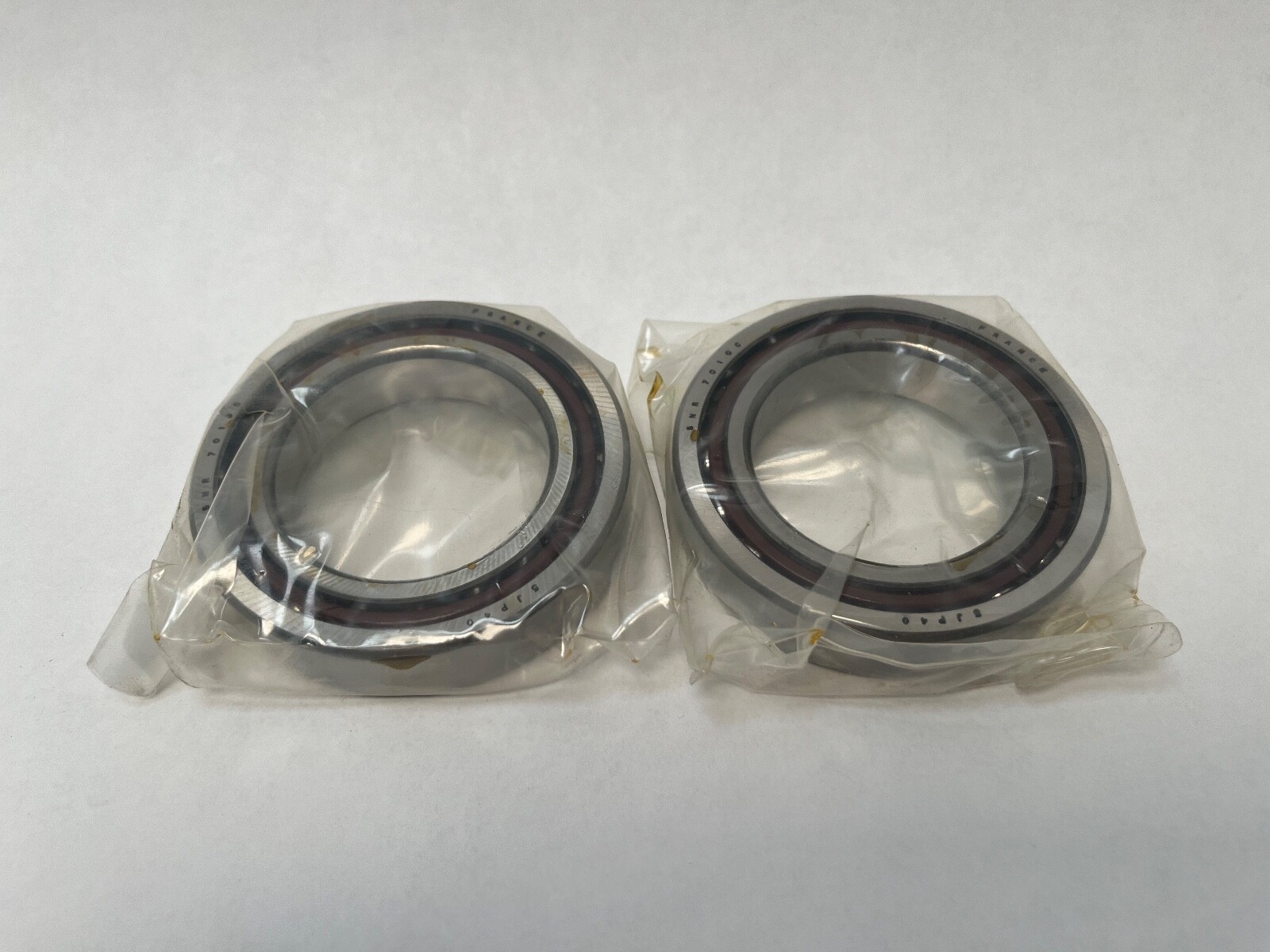

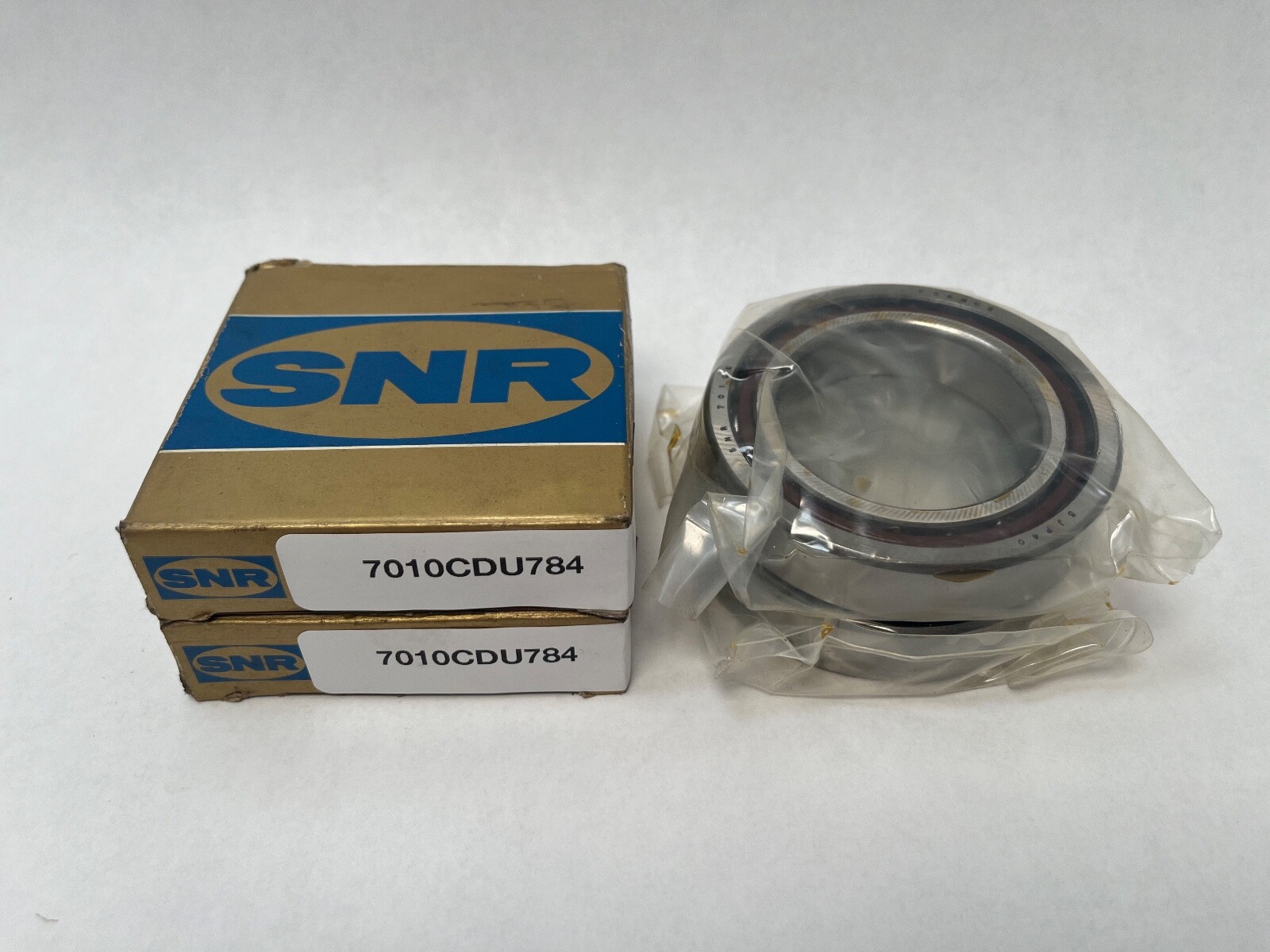

SNR 7010 C V DU J84 is a factory-matched pair of super-precision single-row angular contact ball bearings, open on both faces, with a machined phenolic cage. Unit Quantity: 2 Pcs, one matched duplex set.
7010 — ISO 70 dimension series with bore code 10, giving a 50 mm bore.
C — 15° contact angle.
DU — duplex set ground together at the factory.
J84 — medium preload class in the NTN-SNR super-precision preload scheme, one step above the J74 light class.
Bore Diameter: 50 mm (1.9685 in). Outside Diameter: 80 mm. Width: 16 mm each. Total Width: 32 mm for the set. Number Of Rows: 1 per bearing. Rolling Elements: Steel ball. Contact Angle: 15°. Closure Type: Open. Cage Material: Phenolic. Cage Type: Machined. Preload: Medium (J84). Dynamic Load Rating: 29 kN. Static Load Rating: 16.1 kN. Limiting Speed: 18,000 rpm. Series: 7000 (ISO 70). Country of Origin: France. Unit Quantity: 2 Pcs.
Bore Diameter: 50 mm. Outside Diameter: 80 mm. Width: 16 mm each, 32 mm total width for the set.
Related designations at the same size, angle, cage and preload: SKF 7010 CD/P4ADGB, FAG B7010-C-T-P4S-DUM, NSK 7010CTYNDUMP4, RHP 7010CTDUMP4 and Fafnir 2MM9110WI-CR-DUM. The same designation at J74 is the light-preload version, a related size.
Bore Diameter: 50 mm. Outside Diameter: 80 mm. Width: 16 mm each.
Contact Angle: 15°. Preload: Medium, class J84.
Two bearings, one matched duplex set.
