Availability:
2 in stock

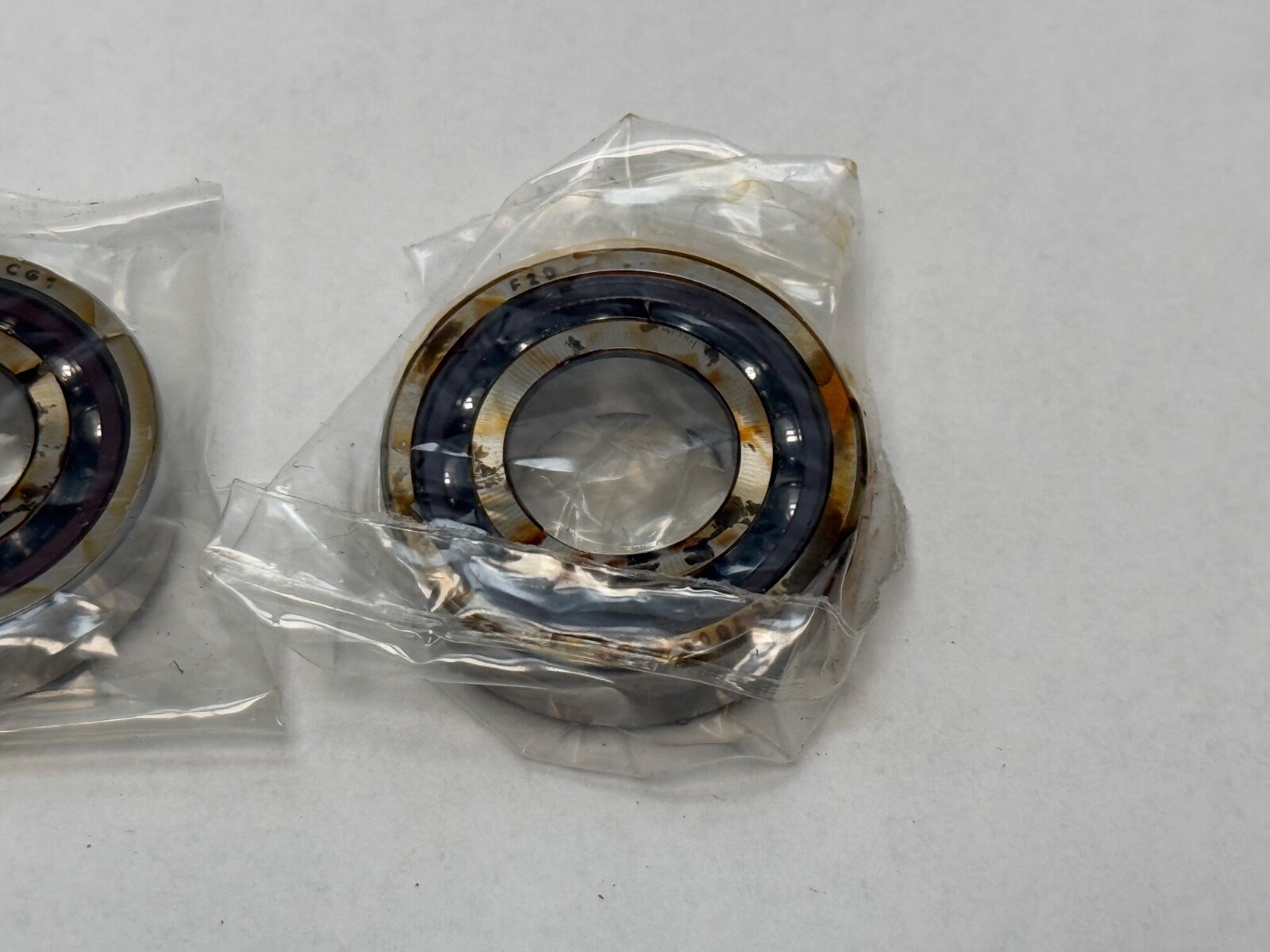

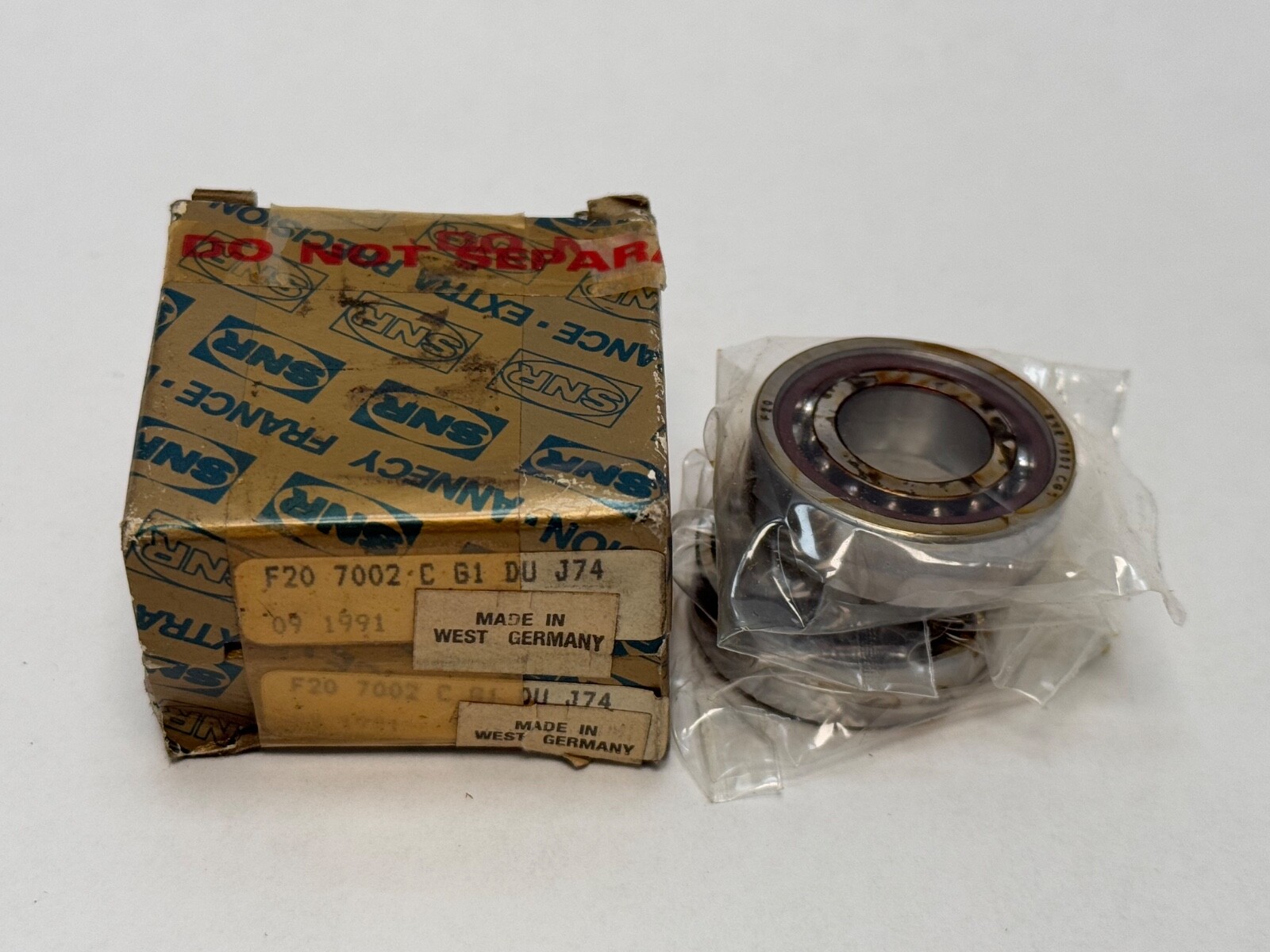

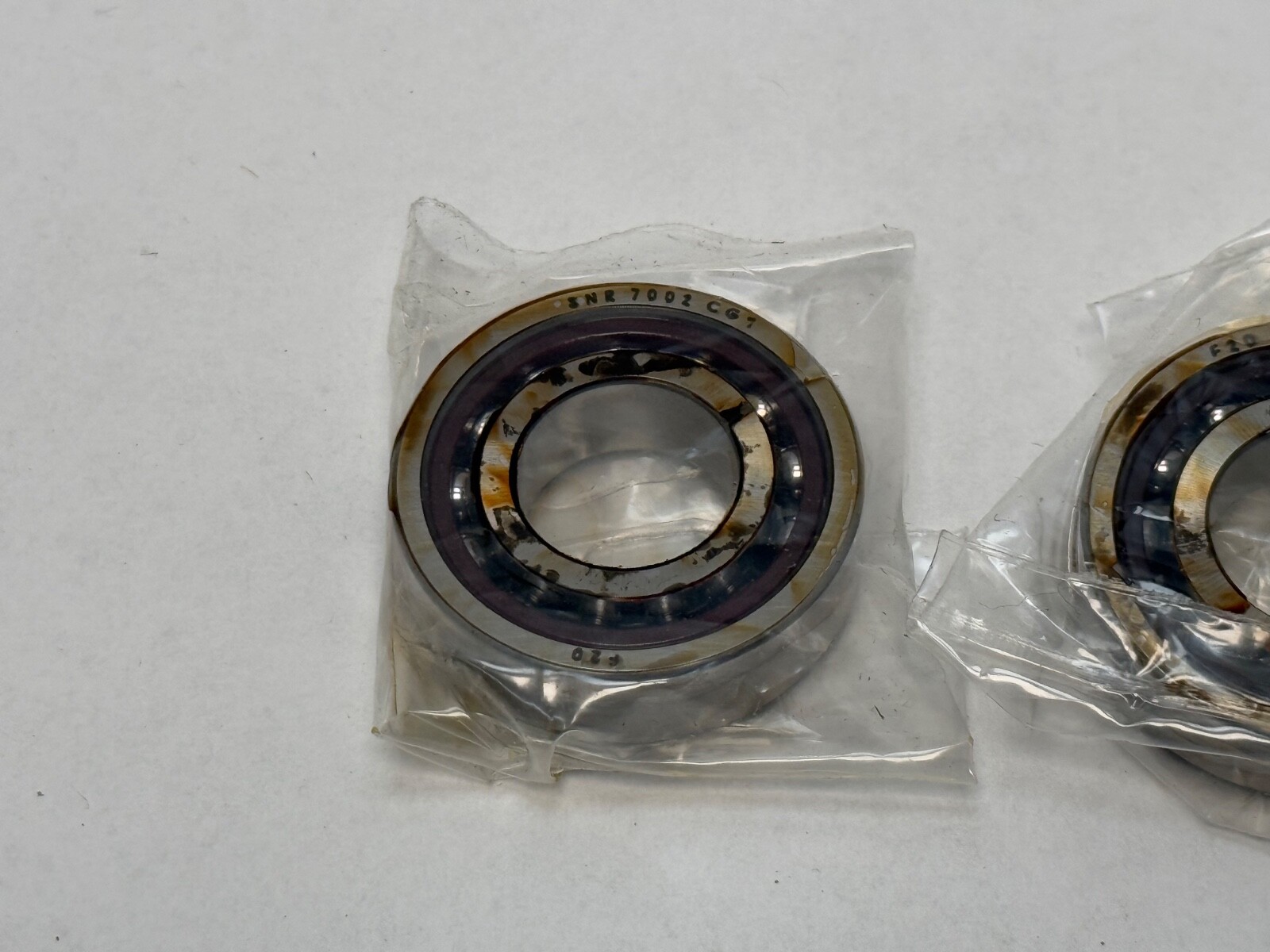

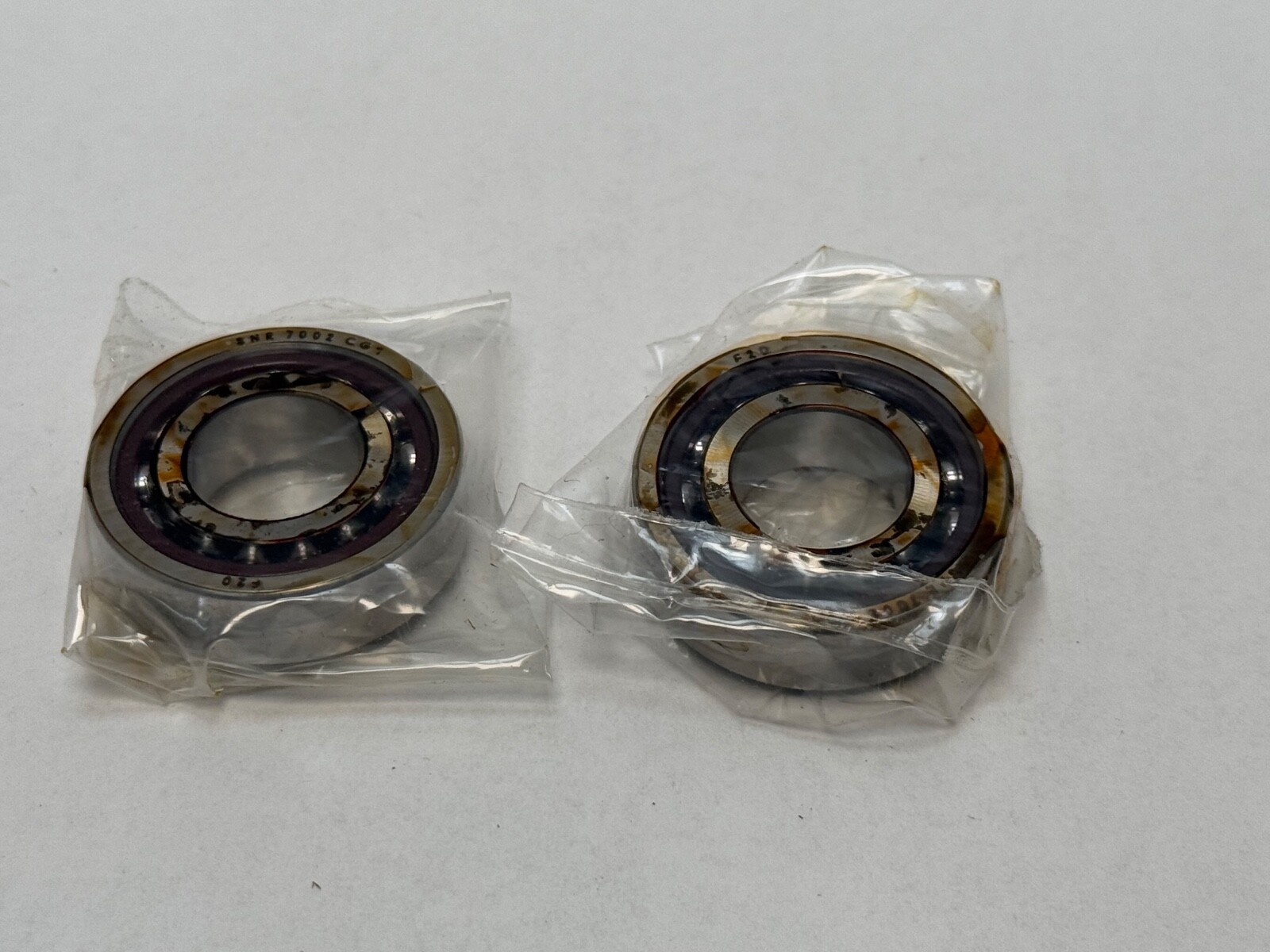

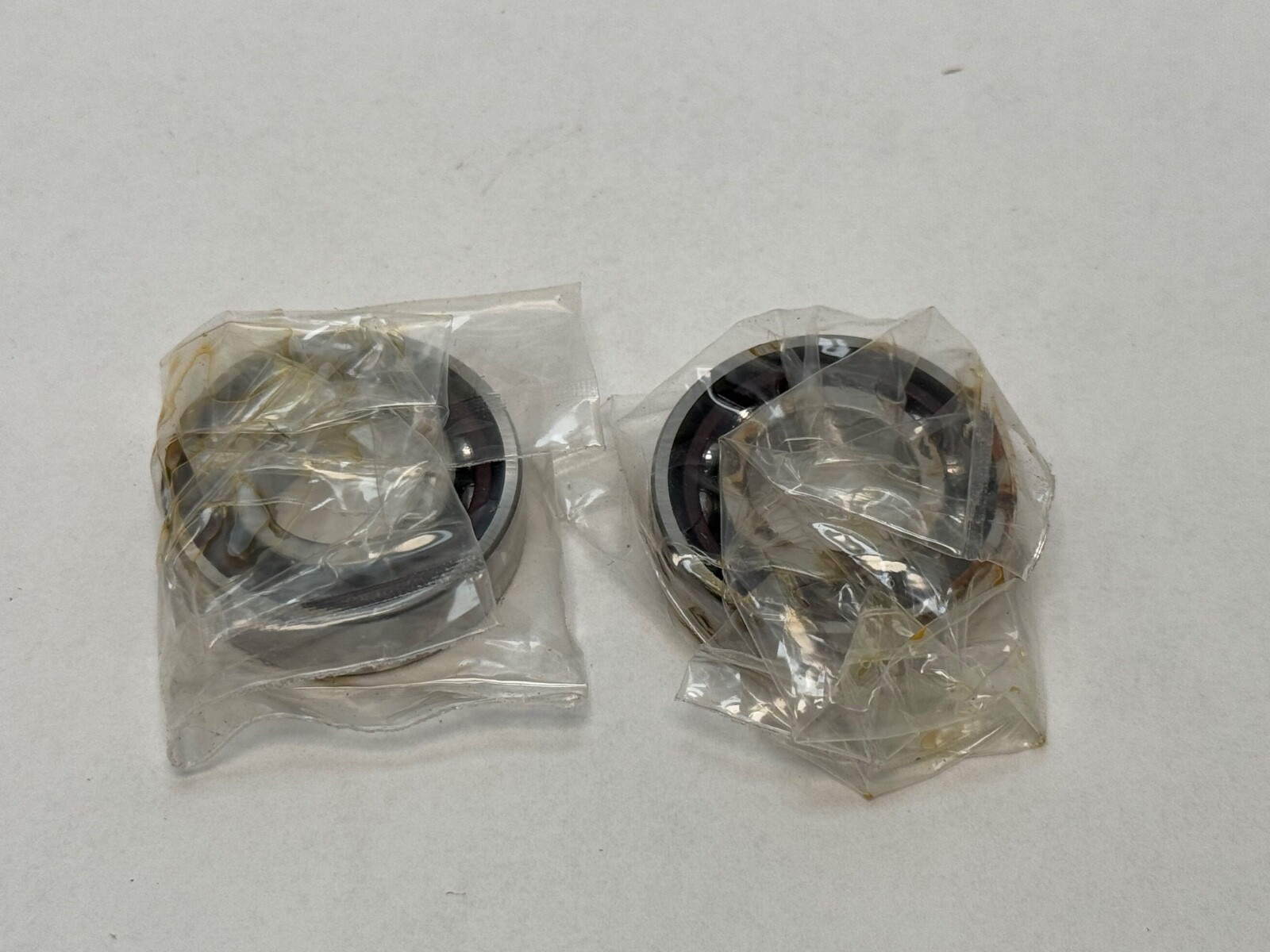

Super-precision angular contact ball bearing, 15 x 32 x 9 mm, 15° contact angle, light preload, ABEC 7 / P4, laminated phenolic cage, open. Single piece.
List Price
$53.52
2 in stock
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | SNR |
|---|---|
| MPN | 7002CG1DUJ74 |
| Model | 7004C T DUL P4 / 2MM9104WI CR DUL / 7004 C G1 DU J74 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 15 mm |
| OD | 32 mm |
| Width | 9 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Condition | New – Open box |
| Lubricant | Oil |
| Preload | Light |
| Base Number | 7002 |
| Condition Note | Made In Germany, Grease Stained |
| Bore Shaft Size | 15 mm |
| Mpn Variants | 7002-C-T-DUL-P4, 7002-C-G1-DU-J74, 7002CG1DUJ74 |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.28 |
| Part Number | 7002CG1DUJ74 |
SNR 7002CG1DUJ74 super-precision angular contact ball bearing. Bore: 15 mm. Outside Diameter: 32 mm. Overall Width: 9 mm. Series: 7000. Number Of Rows: 1. Rolling Elements: Ball. Bearing Material: Bearing steel. Closure Type: Open. Bore Type: Straight.
Contact Angle: 15°. Preload: Light. Precision Class: ABEC 7 / P4. Cage Material: Phenolic (laminated). Cage Type: Outer-ring centred. Mounting Arrangement: Universal. Base Number: 7002. Part Number: 7002CG1DUJ74.
Dynamic Load Rating: 5.6 kN. Static Load Rating: 2.8 kN. Limiting Speed: 43000 rpm. A 15° contact angle favours speed and radial rigidity over thrust capacity, and on a bore this small it supports a very high speed ceiling. Light preload holds the rings in defined contact for running accuracy while keeping heat generation low. Internal Clearance: N/A — the bearing is set by preload.
The laminated phenolic cage is centred on the outer ring, which holds it stable at speed and keeps its mass low. Lubricant: grease or oil. Max Temp: 120°C. Min Temp: -30°C. Item Weight: 0.07 lbs.
Unit Quantity: 1 Pc. One bearing from a factory-matched universal pair. Universally ground faces let it run alone or be set against another universally ground 7002C in back-to-back, face-to-face or tandem.
Cross-Reference 1: SKF 7002 CD/P4ADGA. Cross-Reference 2: NSK 7002CTYNSULP4. Both are 15° super-precision single universally matchable bearings on the same 15 x 32 x 9 mm envelope at light preload. MPN Variants: 7002-C-T-DUL-P4, 7002-C-G1-DU-J74, 7002CG1DUJ74. Harmonization Code: 8482.10.50.28.
