This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Super-Precision Angular Contact Ball Bearing - 80 mm ID, 125 mm OD, 22 mm Width, ABEC 7 / P4, Phenolic Cage, Universally Ground Duplex, Light Preload$76.47
Angular Contact Ball Bearing - Straight Bore, 80 mm ID, 125 mm OD, 22 mm Width, Open, 15° Contact Angle, ABEC 5 / P5.$107.08
Angular Contact Ball Bearing - 80 mm ID, 125 mm OD, 22 mm Width, 15° Contact Angle, Universal Duplex Pair, Light Preload$145.30
Super-Precision Spindle Angular Contact Ball Bearing — 80 mm Bore, 15° Contact Angle, ABEC 7 / P4$145.32| MFR / Brand | SNFA |
|---|---|
| MPN | EX80H7CE1UL |
| Model | 7016C T DUL P4 / 2MM9116WI CR DUL /EX 80 H 7 CE 1 UL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 80 mm |
| OD | 125 mm |
| Width | 22 mm |
| Material | 52100 Chrome Steel |
|---|---|
| Series | 7000 |
| Preload | Light preload |
| Cage Type | Caged |
| Dynamic Load Rating | 54.5 kN / 12252 lbf |
| Static Load Rating | 58.5 kN / 13151 lbf |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 1.85 lbs |
| Cage Material | Polyamide |
| Limiting Speed | 12000 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Harmonization Code | 8482.10.5028 |
| Contact Angle | 15° |
| Cross Reference 1 | SKF 7016 CD/P4A |
|---|

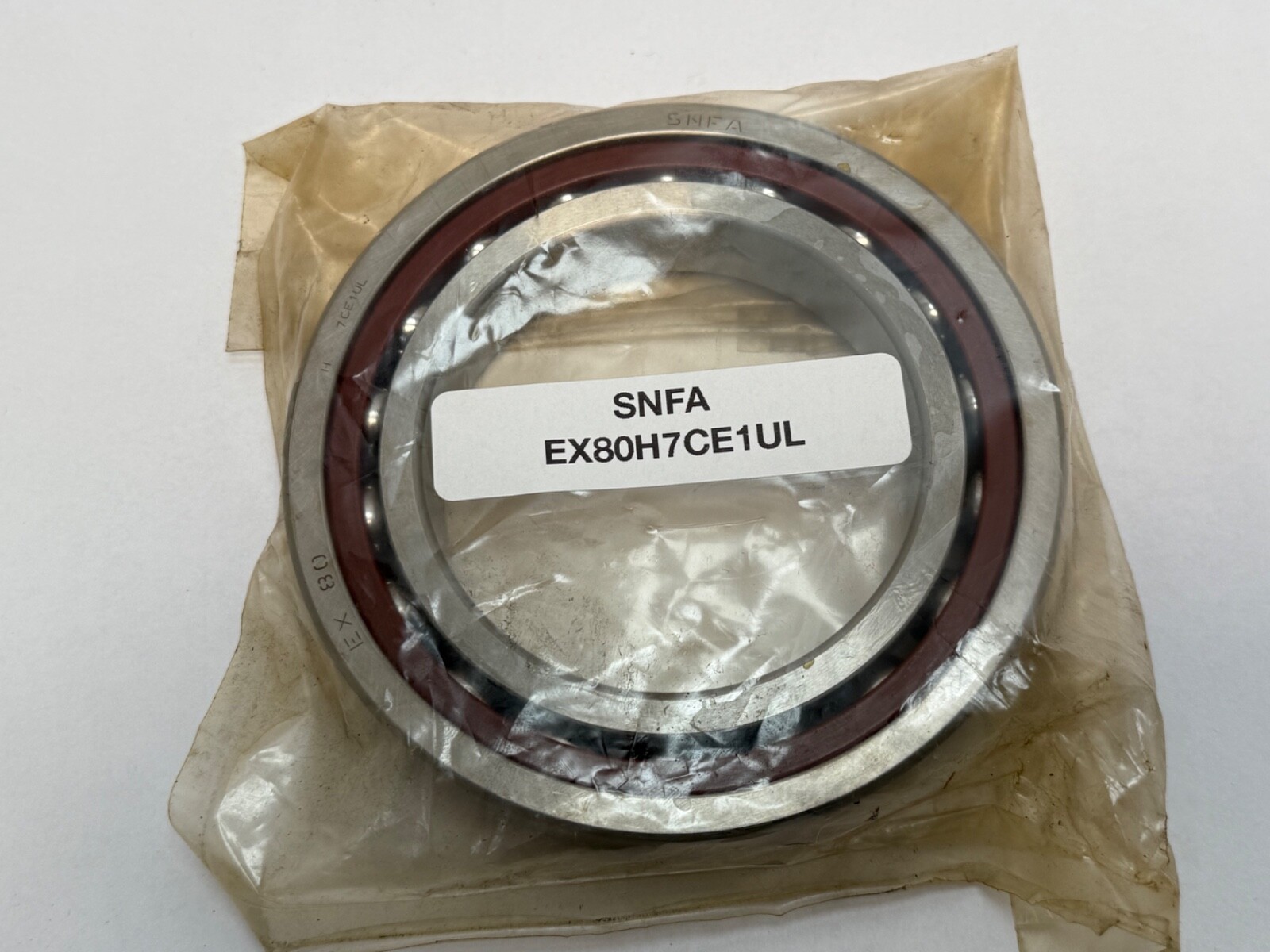

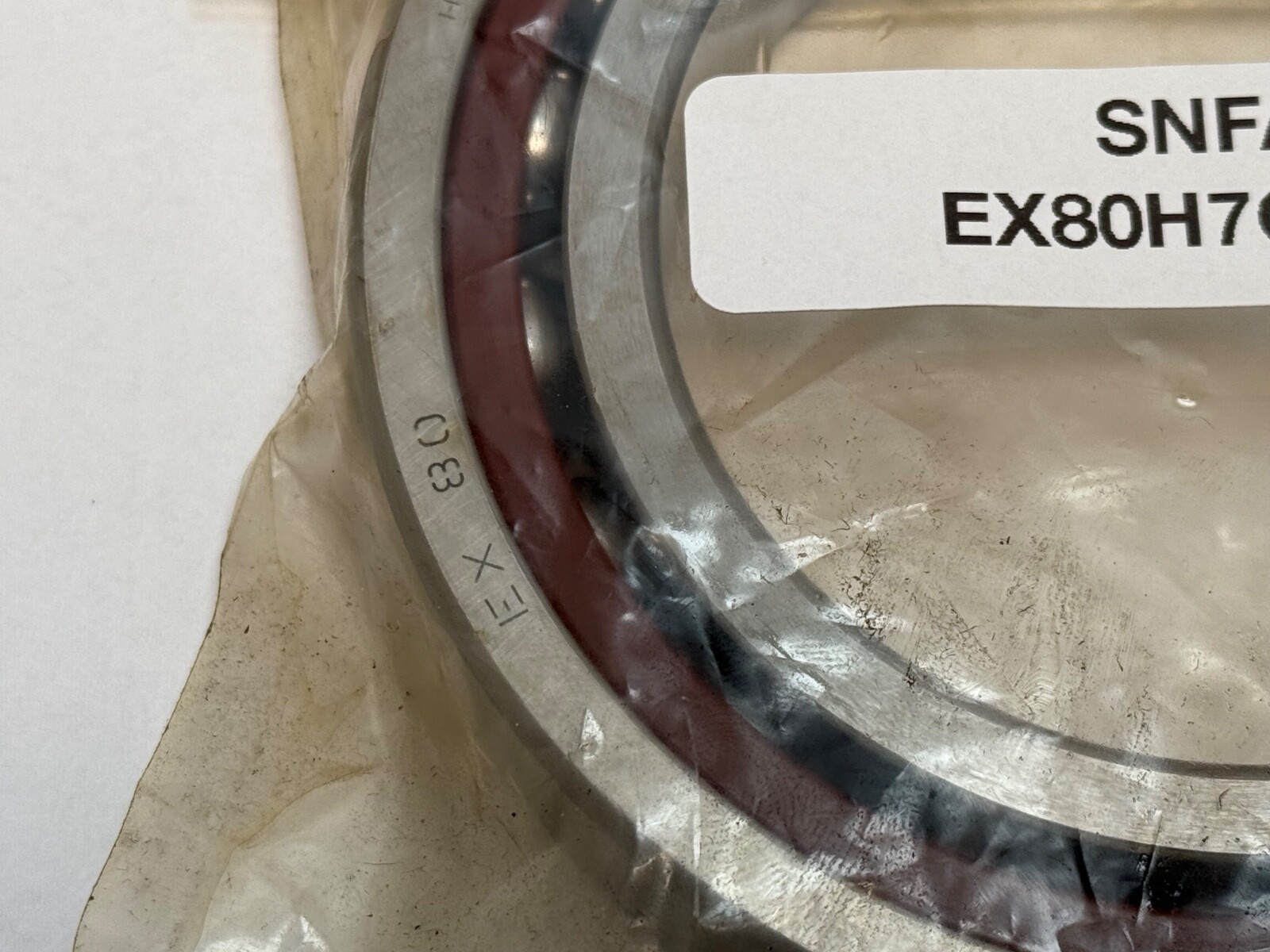

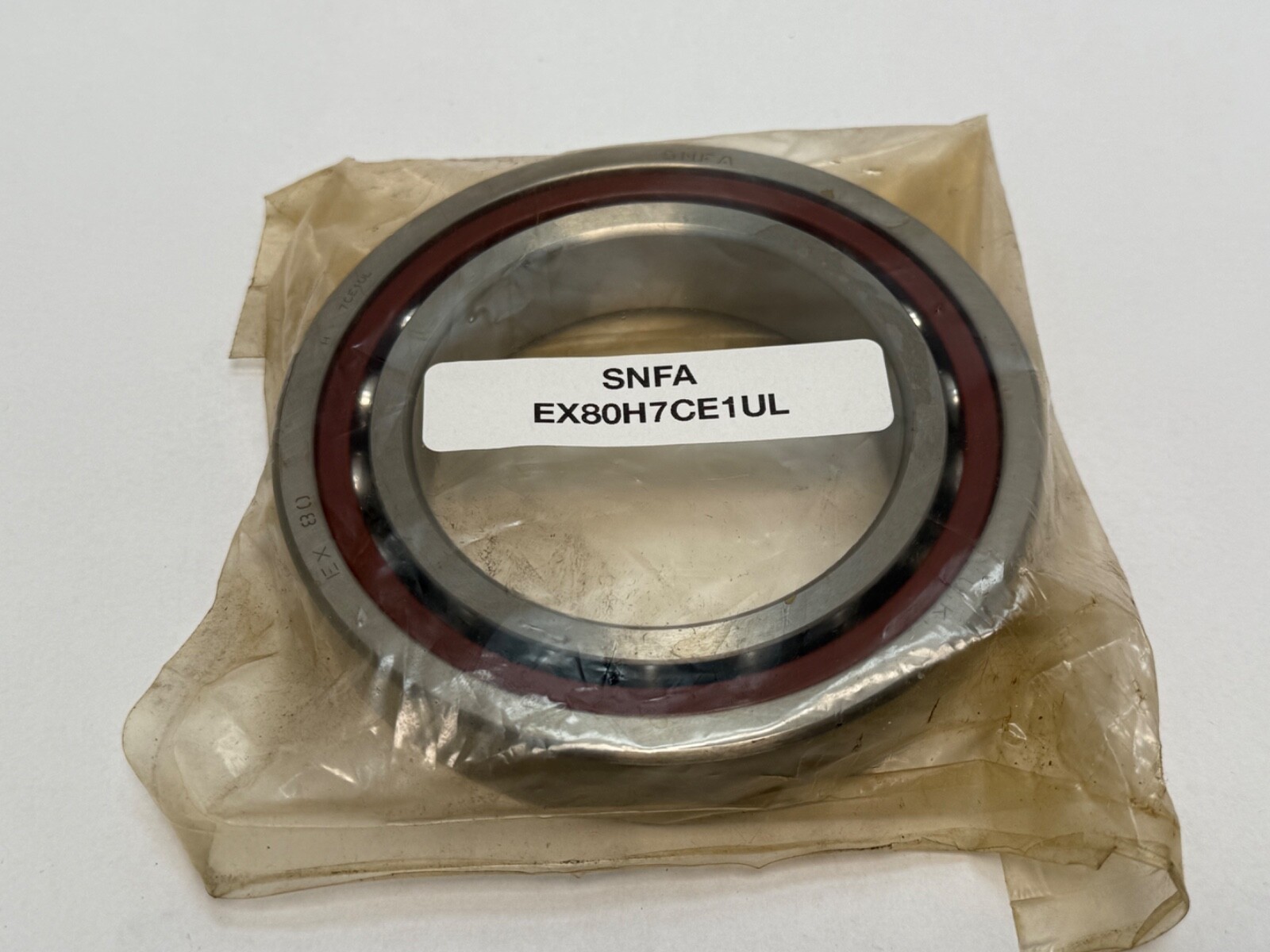

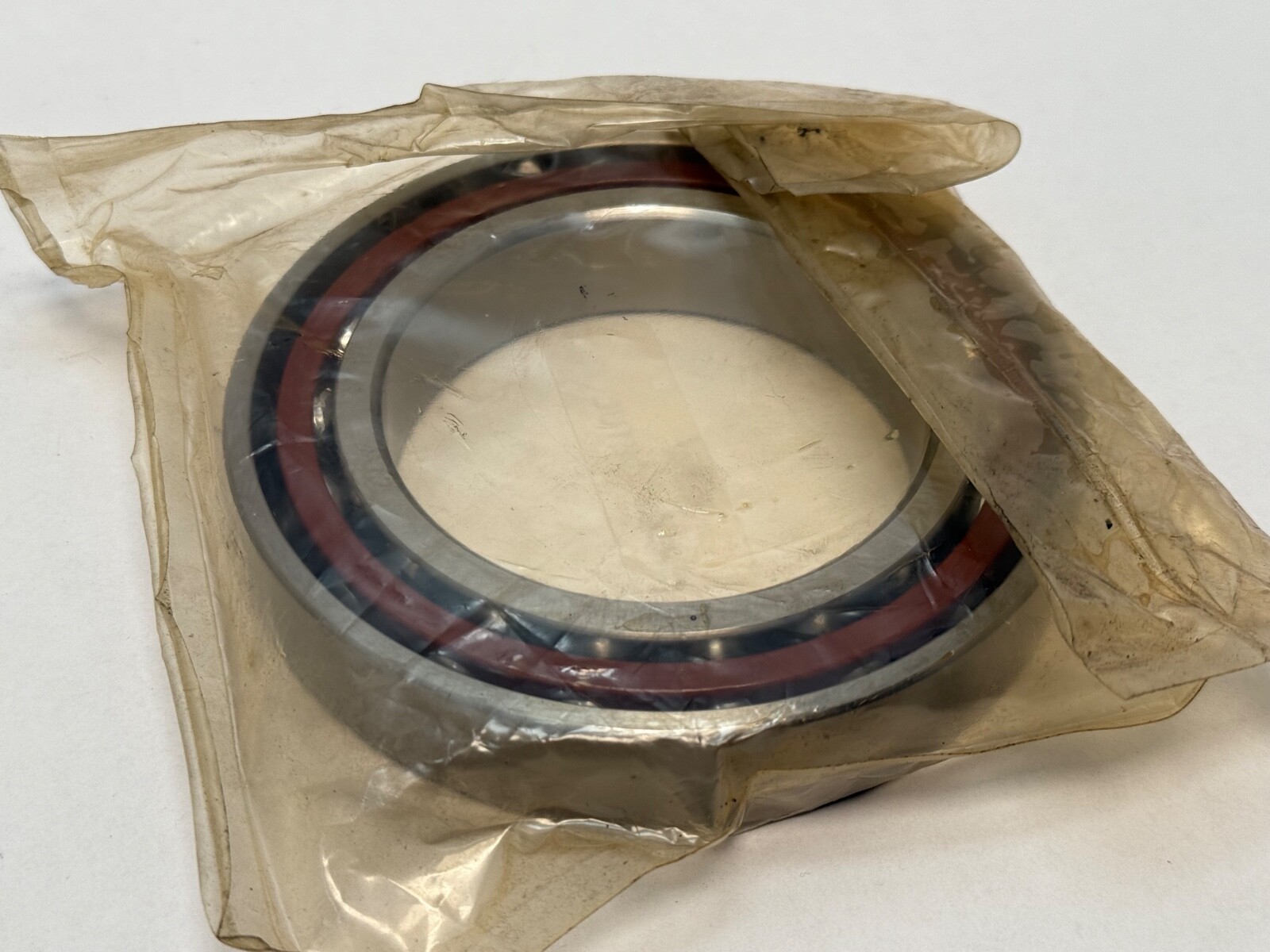

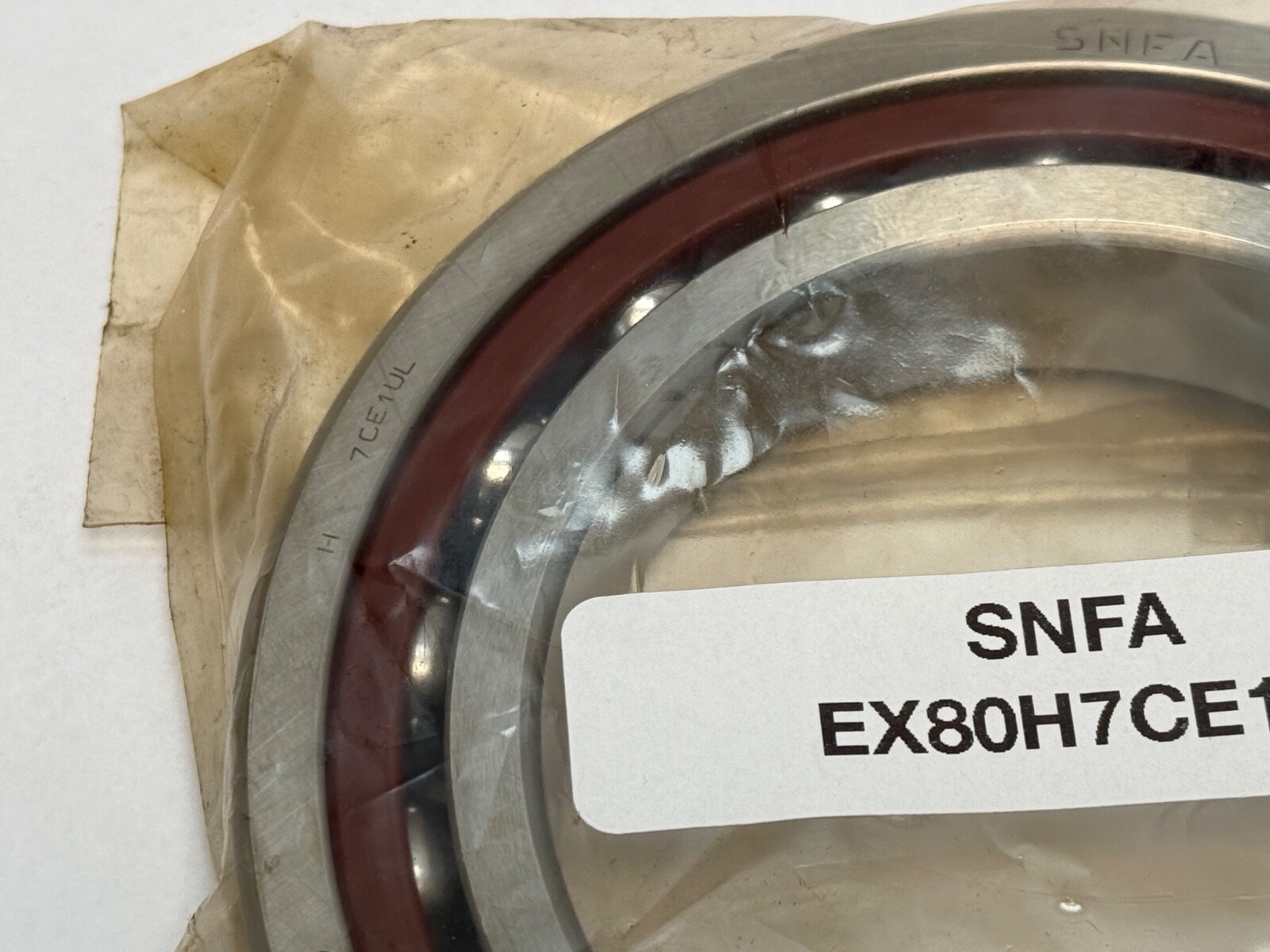

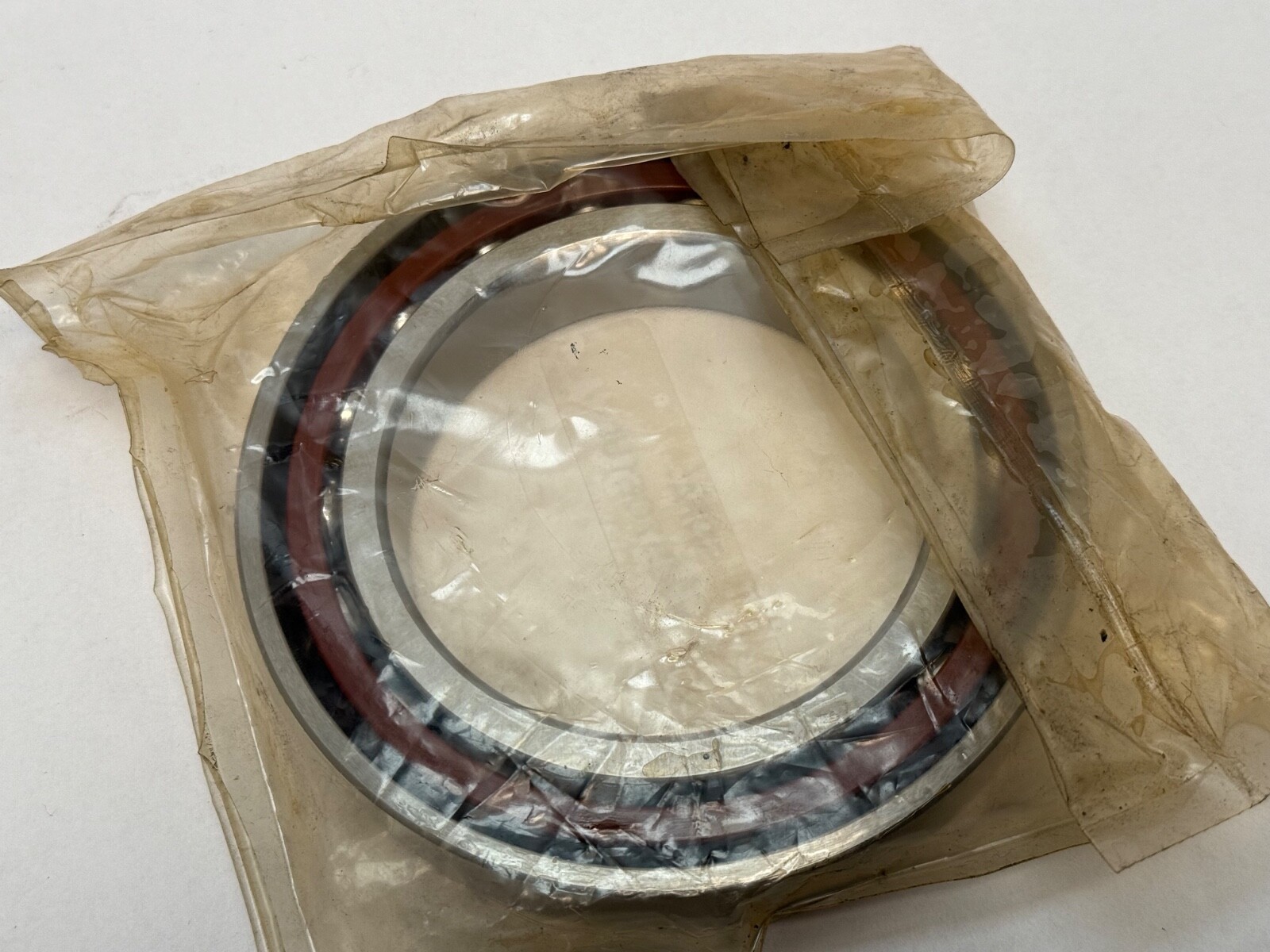

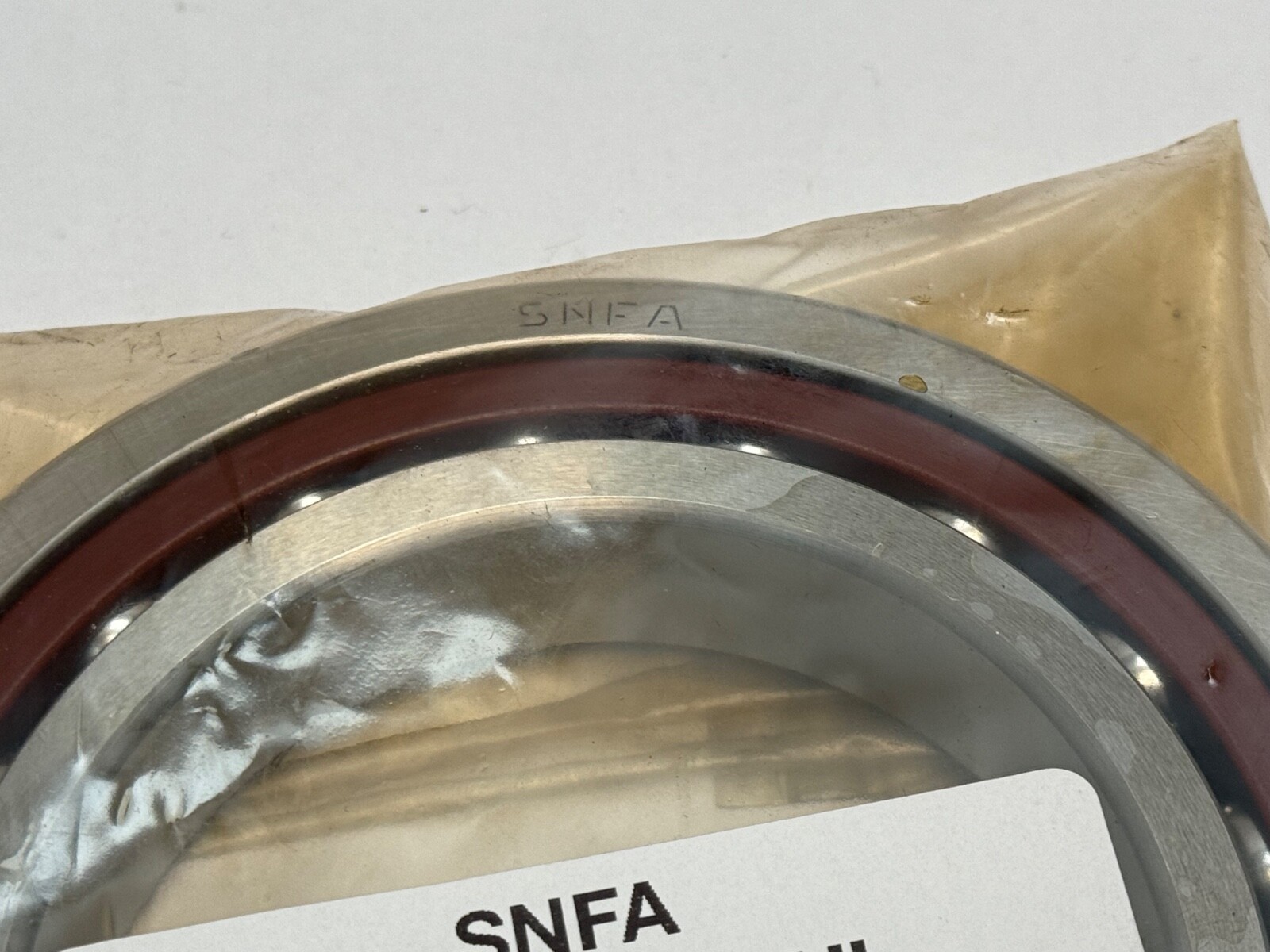

Introducing the SNFA EX80H7CE1UL Angular Bearing – the perfect solution for your precision engineering needs. Designed with a bore diameter of 80 mm, an outside diameter of 125 mm, and a width of 22 mm, this high-quality angular contact ball bearing is engineered to deliver exceptional performance and reliability.
Brand: SNFA – Renowned for their industry-leading bearings.
Product Type: Angular Contact Ball Bearing, ideal for high-speed applications.
Model: 7016C T DUL P4 / 2MM9116WI CR DUL / EX 80 H 7 CE 1 UL – Ensure compatibility with your systems.
Condition: New – Open box, ensuring excellent quality.
Manufacture: Made in the United Kingdom, promising superior craftsmanship.
This bearing is designed to optimize load distribution, reduce friction, and enhance the lifespan of your machinery. Suitable for various high-performance applications, the SNFA EX80H7CE1UL will support your operations with its precise engineering and durability.
Shipping Information: We offer competitive international shipping on every order, with same-day dispatch available. Enjoy combined shipping options through UPS, FedEx, DHL, and Freight services. Select next-day shipping during checkout if you require expedited delivery.
Do not compromise on quality – order the SNFA EX80H7CE1UL Angular Bearing today and ensure your projects are powered by reliability!
