Availability:
1 in stock

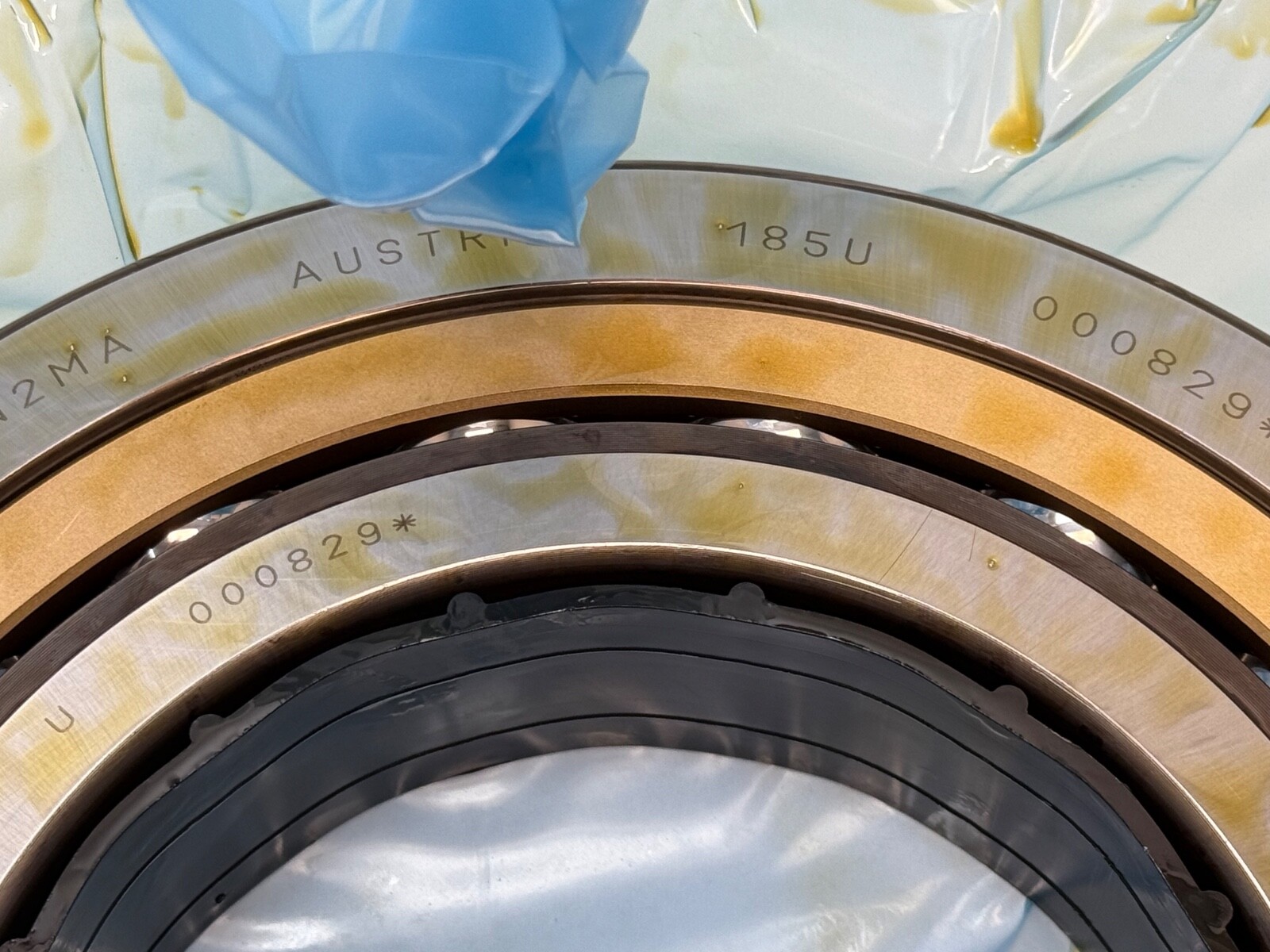

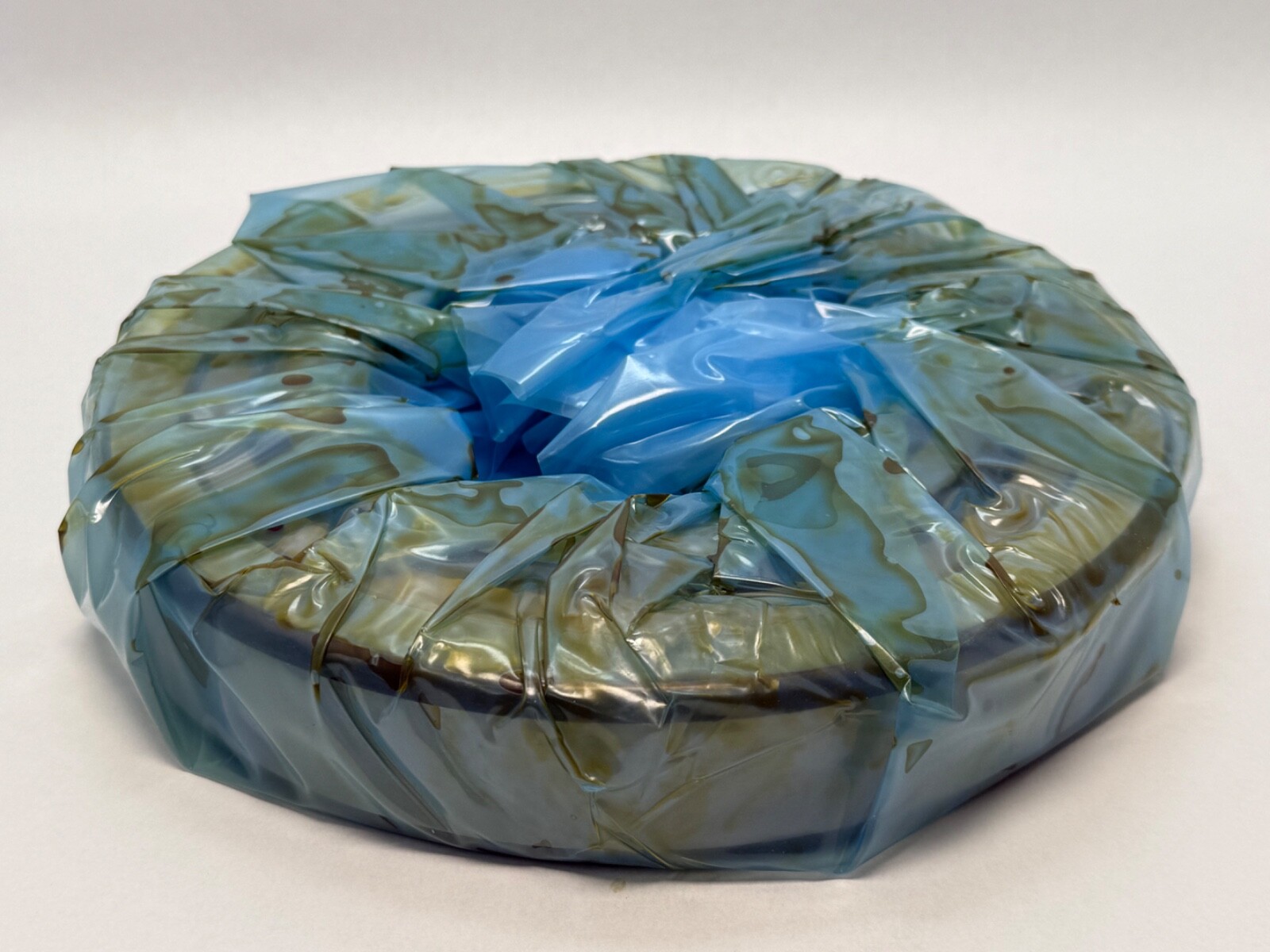

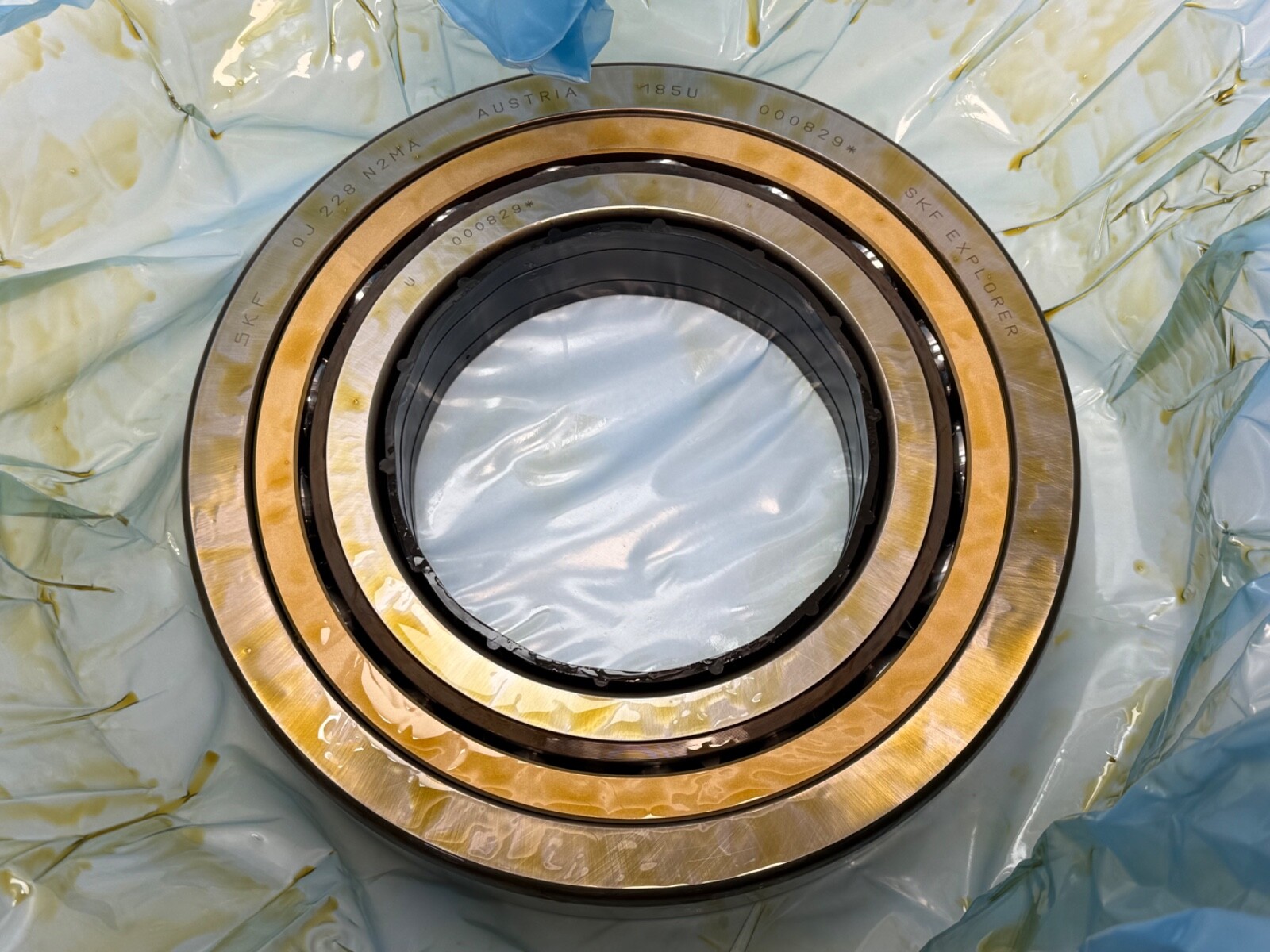

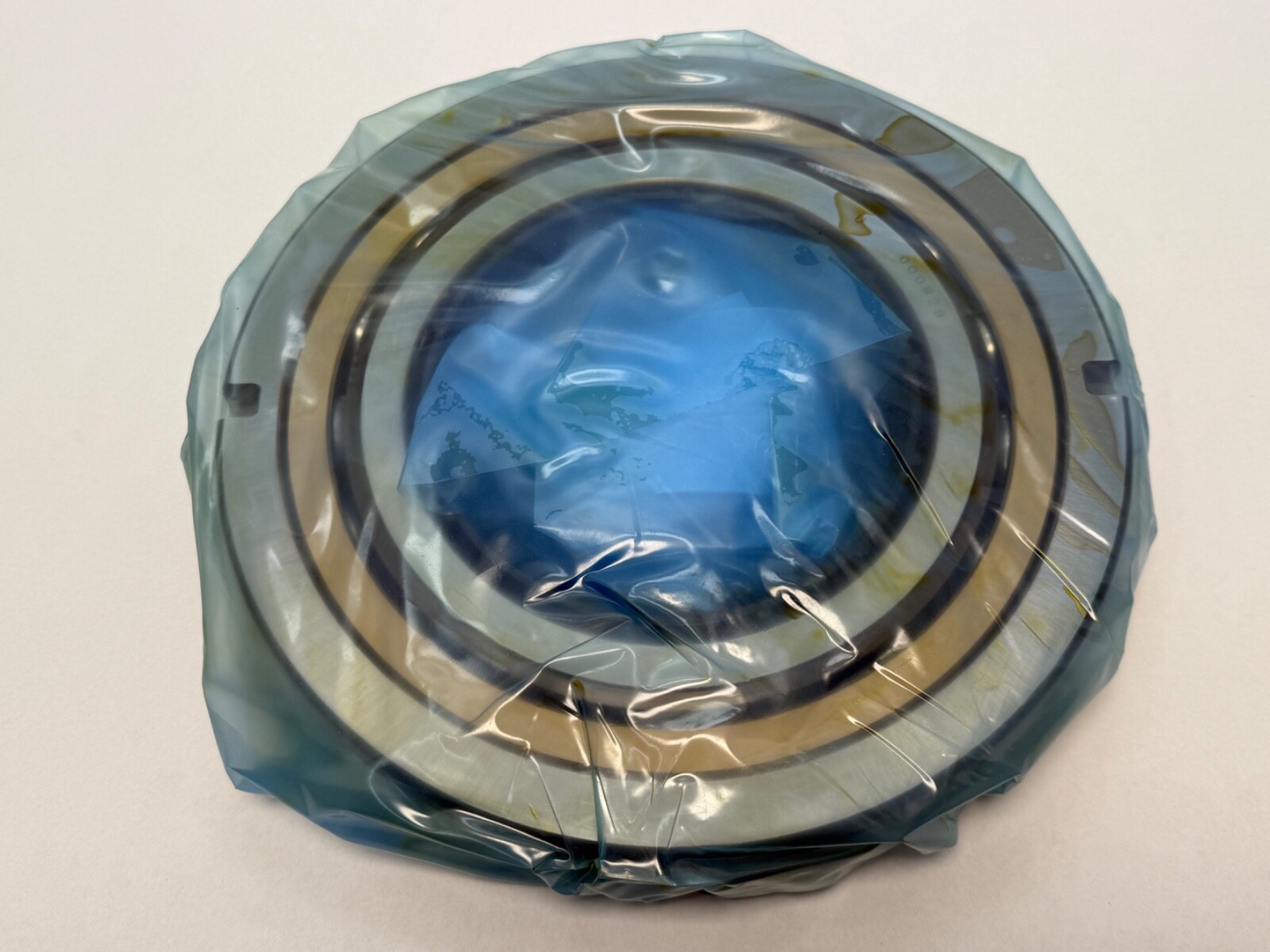

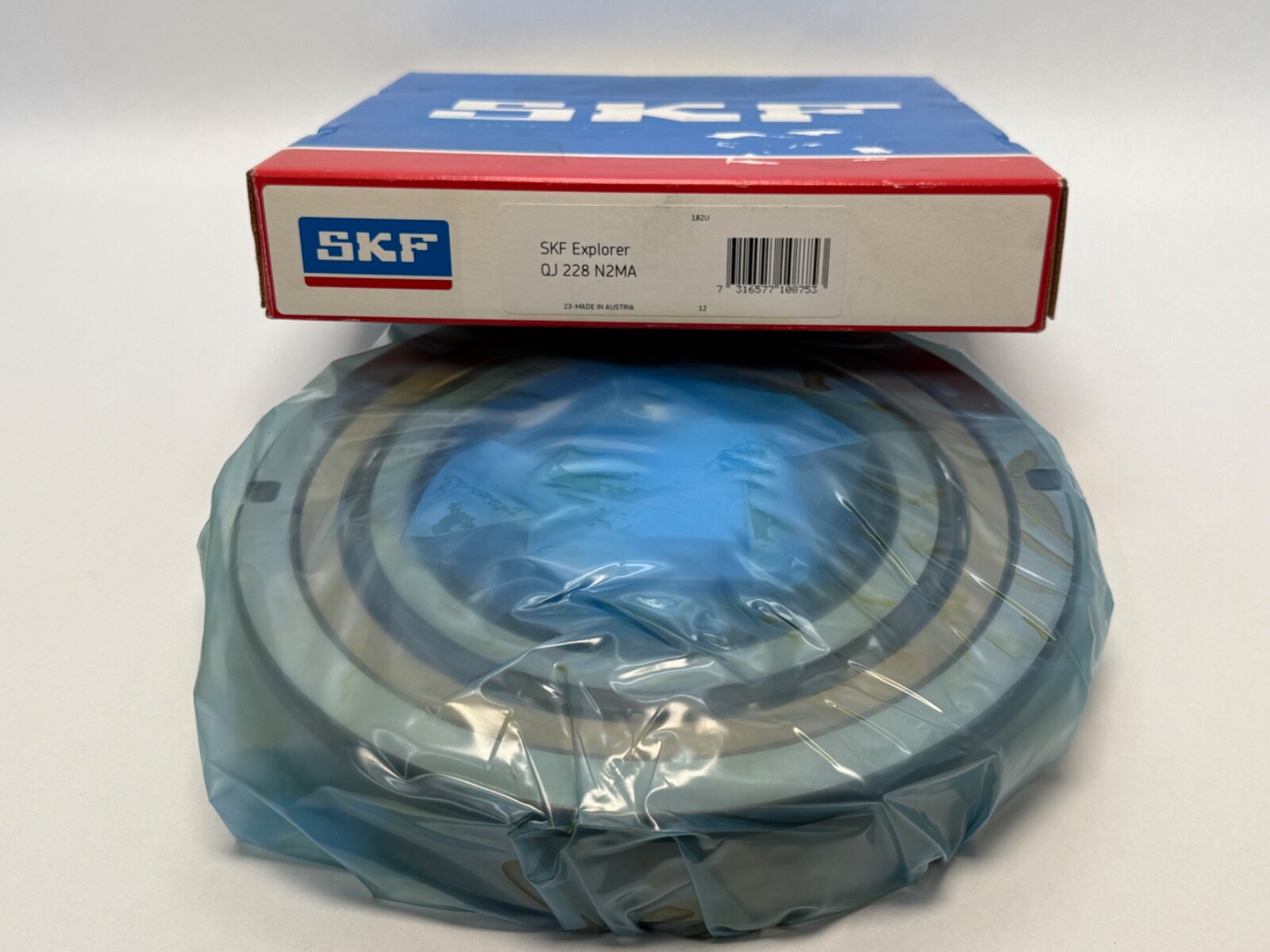

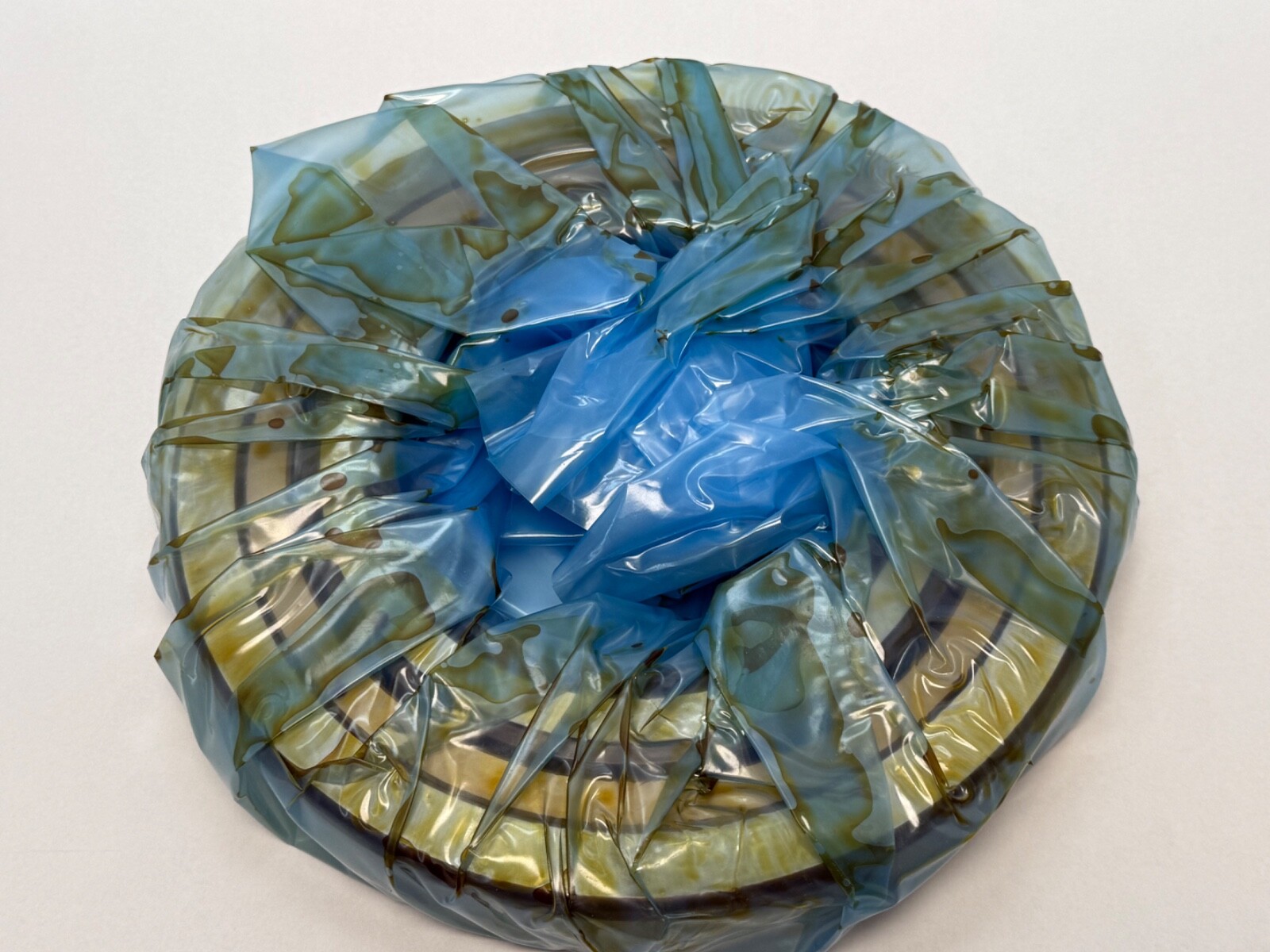

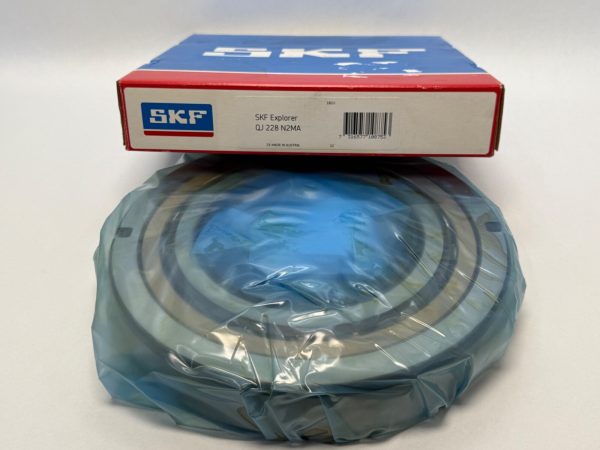

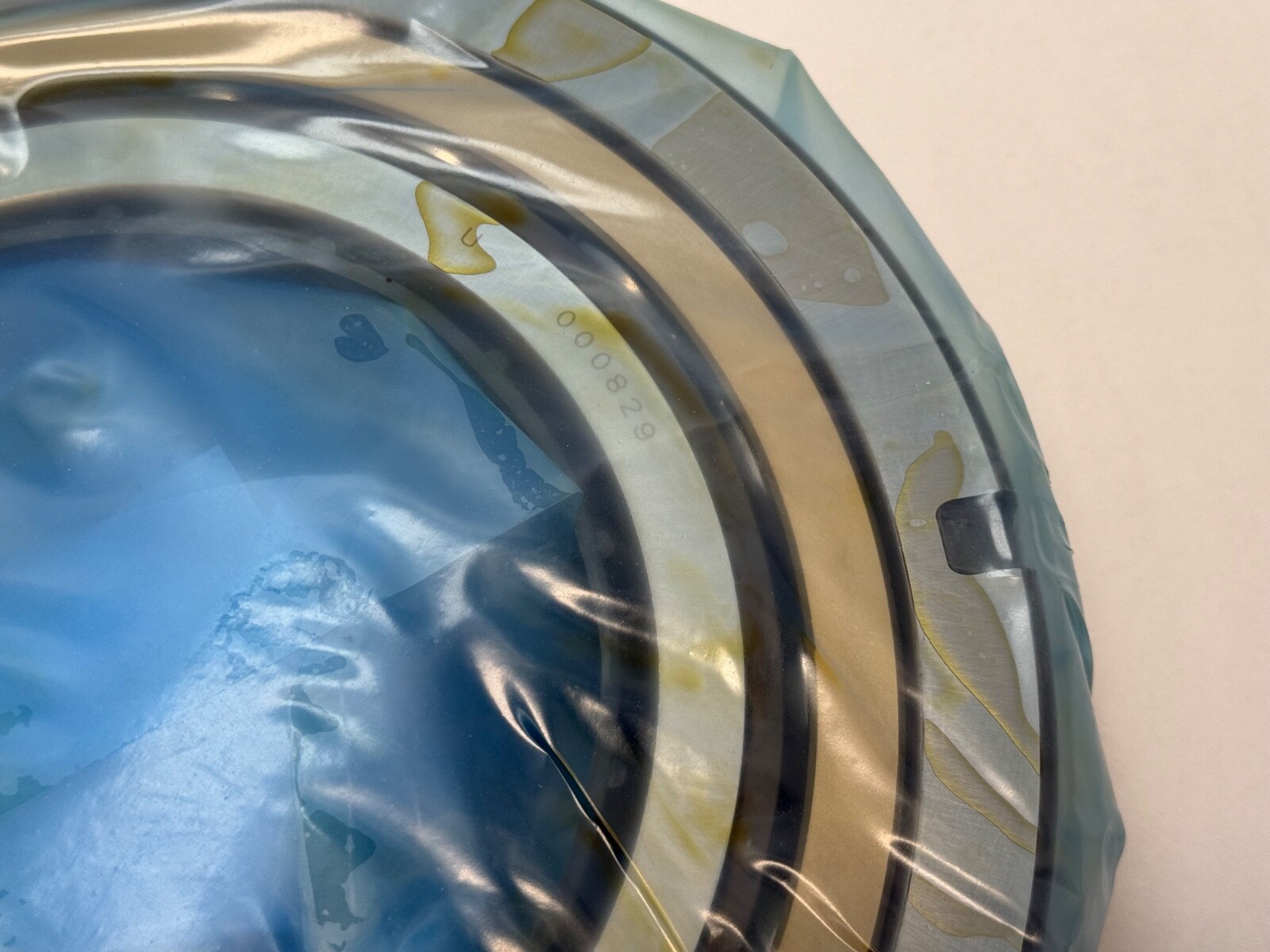

Four-point contact ball bearing, 140 x 250 x 42 mm, 35° contact angle, locating slots, machined brass cage. Dynamic load rating 345 kN; SKF Explorer.
List Price
$344.23
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| Model | QJ 228 N2MA |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 140 mm |
| OD | 250 mm |
| Width | 42 mm |
| Material | Bearing Steel |
|---|---|
| Series | QJ200 |
| Lubricant | Oil/Grease |
| Mpn Variants | QJ 228 N2MA, QJ-228-N2MA, QJ228N2MA, QJ228 |
| Dynamic Load Rating | 345,000 N |
| Static Load Rating | 475,000 N |
| Rolling Elements | Ball |
| Item Weight | 9.36 kg (20.64 lb) |
| Cage Material | Machined brass |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 4,300 rpm |
| Internal Clearance | CN |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 35° |
| Cross Reference 1 | FAG QJ228-N2-MPA (locating slots, brass cage) |
|---|

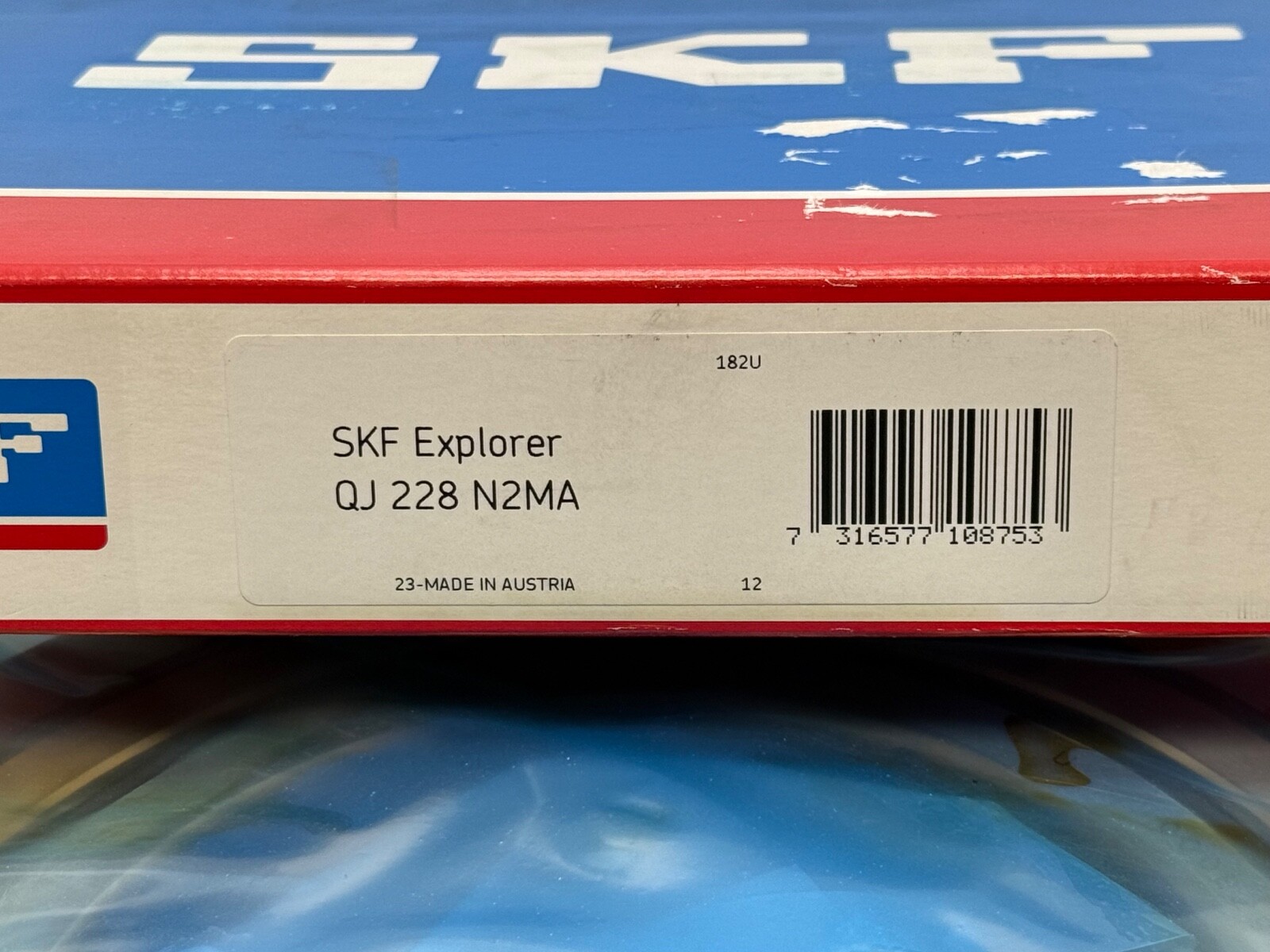

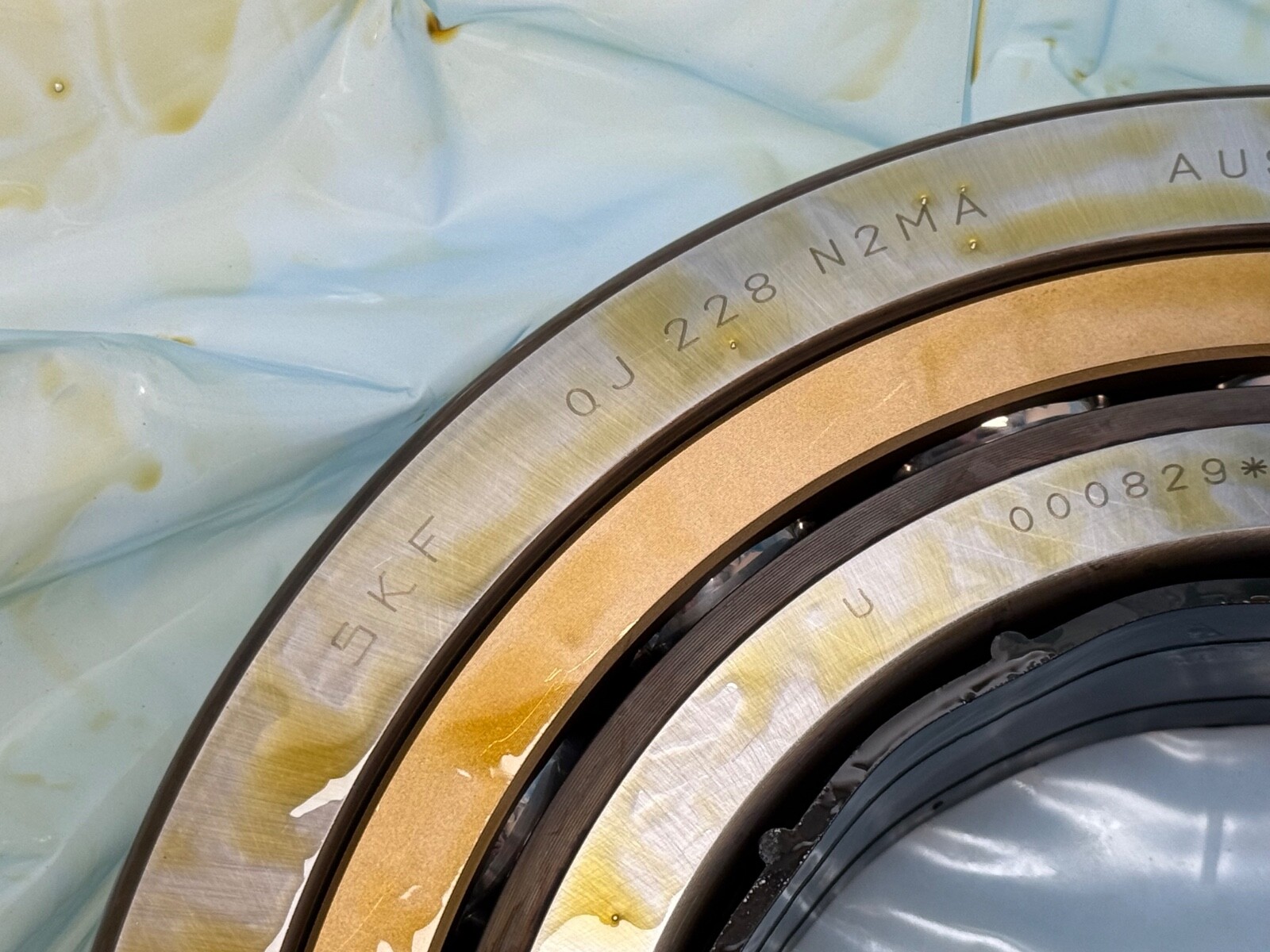

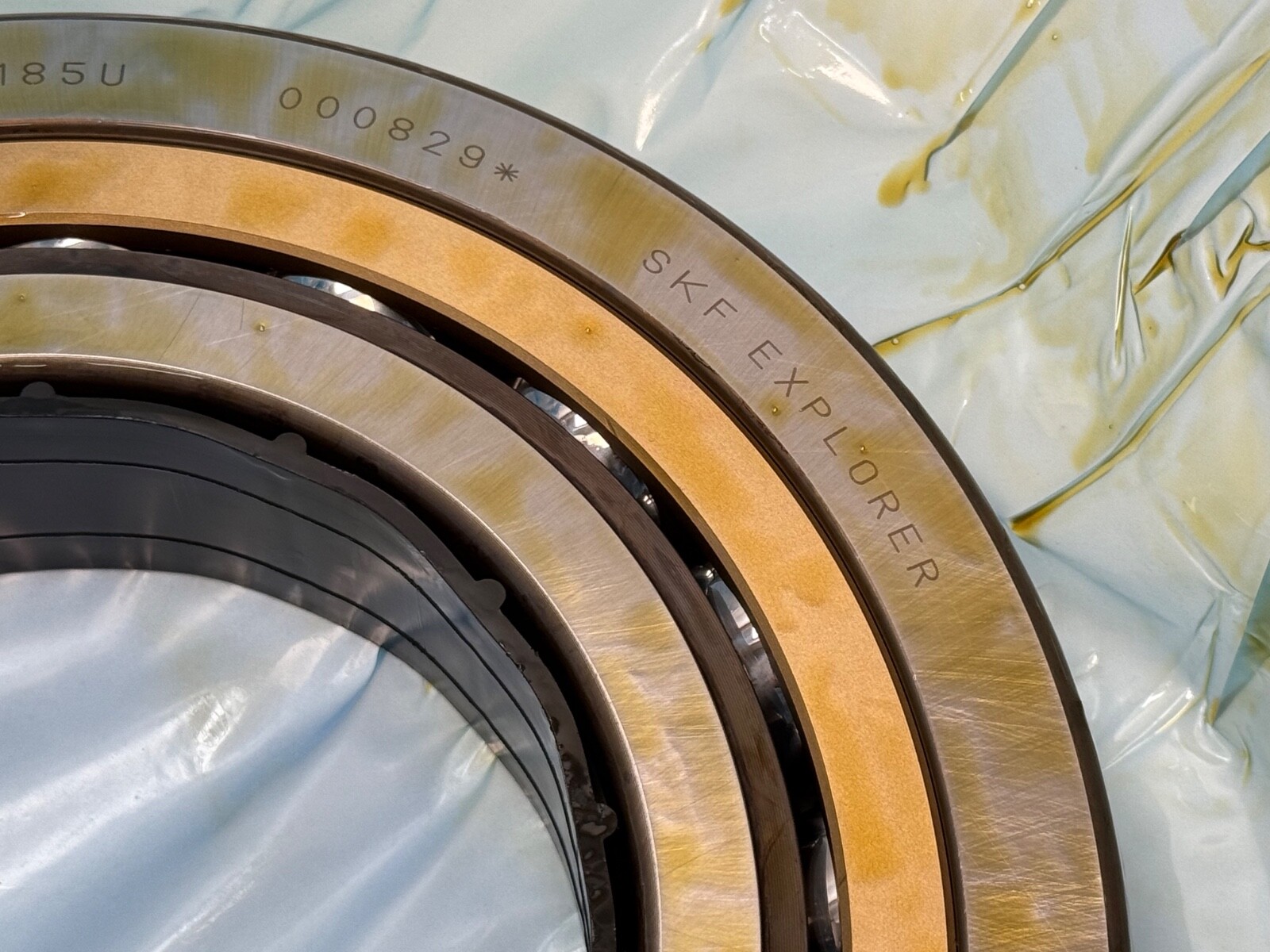

SKF QJ 228 N2MA four-point contact ball bearing with locating slots, SKF Explorer performance class. Carries high axial loads in both directions and small radial loads. Two-piece inner ring and one-piece outer ring. Bore Diameter: 140 mm. Outside Diameter: 250 mm. Width: 42 mm. Contact Angle: 35°. Item Weight: 9.36 kg (20.64 lb).
QJ — four-point contact ball bearing with split inner ring.
228 — ISO 02 dimension series, bore code 28 x 5 = 140 mm.

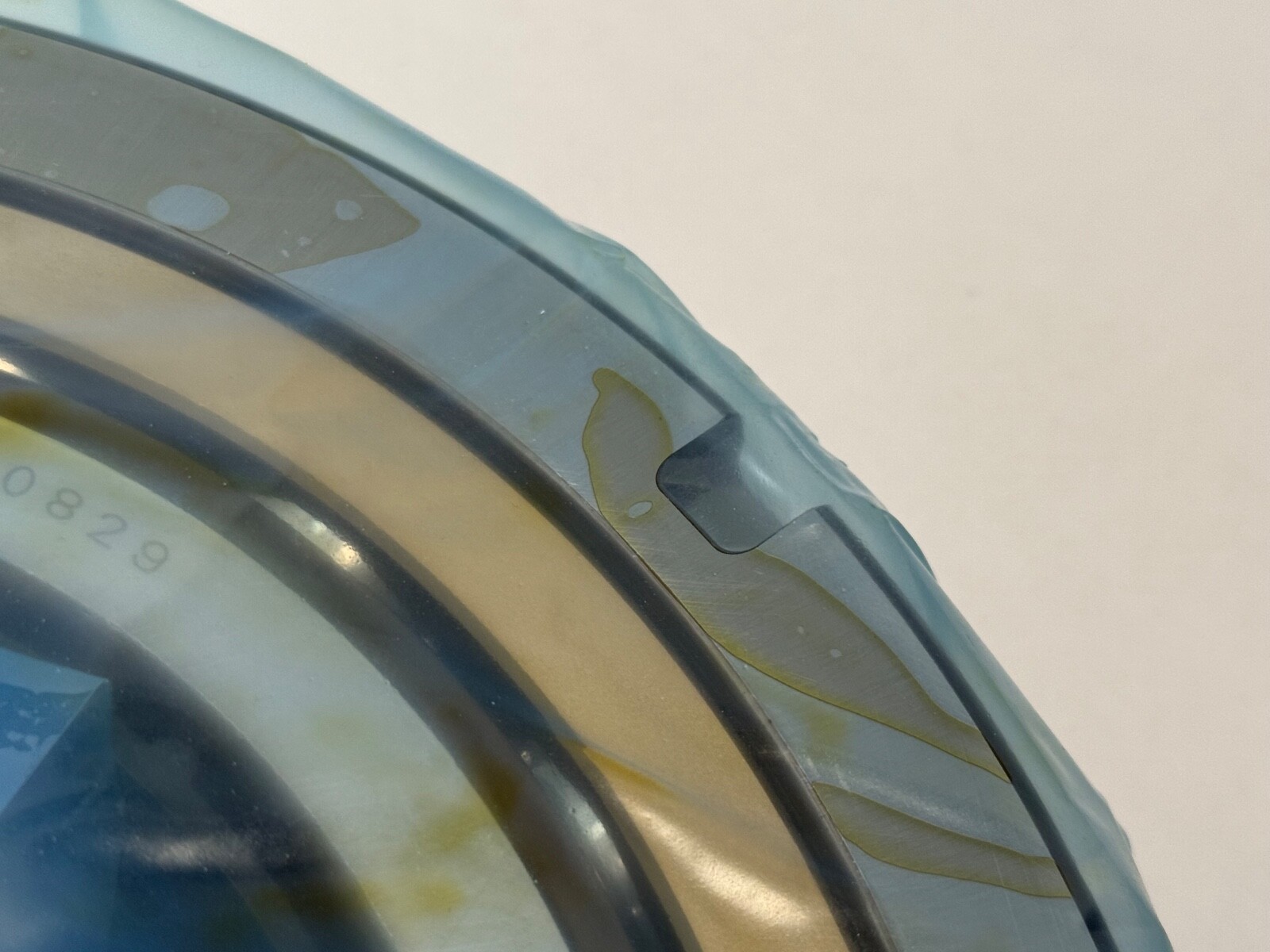

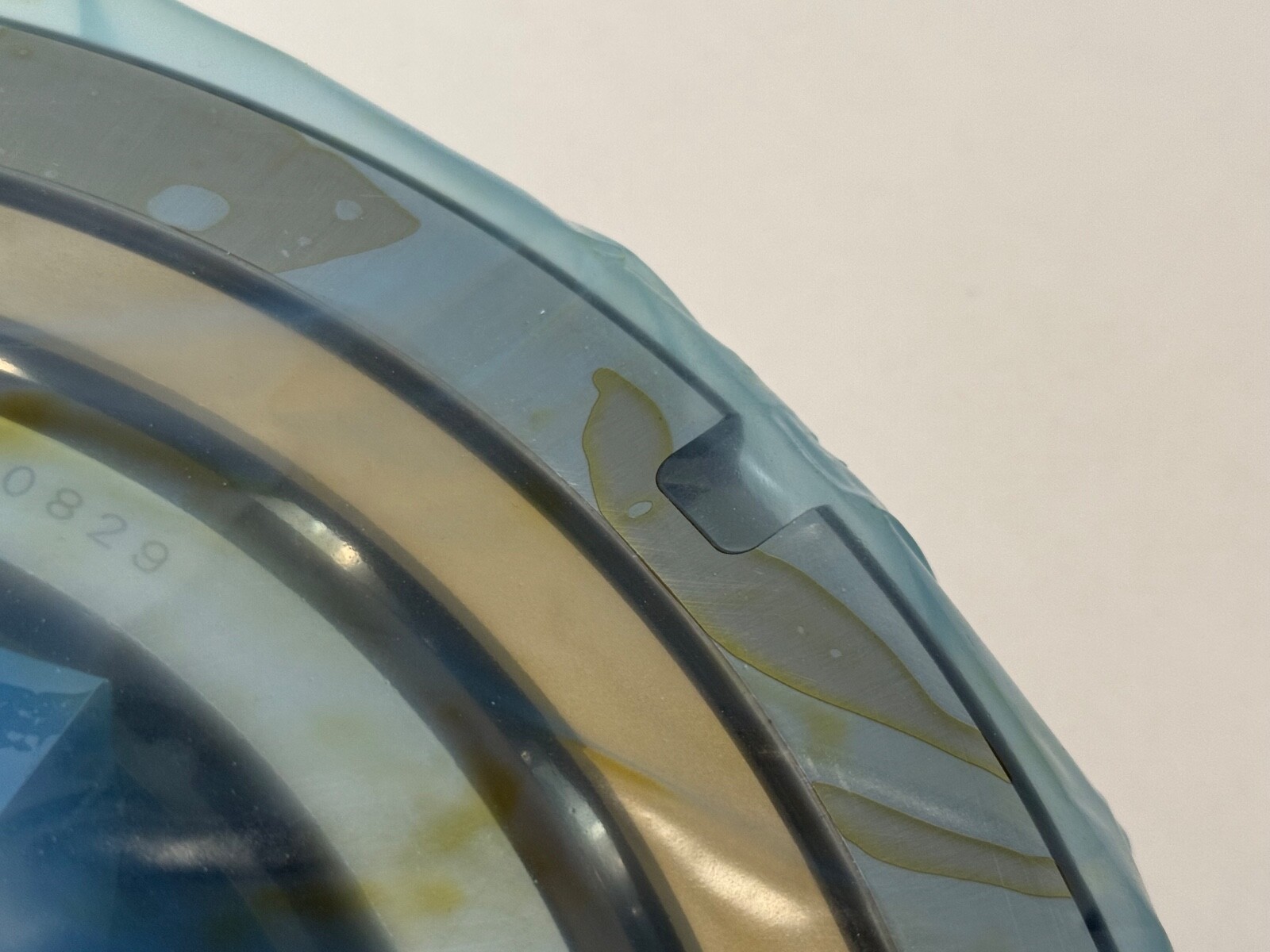

N2 — two locating slots in the outer ring.
MA — machined brass cage, outer-ring centred.
Dynamic Load Rating: 345,000 N. Static Load Rating: 475,000 N. Limiting Speed: 4,300 rpm. Contact Angle: 35°. Cage Material: Machined brass. Internal Clearance: CN (axial). Bearing Material: Bearing steel. Number Of Rows: 1. The outer ring with ball and cage assembly mounts separately from the two inner-ring halves.
Unit Quantity: 1 Pc. Closure Type: Open.
FAG QJ228-N2-MPA is a four-point contact bearing of the same 140 x 250 x 42 mm size with locating slots and a brass cage.
