Availability:
16 in stock

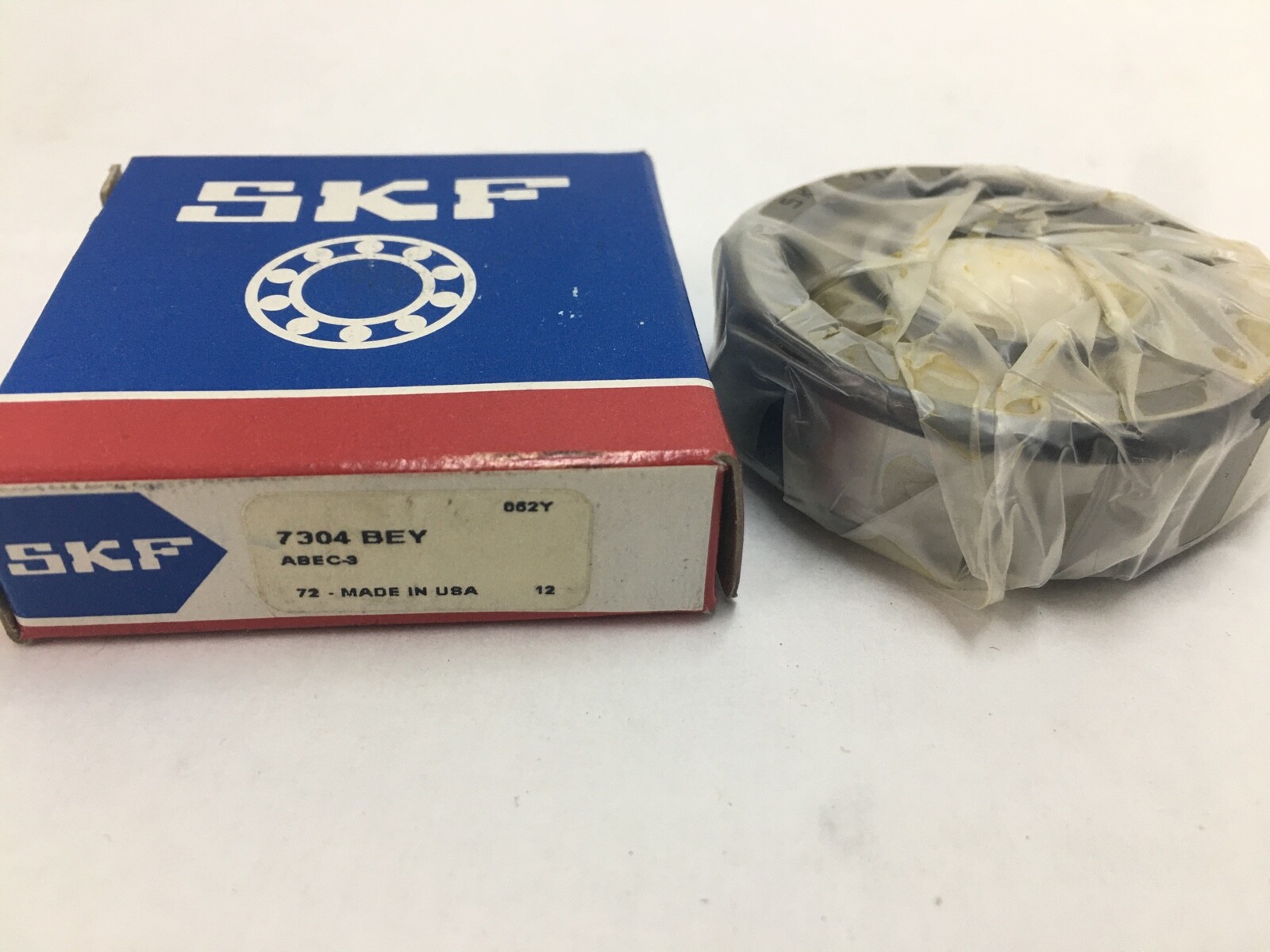

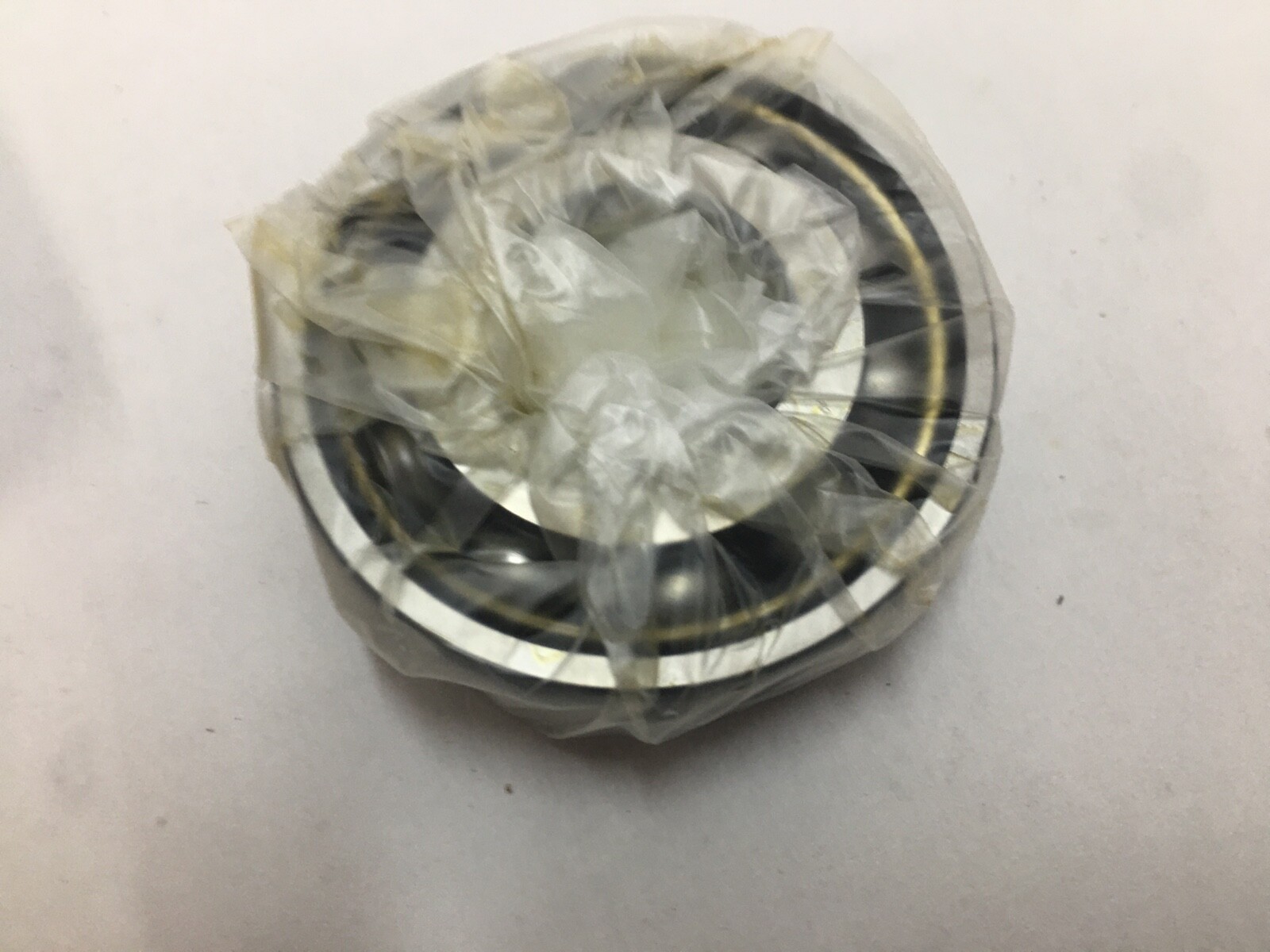

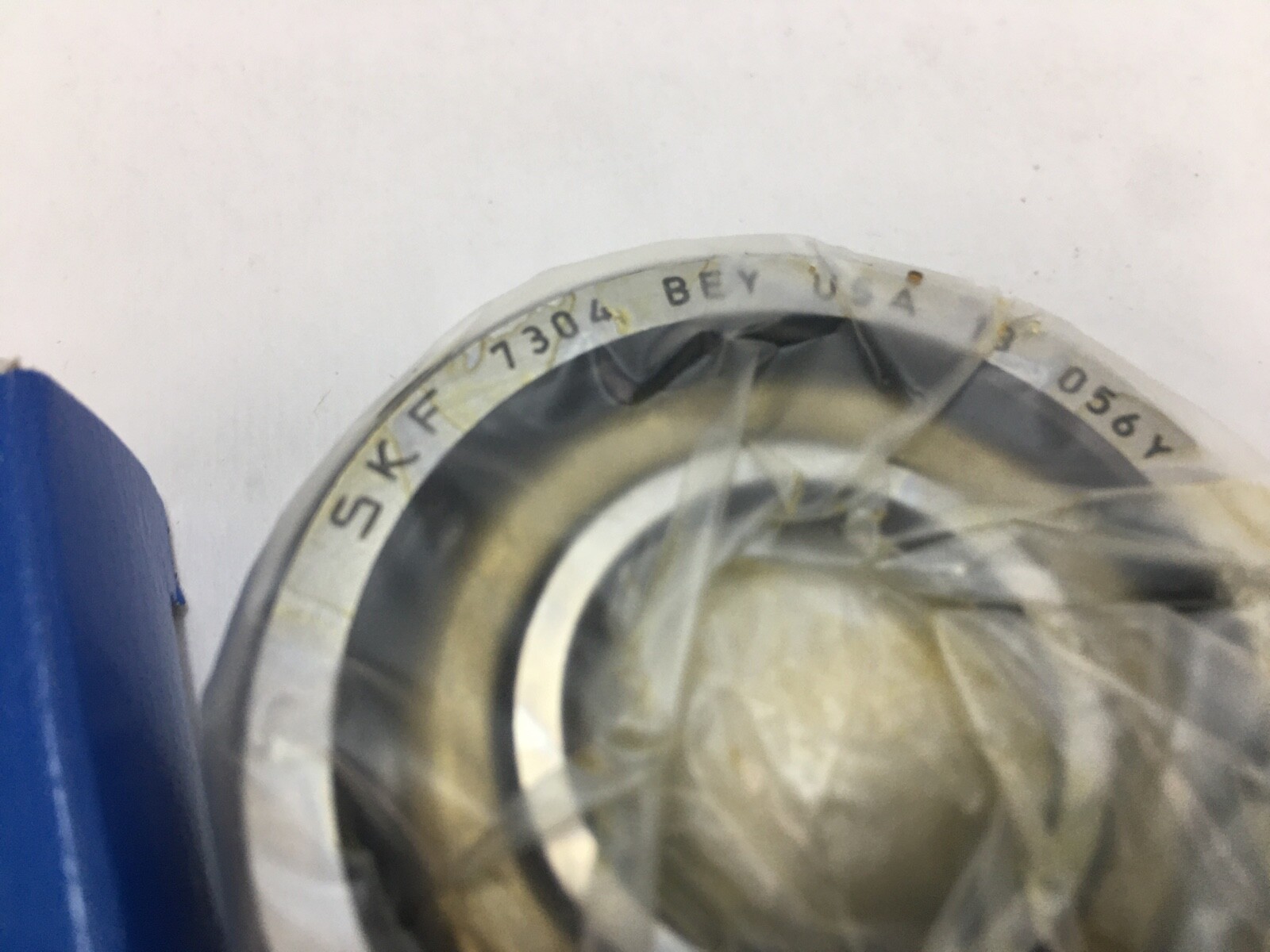

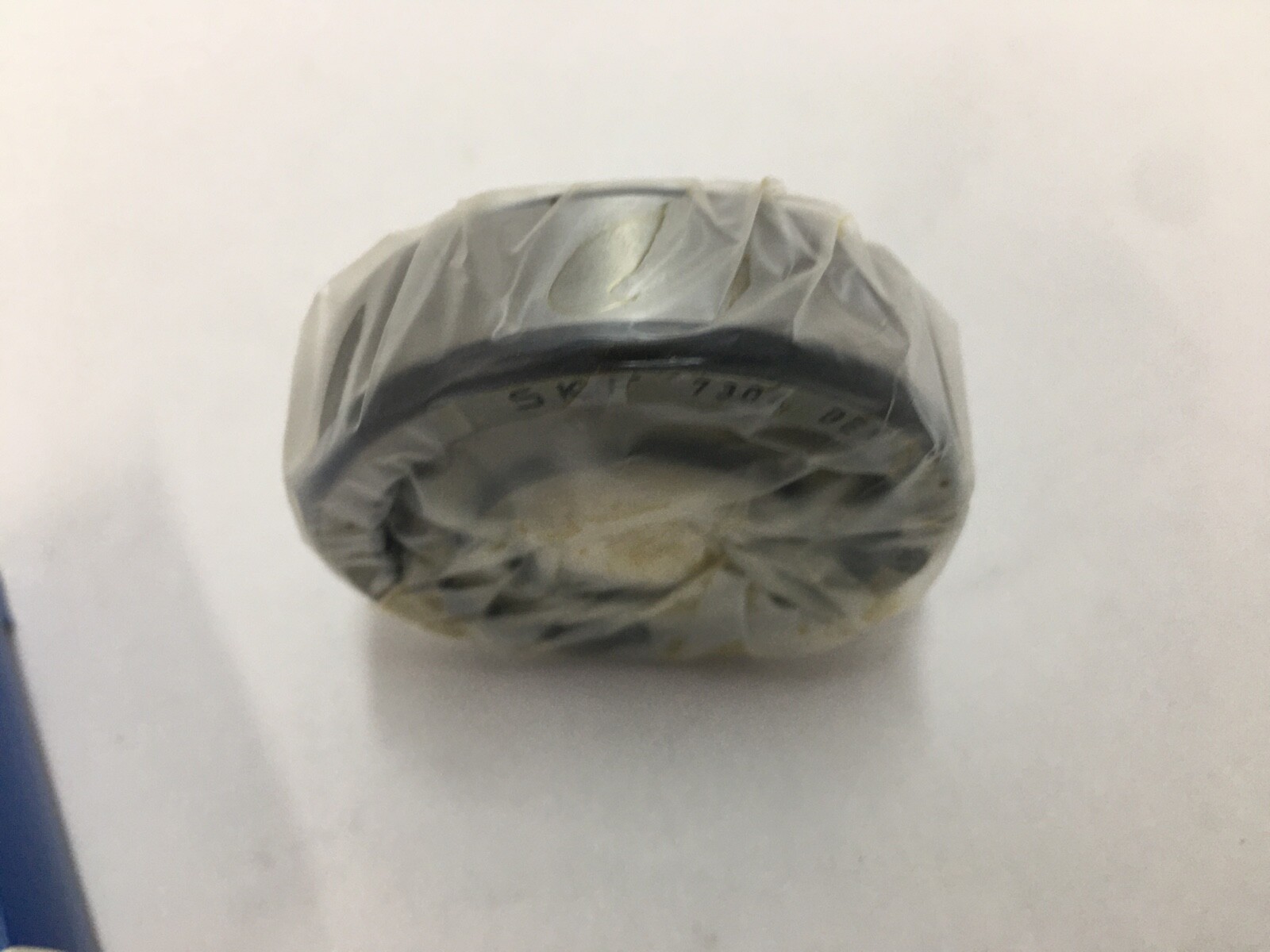

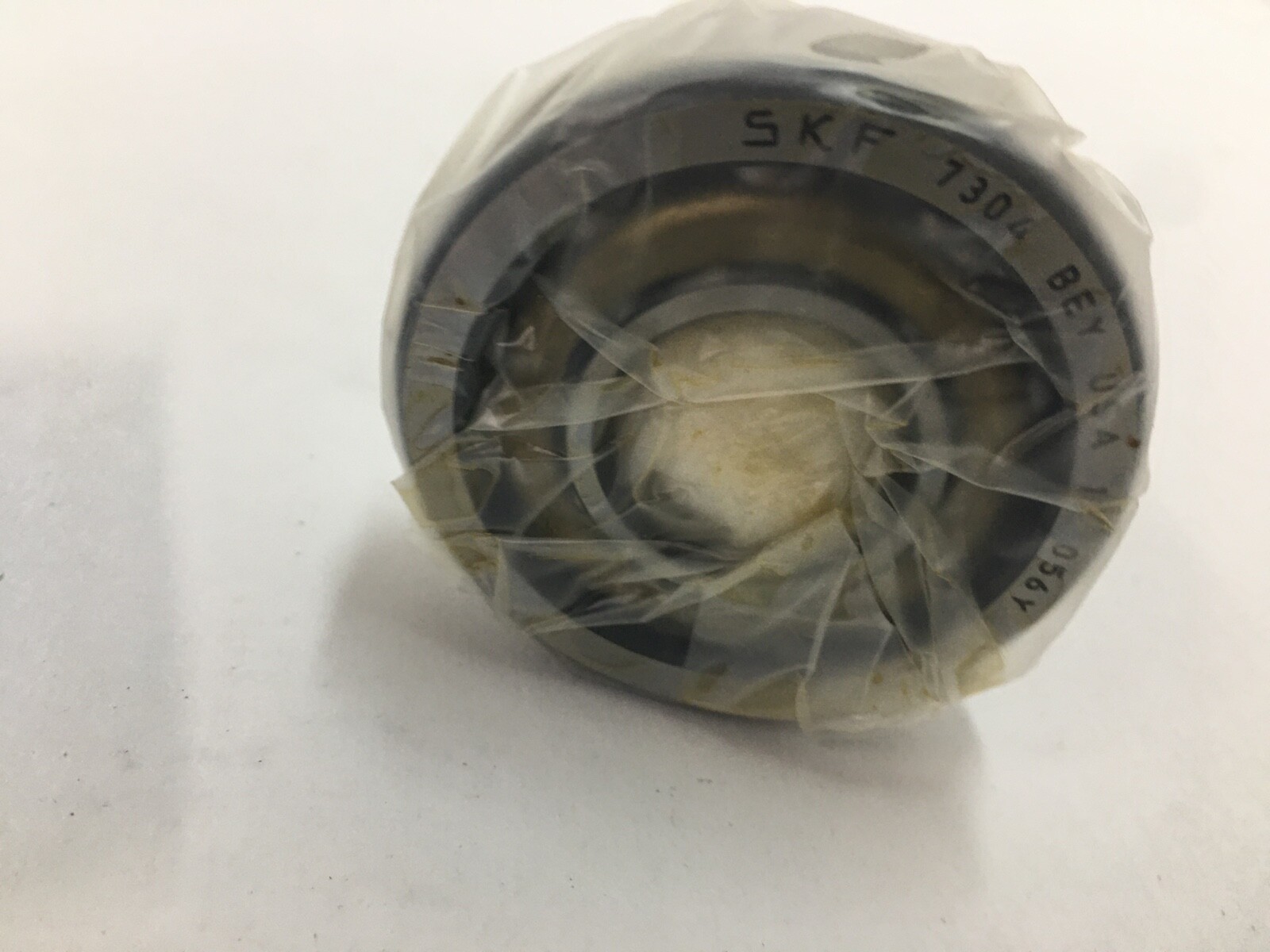

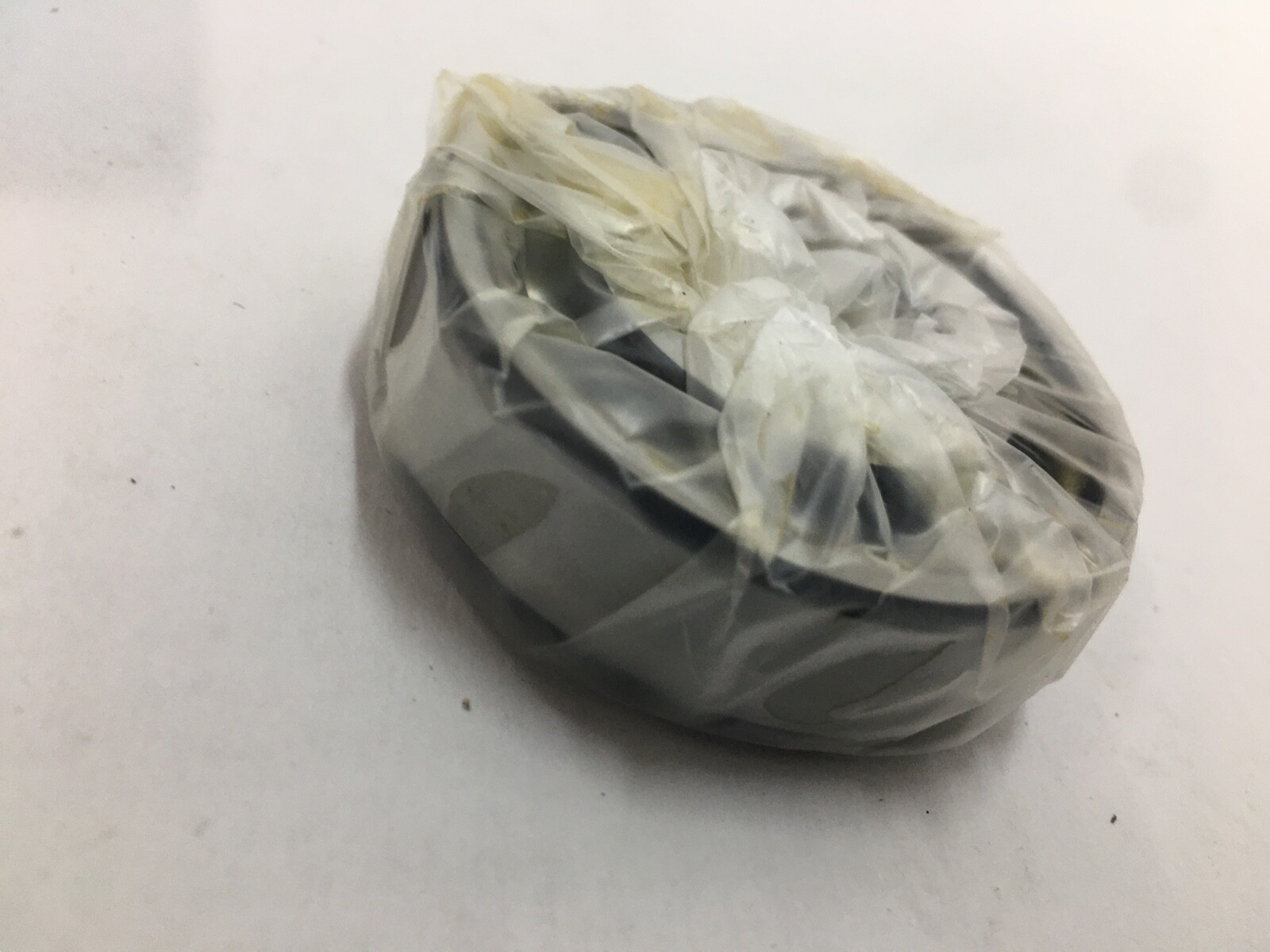

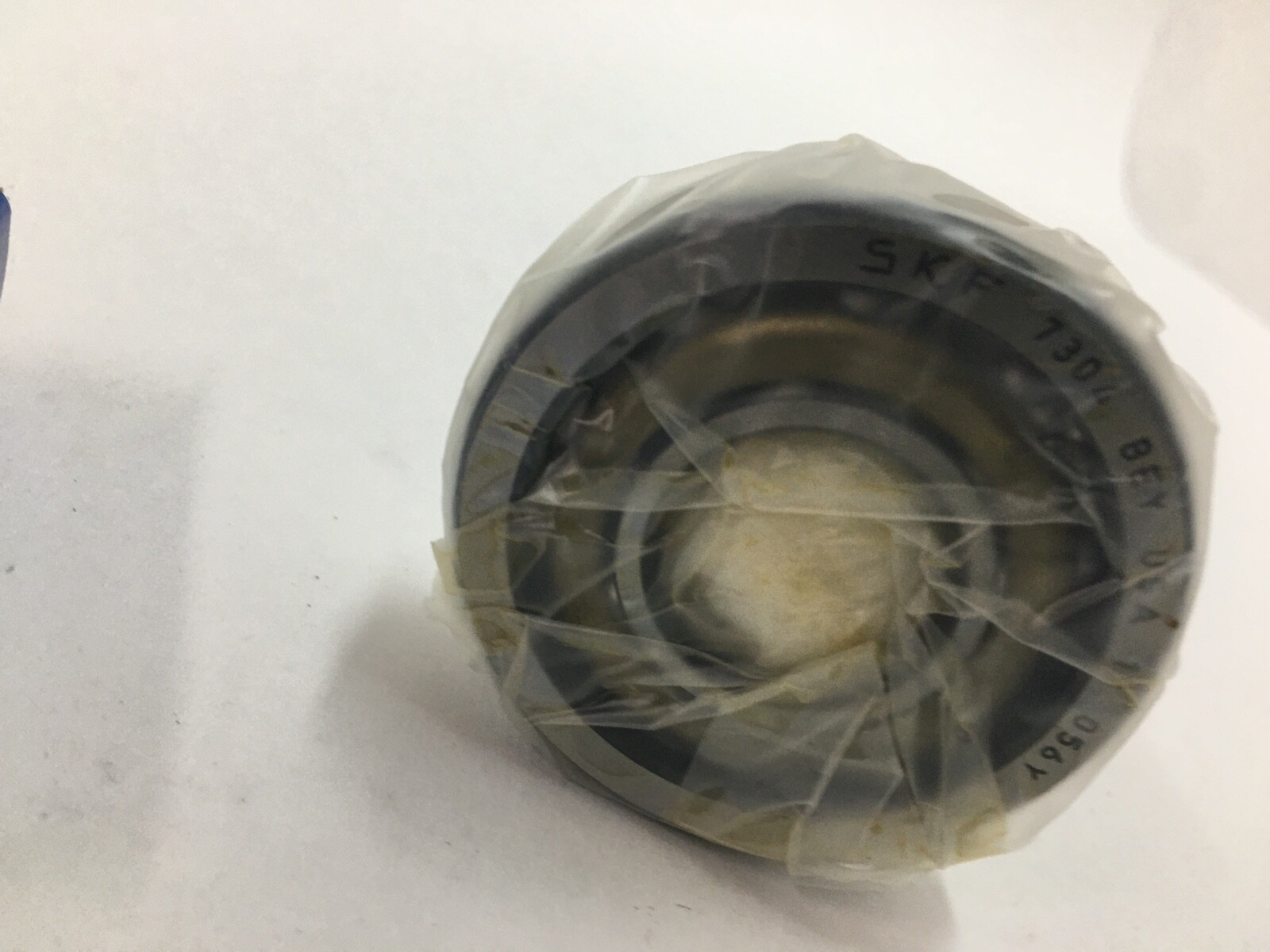

SKF 7304 BEY single row angular contact ball bearing, 20 x 52 x 15 mm, 40° contact angle, pressed brass cage. Dynamic rating 19,000 N, limiting speed 18,000 rpm.
List Price
$32.90
16 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 7304BEY |
| Model | 7304 B EY |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 20 mm |
| OD | 52 mm |
| Width | 15 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7300 Series |
| Mpn Variants | 7304 BEY, 7304-BEY, 7304BEY, 7304B |
| Closure Type | Open |
| Cage Type | Window |
| Dynamic Load Rating | 19,000 N |
| Static Load Rating | 10,000 N |
| Rolling Elements | Ball |
| Cage Material | Pressed brass |
| Limiting Speed | 18,000 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 40° |
| Bearing Material | Bearing steel |
| Cross Reference 1 | SKF 7304 BECBY - universally matchable |
|---|---|
| Cross Reference 2 | FAG 7304-B-XL-TVP - polyamide cage, not brass |
| Cross Reference 3 | NSK 7304BW - pressed steel cage |
| Cross Reference 4 | NTN 7304B - pressed steel cage |
| Cross Reference 6 | MRC 7304PJ |
SKF 7304 BEY is a single row angular contact ball bearing in the 73 medium series with a 40° contact angle and a pressed brass window cage. It carries combined radial and heavy one-direction axial load in pumps, compressors, gearboxes and machine spindles.
73 — ISO dimension series 03, medium section.
04 — bore code, 04 x 5 = 20 mm bore.
B — 40° contact angle.
E — SKF optimized internal design.
Y — pressed brass window-type cage.
Bore Diameter: 20 mm. Outside Diameter: 52 mm. Width: 15 mm. Contact Angle: 40°. Dynamic Load Rating: 19,000 N. Static Load Rating: 10,000 N. Fatigue Load Limit: 425 N. Reference Speed: 18,000 rpm. Limiting Speed: 18,000 rpm. Cage Material: Pressed brass. Cage Type: Window. Number Of Rows: 1. Bearing Material: Bearing steel. Closure Type: Open.
The 40° angle gives high axial capacity in one direction.
Load centre distance a: 22.8 mm from side face. Shaft abutment diameter: 27 mm min. Housing abutment diameter: 45 mm max (large side), 47.8 mm max (small side). Fillet radius: 1 mm max (large side), 0.6 mm max (small side).
Unit Quantity: 1 Pc. Single bearing.
Same envelope and 40° angle: SKF 7304 BECBY, FAG 7304-B-XL-TVP, NSK 7304BW, NTN 7304B, Koyo 7304B, MRC 7304PJ. MPN variants: 7304 BEY, 7304-BEY, 7304BEY, 7304B. Harmonization Code: 8482.10.50.
