Availability:
1 in stock

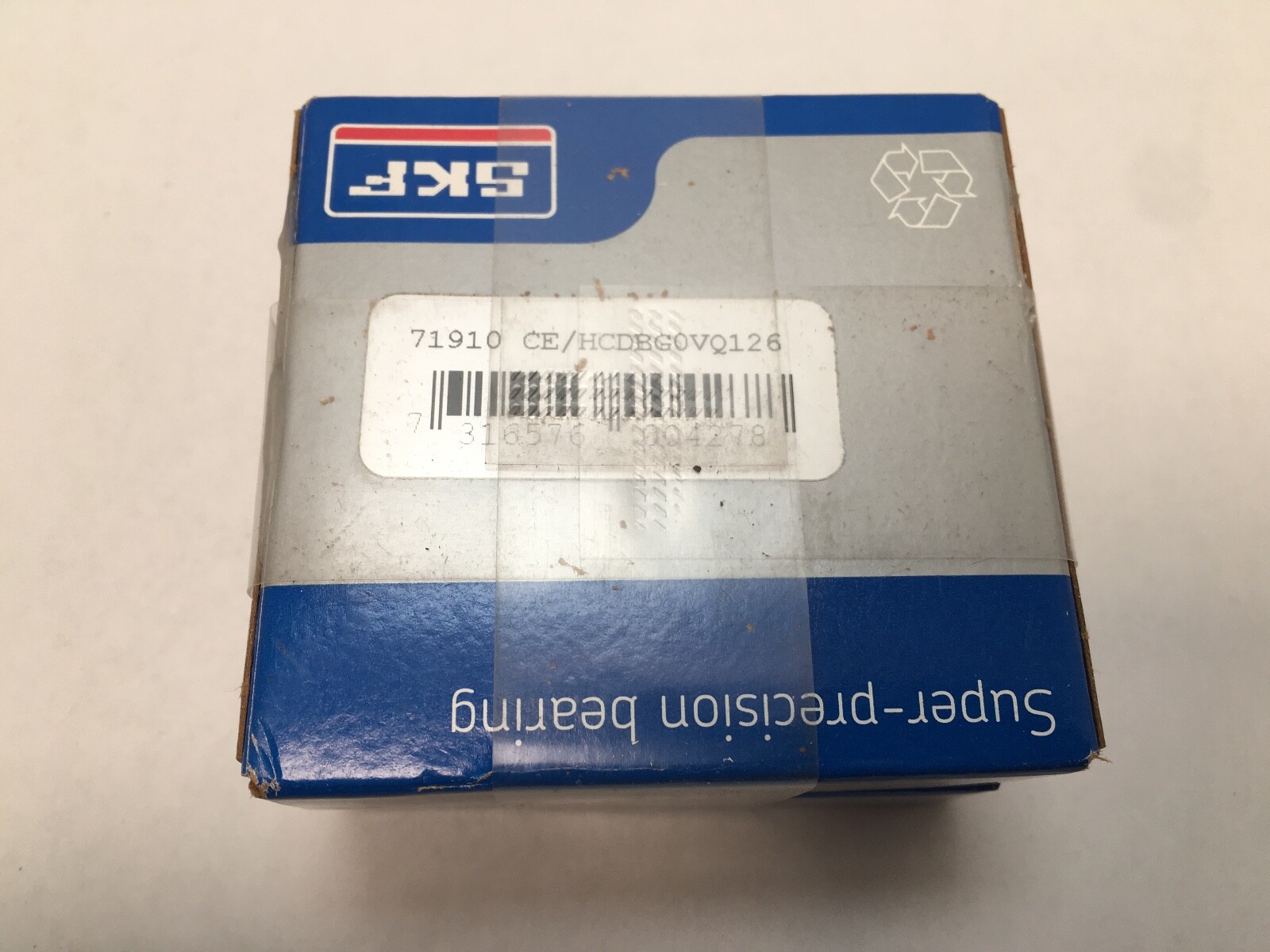

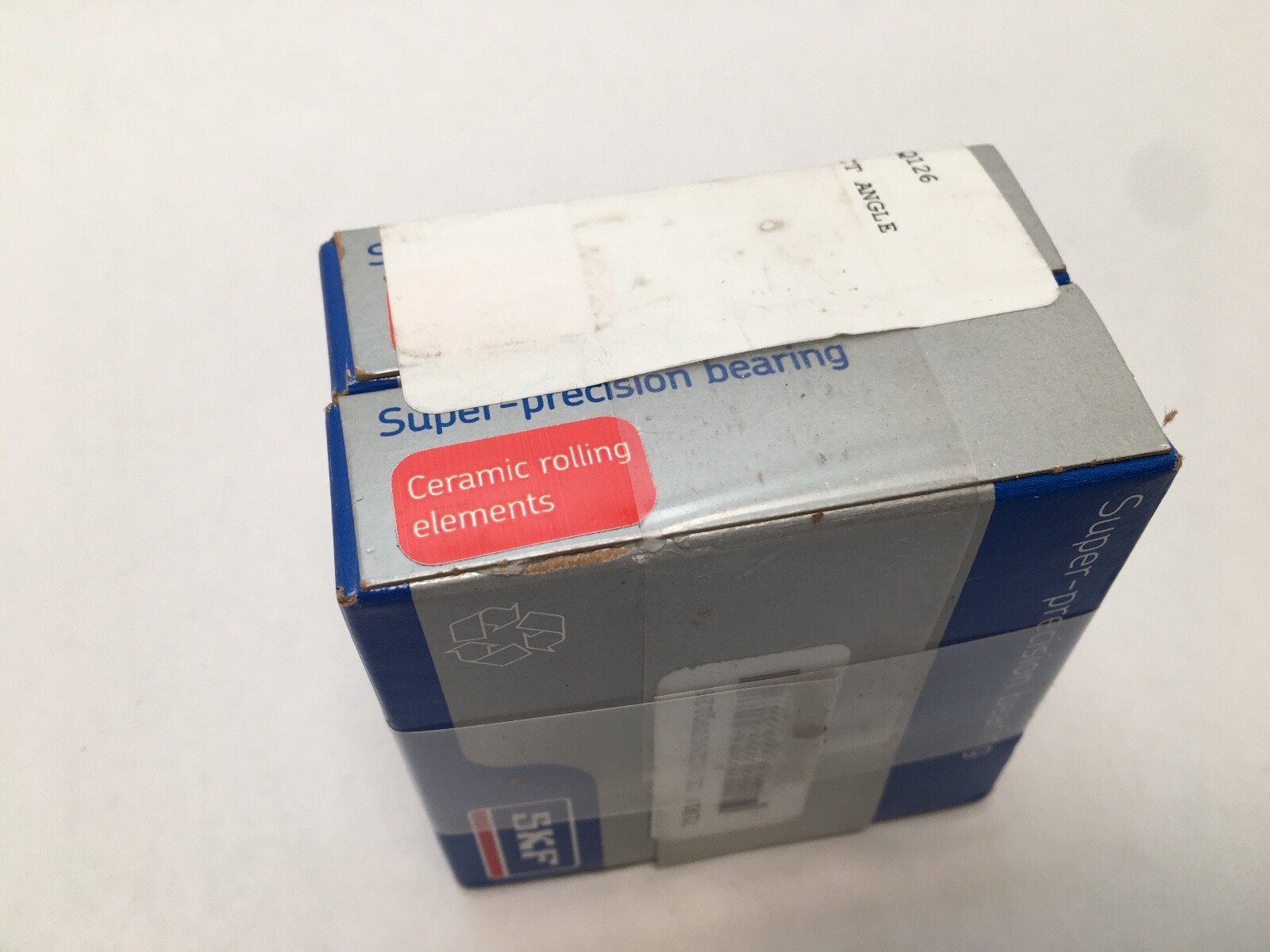

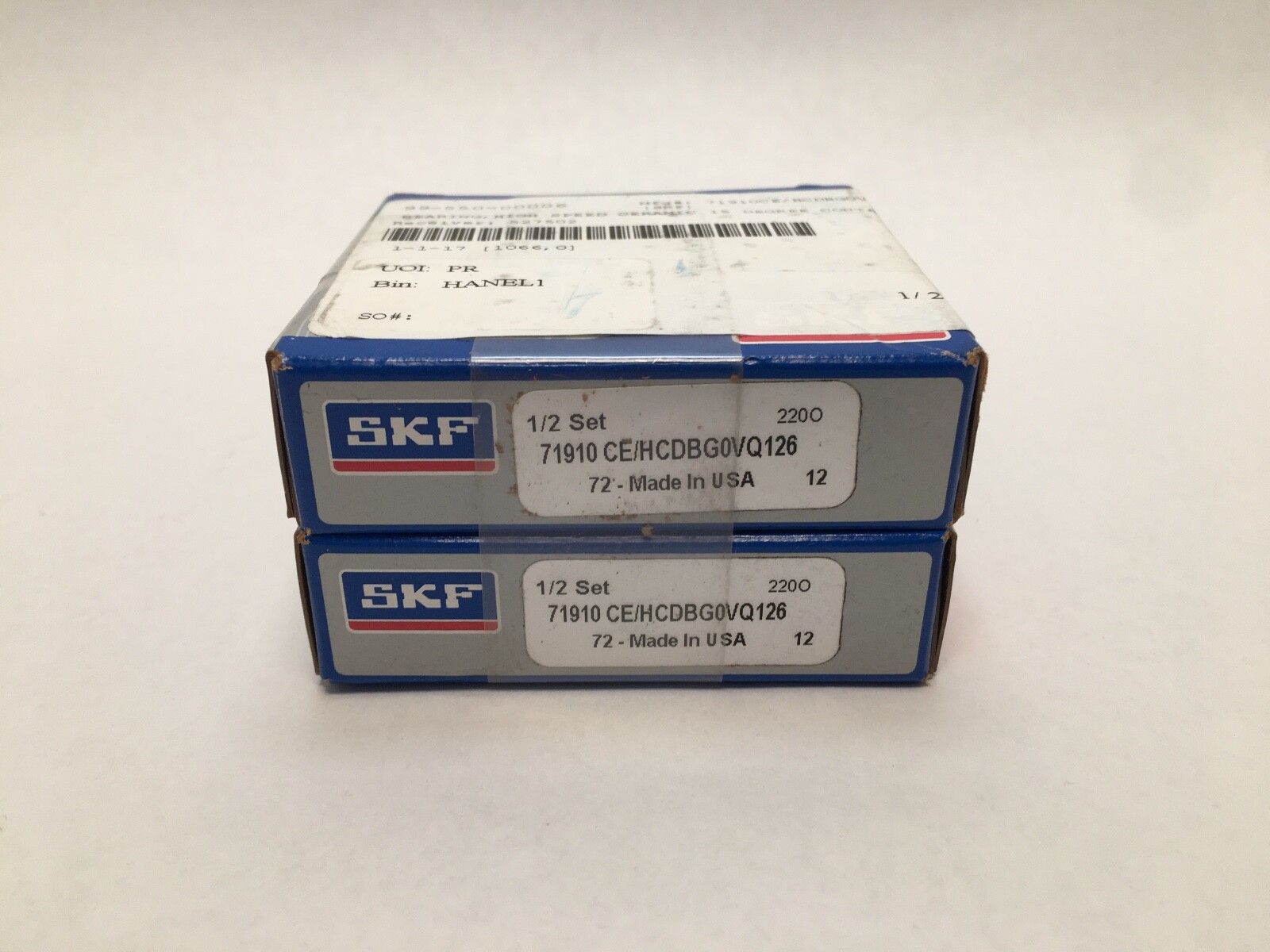

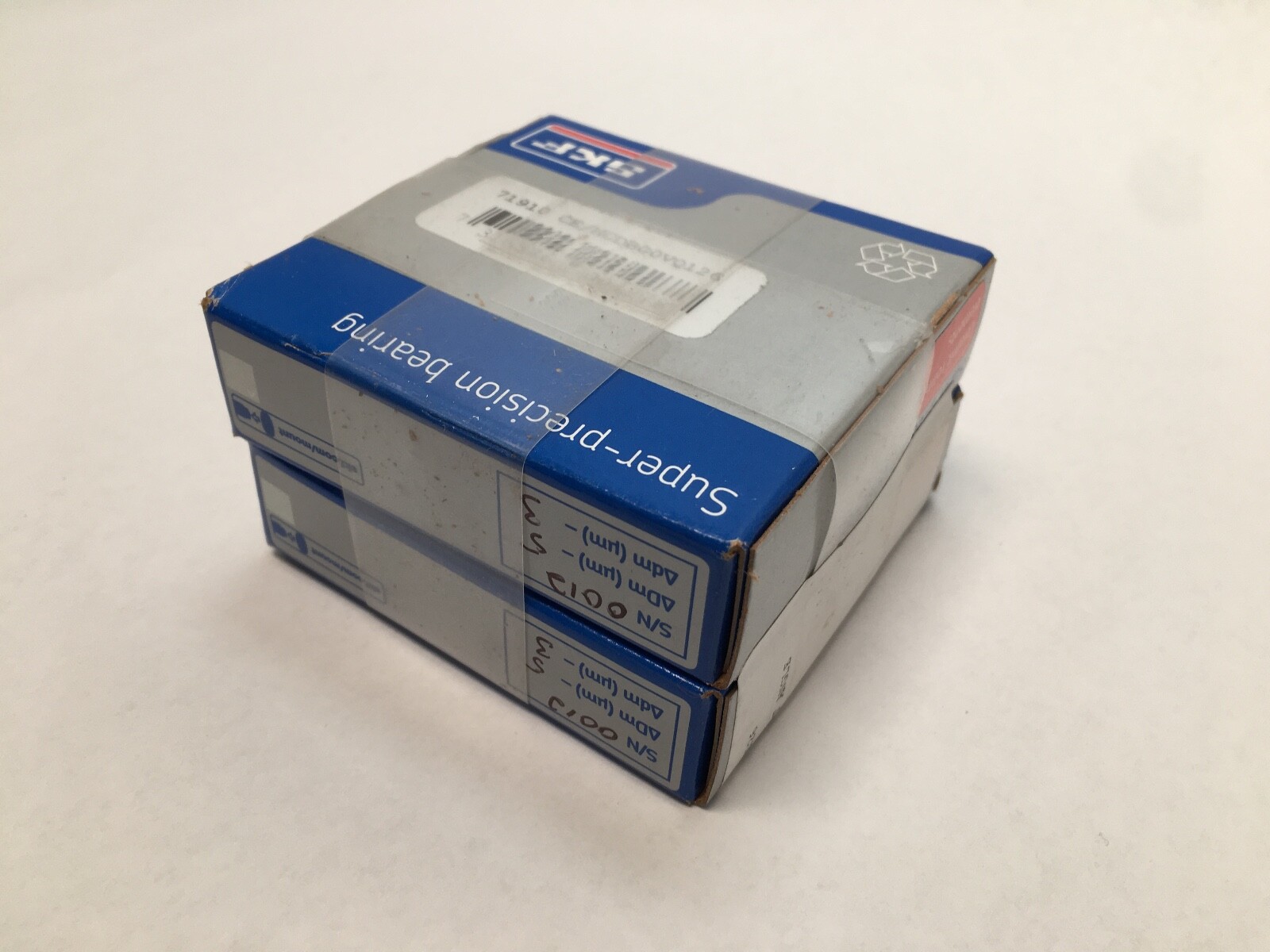

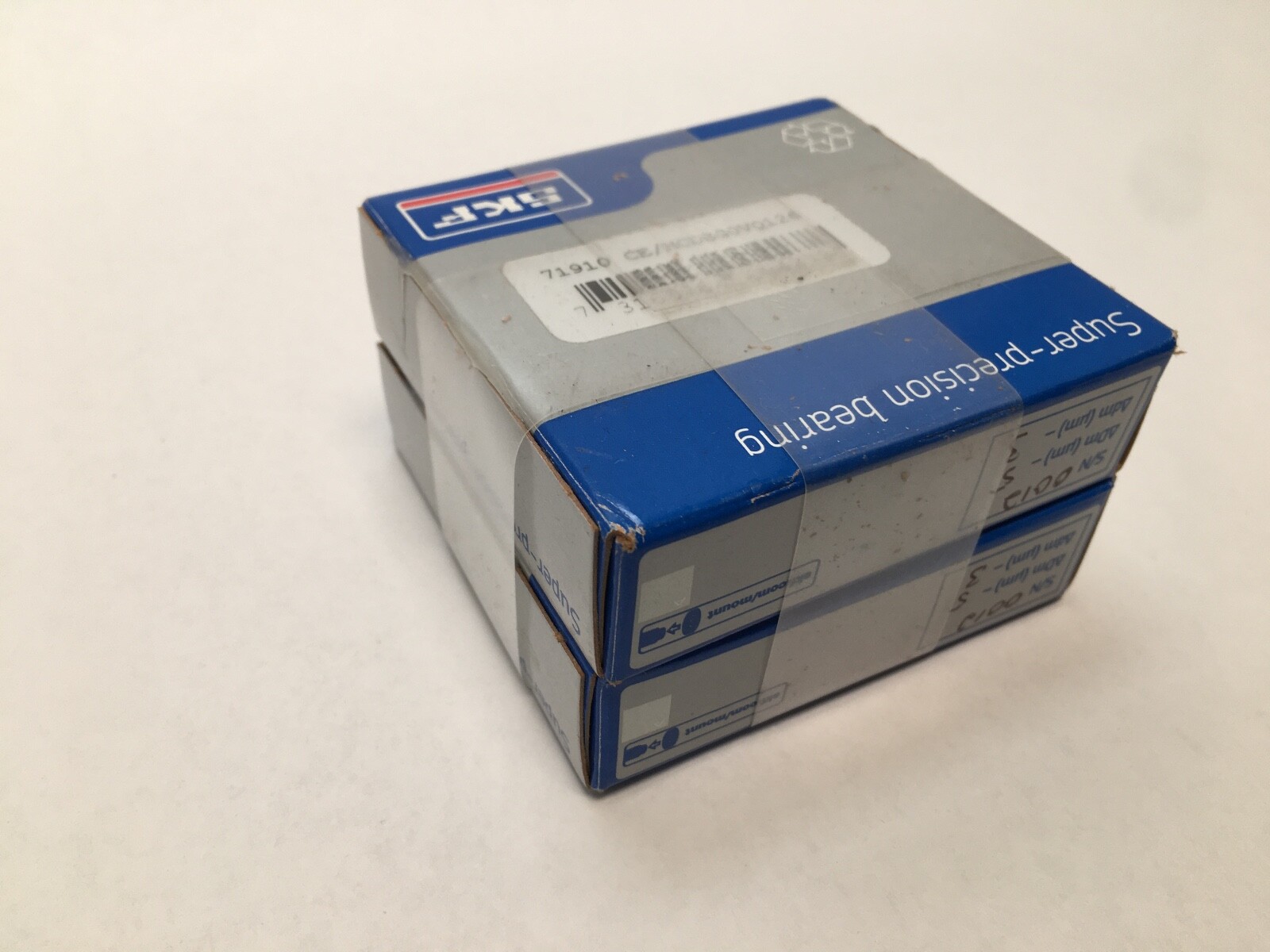

SKF 71910 CE/HC hybrid ceramic super-precision angular contact bearing, 50 x 72 x 12 mm, 15° angle, high-speed E design. Dynamic rating 12,700 N per bearing.
List Price
$610.69
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 71910-CE/HCDBG0VQ126 |
| Model | 7910 71910 EC HCD BG 0V Q 126 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 50 mm |
| OD | 72 mm |
| Width | 12 mm |
| Bearings | Ceramic |
|---|---|
| Material | Ceramic Hybrid |
| Series | 71900 |
| Mpn Variants | 71910 CE/HCDBG0VQ126, 71910-CE/HCDBG0VQ126, 71910CEHCDBG0VQ126, 71910 EC HCD BG 0VQ126 |
| Dynamic Load Rating | 12,700 N (per bearing) |
| Static Load Rating | 8,500 N (per bearing) |
| Rolling Elements | Ball |
| Item Weight | 0.118 kg (0.26 lb) per bearing |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Bearing Material | Hybrid: steel rings, ceramic balls |
| Cross Reference 1 | FAG HCB71910-C-T-P4S |
|---|---|
| Cross Reference 2 | NSK 7910CTYNSN24 |
| Cross Reference 3 | NTN 5S-7910C |
SKF 71910 CE/HC is a super-precision, high-speed single row angular contact ball bearing in the 719 ultra-light series, with a 15° contact angle and ceramic (silicon nitride) balls in steel rings. The hybrid design runs cooler and faster than an all-steel bearing and is used in high-speed machine tool spindles.
719 — ISO dimension series 19, ultra-light section.
10 — bore code, 10 x 5 = 50 mm bore.
CE — 15° contact angle, high-speed E design.
HC — hybrid bearing: bearing steel rings with ceramic balls.
Bore Diameter: 50 mm. Outside Diameter: 72 mm. Width: 12 mm. Contact Angle: 15°. Dynamic Load Rating: 12,700 N per bearing. Static Load Rating: 8,500 N per bearing. Design: High-speed E. Bearing Material: Hybrid (steel rings, ceramic balls). Rolling Elements: Ball (ceramic). Number Of Rows: 1. Closure Type: Open. Item Weight: 0.118 kg (0.26 lb) per bearing.
Ceramic balls are lighter and stiffer than steel, which lowers centrifugal load and heat at high spindle speed.
Same envelope, 15° angle, hybrid ceramic: FAG HCB71910-C-T-P4S, NSK 7910CTYNSN24, NTN 5S-7910C. MPN variants: 71910 CE/HCDBG0VQ126, 71910-CE/HCDBG0VQ126, 71910CEHCDBG0VQ126, 71910 EC HCD BG 0VQ126. Harmonization Code: 8482.10.50.
