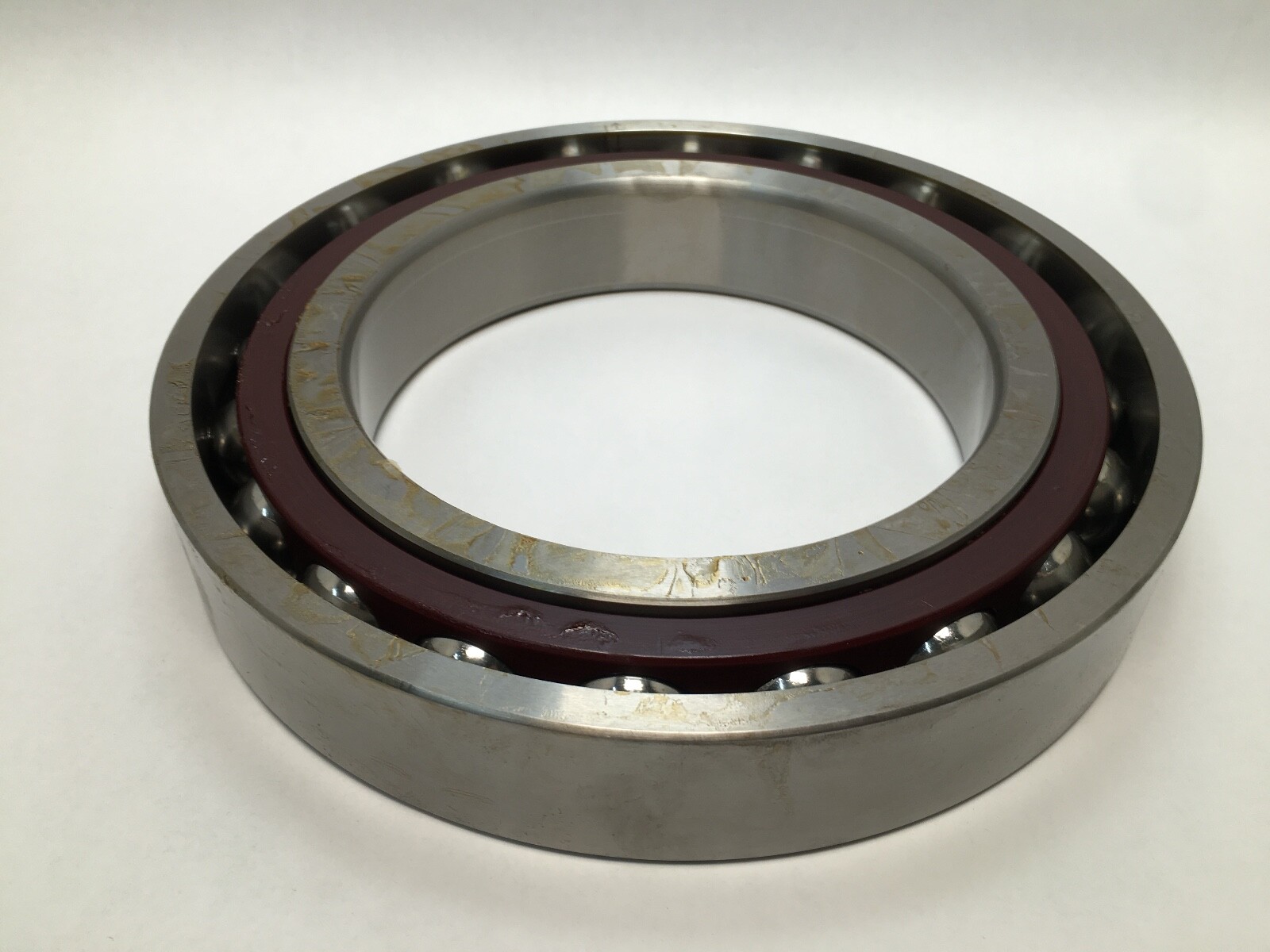

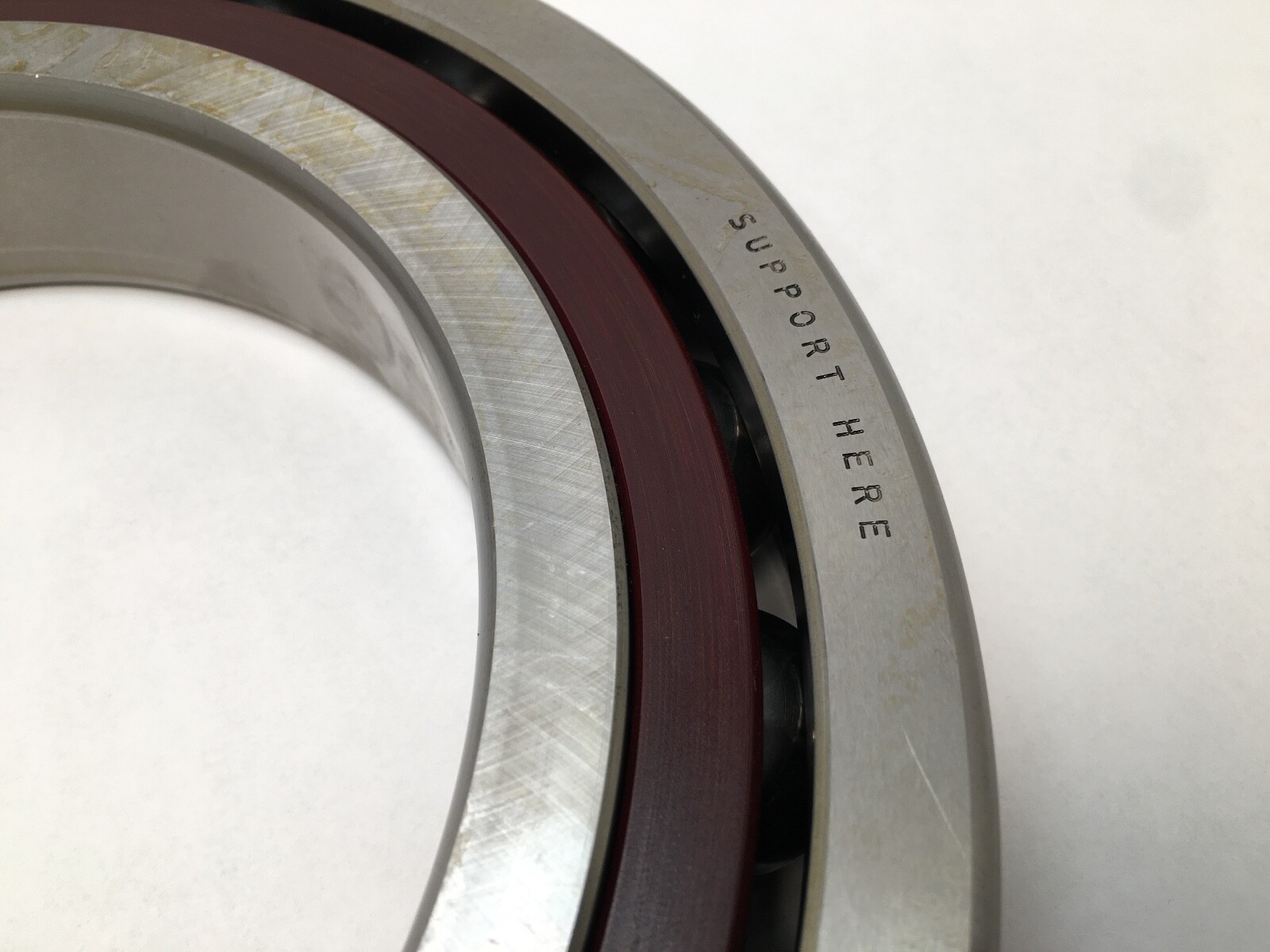

Single-row angular contact ball bearing, 180 x 280 x 46 mm, 15° contact angle. Open, machined phenolic cage, straight bore, chrome steel balls.
List Price
$1,529.98
3 in stock
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | SKF |
|---|---|
| MPN | 7036CTCC78G |
| Model | 7036CTC/C78/G |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 180 mm |
| OD | 280 mm (11.0236 in) |
| Width | 46 mm |
| Material | Chrome Steel |
|---|---|
| Series | 7000 |
| Condition | New – Open box |
| Base Number | 7036 |
| Industry Terms | Spindle bearing, super precision angular contact bearing, machine tool bearing, 15 degree angular contact |
| Common Misspellings | 7036 CTC C78 G, 7036CTCC78-G, SKF 7036CTCC78, 7036 CTCC78G |
| Application Types | Machine tool spindles, high-speed gearboxes, pump and compressor shafts, precision rotary tables |

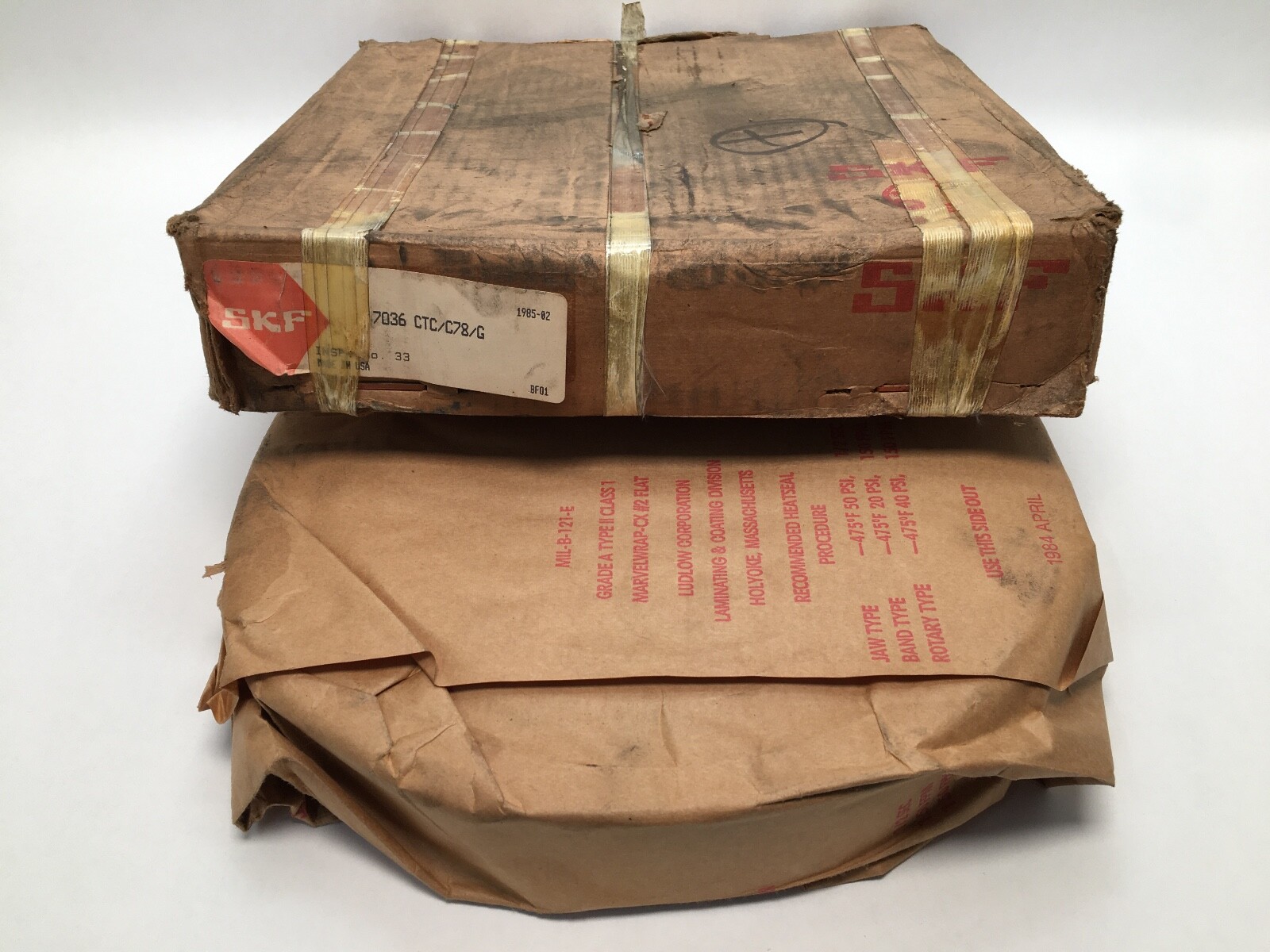

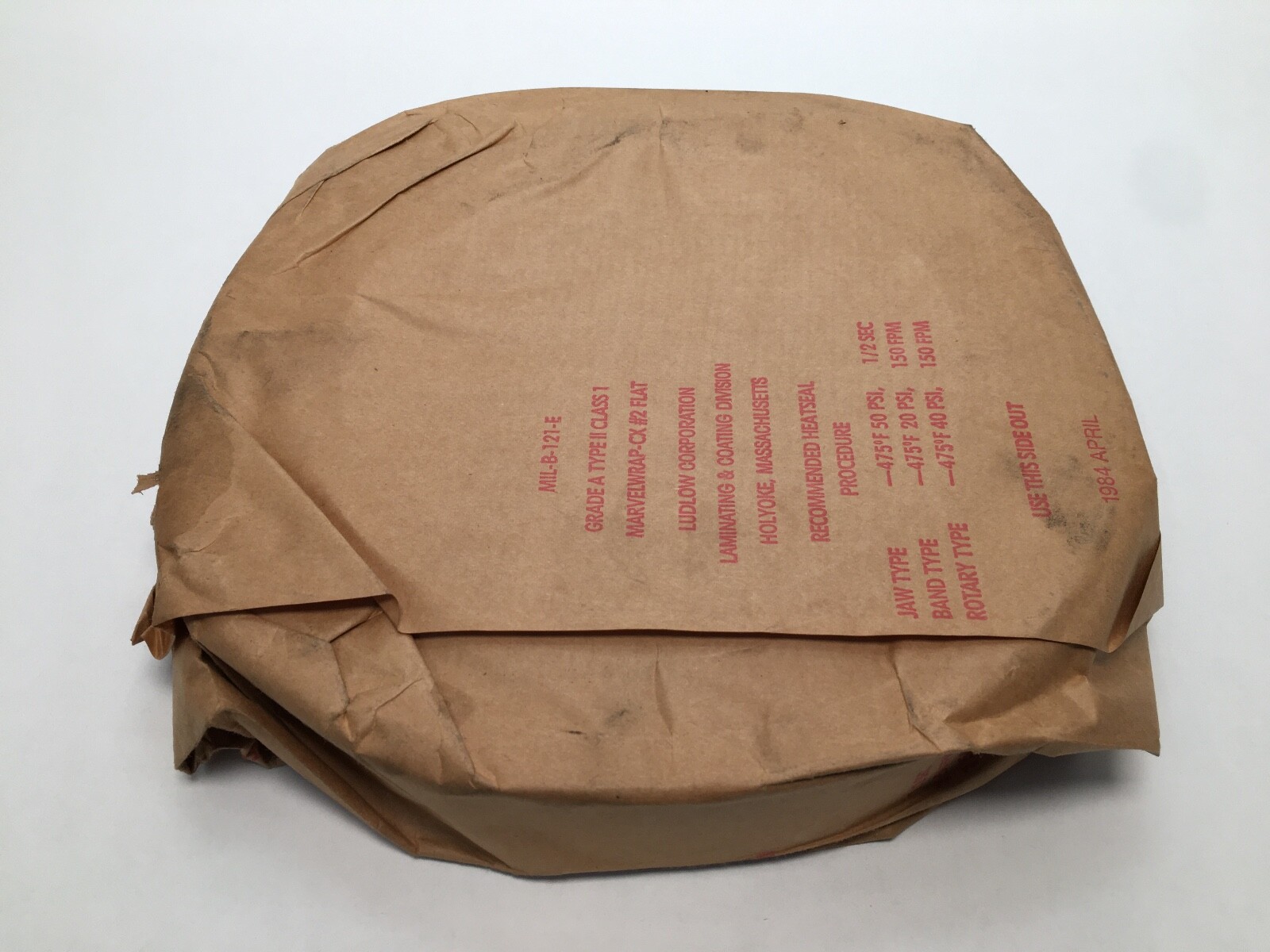

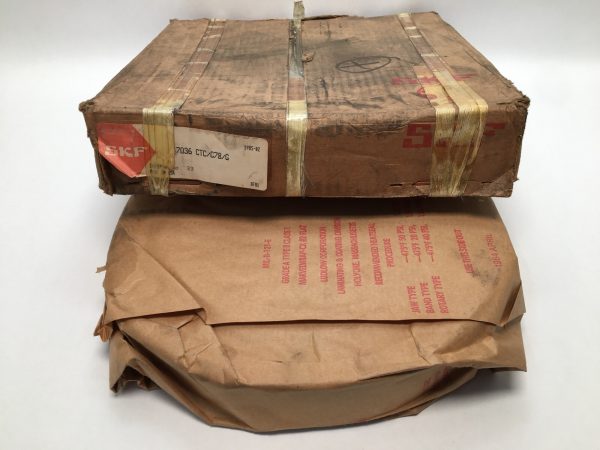

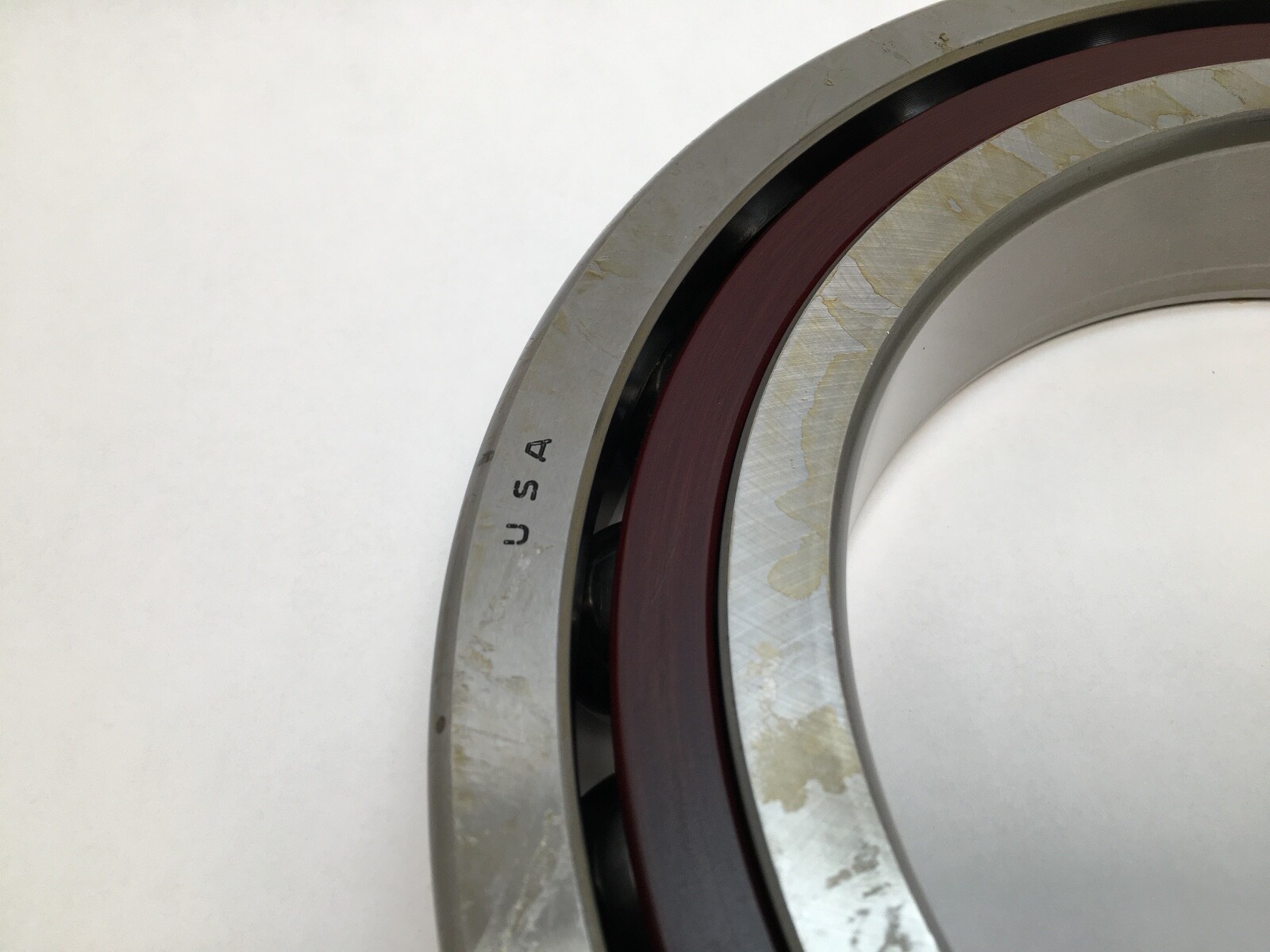

| Condition Note | Made In USA, New Old Stock |
| Overall Width | 46 mm (1.8110 in) |
| Bore Shaft Size | 180 mm (7.0866 in) |
| Mpn Variants | 7036CTCC78G, 7036 CTC/C78/G, 7036-CTC-C78-G, 7036 CTC C78 G, 7036CTC/C78/G, 7036CTC-C78-G |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.28 |
| Part Number | 7036CTCC78G |

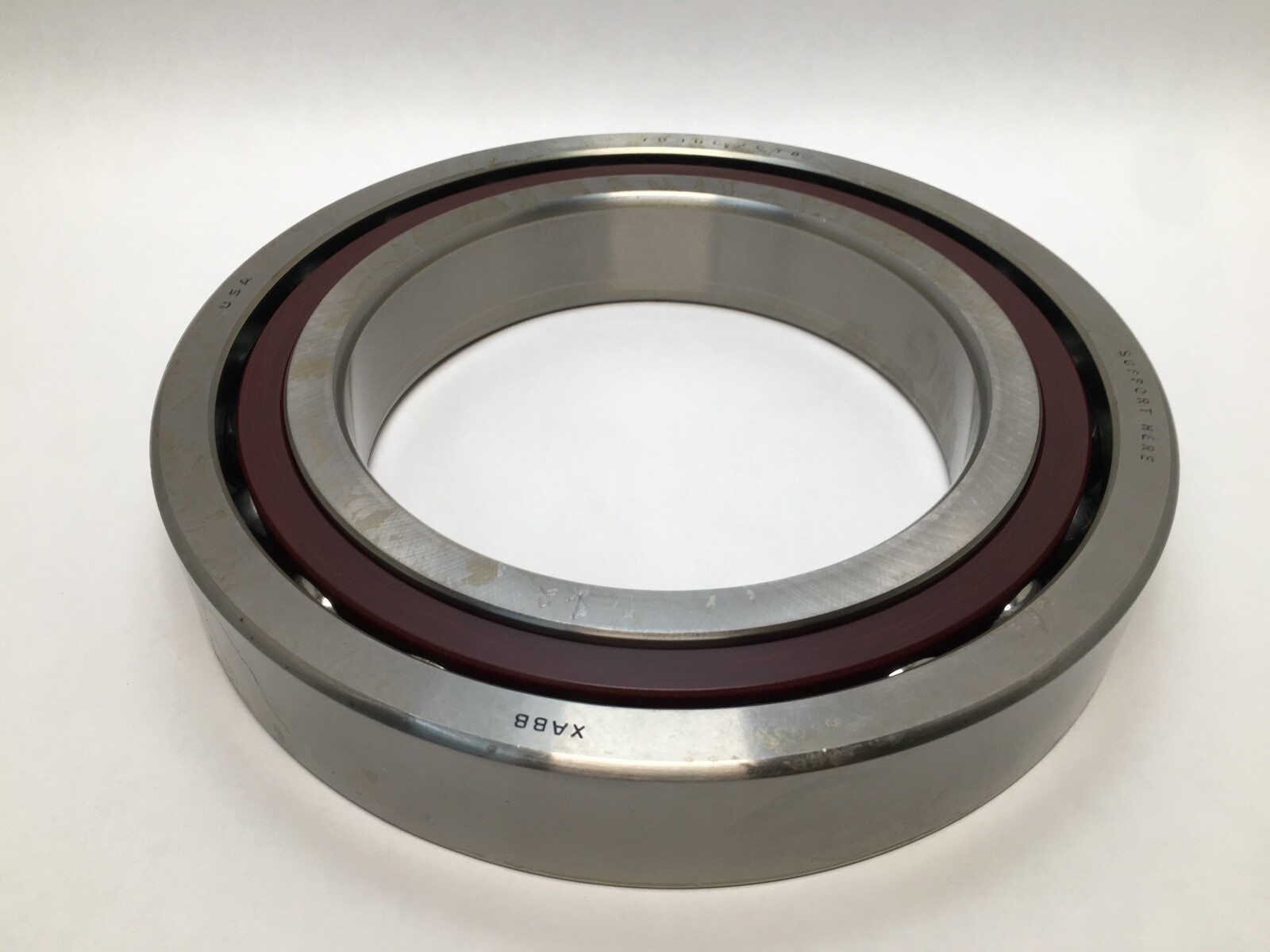

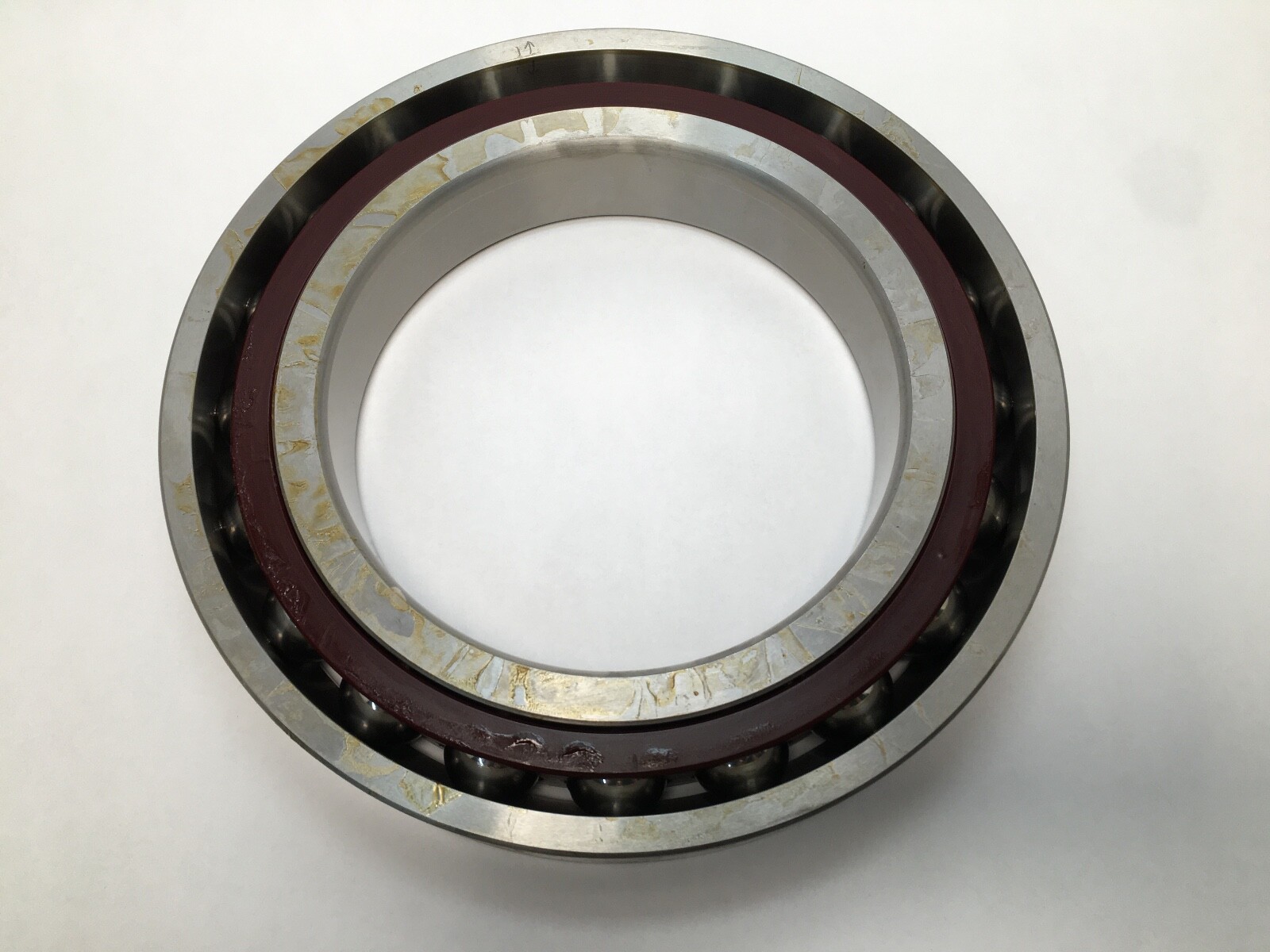

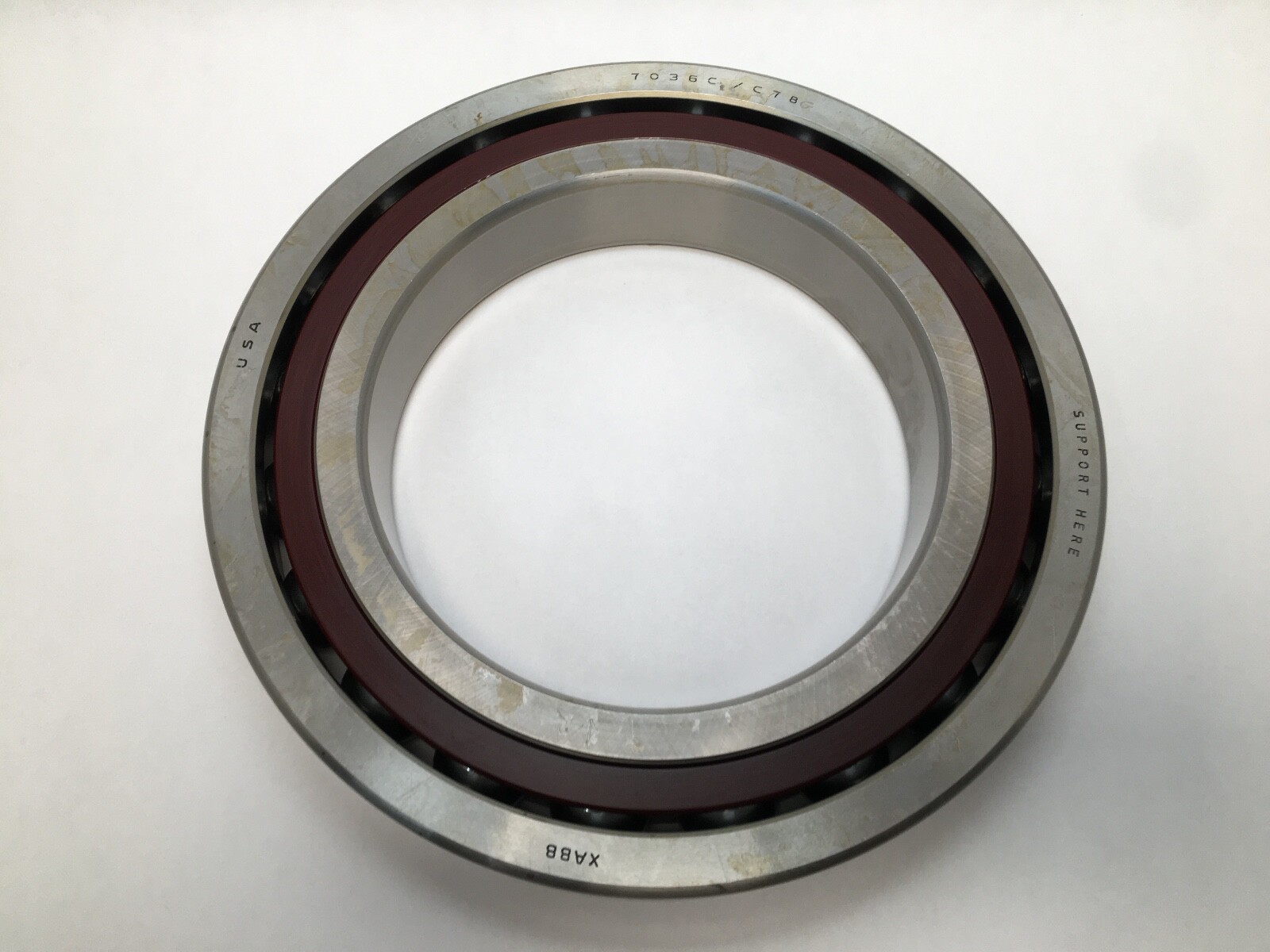

SKF 7036CTCC78G single-row angular contact ball bearing. Bore: 180 mm. Outside diameter: 280 mm. Width: 46 mm. Series: 70, light section. Bore form: straight. Closure: open on both faces. Rolling elements: chrome steel balls in a machined phenolic cage.

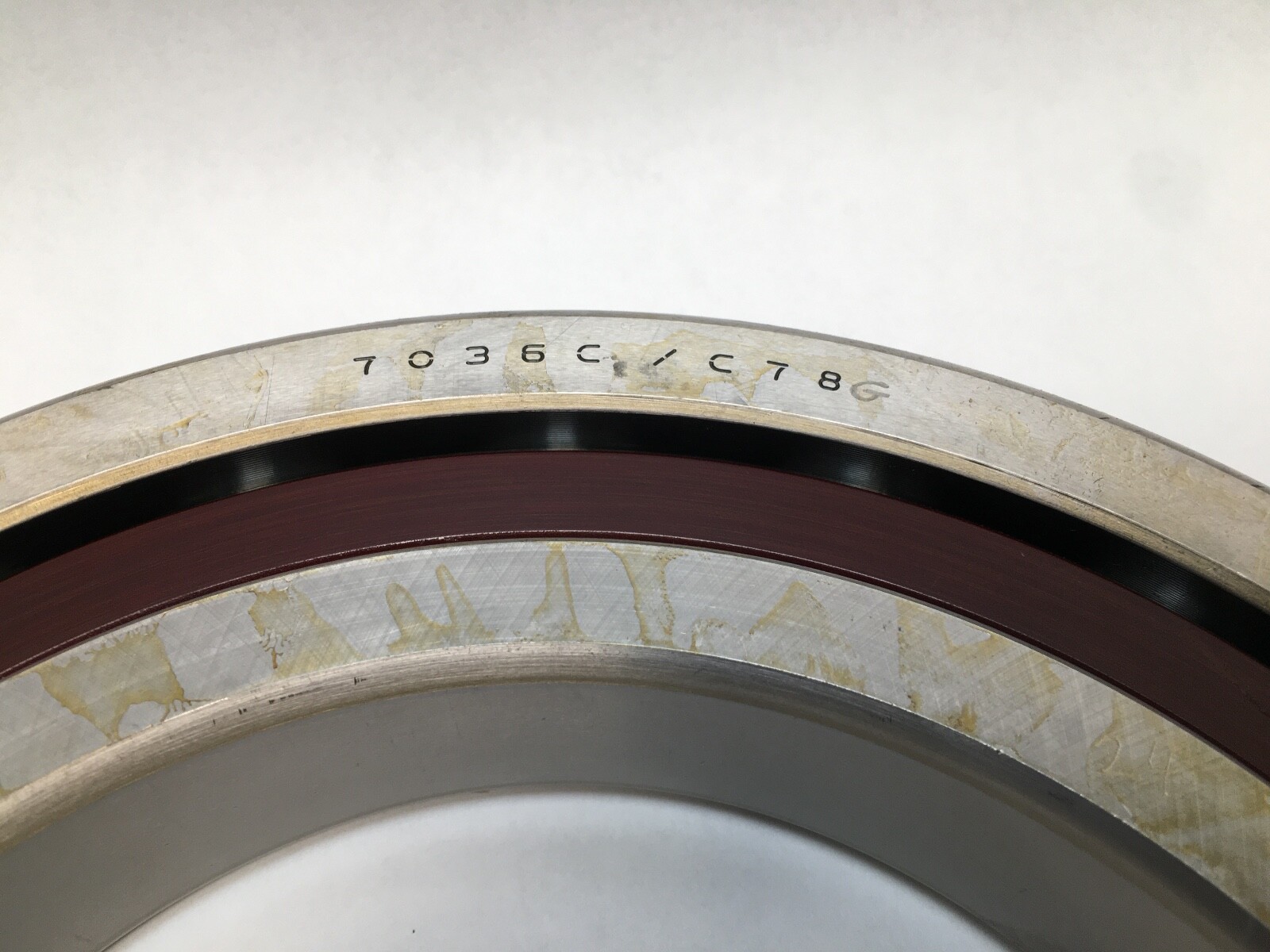

7036 gives the dimension series and a 180 mm bore. Contact Angle: 15°. Cage Material: phenolic fabric-base laminate. The trailing C78 and G tokens are carton variant markings and are carried as searchable part-number variants: 7036CTCC78G, 7036 CTC/C78/G, 7036-CTC-C78-G.

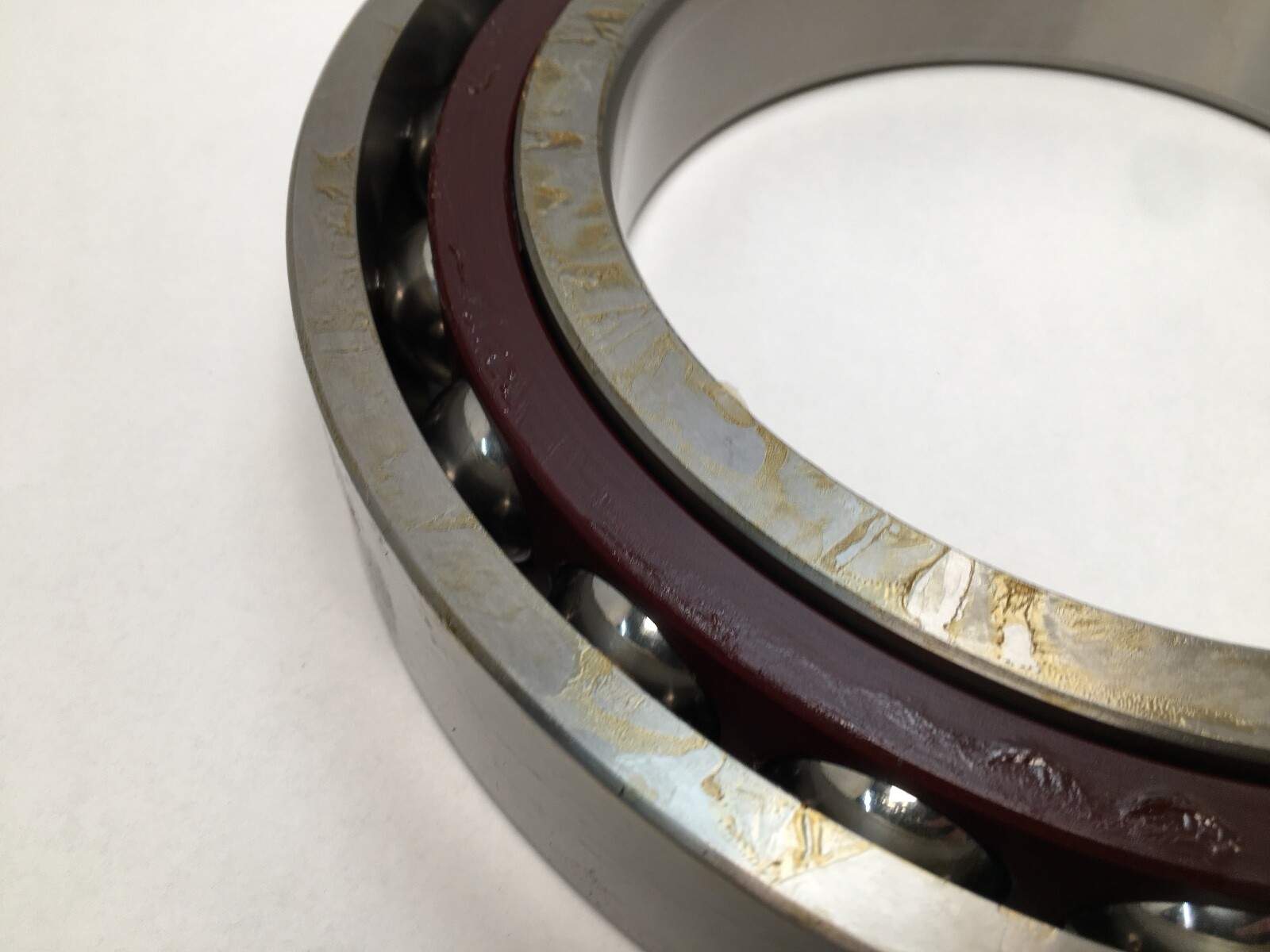

A 15° contact angle favours speed and radial stiffness over thrust capacity, which is the reason this angle is chosen for machine-tool spindles and high-speed gearboxes. Dynamic Load Rating: 247 kN (55,527 lbf). Static Load Rating: 325 kN (73,062 lbf). Limiting Speed: 4,000 rpm. A machined phenolic cage is light, self-lubricating and tolerant of high cage speeds, and it runs quieter than a pressed steel cage at the same duty.
Unit Quantity: 1 Pc. Single bearing, supplied open. Item weight: 25.4 lb.
Straight bore, mounted directly on the shaft seat. Both ring faces are ground for axial abutment. Operating range: -40 °C to 120 °C.
The same 180 x 280 x 46 mm envelope is shared by the SKF 7036 CD family at 15° and the 7036 ACD family at 25°. The 25° executions carry a different thrust rating and axial stiffness, so they are a related size rather than a substitution.
