Availability:
1 in stock

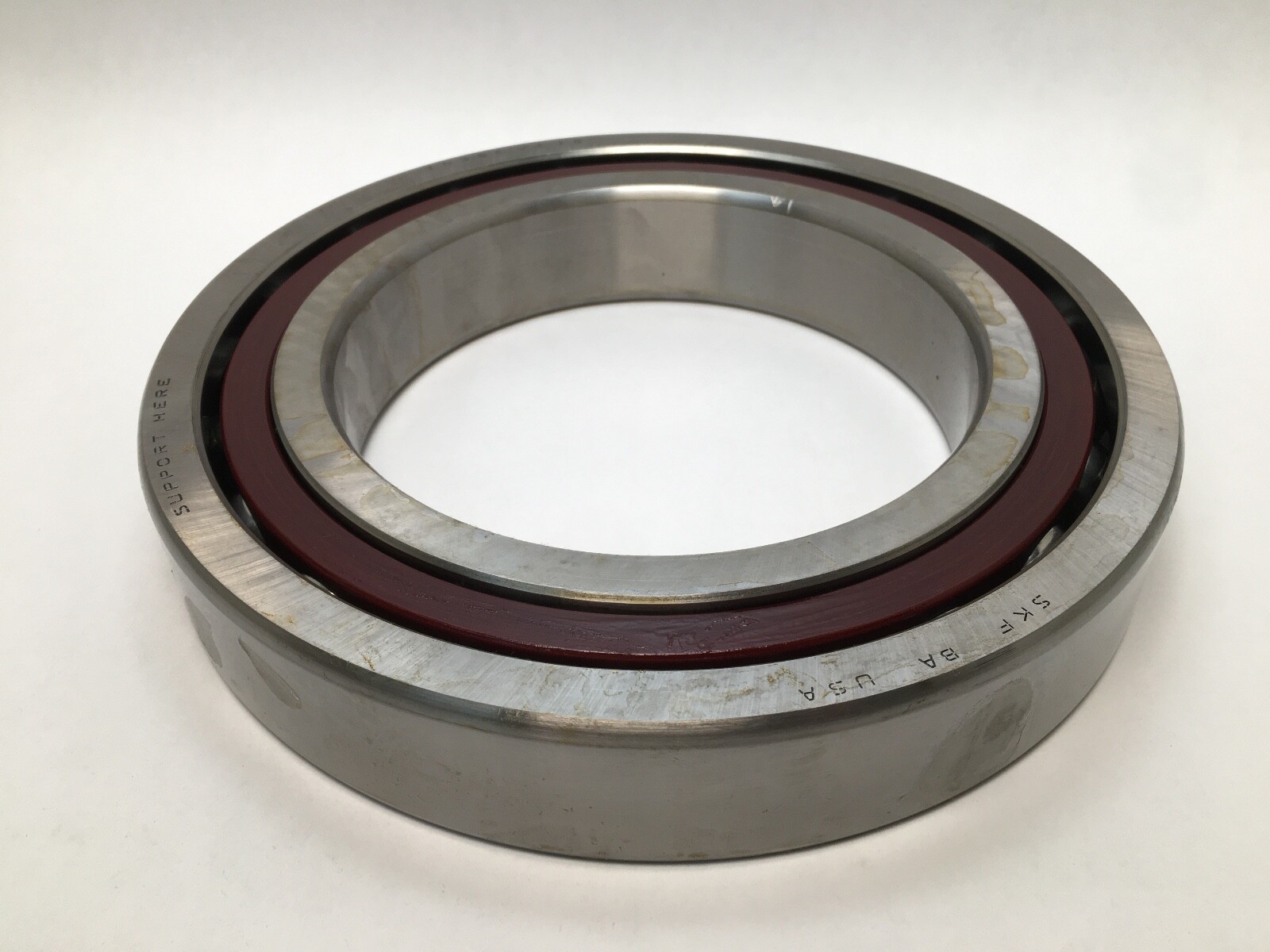

Angular contact ball bearing, 180 x 280 x 46 mm, 15° contact angle, open. Machined phenolic cage, straight bore, universally matchable execution.
List Price
$1,490.95
1 in stock
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | SKF |
|---|---|
| MPN | 7036CTCC78 |
| Model | 7036CTC/C78 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 180 mm |
| OD | 280 mm (11.0236 in) |
| Width | 46 mm |
| Series | 7000 |
|---|---|
| Condition | New – Open box |
| Material | Bearing Steel |
| Base Number | 7036 |
| Industry Terms | Spindle bearing, machine tool bearing, 15 degree angular contact ball bearing, precision angular contact |
| Common Misspellings | 7036 CTC C78, 7036CTC C78, SKF 7036CTC78, 7036 CTCC78 |
| Application Types | Machine tool spindles, high-speed gearboxes, pump and compressor shafts, precision rotary tables |
| Condition Note | Made In USA, New Old Stock |
| Overall Width | 46 mm (1.8110 in) |
| Bore Shaft Size | 180 mm (7.0866 in) |
| Mpn Variants | 7036CTCC78, 7036 CTC/C78, 7036-CTC-C78, 7036 CTC C78, 7036CTC/C78, 7036CTC-C78 |
| Precision Class | ABEC 5 / P5 |
| Min Temp | -30 °C |
| Cage Type | Machined |
| Dynamic Load Rating | 260 kN / 58500 lbf |
| Static Load Rating | 280 kN / 62900 lbf |
| Precision Rating | ABEC 5 / P5 |
| Rolling Elements | Balls |
| Max Temp | 120 °C |
| Item Weight | 21.0 lbs |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Not specified |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal |
| Design Units | Metric |
| Part Number | 7036CTCC78 |
| Cross Reference 1 | 7036 CD (SKF, 15°, universally matchable execution) |
|---|---|
| Cross Reference 2 | 7036 ACD (related size, 25° contact angle) |
| Cross Reference 3 | 7036CTCC78G (SKF, same base, additional G marking) |

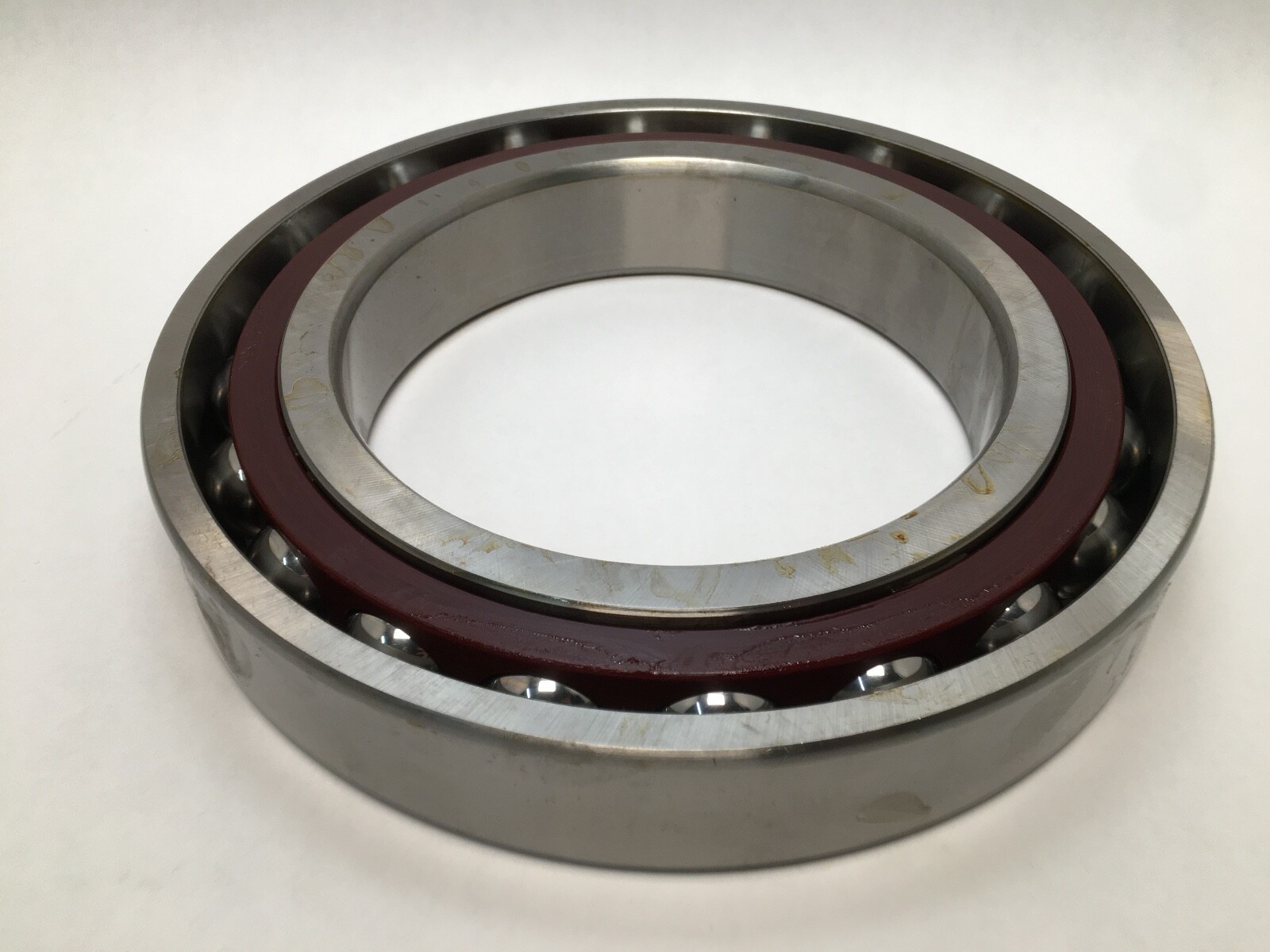

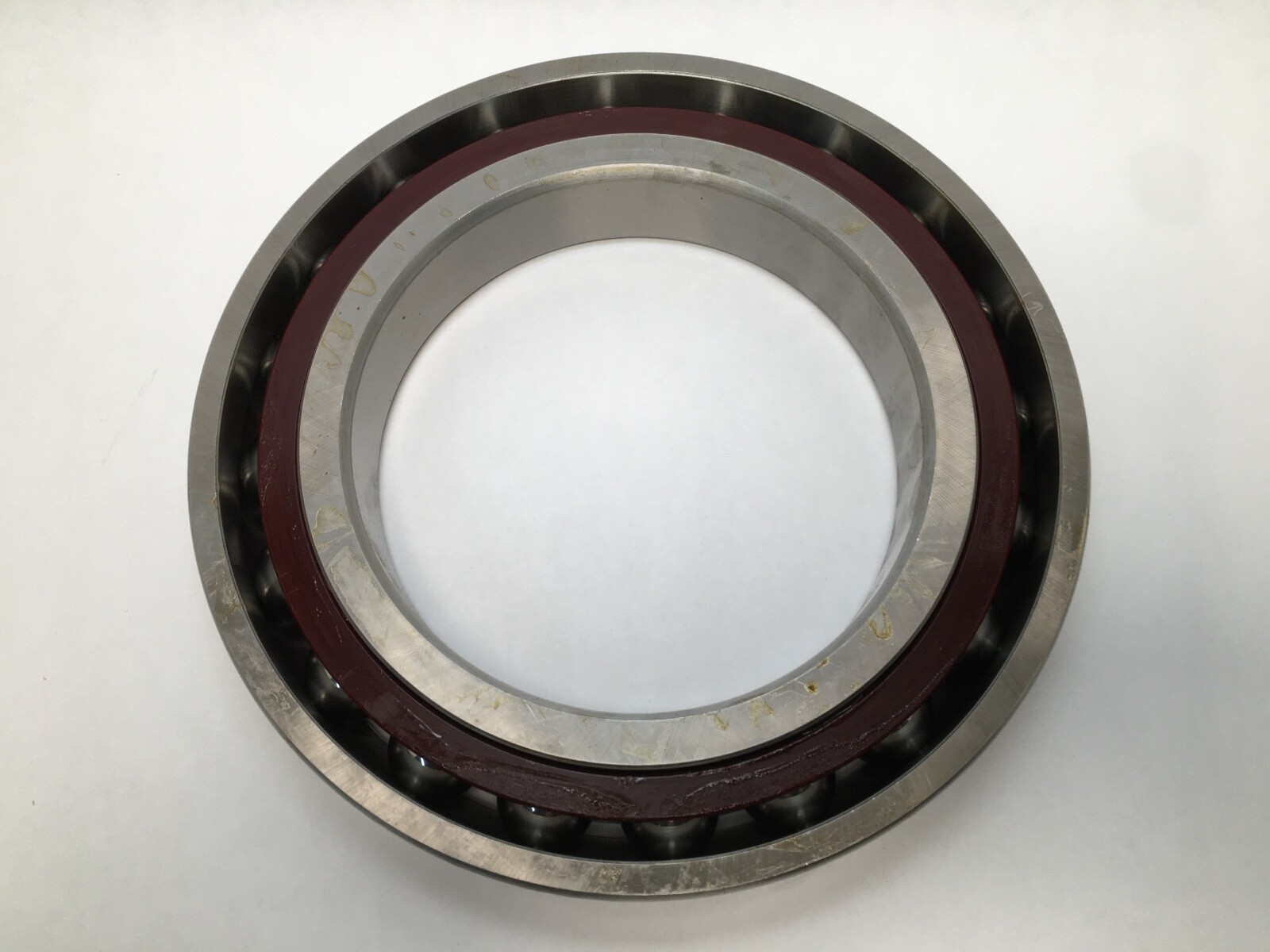

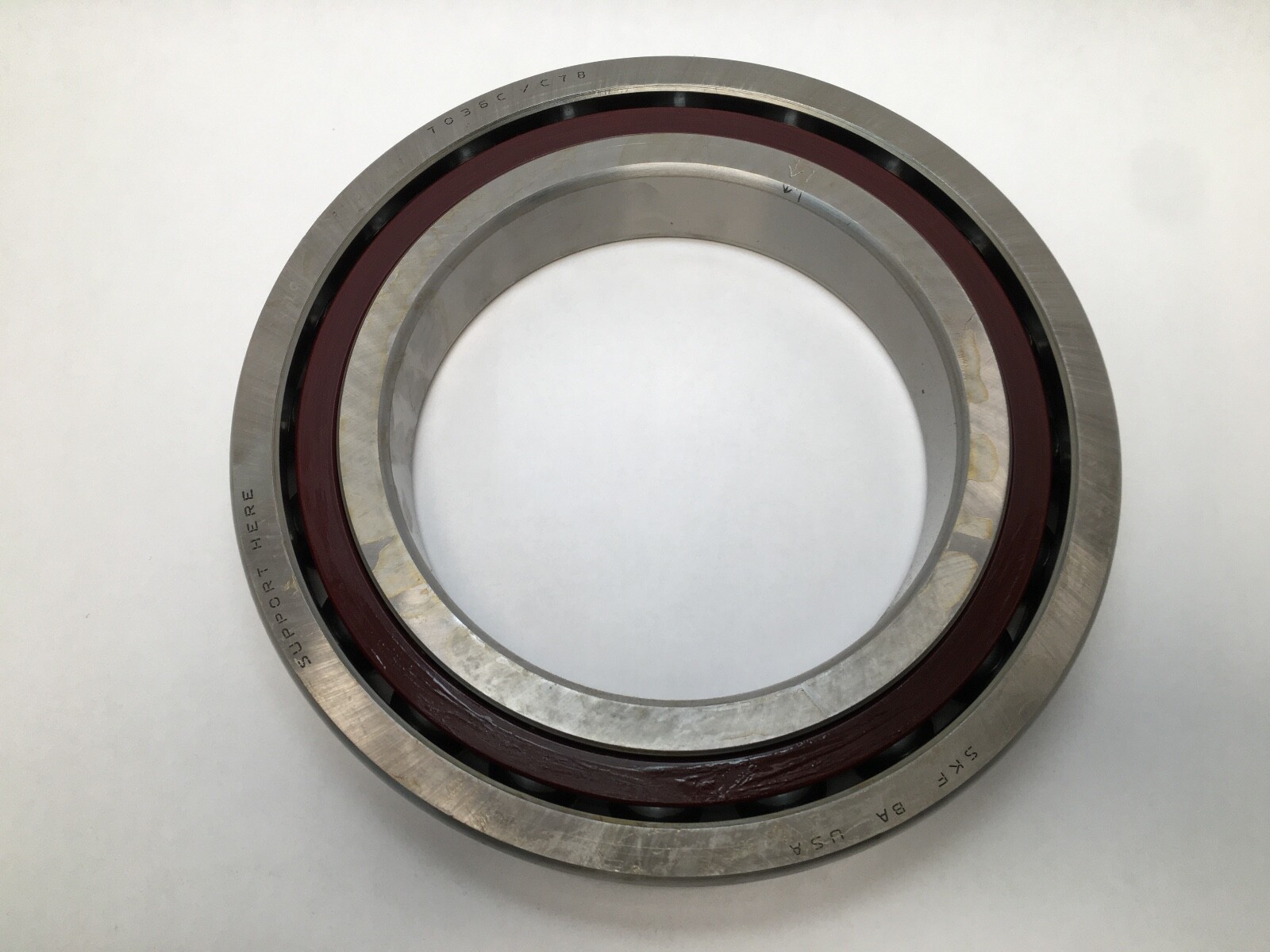

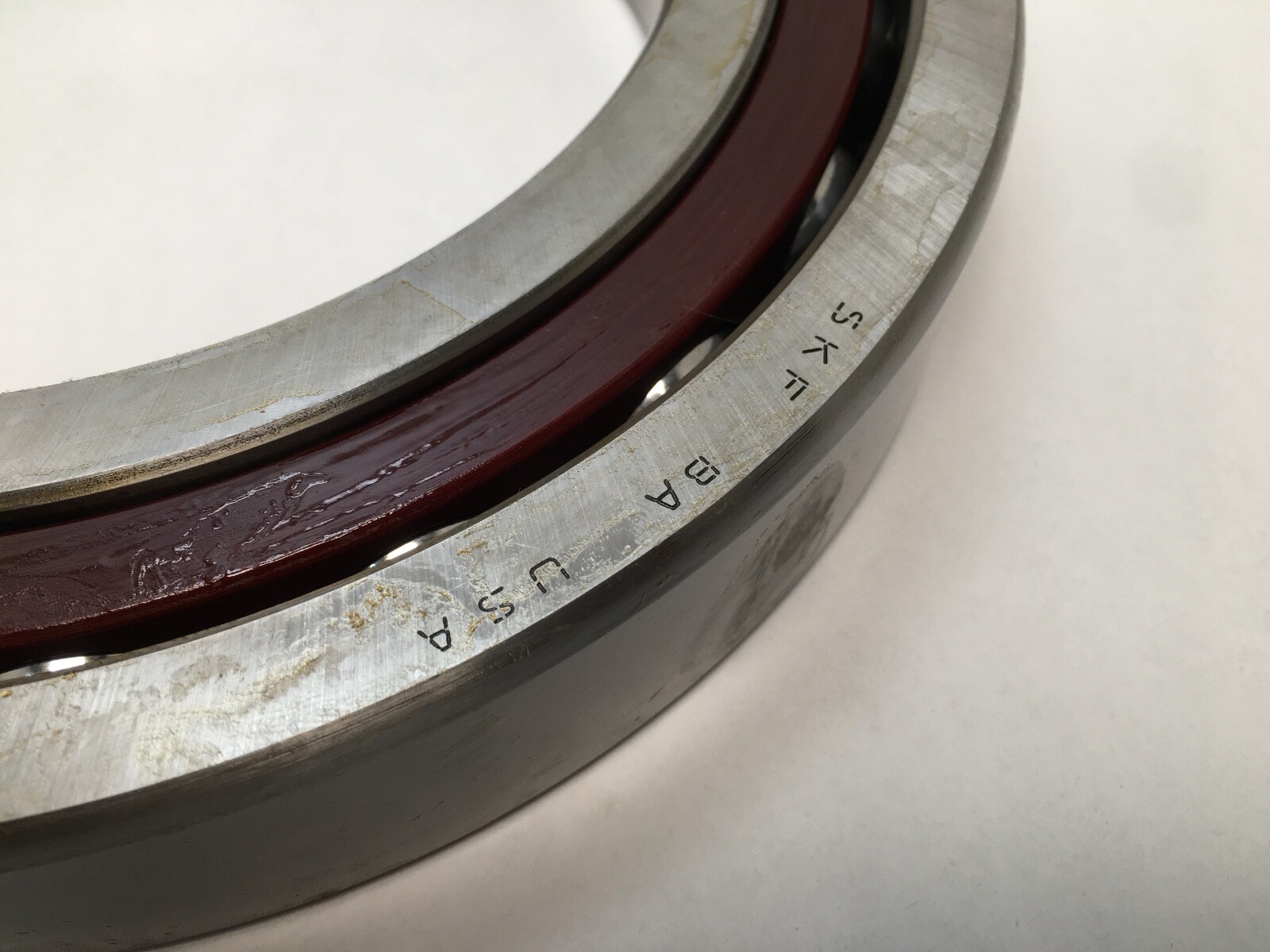

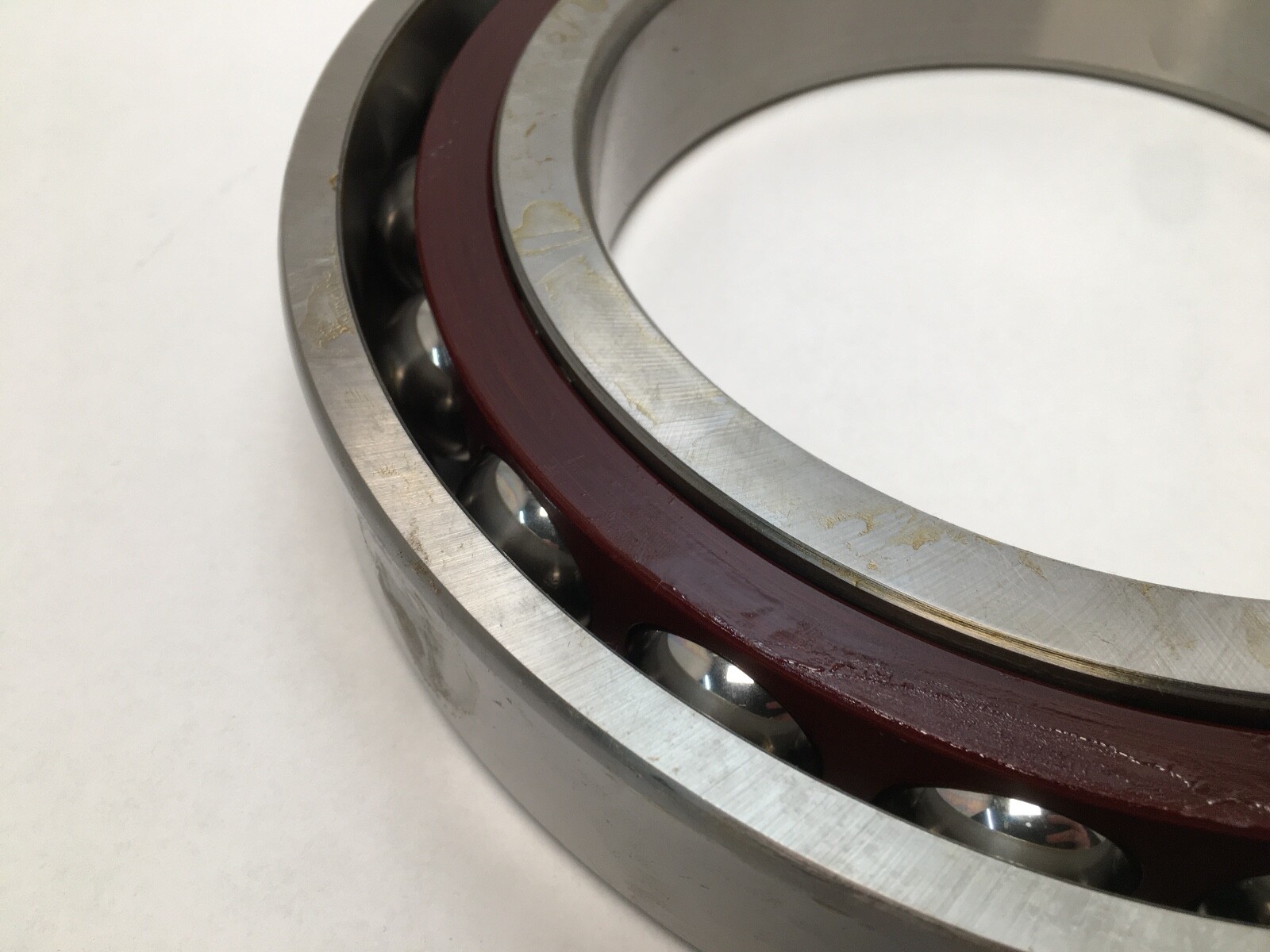

SKF 7036CTCC78 single-row angular contact ball bearing. Bore: 180 mm. Outside diameter: 280 mm. Width: 46 mm. Series: 70, light section. Bore form: straight. Closure: open on both faces. Rolling elements: steel balls in a machined phenolic cage.

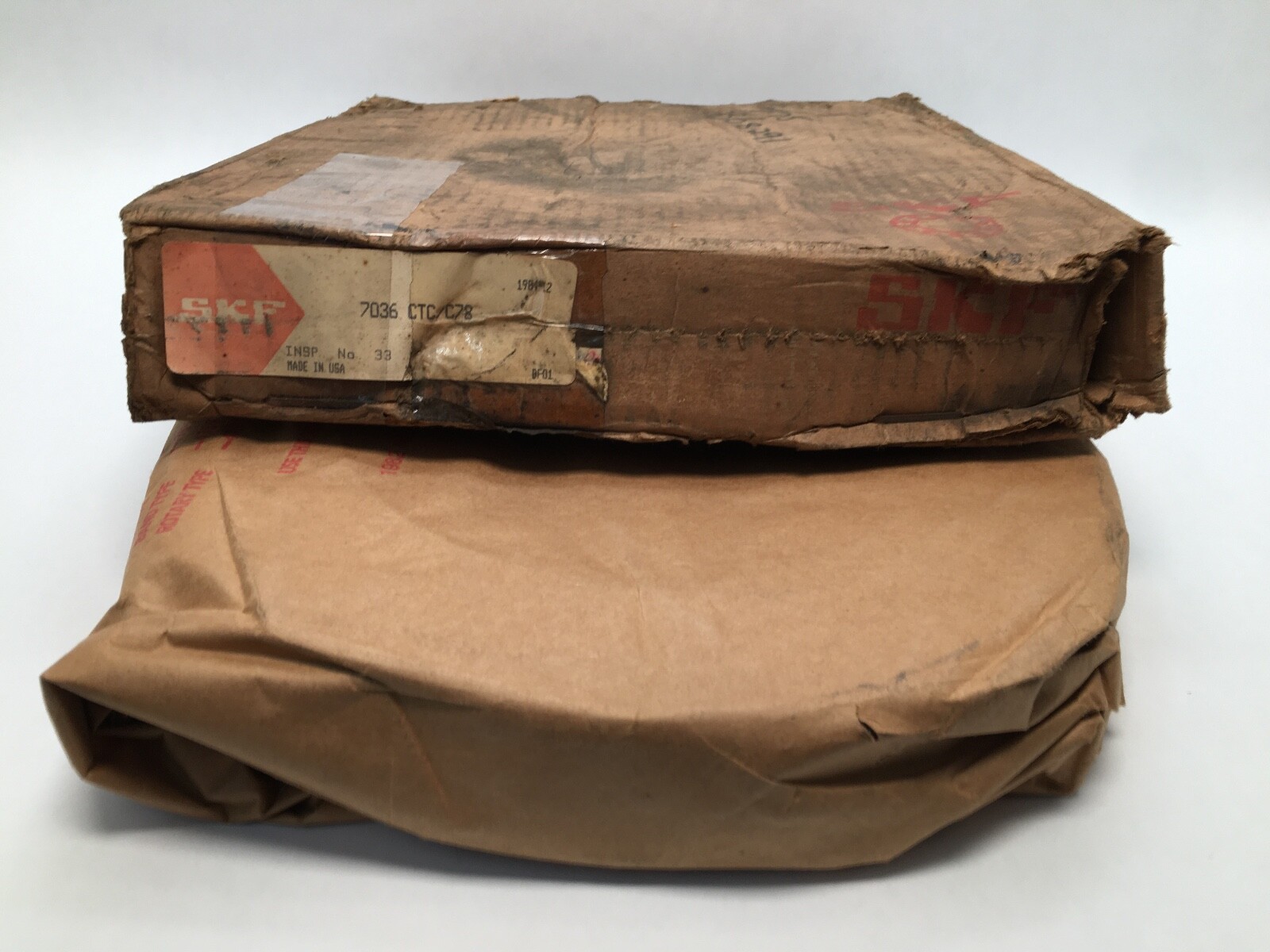

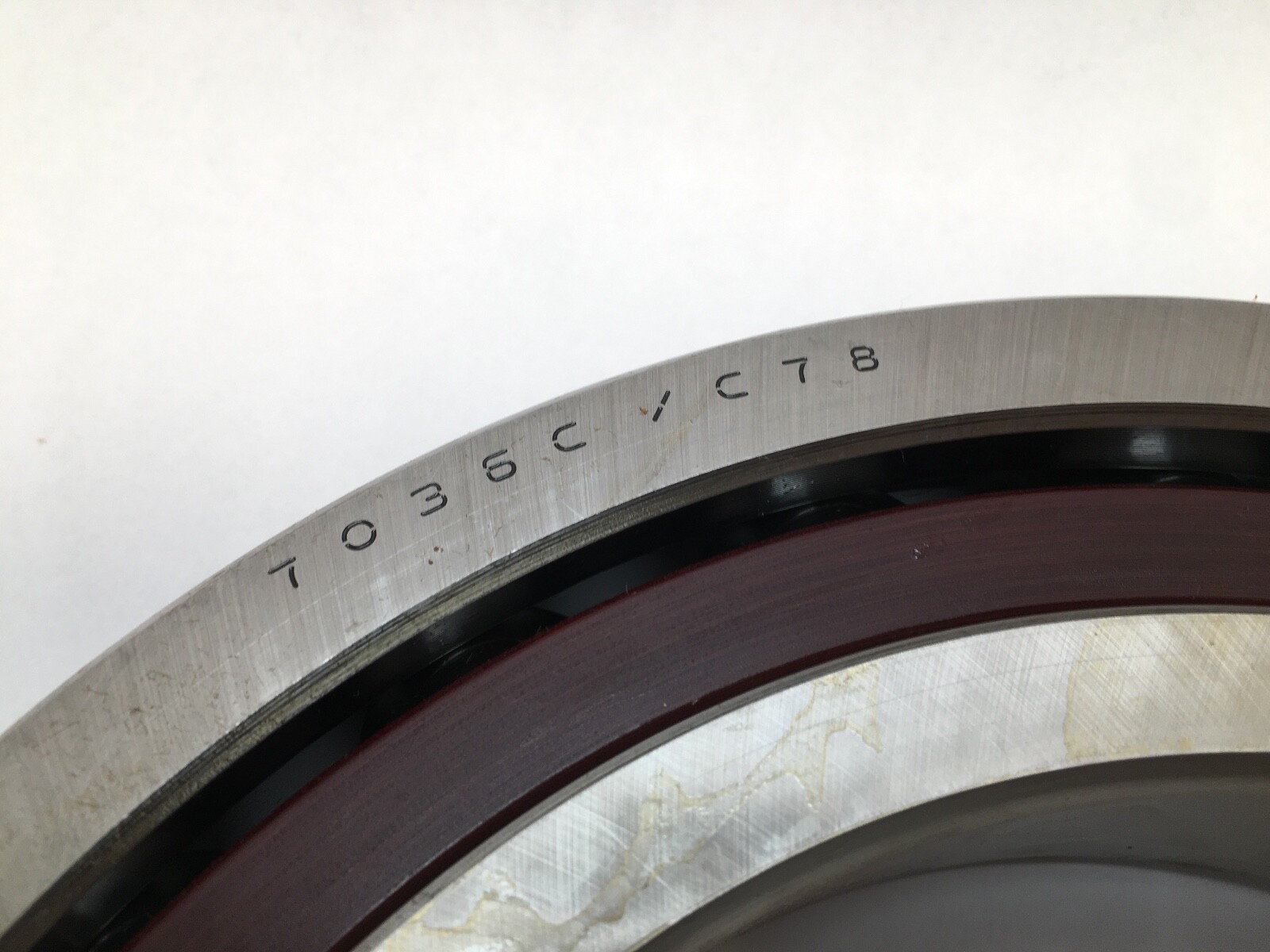

7036 gives the dimension series and a 180 mm bore. Contact Angle: 15°. Cage Material: phenolic fabric-base laminate. The C78 token is a carton variant marking, carried as a searchable part-number variant: 7036CTCC78, 7036 CTC/C78, 7036-CTC-C78.
A 15° contact angle favours running speed and radial stiffness, and carries thrust in one direction. Dynamic Load Rating: 260 kN (58,500 lbf). Static Load Rating: 280 kN (62,900 lbf). Limiting Speed: 2,800 rpm. Precision Rating: ABEC 5 / P5, giving closer bore and raceway runout than a standard-tolerance bearing.
Unit Quantity: 1 Pc. Single bearing, supplied open. Mounting Arrangement: universal, so pieces can be stacked back-to-back, face-to-face or in tandem. Item weight: 21.0 lb.

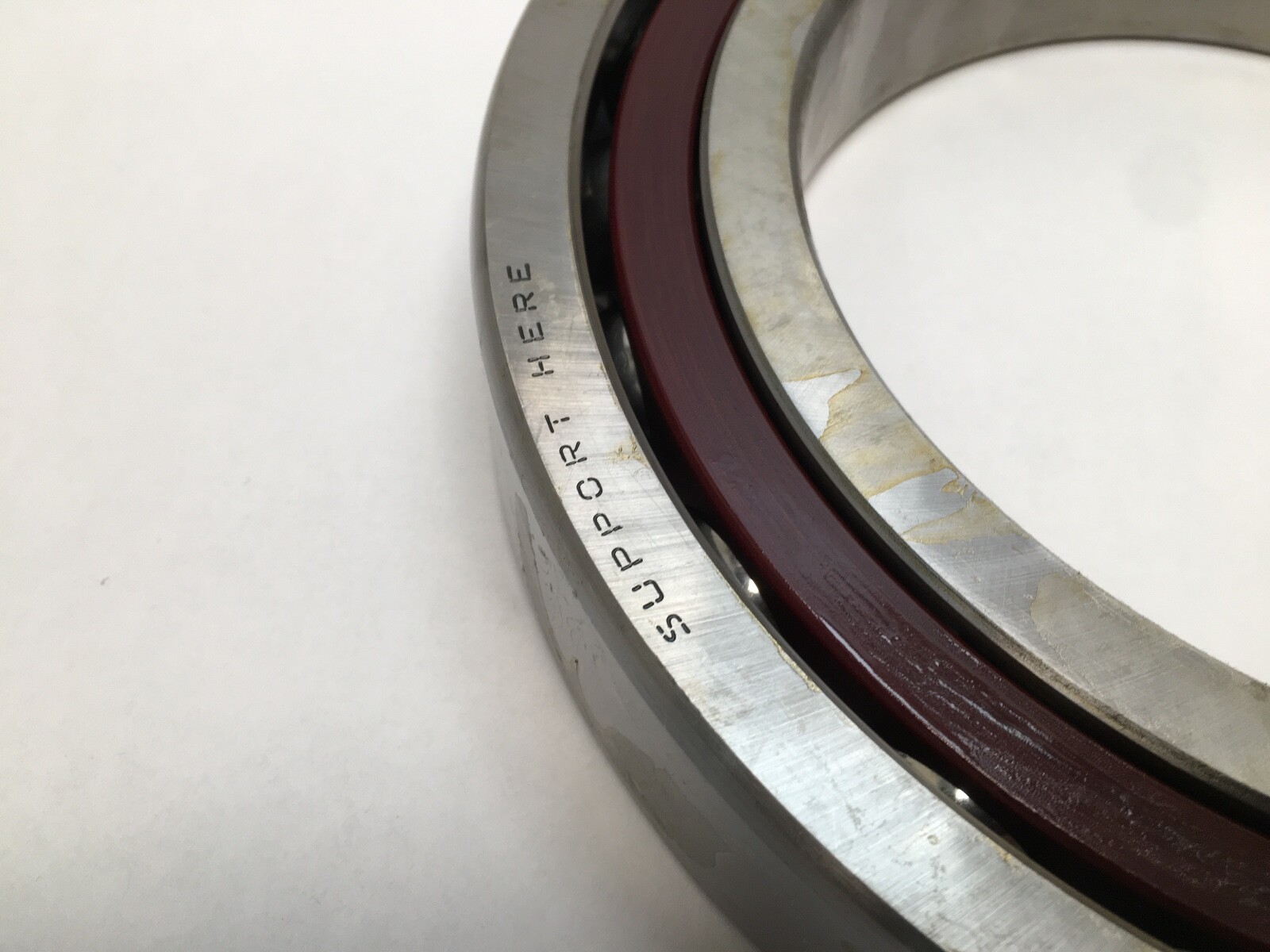

Straight bore, mounted directly on the shaft seat. Both ring faces are ground for axial abutment. Operating range: -30 °C to 120 °C.
The 180 x 280 x 46 mm envelope is shared with the SKF 7036 CD family at 15° and the 7036 ACD family at 25°. The 25° executions differ in thrust rating and axial stiffness, making them a related size rather than a substitution.
