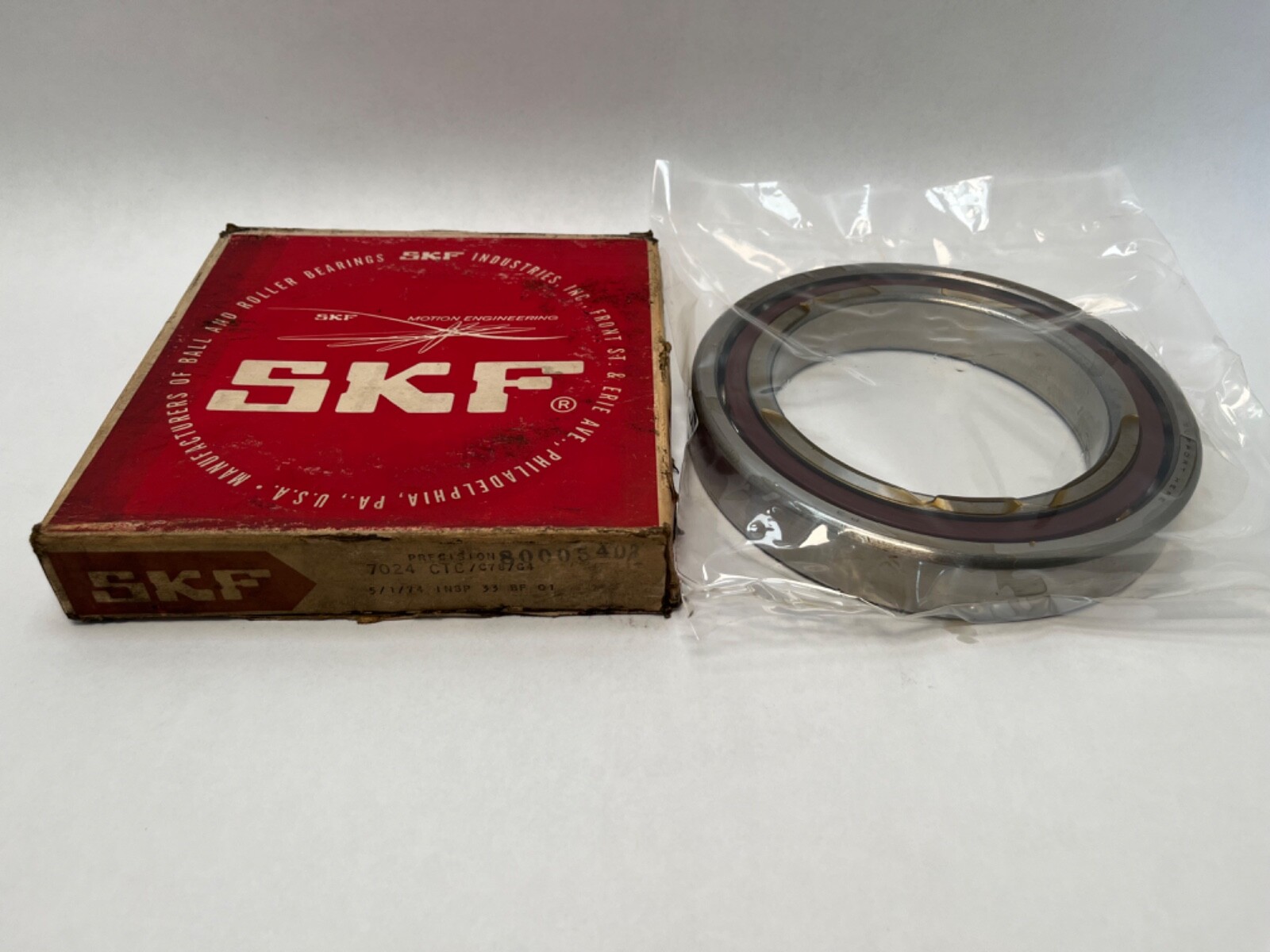

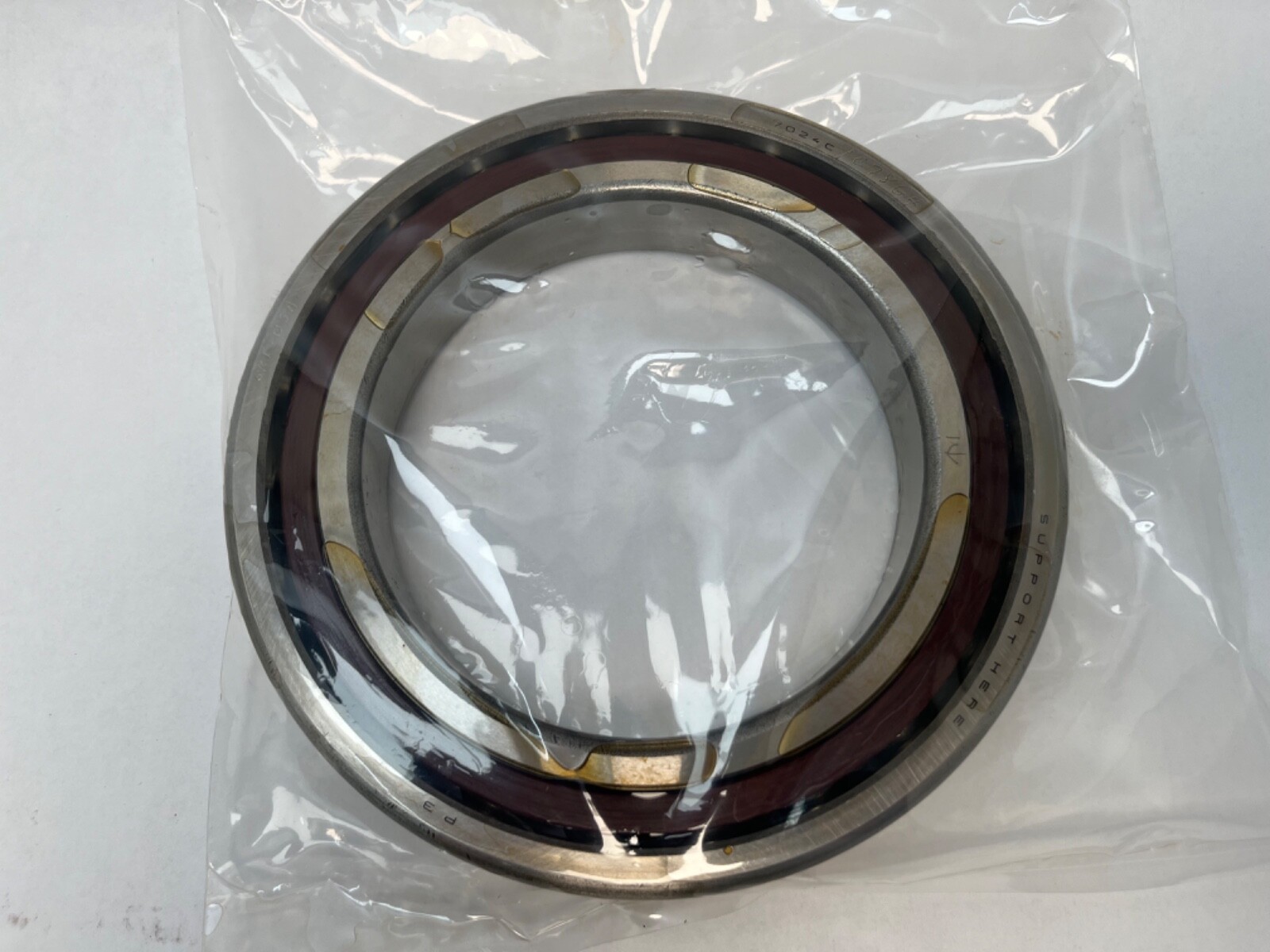

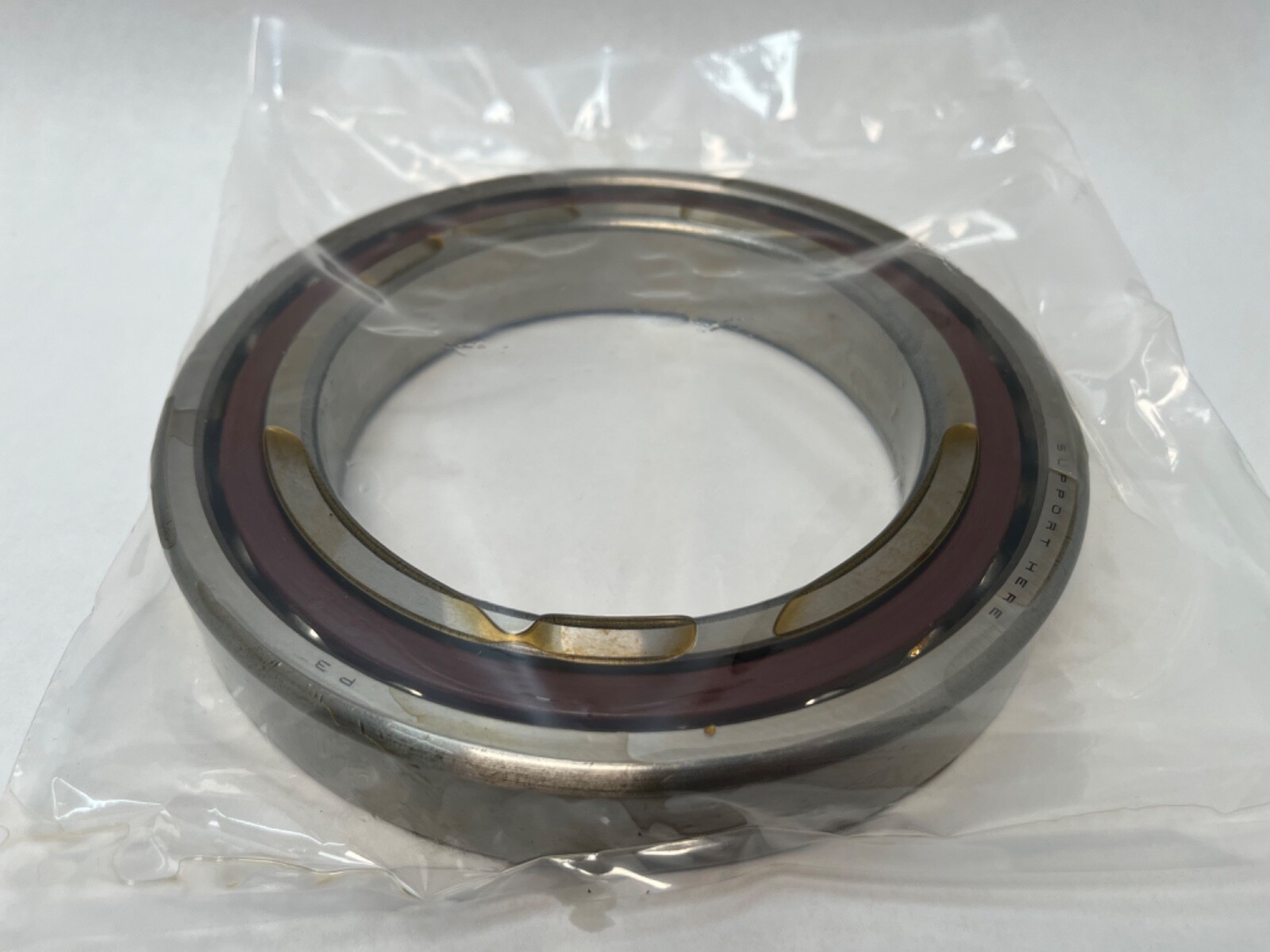

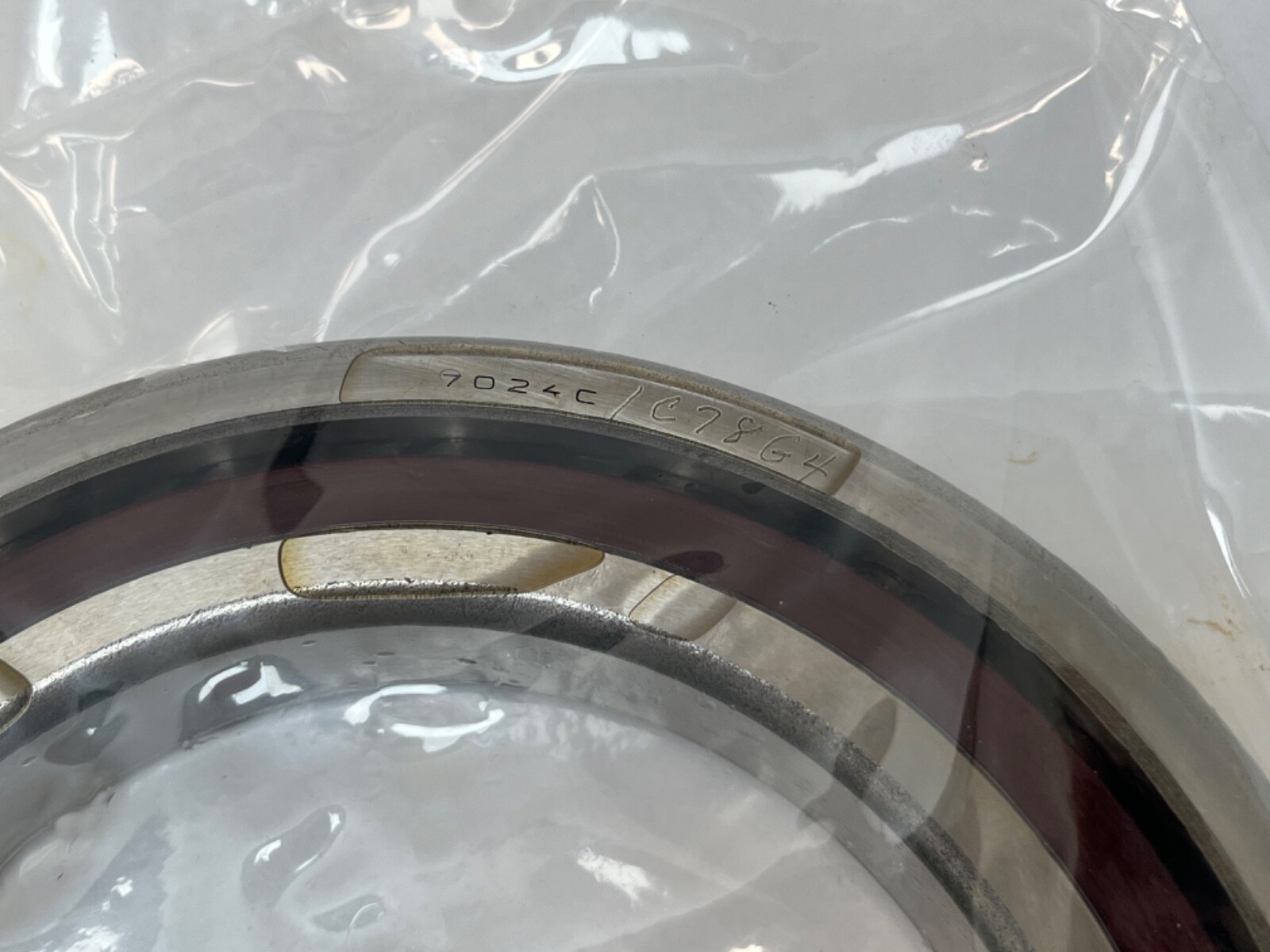

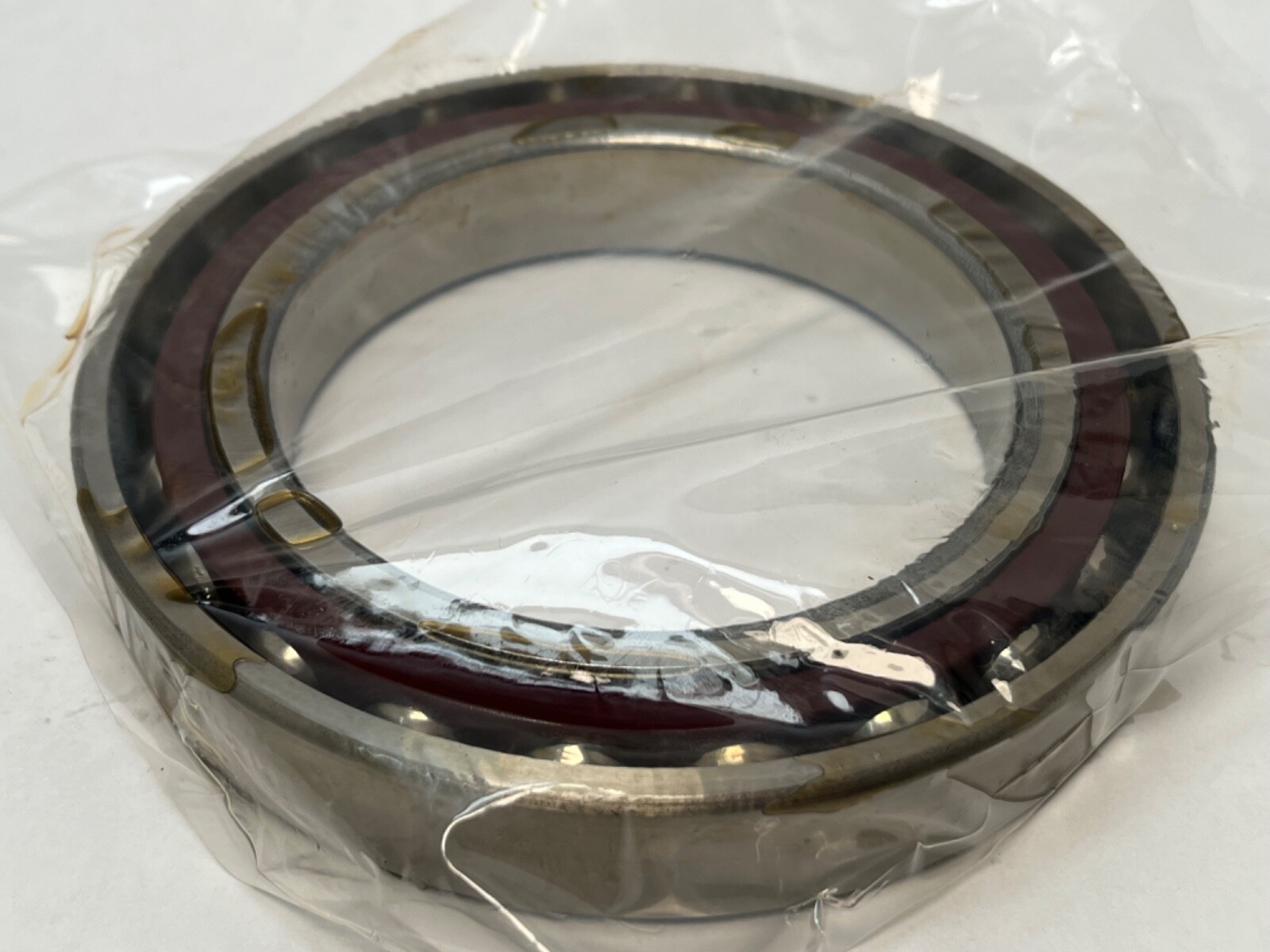

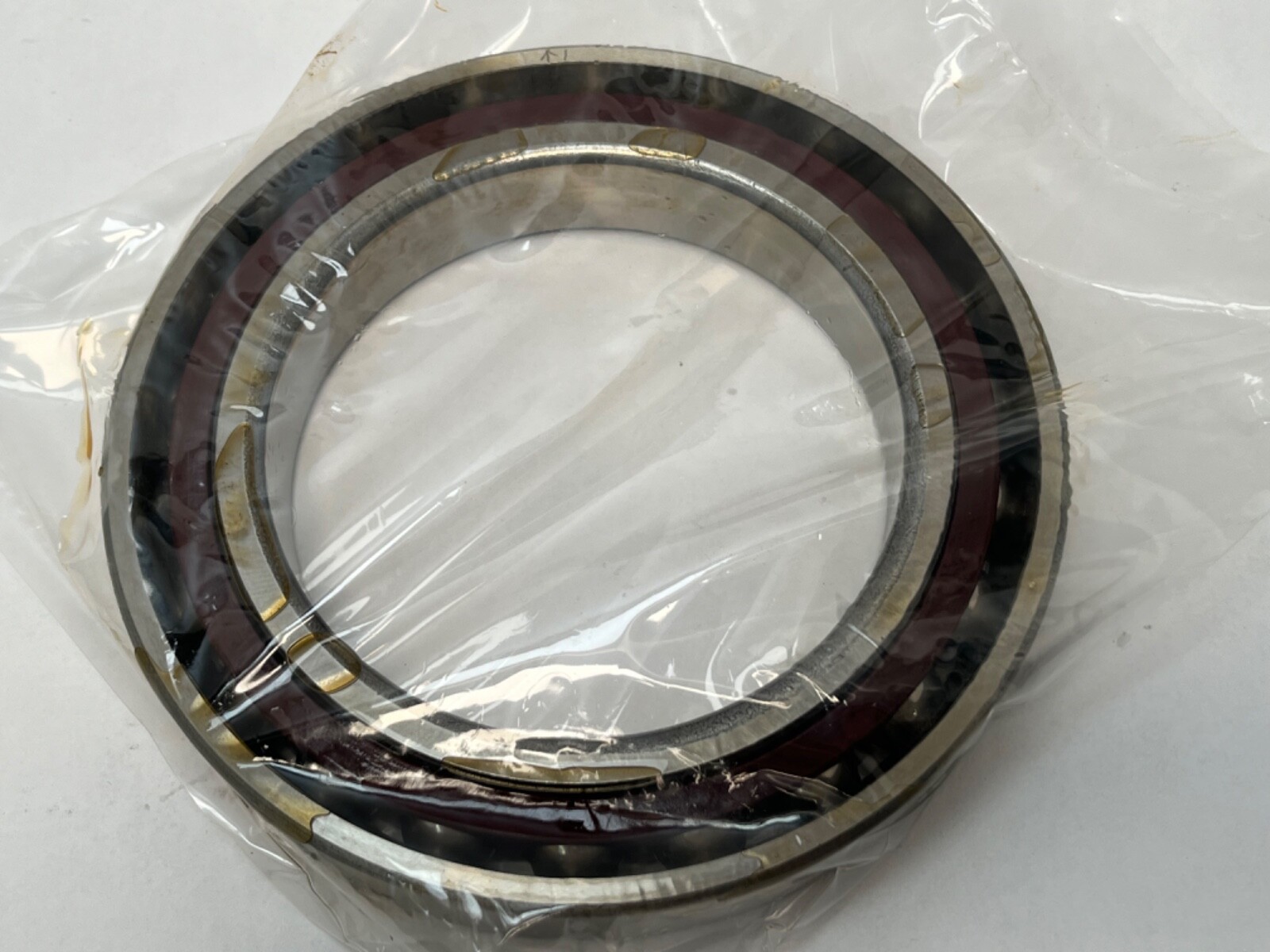

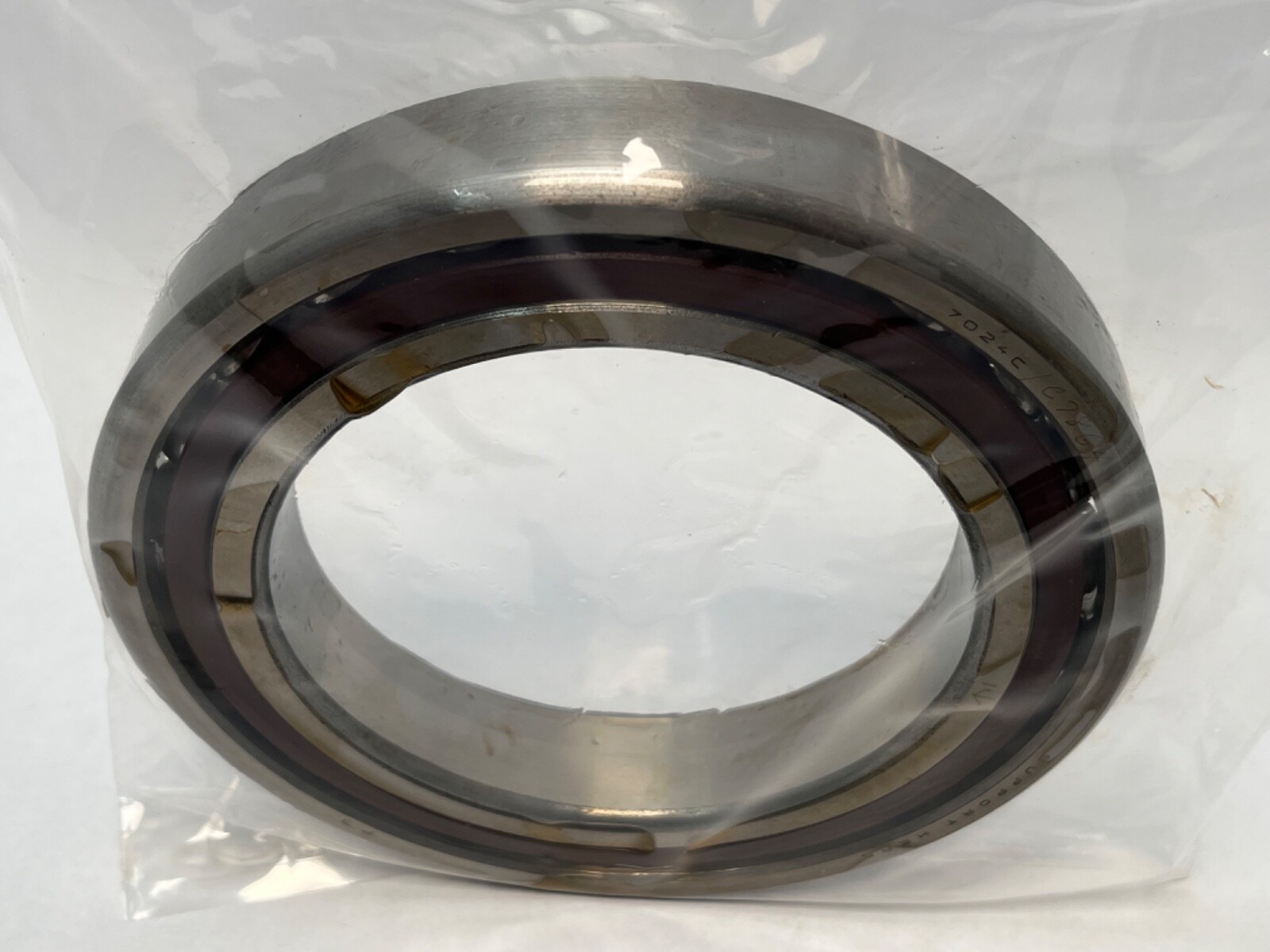

SKF 7024 CTC C78 G4 single row precision angular contact ball bearing, 120 x 180 x 28 mm, ISO 70 series boundary size, open, for machine tool spindles.
List Price
$545.10
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 7024CTCC78G4 |
| Model | 7024 C TC C78 G4 / 2M9124WI CR / ABEC5 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 120 mm |
| OD | 180 mm |
| Width | 28 mm |
| Material | Steel |
|---|---|
| Condition | New |
| Mpn Variants | 7024CTCC78G4, 7024 CTC C78 G4, 7024-CTC-C78-G4, 7024C |
| Series | 7000 |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Harmonization Code | 8482.10.50 |
SKF 7024 CTC C78 G4 is a single row precision angular contact ball bearing in the ISO 70 series boundary size, 120 mm bore. It carries combined radial and one-direction axial load and is used in machine tool spindles and precision drives.
70 — ISO dimension series 10, light section.
24 — bore code, 24 x 5 = 120 mm bore.
Bore Diameter: 120 mm. Outside Diameter: 180 mm. Width: 28 mm. Number Of Rows: 1. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open.
Unit Quantity: 1 Pc. Single bearing.
MPN variants: 7024CTCC78G4, 7024 CTC C78 G4, 7024-CTC-C78-G4, 7024C. Harmonization Code: 8482.10.50.
