Availability:
Out of stock
Angular contact spindle ball bearing, 85 mm bore x 130 mm OD x 22 mm wide, 15° contact angle, single row, phenolic cage, open, steel ball rolling elements.
List Price
$131.65
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Angular Contact Ball Bearing - 85 mm ID, 130 mm OD, 22 mm Width, ISO 70 Series, Open$238.75
Super Precision Angular Contact Ball Bearing - Straight Bore, 85 mm ID, 130 mm OD, 22 mm Width, Open, 15° Contact Angle, Extra Light Preload, 2 Pcs$589.03
Super-Precision Angular Contact Ball Bearing - Straight Bore, 85 mm ID, 130 mm OD, 22 mm Width, Open, 25° Contact Angle, Extra Light Preload, ABEC 7 / P4.$589.03
Super Precision Angular Contact Ball Bearing 85x130x22 mm, 15° Contact Angle, Phenolic Cage, ISO P4 / ABEC 7, Universally Ground Medium Preload$76.49| MFR / Brand | SKF |
|---|---|
| Model | 7017 C TC C78 G4 / 2M9117WI CR |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 85 mm |
| OD | 130 mm |
| Width | 22 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Lubricant | Oil |
| Base Number | 7017C |
| Industry Terms | angular contact ball bearing, spindle bearing, phenolic cage bearing, 15 degree angular contact, special preload bearing |
| Common Misspellings | SKF 7017CTC C78 G4, 7017CTCC78G-4, SFK 7017CTCC78G4, 7O17CTCC78G4, SKF 7017 CTCC78G4 |
| Application Types | Machine tool spindles, grinding spindles, high-speed gearboxes, precision rotary tables |
| Bore Shaft Size | 85 mm (3.3465 in) |
| Mpn Variants | 7017CTCC78G4, 7017-CTC-C78-G4, 7017 CTC C78 G4, 7017CTC, 7017C, 7017CTCC78 |
| Manufacturer Status | SKF active production |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Part Number | 7017CTCC78G4 |
| Cross Reference 6 | G4 |
|---|
An SKF 7017 C/C78 angular contact ball bearing with an 85 mm bore, a 130 mm outside diameter and a 22 mm width. It has a phenolic cage.
7017: 70 angular contact series, 85 mm bore, 130 mm OD, 22 mm width. C: 15° contact angle in the SKF scheme. T: phenolic cage.
A 15° contact angle keeps the load line close to the radial plane, which limits centrifugal ball loading and raises the practical speed ceiling — the standard angle for high-speed spindle work. The 22 mm width in an 85 mm bore puts this in the light 70-series section, so the bearing fits where housing space is tight. The phenolic cage is light and self-lubricating, quiet at speed and tolerant of marginal lubrication, with a lower temperature ceiling than a brass cage.
Bore: 85 mm (3.3465 in). Outside diameter: 130 mm (5.1181 in). Width: 22 mm (0.8661 in). Contact angle: 15°. Cage material: phenolic. Number of rows: 1. Rolling elements: steel balls. Closure: open.

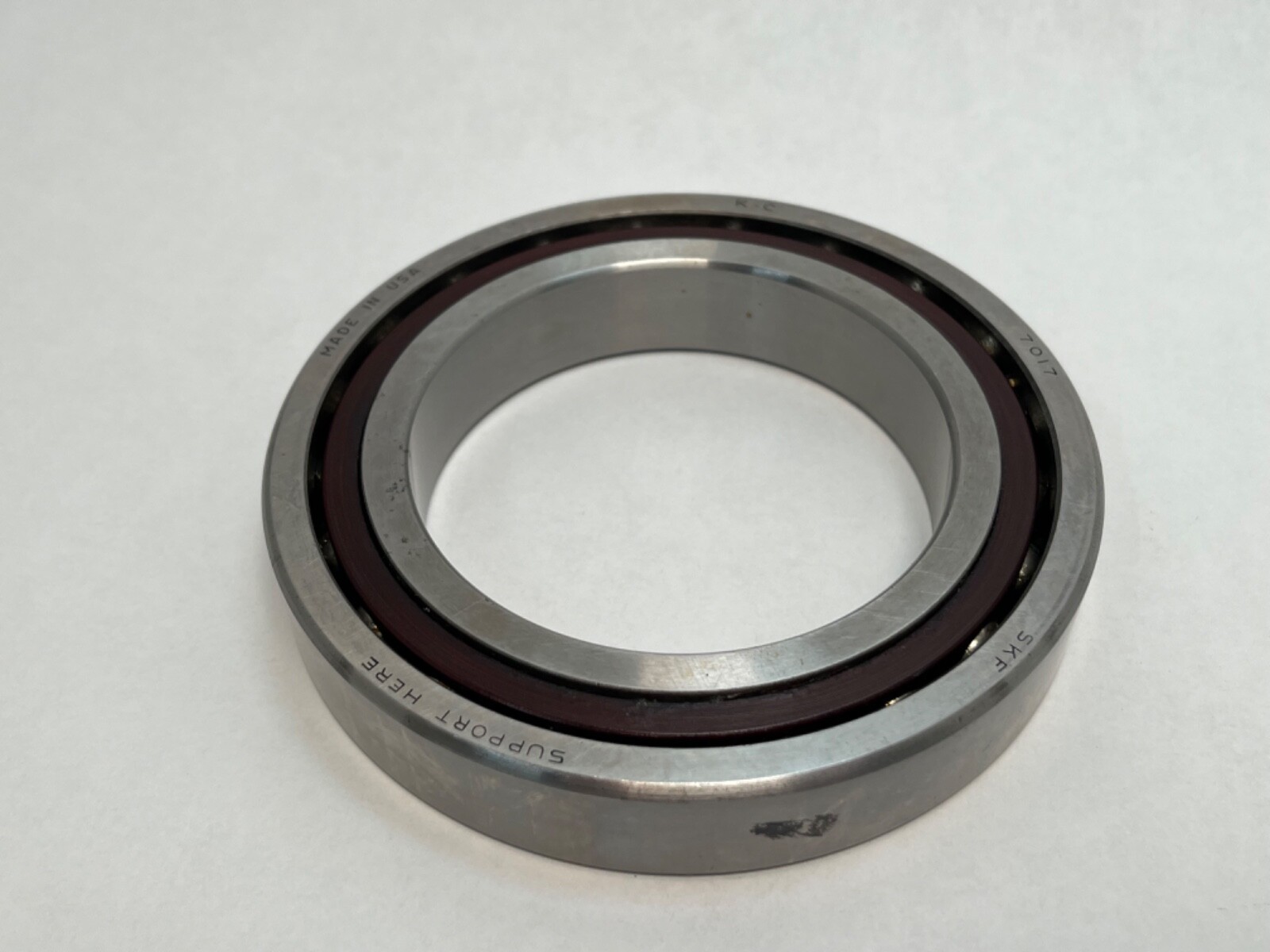

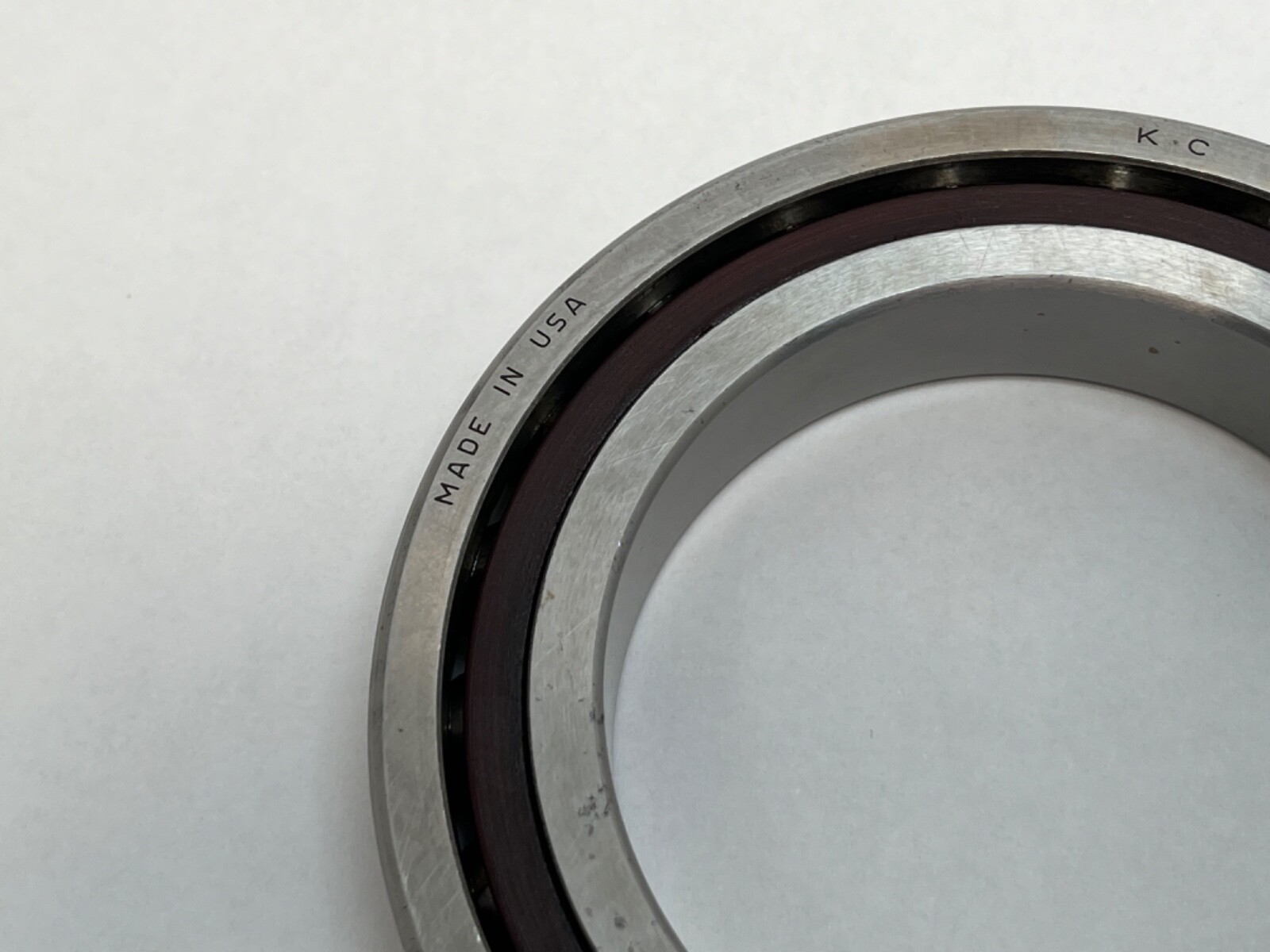

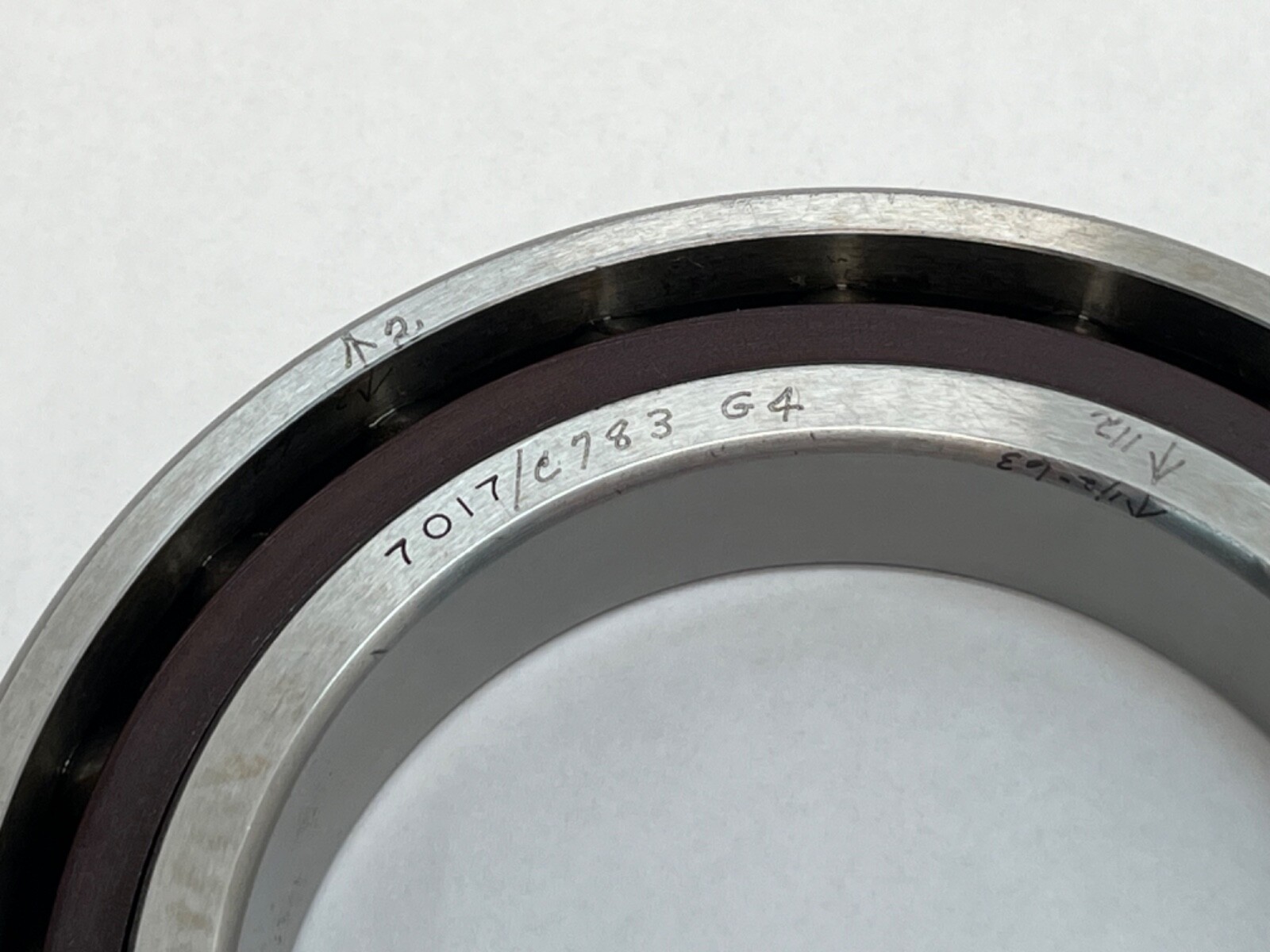

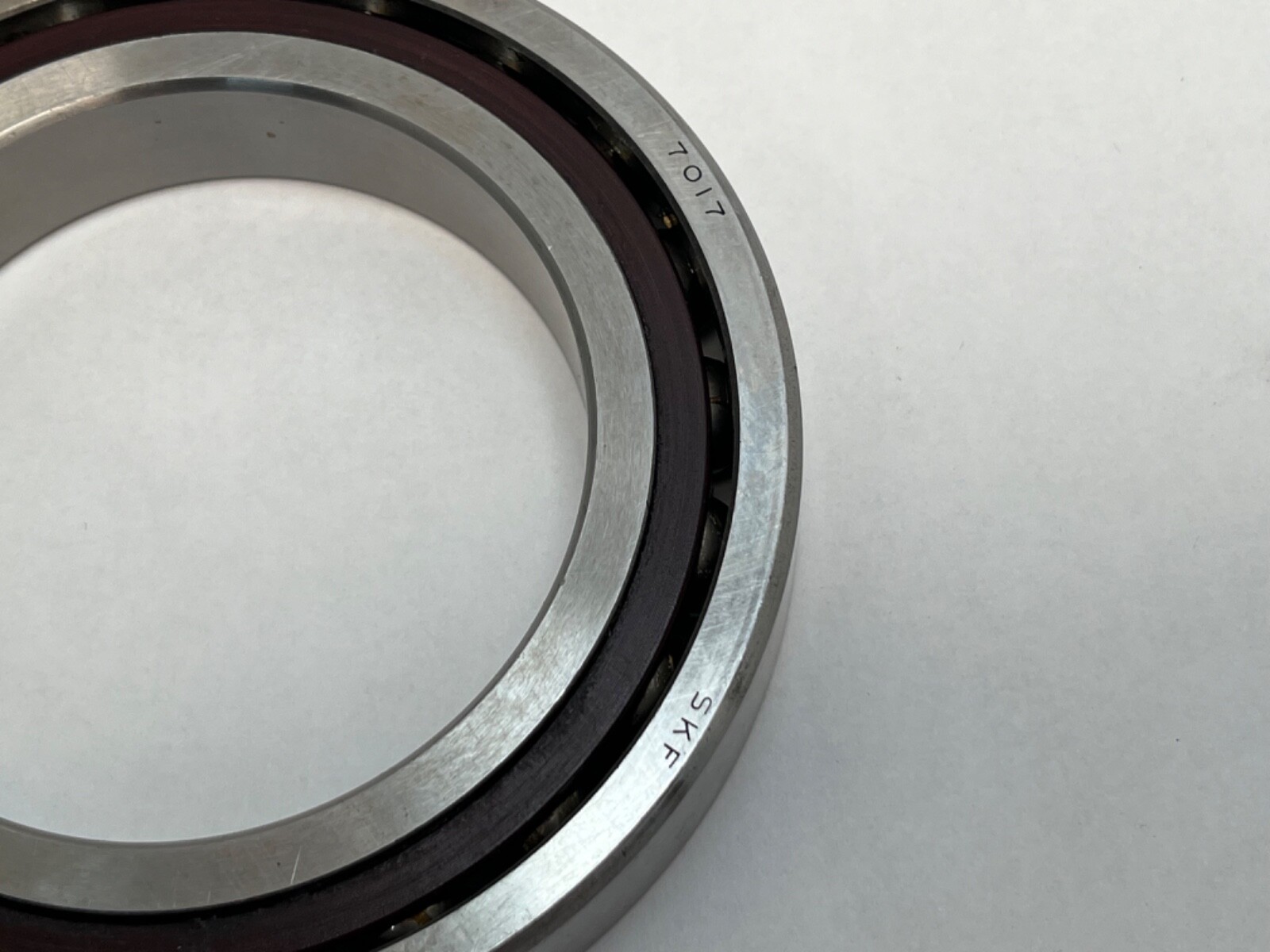

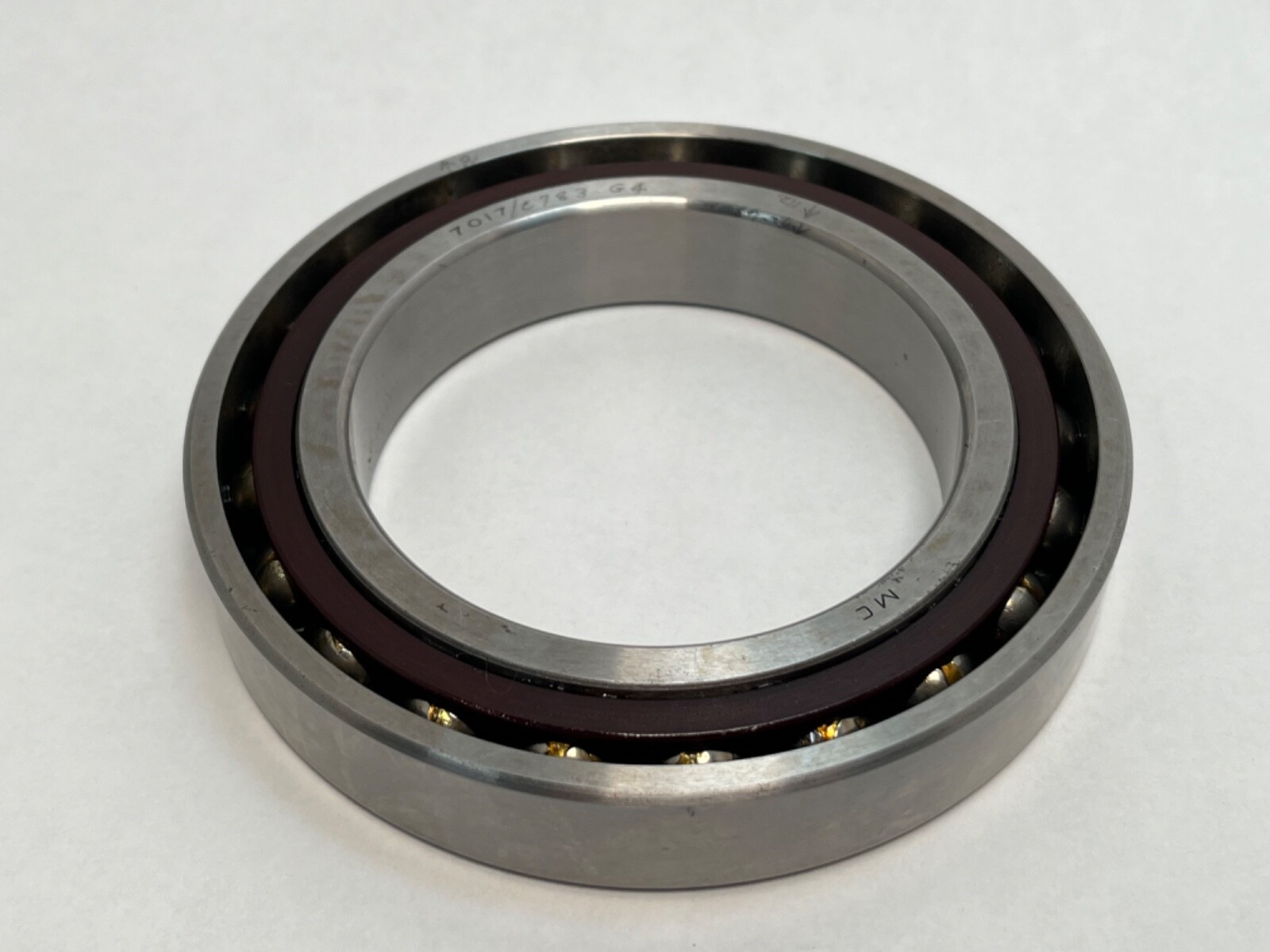

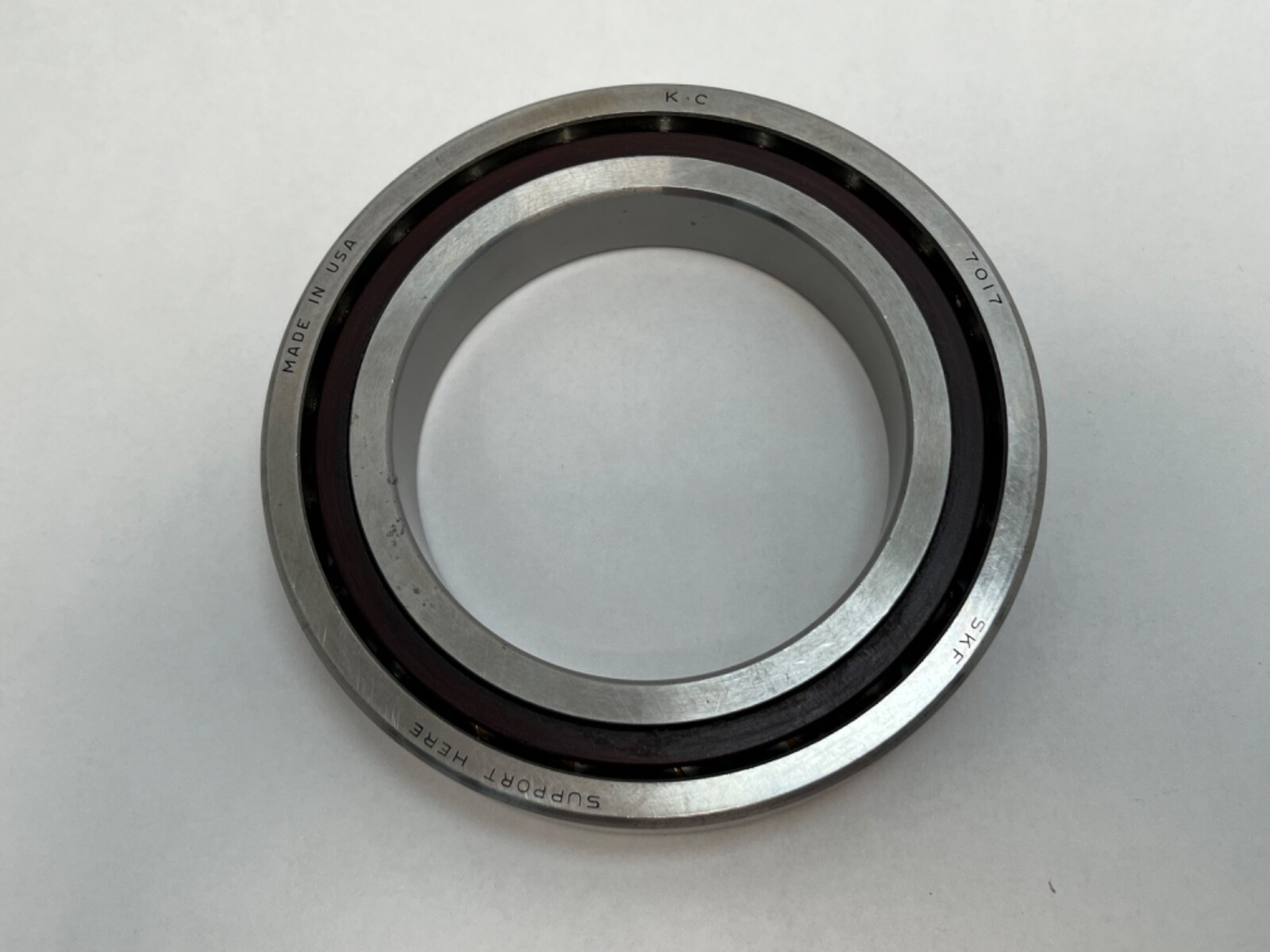

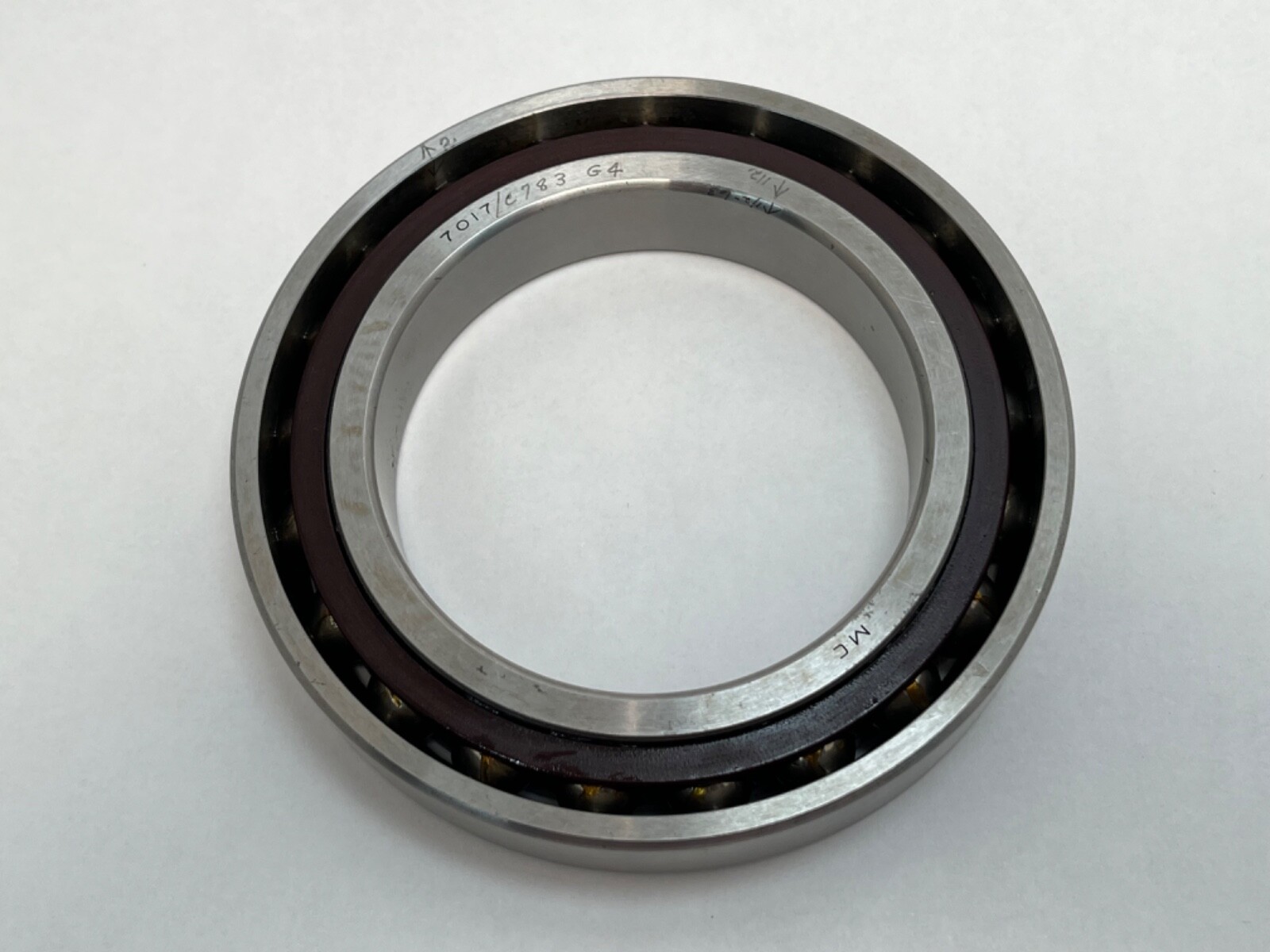

The bearing is new old stock with staining on the ring surfaces from storage, visible in the photographs.

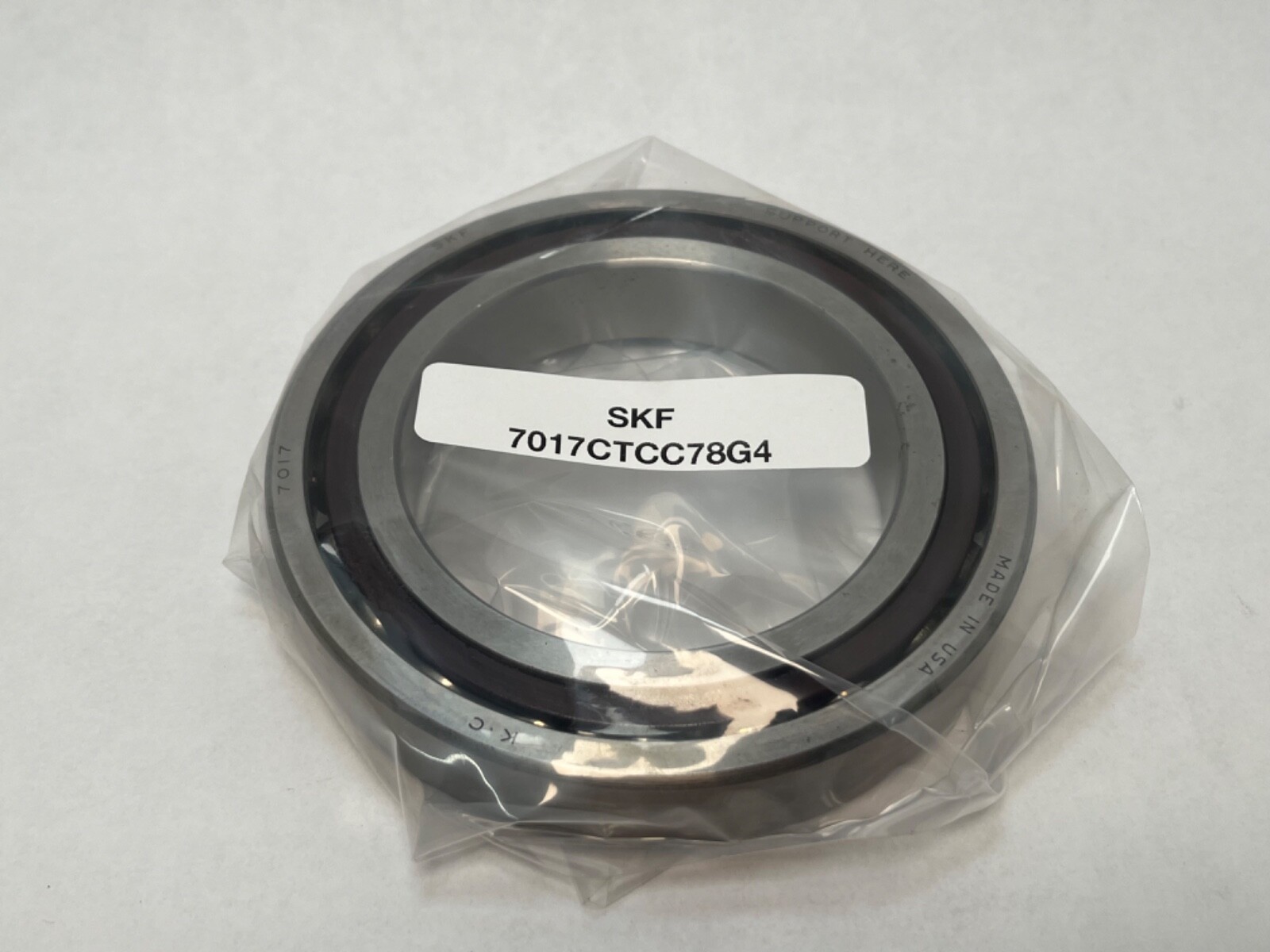

Supplied as 1 Pc.
Mounted singly it carries thrust in one direction, so an opposing bearing locates the shaft the other way.
Genuine equivalents are 15° angular contact bearings with a phenolic cage in the same 85x130x22 mm envelope: Fafnir 2MM9117WI-CR, FAG B7017-C-T-P4S, NSK 7017CTR and RHP 7017CT. The 25° version of this size, coded AC by SKF and A5 by NSK, is a related size rather than an interchange, because it changes axial rigidity and speed capability.
$141.11
255 in stock
$760.47
16 in stock
$141.11
255 in stock
